- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:PV3500
- Input Voltage:100v/110v/120v/220v/230v
- Output Voltage:100v/110v/120v/220v/230v
- Output Current:30A-100A
- Output Frequency:50Hz/60Hz
- Output Type:Single
- Size:488*415*200mm
- Type:DC/AC Inverters
- Weight:40-70kgs
- Output Power:1 - 200KW
- Color:Red or Greem or OEM
- Capacity:4KW-12KW
- Display:LCD+LED display
- MPPT max efficiency:98%
- Rated charge current:100A
- Mounting:Wall Mount
- Rated voltage:24/48VDC
- Product name:Off Grid Solar inverter 10000W for Motor Appliances
- Efficiency:93%
200A MPPT charger controller with low frequency solar inverter from MUST power inverter
Product name:
Off Grid Solar inverter 10000W for Motor Appliances
Fetures:
Solar pv inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.
*power range 5KVA-15KVA
*24V/48VDC input voltage
*powerful charge rate up to 100Amp
*inbuilt pure copper transformer
*pure sine wave output
*LED+LCD display
*MPPT solar charge controller 40A 45A 60A
*MPPT efficency max 98%
*50/60HZ automatic sensing
*RS232 with free CD
*battery priority function
*automatically send signal to start generator
*DC start&automatic self-diagnostic function
*high efficiency design&"power saving mode"to conserve energy
| MODEL | PV35-5K Pro | PV35-6K Pro | PV35-7500 Pro | PV35-10K Pro | PV35-12.5K Pro | PV35-15K Pro | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Default Battery System Voltage | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC | |
| INVERTER OUTPUT | Continuous output power | 5KVA/4.0KW | 6KVA/4.8KW | 7.5KVA/6.0KW | 10KVA/8.0KW | 12.5KVA/10.0KW | 15KVA/12.0KW | |||
| Surge rating (20ms) | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW | ||||
| Capable Of Starting Electric Motor | 2HP | 3HP | 3HP | 4HP | 5HP | 6HP | ||||
| Output waveform | Pure sine wave/ same as input (bypass mode) | |||||||||
| Inverter Efficiency(Peak) | >88% | |||||||||
| Line mode efficiency | >95% | |||||||||
| Power factor | 1.0 | |||||||||
| Nominal output voltage RMS | 220V/230V/240VAC(+/-10% RMS) | |||||||||
| Output frequency | 5OHz/60Hz +/-0.3 Hz | |||||||||
| Short circuit protection | Yes (1sec after fault) | |||||||||
| Typical transfer time | 10ms(max) 10ms(max) | |||||||||
| AC INPUT | Voltage | 230VAC | ||||||||
| Selectable Voltage Range | 155~280VAC(For Personal Computers) | |||||||||
| Frequency Range | 50HZ/60HZ (Auto sensing) 40~80Hz | |||||||||
| BATTERY | Minimum start voltage | 20.OVDC/21.0VDC for24VDC mode (40.OVDC/42.0VDC for 48VDC mode) | ||||||||
| Low battery alarm | 21.0VDC+/-0.3V for 24VDC mode (42.OVDC+/-0.6V for 48VDC mode) | |||||||||
| Low battery Cutoff | 20.0VDC+/-0.3V for 24VDC mode (40.OVDC+/-0.6V for 48VDC mode) | |||||||||
| High voltage alarm | 32.0VDC+/-0.3V for 24VDC mode (64.OVDC+/-0.6V for 48VDC mode) | |||||||||
| High battery voltage recover | 31.0VDC+/-0.3V for 24VDC mode (62.OVDC+/-0.6V for 48VDC mode) | |||||||||
| Idle consumption-search mode | <25W when power saver on | |||||||||
| CHARGER | Output voltage | Depends on battery type | ||||||||
| Charger AC input breaker rating | 30A | 30A | 30A | 40A | 50A | 63A | ||||
| Max charge power rate | 1/3 Rating power | |||||||||
| Overcharge protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||||
| Maximum Charge Current | 65A | 35A | 65A | 40A | 65A | 50A | 70A | 80A | 100A | |
| BTS | Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||||||||
| BYPASS & PROTECTION | Input voltage waveform | Sine wave (grid or generator) | ||||||||
| Nominal voltage | 220V/230V/240VAC | |||||||||
| Max input AC voltage | 300VAC for 230VAC HV mode | |||||||||
| Nominal input frequency | 50Hz or 60Hz | |||||||||
| Overload protection (SMPS load) | Circuit breaker | |||||||||
| Output short circuit protection | Circuit breaker | |||||||||
| Bypass breaker rating | 40A | 40A | 40A | 50A | 63A | 63A | ||||
| Max bypass current | 40Amp | 80Amp | ||||||||
| Rated voltage | 24VDC/48VDC | |||||||||
| PV open circuit voltage | Operational max = 145VDC temperature corrected VOC | |||||||||
| SOLAR CHARGER | Maximum PV Charge Current | 60A | 60A(120A Optional) | |||||||
| DC Voltage | 24V/48V atuo work | 48V | ||||||||
| Maximum PV Array Power | 1600W | 3200W | 1600W | 3200W | 1600W | 3200W | 3200W(6400W for 120A Optional) | |||
| MPPT Range @ Operating Voltage | 32-145VDC for 24V mode,64-145V for 48V mode | 64~145VDC | ||||||||
| Maximum PV Array Open Circuit Voltage | 147VDC | 147VDC | ||||||||
| Maximum Efficiency | >98% | |||||||||
| Standby Power Consumption | <2W | |||||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | ||||||||
| Inverter dimensions (W*H*D) | 517*414*211mm | 587*414*211mm | ||||||||
| Inverter weight (solar chg) KG | 38+2.5 | 48+2.5 | 49+2.5 | 60+2.5 | 66+2.5 | 70+2.5 | ||||
| Shipping dimensions(W*H*D) | 650*520*310mm | 750*520*310mm | ||||||||
| Shipping weight (solar chg) KG | 40+2.5 | 50+2.5 | 51+2.5 | 62+2.5 | 68+2.5 | 72+2.5 | ||||
| OTHER | Operation Temperature Range | 0°C to 40°C | ||||||||
| Storage Temperature | -15°C to 60°C | |||||||||
| Audible Noise | 60dB MAX | |||||||||
| Display | LED+LCD | |||||||||
| Standard warranty | 1 year | |||||||||

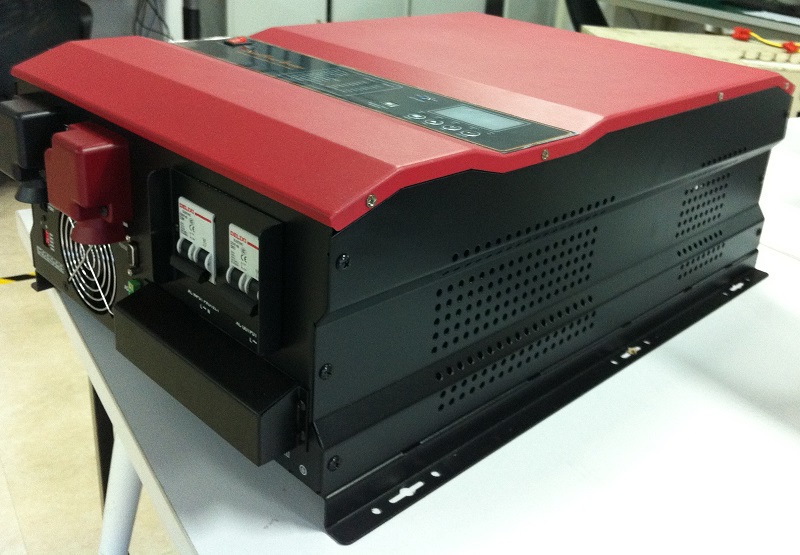

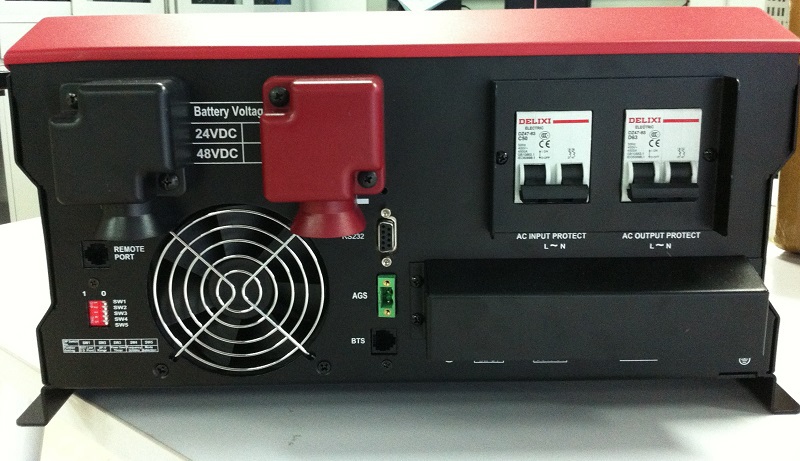

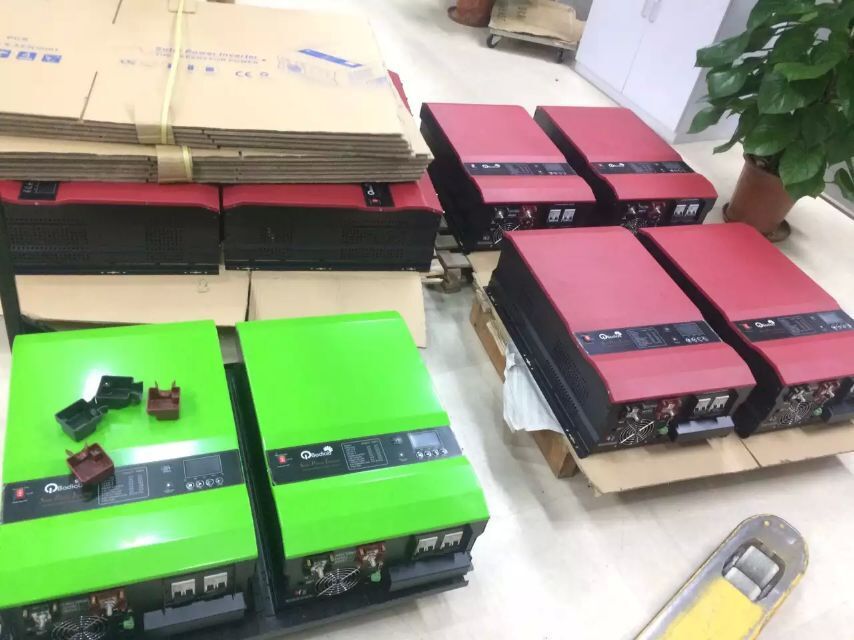

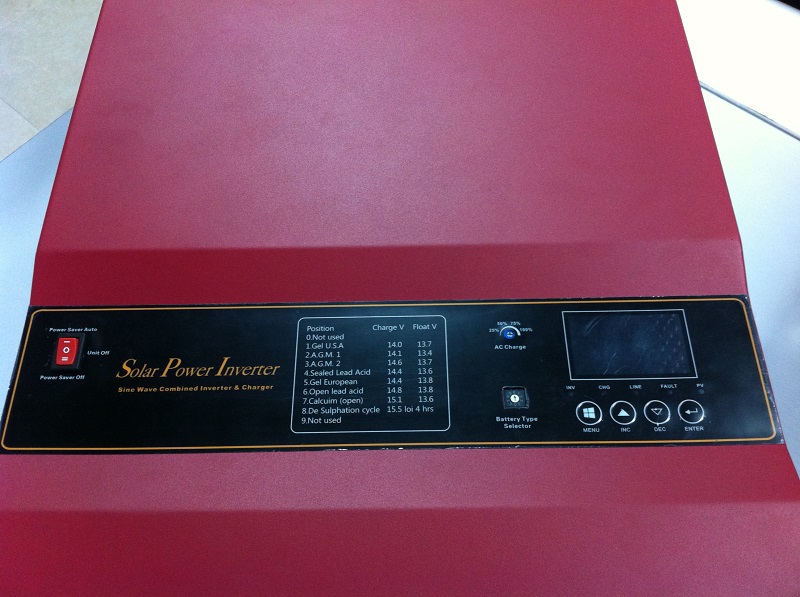

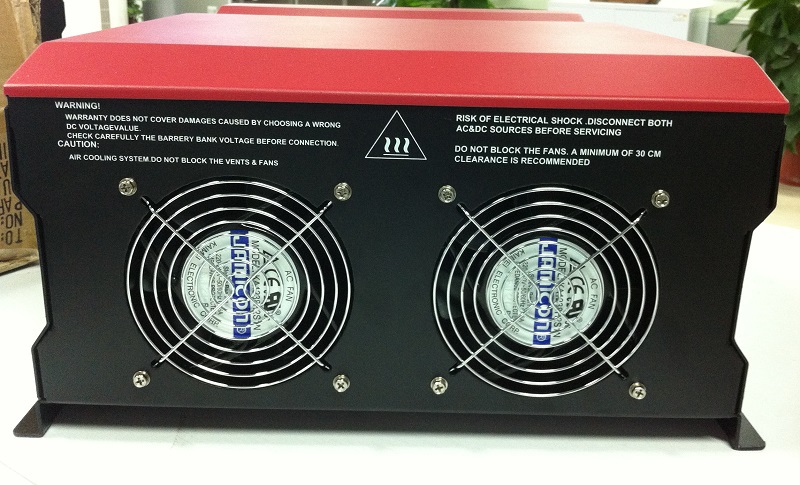

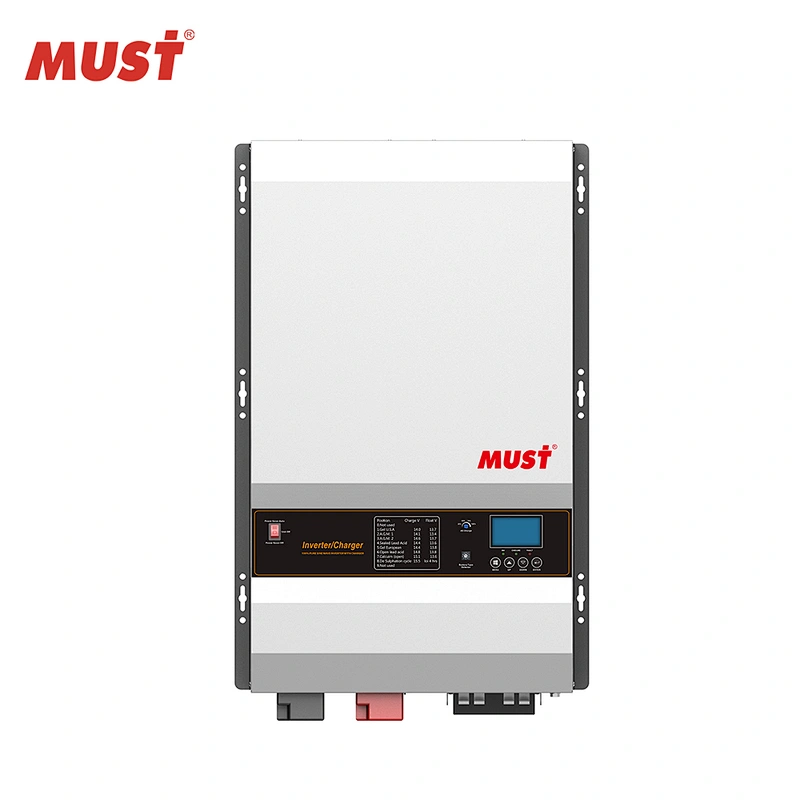

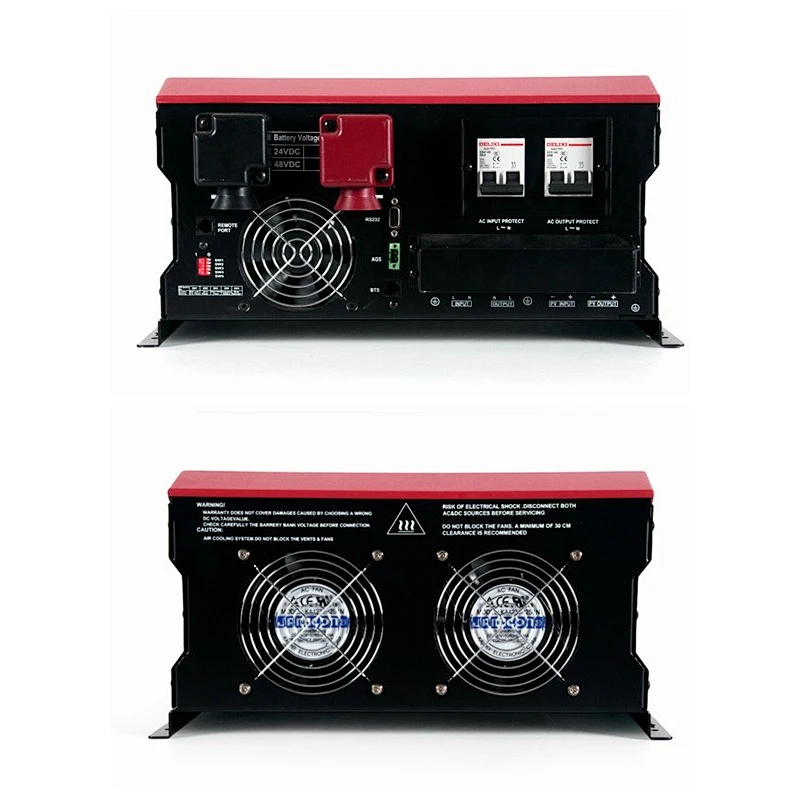

Product Picture

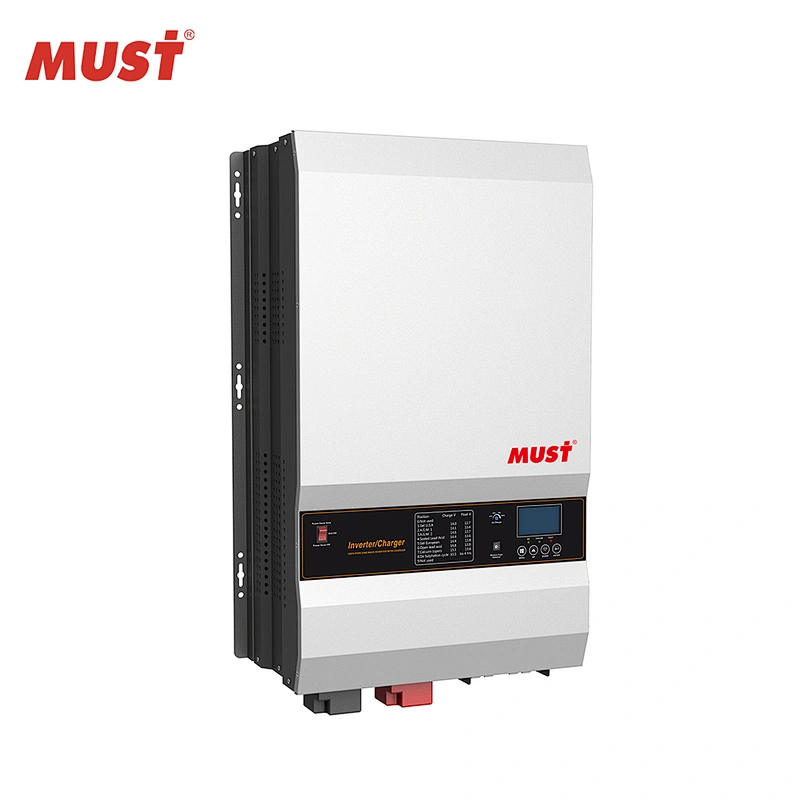

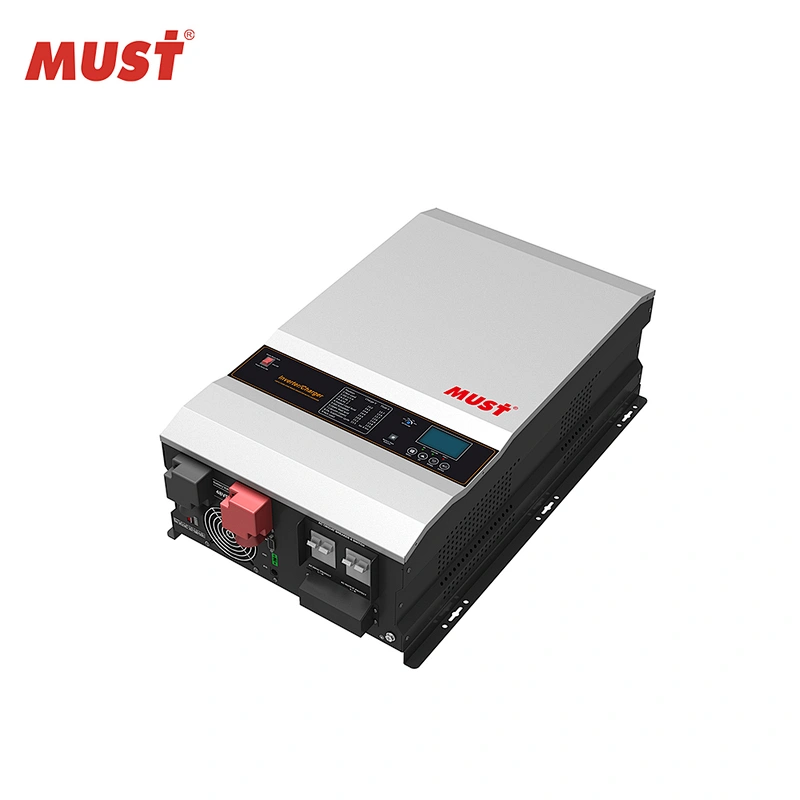

200A MPPT charger controller with low frequency solar inverter from MUST power inverter

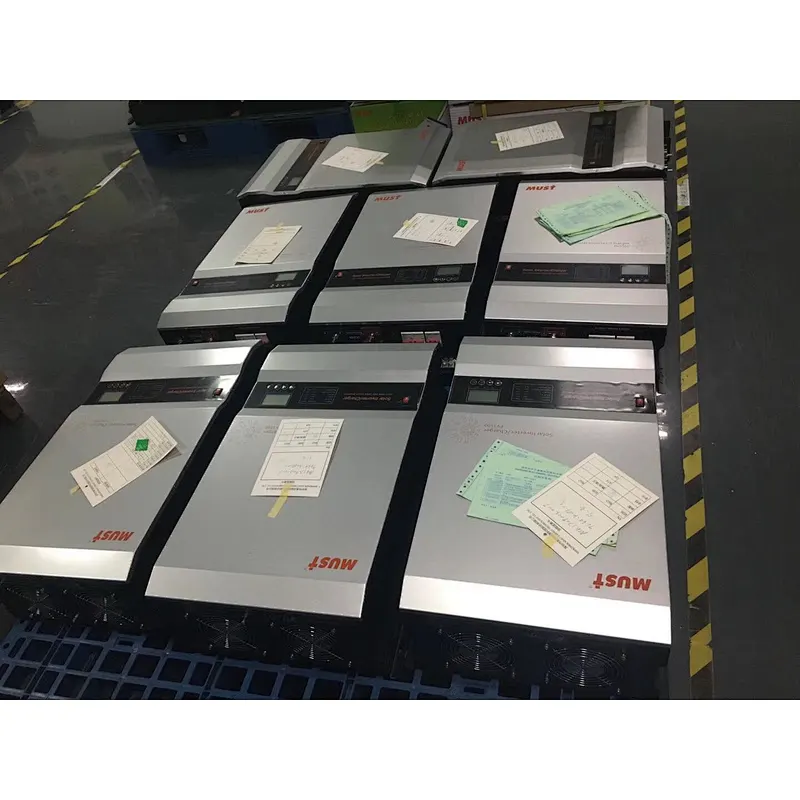

Our Company
