- Place of Origin:Guangdong, China
- Brand Name:Must back ups
- Model Number:500-1500va(W) (W1000)
- Phase:1 phase ups, 220v ups, ups 220v
- Protection:surge voltage, under voltage, battery low,over-load,over-temperature
- Weight:5.5-10.5kg
- Output Voltage:Euro. or US nominal 10% tolerance
- Type:STANDBY
- Application:personal computer, POS, small work-station
- back ups:offline / standby with modified sine wave
- Ac-reguator:full avr booster - bucker
- input range:150-290vac
- dc-ac convertion:PWM inverter
- charger:3-stage charge control
- output wave:step wave
- transfer time:2-6ms
- input protection:surge voltage, under-voltage
- battery protection:over-charge,over-discharge
- outpu protection:over-load,over-temperature,short-circuit

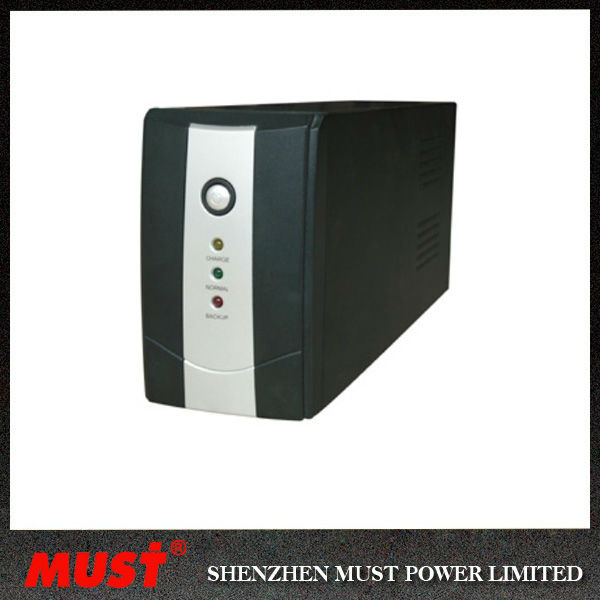

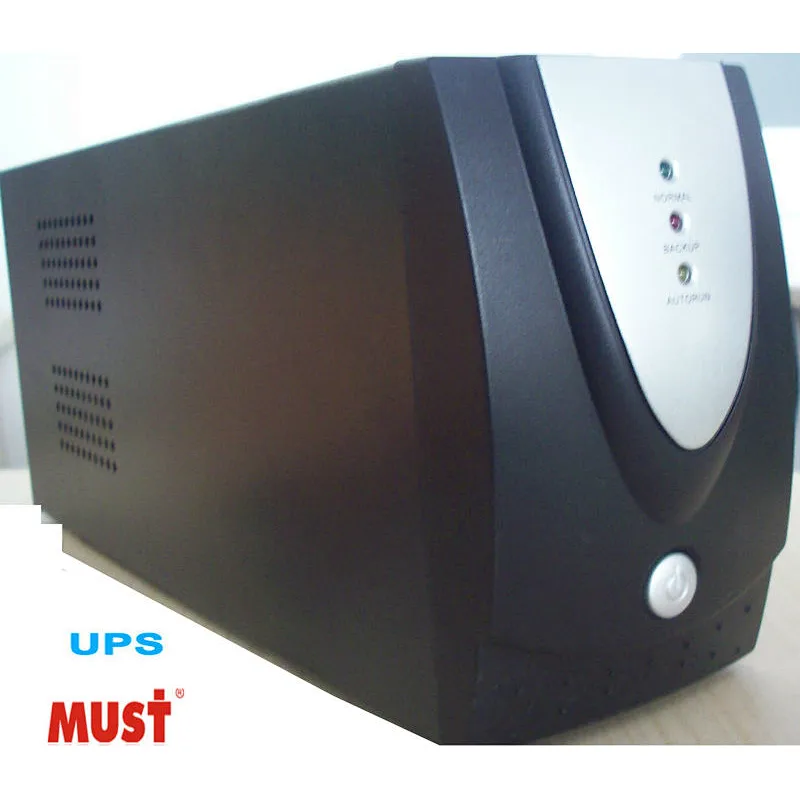

back ups standby design with full avr 500va to 1500va
back ups,backup ups,computer ups, power supply battery backup,ups for computers, power supply battery backup,
home ups backup systems,offline ups, standby ups
Feature:
1. 3-step booster-bucker avr for ac-brownout protection.
2. cpu control, pwm tech and min internal battery 7ah for ac-blackout protection,
3 RJ11/45 for input surge voltag protection;
4. 3-sep battery charge control for battery protection, over-charge, over-dsicharge/battery low;
5. advanced cpu control circuit, high rating components for output over-temperature, over-load, short-circuit protection.
back ups,backup ups,computer ups, power supply battery backup,ups for computers, power ups battery backup,
home ups backup systems,offline ups, standby ups
specification
back ups | 500va | 650va | 800va | 1000va | |
| Rated power | 300W | 390W | 480W | 600W | |
| INPUT | |||||
| Voltage | Nominal Voltage | 110/120 VAC or 220/230/240 VAC | |||
| Acceptable Voltage Range | 90-145 VAC/150-290 VAC | ||||
| Frequency Range | 50 Hz/60HZ | ||||
| OUTPUT | |||||
| AC Voltage Regulation (Batt. Mode) | ±10% | ||||
| Frequency Range (Batt. Mode) | 50 Hz or 60 Hz | ||||
| Transfer Time (Typical) | 2-6 ms | ||||
| Waveform (Batt. Mode) | Modified Sinewave | ||||
| BATTERY | |||||
| Battery Type & Numbers | 12 V 7 Ah x 1 | 12 V 7 Ah x 1 | 12 V 9 Ah x 1 | 12 V 7 Ah x 2 | |
| Back up Time(at a PC load | 8 minuters | 10 minuters | 20 minuters | 30 minuters | |
| Typical Recharge Time | 10 hours to 90% after complete discharge | ||||
| INDICATORS | |||||
| AC Mode | Green LED lighting | ||||
| Battery Mode | Yellow LED lighting | ||||
| Low Battery at Battery Mode | Yellow LED flashing every second | ||||
| Fault | Red LED lighting | ||||
| Battery Fault at AC modes | Yellow LED flashing three times every 2 seconds | ||||
| Battery Week at AC modes | Red LED flashing every 2 seconds for 30 seconds | ||||
| Overload | Red LED flashing every twice every second | ||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| Dimension, D X W X H (mm) | 295*95*140 | ||||
| Net Weight (kgs) | 5.5 | 6.2 | 6.8 | 10.5 | |
| ENVIRONMENT | |||||
| Humidity | 0 to 90% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | 0°Cto 40°C | ||||
back ups,backup ups,computer ups, power supply battery backup,ups for computers, power supply battery backup,
home ups backup systems,standby ups, offline ups

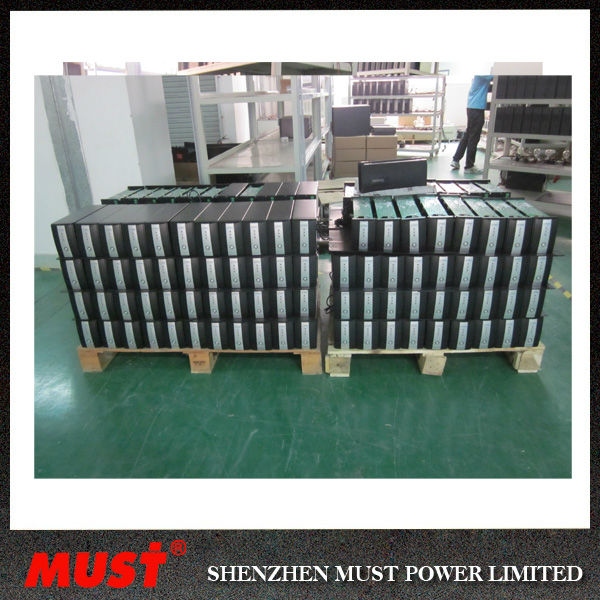

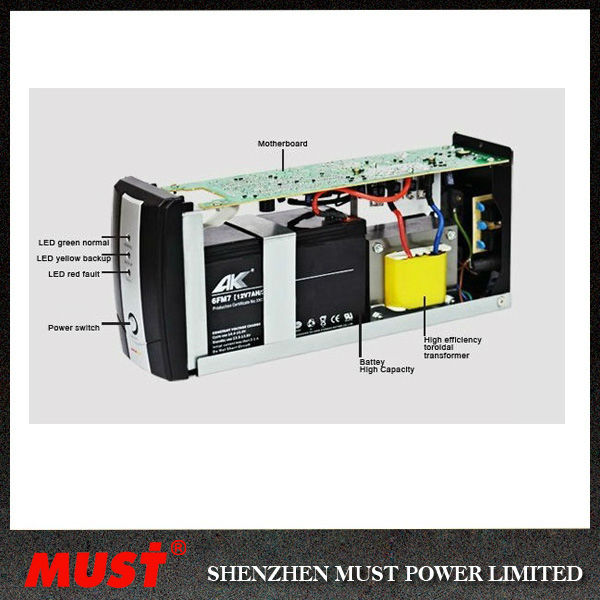

photos
