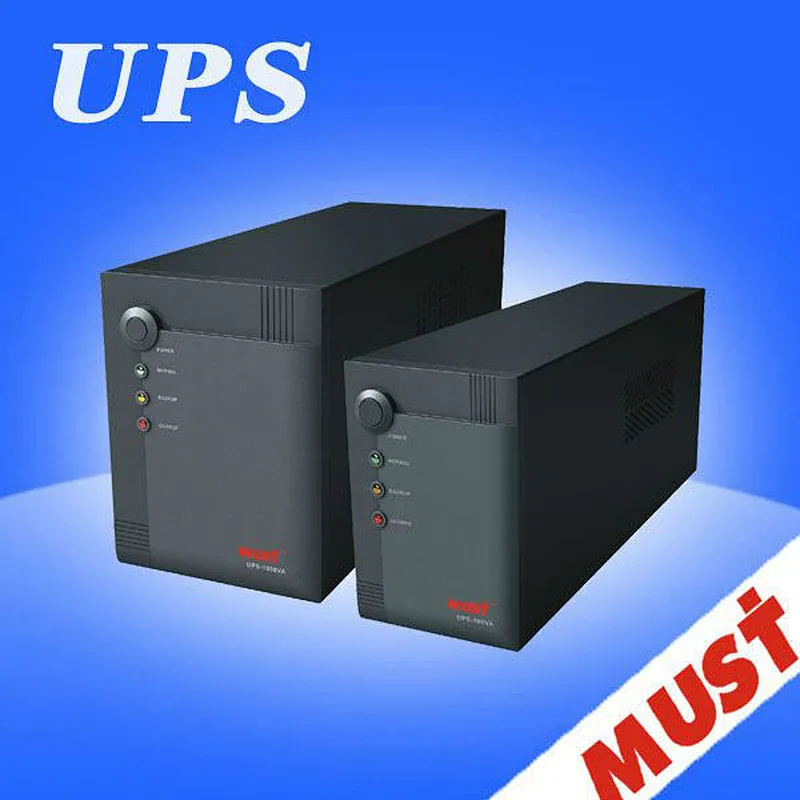

backup ups cpu control pwm inverter led usb interface for home use

Model NO.: W or EW2000 500va - 1500va
Country of Origin: Shenzhen, Guangzhou, HK

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:Must Santakups Oem
Model Number:W or EW2000 500va - 1500va
Phase:Single Phase
Protection:Under voltage, battery low, over-discharge,over load,short circuit
Weight:5-11 Kgs
Output Voltage:Ac nominal 10% tolerance
Type:modified sine wave line interactive ups
Application:pc office supplies home electronics small work-station POS terminals
Output wave:step wave
Panel:LED indicator
Communication:USB port
Transfer time:2-6 ms typical, 10 ms max
Surge protection:RJ45
Battery low voltage value:10.5Vdc
charge voltage:13.5Vdc
charge current:Max 1.0Amp
Ac input voltage:80-145Vac(110VAc) 145-290V(220/230/240VAc)
full protection:input output and battery protection,surge suppression

backup ups cpu control pwm inverter led usb interface for pc backup

backup ups brief feature

1. cpu control guarrantee reliable,stable ups operation;

2. pwm pulse width modification inverter tech output modified sine wave on battery mode;

3. 3-stagefull avr improves ac input range to 145-290vac;

4. minimum internal battery 7ah provide longer autonomy on ac outage/blackout;

5. lcd front panel for easy operation and clear power status and ups mode information show;

6. good avr design and battery protection extends battery service time;

7. auto self start and self charge design;

8. full input and output protection;

9. popular and convenient usb interface for easy communication and power management purpose via lantop.

backup ups description

1. advanced cpu control ups transfer, cold start, self-charge, auto-off on battery low intelligently;

2. PWM inverter tech works out step wave better than traditional standby ups with square wave output;

3. 1-stage voltage buck/290-238v and 2-stage voltage booster/135-164v,160-188v result in wider

ac input voltage, avoid transferring to battery-mode frequently, protect battery and extends battery

service time, thus solve ac-brownout/short term under voltage problem better;

4. Must power ltd adopts 2.15kg N.W. 12V-07ah for pc ups, home ups for better solution of

Ac-blackout/outage problem, hot-swappable battery design;
5. shut-down software executed easily on user's lantop with USB convenient management interface;

6. Intelligent battery management and protection design: over-charge,over-discharge/battery low,

3-stage charge methods: constant voltage,constant current and float charge;

7. input protection against over-voltage, under voltage and surge voltage suppression RJ11 or RJ45;

8. Battery self-chargable when ups off but Ac recovers;

9. ups line interactive auto self-startable upon ac recovers;

10. output protection against over-load,short-circuit.

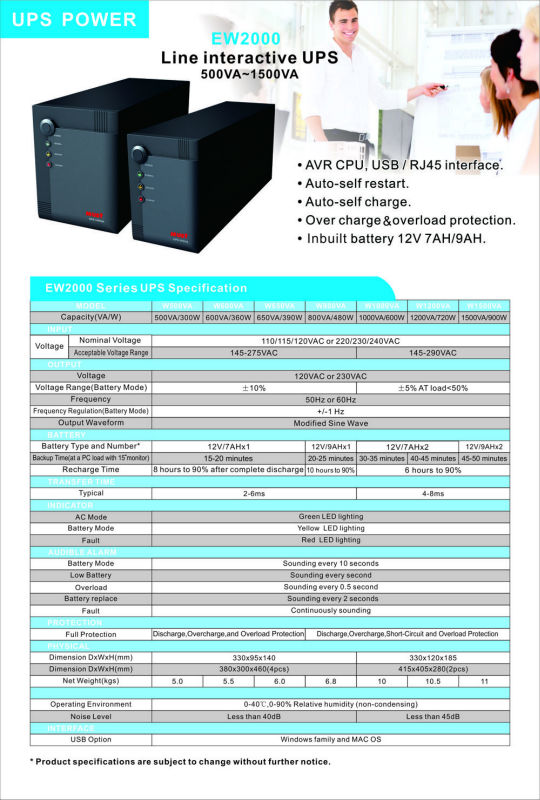

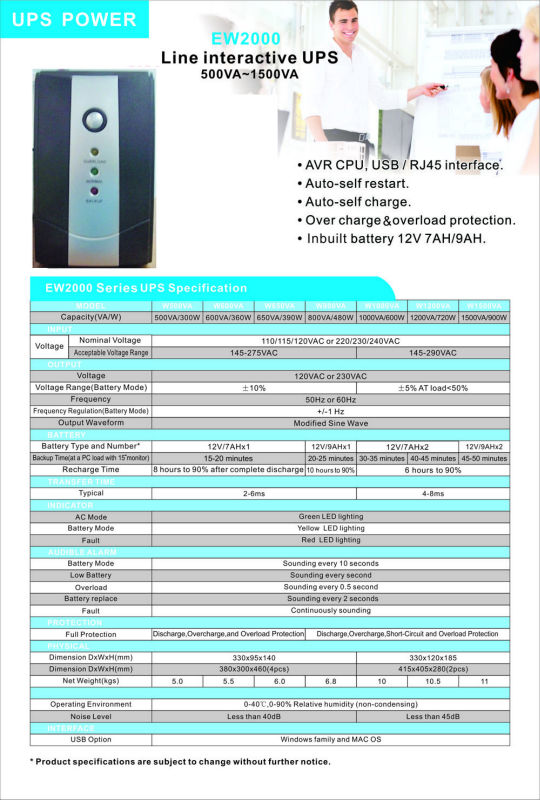

backup ups specification:
