- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:EA1150series 500VA-650VA
- Phase:Single Phase
- Protection:Short Circuit
- Weight:5.5kg-6.8kg
- Output Voltage:90-145 VAC/150-290 VAC
- Type:STANDBY
- Application:COMPUTER
- color:Black
- wide input voltage:170va-280va
- protection:over voltage
- display:LED
- more:high frequency
- phase:1phase
- output waveform:sine wave
- output:110VAC/220VAC
- transform time: max 8ms
- place of origin:guangdong (china)

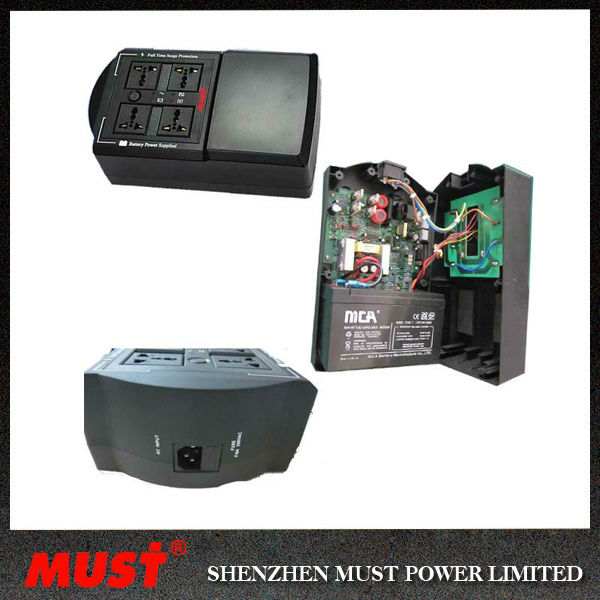

China small 200w power inverter UPS
Main features:
Replaceable Battery Design.
intelligent Battery Management.
Short Circuit and Overload Protection.
Surge protected outlets available for convenience.
Microprocessor Controlled guarantees high reliability.
Advanced PWM technology for inverteroutput.
with LED display
AVR function,inner installed examination circuit for too low or too high voltage,can connect with the power generator.
Auto Restart while AC Recovery for Best power 500VA/600VA/650VA
This model will automatically switch to battery mode and power the load via battery until battery low .
Technolgy Specifications
| CAPACITY | 500 VA/ 300 W | 650 VA/ 360 W | 800 VA/ 390W | |
| INPUT | ||||
| Voltage | Nominal Voltage | 110/120 VAC or 220/230/240 VAC | ||
| Acceptable Voltage Range | 90-145 VAC/150-290 VAC | |||
| Frequency Range | 50 Hz | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt. Mode) | ±10% | |||
| Frequency Range (Batt. Mode) | 50 Hz or 60 Hz | |||
| Transfer Time (Typical) | 2-6 ms | |||
| Waveform (Batt. Mode) | Modified Sinewave | |||
| BATTERY | ||||
| Battery Type & Numbers | 12 V 7 Ah x 1 | 12 V 7 Ah x 1 | 12 V 9 Ah x 1 | |
| Back up Time(at a PC load | 8 minuters | 8 minuters | 15 minuters | |
| Typical Recharge Time | 10 hours to 90% after complete discharge | |||
| INDICATORS | ||||
| AC Mode | Green LED lighting | |||
| Battery Mode | Green LED flashing every 4 seconds | |||
| Low Battery at Battery Mode | Green LED flashing every second | |||
| Fault | Red LED lighting | |||
| Battery Fault at AC modes | Green LED flashing three times every 2 seconds | |||
| Battery Week at AC modes | Red LED flashing every 2 seconds for 30 seconds | |||
| Overload | Red LED flashing every twice every second | |||
| ALARM | ||||
| Battery Mode | Sounding every 4 seconds | |||
| Low Battery | Sounding every second | |||
| Fault | Continuously sounding | |||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 280x260x95 | 280x260x96 | ||
| Net Weight (kgs) | 5.5 | 6.2 | 6.8 | |
| ENVIRONMENT | ||||
| Humidity | 0 to 90% Relative Humidity(Non-condensing) | |||
| Operating Temperature | 0°C to 40°C | |||
