- Place of Origin:Guangdong, China
- Brand Name:Must ups battery
- Model Number:500-800va(W series) ups battery
- Phase:1 phase ups, 220v ups, ups 220v
- Protection:surge voltage, under voltage, battery low,over-load,over-temperature
- Weight:5.5-10.5kg
- Output Voltage:Euro. or US nominal 10% tolerance
- Type:STANDBY
- Application:personal computer, POS, small work-station
- ups battery:12vdc, 24vdc for computer ac-blackout solution
- Ac-reguator:full avr booster - bucker
- input range:145-290vac
- dc-ac convertion:PWM inverter
- charger:3-stage charge control
- output wave:step wave
- transfer time:2-6ms
- input protection:surge voltage, under-voltage
- battery protection:over-charge,over-discharge
- outpu protection:over-load,over-temperature,short-circuit

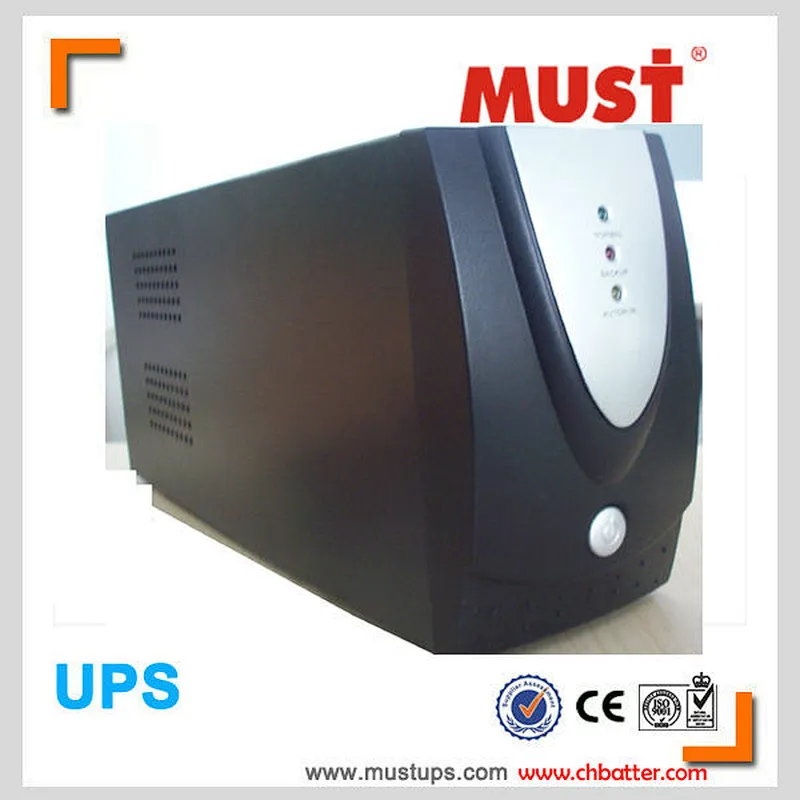

computer backup ac blackout problem solution from 12vdc 24vdc ups battery
main feature:
1. ups battery of full avr design: 3-step full ac input voltage regulation (AVR) boost/buck input voltage,
avoid frequently transfering to battery-mode, protect battery and extend battery service time
ac-brownout problem solution
2. ups battery solves ac-blackout problem with cpu control, PWM tech inverter and internal battery(min 7ah)
3. ups battery wide ac input range: 145-290vac
4. ups battery 500va to 1500va cold start design guarrantees emergent operation when ac blackout (battery full charged)
5. ups battery auto recharge design upon ac mains supply recovers
6. ups battery over-load, short-circuit, and battery protection function.
7. ups battery CE certified 500va,600va,650va,800va(12v power supply),1000va,1200va,1500va(24v power supply)
Specification
ups battery, battery ups | 500va | 650va | 800va | 1000va | |
| battery backup rated power | 300W | 390W | 480W | 600W | |
| INPUT | |||||
| Voltage | Nominal Voltage | 110/120 VAC or 220/230/240 VAC 1 phase ups | |||
| Acceptable Voltage Range | 90-145 VAC/150-290 VAC | ||||
| Frequency Range | 50 Hz/60HZ | ||||
| OUTPUT | |||||
| AC Voltage Regulation (Batt. Mode) | ±10% | ||||
| Frequency Range (Batt. Mode) | 50 Hz or 60 Hz | ||||
| Transfer Time (Typical) | 2-6 ms | ||||
| Waveform (Batt. Mode) | Modified Sinewave | ||||
| BATTERY | |||||
| Battery Type & Numbers | 12 V 7 Ah x 1 | 12 V 7 Ah x 1 | 12 V 9 Ah x 1 | 12 V 7 Ah x 2 | |
| Back up Time(at a PC load | 8 minuters | 10 minuters | 20 minuters | 30 minuters | |
| Typical Recharge Time | 10 hours to 90% after complete discharge | ||||
| INDICATORS | |||||
| AC Mode | Green LED lighting | ||||
| Battery Mode | Yellow LED lighting | ||||
| Low Battery at Battery Mode | Yellow LED flashing every second | ||||
| Fault | Red LED lighting | ||||
| Battery Fault at AC modes | Yellow LED flashing three times every 2 seconds | ||||
| Battery Week at AC modes | Red LED flashing every 2 seconds for 30 seconds | ||||
| Overload | Red LED flashing every twice every second | ||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| Dimension, D X W X H (mm) | 295*95*140 | ||||
| Net Weight (kgs) | 5.5 | 6.2 | 6.8 | 10.5 | |
| ENVIRONMENT | |||||
| Humidity | 0 to 90% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | 0°Cto 40°C | ||||
ups battery, battery ups, battery backup, battery backup power supply, computer backup, backup, offline ups, standby ups,
computer ups, pc ups, home ups, home power supply, pc ups
