- Place of Origin:Guangdong, China
- Brand Name:Must ups 12v 220v
- Model Number:500-800va(W series) ups 12v 220v
- Phase:1 phase ups, 220v ups, ups 220v
- Protection:surge voltage, under voltage, battery low,over-load,over-temperature
- Weight:5.5-10.5kg
- Output Voltage:Euro. or US nominal 10% tolerance
- Type:STANDBY
- Application:personal computer, POS, small work-station
- ups 12v 220v:square wave offline design for ac blackout solution
- Ac-reguator:full avr booster - bucker
- input range:145-290vac
- dc-ac convertion:PWM inverter
- charger:3-stage charge control
- output wave:step wave
- transfer time:2-6ms
- input protection:surge voltage, under-voltage
- battery protection:over-charge,over-discharge
- outpu protection:over-load,over-temperature,short-circuit

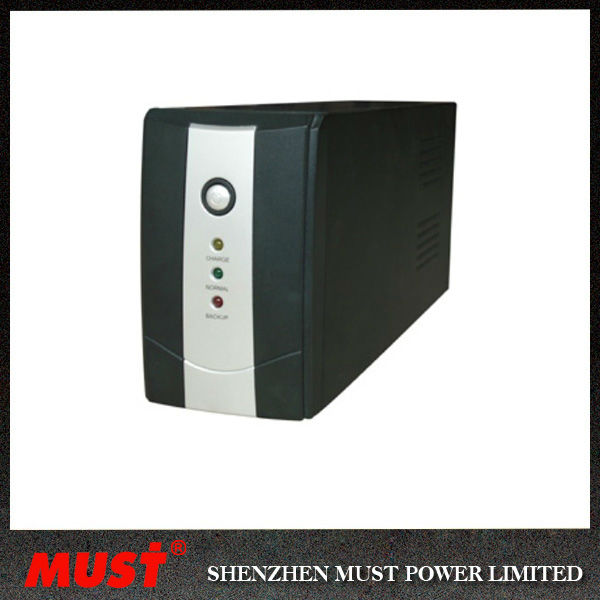

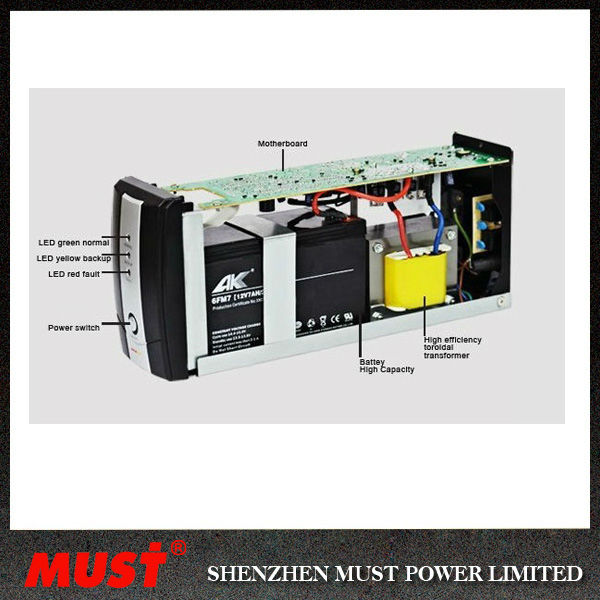

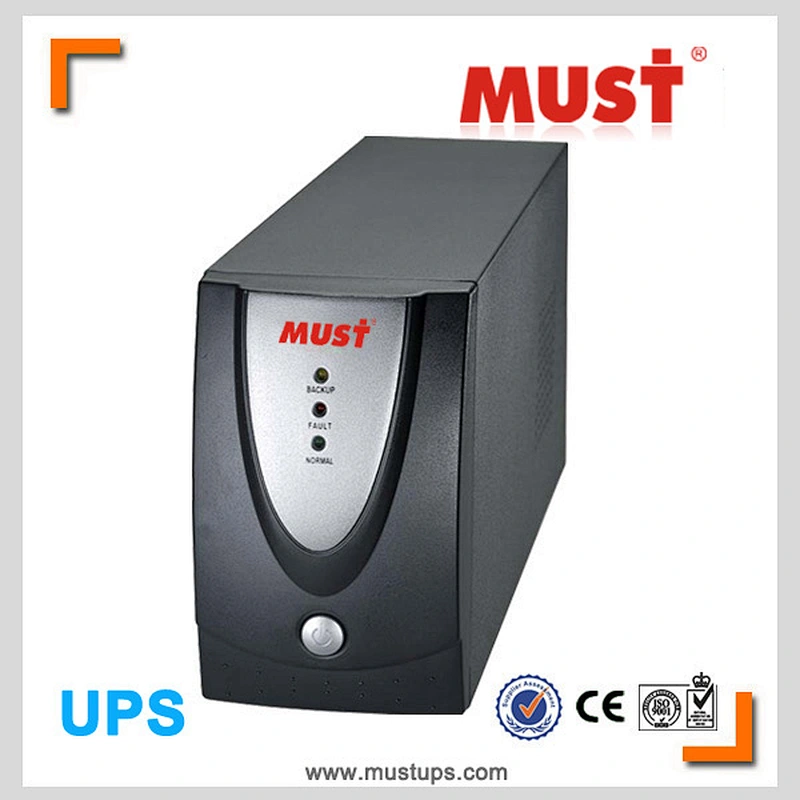

full avr square wave output ups 12v 220v 500va to 800va
main feature:
1. ups 12v 220v of full avr design: 3-step full ac input voltage regulation (AVR) boost/buck input voltage,
avoid frequently transfering to battery-mode, protect battery and extend battery service time
ac-brownout problem solution
2. ups 12v 220v solves ac-blackout problem with cpu control, PWM tech inverter and internal battery(min 7ah)
3. ups 12v 220v wide ac input range: 145-290vac
4. ups 12v 220v 500va to 1500va cold start design guarrantees emergent operation when ac blackout (battery full charged)
5. ups 12v 220v auto recharge design upon ac mains supply recovers
6. ups 12v 220v over-load, short-circuit, and battery protection function.
7. ups 12v 220v CE certified 500va,600va,650va,800va(12v power supply),1000va,1200va,1500va(24v power supply)
Specification
ups 12v 220v | 500va | 650va | 800va | 1000va | |
| offline ups rated power | 300W | 390W | 480W | 600W | |
| INPUT | |||||
| Voltage | Nominal Voltage | 110/120 VAC or 220/230/240 VAC 1 phase ups | |||
| Acceptable Voltage Range | 90-145 VAC/150-290 VAC | ||||
| Frequency Range | 50 Hz/60HZ | ||||
| OUTPUT | |||||
| AC Voltage Regulation (Batt. Mode) | ±10% | ||||
| Frequency Range (Batt. Mode) | 50 Hz or 60 Hz | ||||
| Transfer Time (Typical) | 2-6 ms | ||||
| Waveform (Batt. Mode) | Modified Sinewave | ||||
| BATTERY | |||||
| Battery Type & Numbers | 12 V 7 Ah x 1 | 12 V 7 Ah x 1 | 12 V 9 Ah x 1 | 12 V 7 Ah x 2 | |
| Back up Time(at a PC load | 8 minuters | 10 minuters | 20 minuters | 30 minuters | |
| Typical Recharge Time | 10 hours to 90% after complete discharge | ||||
| INDICATORS | |||||
| AC Mode | Green LED lighting | ||||
| Battery Mode | Yellow LED lighting | ||||
| Low Battery at Battery Mode | Yellow LED flashing every second | ||||
| Fault | Red LED lighting | ||||
| Battery Fault at AC modes | Yellow LED flashing three times every 2 seconds | ||||
| Battery Week at AC modes | Red LED flashing every 2 seconds for 30 seconds | ||||
| Overload | Red LED flashing every twice every second | ||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| Dimension, D X W X H (mm) | 295*95*140 | ||||
| Net Weight (kgs) | 5.5 | 6.2 | 6.8 | 10.5 | |
| ENVIRONMENT | |||||
| Humidity | 0 to 90% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | 0°Cto 40°C | ||||
W500va W600va W650va W800va Packaging
1 pc / 1 gift box / inner box
4 boxes / ctn
Custom and Purpose design service
220vac 50Hz/60Hz,
230vac 50Hz
240vac 50Hz
110vac 60Hz
120vac 60Hz
208vac 60Hz
1Ph + Neutral + Ground
Must Power Limited background
W series 500va to 1500va CE certified
Manufacturer background: ISO 9001 (2008)
ups 12v 220v,battery ups, battery backup, battery backup power supply, offline ups, standby ups, computer backup,
computer ups, home power supply, battery backup power supply
