- Warranty:3months-1year, 1 year
- Place of Origin:Guangdong, China
- Brand Name:MUST or OEM
- Model Number:EH5200
- Phase:Single Phase
- Protection:Short Circuit
- Weight:13.8
- Type:On-line
- Application:COMPUTER
- Product name:Online UPS Systems
- Wave Form:Pure Sine Wave Online Ups
- Input voltage:220V/230V/240V
- Power factor:0.9
- Transfer Time:0
- Capacity:1-10KVA
- Efficiency:99%
- Frequency:50HZ/60HZ
- Battery Type:Lead-acid Maintenance-free Battery

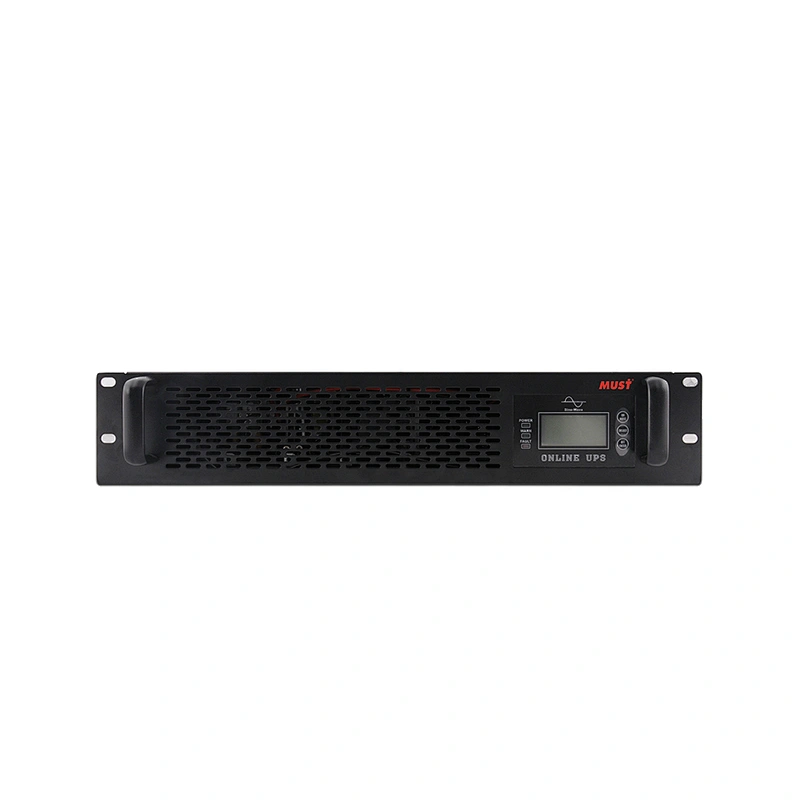

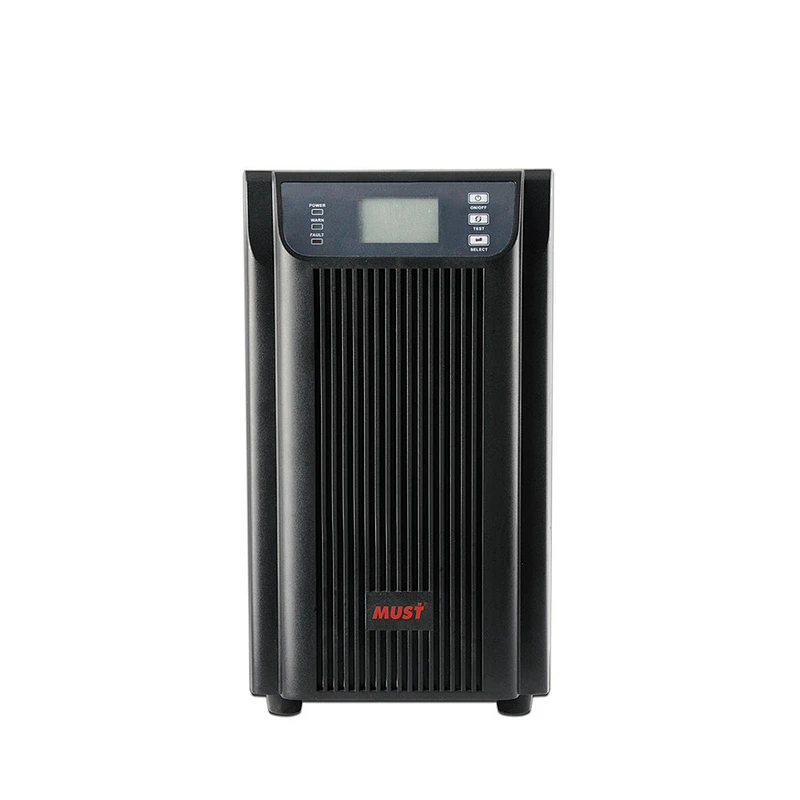

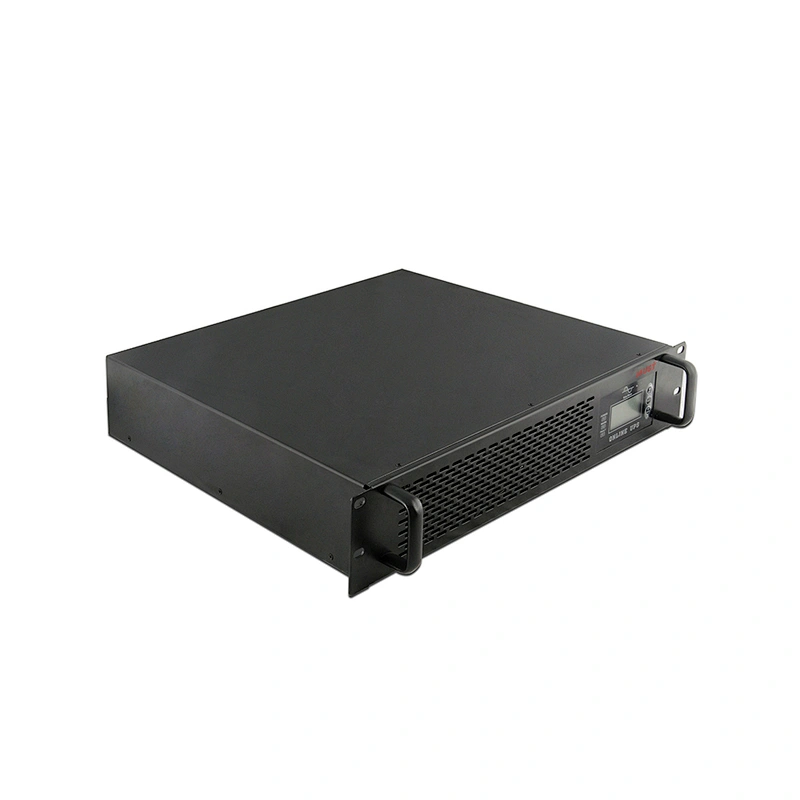

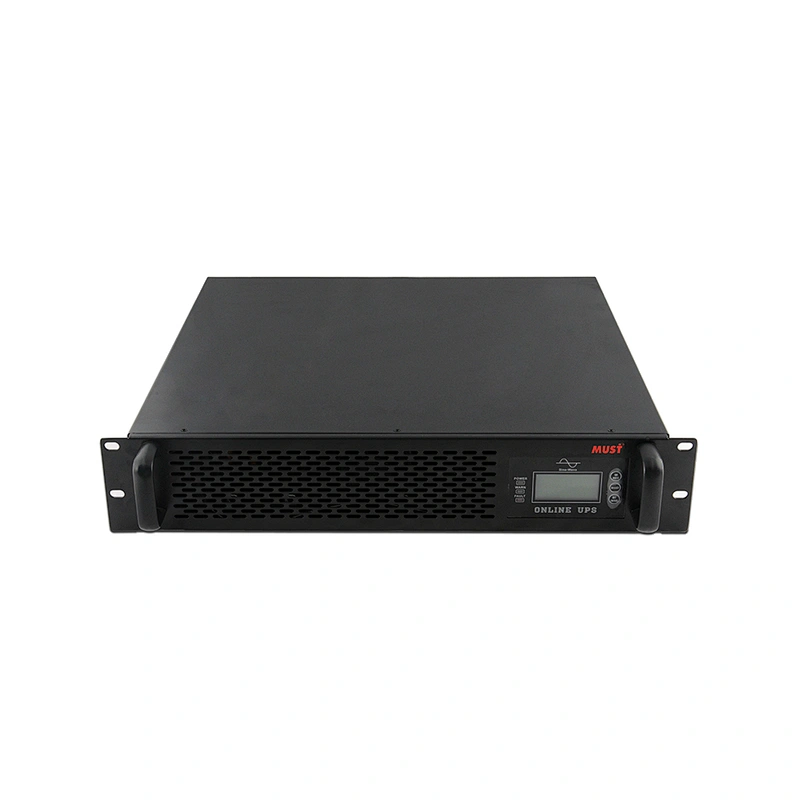

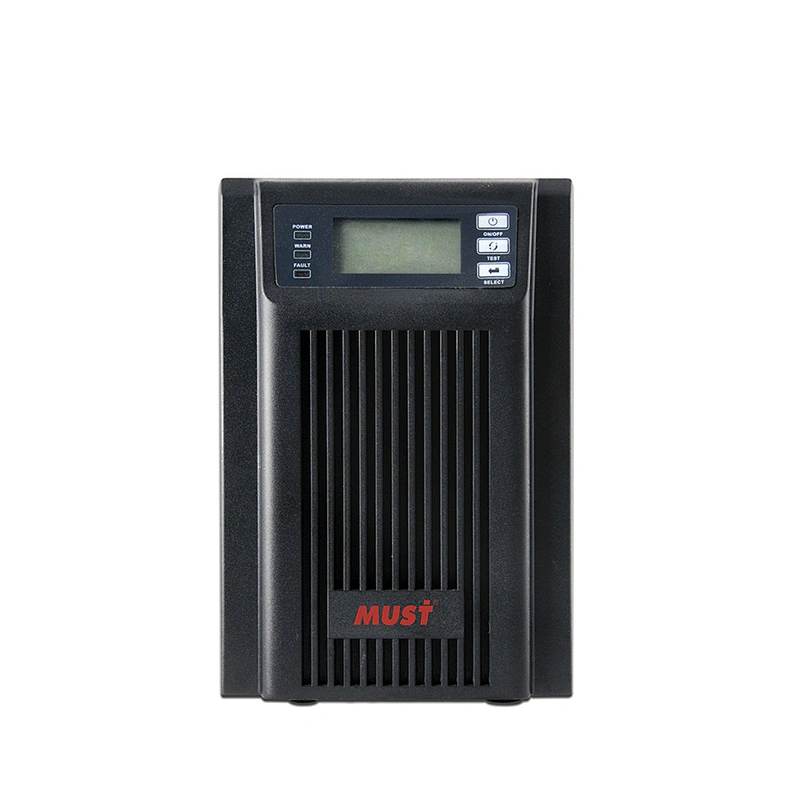

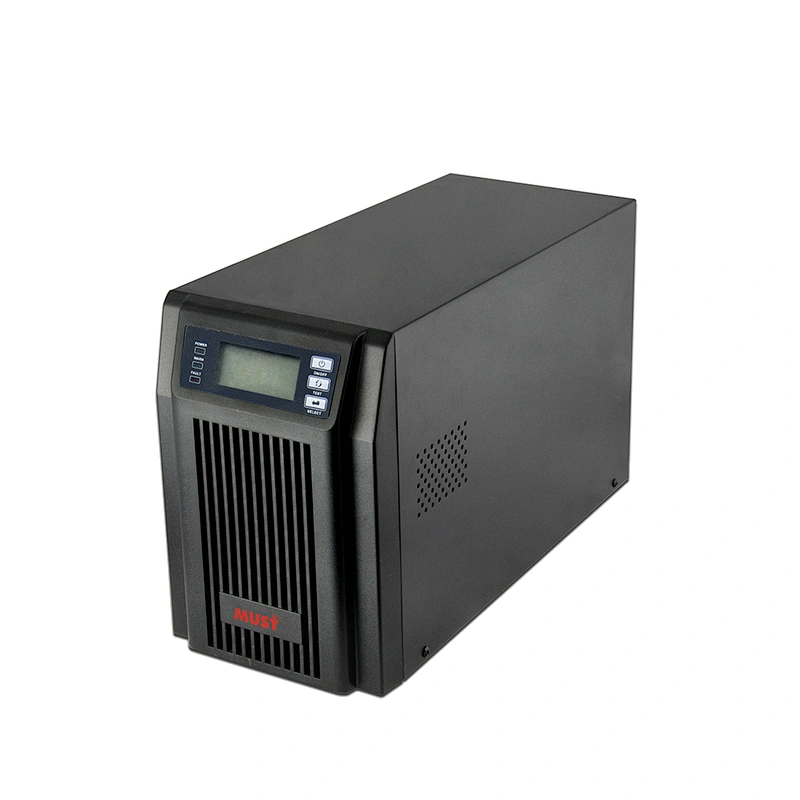

High frequency Online Ups 220v 1kva 2kva 3kva With PF1 1000w 2000w 3000w

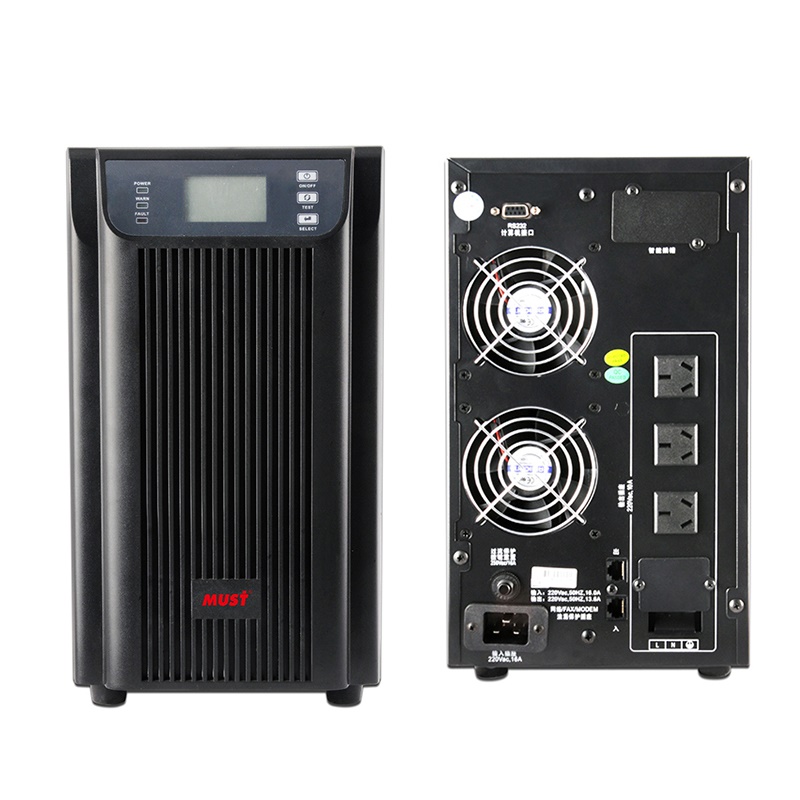

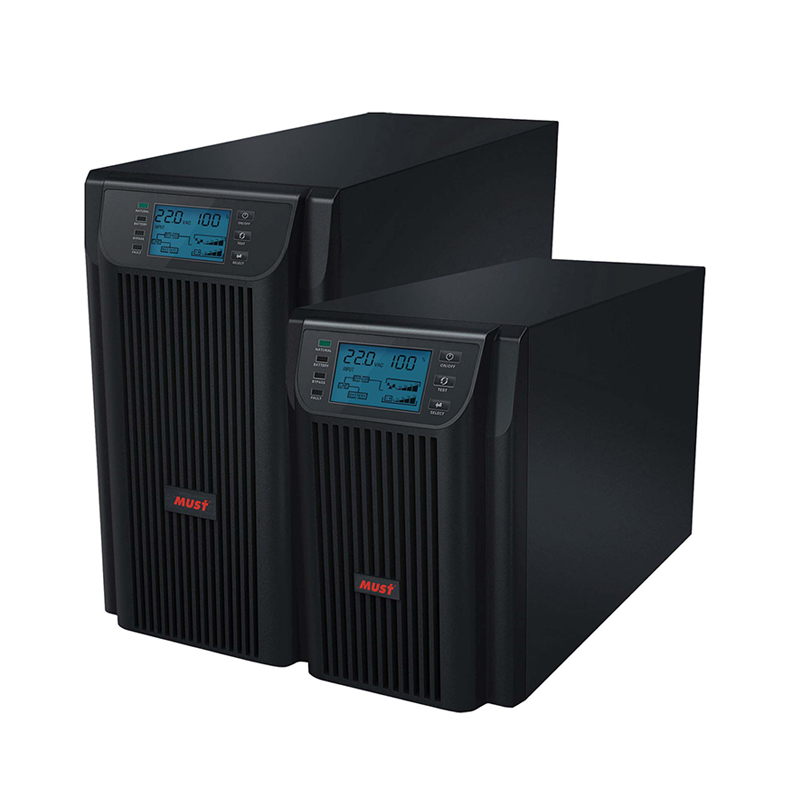

EH5200 series 1KVA-3KVA online ups
High Frequency Online UPS
EH5200 Series (1-3KVA)
This Online Series is an uninterruptible power supply incorporating conversion technology. It provides perfect protection specifically for computer equipment, communication systems to computerized instruments.The double-conversion principle eliminates all mains power disturbances. A rectifier converts the alternating current from the utility power to direct current. This direct current charges the batteries and powers the inverter. On the basis of this DC voltage. the inverter generates a sinusoidal AC voltage which is constantly powering the loads.Computers and Peripherals are thus powered entirely by the UPS. In the event of power failure, the maintenance-free batteries power the inverter.
Features:
Rated power 1KVA to 3KVA;
Pure Sine wave output;
TRANSIENT VOLTAGE SURGE SUPPRESS protect function for FAX,TELEPHONE,MODEM;
Machine efficiency greater than 93%, input power factor greater than 0.99, input current harmonics less than 5%;
Compatible to generator;
Optional SNMP for monitoring.
| Model | H1K | H1KS | H2K | H2KS | H3K | H3KS |
|---|---|---|---|---|---|---|
| Capacity | ||||||
| VA/W | 1KVA/0.9KW | 2KVA/1.8KW | 3KVA/2.7KW | |||
| Input | ||||||
| Voltage Range | Full Load:160±50%VAC~300±50%VAC;Half Load:110±50%VAC~300±50%VAC | |||||
| Frequency Range | 40-70Hz | |||||
| Phase | Single phase two wire+ground wire | |||||
| Distortion | <5% | |||||
| Power factor | 0.99 | |||||
| Generator input | support | |||||
| Output | ||||||
| Voltage | 220 (1±1%)VAC | |||||
| Frequency (same frequency mode) | 47~53Hz/57~63Hz | |||||
| Power Factor | 0.9 | |||||
| Frequency (battery mode) | 50±0.25Hz or 60±0.25Hz | |||||
| Crest ratio | 03:01 | |||||
| Harmonic distortion | ≤3%THD (Linear load) | |||||
| ≤6%THD (Nonlinear load) | ||||||
| Output waveform | Pure Sine Wave | |||||
| Socket | Universal socket *2 | Universal socket *4 | Universal socket *3+Terminal block | |||
| Over Load | 100%-110%: warning sound; 110%-130%:Automatically turns off after 1 minute, or switch to bypass mode when input correct; >130%:Turn off immediately, or switch to bypass mode when the input correct | |||||
| Efficiency | ||||||
| Charging Mode | 85% | 88% | ||||
| Battery Mode | 83% | 85% | ||||
| Battery | ||||||
| Battery Type | 12V/7AH | / | 12V/7AH | / | 12V/7AH | / |
| Battery Number | 3 | 6 | 8 | |||
| Equipment time (full load) | >5mins | >5mins | >5mins | |||
| Charging Time(90%) | 8h | 8h | 8h | |||
| Charge battery (max) | 1.0A | 4.0 | 1.0A | 4.0 | 1.0A | 4.0 |
| Rated charging voltage | 41.0±1%VDC | 82.1±1%VDC | 109.4±1%VDC | |||
| Temperature detection | support | |||||
| Conversion time | ||||||
| Utility to Battery | 0ms | |||||
| Inverter to bypass | 4ms | |||||
| Utility Priority Mode | support | |||||
| Warning Alarm | ||||||
| Battery Mode | alarm every 4 seconds | |||||
| Low Power | alarm every one second | |||||
| Over Load | alarm 2 every second | |||||
| Fault | continuous alarm | |||||
| Shape | ||||||
| Dimension (D*W*H) mm | 350*145*220 | 425*190*320 | ||||
| Net weight(Kg) | 12 | 7 | 24 | 11 | 29 | 12 |
| Connector | ||||||
| Micro RS-232 | Windows,Linux,Sun Solaris,IBM Aix,Compaq True64,SGIRIX,FreeBSD,HP-UX and MAC | |||||
| USB(Optional) | Windows & MAC | |||||
| Rabbet(Optional) | SNMP/AS400 Relay Card/Rs485 | |||||
| EPO(Optional) | Support emergency shutdown | |||||
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Foshan city,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |

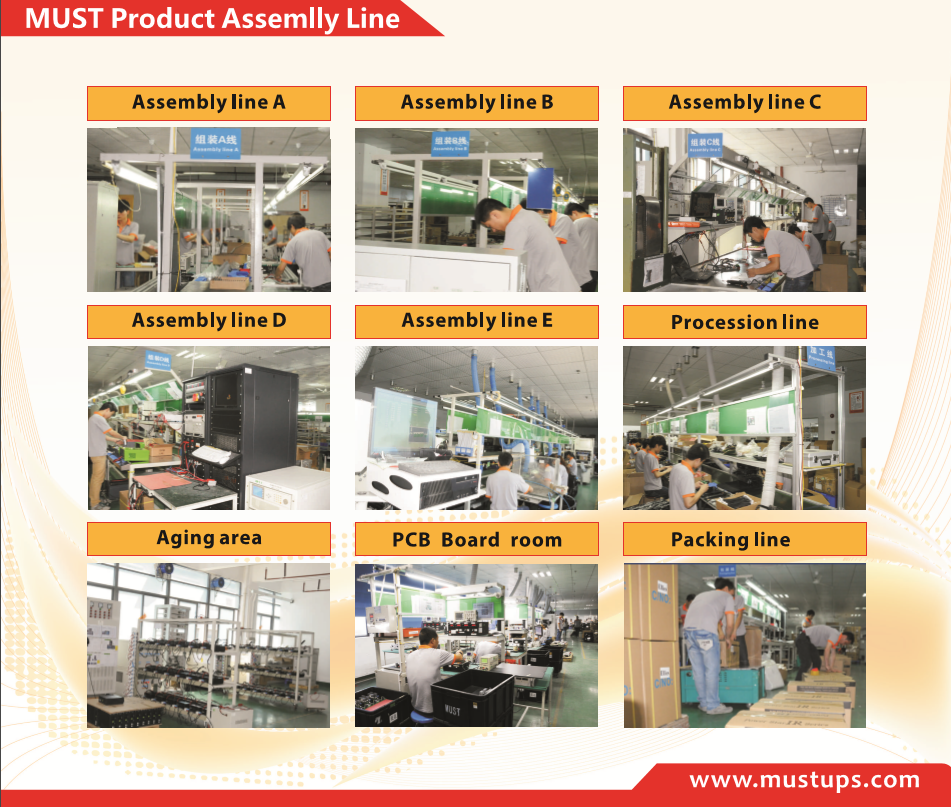

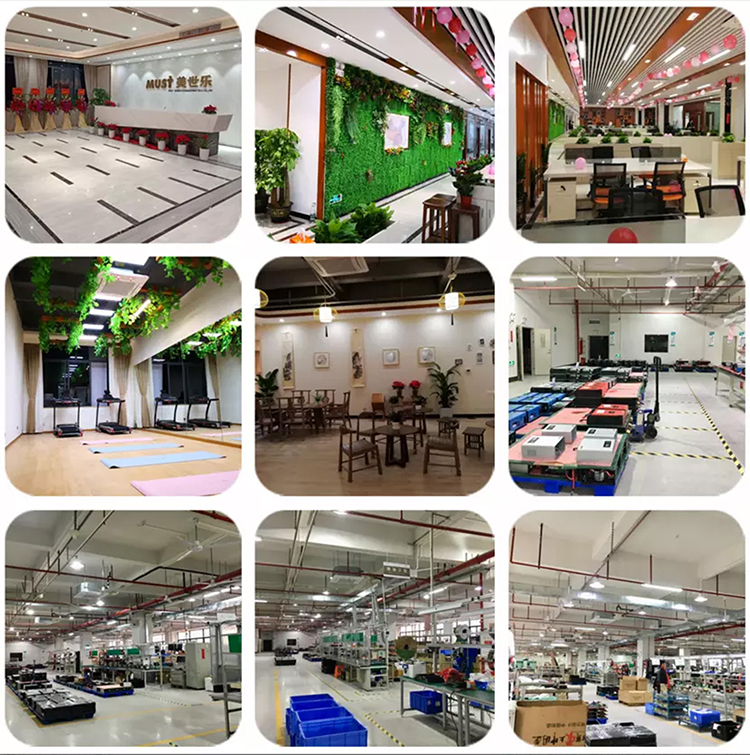

| Factory | 15000 Square Meters, 420 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
