- Place of Origin:Guangdong, China
- Brand Name:OEM,ODM
- Model Number:PV1800 VHM
- Input Voltage:220V/230V/240V
- Output Voltage:220V/230V/240V
- Output Current:60A/80A
- Output Frequency:50Hz/60Hz
- Output Type:Single
- Size:610*405*251mm
- Type:DC/AC Inverters
- Weight:10-15kg
- Color:Red,Silver or OEM
- Rated power:2KW-5KW
- Status display:LCD+LED
- Frequency:High frequency
- Inverter type:Off grid inverter
- Output waveform:Pure Sine Wave Output
- Inverter Efficiency:Over 93%
- Certification:CE/ISO9001/SAA
- Application:Home Solar System
- Warranty:12 Months
hybrid solar inverter 500vdc 3kw 5kw 48v with wifi monitor fucntion
This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
| Competitive Advantage |
- Rated power 2KW to 5KW (Power Factor 1.0)
- Pure sine wave output
- Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
- Built-in MPPT 80A solar charge controller
- MPPT Efficiency max 98%
- New SUB working mode(Solar-Utility-Battery working mode) for 4K-5K 48V series

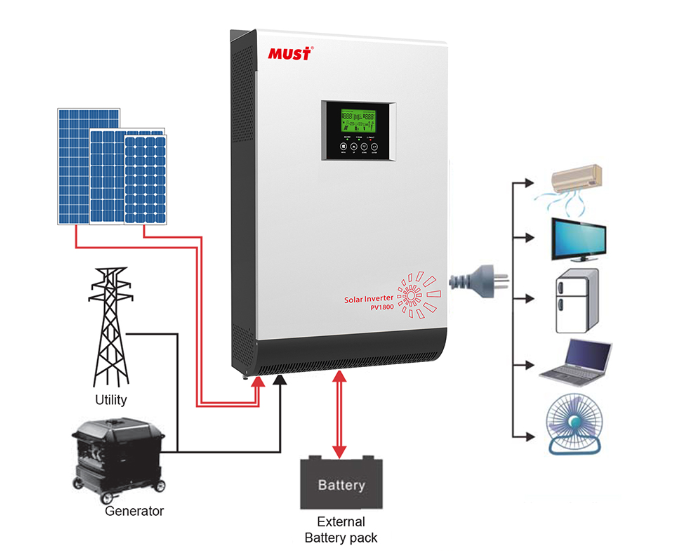

- Combining solar system, AC utility, and battery power source tosupply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- WIFI/ GPRS remote monitoring(optional)
- Compatible to generator
- Support USB, RS485 monitoring function with free CD

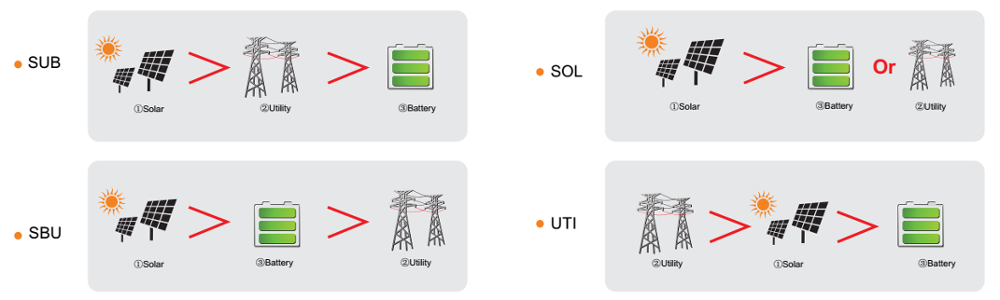

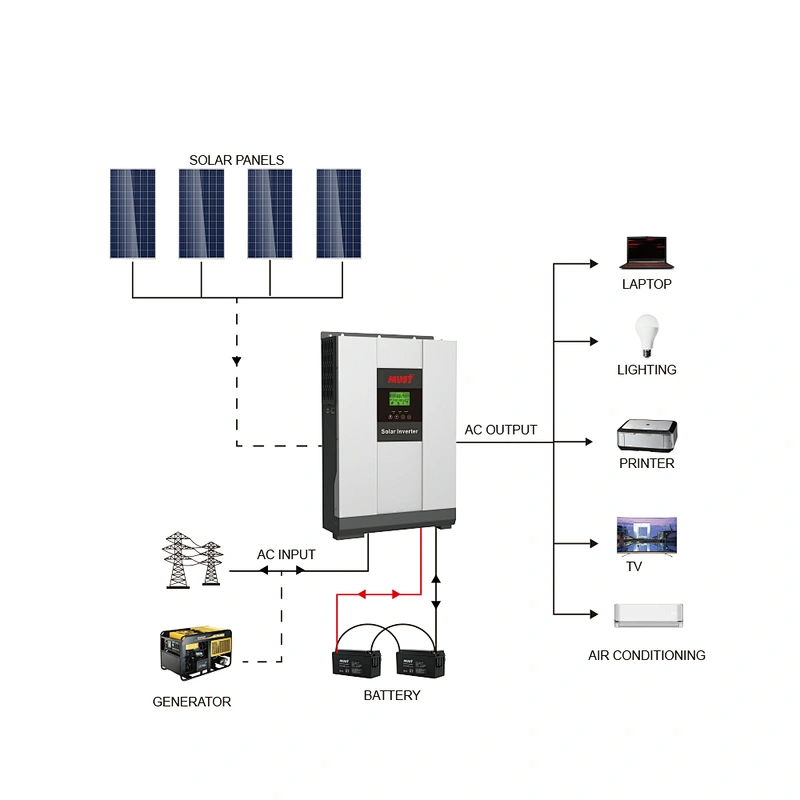

| Wroking Mode(the sequence about the load get power from) |

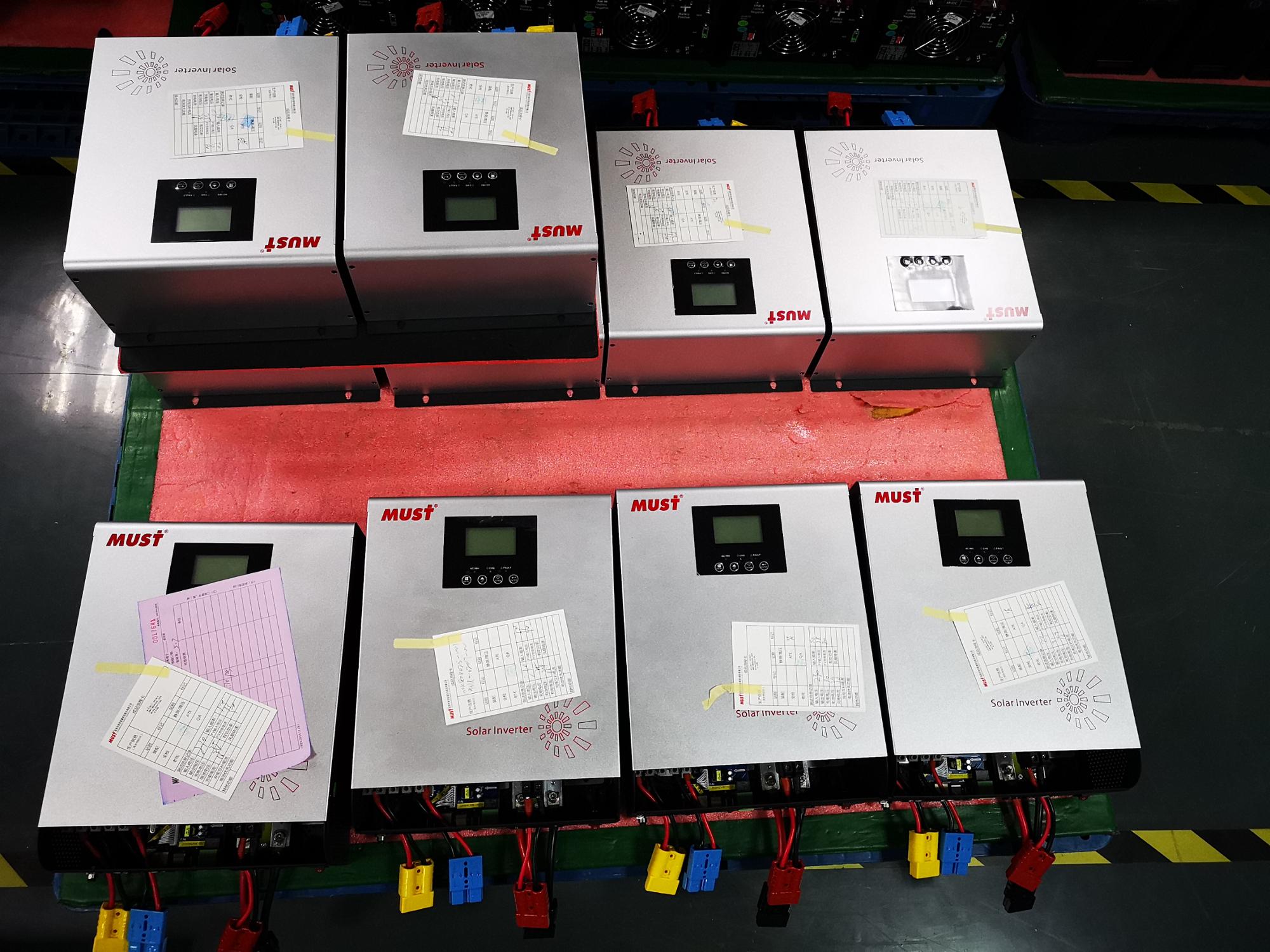

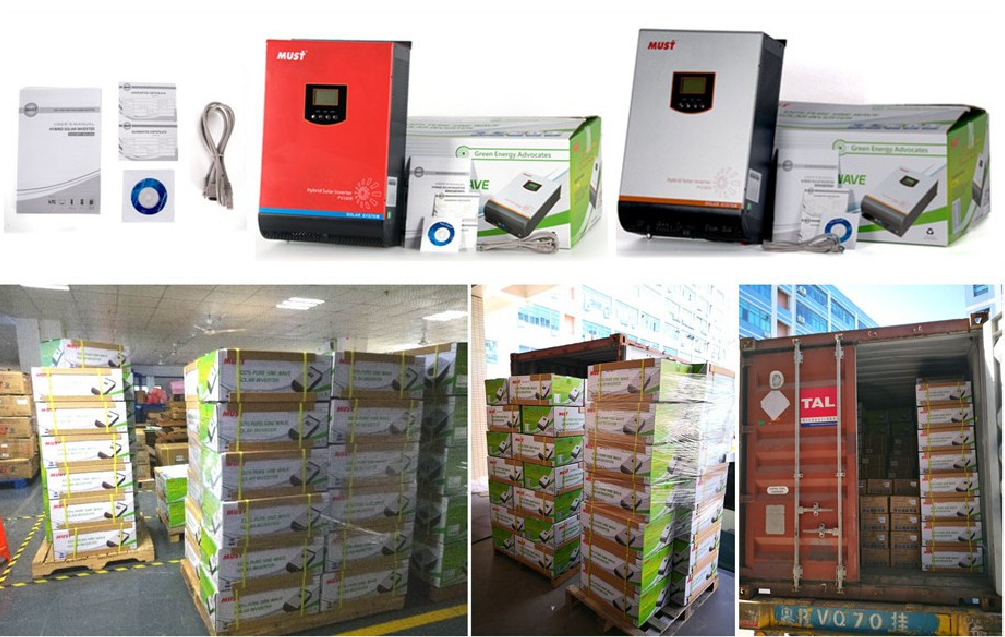

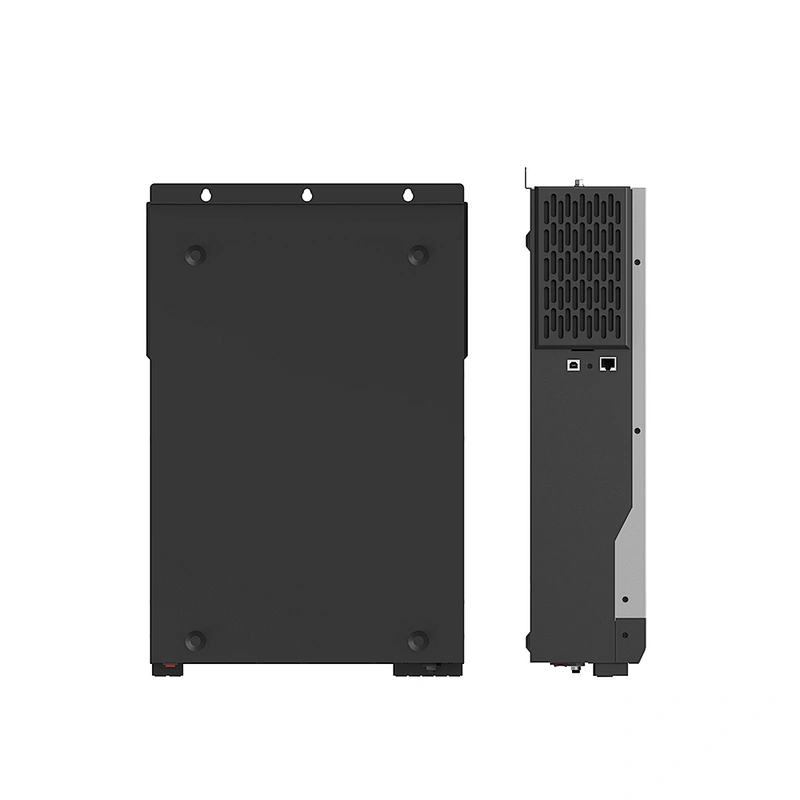

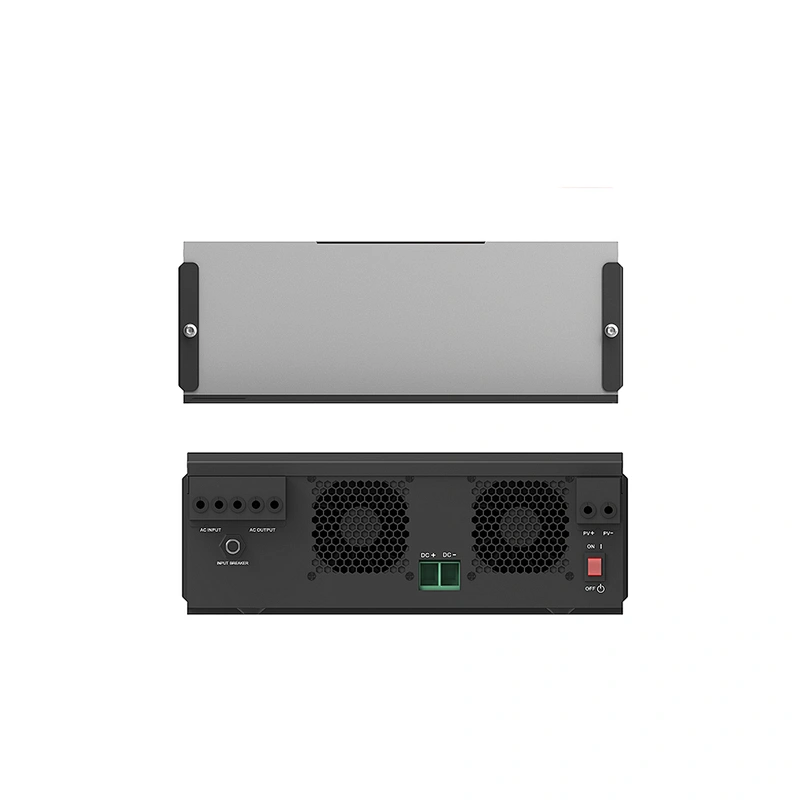

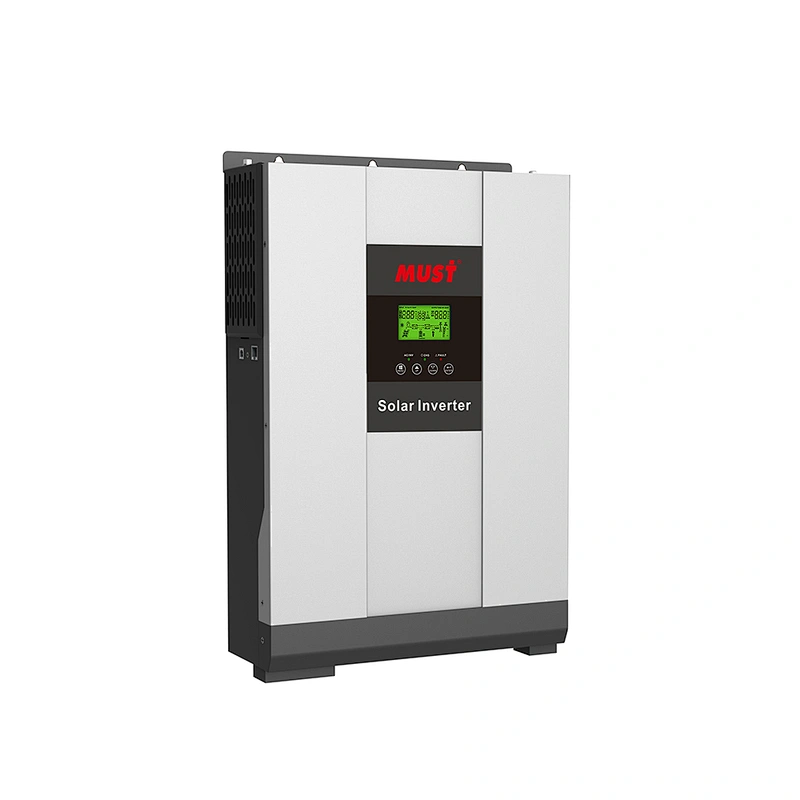

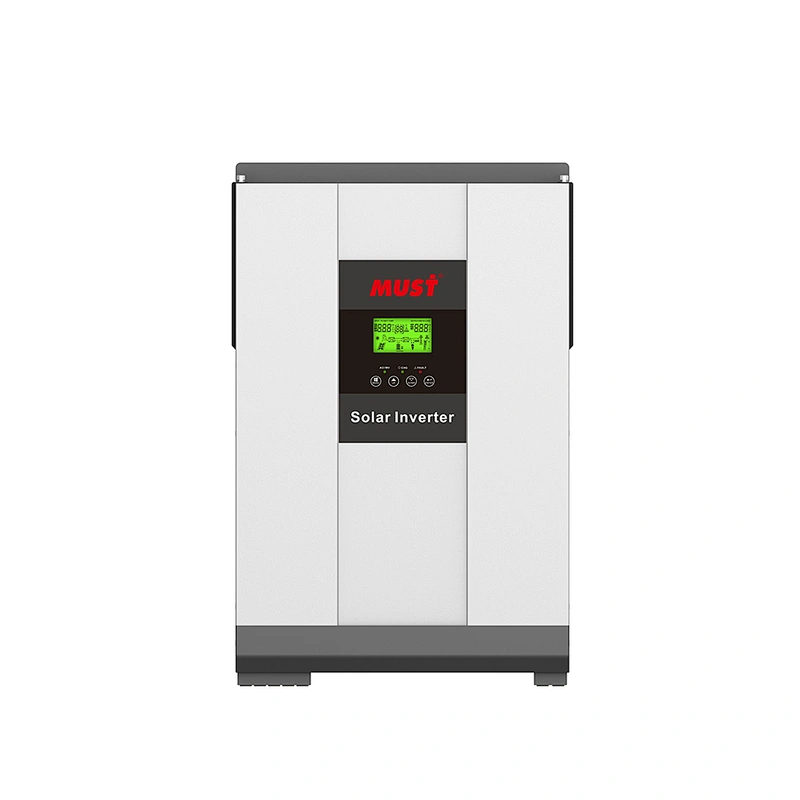

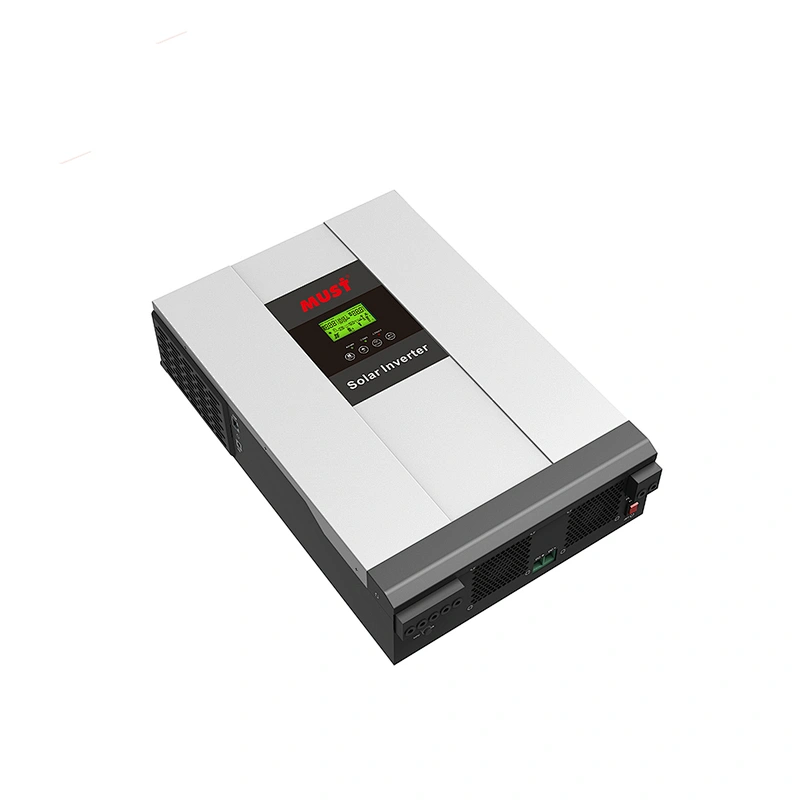

| Product Pictures |

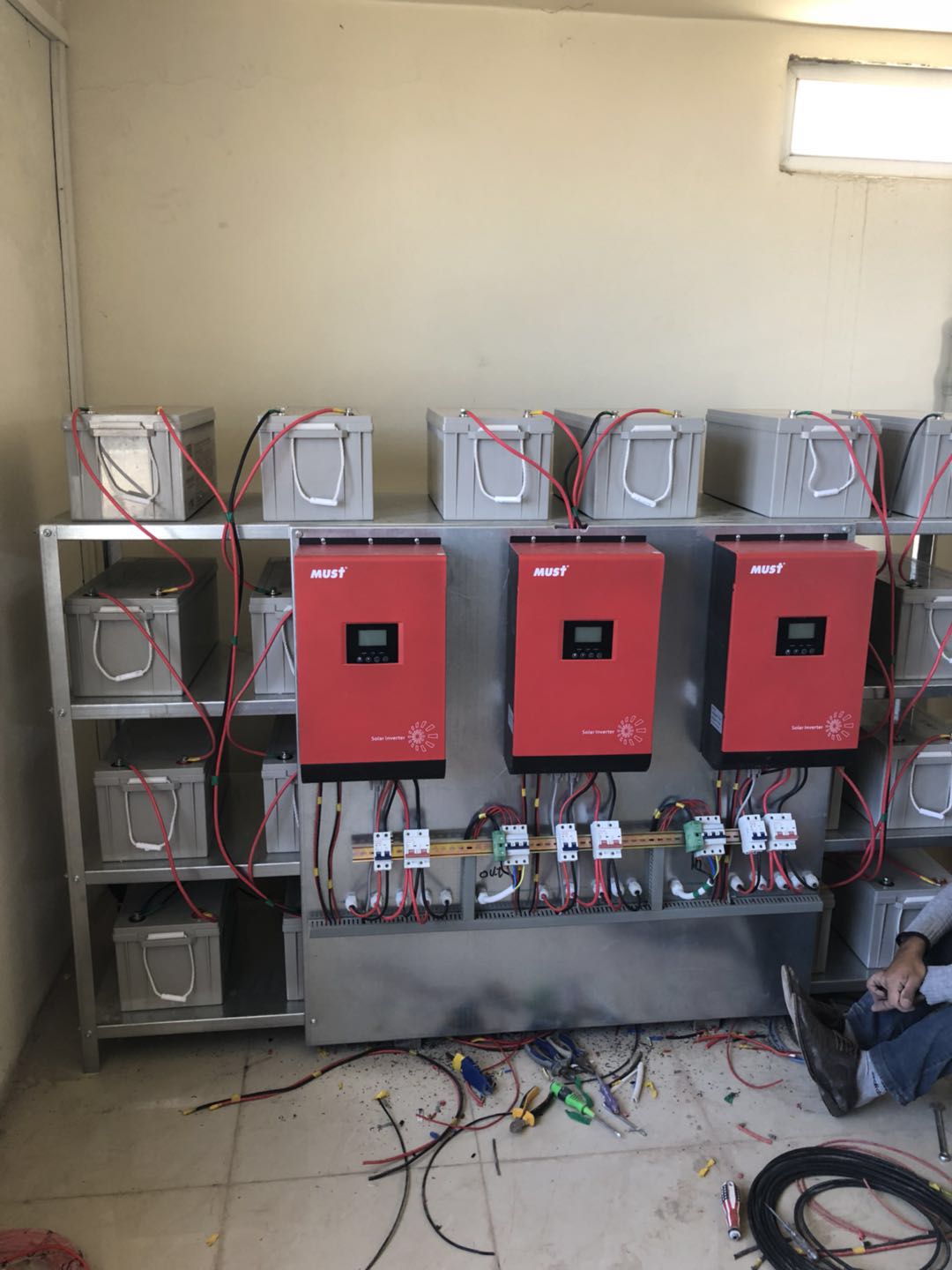

Stacking 3 Units for Parallel Operation to get up to a maximum of 15KW Solar System
| MODEL | PV18-2024 VHM | PV18-3024 VHM | PV18-3048 VHM | PV18-4048 VHM | PV18-5048 VHM |
|---|---|---|---|---|---|
| Nominal Battery System Voltage | 24VDC | 48VDC | |||
| INVERTER OUTPUT | |||||
| Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W |
| Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W |
| Waveform | Pure sine wave | ||||
| AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% | ||||
| Inverter Efficiency (Peak) | 93% | ||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | ||||
| AC INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers); 80~280VAC(For Home Appliances); 184~253VAC(VDE4105) | ||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||
| BATTERY | |||||
| Normal voltage | 24VDC | 48VDC | |||
| Floating Charge Voltage | 27VDC | 54VDC | |||
| Overcharge Protection | 31VDC | 60VDC | |||
| SOLAR CHARGER&AC CHARGER | |||||
| Maximum PV Array Open Circuit Voltage | 550VDC | ||||
| PV Array MPPT Voltage | 100-500VDC | ||||
| Standby Power Consumption | 2W | ||||
| PV Input Power | 2000W/3000W | 4000W/5000W | |||
| Maximum Solar Charge Current | 60/80A | ||||
| Maximum Effciency | 98% | ||||
| Maximum AC Charge Current | 20/30A | 60A | |||
| Maximum Charge Current | 80A | 120/140A | |||
| MECHANICAL SPECIFICATION | |||||
| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 297.5*468*125 | |||
| Package Dimensions (W*H*D)(mm) | 540*395*241 | 638*395*241 | |||
| Net Weight(kg) | 10 | 11 | 13.3 | ||
| Gross Weight(kg) | 11.7 | 12 | 16.4 | ||
| OTHER | |||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Operating Temperature | 0°C -55°C | ||||
| Storage Temperature | -15°C -60°C | ||||
| Must Company Information |
MUST Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional hi-tech enterprise specializing in research, developing and manufacturing of solar system.
Our company is a professional manufacturer of inverter, ups, solar charge controller with CE&ISO in China. We are one of the authorized suppliers for China Government.

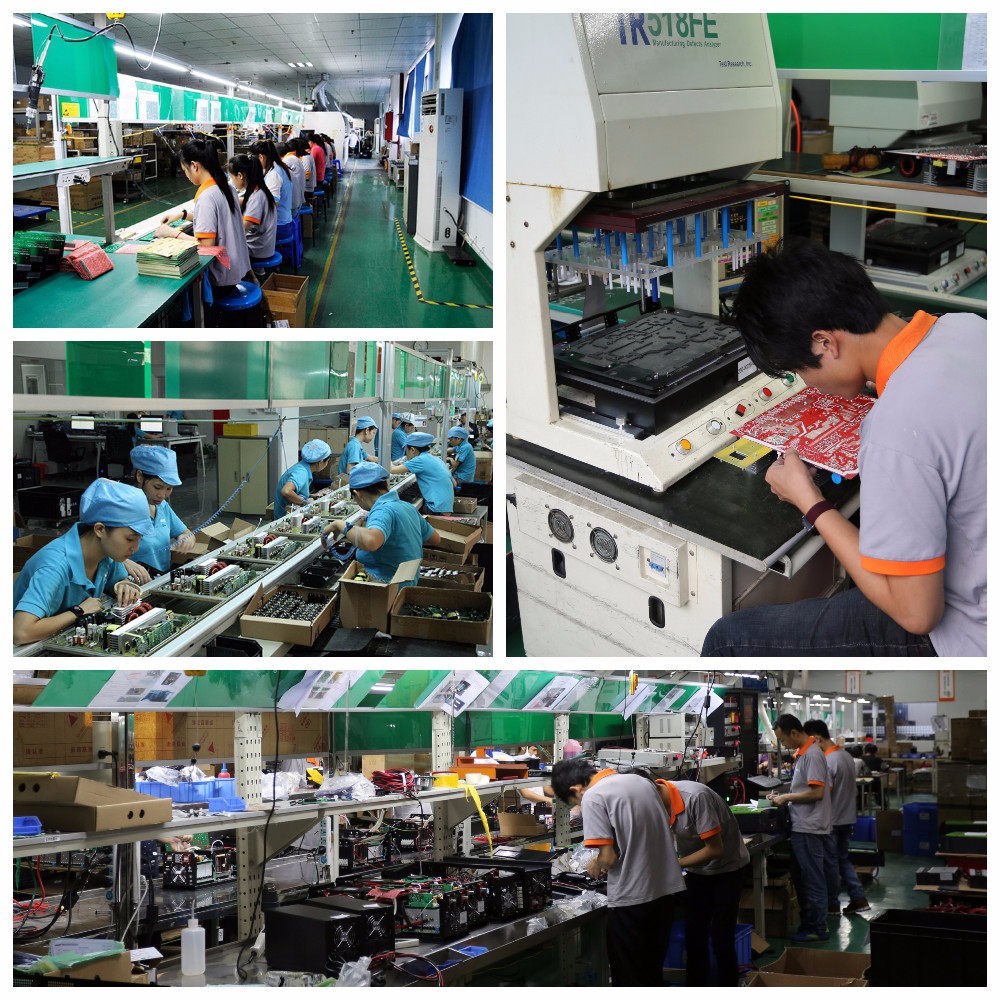

MUST own an excellent R&D team formed by over 30 engineers, covering an area of 10,000 square meters in-house manufacturing facilities in Shenzhen City, Guangdong, China. With 230 outstanding employees, the production capacity per month reaches 30,000pcs to fulfill the increasing demand of our clients.
MUST keeps gaining the market share by offering quality product and service. Having cultivated prospective market worldwide, most of our clients are from Europe, Africa, Asia and America.
| 2018 Exhibition Information |
| Certification |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
