- Place of Origin:Guangdong, China
- Brand Name:MUST OEM
- Model Number:PV3000 1-6KW
- Type:DC/AC Inverters
- Output Type:Single
- Output Current:Max 60A
- Output Frequency:50/60HZ+/-0.3HZ
- Size:580*365*310mm
- Weight:21-53KG
- Frequency Type:Low Frequency
- Power range:1-6KW
- Wave form:Pure sine wave
- Max bypass current:30A 40A
- Mouting:Wall mount
- Certificate:IEC CE
- Warranty:12 mouth
- Audible noise:60dB MAx

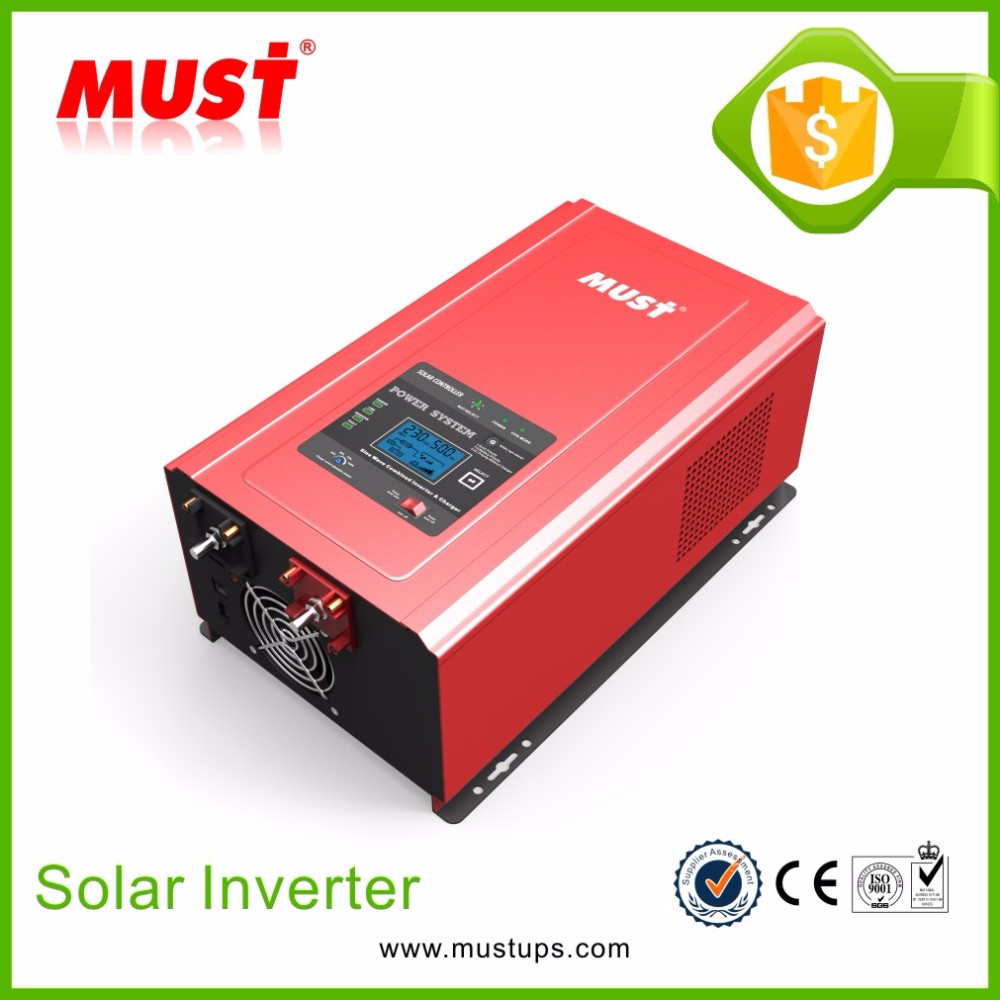

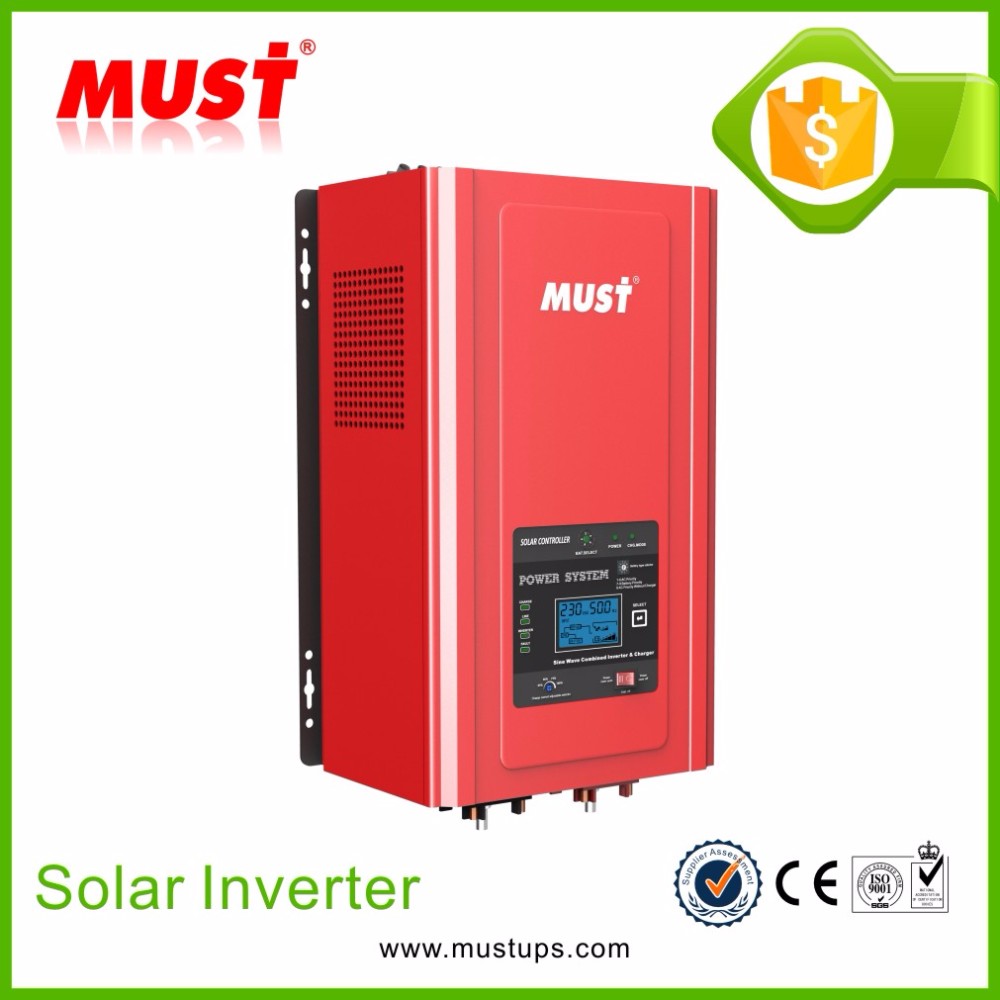

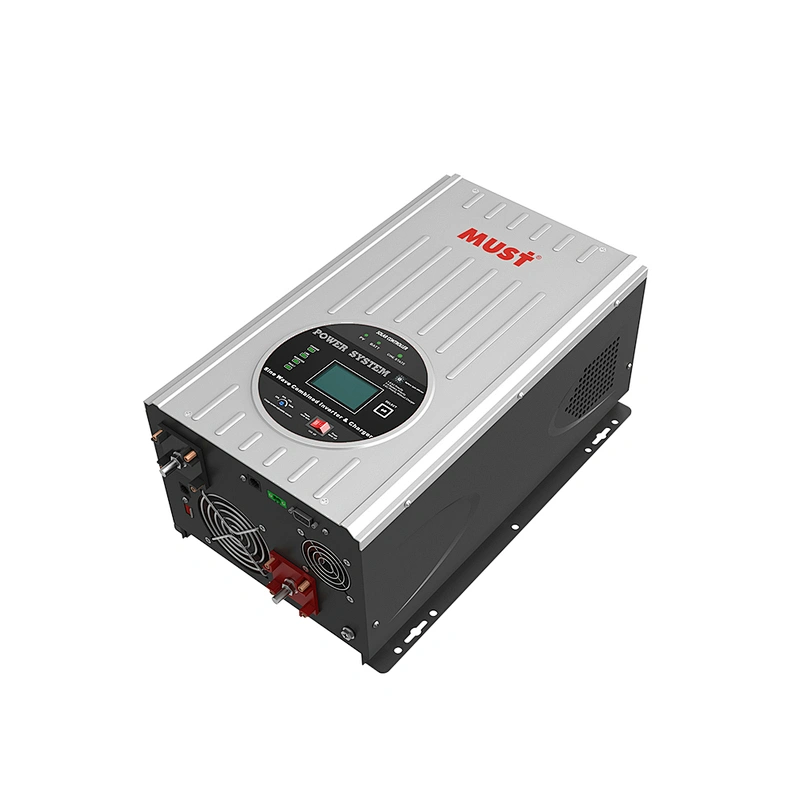

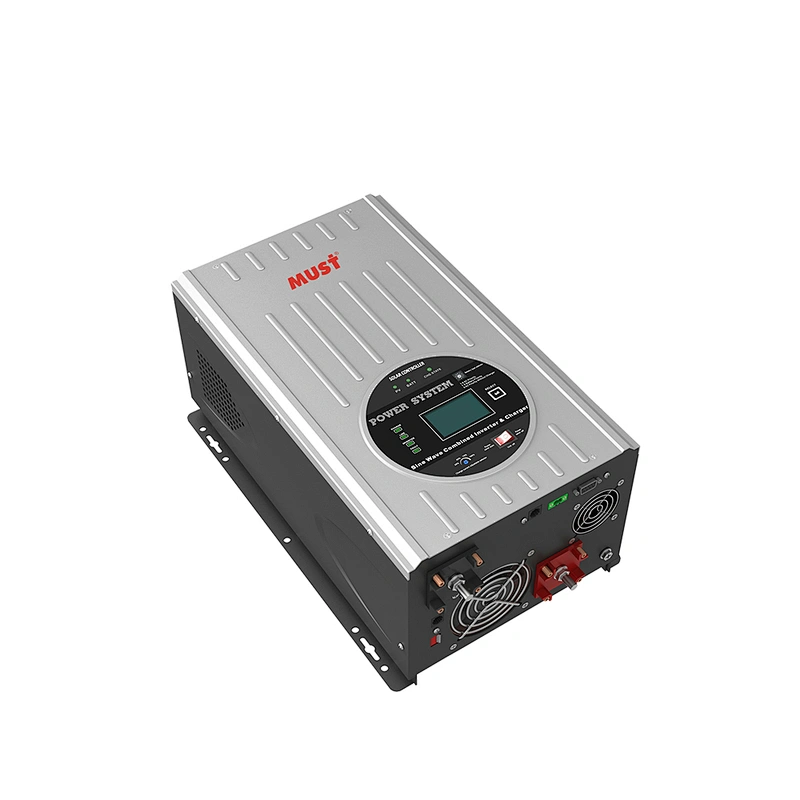

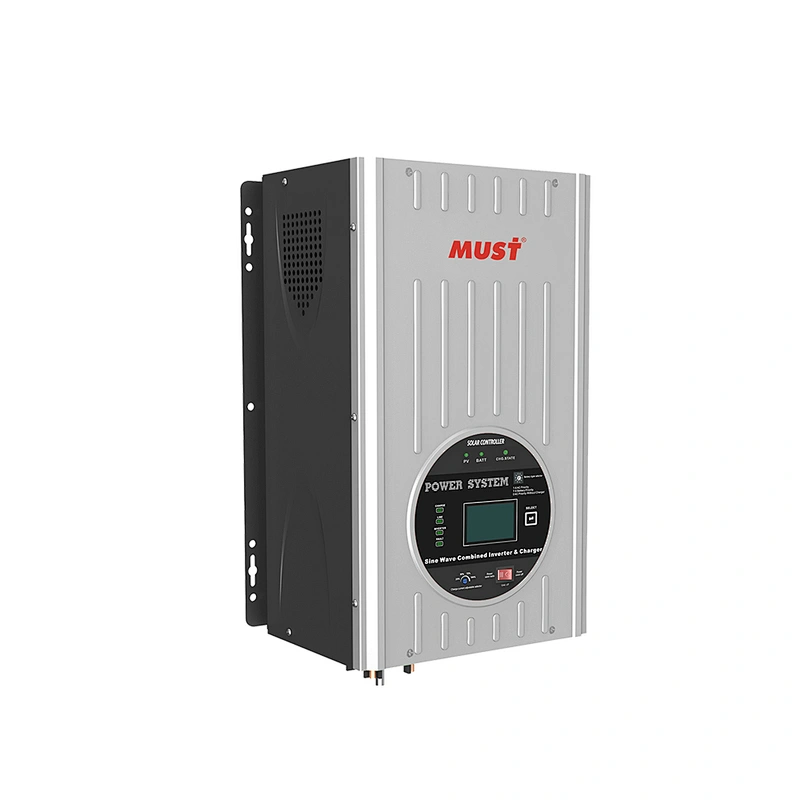

3kw/4kw/5kw solar inverter power supply
Product Description
Good News:
Place order via Trade Assurance
You will get:
1) 100% money refund for quality problems or late shipment
2) You will get refund up to 100% trade assurance amount if the goods is not shipped online
3) You can pay by your credit card.
Brief Introduction of main features for 1-6KW Solar Inverter
Product Detail Showcase of Solar Inverter
1) Inbuit MPPT Solar charge controller 30-60A
2) Battery Priority

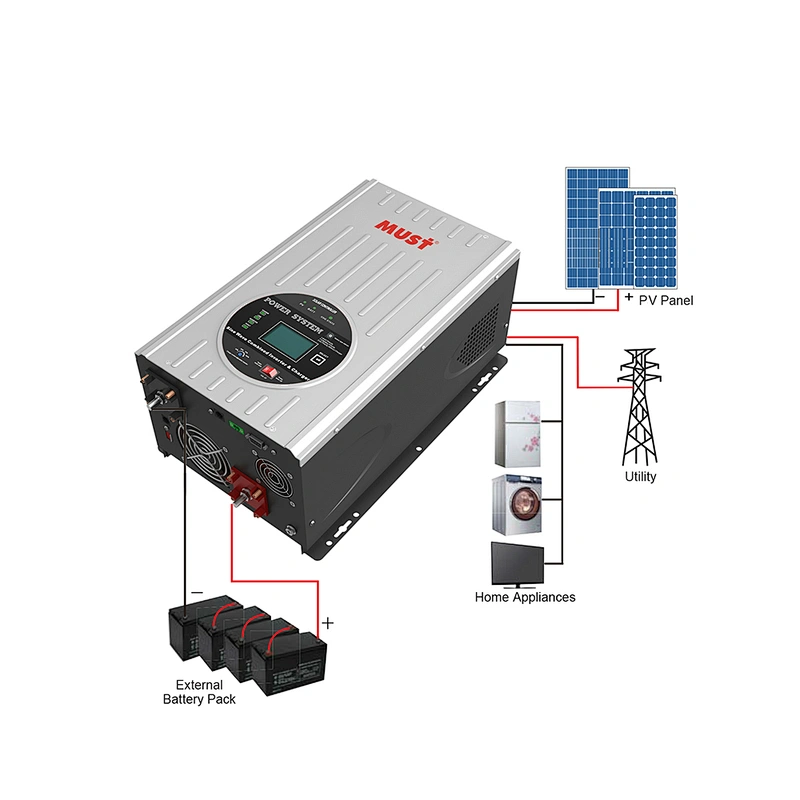

3) Connection& Diagram: RS232 with free CD
Specifications
Service
Trade Assurance----You will get refund up to 100% Trade Assurance Order amount if the goods is not shipped on time or does not meet the quality requirements
24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
Brief Introduction of MUST Power Ltd

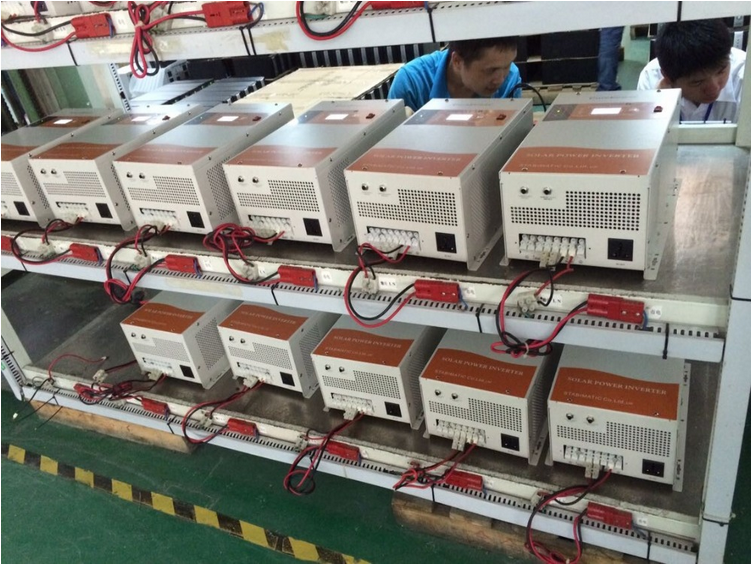

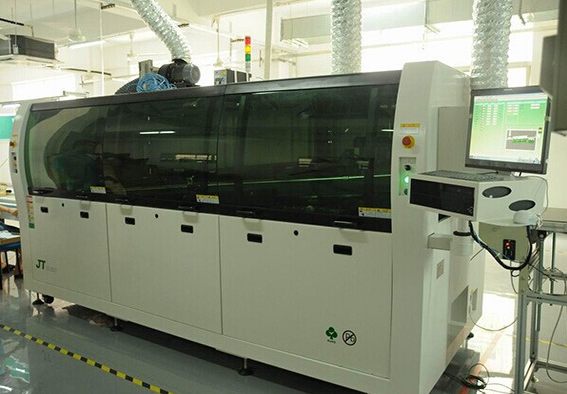

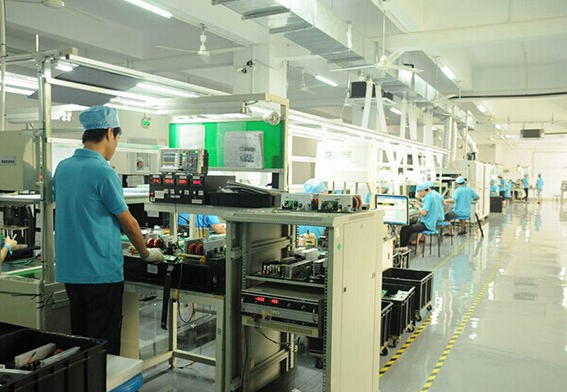

Testing Machine&Aging room
Aging Room: every procuct will be placed in the againg room to test at least 4hours, and the engineers and employees of MUST will change the working mode during this time.
Packing:
1pcs/carton
Cartons or wooden box, or according to customer's need.
Packing size:460*277*192mm (1kw~3kw)
597*277*198mm (4kw~6kw)
Shipping Dimension: 554*360*300mm (1kw~3kw)
743*372*312mm (4kw~6kw)
Shipping
For samples, like 1-3pcs, you'd better choose by air or by express; for bulk order, all is upon your choice
Samples are Available for Testing and Market Test. OEM is welcomed for us.
1-Year Warranty on MUST POWER Products
Guides and After-sell service Consultancy
Must Po
| MODEL | PV30-1KW | PV30-1.5KW | PV30-2KW | PV30-3KW | PV30-4KW | PV30-5KW | PV30-6KW | ||||||||||||
| Default Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 24VDC/48VDC | 24VDC/48VDC | 24VDC/48VDC | ||||||||
| INVERTER OUTPUT | Rated Power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||||||||
| Surge Rating (20ms) | 3KVA | 4.5KVA | 6KVA | 9KVA | 12KW | 15KW | 18KW | ||||||||||||
| Capable Of Starting Electric Motor | 1HP | 1HP | 1HP | 2HP | 2HP | 3HP | 3HP | ||||||||||||
| Waveform | Pure sine wave/ same as input (bypass mode) | Pure sine wave/ same as input (bypass mode) | |||||||||||||||||
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS) | 100V/110V/120VAC 220V/230V/240VAC | 220V/230V/240VAC | ||||||||||||||||
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | 50Hz/60Hz +/-0.3 Hz | |||||||||||||||||
| Inverter Efficiency(Peak) | >88% | >88% | |||||||||||||||||
| Line Mode Efficiency | >95% | >95% | |||||||||||||||||
| Power Factor | 0.8 | 1.0 | |||||||||||||||||
| Typical Transfer Time | 10ms(max) | 10ms(max) | |||||||||||||||||
| AC INPUT | Voltage | 230VAC | 230VAC | ||||||||||||||||
| Selectable Voltage Range | 96~132VAC 155~280VAC(For Personal Computers) | 96~132VAC/155~280VAC(For Personal Computers) | |||||||||||||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) 40-80Hz | 50HZ/60HZ (Auto sensing) 40-80Hz | |||||||||||||||||
| BATTERY | Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, ) | 20.0VDC~21.0VDC /40.0VDC~42.0VDC | ||||||||||||||||
| Low Battery Alarm | 10.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 21.0VDC+/-0.6V /42.0VDC+/-1.2V | |||||||||||||||||
| Low Battery Cutoff | 10.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 20.0VDC+/-0.6V /40.0VDC+/-1.2V | |||||||||||||||||
| High Voltage Alarm | 16.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 32.0VDC+/-0.6V /64.0VDC+/-1.2V | |||||||||||||||||
| High Battery Voltage Recover | 15.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 31.0VDC+/-0.6V / 62.0VDC+/-1.2V | |||||||||||||||||
| Idle Consumption-Search Mode | <25W when power saver on | <50W when power saver on | |||||||||||||||||
| AC CHARGER | Output Voltage | Depends on battery type | Depends on battery tvpe | ||||||||||||||||
| Charger AC Input Breaker Rating | 10A | 30A | 30A | 30A | 40A | ||||||||||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC, ) | 31.4VDC/62.8VDC | |||||||||||||||||
| Maximum Charge Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 65A | 35A | 70A | 40A | 75A | 50A | |||||
| BYPASS & PROTECTION | Input Voltage Waveform | Sine wave (grid or generator) | Sine wave (grid or generator) | ||||||||||||||||
| Nominal Input Frequency | 50Hz or 60Hz | 50Hz or 60Hz | |||||||||||||||||
| Overload Protection (SMPS Load) | Circuit breaker | Circuit breaker | |||||||||||||||||
| Output Short Circuit Protection | Circuit breaker | Circuit breaker | |||||||||||||||||
| Bypass Breaker Rating | 10A | 15A | 30A | 30A | 40A | ||||||||||||||
| Max Bypass Current | 30Amp | 40Amp | |||||||||||||||||
| SOLAR CHARGER | Maximum PV Array Power | 600W | 1200W | 600W | 1200W | 600W | 1200W | 600W | 1200W | 1600W | 3200W | 1600W | 3200W | 1600W | 3200W | ||||
| Maximum PV Charge Current | 40A | 60A | |||||||||||||||||
| DC Voltage | 12V/24V atuo work | 24V/48V atuo work | |||||||||||||||||
| MPPT Range @ Operating Voltage | 16~100VDC | 32~145VDC @ 24V / 64~145VDC @ 48V | |||||||||||||||||
| Maximum PV Array Open Circuit Voltage | 100VDC | 145VDC | |||||||||||||||||
| Maximum Efficiency | >90% | >98% | |||||||||||||||||
| Standby Power Consumption | <2W | <2W | |||||||||||||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | Wall mount | ||||||||||||||||
| Dimensions (W*H*D) | 460*277*192mm | 597x277x198mm | |||||||||||||||||
| Net Weight (Solar CHG) kg | 18.3 | 22 | 23.5 | 23 | 28 | 27 | 39.6 | 48.6 | 48.6 | ||||||||||
| Shipping Dimensions(W*H*D) | 554*360*300mm | 743*372*312mm | |||||||||||||||||
| Shipping Weight (Solar CHG) kg | 21.9 | 24.8 | 26.5 | 25.6 | 31 | 30 | 43.3 | 53 | 53 | ||||||||||
| OTHER | Operation Temperature Range | 0°C to 40°C | |||||||||||||||||
| Storage Temperature | -15°C to 60°C | ||||||||||||||||||
| Audible Noise | 60dB MAX | ||||||||||||||||||
| Display | LED+LCD | ||||||||||||||||||
| Loading(20GP/40GP/40HQ) | 460pcs / 920pcs / 1060pcs | 320pcs / 640pcs / 750pcs | |||||||||||||||||
wer Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
24 Hours After-service consultancy just for you and to make your problems to solve easily. MUST Professional International Sales Team1. Q: Can I have sample before formal order?
A: Sure, it will be warm welcomed.
2. Q: What's the warranty:
A: 12 months.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer), and Western Union.
4. Q: OEM is available?
A: Yes, OEM is welcomed.
Packaging
| Selling Units: | Single item |
| Single package size: | 76X38X32 cm |
| Single gross weight: | 55 KG |
| Package Type: | 1pc/Carton |
