- Warranty:3months-1year
- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:EH5000series 6KVA-10KVA
- Phase:Single Phase
- Protection:Overvoltage
- Weight:38.5kg-55kg
- Type:On-line
- Application:Security / Monitoring / Alarm
- color:black
- phase:single phase
- output:220VAC/50HZ
- Frequency:high frequency
- capacity:10KVA-20KVA
- Power factor:0.7
- backup time:10-15min
- protection:over voltage,over load ,short circuit
- application:medical equipment,instrument
- country of origin:china

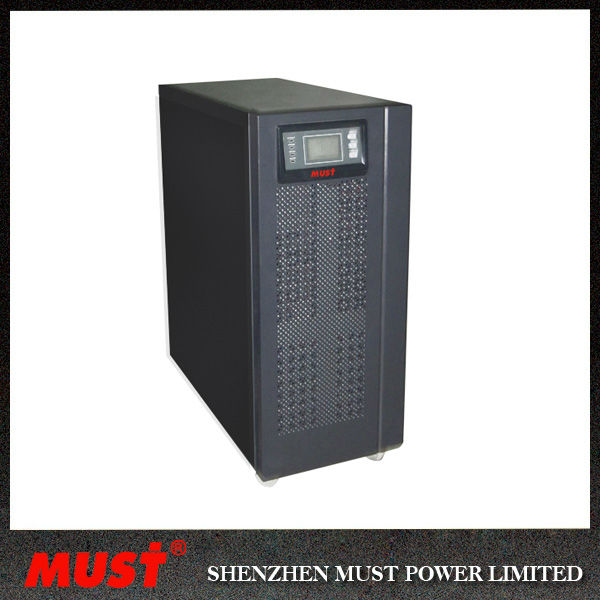

Intelligent 1-20kva online ups uninterruptible power supply
Main features:
reliable, filtered, stabilized and regulated sine wave output (double conversion on-line technology) with filters for atmospheric disturbance suppression
high reliability: full microprocessor control with no-break static and manual by-pass
high level diagnostics: states, measurements and alarms - available from the built-in LCD
power factor correction with sinusoidal input to ensure a low impact on the mains supply (UPS input power factor, close to 1) for the single-phase/single-phase series
very low noiselevel<40dB(A)
low power consumption (“Economy Mode”, Smart Active Mode, and Standby/Off Mode to increase efficiency up to 98%)
simple to install:
easy to position (integrated castors)
built-in automatic and manual battery test feature
auto restart on mains return (programmable - software or from the front panel)
back feed protection as standard: to avoid energy feeding back into the mains supply
integrated automatic and manual by-pass.
Technology Specifications:
Model |
| H6KVA | H10KVA | H6KS | H10KS |
Rated Power | Volt-Amps/Watts | 6KVA/4.2KW | 10KVA/7KW | 6KVA/4.2KW | 10KVA/7KW |
Input | Nominal Voltage | 220VAC | |||
Voltage Range | 115 ~ 276VAC (46~54Hz) | ||||
Output | Voltage | 110V/220VAC | |||
Frequency | Synchronized 46~54Hz(Line mode) | ||||
50Hz ± 0.1% (Battery mode) | |||||
Wave Form | Sine wave | ||||
Voltage Distortion | £ 2% under linear load | ||||
Overload Capability | 105%~130% for 10 min. | ||||
Current Crest Ratio | 3:1 | ||||
Battery & Charger | Type | Valve regulated, Sealed, Lead-Acid | External Battery Bank | ||
Nominal Voltage | 192VDC | ||||
Backup time (Full load) | 17 min | 15 min | Depends on the external battery capacity | ||
Transfer Time |
| 0 ms | |||
LED indicators | Status | Load level / Battery level, Battery, Utility Power, Inverter, Bypass, Overload, Fault | |||
Audible Alarms |
| On battery mode, Battery low, Overload, Fault | |||
Communications Interface |
| USB/RS-232 Serial Interface (DB-9), Intelligent Slot | |||
Parallel Port |
| Availability of up to three units in parallel for power redundancy and load sharing | |||
Physical | N.W. (Kg) | 57 | 67.5 | 18 | 21.5 |
G.W. | 68 | 78.5 | 23 | 27.5 | |
Body size (w *d* h) | 248 x 500 x 616 mm | 240 x 500 x 460 | |||
Packing size(w *d* h) | 390*680*834mm | 390*595*578mm | |||
