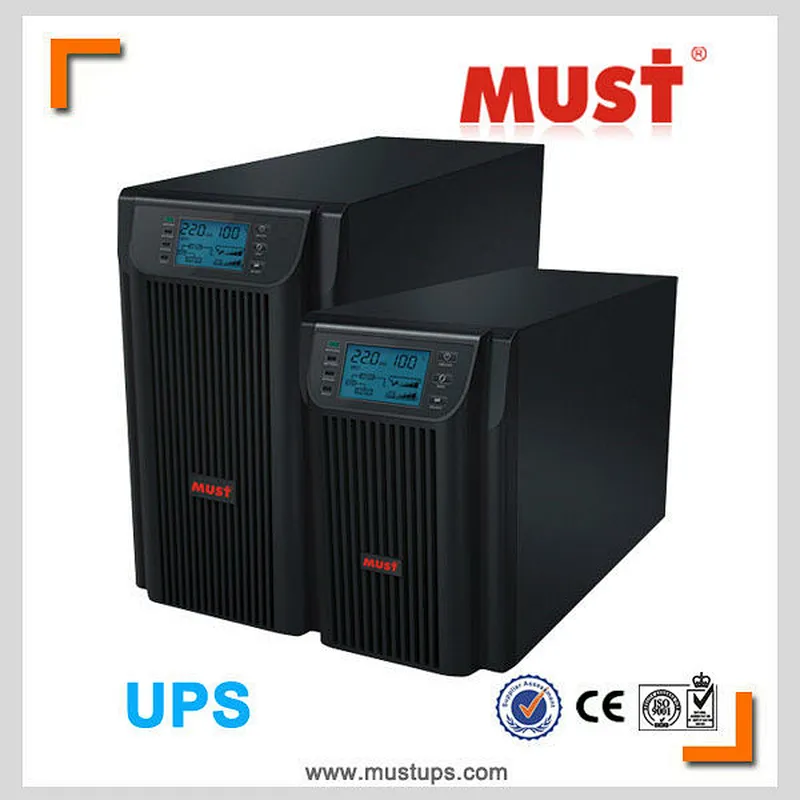

MUST 1 phase ups 220v 1 kva to 3 kva advanced cpu pfc igbt tech for server

• Place of Origin:Guangdong, China
• Brand Name:Must 1 phase ups 220v
• Model Number:1 kva to 3 kva (EH5220)
• Phase:single phase ups, 220v ups
• Protection:ac voltage fluctuation, harmonic distortion, power factor correction
• Weight:12-35kgs
• Output Voltage:220v or 110v 1% tolerance
• Type:On-line
• Application:enterprise server, cctv surveillance equipment,bank's ATM
• 1 phase ups 220v topology:online high frequency ups, online sinusodal ups
• ac-dc power convertion:pfc rectifier
• input power factor:0.99(1-3kva),0.97(6-10kva),0.95(10-20kva)
• dc-ac power convertion:full dsp-base transformer-less ups
• output p.f.:0.8
• inverter efficiency:0.85(battery-mode), 0.91(ac-mode)
• wide input range:145-275v(1-10kva),210-475v(10-20kva),115-300v(RM 1-6kva)
• input protection:THDi harmonic distortion, TVSS transient voltage surge suppression
• battery protection:charge control, over-charge,over-discharge
• output protection:over-load, short-circuit, over-temperature

1 phase ups 220v 1 kva to 3 kva advanced cpu pfc igbt tech for server

 1 phase ups 220v, online ups, online ups power supply,ups power supply, power supply, ups, uninterruptible power supply

 220v ups, 1 kva ups, 2 kva ups, 3 kva ups

Features:

1.  1 phase ups 220v, 1 kva ups, 2 kva ups, 3 kva ups in single phase + N + G input output wiring;

2.  1 pahse ups 220v, 220v ups provide uninterruptibility power solution for server, for ATM, for CCTV surveillance equipment

      from internal or external battery:

      1 kva: 24vdc/36vdc

      2 kva: 72vdc/96vdc

      3 kva: 96vdc/96vdc

3. 1 phase ups 220v, online ups in advanced cpu control tech:

     high reliability power solution from dsp-base and full digitalized micro-processor controller

4.  1 phase ups 220v, online ups power supply in advanced pfc ac to dc rectifier tech:

      high input power factor 0.99 means better ac power ultilization

5.  1 phase ups 220v, ups power supply, uninterruptible power supply in advanced transformer-less and dsp-base

      igbt inverter tech: high efficiency, high stability, and power-saving advantage

6.  1 phase ups 220v, 1 kva ups, 2 kva ups, 3 kva ups in advance dsp tech internal digital circuit

7.  1 phase ups 220v,power supply thorough communication interface: RS232 and optional USB, AS400 expansion card,

      SNMP network monitor, power management tool, protocol

1 phase ups 220v, online ups, online ups power supply,ups power supply, power supply, ups, uninterruptible power supply

 220v ups, 1 kva ups, 2 kva ups, 3 kva ups

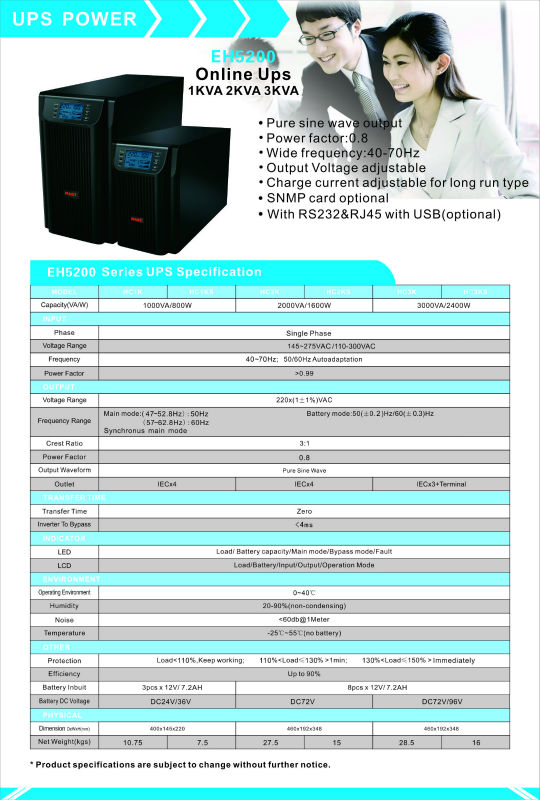

specification

1 phase ups 220v, online ups, online ups power supply,ups power supply, power supply, ups, uninterruptible power supply

 220v ups, 1 kva ups, 2 kva ups, 3 kva ups

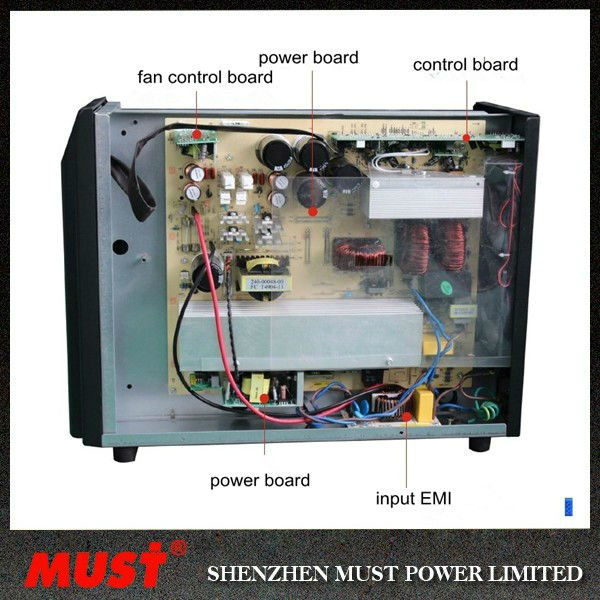

electrical view photos

1 phase ups 220v, online ups, online ups power supply,ups power supply, power supply, ups, uninterruptible power supply

 220v ups, 1 kva ups, 2 kva ups, 3 kva ups

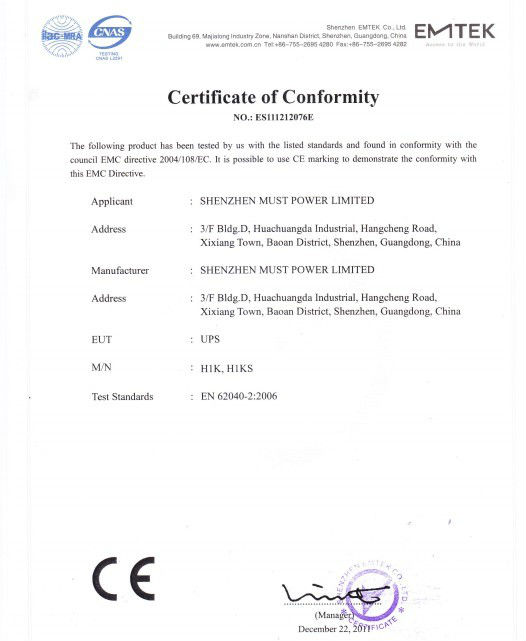

quality verification CE
