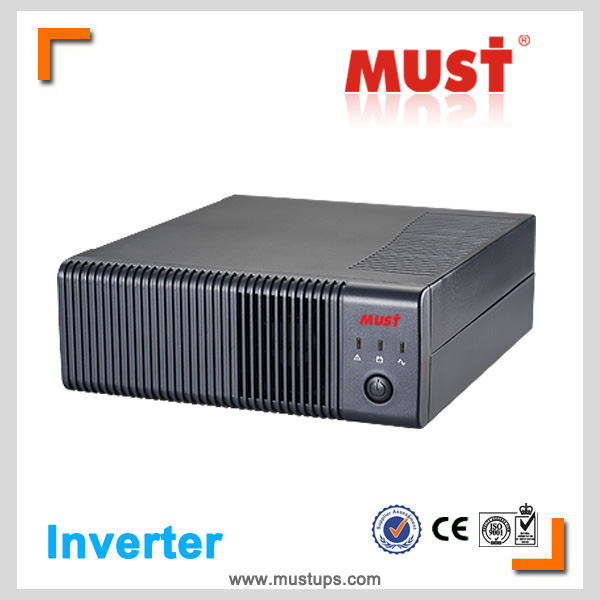

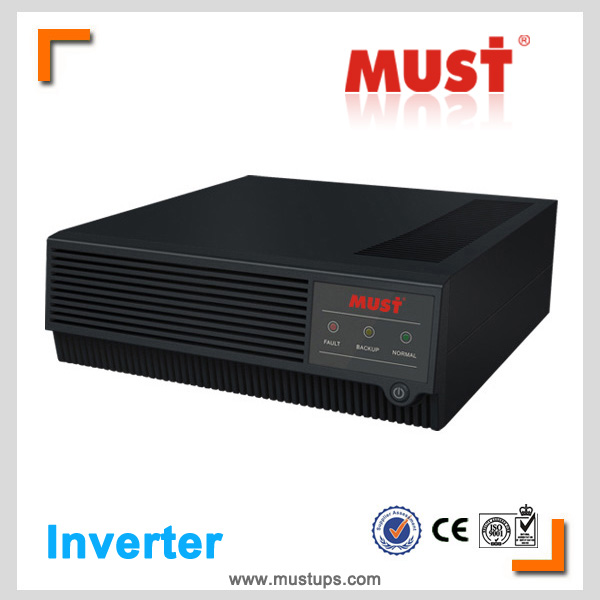

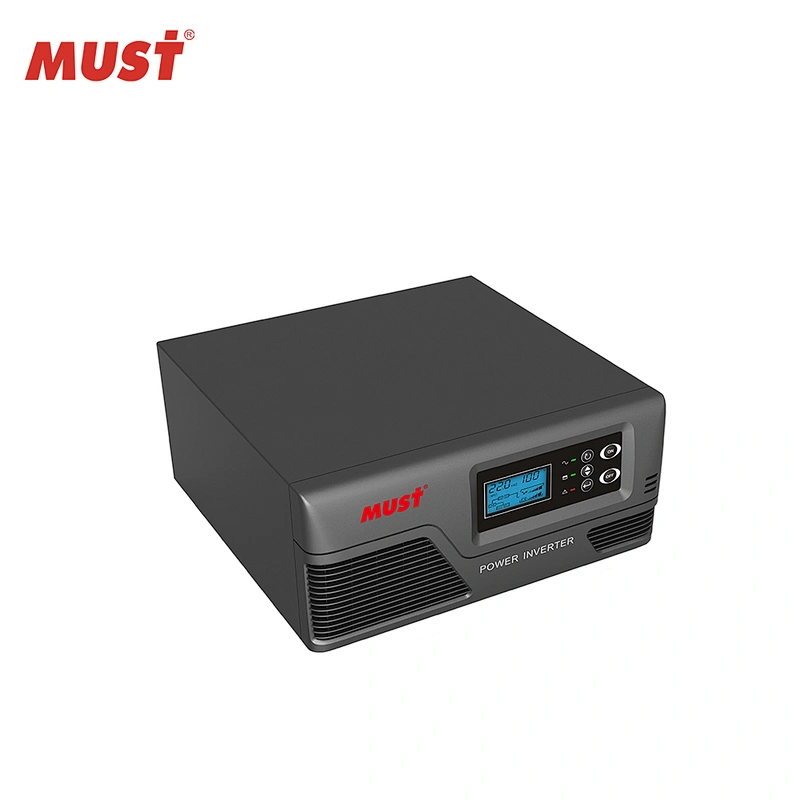

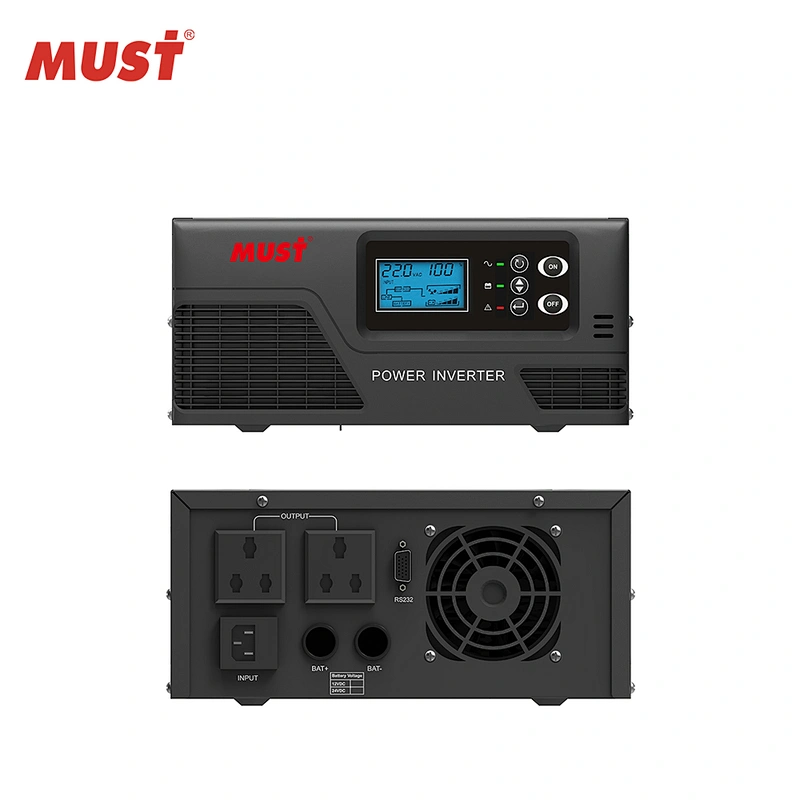

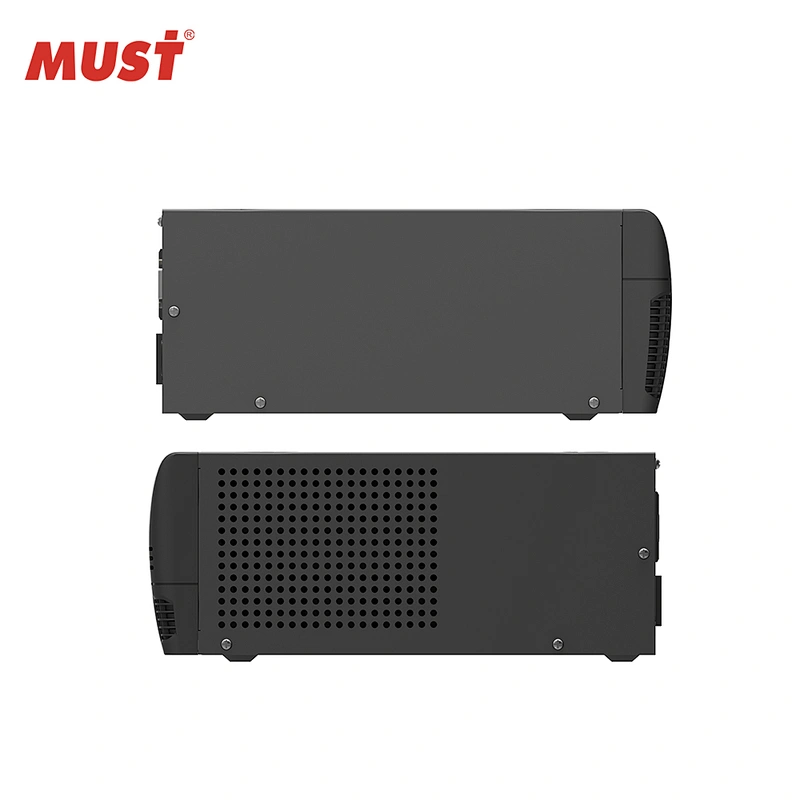

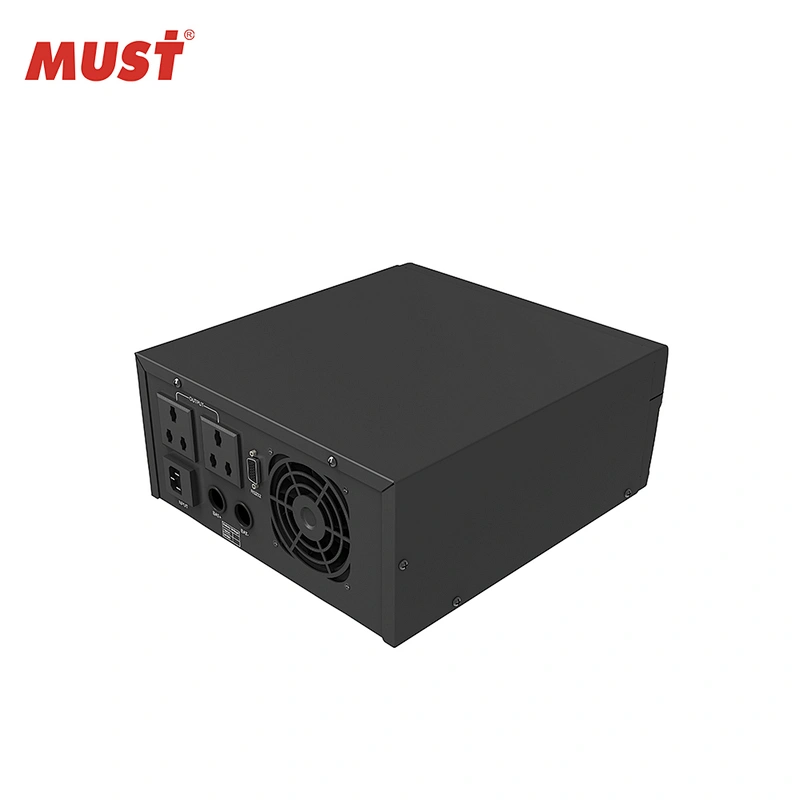

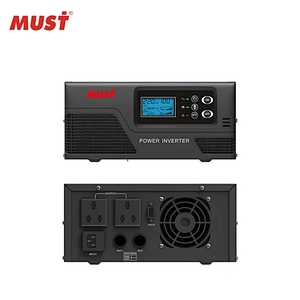

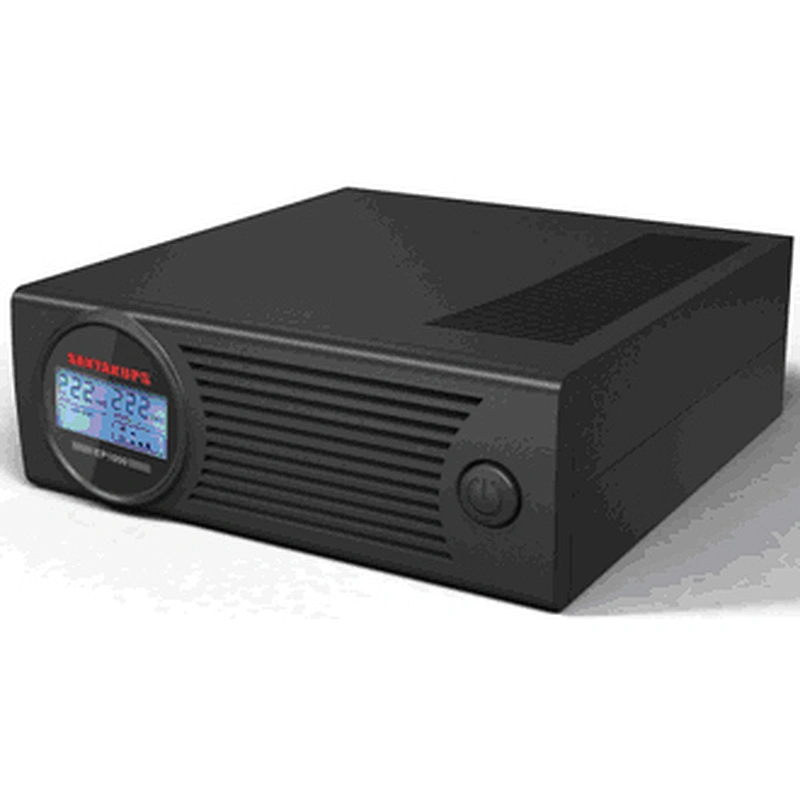

MUST 12vdc 24vdc 220vac lcd display rack mount home use 1kva 2 kva inverter charger 10amp/20amp

MUST 12vdc 24vdc 220vac lcd display rack mount home use 1kva 2 kva inverter charger 10amp/20amp

Model NO.: EP2000 Pro
Minimum order quantity: 1 piece
Country of Origin: shenzhen, HK, guangzhou

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:Must inverter charger
Model Number:EP2000 Pro
Type:DC/AC Inverters
Output Type:Single
Output Current:10A or 20A
Output Frequency:50Hz or 60Hz
Size:224 x 255 x 80mm
Weight:25kgs
Certificate:CE
inverter charger:high frequency inverter, 12vdc/24vdc to 220vac
ac input range:170-280Vac(90-280Vac)
output voltage:220Vac +/- 10%
dc input:12vdc or 24vdc(1200w)
battery charger:10amp 20amp
charge control:3-stage intelligent charge control

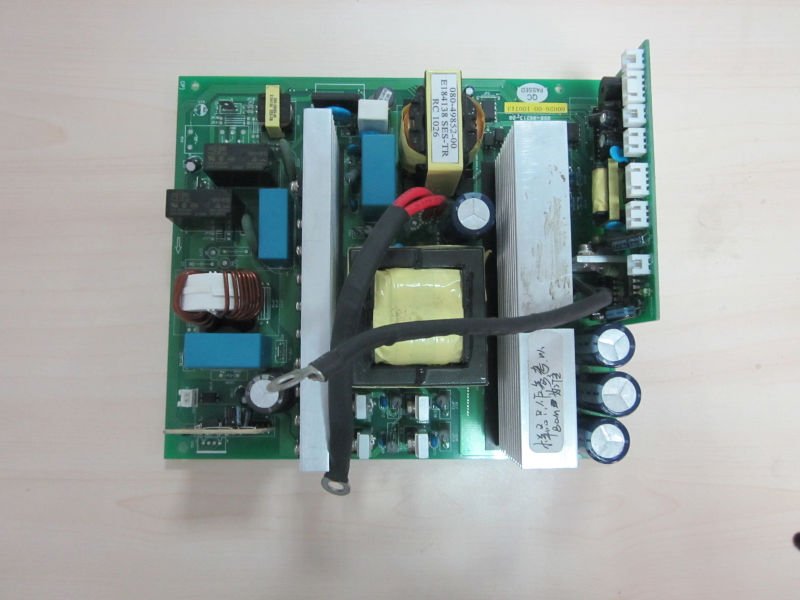

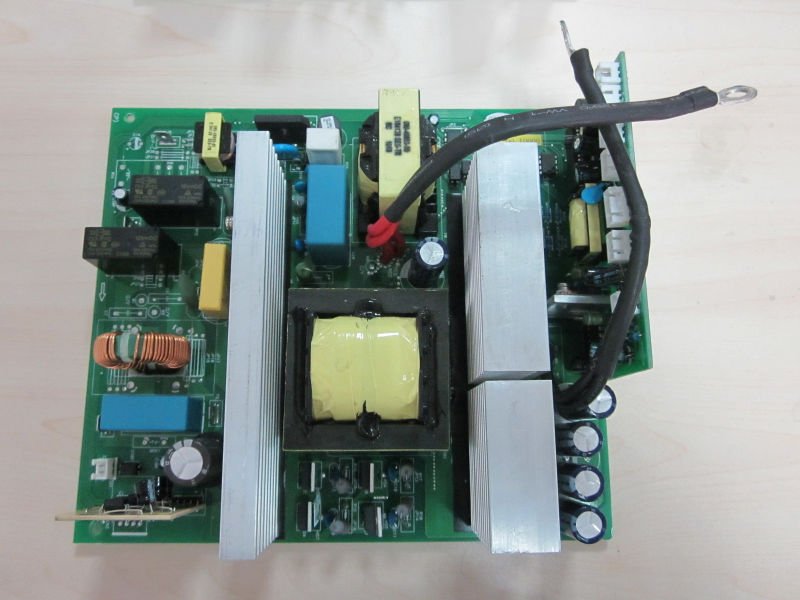

main power board:double-layer board base
ac brownout:wide input ac voltage regulation
ac blackout:PWM inverter & external battery
rack mount inverter charger:compact size,light weight

12vdc 220vac lcd display rack mount home use 1kva 2 kva inverter charger 10amp / 20amp

Main Feature:

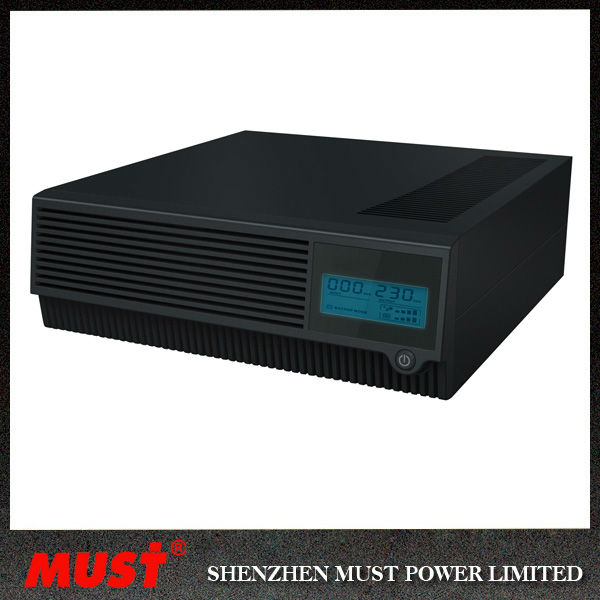

1. inverter charger in 12vdc input, 220vac output with lcd display(inverter mode)

2. inverter charger in 220vac (170-280v) or 90-280v) input, 220vac +/- 10% output

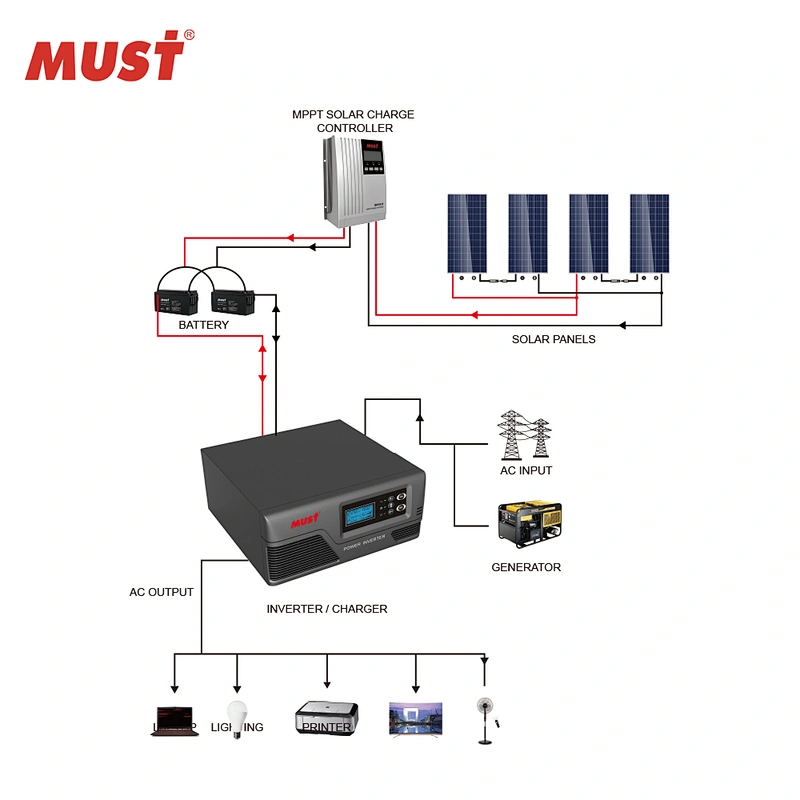

3. lcd display inverter charger for home electronics power backup solution

wide input range and good ac input voltage regulation with advanced high frequency technology solve ac-brownout problem

very well, avoid frequent transfer to battery and protect battery to extend service time;

cpu control, PWM (Pulse-Width-Modification) invertion tech,extenal SLA battery, adjustable 10amp/20amp charger current

work together for Ac-blackout problem solution

4. inverter charger automatic adjustable 10amp/20amp charger current and 3-stage intelligent battery

charge control

5. inverter charger best electric performance results from finest workmanship and quality component,

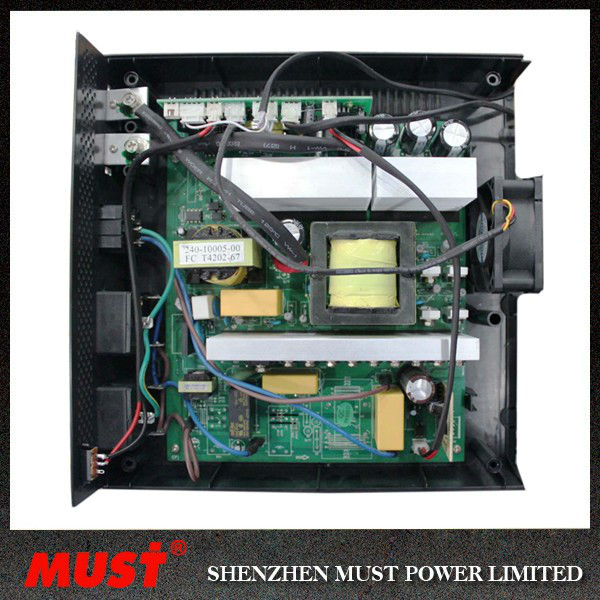

double-lay PC board base for main power board

6. inverter charger comprehensive protection again ac input over-voltag, under-voltage, over-load,

over-temperature,short-circuit, battery protection of over-charge, over-discharge

optional reverse protection with a fuse

7. inverter charger empty load power consumption of 2.4amp(12vdc),1.2amp(24vdc:1200w)

8. rack mount inverter charger compact size light weigh

Specification:

inverter charger,ac inverter,power inverter with charger, high frequency inverters,

600w inverter,home inverter, home power inverter, power inverter, dc to ac inverter,

dc/ac inverter,dc ac inverter, inverter charger, invertion power supply,IPS

inverter charger	MODhohomeme EL		P1000C	P2000C
OUTPUT	Power Levels crated at nominal inputs		1000VA/600W	2000VA/1200W
	Output Voltage		230V	230V
	Phase		Single
	Voltage Waveform		Modified Sine Wave
	Power Factor		0.6
	Output Frequency(Synchronized to Mains)		Auto Select for 50/60Hz
	Regulation (Nominal)		10%-18%
	Regulation(Battery mode)		±0.1HZ
	Transfer time		10ms Typical
INPUT
	Nominal Voltage		220V/230V/240V Selectable	220V/230V/240V Selectable
	Phase		Single
	Voltage range		180-275VAC ( Narrow Range )
			80-275VAC (Wide Range)
BATTERY	BATTERY
	Charger Current		1000VA/600W12VDC/:10Amp/20Amp + / - 1Amp;
			2000VA/1200W24VDC:10Amp/20Amp + / - 1Amp
	Floating Voltage		600W:13.7V + / - 0.4V; 1200W:27.4V + / - 0.4V

	Protection		overcharge protection:1000VA/600W:15V +/- 0.6V charger stops and fault
			overcharge protection: 2000VA/1200W: 30V +/- 0.6V charger stops and fault
			other protection: discharge, overload
EFFICIENCY
	AC to AC		>95%
	DC to AC		>80%
INDICATOR
	AC Mode		Green LED/LCD lighting
	Battery Mode		Yellow LED/LCD lighting
	Battery Charging Mode		Green LED /LCDflashing every 2 seconds
	Overload		Red LED/LCD flashing every 0.5 second
	Fault		Red LED/LCD lighting
AUDIBLE
ALARM	Low Battery at Battery Mode		Sounding every 2 seconds
	Overload		Sounding every 0.5 second
	Fault		Continously sounding
	Protection
	Full Rrotection		Deep Discharge, Overcharge, and Overload protection
ENVIRONMENTAL
AND SAFETY	Operating Temperature		Up to 1500 meters:0 °Cto 40°C (32°F to 104°F)
	Transit/storage Temp.		15°C below zero to 50°C (5°F to 131°F)
	Relative Humidity		0 - 90% non condensing
	Quality control system		ISO 9001:2000, ISO 14002-2004
PHYSICAL
	Appearance	Size(mm)L x W x H	22425580
		Net Weight(Kg)	600W:2.3kgs; 1200W :2.3kgs
		Carton BOX(mm)L x W x H	400347596(6pcs)
		Gross Weight(Kg)	1000VA /600W :16.8kgs ; 2000VA / 1200W :17.2kgs
