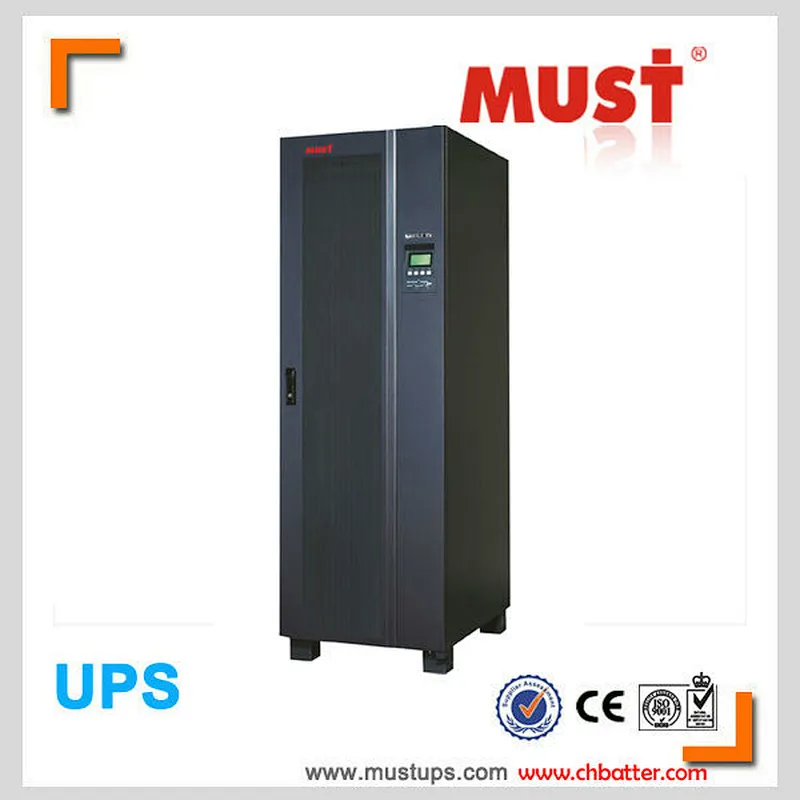

MUST 3 phase online ups 20kva to 40kva for IT data center power solution

• Place of Origin:Guangdong, China
• Brand Name:Must
• Model Number:20kva ups, 30kva,40kva(EH9335)
• Phase:Three Phase
• Protection:Ac volt. dips,sags,voltage spike,surge volt., volt freq. fluctuation..
• Weight:100-400kgs
• Output Voltage:European Ac: 380/220V,400/230V,415/240V
• Type:On-line
• Application:IT infracture,ICT equipment, large data-center,telecom, bank ...
• Ac input sources of 2:regular mains and reserve mains 10k,20k,30k,40k
• Rectifier:SCR silicon module
• Input P.F.:Min. 0.99
• Inverter:Fairchild IGBT power kits
• Output P.F.:0.8 - 1 lagging
• Inverter efficiency:0.94
• Ac input voltage range:210v - 475v
• Input frequency:50Hz / 60 tolerance 10%
• Output voltage:380v / 220V 1% tolerance
• output freq.:auto-detection(Ac-mode), 0.05Hz tolerance(battery-mode)

3 phase online ups 20kva to 40kva for IT data center power solution

Feature:

1. data center ups in 3 phase 4 wires + G wiring diagram, 380v/220v,400v/230v,415v/240v;

2. 3 phase high frequency online ups adopts full digitalized dsp-based Ti high performance micro-processor control for reliability;

3. high frequency online ups PFC+SCR/Silicon ac-dc rectifier module for high input p.f. 0.99 means better ac-ultilization;

4. Dc bus booster and nominal dc voltage 384v/360v/336vdc options, internal or external battery;

    data center ups adopts dc battery charger designed consequently rectifier module;

5. 3 phase in and out pure sine wave ups adopts high efficient dsp-base dc-ac individual phase inverter of Fairchild IGBT:

    high efficiency, power-saving and stability;

6. 380volt 3phase pure sine wave ups equiped an individual phasic controller: real time control ups operation, and battery

   charge discharge;

7. 3 phase online double convertion ups guarrantees ups stable power solution for IT data-center;

8. 3 phase isolated ups adopts galvanic isolation output transformer for secure power solution:

    completely isolate output power from input ac source in case of noise interference, harmonic distortion;

    completely isolate output neutral from ground line/ups chassis in case of electric shock by touching ups;

9.  standard with parallel kits(parallel cable and interior wires)

    for flexible on-demand power expansion, hot-redundancy, N+X parallel redundant

    max 8 units N+X ( 7 or 6 for parallel, 1 or 2 for redundancy).

10. data center ups in normal invertion efficiency 0.94, ECO mode 0.98, with EPO emergent power off design;

11. 3 phase high power ups thorough communication interface: standard RS232,RS485, optional dry contact,

     AS400 expansion card, SNMP network monitor management tool/protocol;

12.Optional hardware component: power feedback module, temperature sensor, enhanced IP protection class,

    charger board expansion.

 3 phase online ups, high power ups, high capcity ups, 380v ups

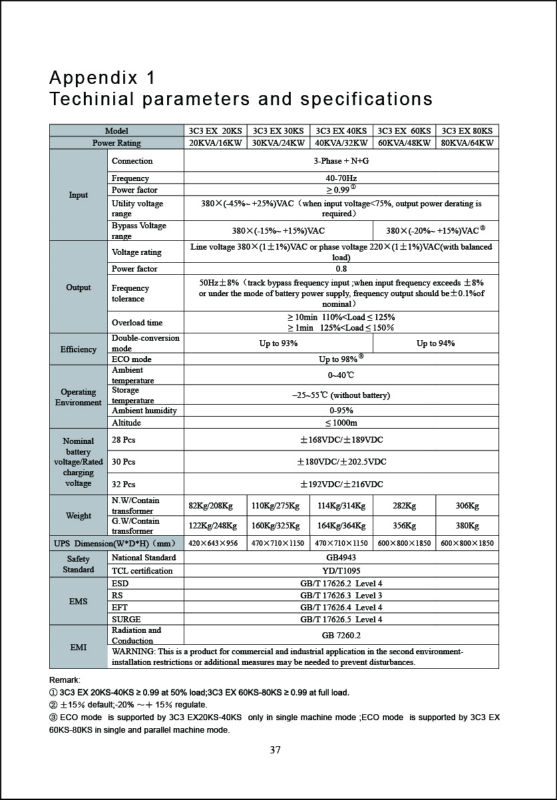

Specification

3 phase online ups, 40kva ups,three phase in single phase out ups

photos electrical view

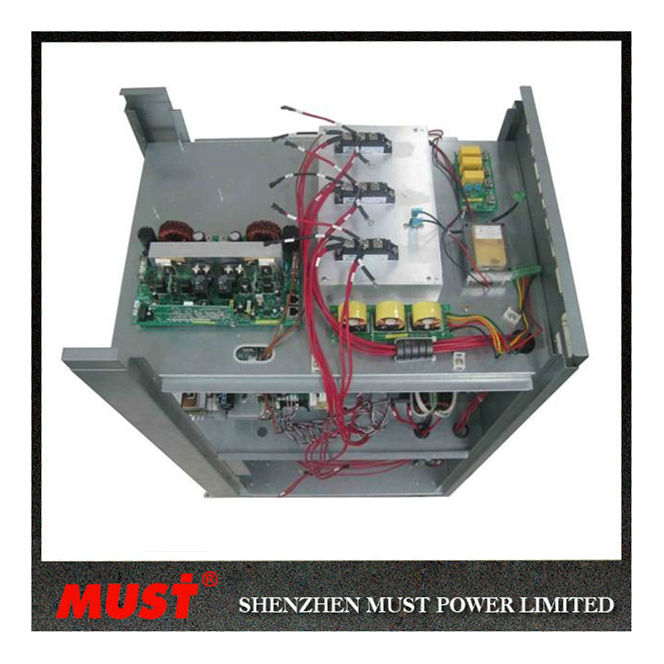

3 phase online ups,40kva ups PFC + SCR Rectifier-module:

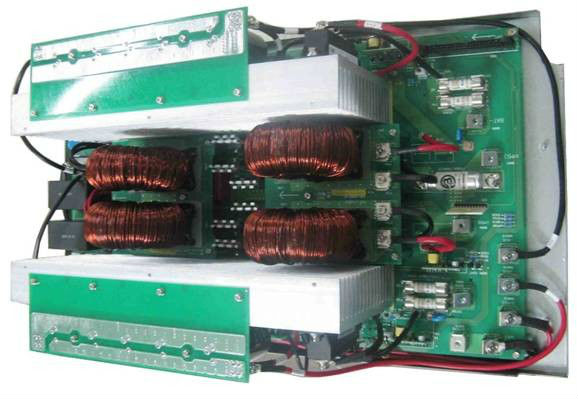

3 phase online ups, 40kva ups individual phase inverter PSDR board:

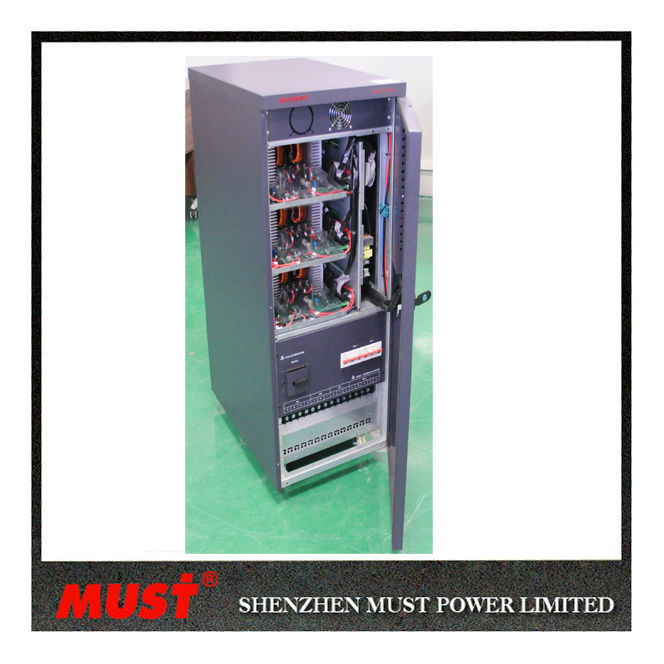

3 phase online ups, 40kva ups electrical view:

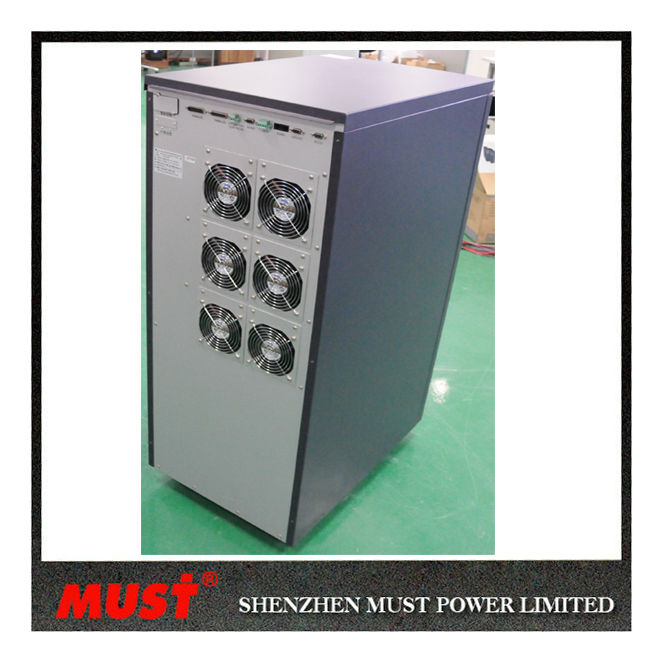

3 phase online ups, 40kva back panel

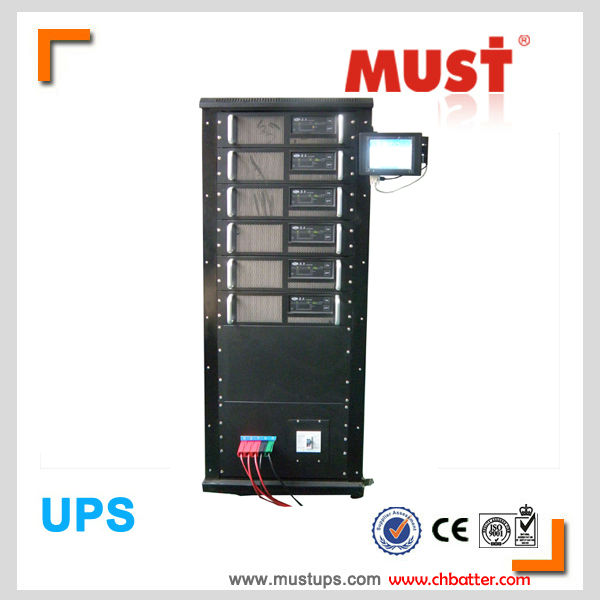

3 phase online ups, 20kva ups, high power ups, high capacity ups,380v/220v ups

 testing device of power feedback module 60kva

3 phase online ups, high power ups, high capacity ups, ups power supply,20kva ups,40kva ups

manufacturebackground CE,SGS,ISO-9001(2008) verified
