- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:EH5000series 1KVA-3KVA
- Phase:Single Phase
- Protection:Overcurrent
- Weight:13kg-28kg
- Output Voltage:220V/230V/240Vac
- Type:On-line
- Application:Security / Monitoring / Alarm, medical equipment,bank system
- display:LCD/LED
- output sockets::universal/ IEC/NEMA/GERMAN
- color:black or white
- transfer time: 0
- Frequency:50HZ/60HZ
- Output wave form: Pure sine wave
- input voltage:115-300Vac
- capacity:1KVA-3KVA
- country of origin:china

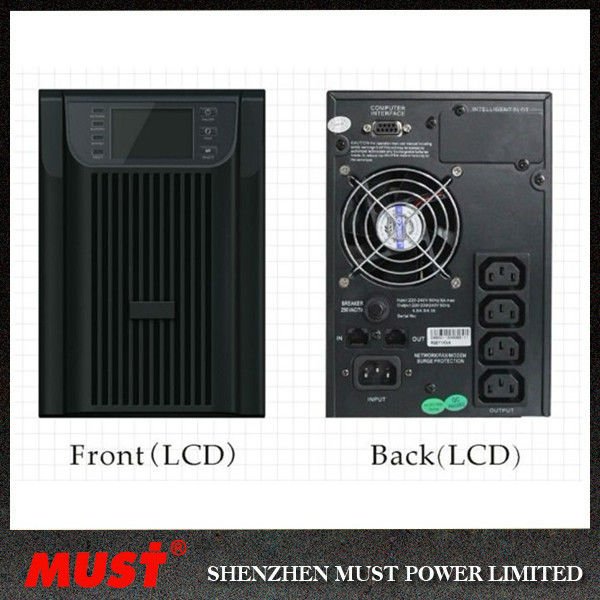

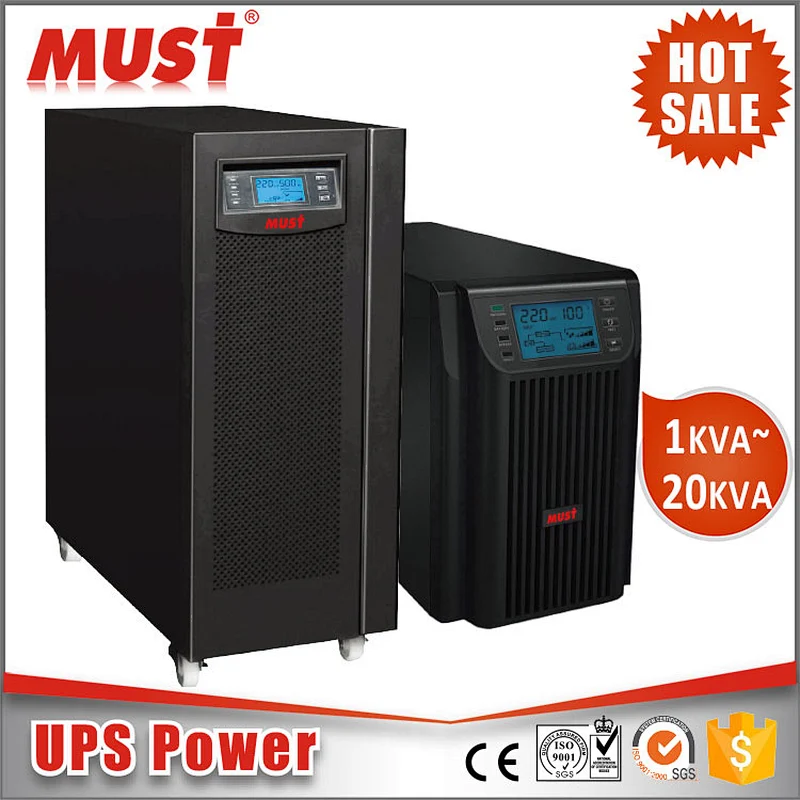

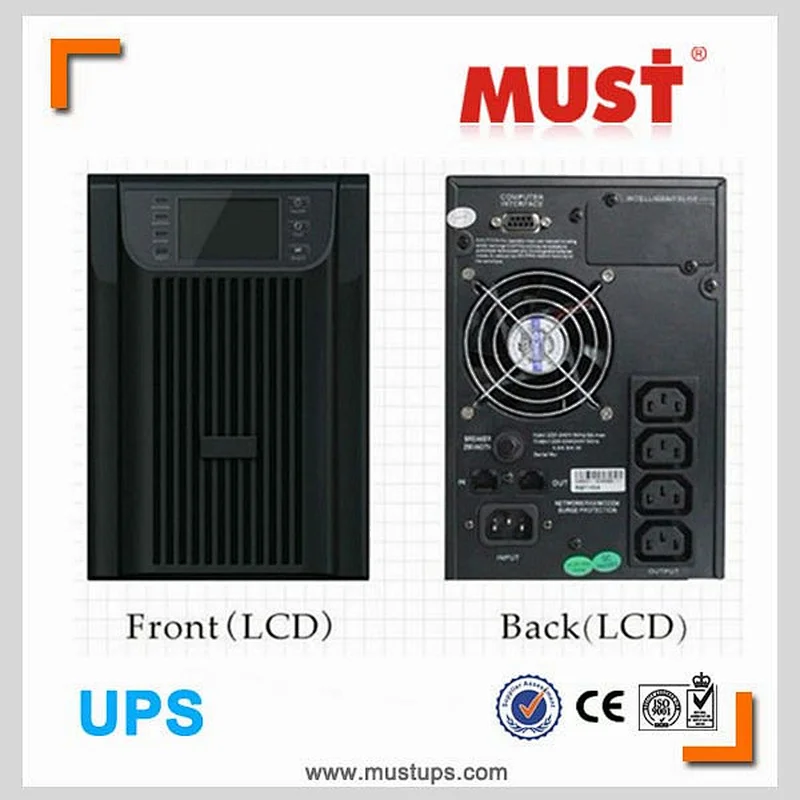

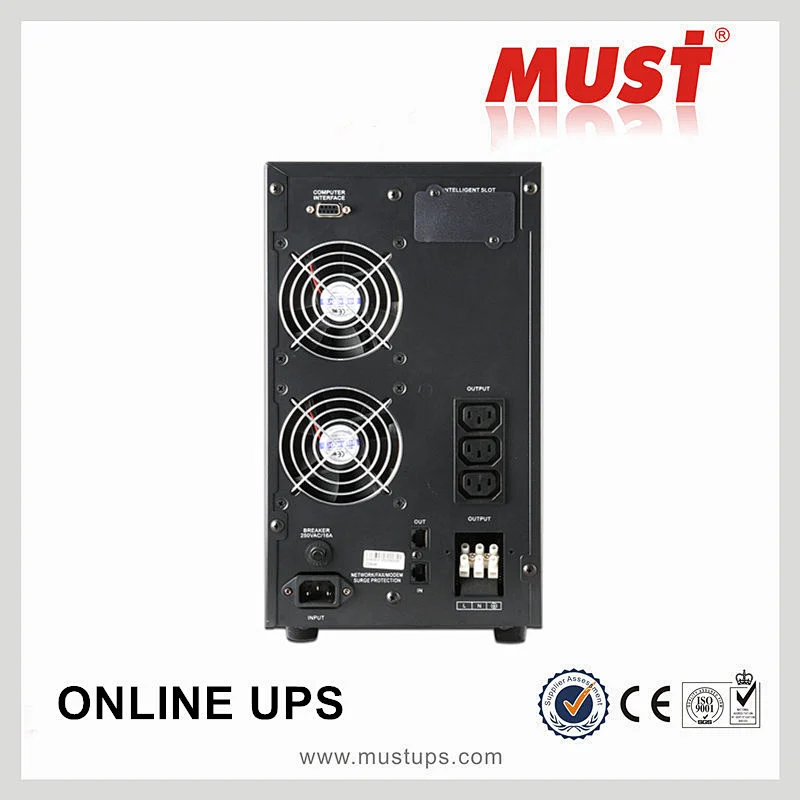

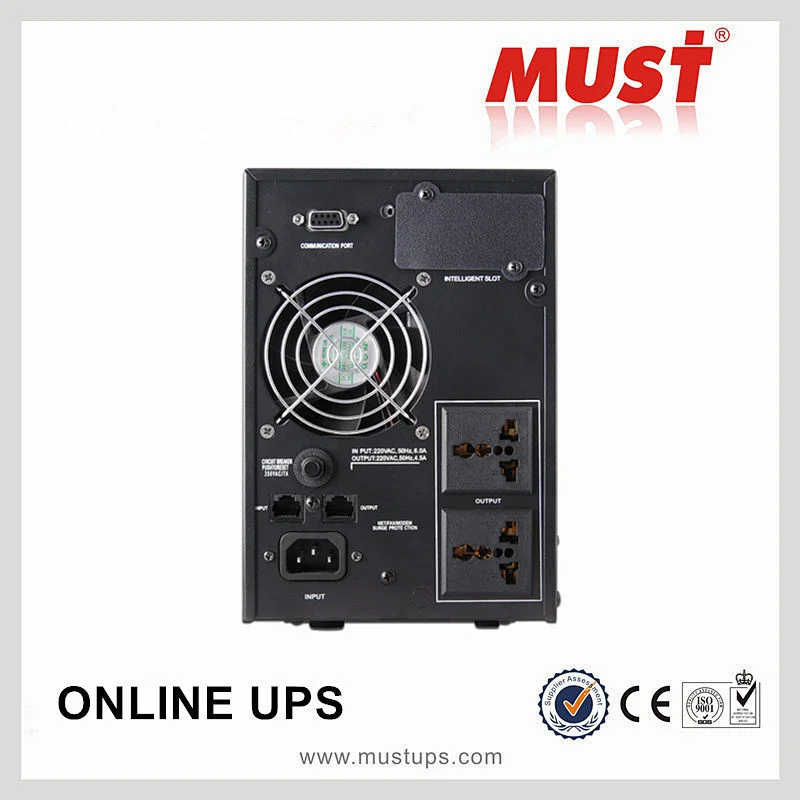

MUST High frequency LCD IGBT uninterruptible power supply 3KVA UPS
Main features:
1.True on-line double conversion technology with advanced microprocessor control
2.Wide input voltage range
3.LCD display
4.Zero transfer time
5.Protection against all type of power problems
6.Self test while start of the UPS
7.Site wiring fault warning
8.On-battery power-on function
9.Smart RS232 communication interface
10.Intelligent slot available

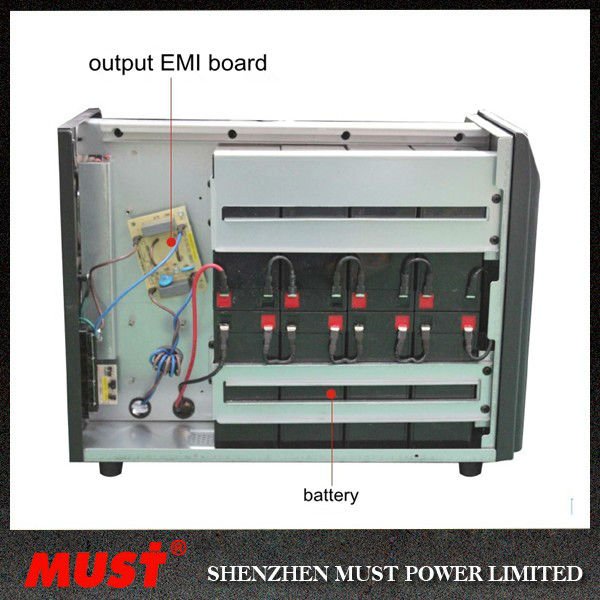

Sealed lead-acid, maintenance free battery
Technology specification:
| Model | HC3K |
|---|---|
| CAPACITY | 3000 VA/2400 W |
| INPUT | |
| Phase | Single phase with ground |
| Voltage Range | 145~ 275VAC/110~300VAC |
| Frequency Range | 40 Hz ~ 70 Hz; 50/60Hz Autoadaptation |
| Power Factor | ≥0.99 |
| OUTPUT | |
| Voltage Range | 220*(1±1%)VAC |
| Frequency Range | Main Mode: (47 ~ 52.8Hz) 50Hz Battery Mode: 50 Hz ± 0.2 Hz or 60 Hz ± 0.3 Hz(57 ~ 62.8Hz) 60Hz Synchronized Range |
| Current Crest Ratio | 3:1 |
| Power Factor | 0.8 |
| Output Waveform | Pure Sine Wave |
| Outlet | IEC*3+Terminal |
| TRANSFER TIME | |
| AC to DC | Zero |
| Inverter to Bypass | <4 ms (Typical) |
| INDICATORS | |
| LED Panel | Load/ Battery Capacity/ Main Mode/ Bypass Mode/ Fault |
| LCD Panel | Load/ Battery/ Input/ Output/Operation Mode |
| ENVIRONMENT | |
| Operating Environment | 0- 40°C |
| Humidity | 20-90 % (non-condensing) |
| Noise Level | < 60dB @ 1 Meter |
| Temperature | -25°C - 55°C(no battery) |
| OTHER | |
| Protection | Load<110%, Keeping working; 110%1min; 130% Immediately |
| Efficiency | Up to 90% |
| Battery Inbuilt | 6pcs*12V/7.2AH |
| Battery DC Voltage | DC72V/96V |
| PHYSICAL | |
| Dimension D*W*H(mm) | 460 X 192 X 348 |
| Net Weight(kgs) | 28.5 |
| MANAGEMENT | |
| Smart RS-232/USB | Supports Windows®98/2000/2003/XP/Vista/2008, Windows®7, Linux,and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
