- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:EW2150series 1000VA-6000VA
- Phase:Single Phase
- Protection:Overvoltage
- Weight:12kg-34kg
- Output Voltage:81-145 VAC / 145-280 VAC
- Type:Line Interactive
- Application:COMPUTER
- Color:black
- interface:RS232/RJ45
- type:line interactive ups
- frequency:low frequency
- backup time:15-20mins
- output wave:pure sine wave
- wide input voltage:145VA-290VAc
- Output:220VAC/110VAC
- Country of origin:china
- protection:over load ,short circuit

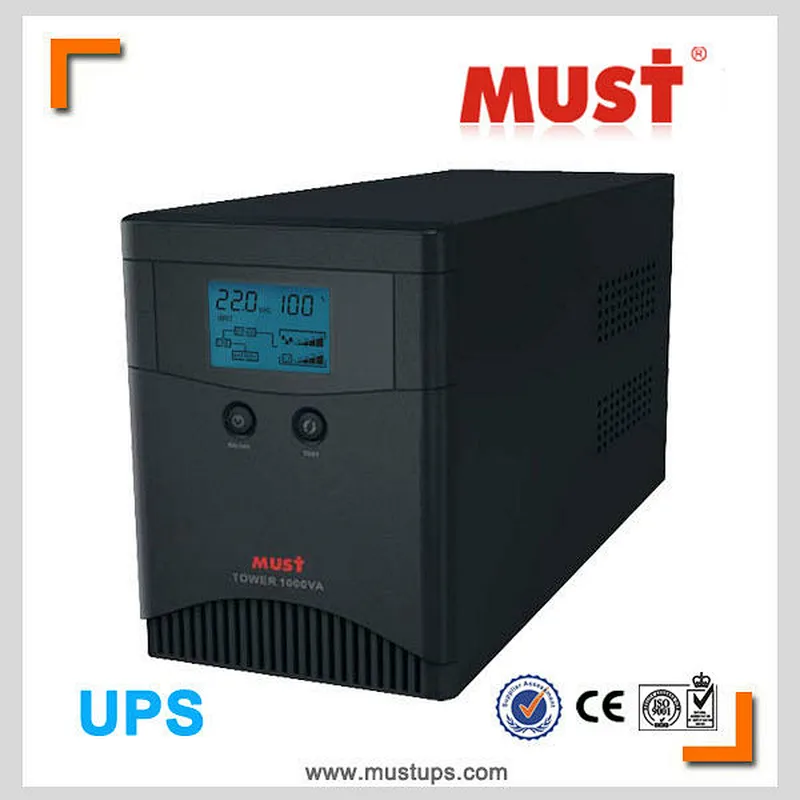

Must Pure sine wave ups combined inverter and battery
Main features:
Suitable for installation on PCs running Windows Vista, 2003, XP, 2000, Me, 98; Linux, Mac OSX and the Sun Solaris operating system.
Accurate pure sine wave output ;strong capacity of different load.
Advanced performance due to the CPU control.
Wide range of power input and accurate output AVR.
Perfect protection for overload ,short circuit ,over-voltage ,low-voltage and over-heating etc.
Adapt to various of power net well ,compatible with generator
Front panel LCD display providing status, load and battery information and LEDs (standard version).
Compact dimensions and ergonomic design: it can be placed on a desk top or other convenient location, with easy to access connections and informative front panel.
UPS start automatically when the main power recover(optional).
Intelligent battery management.
Technology Specifitions:
| MODEL | EW2150 1KM/S | EW2150 2KM/S | EW2150 3KM/S | EW2150 5KS | EW2150 6KS |
| CAPACITY | 1KVA /700W | 2KVA /1400W | 3KVA /2100W | 5KVA /3500W | 6KVA /4200W |
| INPUT | |||||
| Voltage | 100/110/120/127/220/230(± 25%) VAC | ||||
| Voltage Range | 81-145 VAC / 145-290 VAC | ||||
| Frequency Range | 60/50 ± 10% Hz (auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation | ±10% | ||||
| Frequency Range | 60 Hz or 50 Hz ±1 Hz | ||||
| Transfer Time | Typical 2-6 ms, 10ms max. | ||||
| Waveform (Batt. Mode) | Sine Wave | ||||
| BATTERY | |||||
| Battery Type & Number | 12 V/7 AH x 2 | 12 V/12 AH x 2 | 12 V/12 AH x 4 | 12 V/17 AH x 4 | 12 V/17 AH x 4 |
| Recharge Current | Long back up model:max 15A Standard model:max 3A | ||||
| INDICATORS | |||||
| LCD/LED | Optional | ||||
| PROTECTION | |||||
| Overload | shut dowm if overload exceeds 120% /normal value for 30 seconds | ||||
| Short circuit | Cut off immediately or input circuit breaker protection | ||||
| ALARM | |||||
| Battery back-up | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Audible alarm | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| M Dimension, D X W X H (mm) | 375 x 130 x 190 | 452*192*338(2kva-3kva);500*260*455(5kva-6kva) | |||
| M Net Weight (kgs) | 12.0 | 21 | 25 | 29.5 | 33.7 |
| S Dimension, D X W X H (mm) | 375 x 130 x 190 | 452*192*338 | |||
| S Net Weight (kgs) | 9.6 | 17.0 | 23.7 | 27 | 37.3 |
| OPERATING ENVIRONMENT | |||||
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing) | ||||
| Noise Level | Less than 45dB | ||||
| MANAGEMENT | |||||
| Optional USB/RS-232 Port | Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC | ||||
