- Place of Origin:Guangdong, China
- Brand Name:MUST or OEM
- Model Number:PV3500 PRO
- Input Voltage:220V 230V 240V
- Output Voltage:220V 230V 240V
- Output Current:120A
- Output Frequency:50/60HZ
- Output Type:Single
- Size:620*385*215mm; 670*410*215mm
- Type:DC/AC Inverters
- Inverter Efficiency:88%
- Certificate:CE; IEC
- Warranty:1year, 1 year
- Weight:36-77kgs
- Product name:Hybrid inverter
- Display:Digital LCD Display
- Rated power:4kw-12kw
- Inverter type:Low Freqnency Transformer Inverter
- Solar charger:80A/100A/200A MPPT
- Waveform:Pure Isine Wave
- Communications:RS485/RS232 (WiFi Option)
- Max. Efficiency:88%
- MPPT Efficiency:98%
***************ANY QUESTIONS, INQURIES WELCOMED TO ZOEY !!!!***************
WHATSAPP/WECHAT: 008613694205624

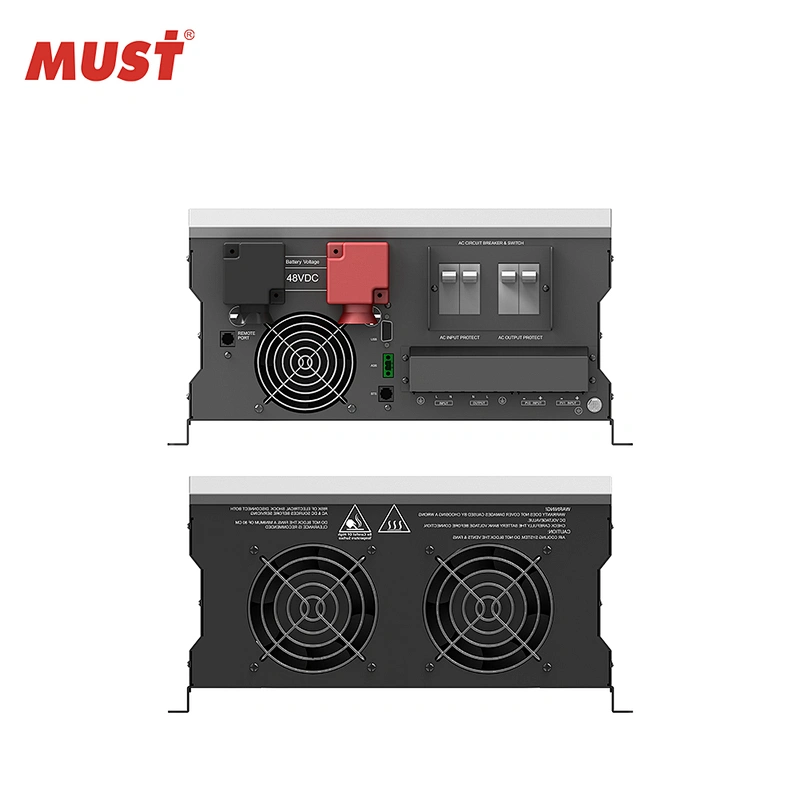

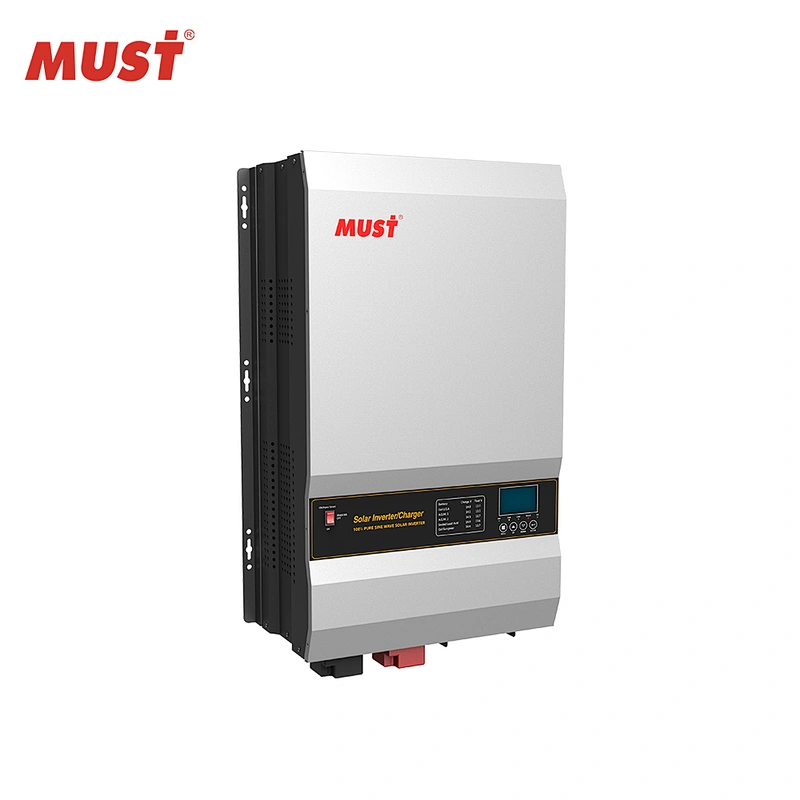

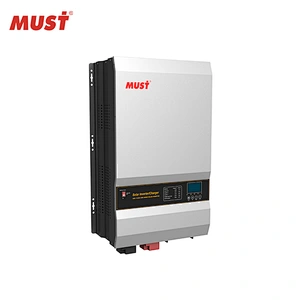

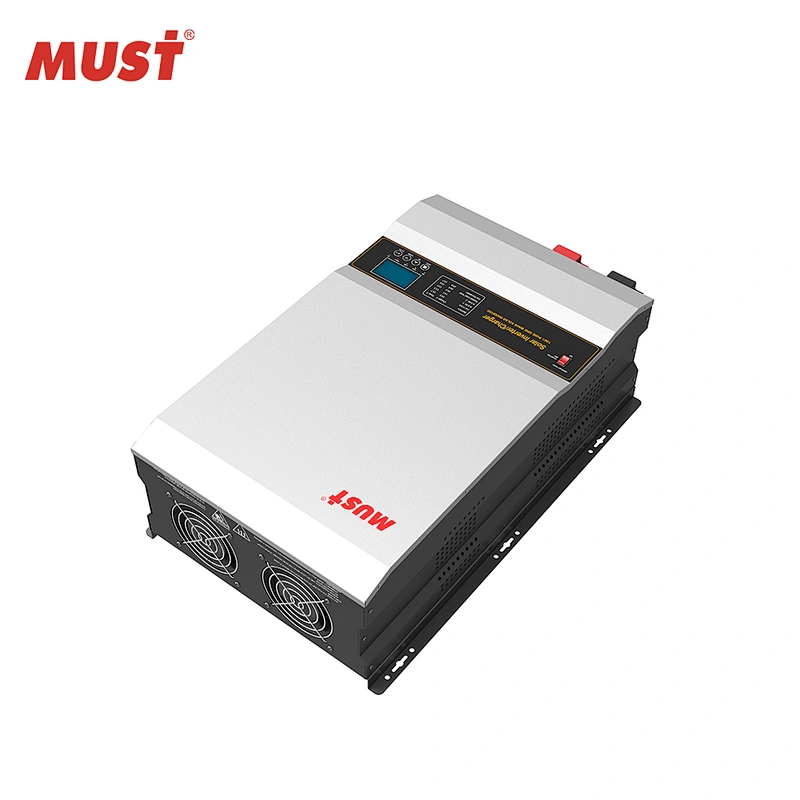

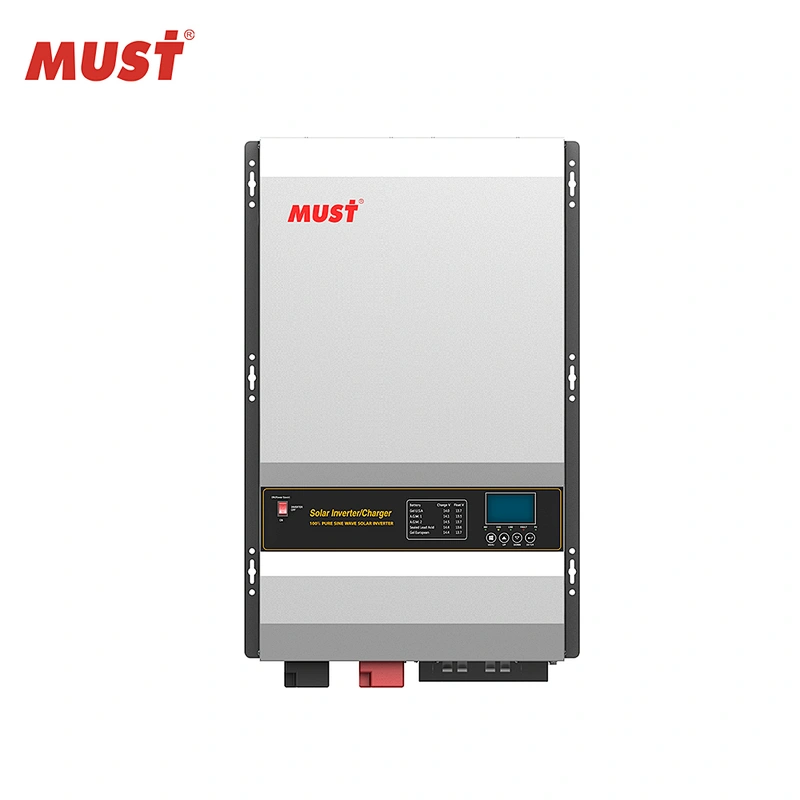

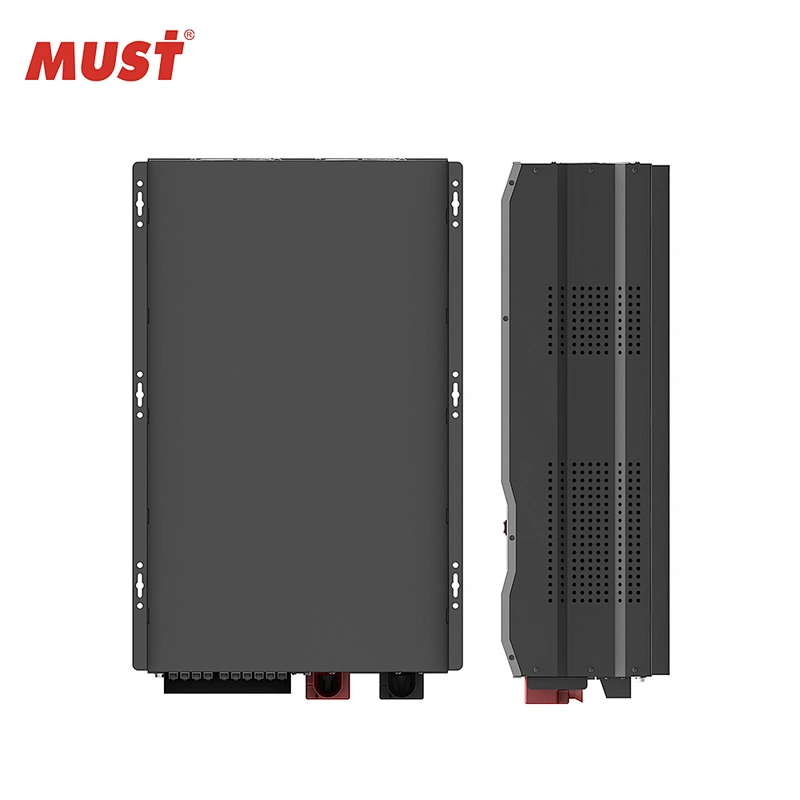

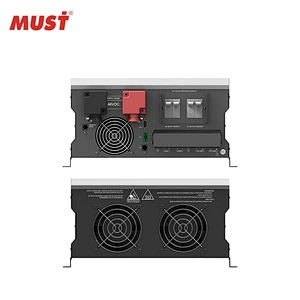

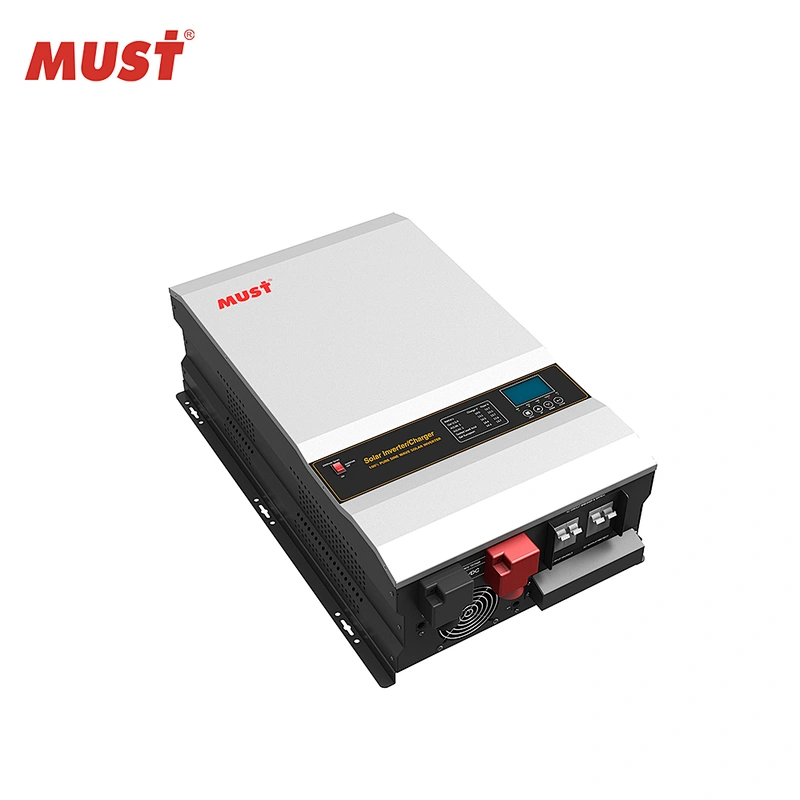

MUST grid tied inverter solar inverter 12000w 48v 100A 200A 12KW inverter
Low Frequency Off Grid Solar Inverter

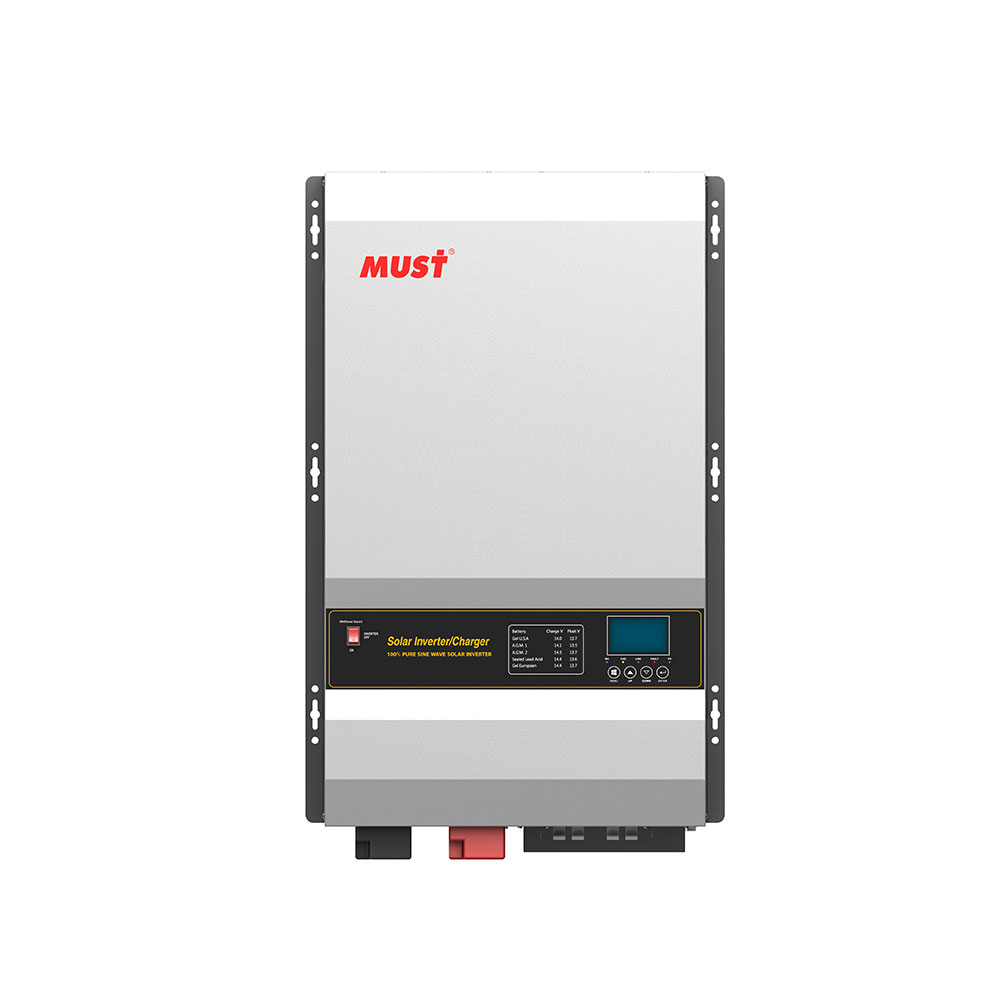

PV3500 PRO Series (4-12KW)

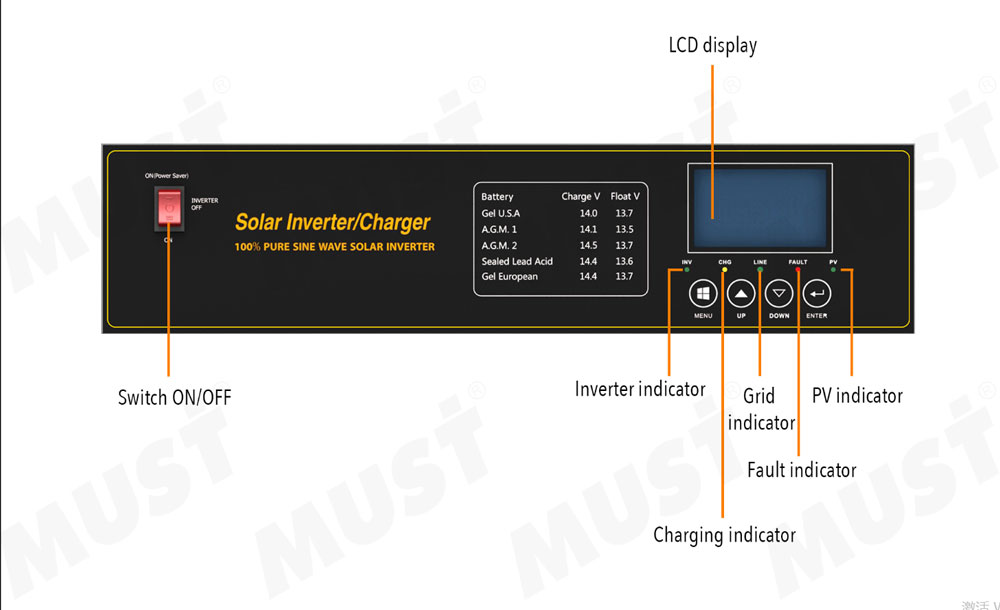

PV3500 PRO series is a multi-function inverter ,combining functions of inverter and mppt solar charger controller, solar charger and battery charger to offer uninterruptible power support with portable size. The comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and selectable input voltage based on different applications.

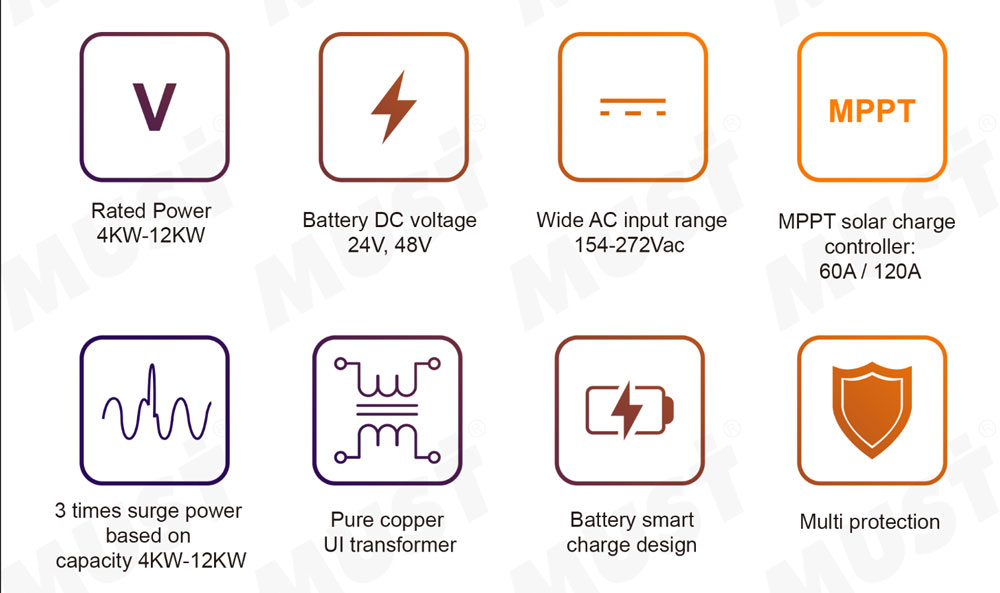

- Smart LCD setting(Working modes, Charge Current, Charge voltage, etc.
- Built-in MPPT solar charge controller 80A/100A/200A
- MPPT efficiency max 98%
- Powerful charge rate up to 140Amp
- DC start &Automatic Self-Diagnostic Function
- WIFI / USB monitoring function with free CD (wi-fi optional)

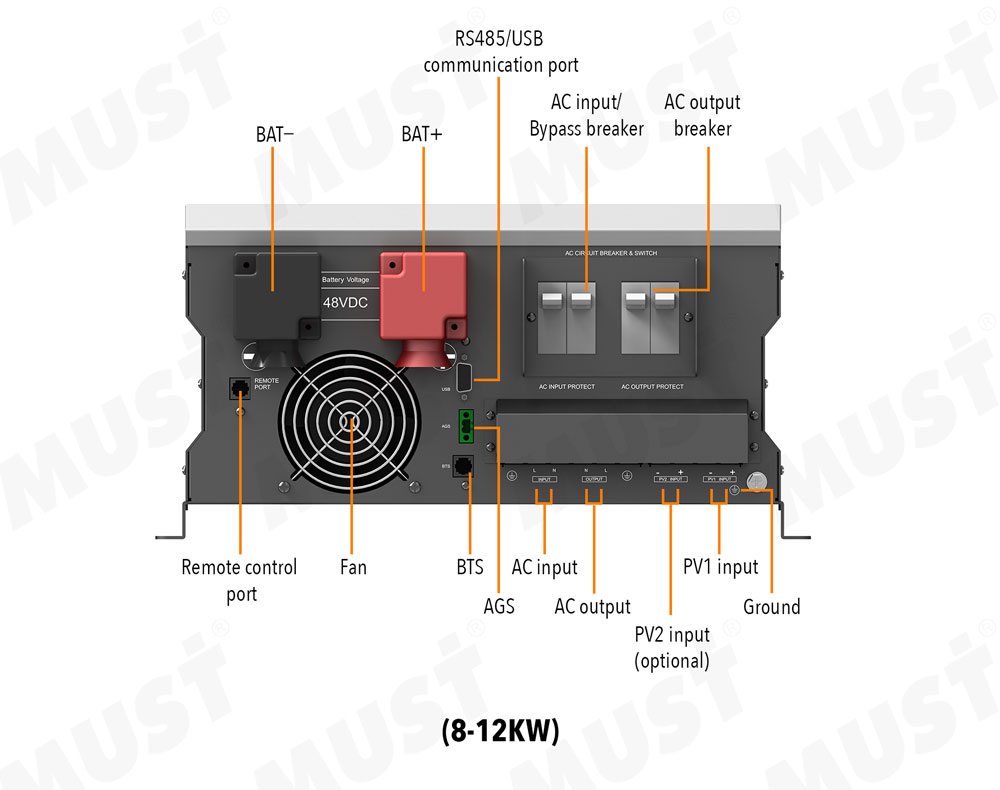

- Supporting AGS, BTS port
- Compatible to generator
Technical Data
| MODEL | PV35 PRO- 4K | PV35 PRO- 5K | PV35 PRO- 6K | PV35 PRO- 8K | PV35 PRO- 10K | PV35 PRO- 12K | ||
|---|---|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 24V | 48V | 24V | 48V | 48V | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | ||||||||
| Rated power | 4KW | 5KW | 6KW | 8.0KW | 10.0KW | 12.0KW | ||
| Surge rating(20ms) | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW | ||
| Capable of starting electric motor | 2HP | 2HP | 3HP | 4HP | 5HP | 6HP | ||
| Waveform | Pure sine wave / same as input (bypass mode) | |||||||
| Nominal output voltage RMS | 220V / 230V / 240VAC (+/-10%RMS) | |||||||
| Output frequency | 50Hz / 60Hz +/- 0.3Hz | |||||||
| Inverter effciency(peak) | >85% | >88% | ||||||
| Line mode efficiency | >95% | |||||||
| Power factor | 1.0 | |||||||
| Typical transfer time | 20ms(max) | |||||||
| AC INPUT | ||||||||
| Voltage | 230VAC | |||||||
| Selectable voltage range | 90-280 VAC (APL) | |||||||
| Frequency range | 50Hz / 60Hz | |||||||
| BATTERY | ||||||||
| Low battery voltage cutoff | 20-24VDC for 24VDC mode (40-48VDC for 48VDC mode) | |||||||
| Low battery voltage recover | 21-25VDC for 24VDC mode (42-50VDC for 48VDC mode) | |||||||
| High battery voltage cutoff | 30VDC for 24VDC mode (60VDC for 48VDC mode) | |||||||
| High battery voltage recover | 28.5VDC for 24VDC mode (57VDC for 48VDC mode) | |||||||
| Idle consumption-search mode | <30W when power saver on | <60W when power saver on | ||||||
| AC CHARGER | ||||||||
| Output voltage | Depends on battery type | |||||||
| Charger AC input breaker rating | 40A | 40A | 50A | 80A | 80A | 80A | ||
| Overcharge protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||
| Maximum charge current | 80A | 60A | 100A | 70A | 80A | 100A | 120A | 140A |
| BTS | ||||||||
| Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | |||||||
| BYPASS PROTECTION | ||||||||
| Input voltage waveform | Sine wave (grid or generator) | |||||||
| Nominal input frequency | 50Hz or 60Hz | |||||||
| Overload protection (SMPS Load) | Circuit breaker | |||||||
| Output short circuit protection | Circuit breaker | |||||||
| Bypass breaker rating | 40A | 63A | 63A | 63A | ||||
| Max bypass current | 40Amp | 80Amp | ||||||
| SOLAR CHARGER | ||||||||
| Maximum PV charge current | 80A | 100A(200A optional) | ||||||
| DC voltage | 24V/48V Auto work | 48V | ||||||
| Maximim PV array power | 2000W | 4000W | 2000W | 4000W | 4000W | 5000W(10000W for 200A optional) | ||
| MPPT range @ operating voltage(VDC) | 32-145VDC for 24V mode,64-147V for 48V mode | 64~147VDC | ||||||
| Maximum PV array open circuit voltage | 147VDC | |||||||
| Maximum effciency | >98% | |||||||
| Standby power consumption | <2W | |||||||
| MECHANICAL SPECIFICATIONS | ||||||||
| Mounting | Wall mount | |||||||

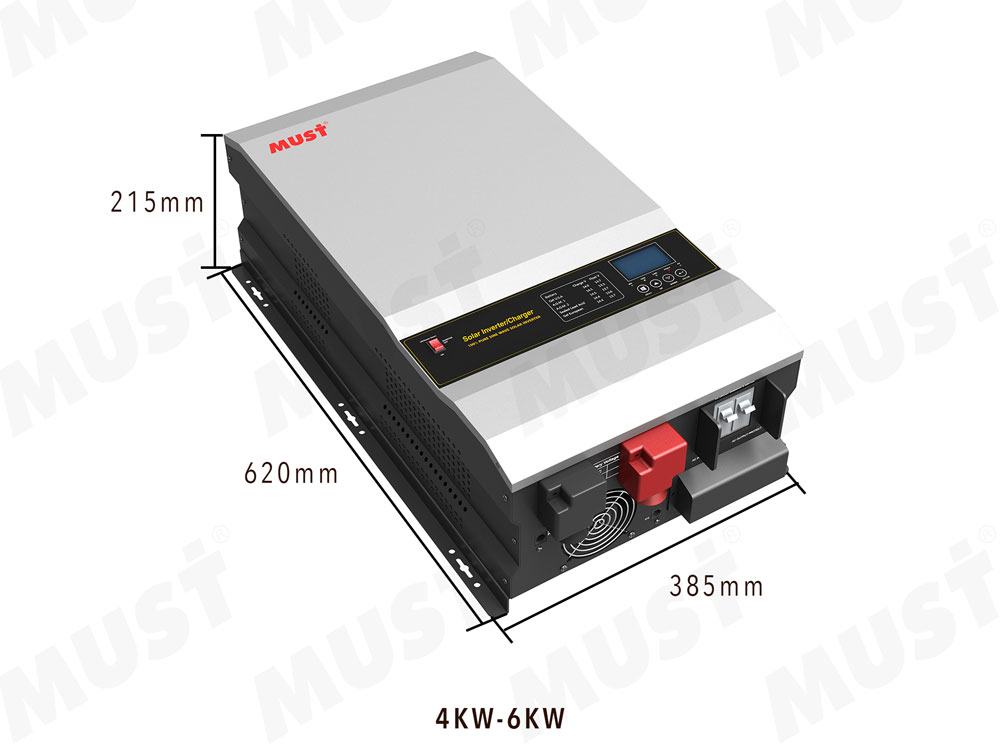

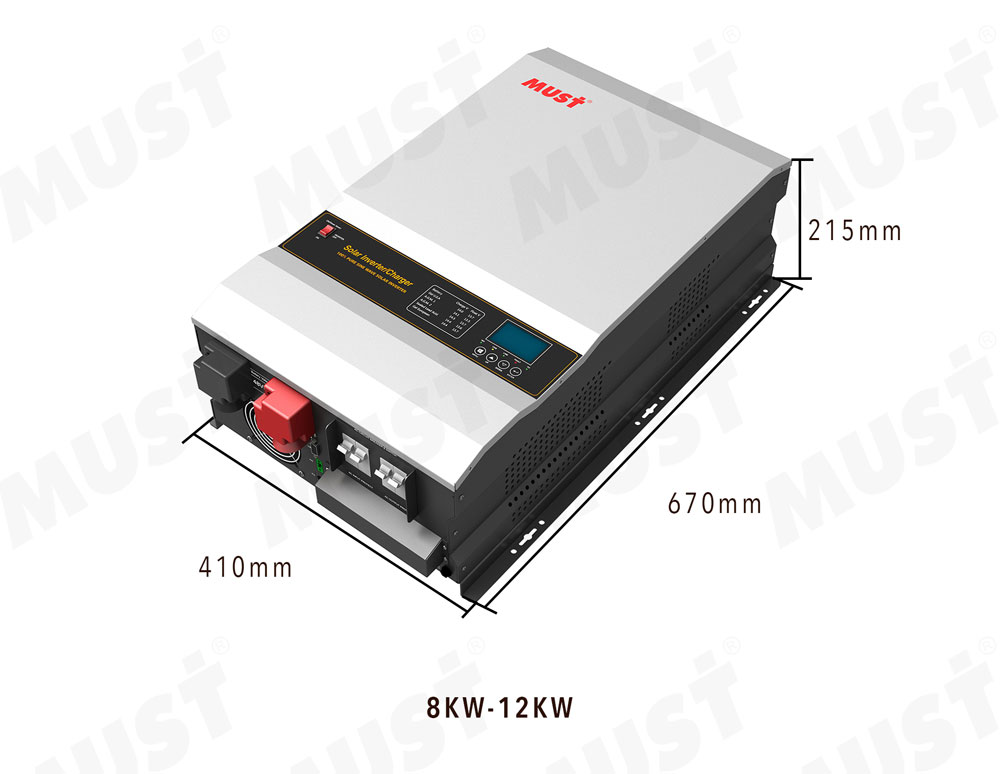

| Dimensions (W*H*D) | 620*385*215mm | 670*410*215mm | ||||||
| Net weight (solar CHG) (kg) | 36 | 41 | 41 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | ||
| Shipping dimensions (W*H*D) | 755*515*455mm | 884*618*443mm | ||||||
| Shipping weight (Solar CHG) (kg) | 56 | 61 | 64 | 82.5+2.5 | 89+2.5 | 92+2.5 | ||
| OTHER | ||||||||
| Operation temperature range | 0°C to 40°C | |||||||
| Storage temperature | -15°C to 60°C | |||||||
| Audible noise | 60dB MAX | |||||||
| Display | LED+LCD | |||||||
| Loading (20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs | |||||||
Samples and OEM, Warranty and After-Sale Service:
- Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:1 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Foshan City,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |

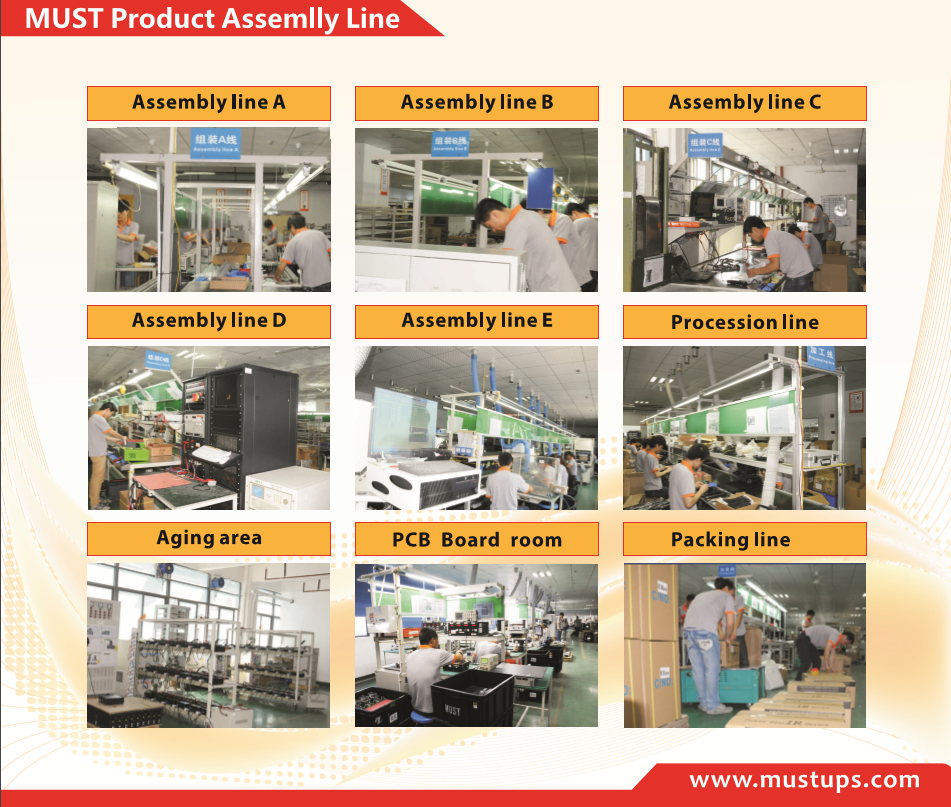

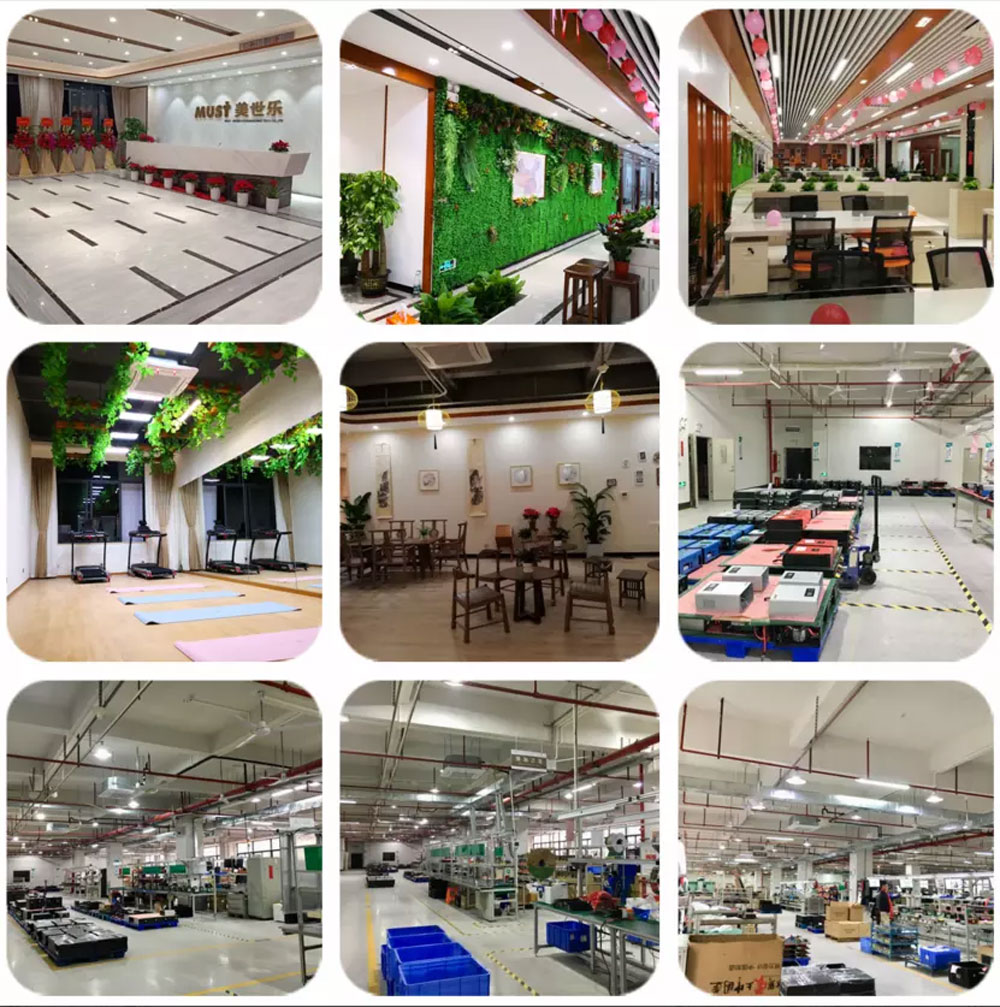

| Factory | 15000 Square Meters, 420 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
