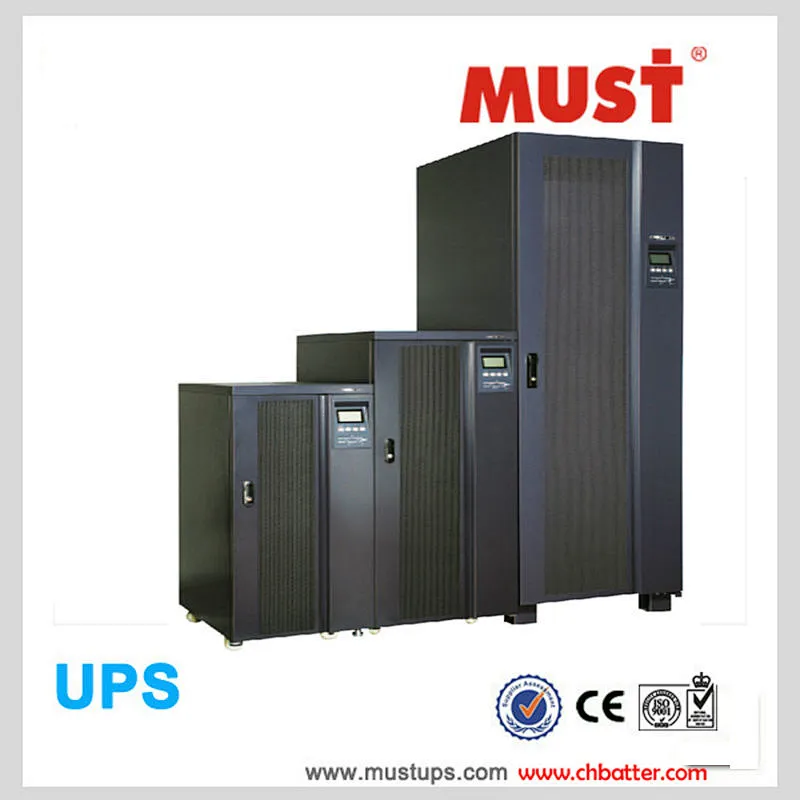

MUST high capacity ups 3 phase online with pfc silicon rectifier module igbt inverter

• Place of Origin:Guangdong, China
• Brand Name:Must Santakups Oem
• Model Number:3C3 -20/30/40Kva
• Phase:Three Phase
• Protection:Ac volt. dips,sags,voltage spike,surge volt., volt freq. fluctuation..
• Weight:100-400kgs
• Output Voltage:European Ac: 380/220V,400/230V,415/240V
• Type:On-line
• Application:IT infracture,ICT equipment, large data-center,telecom, bank ...
• Ac input sources of 2:regular mains and reserve mains 10k,20k,30k,40k
• Rectifier:SCR silicon module
• Input P.F.:Min. 0.99
• Inverter:Fairchild IGBT power kits
• Output P.F.:0.8 - 1 lagging
• Inverter efficiency:0.94
• Ac input voltage range:210v - 475v
• Input frequency:50Hz / 60 tolerance 10%
• Output voltage:380v / 220V 1% tolerance
• output freq.:auto-detection(Ac-mode), 0.05Hz tolerance(battery-mode)

  high capacity ups 3 phase online with pfc silicon rectifier module igbt inverter

high capacity ups,3 phase online ups, three phase in and three phase out ups, high power ups, high capacity ups, industrial online ups, industrial ups, 40kva three phase online ups,transformer-less ups, transformer-base ups, isolated ups, ups with isolation transformer brief feature

3C3-EX 20-40kva transformer-less ups design or transformer-base design(ISO)

with  full digitalized DSP Ti high performance micro-processor;

          pfc silicon ac-dc rectifier module;

          full dsp-based tranformer-less or transformer-base,high efficiency igbt inverter;

          double ac-power safe-guard from regular mains supply and reserve mains supply;

          (3C3-EX 60-80kva with regular mains supply only)

          galvanic isolation output transformer isolate output neutral,ground/ups chasssis(option).

          or 384vdc,360vdc,336vdc internal batteries for standard autonomy when ac fails(good power condition)

          30kva 32X9ah internal batteries keeps 1.5 minutes on half-load status.

          external battery bank;

          ABM: intelligent battery management/optimization: intelligently adjust charge,discharge parameters,

                                                                                                           battery optimization;

                                                                                                           temperature compensation charge control;

                                                                                                           mulitiple-stage charge control.

         Through communication management interface, RS232, RS485, dry contact, AS400,SNMP;

         EPO design, Emergent power off;

         Efficiency: 0.93-0.94(normal mode),0.98(ECO-mode)

         Flexible on-demand power expanding N+X parallel redundancy design(option):

         Max 8 unit and multiple paralleled units use same external battey bank;

         N for parallel, X for hot-redundancy;

         Multiple units average total load current;

         Standard with parallel kits in each unit, need only parallel cable.

         power feb-back module(option)

         Battery charger board expansion(option)

         Dust-filter(option for IP51 protection class)

         Temperature sensor (option for protect battery)

         IP21 protection class.

high capacity ups,3 phase online ups, three phase in and three phase out ups, high power ups, high capacity ups, industrial online ups, industrial ups, 40kva three phase online ups,transformer-less ups, transformer-base ups, isolated ups, ups with isolation transformer   application solution

widely applied to data center, network management center, enterprise server, industial installation etc.

Reliable,stable and uninterruptible power solution solving

Ac-blackout/outage/failure,

Ac input over-voltage, under-voltage,

Instantaneous voltage dips, voltage decrease and shock,

High voltage spike,

Voltage fluctuation

Frequency fluctuation

Surge voltage

Harmonic distorted voltage,current,

Noise and interference.

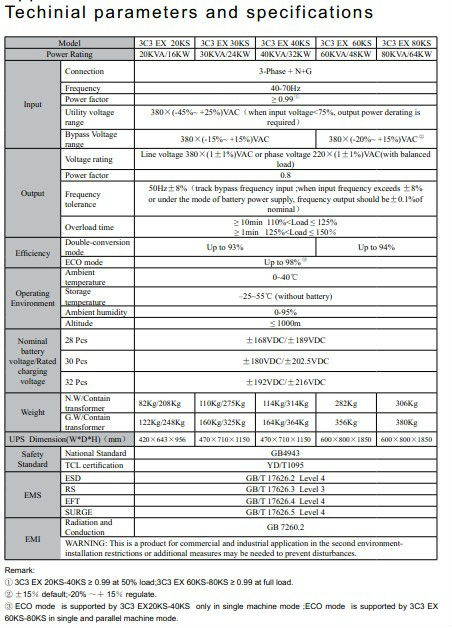

high capacity ups,3 phase online ups, three phase in and three phase out ups, high power ups, high capacity ups, industrial online ups, industrial ups, 40kva three phase online ups,transformer-less ups, transformer-base ups, isolated ups, ups with isolation transformer  specification

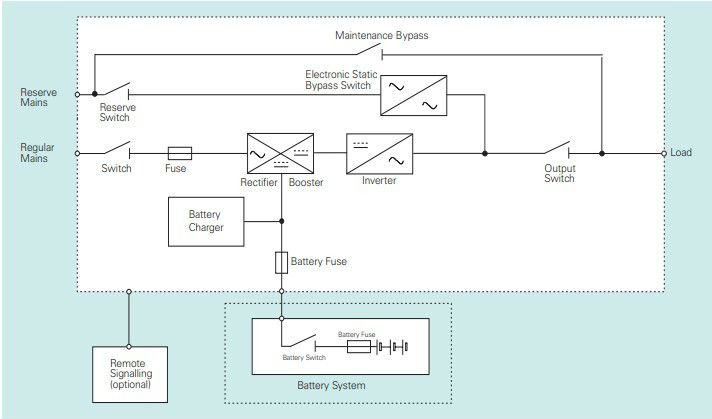

high capacity ups,3 phase online ups, three phase in and three phase out ups, high power ups, high capacity ups, industrial online ups, industrial ups, 40kva three phase online ups,transformer-less ups, transformer-base ups, isolated ups, ups with isolation transformer   schematic diagram

3 phase online ups, three phase in and three phase out ups, high power ups, high capacity ups, industrial online ups, industrial ups, 40kva three phase online ups,transformer-less ups, transformer-base ups, isolated ups, ups with isolation transformer

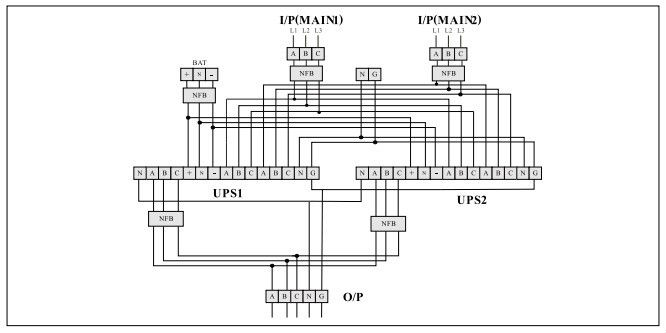

 terminals block wiring diagram

high capacity ups,3 phase online ups, three phase in and three phase out ups, high power ups, high capacity ups, industrial online ups, industrial ups, 40kva three phase online ups,transformer-less ups, transformer-base ups, isolated ups, ups with isolation transformer

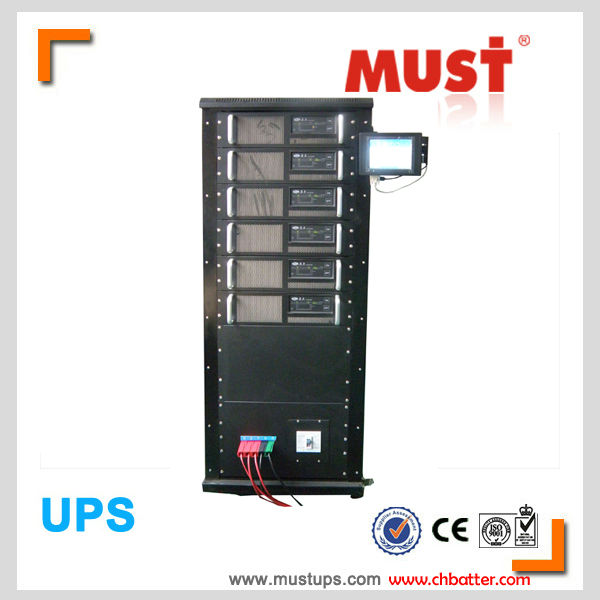

 testing device of power feedback module 60kva
