- Place of Origin:Guangdong, China
- Brand Name:MUST/OEM/ODM
- Model Number:EH5110
- Phase:Single Phase
- Protection:Short Circuit
- Weight:15-29KGS
- Type:On-line
- Application:COMPUTER
- Product name:High Frequency Online UPS
- Capacity:1-10KVA
- Transfer Time:0ms
- Battery Type:Lead-acid Maintenance-free Battery
- Display:LCD+LED
- Input voltage:220/230/240VAC
- Power factor:0.9
- Wave Form:Pure Sine Wave Online Ups
- Keywords:Online ups
- Communication interface:RS232; SNMP card
***************ANY QUESTIONS, INQURIES WELCOMED TO ZOEY !!!!***************
WHATSAPP/WECHAT: 008613694205624

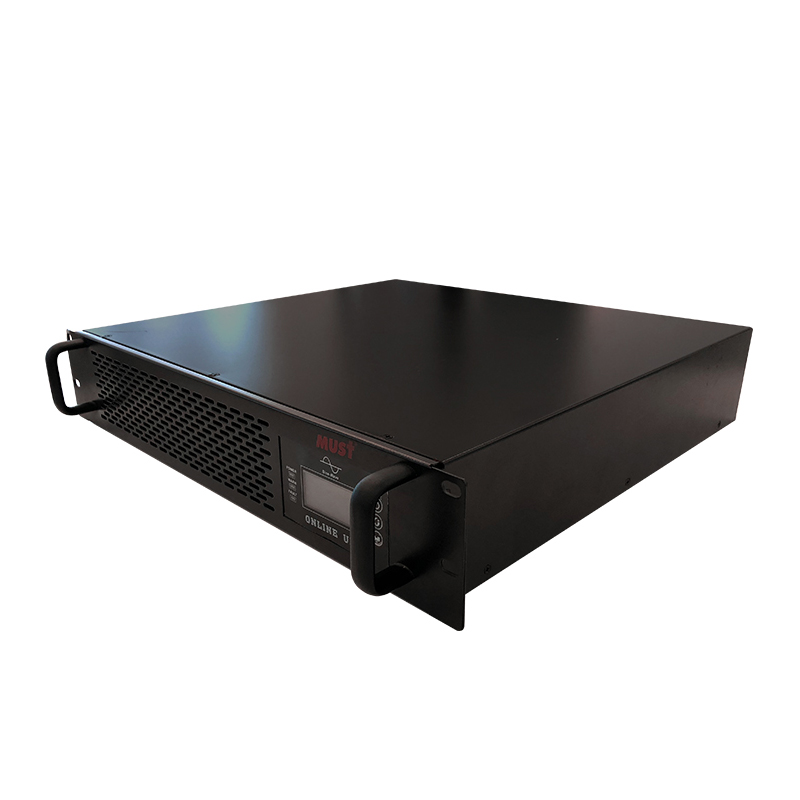

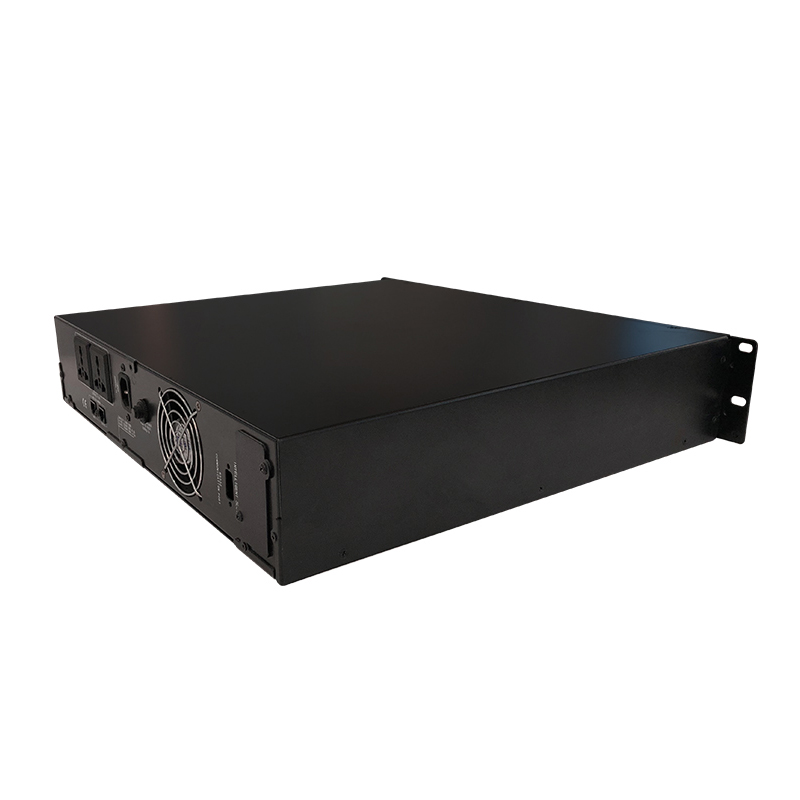

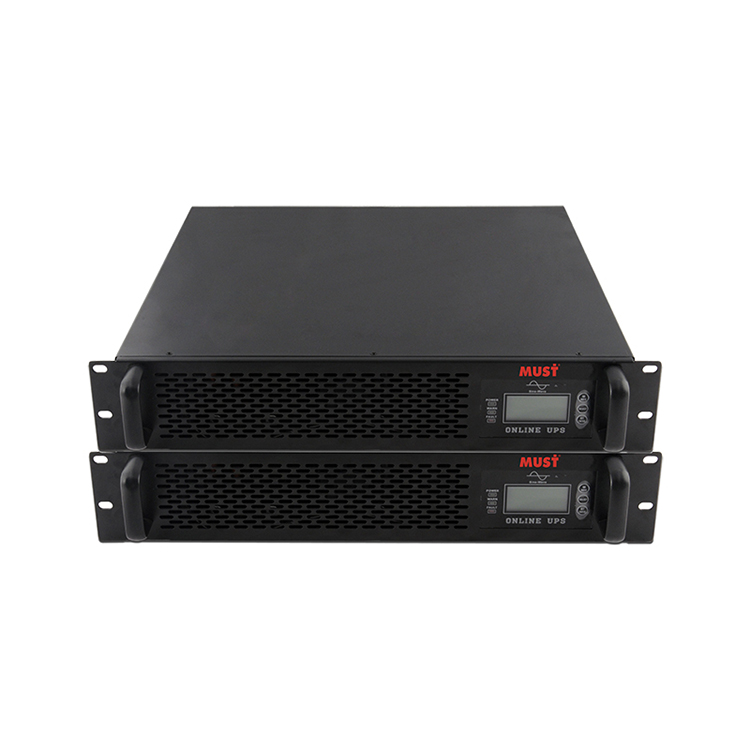

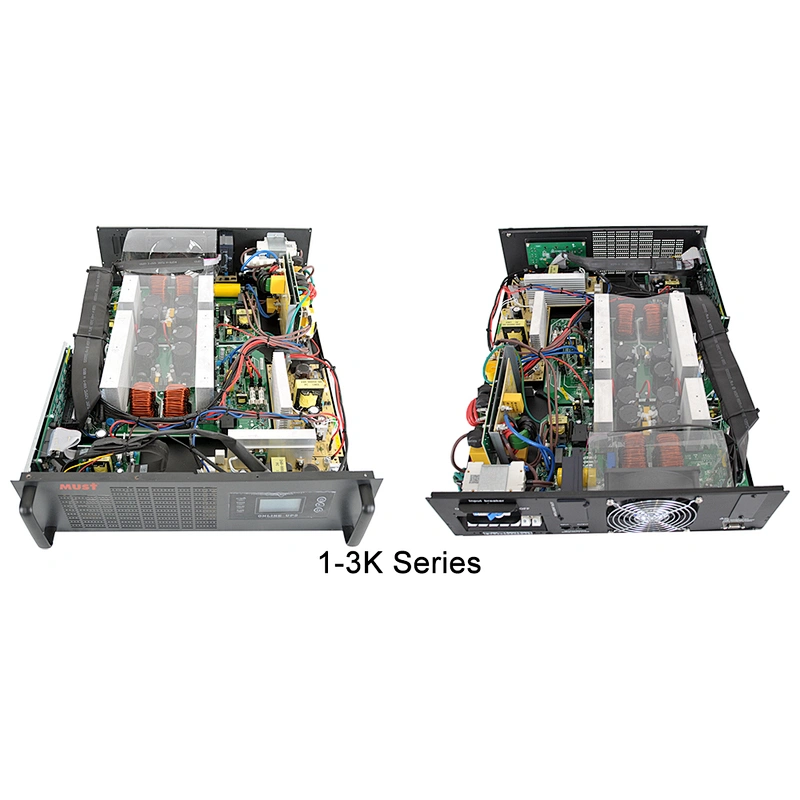

MUST High Frequency Online UPS 1kva to 10kva ups DSP technology
High Frequency Online UPS

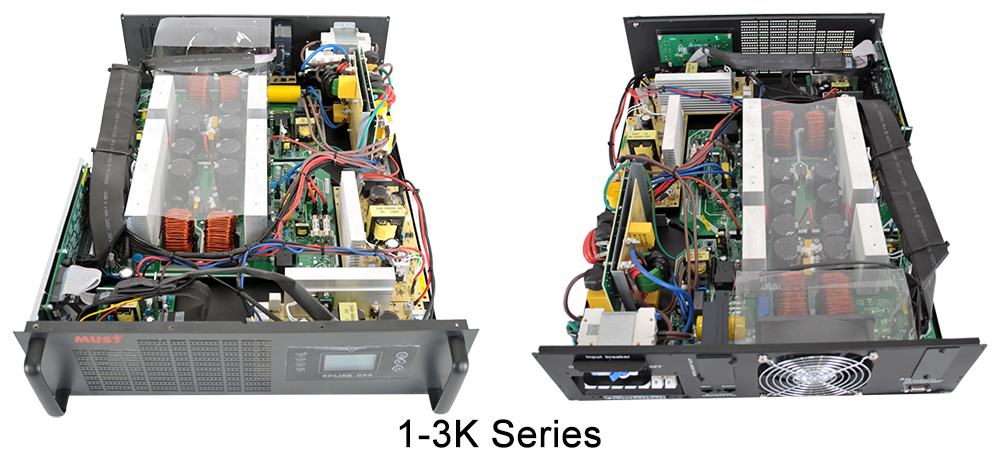

EH5110 Series (1-10KVA)

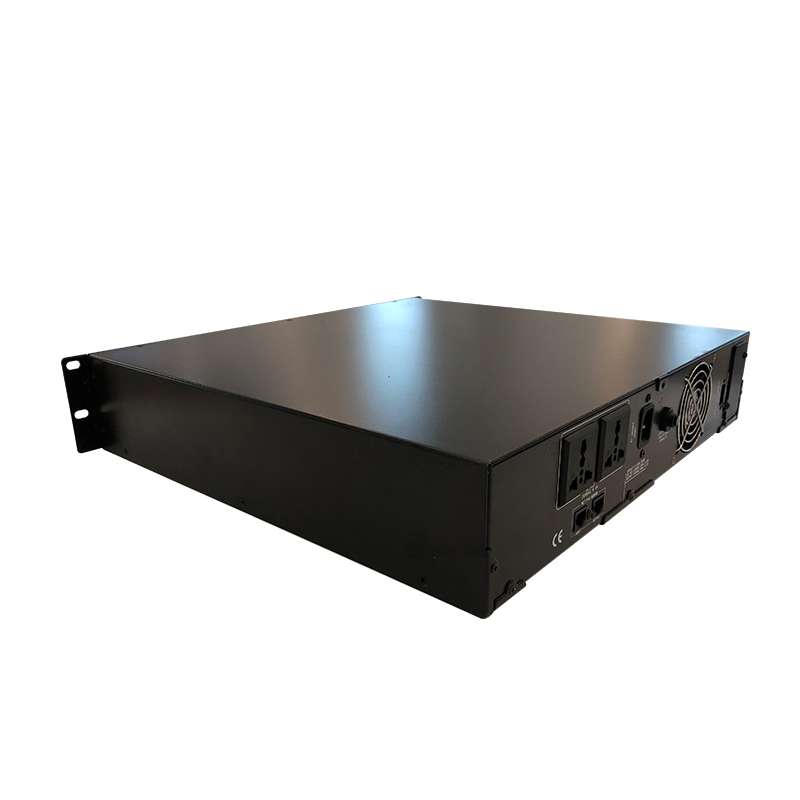

EH5110 is a new generation of high-frequency online UPS. It adopts advanced DSP digital control technology to effectively improve product performance and system reliability, and achieved higher power density. With the characteristics of small size, light weight and high work efficiency. Effectively solve power problems such as power outage, grid high voltage, grid low voltage, voltage instantaneous drop, amplitude reduction, high voltage pulse, surge voltage, harmonic distortion, clutter interference, frequency fluctuation, etc., and provide the best power for the load.With a standard 19-inch rack construction for easy to install.
- Double conversion online design, output zero transfer time;
- Adopt DSP digital control, excellent performance indicators, make the control system more steady and reliable;
- Adopt Active Power Factor Correction (PFC) technology, the input power factor is close to 1, which greatly reduced the pollution to the grid;
- Ultra-wide input voltage range;
- Input frequency range is 40~70Hz, ensure stable operation when connected to various fuel generators;

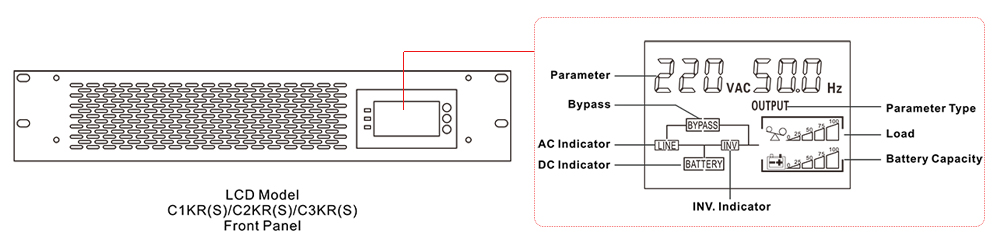

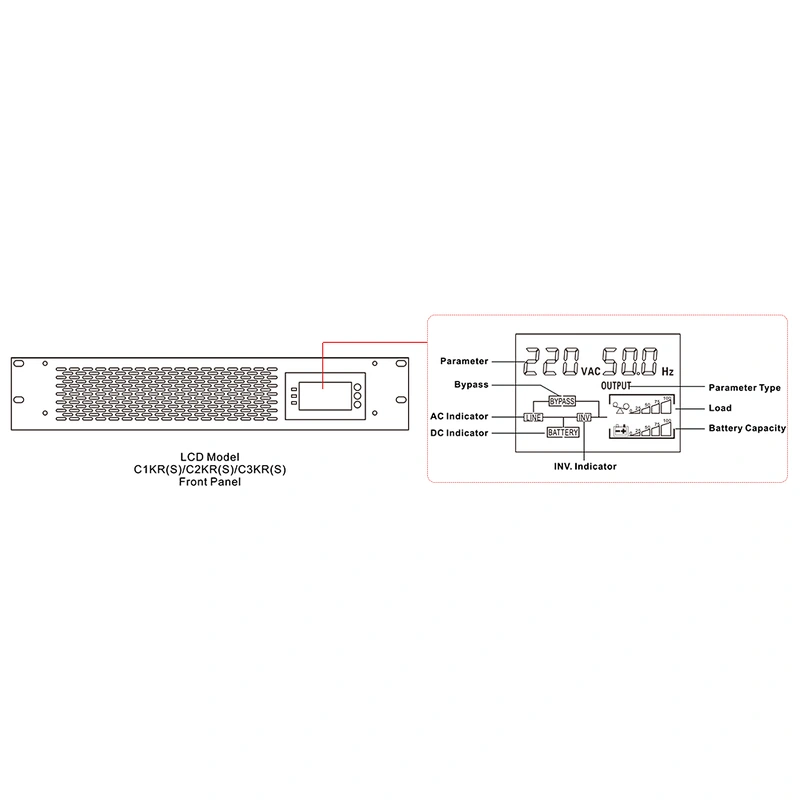

- With LCD+LED real-time display, users can intuitively understand the UPS operating status;
- With self-diagnosis function, it can detect hidden faults of UPS in time;
- N+1 parallel redundant design, can realize 3 parallel connections, greatly improved system reliability;
- With AC input over, under voltage protection, output overload protection, short circuit protection, temperature protection, battery under voltage warning protection and battery overcharge protection;
- The whole machine efficiency is up to 90%. Reduce the power loss of the UPS and save the user’s cost;
- In the absence of city power, the battery can be cold-started directly;
- Input neutral line detection function to avoid reverse connection of UPS mains input neutral line and live line;
- When the utility power is interrupted, the UPS will discharge in battery mode; when the utility power recover, UPS will turn on and charge the battery automatically, to achieve unattended operation;

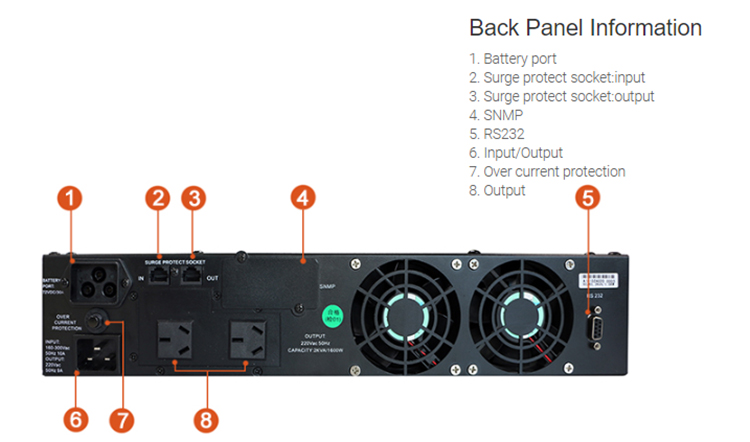

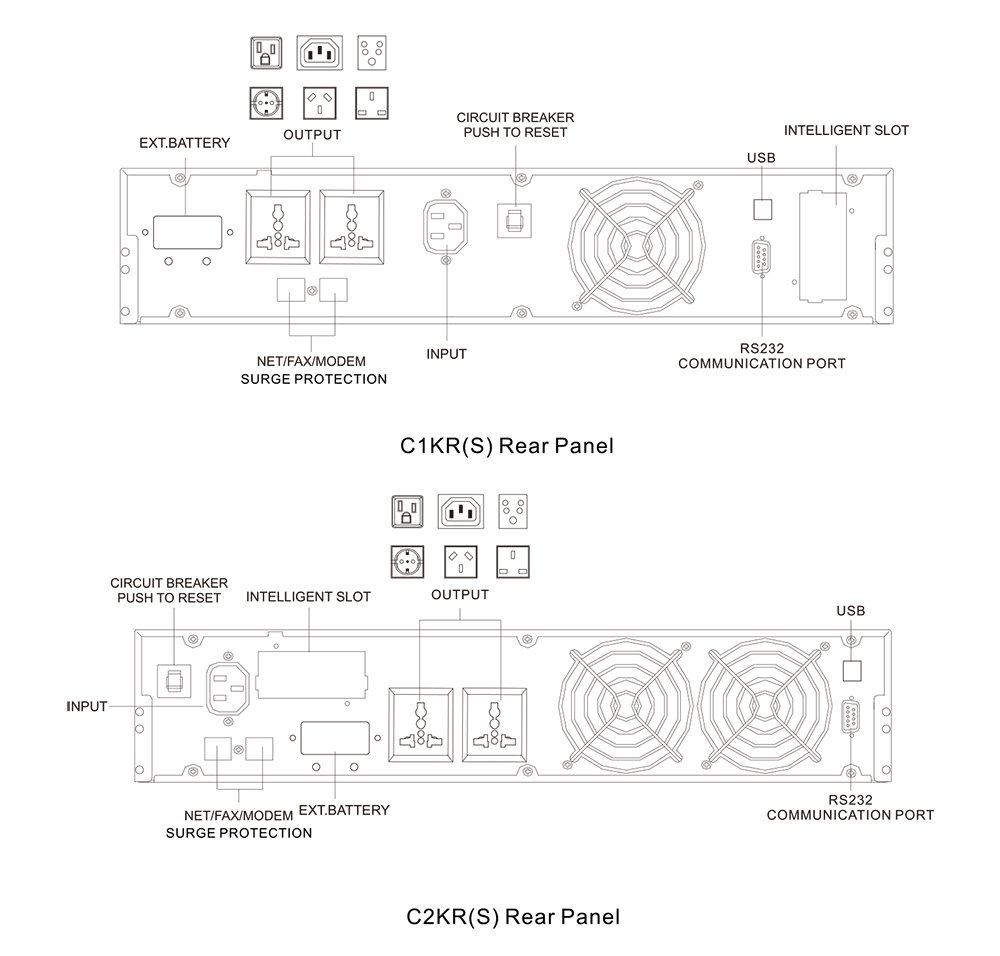

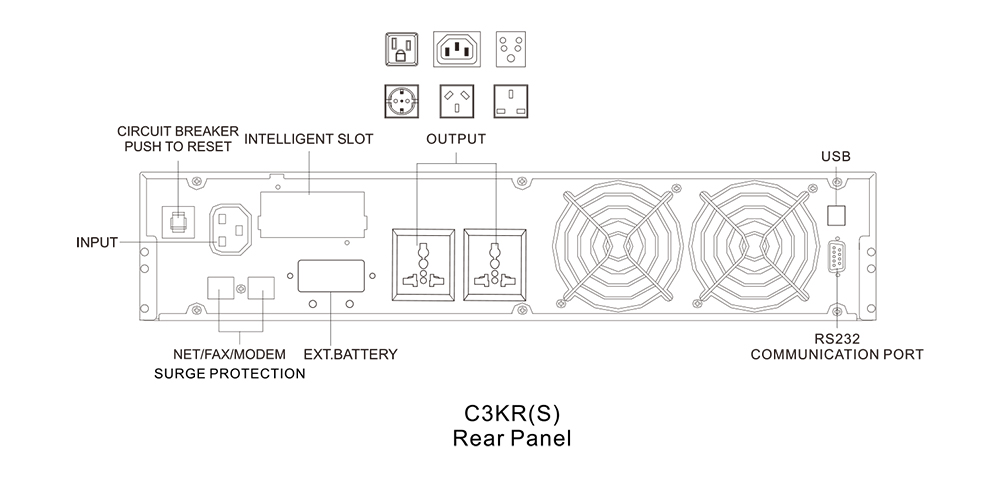

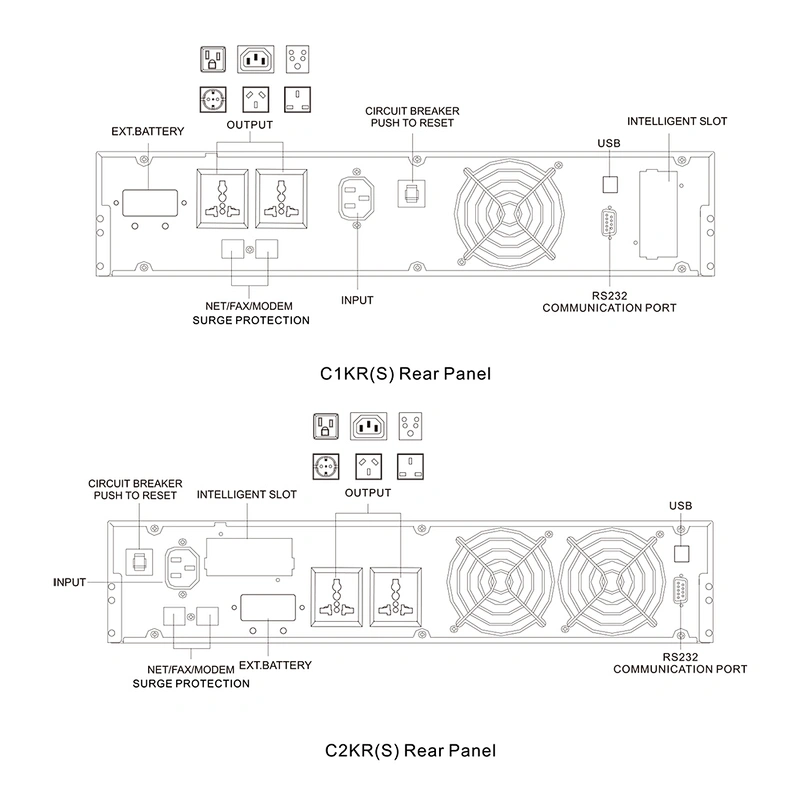

- Standard RS232 communication interface enables UPS and computer to realize multi-function and multi-purpose monitoring and management operations through computer window, and can install SNMP card (optional) to realize UPS remote monitoring function.
Samples and OEM, Warranty and After-Sale Service:
- Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:1 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Foshan,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |

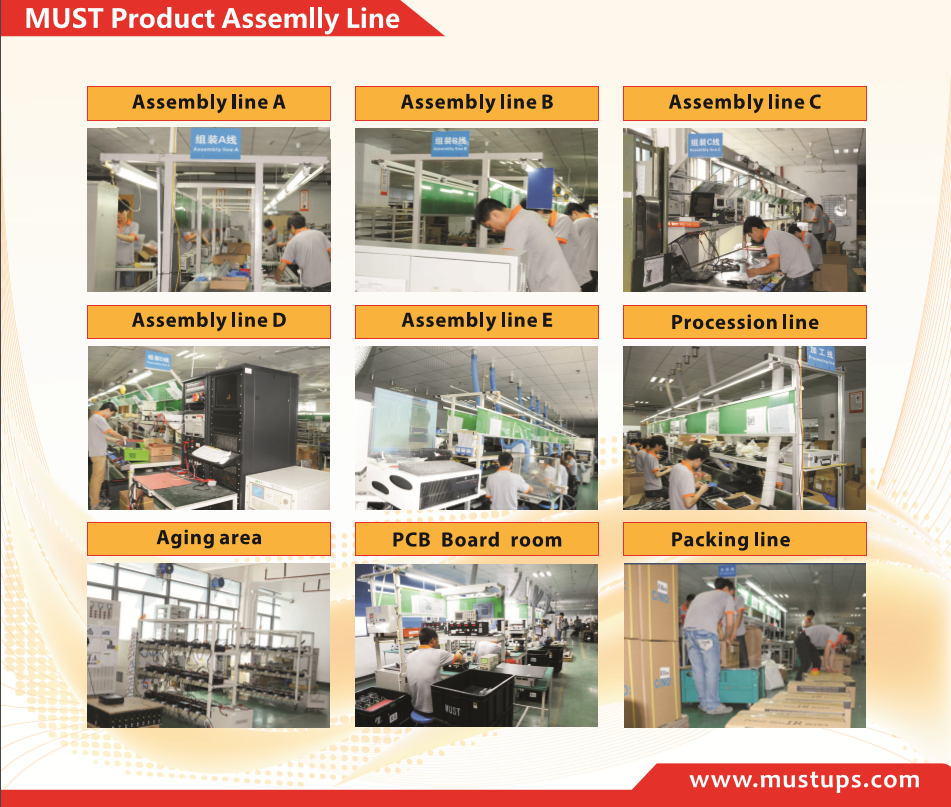

| Factory | 15000 Square Meters, 420 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
