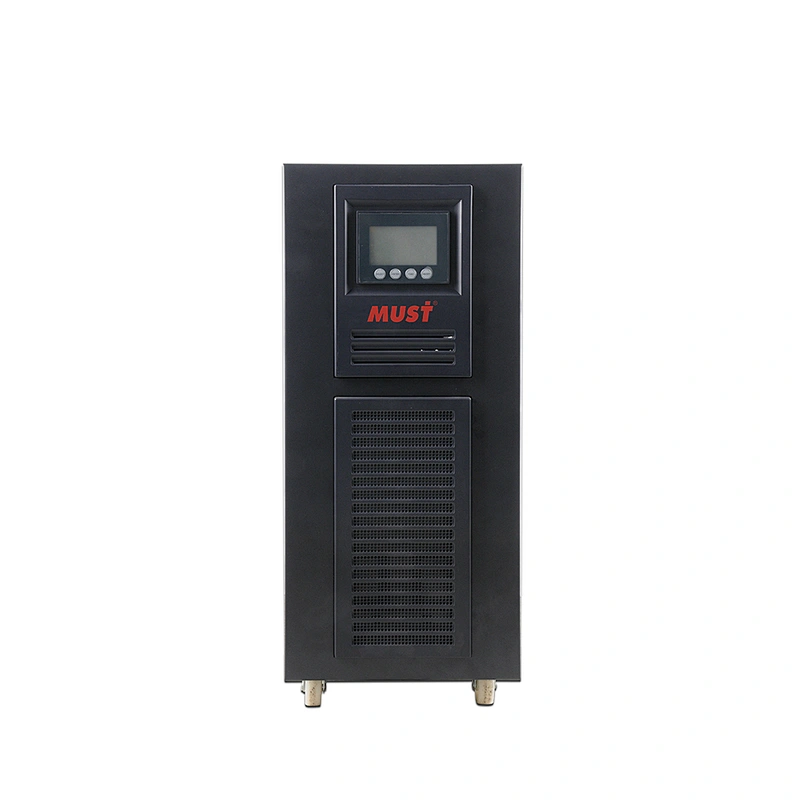

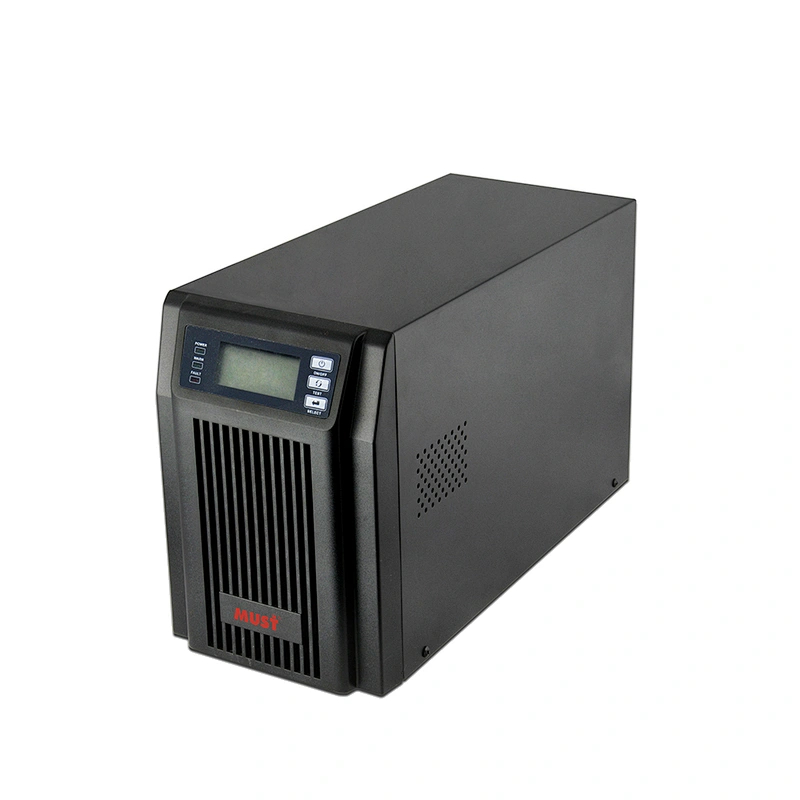

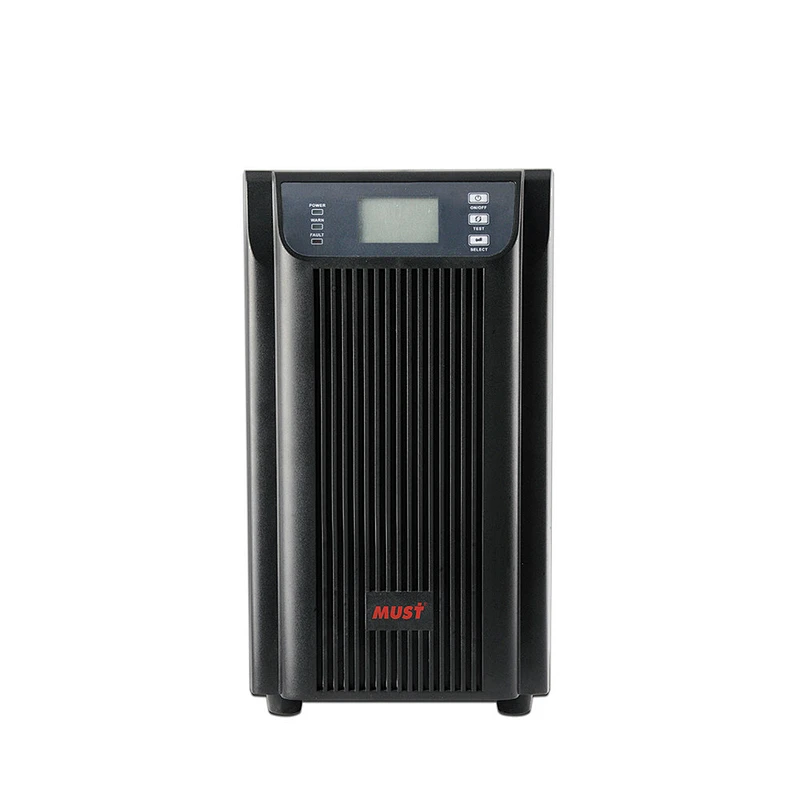

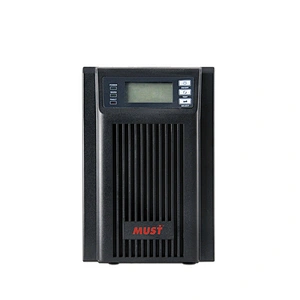

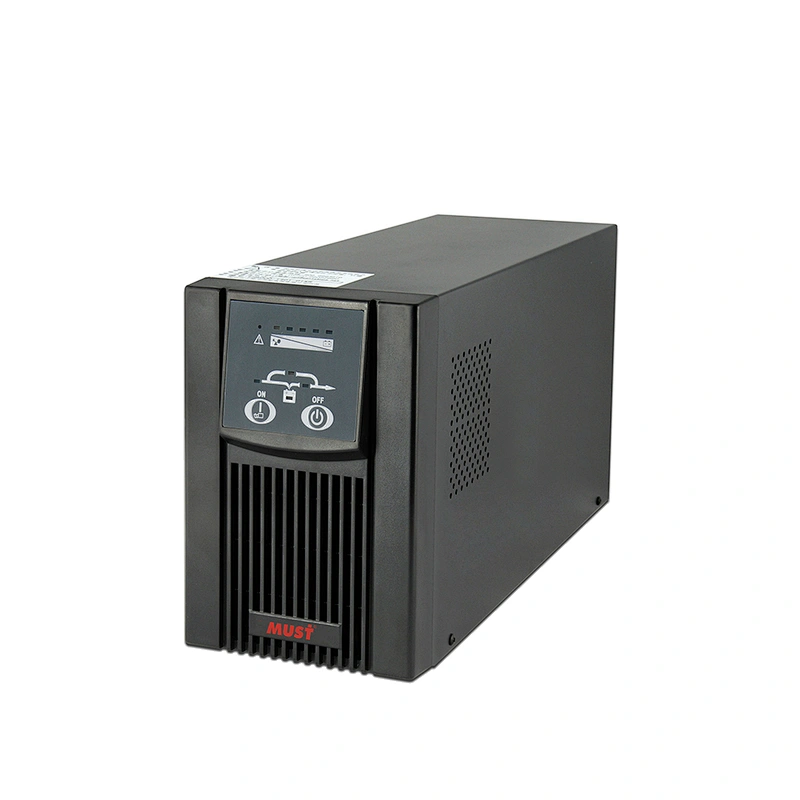

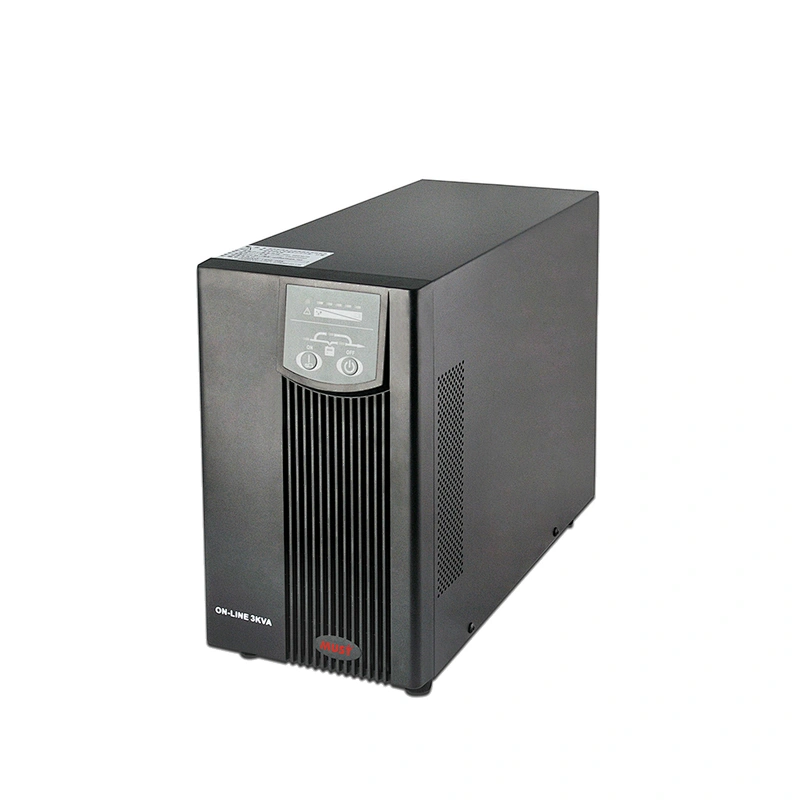

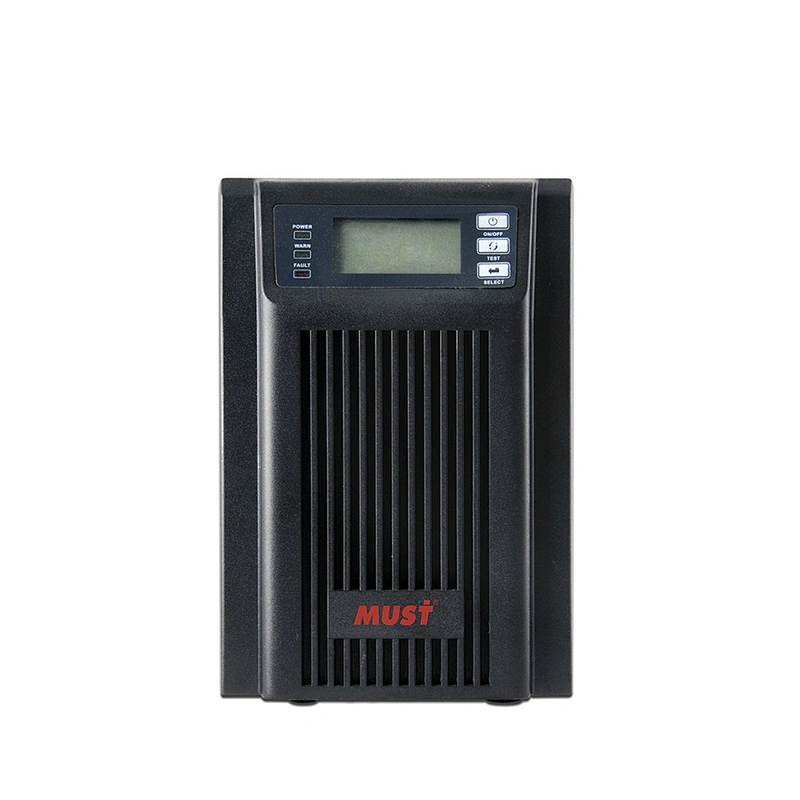

MUST High frequency online ups with isolation transformer for x-ray exposure machine

Quantity:

high frequency online ups with isolation transformer for x-ray explosure machine

online ups with isolation transformer,ups power supply,online ups 6kva, 10kva ups 20kva ups, ups online, online ups,

high frequency ups, sine wave ups,high frequency online ups, true online ups, ups system,online ups power

Features:

1. ups power supply, high frequency online ups featured in cpu control, dsp tech and power convertion module design;

2. ups online with double convertion structure: ac-dc rectifying, dc to ac invertion;

3. online ups provide high reliability power solution for cctv, atm machine and enterprise server, medium sized integrated

data center

advanced, dsp-based and full-digitalized micro-processor control tech

4. ups power supply, high frequency ups with better ac-ultilization advantage and high input power factor from

power factor correction ac to dc rectifier

0.99 (H1k-H3k) 0.97(H6k-H10k) 0.95(3H10k-20k)

5. ups power supply, high frequency online ups in high stability power solution from advanced, dsp-based and

transformer-less IGBT dc to ac inverter

high efficiency, power-saving advantage

6. ups power supply,true online ups 1kva to 20kva with thorough communication interface:

standard RS232, optional USB, AS400 expansion card, SNMP network monitor, power mangaement tool/protocol.

7. ups power supply,online ups power provide uninterruptibility power solution from internal or external battery

H1k: 24vdc H1kS: 36vdc

H2k:72vdc H2kS: 96vdc

H3k:72vdc H3kS: 96vdc

H6k: 192vdc/240 internal or external battery

H10k: 192vdc /240 internal or external battery

3H10ks: 192vdc/240 external battery

3H15ks: 192vdc/240 external battery

3H20ks: 192vdc/240 external battery

8. online ups with isolation transformer,industrial online ups, ups industrial, industrial ups, online ups with isolation

transformer inbuilt with galvanic isolation output transformer

completely isolating output sine wave power from input ac source in case of heavier noise interference, harmonic

distortion

completely isolating output neutrl from ground line in case of unexpected electric shocks by touching ups chassis

special American standard output wiring 110v+110v via transformer-split, phase-split

9. ups power supply,online ups cold-startable, battery auto re-charge upon ac recovery.

online ups with isolation transformer,ups power supply,2kva ups, ups online, online ups, power supply,

online ups power supply, online ups power, industrial online ups

Specification:

online ups with isolation transformer 6kva 10kva

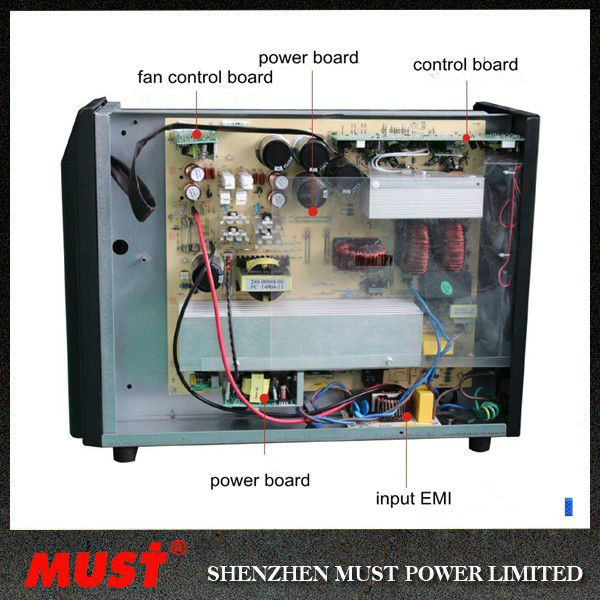

CPU + DSP + PFC + IGBT + Galvanic Isolation output transformer
N + X Parallel Redundant power expansion
industrial online ups	6kva(ISO)	10kva(ISO)
Input	1 Phase + N + G
Ac Nominal value	220VAc ( 230VAc or 240VAc)
Voltage regulation range	145VAc - 275VAc
Frequency deviation	46 - 54Hz ( 50Hz option) or 56 -64Hz (60Hz option)
Input P.F. (PFC)	> 0.99 (on full-load status)
Dc Nominal value	192VDc ( optional 240VDc with widened enchrosure size)
Battery type	SLA (maintenance-free), VRLA(maintenace-free)
Charge current	2Amp ( 4.5Amp)	2Amp (4.5Amp)
Charge time	7 hrs to 90%
Output	1 Phase + N + G
Ac output stability	Nominal Ac voltage (1 + 1%) Vac
Frequency precision	Auto-detection (Ac-mode ) + Nominal (1 + 0.1%) Hz
Output Current	27Amp	45Amp
Output P.F.	0.8 - 1 (lagging)
Wave	Pure sine wave
Transfer time	Zero (Ac-mode --- battery-mode)
THDi	< 2% ( on linear full-load status)
Crest factor	3 : 1
Over-load	105%: keep work;
	105%-125%: 1 minute
	125%-150%: 30 seconds;

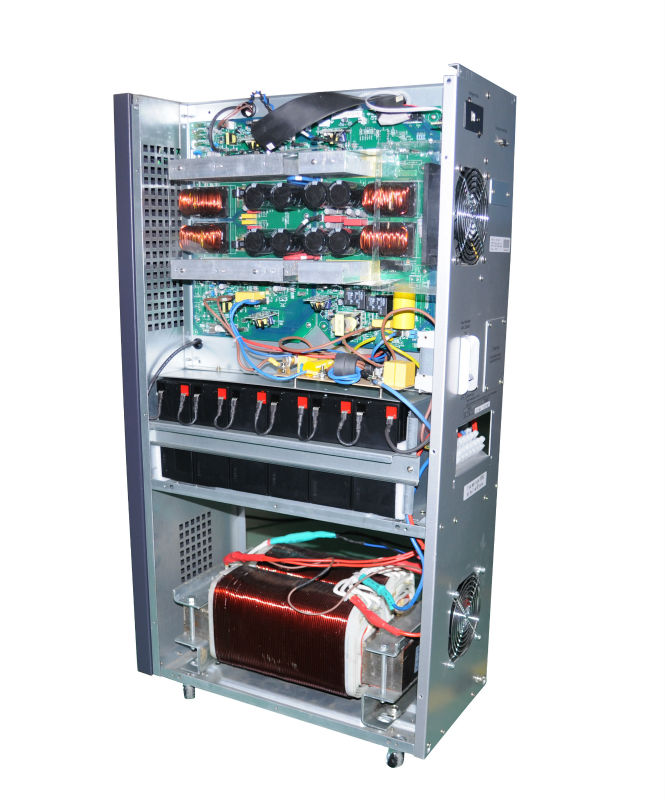

Galvanic isolation transformer	noise filter besides input output EMI; transformer-split 110V + 110V isolate output neutral from ground/ups chasssis; isolate output volt from input source in case of noise interference,harmonic distortion;

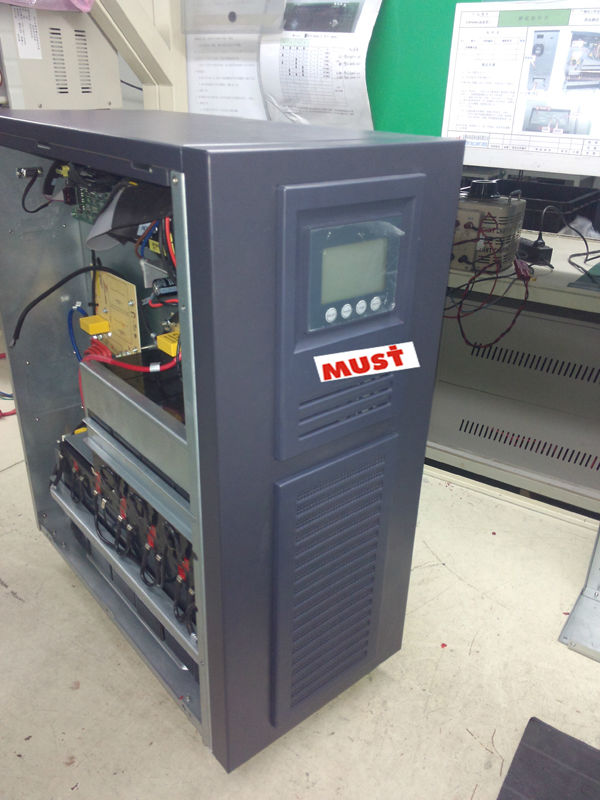

Front panel	Lcd/Led
Enviroment	work-temperature: 0 - 40°C
	Storage temperature : - 25 -- 55 °C
	Relative humidity: 20%-90% non-condense
	Altitude : < 1,000 meters
Physical	248 * 500 * 940 MM (W * D * H)
	115Kg ( 75Kg)	120Kg ( 80Kg)
