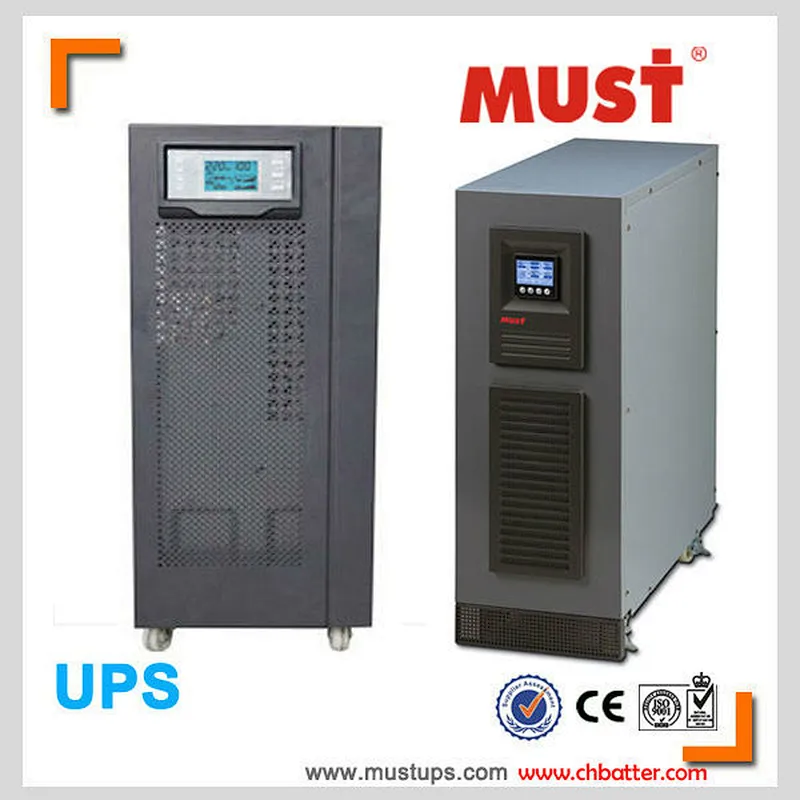

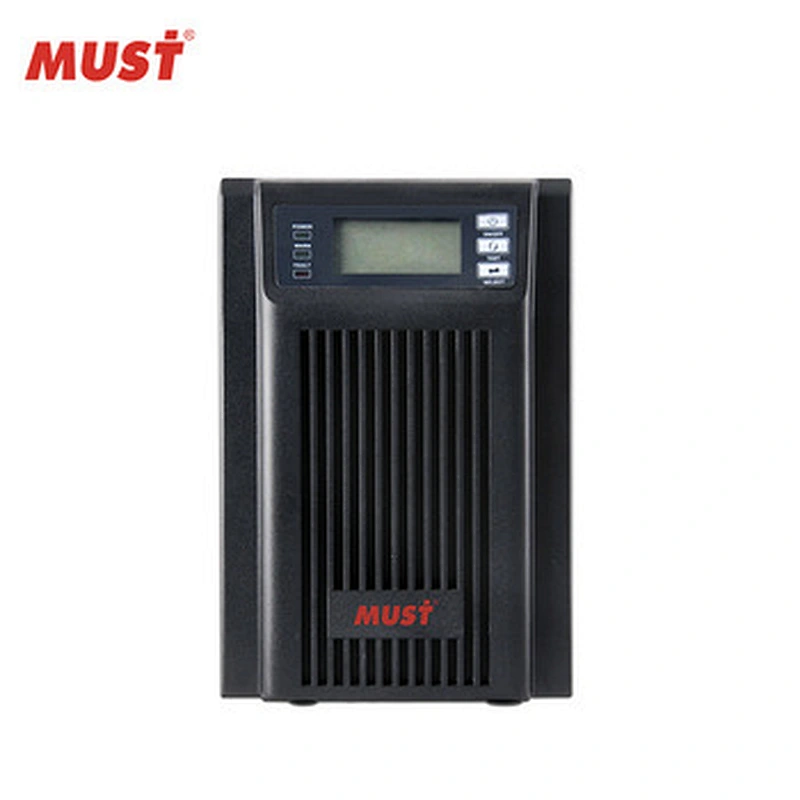

MUST power ups 6kva 10kva with secure isolation for x-ray exposure machine

Quantity:

Place of Origin:Guangdong, China
Brand Name:Must Santakups Oem
Model Number:6-10kva(ISO) EH5000
Phase:single phase in and out
Protection:switch transient, power sags/dips, suge suppression, fluctuation,THDi
Weight:20-120kgs
Output Voltage:110vac or 220vac 1% tolerance
Type:On-line
Application:IT infracture, ICT equipment, data-center, computer-room,CCTV security
power ups THDi:2% max full linear load
Wide input Ac range:145-275Vac 210-475Vac
Full protection:Phase-lock,phase balance,Voltage regulation,
Battery management:Battery low voltage, over-charge,over-discharge,
Output protection:over-load,short-circuit
battery charge control:fast-charge at constant voltage
Intelligent battery management:average-charge at constant current,float-charge
Transfer time:zero transfer time
Power expansion:N+X parallel redundancy
Parallel ability:Max. 3 unit

power ups 6kva 10kva with secure isolation for x-ray explosure machine

power ups, ups power supply, ups power systems, ups 6kva,ups 10kva, isolated ups,

online ups,220v ups, 1 phase ups feature

1. secure power solution with Power ups, ups 6kva, ups 10kva, isolated ups for industrial use and

medical X-ray explosure machine:

Secure isolating output power from ac input source in case of heavy noise interference, harmonic distortion;

secure isolating output neutral from ground line in case of unexpected electric shocks;

special for American standard output wiring by transformer-split / phase-split into 110v+110v.

2. High reliable power solution with online ups, 220v ups, single phase ups dsp-base micro-processor control tech;

3. High stable power solution with online ups, ups 6kva, ups 10kva dc to ac dsp-base IGBT inverter of

high efficiency and power-saving advantage;

4. Better ac power ultilization from PFC ac to dc rectifier of high input power factor: 0.97

5. power ups, ups powe, ups power supply, ups power systems thorough communication interface:

RS232 ( USB, AS400 expansion card, SNMP network monitor, power management tool/ protocol)

6. N+X parallel redundancy design and max design ability of 3 units

7. Uninterruptibility power solution from internal or external 192vdc(240vdc) batteries

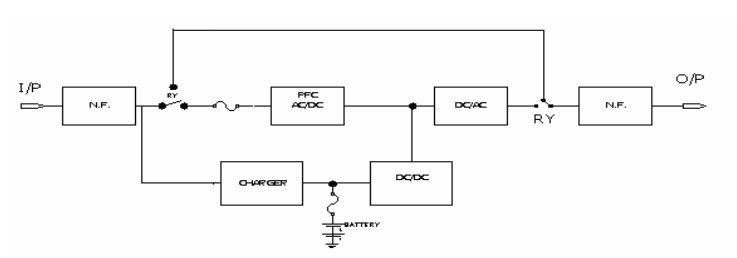

power ups, ups power supply, ups power systems, ups 6kva,ups 10kva, isolated ups,

online ups,220v ups, 1 phase ups schematic diagram

power ups, ups power supply, ups power systems, ups 6kva,ups 10kva, isolated ups,

online ups,220v ups, 1 phase ups

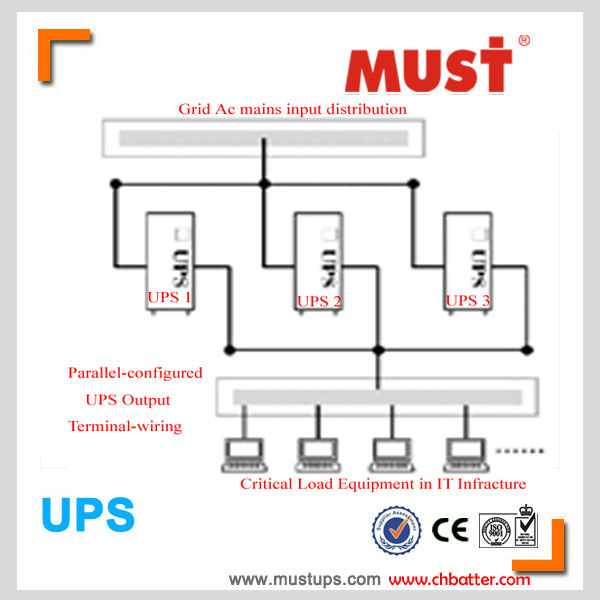

N+X parallel redundant design diagram

power ups, ups power supply, ups power systems, ups 6kva,ups 10kva, isolated ups,

online ups,220v ups, 1 phase ups specification

power ups, online ups, ups 6kva, ups 10kva
CPU + DSP + PFC + IGBT + Galvanic Isolation output transformer
N + X Parallel Redundant power expansion
power ups	ups 6kva(ISO)	ups 10kva(ISO)
Input	1 Phase + N + G single phase ups
Ac Nominal value	220VAc ( 230VAc or 240VAc)
Voltage regulation range	145VAc - 275VAc
Frequency deviation	46 - 54Hz ( 50Hz option) or 56 -64Hz (60Hz option)
Input P.F. (PFC)	> 0.99 (on full-load status)
Dc Nominal value	192VDc ( optional 240VDc)
Battery type	SLA (maintenance-free), VRLA(maintenace-free)
Charge current	2Amp ( 4.5Amp)	2Amp (4.5Amp)
Charge time	7 hrs to 90%
Output	1 Phase + N + G
Ac output stability	Nominal Ac voltage (1 + 1%) Vac
Frequency precision	Auto-detection (Ac-mode ) + Nominal (1 + 0.1%) Hz
Output Current	27Amp	45Amp
Output P.F.	0.8 - 1 (lagging)
Wave	Pure sine wave sine wave ups
Transfer time	Zero (Ac-mode --- battery-mode)
Power upsTHDi	< 2% ( on linear full-load status)
Crest factor	3 : 1
Over-load	105%: keep work;
	105%-125%: 1 minute
	125%-150%: 30 seconds;
Galvanic isolation transformer	noise filter besides input output EMI; transformer-split 110V + 110V isolate output neutral from ground/ups chasssis; isolate output volt from input source in case of noise interference,harmonic distortion;



Front panel	Lcd/Led
Enviroment	work-temperature: 0 - 40°C
	Storage temperature : - 25 -- 55 °C
	Relative humidity: 20%-90% non-condense
	Altitude : < 1,000 meters
Physical	248 * 500 * 940 MM (W * D * H)
	115Kg ( 75Kg)	120Kg ( 80Kg)
