- Place of Origin:Guangdong, China
- Brand Name:MUST or OEM or ODM
- Model Number:PV1800 VPM
- Input Voltage:220V 230V 240V
- Output Voltage:220V 230V 240V 380V
- Output Current:5A-25A
- Output Frequency:50/60HZ
- Output Type:Single, Triple
- Size:272*355*100MM; 297.5*468*125MM
- Type:DC/AC Inverters
- Inverter Efficiency:93%
- Certificate:CE; IEC
- Warranty:1year, 1 year
- Weight:7-14kgs
- Product name:Grid Hybrid Solar Inverter
- Output waveform:Pure Sine Wave Solar Inverter
- Inverter type:High Frequency Intelligent Inverter
- Rated power:1kw-17.5kw
- Efficiency:93%-97% ( HIGH EFFICIENCY )
- Controller:Mppt Solar Controller
- Communications:WIFI/RS485
- MPPT efficiency:99.6% - 99.9%
- Protection:Short Circuit Protection
***************ANY QUESTIONS, INQURIES WELCOMED TO ZOEY !!!!***************
WHATSAPP/WECHAT: 008613694205624

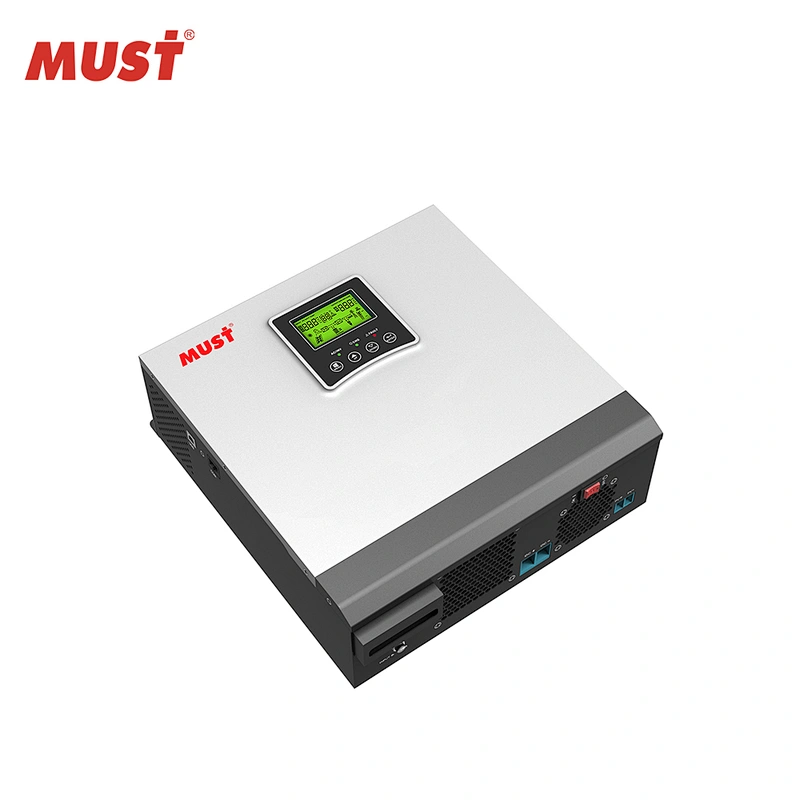

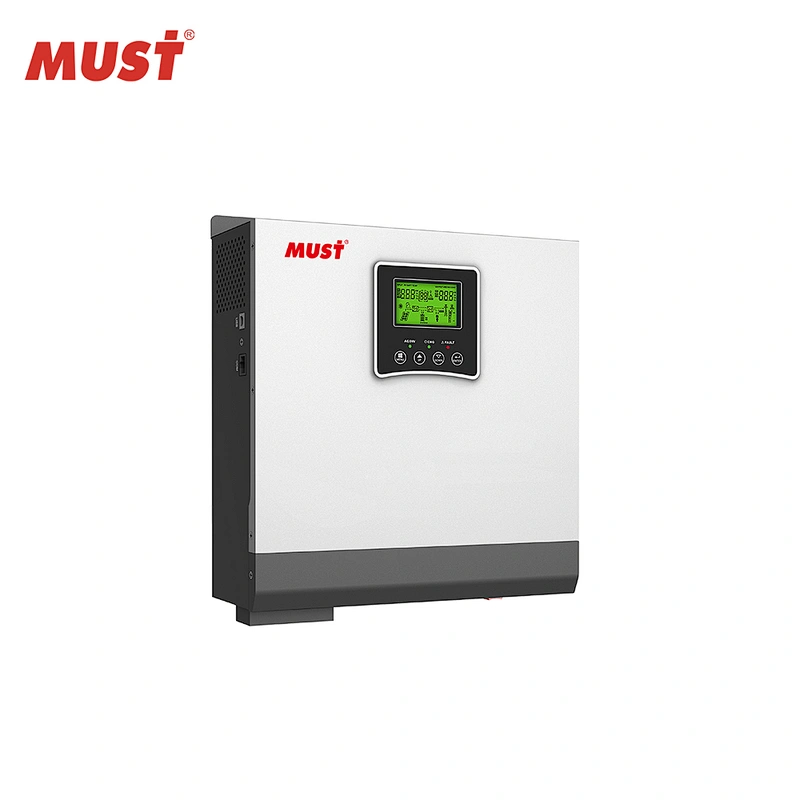

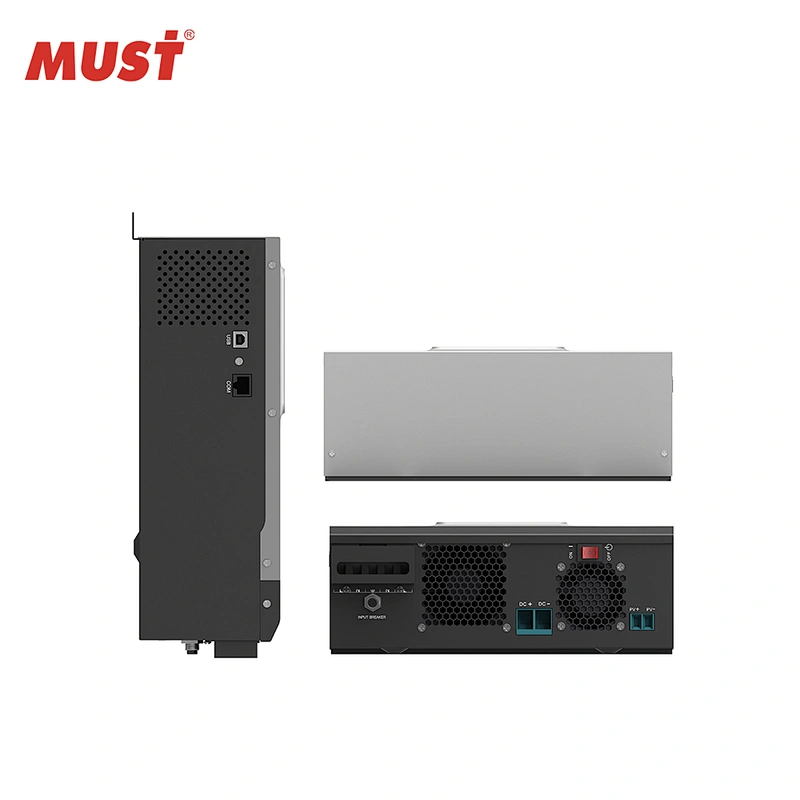

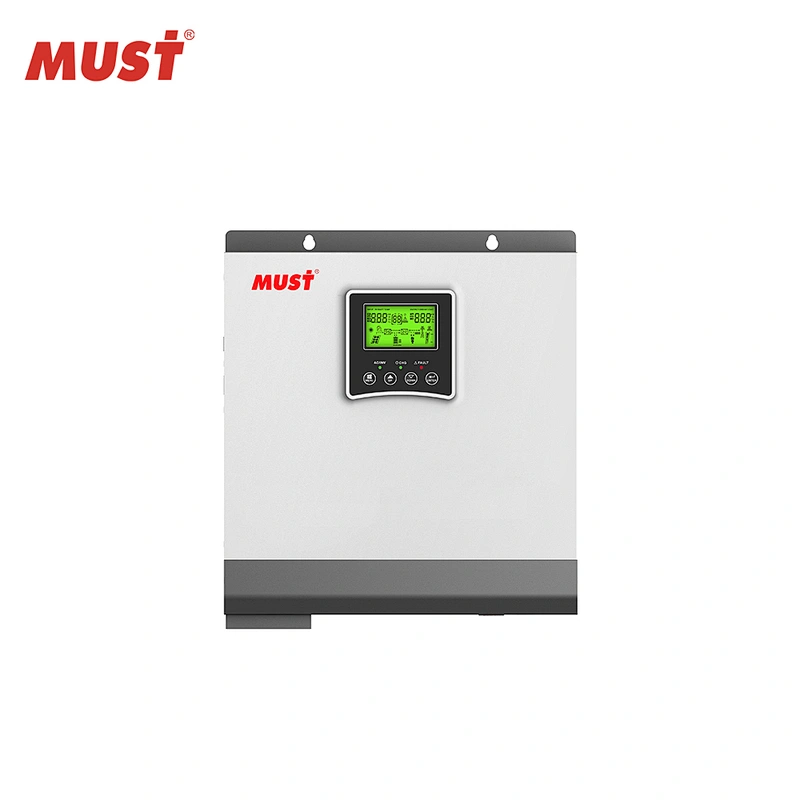

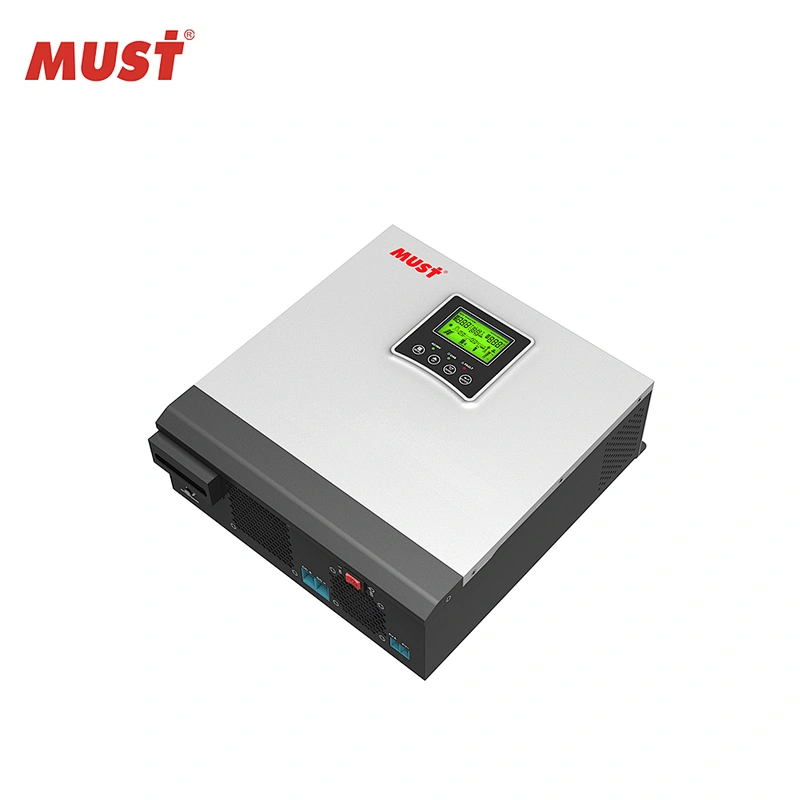

MUST PV1800 pure sine wave solar power inverter 48V 5000w nverter 5kw inverter solar system
High Frequency Off Grid Solar Inverter

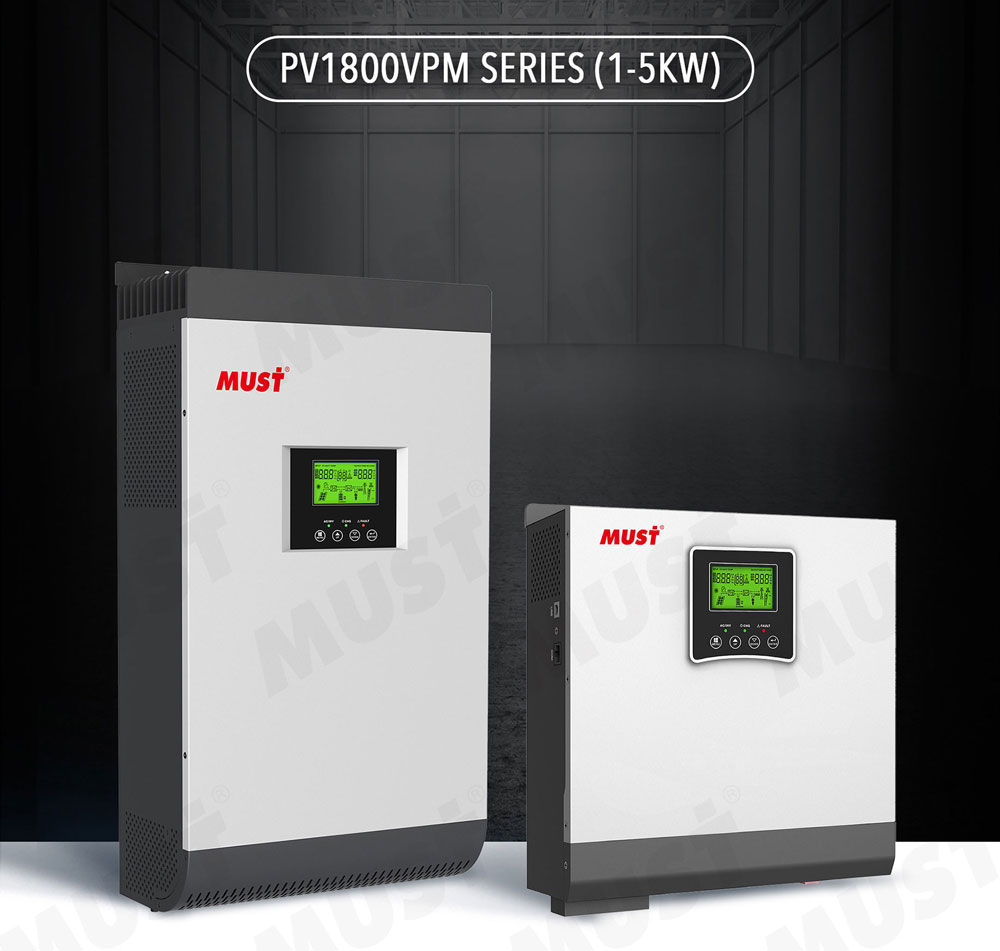

PV1800 VPM Series(1-5KW)

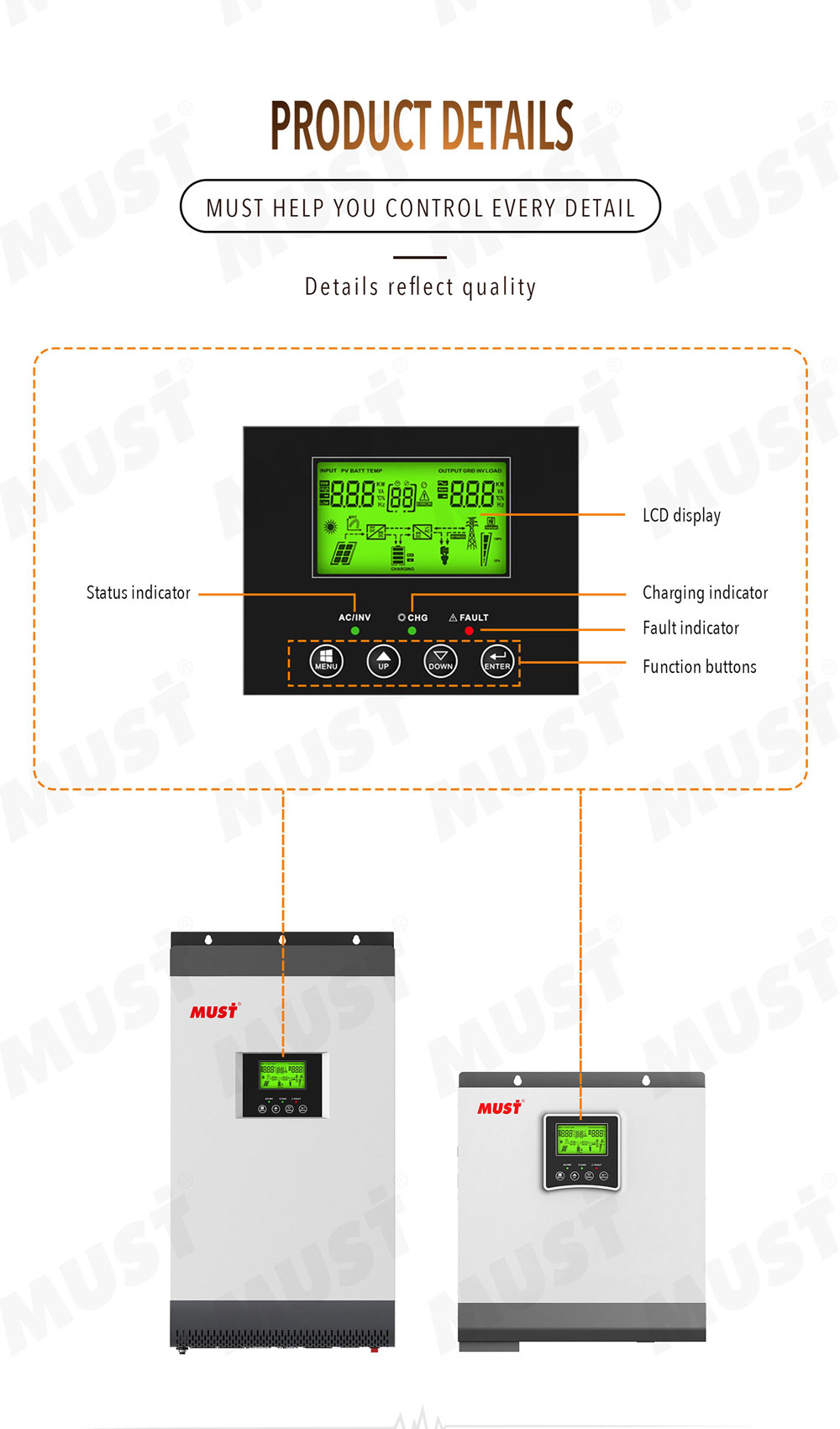

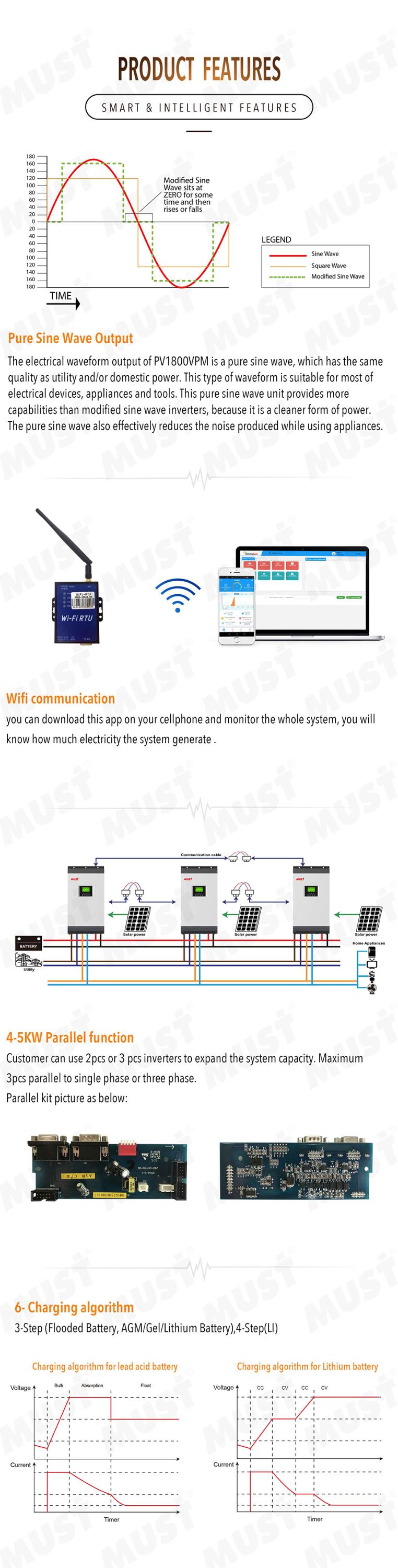

This is a multi-function inverter/charger, combining functions of inverter, MPPT50A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
- Rated power 1KW to 5KW
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Bult in MPPT50A/80A solar charge controller

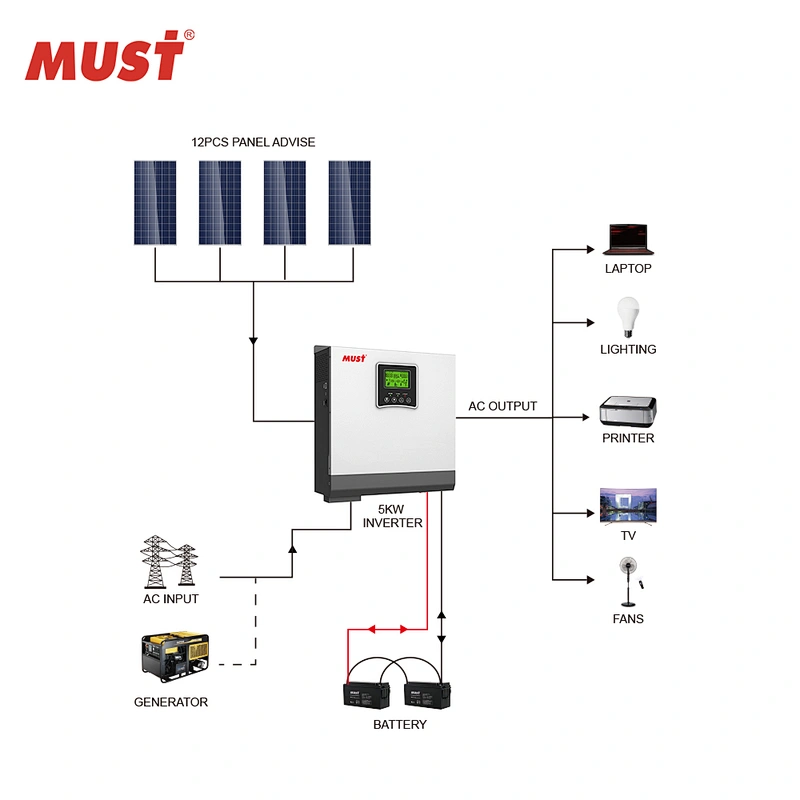

- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function

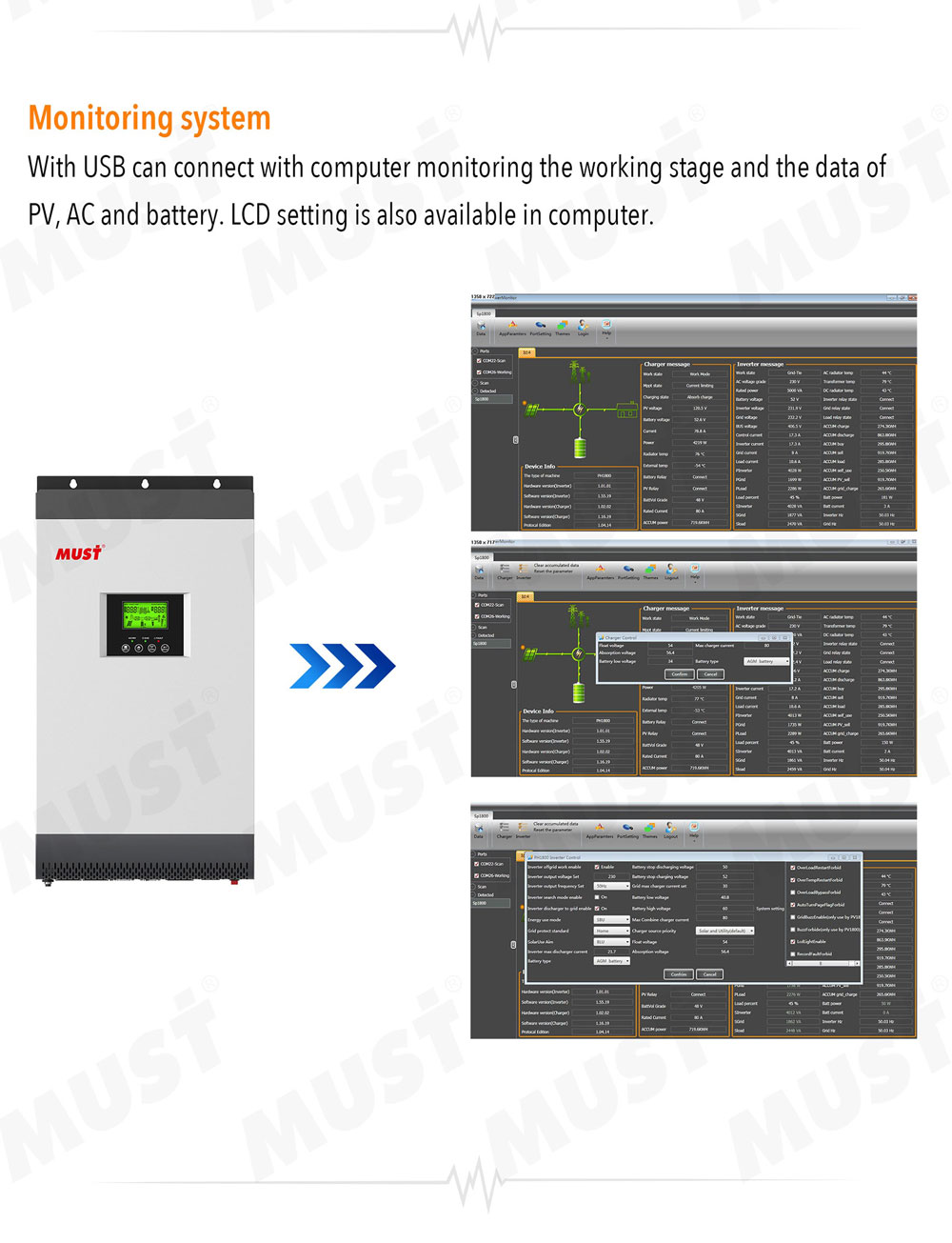

- Support USB, RS485 monitoring function with free CD
- WIFI remote monitoring (optional)
- Compatible to generator
- 3KW-5KW support parallel function(optional)
| MODEL | PV18-1012 VPM | PV18-2024 VPM | PV18-3024 VPM | PV18-3048 VPM | PV18-4048 VPM | PV18-5048 VPM |
|---|---|---|---|---|---|---|
| Default Battery System Voltage | 12VDC | 24VDC | 48VDC | |||
| INVERTER OUTPUT | ||||||
| Rated Power | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W | 3000VA/3000W | 4000VA/4000W | 5000VA/5000W |
| Surge Power | 2000VA | 4000VA | 6000VA | 6000VA | 8000VA | 10000VA |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | 220VAC ~ 240VAC (Setiing) | |||||
| Inverter Efficiency (Peak) | 90%~93% | |||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Normal voltage | 12VDC | 24VDC | 48VDC | |||
| Floating Charge Voltage | 13.7VDC | 27.4VDC | 54.8VDC | |||
| Overcharge Protection | 150VDC | 30VDC | 60VDC | |||
| SOLAR CHARGER&AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 60VDC | 100VDC | 145VDC | |||
| PV Array MPPT Voltage Range | 15~60VDC | 30~80VDC | 64~130VDC | |||
| Standby Power Consumption | 2W | |||||
| Maximum PV Array Power | 625W | 1250W | 4000W | |||
| Maximum Solar Charge Current | 50A | 80A | ||||
| Maximum Efficiency | 98% | |||||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | |||
| Maximum Charge Current | 70A | 80A | 140A | |||
| MECHANICAL SPECIFICATIONS | ||||||

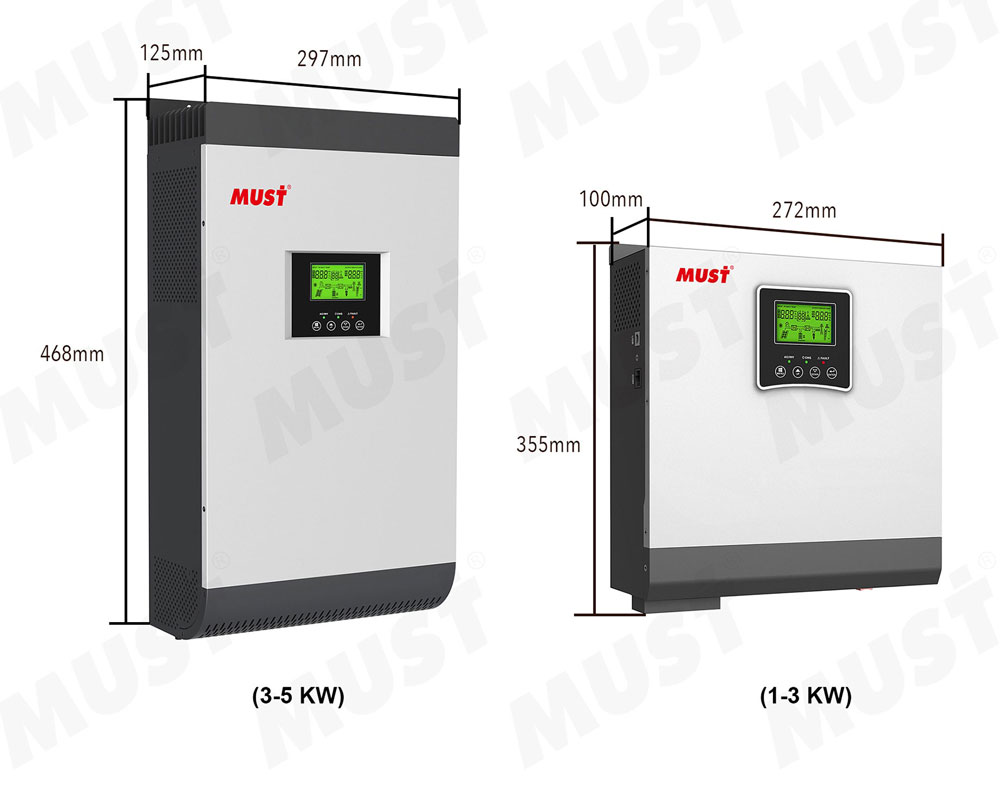

| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 297.5*468*125 | ||||
| Package Dimensions (W*H*D)(mm) | 485*393*251 | 638*395*241 | ||||
| Net Weight(kg) | 7.4 | 14 | ||||
| Gross Weight(kg) | 9.5 | 16.4 | ||||
| OTHER | ||||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C -55°C | |||||
| Storage Temperature | -15°C -60°C | |||||
Samples and OEM, Warranty and After-Sale Service:
- Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:1 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Foshan,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |

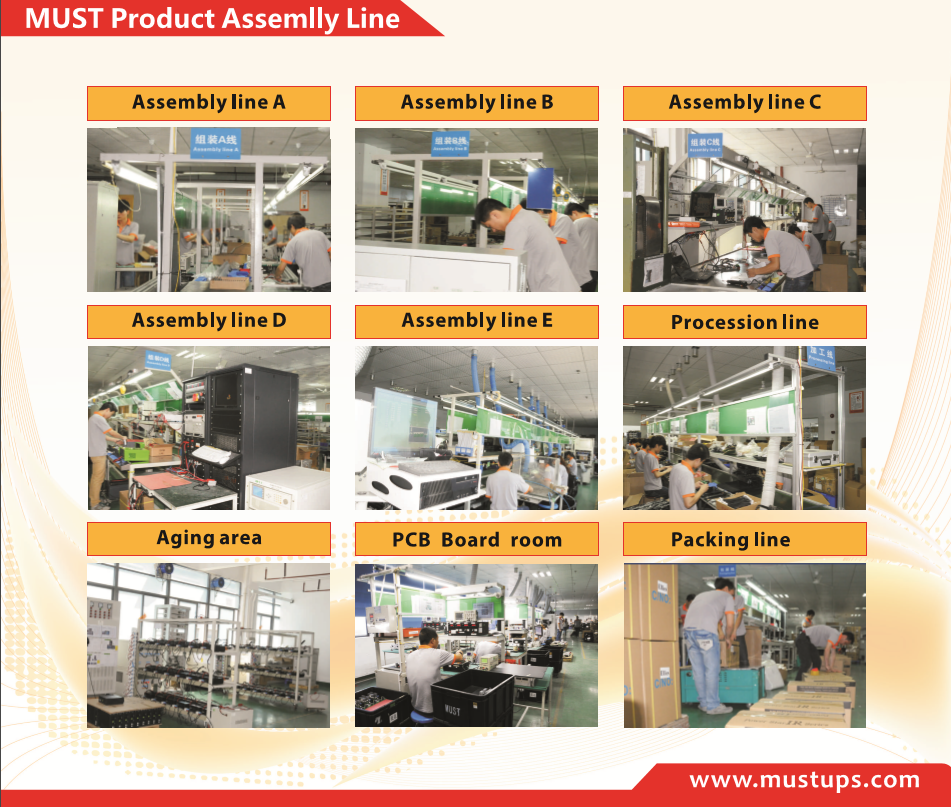

| Factory | 15000 Square Meters, 420 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
