- Place of Origin:Guangdong, China
- Brand Name:MUST or OEM or ODM
- Model Number:PV1800 VPK
- Input Voltage:220v 230v 240v
- Output Voltage:220v 230v 240v 380v
- Output Current:5A-25A
- Output Frequency:50/60HZ
- Output Type:Single, Triple
- Size:272*355*100MM (2-3KW)297.5*468*125
- Type:DC/AC Inverters
- Inverter Efficiency:93%
- Certificate:CE; IEC
- Warranty:1year
- Weight:4-12kgs
- Product name:Grid Hybrid Solar Inverter
- Output waveform:Pure Sine Wave Solar Inverter
- Efficiency:93%-97% ( HIGH EFFICIENCY )
- MPPT efficiency:99.5%~99.9%
- Inverter type:High Frequency Intelligent Inverter
- Controller:50/60A PWM
- Capacity:1kw/2kw/3kw/4kw/5kw/6kw/8kw/10kw/12kw Inverter
- Battery type:Lead Battery
- Protection:Short Circuit Protection
- Keyword:Hybrid inverter
***************ANY QUESTIONS, INQURIES WELCOMED TO ZOEY !!!!***************
WHATSAPP/WECHAT: 008613694205624

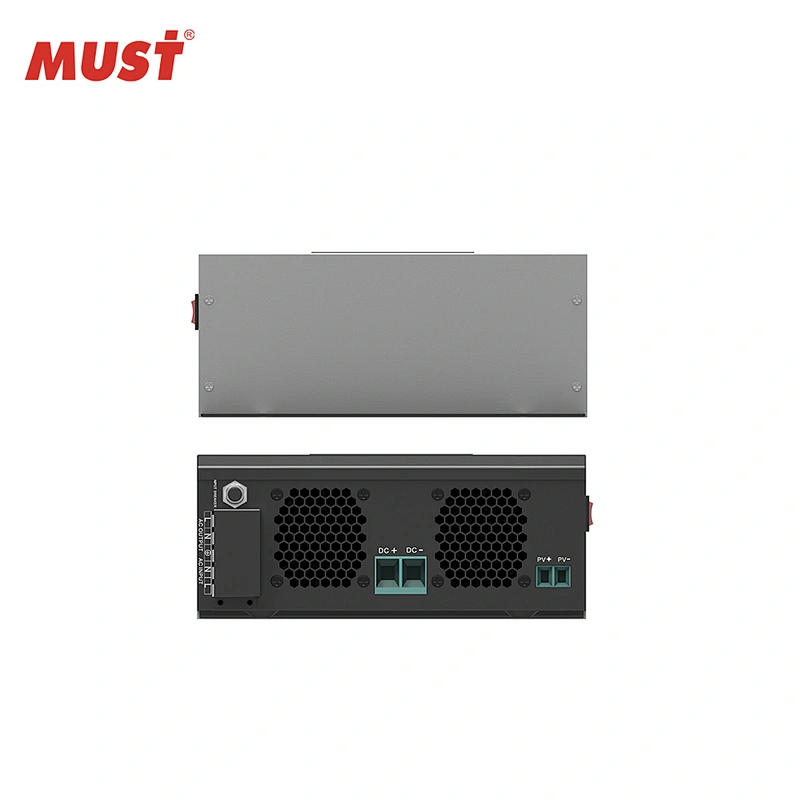

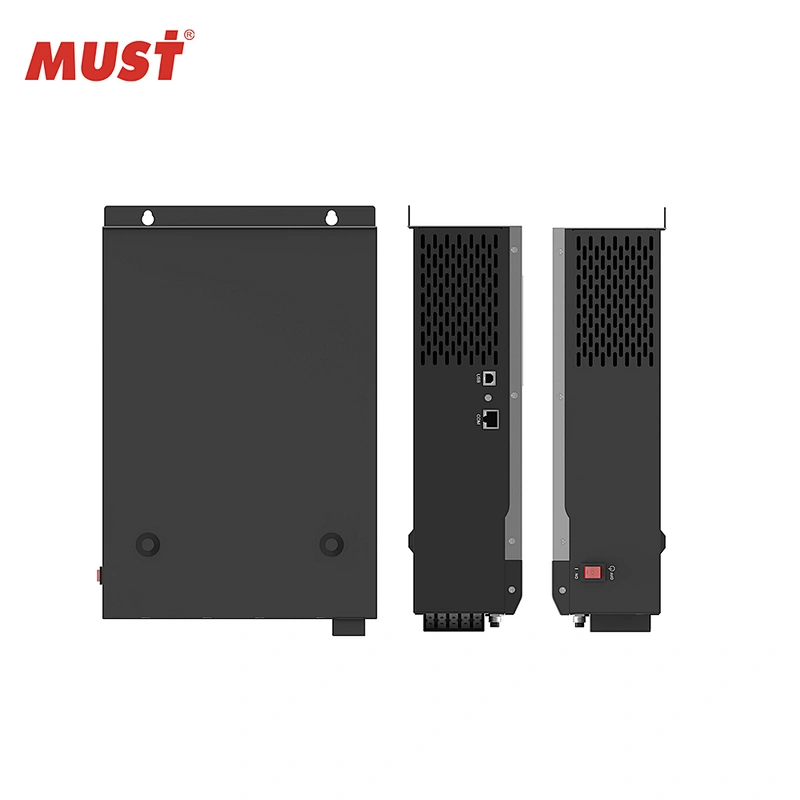

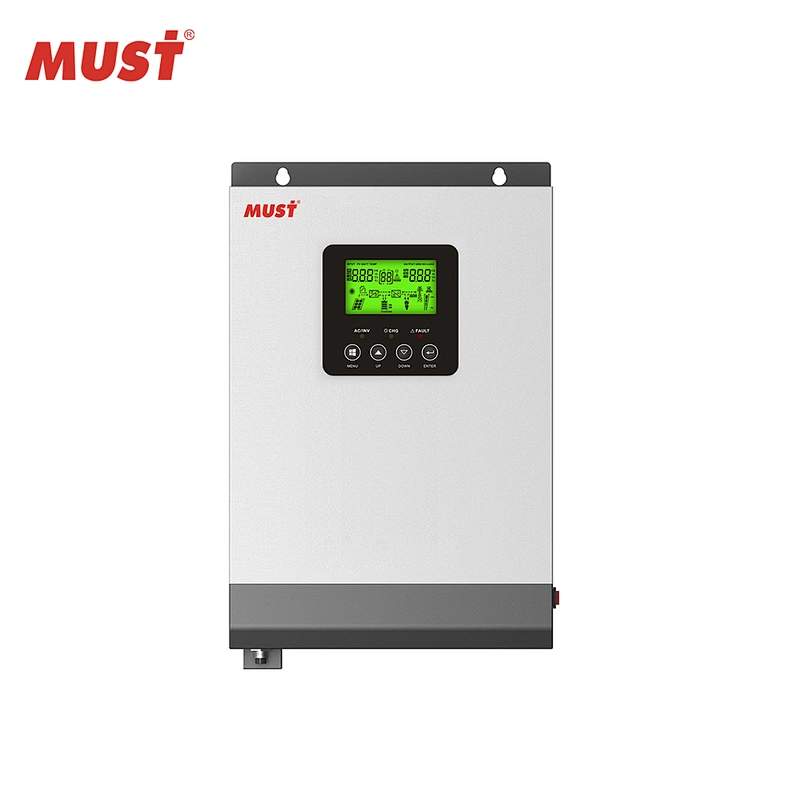

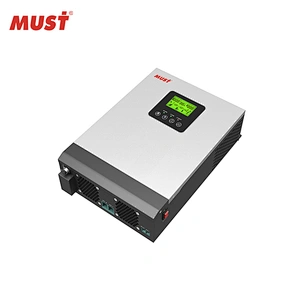

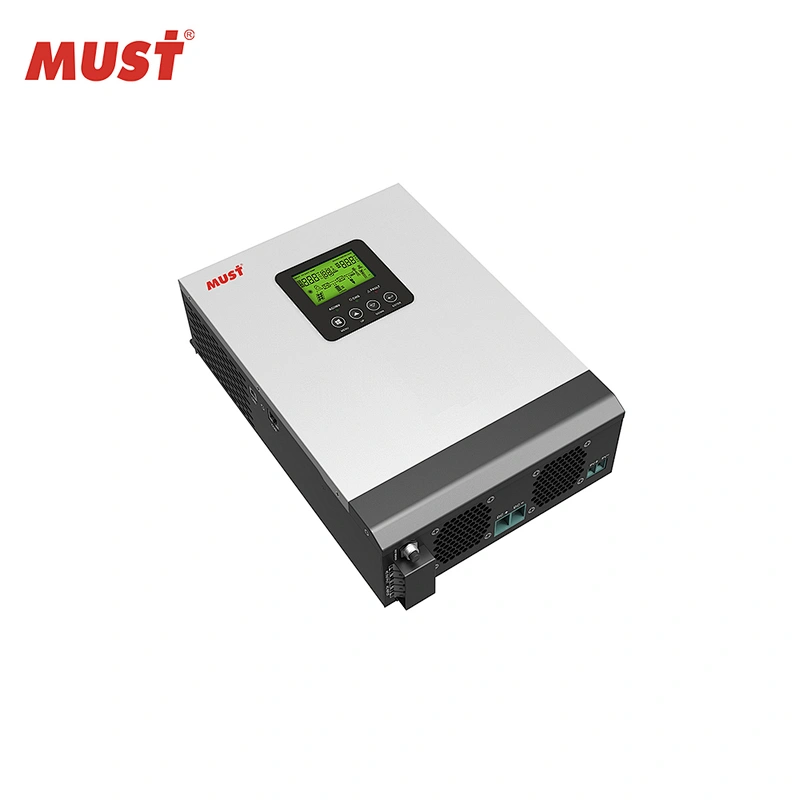

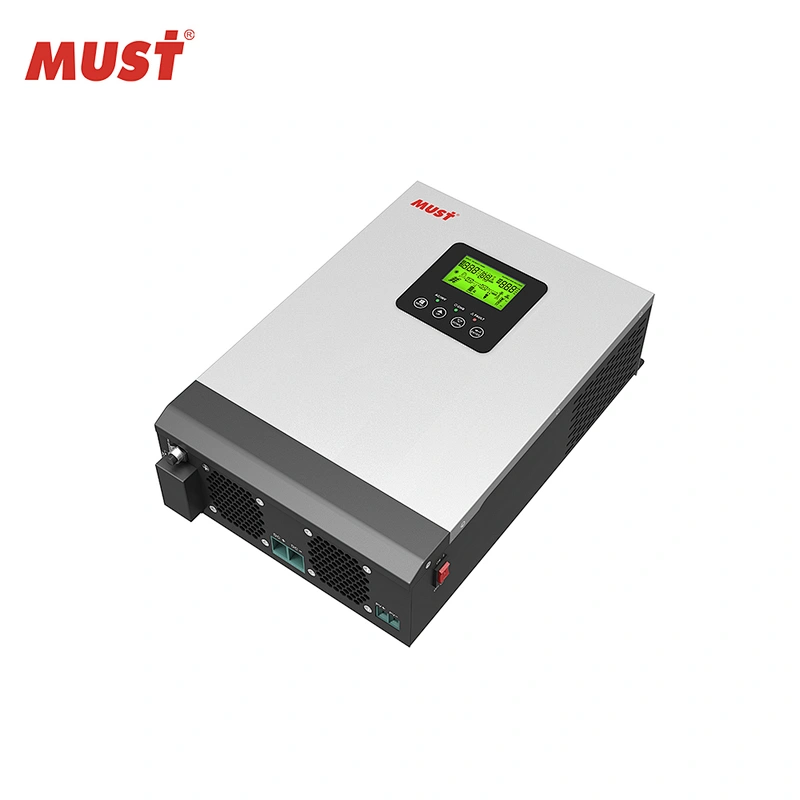

MUST solar and wind power system for home off grid grid tie inverter 1000w 12v 50A PWM inverter

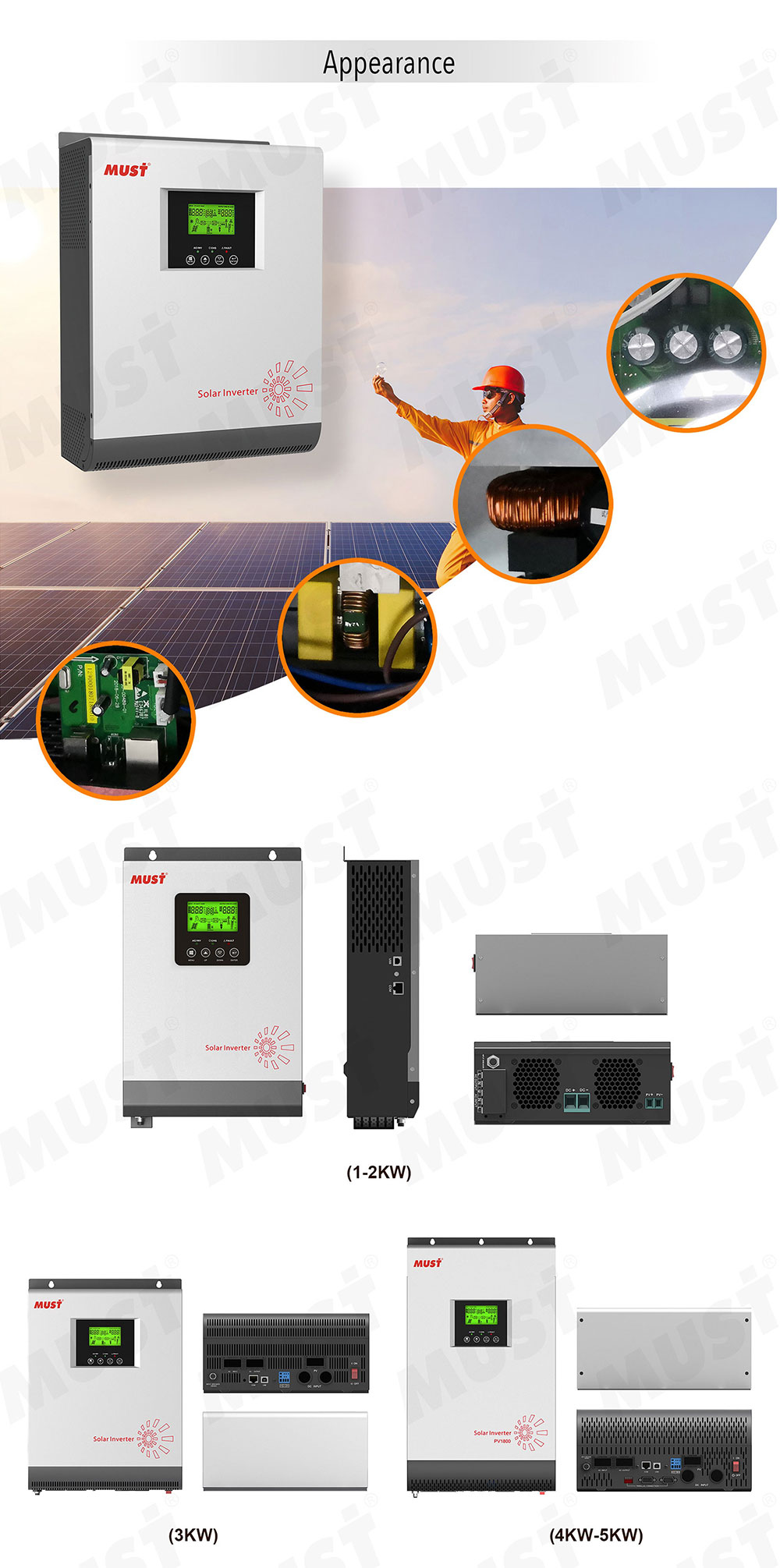

High Frequency Off Grid Solar Inverter

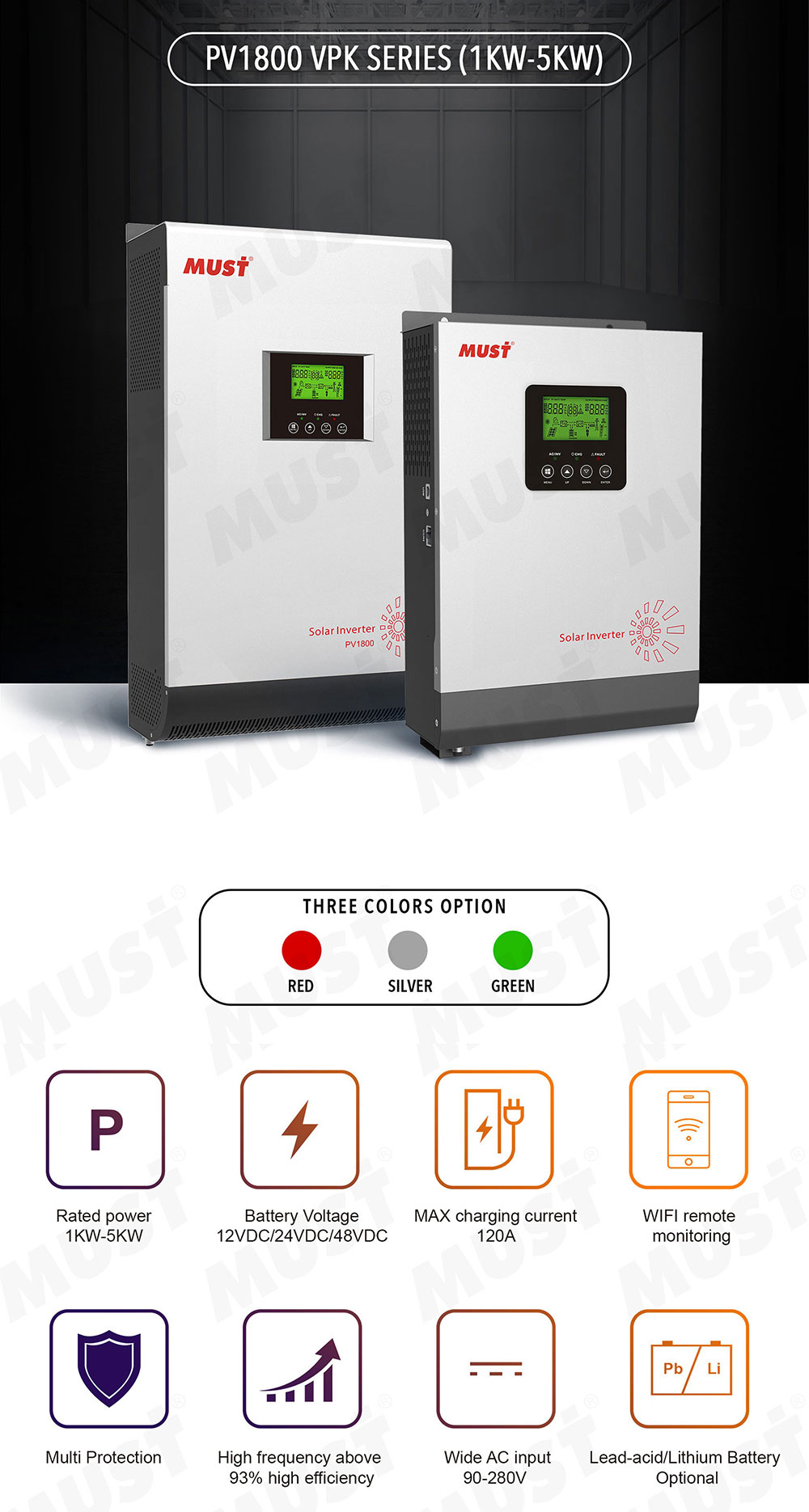

PV1800 VPK Series (1-5KW)
PV1800 VPK is a multi-function inverter/charger, combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

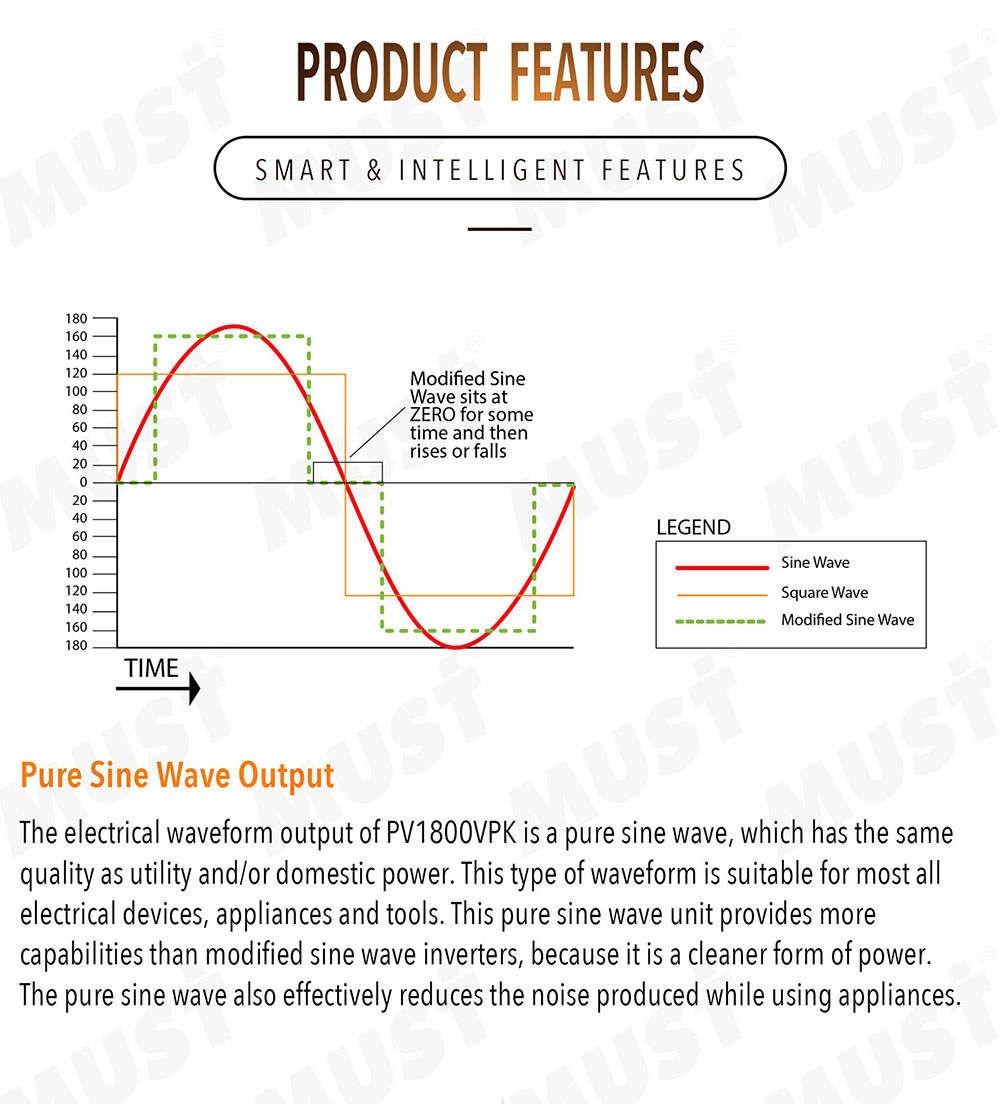

- Pure sine wave output

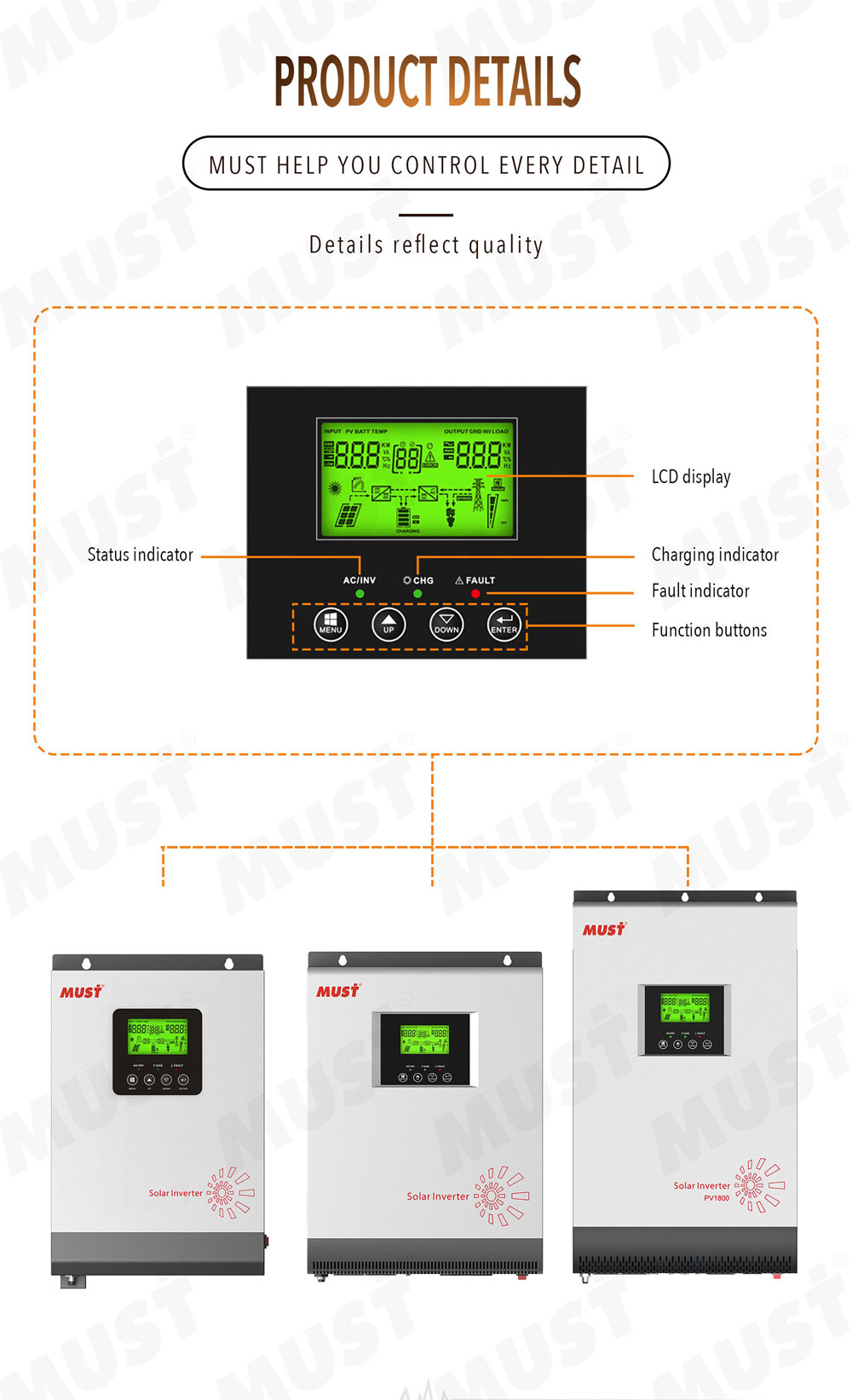

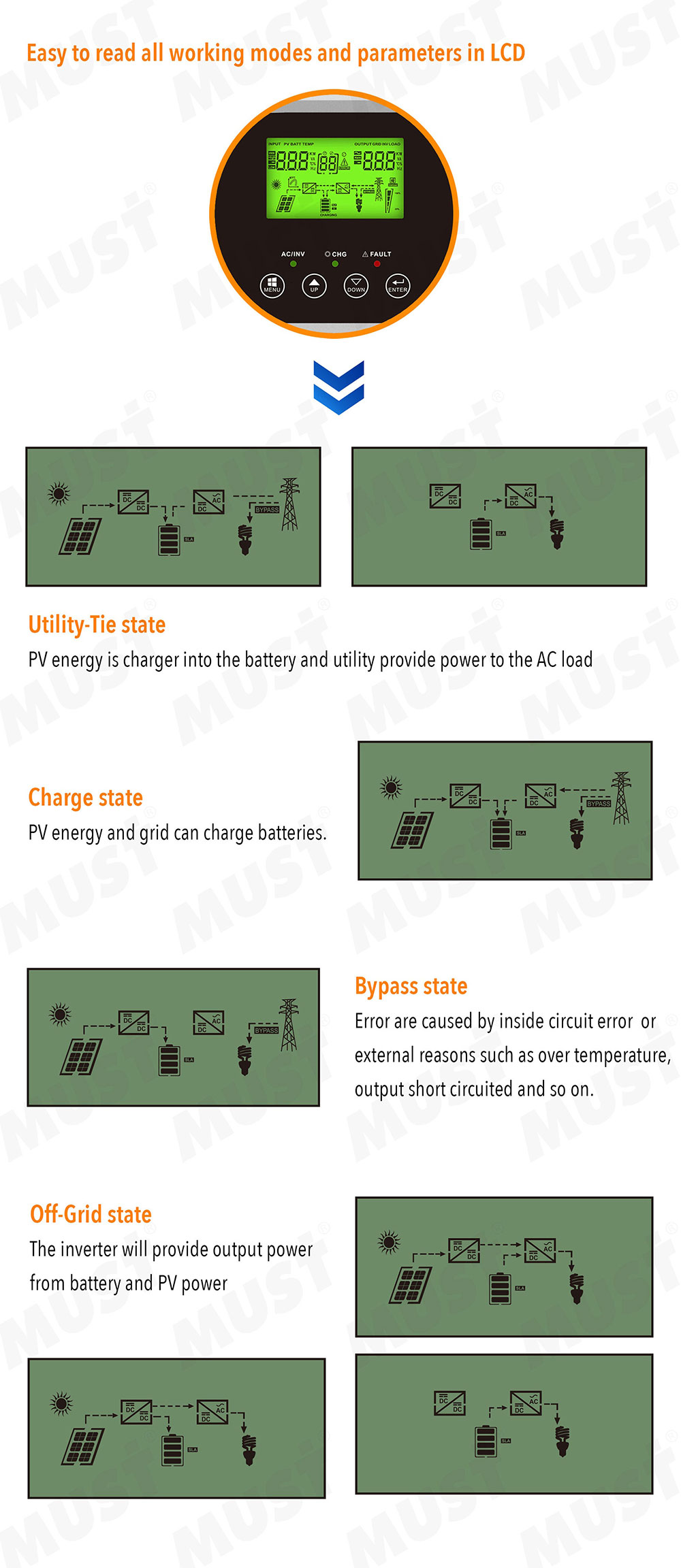

- Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
- Built-in PWM 50A/60A solar charge controller
- New SUB working mode(Solar-Utility-Battery working mode) for 4K-5K series
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and deep discharge protection

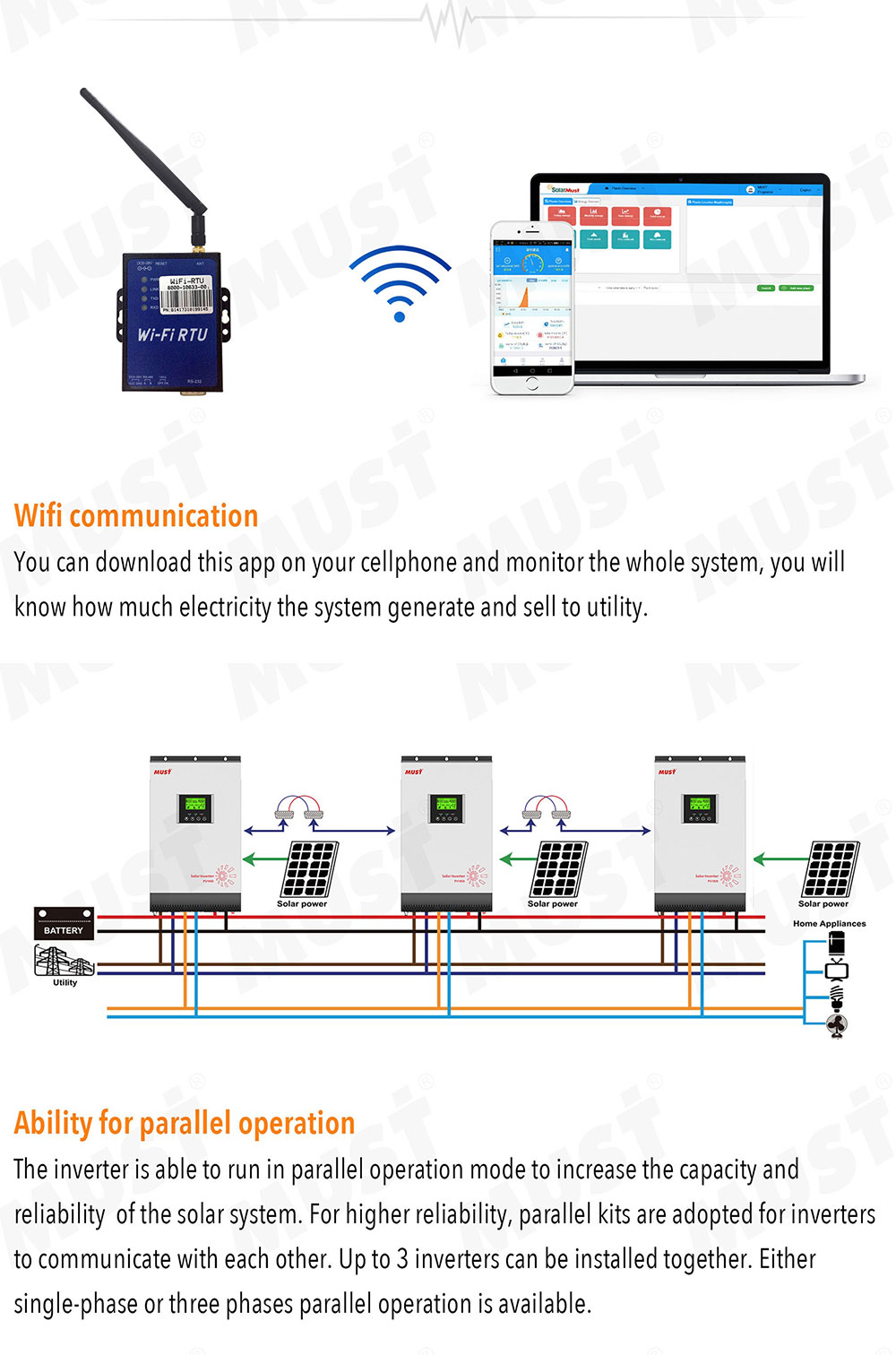

- Parallel operation with up to 3 units (Available for 4KW/5KW only)
- Cold start function

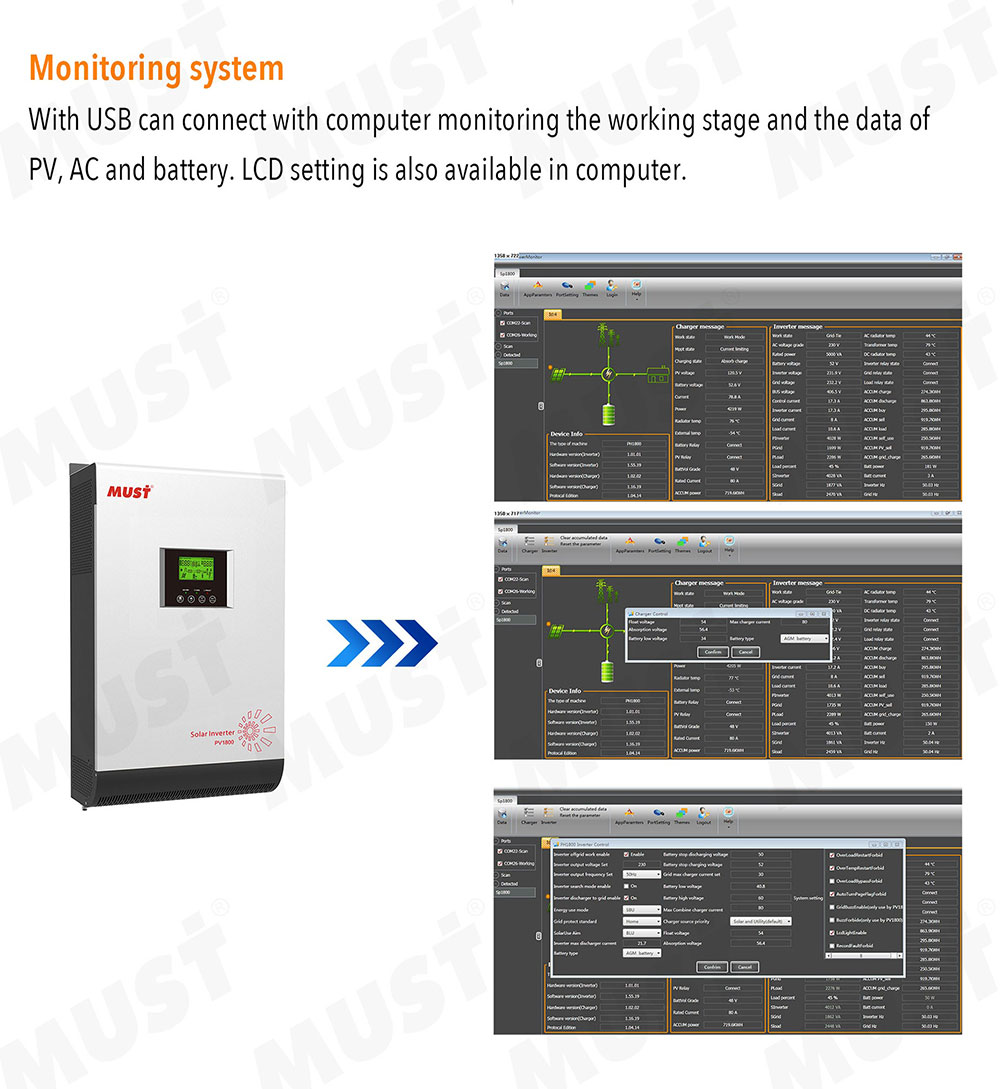

- Support USB, RS485 monitoring function with free CD
- WIFI remote monitoring (optional)
- Compatible to generator
| MODEL | PV18-1012 VPK | PV18-2024 VPK | PV18-3024 VPK | PV18-4048 VPK | PV18-5048 VPK |
|---|---|---|---|---|---|
| Nominal Battery System Voltage | 12VDC | 24VDC | 48VDC | ||
| INVERTER OUTPUT | |||||
| Rated Power | 1000W | 2000W | 3000W | 4000W | 5000W |
| Surge Power | 2000W | 4000W | 6000W | 8000W | 10000W |
| Waveform | Pure sine wave | ||||
| AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% | ||||
| Inverter Efficiency (Peak) | 93% | ||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | ||||
| AC INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE4105) | ||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||
| BATTERY | |||||
| Normal voltage | 12VDC | 24VDC | 48VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | ||
| Overcharge Protection | 15.5VDC | 31VDC | 60VDC | ||
| SOLAR CHARGER&AC CHARGER | |||||
| Maximum PV Array Open Circuit Voltage | 55VDC | 70VDC | 105VDC | ||
| Standby Power Consumption | 2W | 2W | 2W | ||
| (PWM) Maximum Solar Charge Current | 50A | 50A | 60A | ||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | ||
| Maximum Charge Current | 70A | 80A | 120A | ||
| MECHANICAL SPECIFICATION | |||||

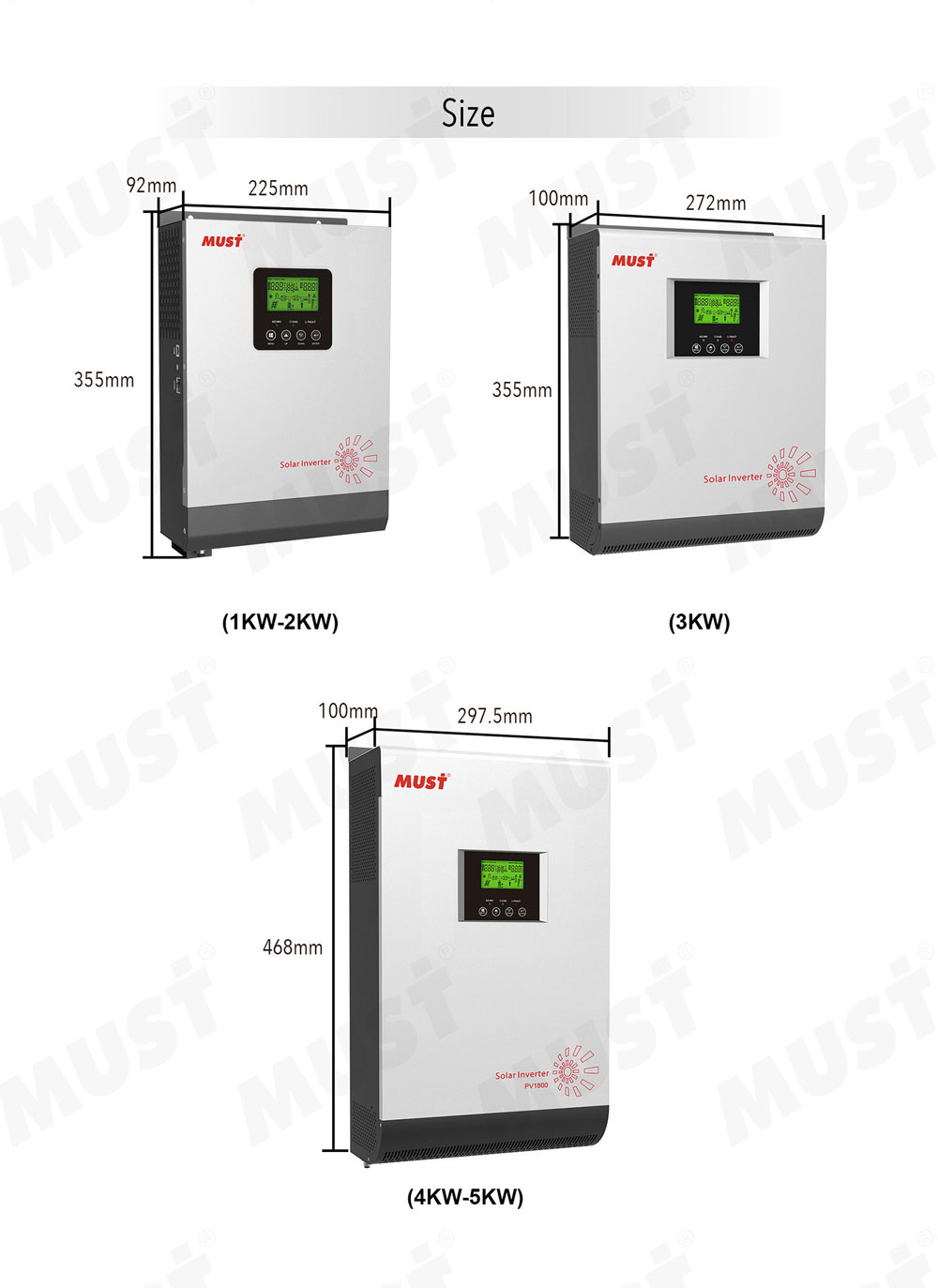

| Machine Dimensions (W*H*D)(mm) | 225*355*92 | 272*355*100 | 297.5*468*125 | ||
| Package Dimensions (W*H*D)(mm) | 405*373*205 | 465*373*231 | 618*415*261 | ||
| Net Weight(kg) | 4.0 | 7.8 | 12 | ||
| Gross Weight(kg) | 6.0 | 10.3 | 13.5 | ||
| OTHER | |||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Operating Temperature | 0°C -55°C | ||||
| Storage Temperature | -15°C -60°C | ||||
Samples and OEM, Warranty and After-Sale Service:
- Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:1 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Foshan,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |

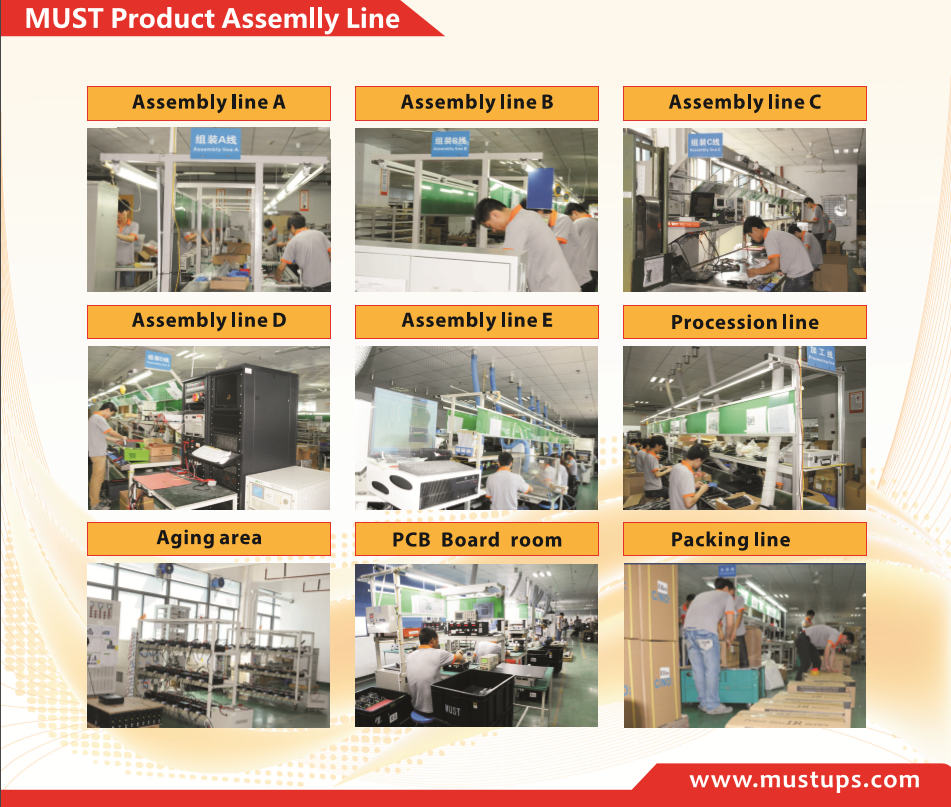

| Factory | 15000 Square Meters, 420 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
