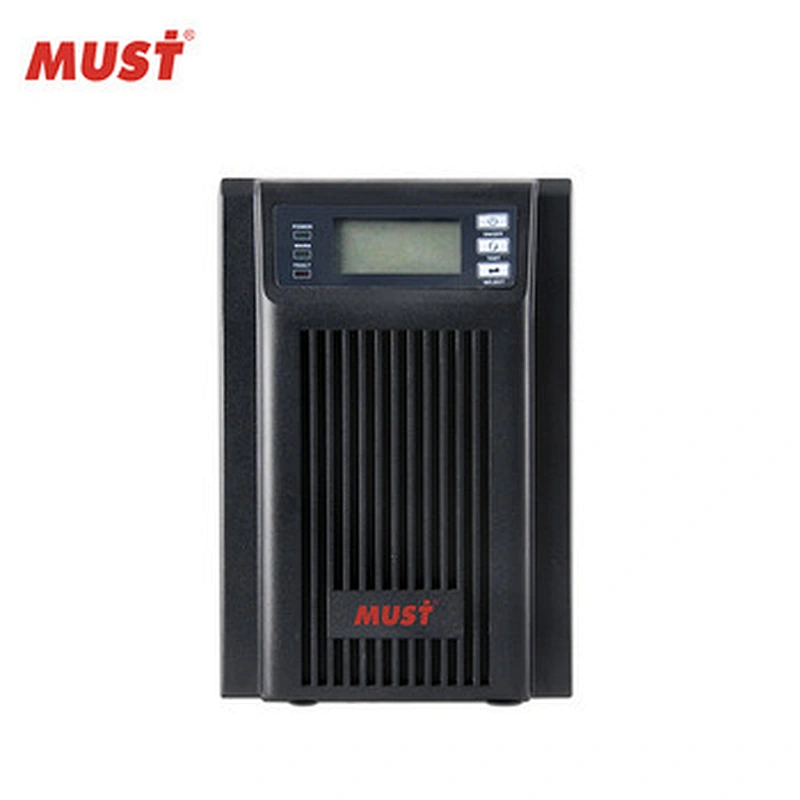

MUST uninterruptible power supply ups new lcd 6kva 10kva with isolated transformer

MUST uninterruptible power supply ups new lcd 6kva 10kva with isolated transformer

Model NO.: 6kva-10kva(EH5000)
Minimum order quantity: 1 unit
Country of Origin: Shenzhen, HK, Guangzhou

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:Must uninterruptible power supply
Model Number:6kva-10kva(EH5000)
Phase:single phase ups
Protection:switch transient, power sags/dips, suge suppression, fluctuation,THDi
Weight:20-120kgs
Output Voltage:110vac or 220vac 1% tolerance
Type:On-line
Application:IT infracture, ICT equipment, data-center, computer-room,CCTV security
uninterruptible power supply THDi:2% max full linear load
Wide input Ac range:145-275Vac 210-475Vac
Full protection:Phase-lock,phase balance,Voltage regulation,
Battery management:Battery low voltage, over-charge,over-discharge,
Output protection:over-load,short-circuit
battery charge control:fast-charge at constant voltage
Intelligent battery management:average-charge at constant current,float-charge
Transfer time:zero transfer time
Power expansion:N+X parallel redundancy
Parallel ability:Max. 3 unit

uninterruptible power supply new lcd ups 6kva 10kva with isolated transformer for x-ray explosure machine secure power solution

uninterruptible power supply, online ups, isolation ups, ups with isolation transformer, 6kva ups, 10kva ups, transformer-base ups, ups power supply, ups power,lcd ups, lcd display ups

feature:

1. uninterruptible power supply, online ups, isolated ups, transformer-based ups provides secure power protection

for industrial/ medical equipment, eg. x-ray explosure machine:

completely isolate output power from input ac source in case of heavier noise interference,

harmonic distortion;

completely isolate output neutral from ground line in case of unexpected electric shocks;

special American standard output wiring via transformer-split (phase-split) into 110v+110v

2. uninterruptible power ups, ups power supply, transformer-base ups in advanced dsp-base full digitalized

micro-processor control tech : high reliability power solution

3. online ups, uninterruptible power supply, ups with isolation transformer in advanced pfc ac to dc rectifier

high input p.f. of 0.97 means better ac-ultilization

4. uninterruptible power supply, power supply, ups power,220v ups in advanced dsp-base igbt inverter

high stability, high efficiency, power-saving advantage

5. uninterruptible power supply, 220v ups, ups online with thorough communication interface

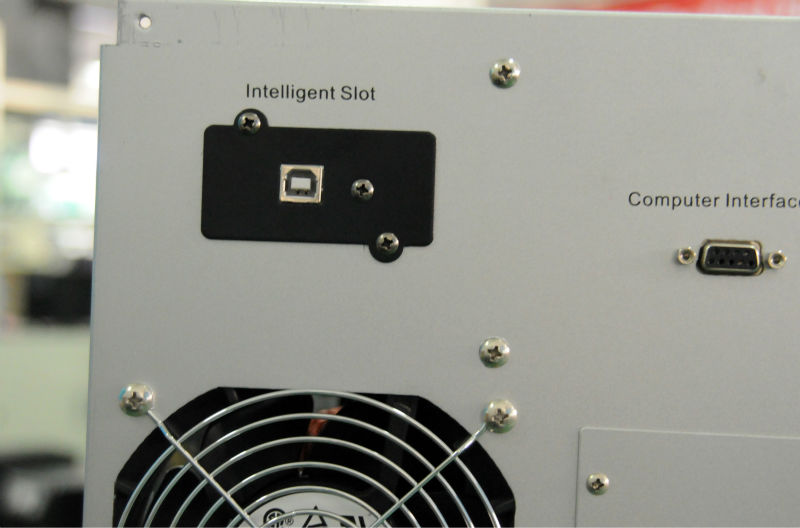

RS232 & optional (USB, AS400 expansion card, SNMP network monitor, power management tool/protocol)

6. uninteruptible Power supply,online ups, 6kva ups, 10kva ups optional n+x parallel redundancy design

flexible on-demand power expansion, hot-redundancy

max design ability 3 units ( 1 unit at most in redundancy)

7. uninterruptible power supply, power supply manufacturer, ups power supply, uninterruptible power supply in 192vdc

or 240vdc internal standard 7ah battery or external long backup time battery bank.

uninterruptibe power supply, online ups, isolation ups, ups with isolation transformer, 6kva ups, 10kva ups, transformer-base ups, ups power supply, ups power

specification:

uninterruptible power supply, online ups with isolation transformer, ups 6kva, lcd ups, ups 10kva,lcd display ups
CPU + DSP + PFC + IGBT + Galvanic Isolation output transformer
N + X Parallel Redundant power expansion
uninterruptible power supply	ups 6kva(ISO)	ups 10kva(ISO)
Input	1 Phase + N + G 220va ups, single phase ups
Ac Nominal value	220VAc ( 230VAc or 240VAc)
Voltage regulation range	145VAc - 275VAc
Frequency deviation	46 - 54Hz ( 50Hz option) or 56 -64Hz (60Hz option)
Input P.F. (PFC)	> 0.99 (on full-load status) power factor correction tech
Dc Nominal value	192VDc ( optional 240VDc with widened enchrosure size)
Battery type	SLA (maintenance-free), VRLA(maintenace-free)
Charge current	2Amp ( 4.5Amp)	2Amp (4.5Amp)
Charge time	7 hrs to 90%
Output	1 Phase + N + G
Ac output stability	Nominal Ac voltage (1 + 1%) Vac
Frequency precision	Auto-detection (Ac-mode ) + Nominal (1 + 0.1%) Hz
Output Current	27Amp	45Amp
Output P.F.	0.8 - 1 (lagging)
Wave	Pure sine wave sine wave ups, online sinusodial ups, no break
Transfer time	Zero (Ac-mode --- battery-mode) zero transfer time ups
power supply THDi	< 2% ( on linear full-load status)
Crest factor	3 : 1
Over-load	105%: keep work;
	105%-125%: 1 minute
	125%-150%: 30 seconds;
Galvanic isolation transformer	noise filter besides input output EMI; transformer-split 110V + 110V isolate output neutral from ground/ups chasssis; isolate output volt from input source in case of noise interference,harmonic distortion;

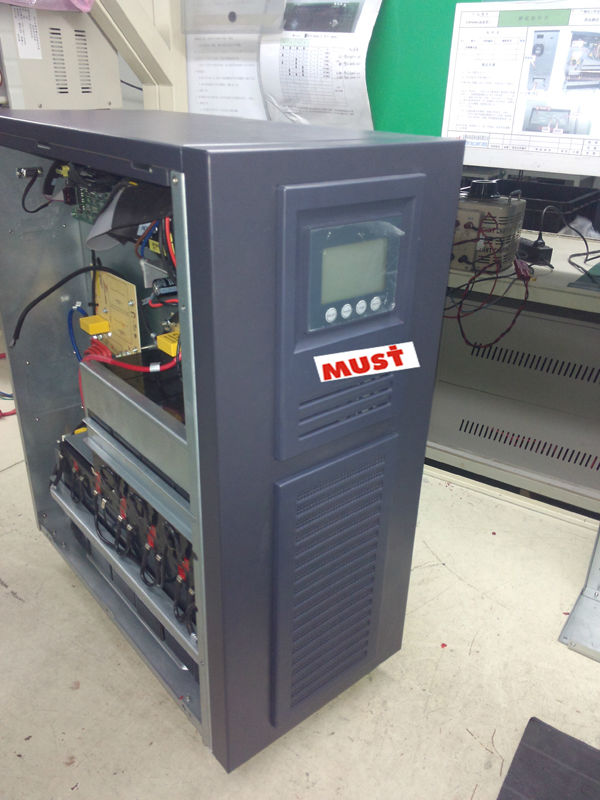

Front panel	Lcd/Led
Enviroment	work-temperature: 0 - 40°C
	Storage temperature : - 25 -- 55 °C
	Relative humidity: 20%-90% non-condense
	Altitude : < 1,000 meters
Physical	248 * 500 * 940 MM (W * D * H)
	115Kg ( 75Kg)	120Kg ( 80Kg)

uninterruptible power supply, online ups, isolation ups, ups with isolation transformer, 6kva ups, 10kva ups,transformer-base ups, ups power supply, ups power

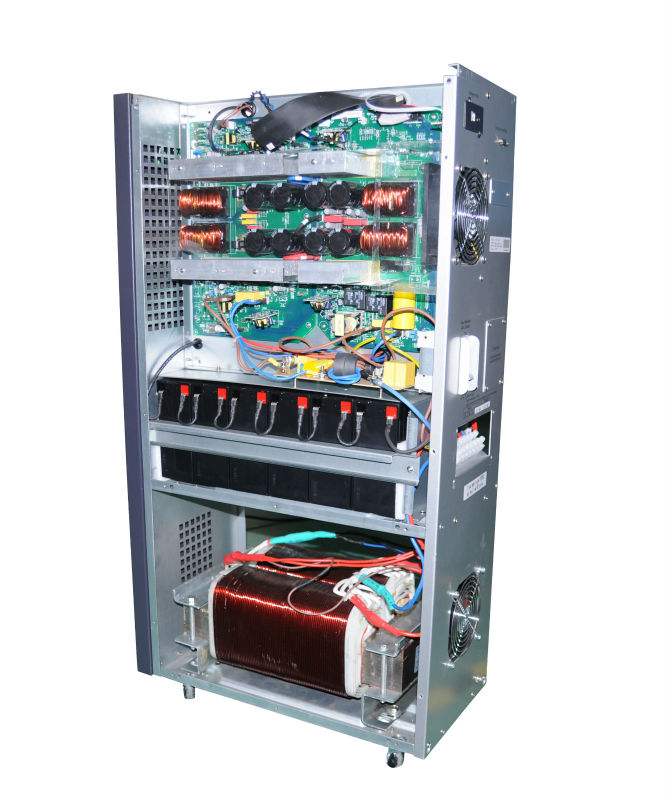

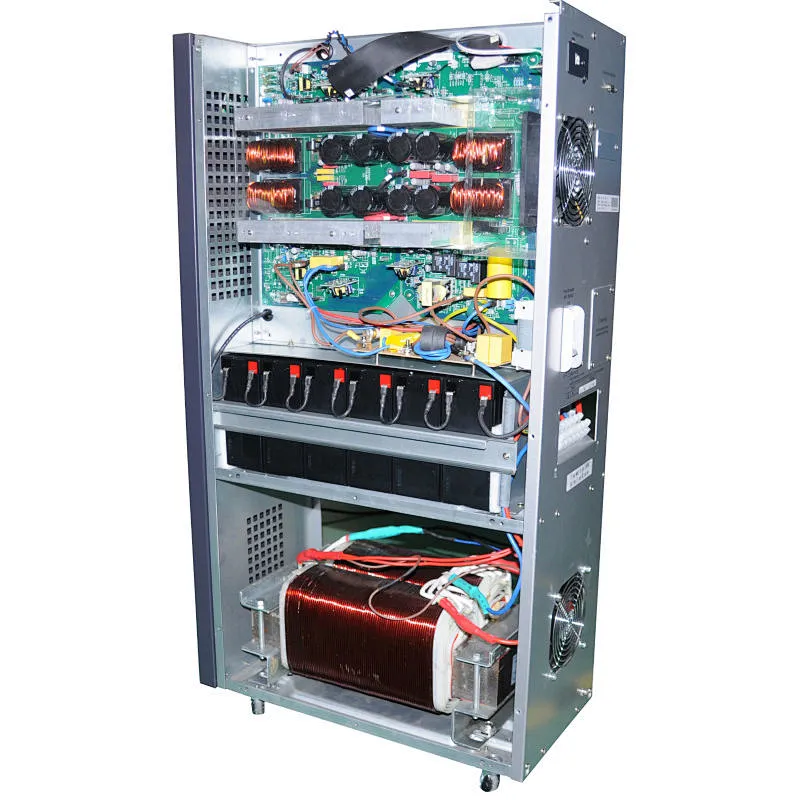

electrical view photos:
