- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:EH5000 H1k/s H1kr/s
- Phase:H 1/1phase,3H 3/1phase
- Protection:overcharge, overload and discharge protection
- Weight:14.0 Kgs
- Output Voltage:Ac nominal 1% tolerance
- Type:On-line
- Application:IT infracture data-center,computer-room,Surveillance CCTV,ICT solution
- Harmonic distortion:2% max full linear load
- Ac input volt. range:145-275Vac 210-475Vac
- Full protection:Phase-lock,phase balance,Voltage regulation,
- Battery management:Battery low voltage, over-charge,over-discharge,
- Output protection:over-load,short-circuit
- Battery charge control:fast-charge at constant voltage
- SLA cell charge control:average-charge at constant current,float-charge
- Ac-mode to battery-mode:zero transfer time
- Power expansion:N+X parallel redundancy
- Parallel ability:max 3 unit 6-20kva ups

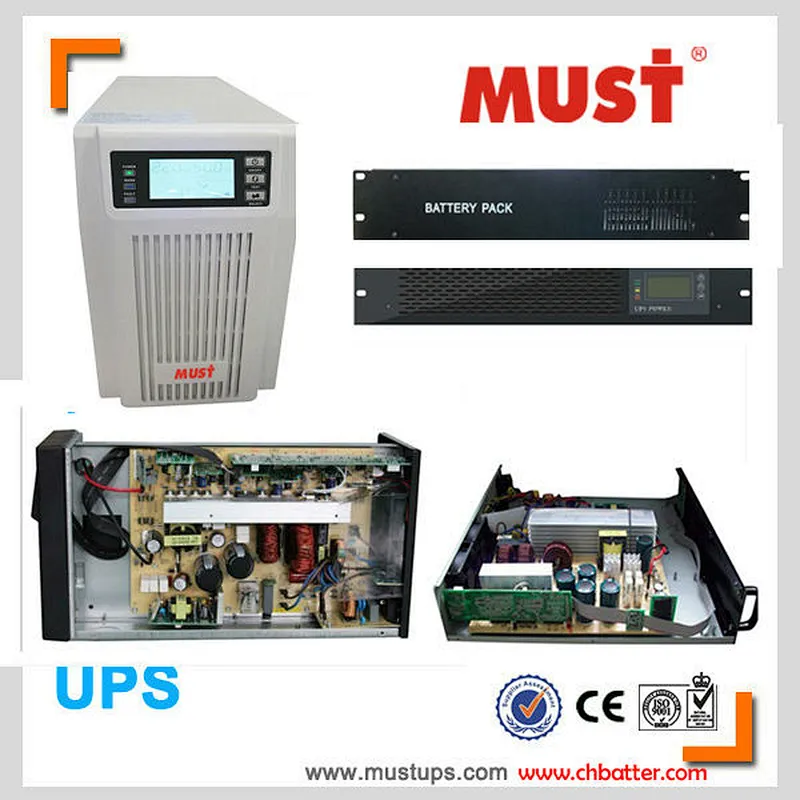

ups power 1kva high frequency online with transformer-less igbt technology inverter
ups power ups system 1kva ups online ups transformer-less ups igbt technology ups brief feature
1kva ups igbt ups dual convertion design ups for IT industry solution;
Power saving online ups power supply transformer-less inverter and advanced digital circuit improves ups efficiency;
PFC rectifier works out 0.99 high input power factor, higher Ac mains supply ultilization;
High speed, high power but low power consumption IGBT inverter finishes pure sine wave Ac voltage power converted
from Dc energy from rectifier/Dc-bus booster/Storage battery;
Full digitalized micro-processor control;
DSP digital signal processor tech;
Dc energy cold startable upon Ac recovery, Off-mode battery re-chargable;
1kva ups transformer-less ups thorough communication function via RS232, USB, dry contact, AS400 and remote
SNMP management toool;
ups power online ups igbt technology ups on-demand power expansion hot-redundancy design
H 6-20kva N+X parallel redundancy max 3 units for higher power needs(N for parallel units qty),
or hot-redundancy(X represent redundant units qty),
ups power H 6k/s 10k/s transformer-base design for industry
H 6K/S H 10K/S wih internal isolation transformer, for noise filter, for electronic isolation(neutral and ground),
for transfrmer-split output wiring 110V + 110V.
ups power 1kva ups manufacturer back-ground: ups R & D, manufacture, sales and after-sale service
experience sine late 1990's.
ups power 1kva ups onine ups CE,SGS-ISO-9001 approved.
ups power 1kva ups online ups 1-20kva Santakups brand name famous in both domestic and overseas market.

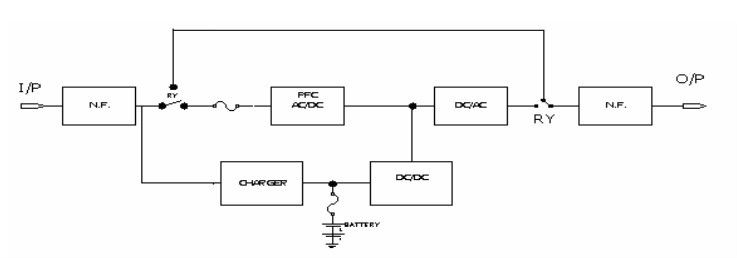

ups power 1kva ups online ups 1-20kva schematic diagram

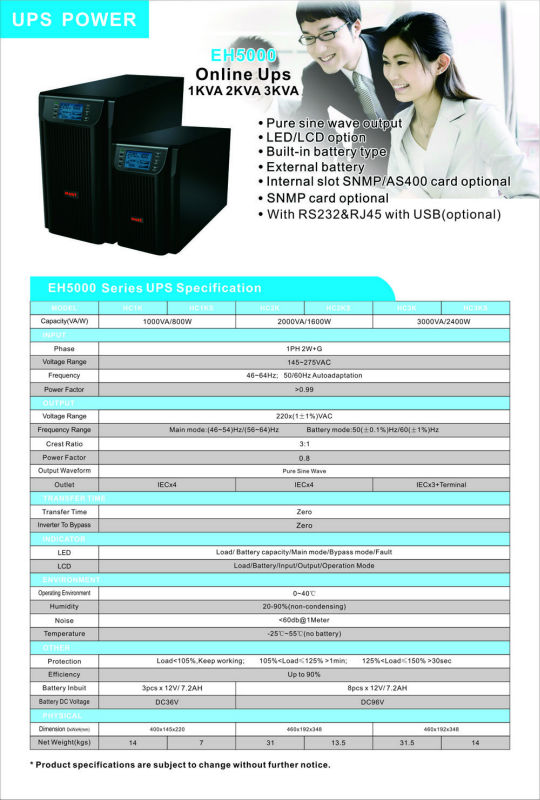

ups 1-3kva specification

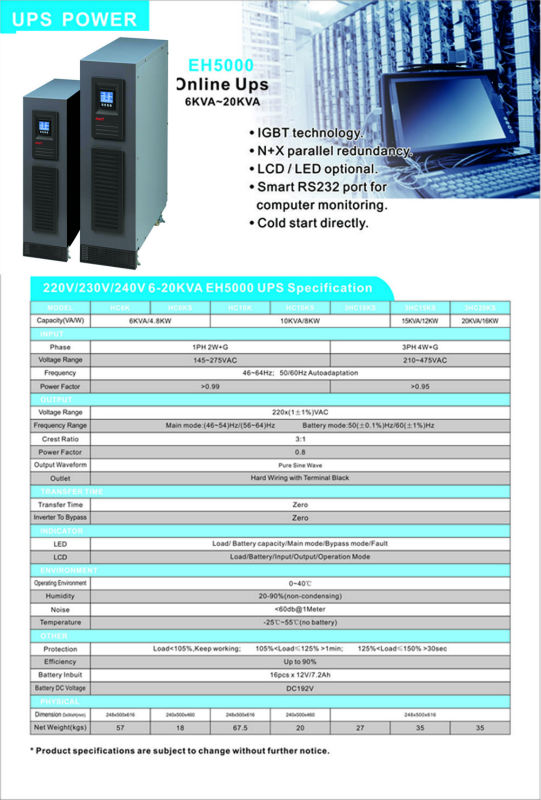

online ups 6-20kva specification

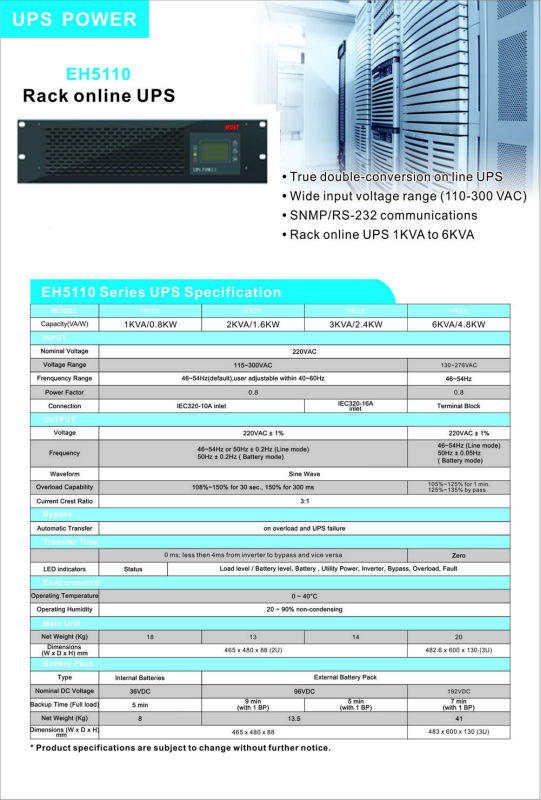

rack-mount online ups 1-6kva specification

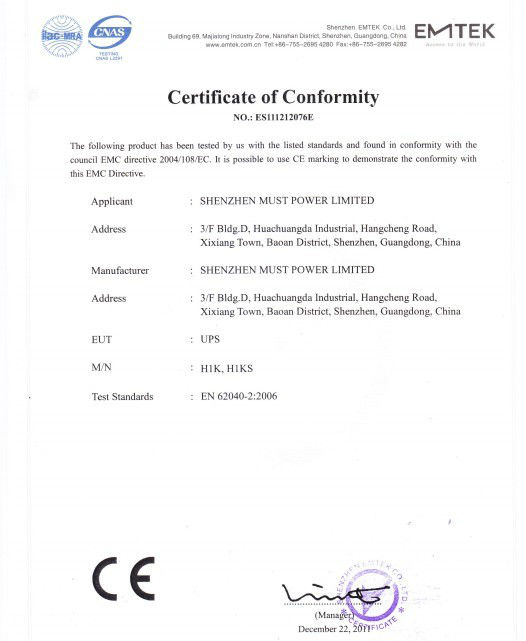

ups power 1kva ups quality verification CE
online ups power supply quality verification CE

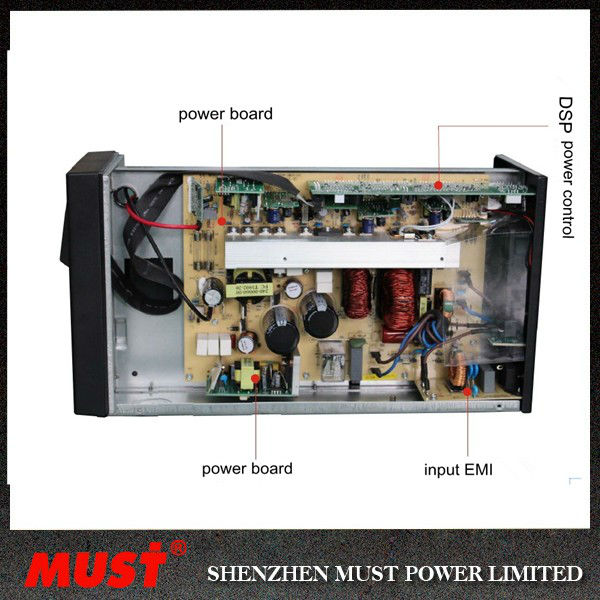

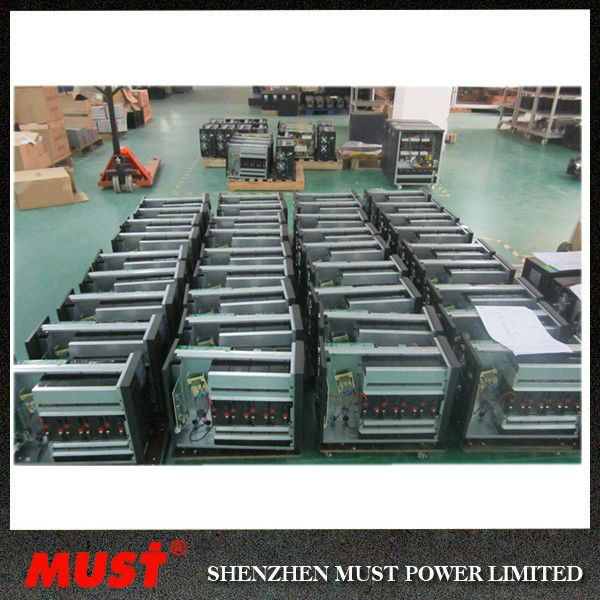

ups power ups system 1kva ups online ups 1-20kva ups 1-3kva photos
ups power ups system 1kva ups online ups 1-20kva ups 1-3kva

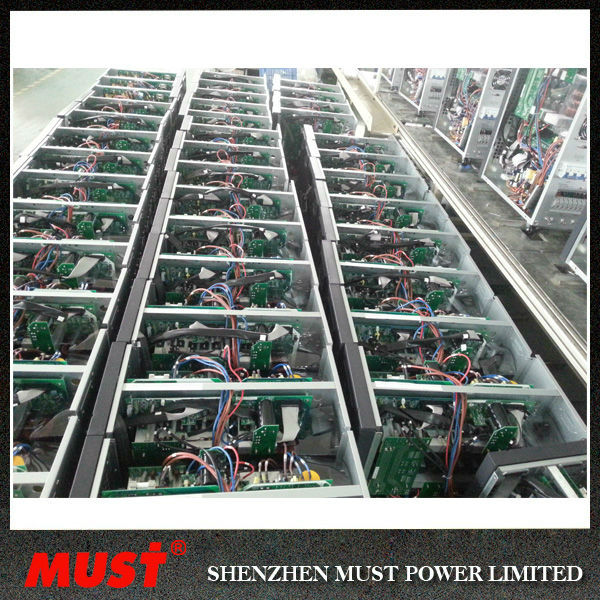

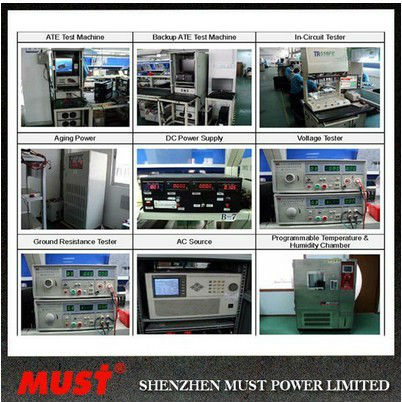

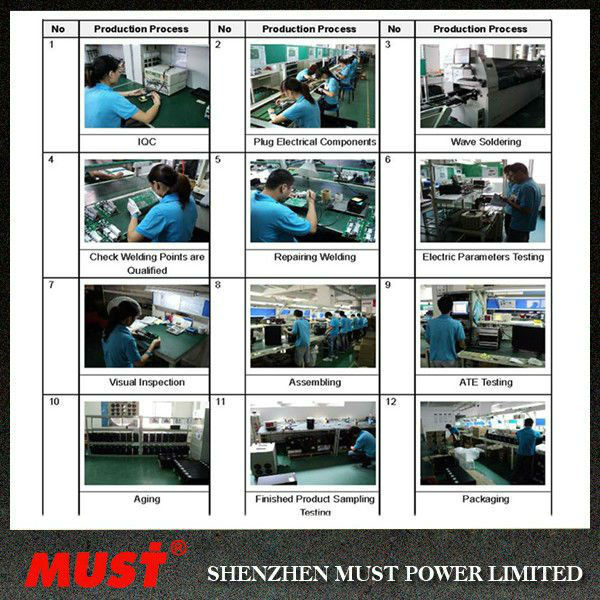

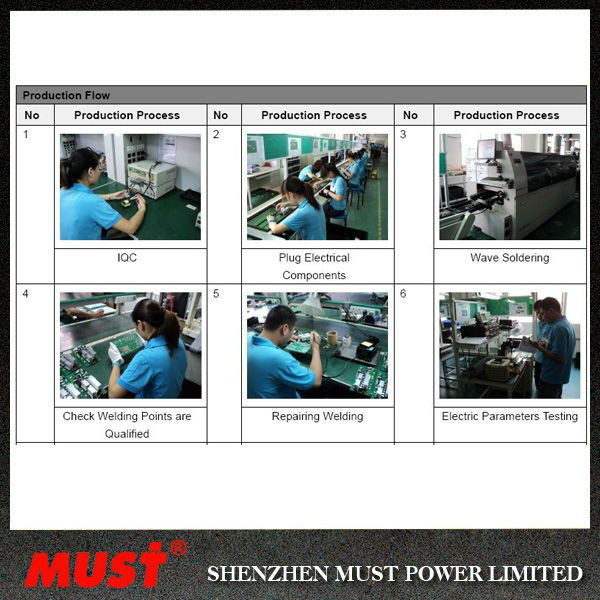

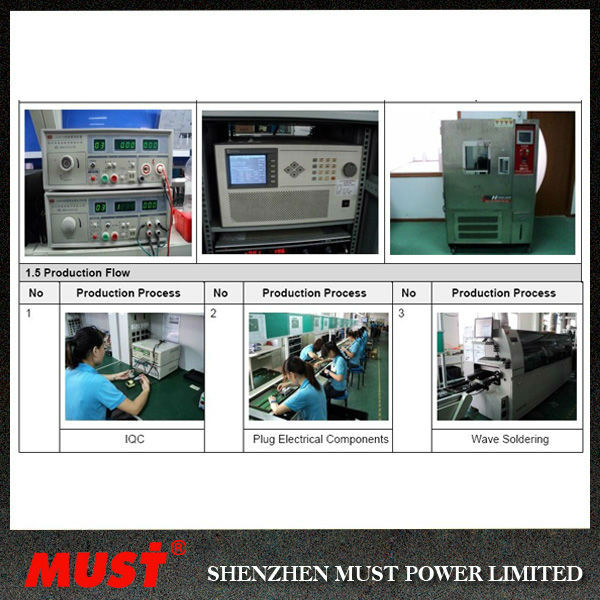

procession assemble workmanship,testing quality assurance procedures
