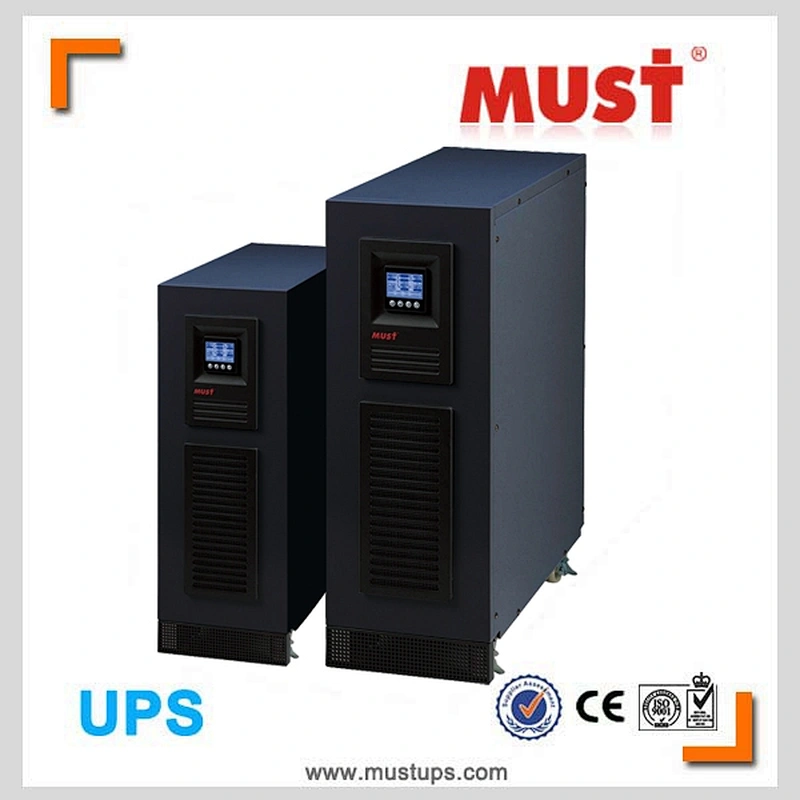

MUST ups system 1kva high frequency online with high input power factor ac-dc rectifier

• Place of Origin:Guangdong, China
• Brand Name:Must ups system
• Model Number:EH5000 H1-10kva H1kr-6krs 3H 10-20ks
• Phase:H 1/1phase,3H 3/1phase
• Protection:overcharge, overload and discharge protection
• Weight:14.0 Kgs
• Output Voltage:Ac nominal 1% tolerance
• Type:online high frequency ups pure sine wave
• Application:IT infracture data-center,computer-room,Surveillance CCTV,ICT solution
• ups system THDi:2% max full linear load
• Ac input volt. range:145-275Vac 210-475Vac
• Full protection:Phase-lock,phase balance,Voltage regulation,
• Battery management:Battery low voltage, over-charge,over-discharge,
• Output protection:over-load,short-circuit
• Battery charge control:fast-charge at constant voltage
• SLA cell charge control:average-charge at constant current,float-charge
• Ac-mode to battery-mode:zero transfer time
• Power expansion:N+X parallel redundancy
• Parallel ability:max 3 unit 6-20kva ups

 ups system 1kva high frequency online with high input power factor ac-dc rectifier

ups system 1kva ups 1-3kva ups online ups 1-20kva brief feature

ups system 1kva ups dual convertion design ups for IT industry solution;

Power saving ups system adopts transformer-less inverter and advanced digital circuit

improves ups efficiency;

PFC rectifier works out 0.99 high input power factor, higher Ac mains supply ultilization;

High speed, high power but low power consumption IGBT inverter finishes pure sine wave Ac voltage

power converted from Dc energy from rectifier/Dc-bus booster/Storage battery;

Full digitalized micro-processor control;

DSP digital signal processor tech;

Dc energy cold startable upon Ac recovery, Off-mode battery re-chargable;

ups system 1kva ups thorough communication function via RS232, USB, dry contact, AS400 and remote

SNMP management toool;

ups system  1kva ups 1-3kva ups online ups 6-20kva expansion design

 H 6-20kva N+X parallel redundancy max 3 units for higher power needs(N for parallel units qty),

 or hot-redundancy(X represent redundant units qty),

ups system industrial online ups H 6k/s 10k/s transformer-base design for industry

H 6K/S H 10K/S wih internal isolation transformer, for noise filter, for electronic isolation,

 for transfrmer-split output wiring 110V + 110V.

ups system 1kva ups 1-3kva ups online ups 1-20kva manufacturer back-ground: ups R & D,

manufacture, sales and after-sale service experience sine late 1990's.

ups system 1kva ups 1-3kva ups online ups 1-10kva  CE,SGS-ISO-9001 approved.

 ups system 1kva ups 1-3kva ups online ups 1-20kva popular Santakups brand name in

domestic and overseas markets.

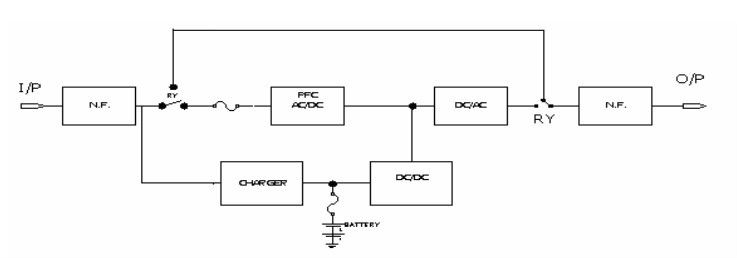

ups system 1kva ups 1-3kva ups online ups 1-20kva schematic diagram

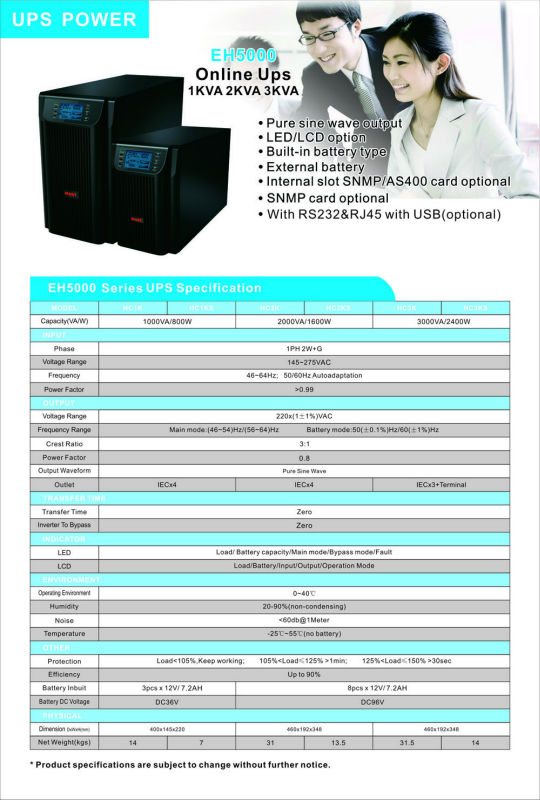

ups system 1kva ups ups system 1-3kva ups system specification

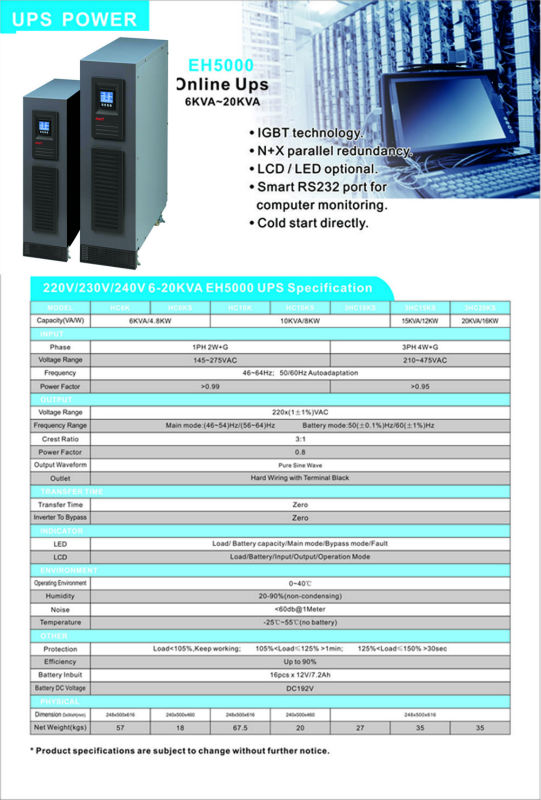

ups system 6-20kva specification

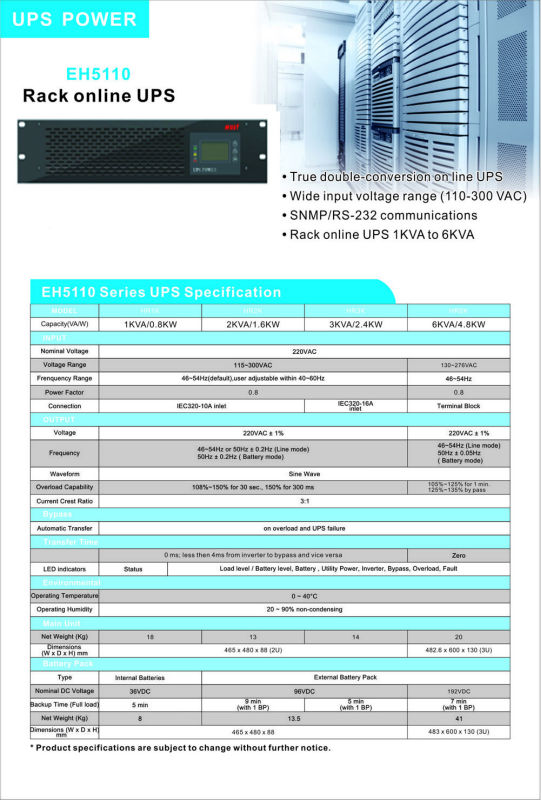

rack mount ups system 1-6kva

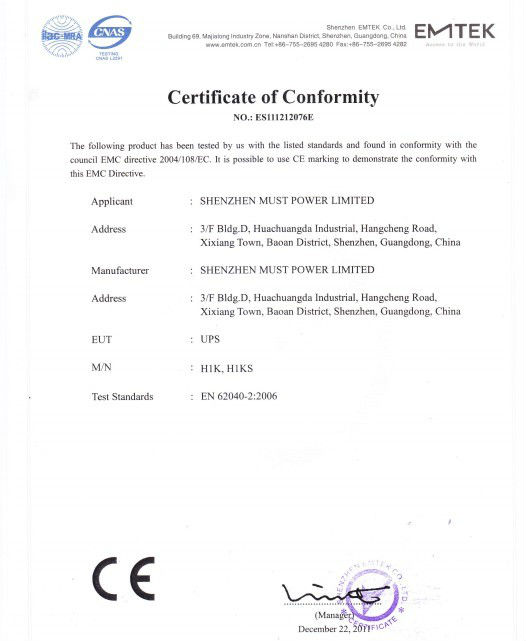

ups system 1kva ups ups 1-3kva  online ups 1-20kva quality verification CE

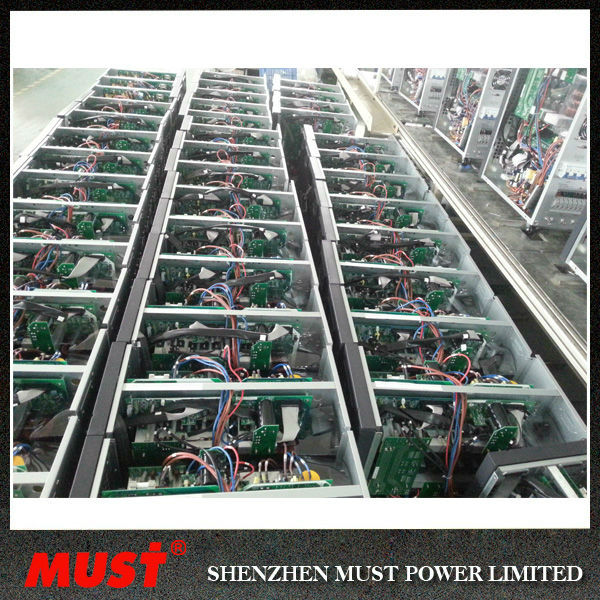

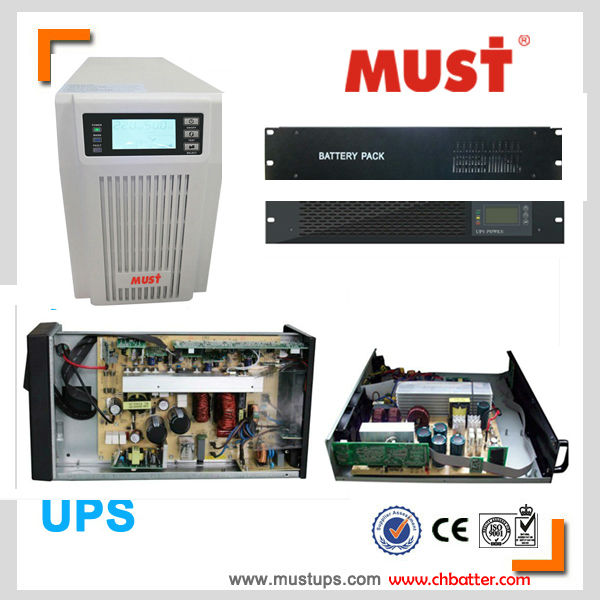

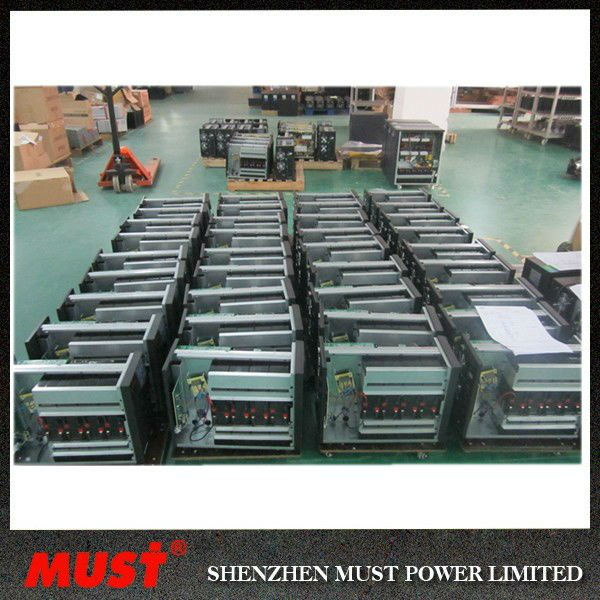

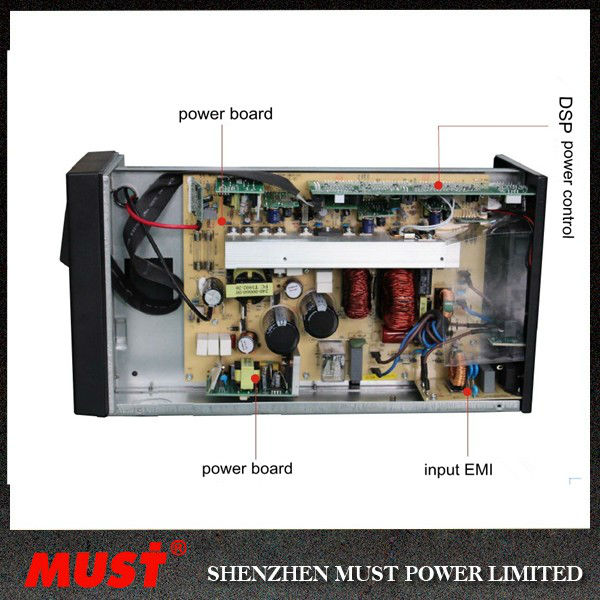

ups system photos
