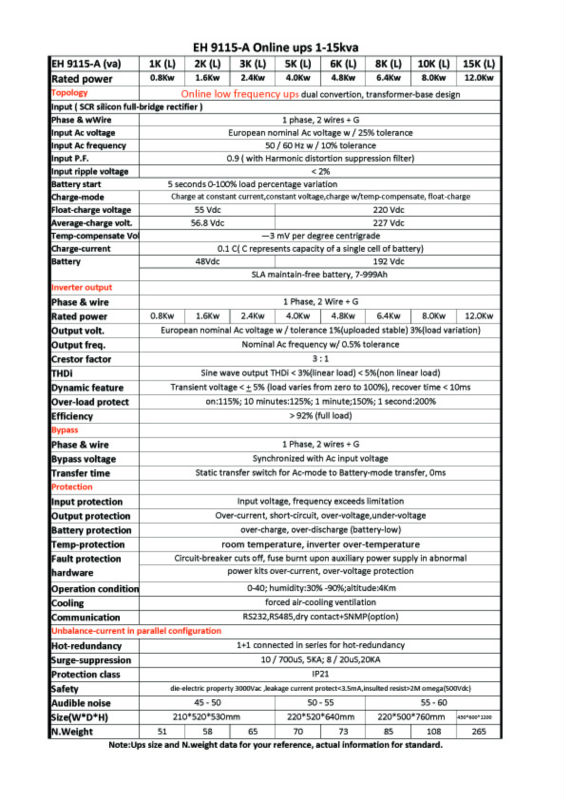

- Place of Origin:Guangdong, China
- Brand Name:Must ups with isolation transformer 3kva
- Model Number:1-15kva (EH9115-A) ups
- Phase:Single Phase
- Protection:power sags,dips, fluctuated ac voltage,frequency, surge voltage...
- Weight:50-265kgs
- Output Voltage:220vac 110vac(1-6kva)
- Type:On-line
- Application:Telecom,bank,stock market,traffic,power station, manufacture industry
- ups with isolation transformer 3kva:double convertion with isolation output
- ac to dc:SCR silicon bridge rectifier
- input P.F.:0.8
- dc to ac:IGBT modular inverter
- output P.F.:0.8
- secure power solution:output isolation
- Crestor factor:3:1
- output protection:over-load, short-circuit
- charge control:constant voltage,current,float charge,temperature compensate charge
- Temperature protection:room temperature, inverter temperature
transformer-base silicon rectifier igbt modular inverter made

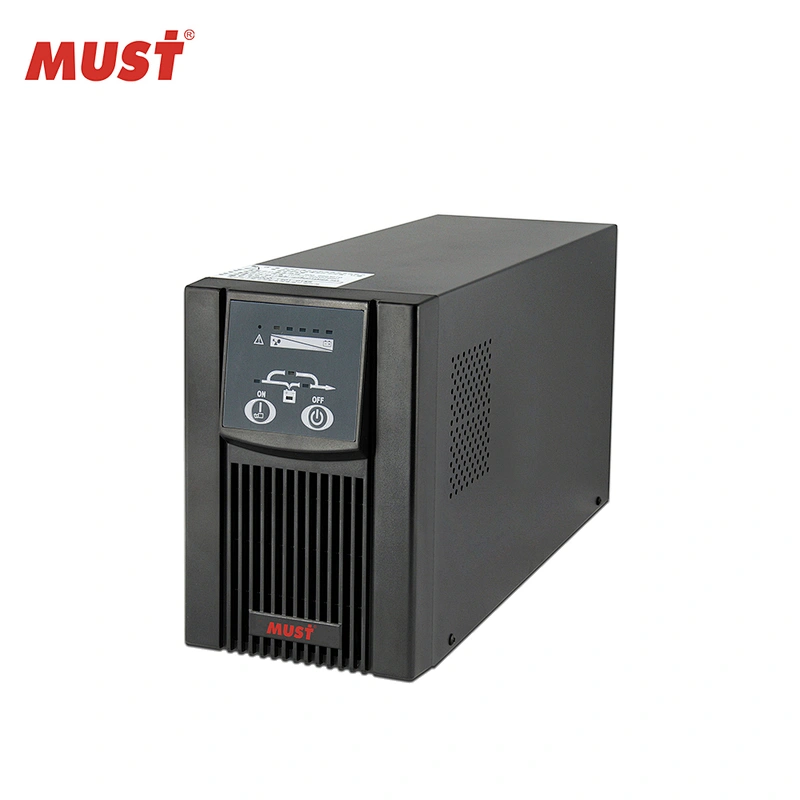

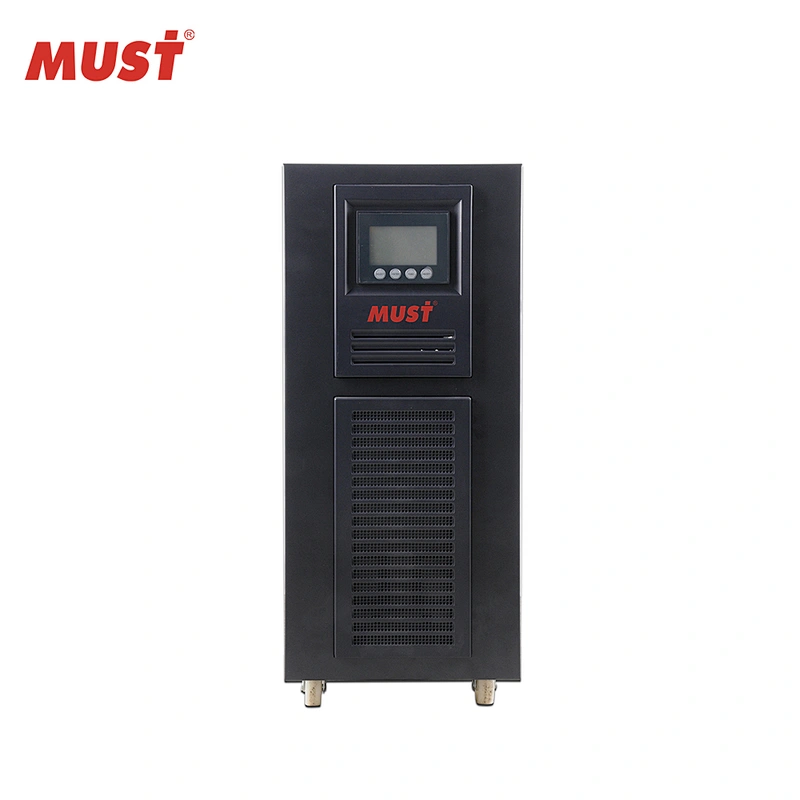

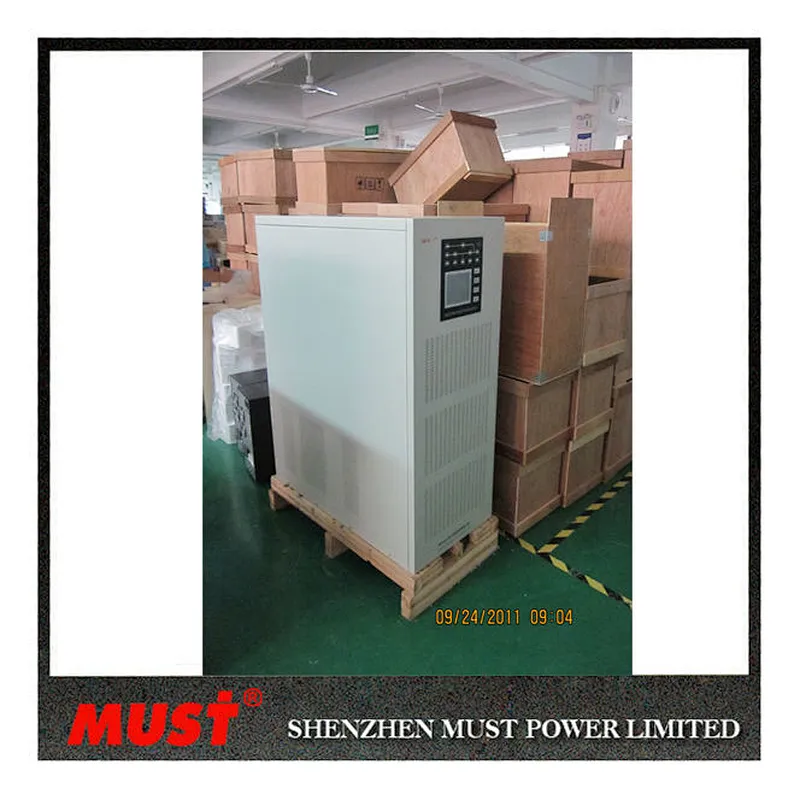

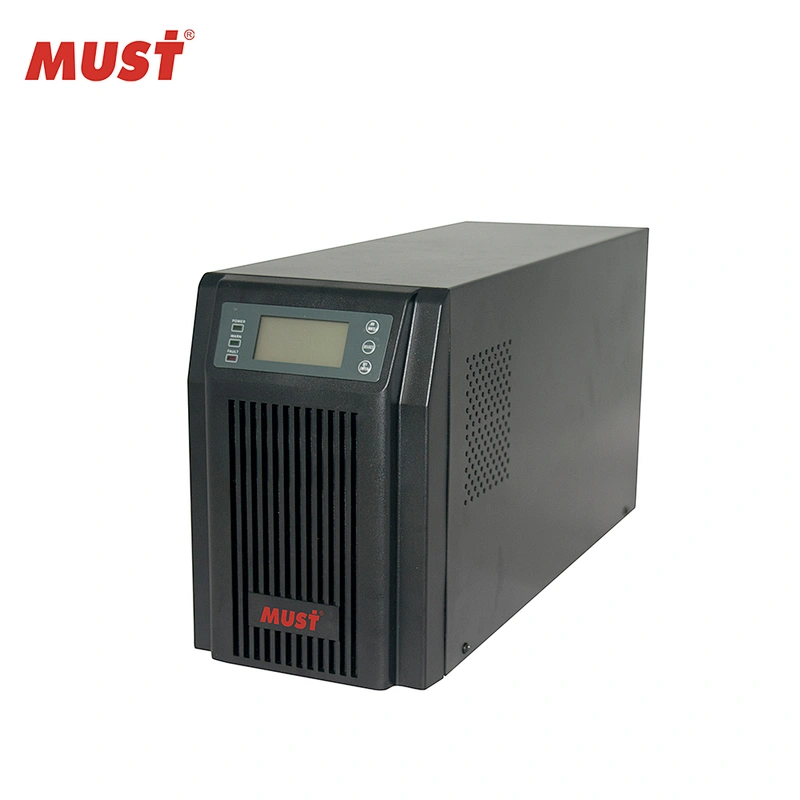

ups with isolation transformer 3kva 220v

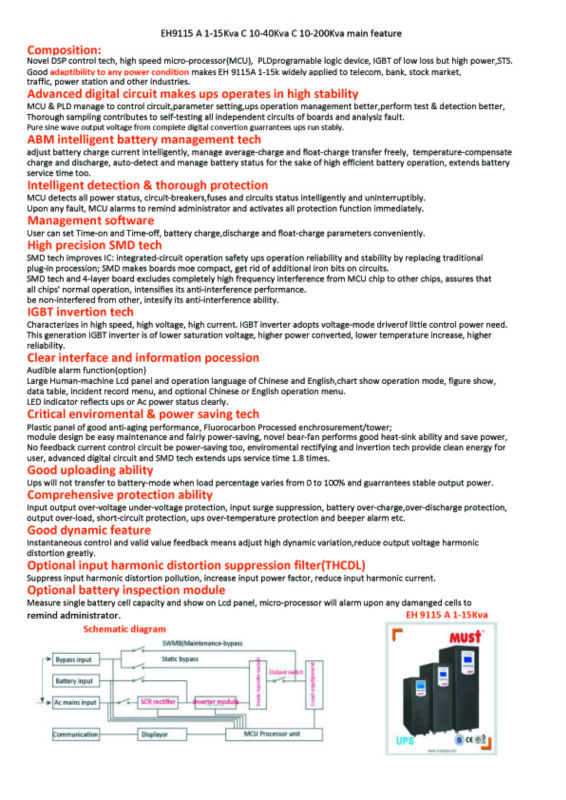

feature:
1 ups with isolation transformer 3kva provide reliable, stable, uninterruptible, secured power solution for critical equipment
in industrial application
2. high reliability power solution from ups with isolation transformer 3kva, online ups low frequency, ups industrial,
online ups with isolation transformer
dsp control tech of novelity, high speed micro-processor
3. high stability power solution from ups with isolation transformer 3kva, online ups low frequency, ups industrial,
online ups with isolation transformer
high speed, high power, high voltage and current but low self power consumption modular IGBT inverter
4. cost effective SCR Silicon bridge-rectifier finish Ac to Dc rectification ups with isolation transformer 3kva
5. Internal or external battery provide uninterruptiblity power solution from industrial online ups, online ups low frequency
6. ups with isolation transformer 3kva static transfer switch(SWB) assures uninterrupted transfer from ac-mode to battery-mode
7. ups with isolation transformer 3kva maintenance bypass and swith (SWMB) provide ups with ac power feed-in and furtherly
guarrantees human safety when repairing or maintening.
8. ups with isolation transformer 3kva with RS232, and optional SNMP interface finish UPS communication with local and
network computers execute a convenient power management local and network reach, monitor ups status and
ac power status effectively.
ups with isolation transformer 3kva,industrial online ups, online ups low frequency, onlilne ups, ups online, ups industril,
online ups power supply,online ups with isolation transformer, ture online ups

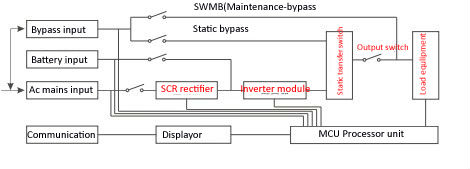

schematic diagram
