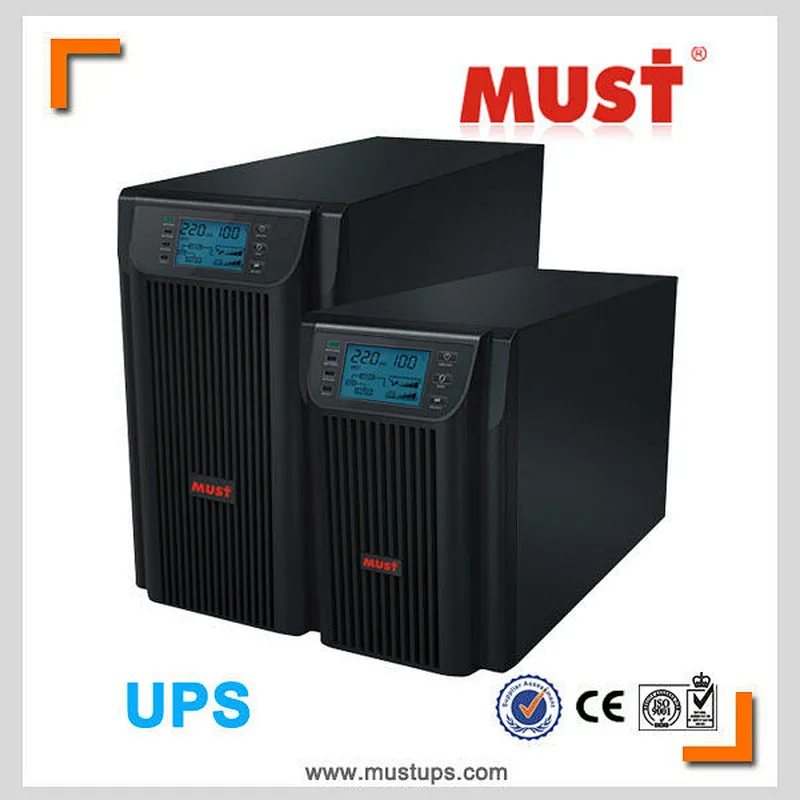

MUST plastic case easy operation ISO&CE certificate EH5000 series high frequency online ups LED LCD Shenzhen ups solar ups power free

Model NO.: EH5000 series 1KVA ups power free
Minimum order quantity: 1 unit
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:Must and OEM brand is available
Model Number:EH5000 series 1KVA ups power free
Phase:single or three phase
Protection:spikes, brownouts, interference,overload,overcurrent,overvoltage
Weight:16-55kgs
Output Voltage:220VAC or 120VAC
Type:On-line
Application:Servers, Data-Center Critical network devices, Sensitive electronic
Color:Black
Wave:Pure sine wave
Long backup time:Up to outside battery
Panel:New LCD panel or LED
Communciation interface:RS232
Output sockets:Universal/ IEC/NEMA/GERMAN
Transfer time:Zero
Inverter to Bypass:<4ms, Zero with optional STS
Frequency Range:46-54Hz/56-60Hz, 277-520VAC@full load for 3 phase
Battery charge current:2A-8A

plastic case easy operation ISO&CE certificate EH5000 series high frequency online ups LED LCD Shenzhen ups solar ups power free

1.Features

1. ups power free

2 .Zero transfer time

3. Protection against all types of power problems

4. N + x (3pcs in maximum)

5. With maintenance bypass switch 6.

6. LED/LCD optionald

2. EH5000 Series Products Detail:

Model		EH1K(S)	EH2K(S)	EH3K(S)
CAPACITY		1000 VA 700 W	2000 VA/1400 W	3000 VA/2100 W
INPUT
Voltage Range	Low Line Transfer	160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 % or
		80 VAC / 70 VAC / 60 VAC / 50 VAC ± 5 %
		(based on load percentage 100% - 80% / 80% - 70% / 70% - 60%/60% -0)
	LowLine Comeback	175 VAC ± 5 % or 85 VAC ± 5 %
	High Line Transfer	300 VAC ± 5 % or 150 VAC ± 5 %
	High Line Comeback	290 VAC ± 5 VAC or 143 VAC ± 3 VAC
Frequency Range		40 Hz ~ 70 Hz
Phase		Single phase with ground
Power Factor		≥0.99 @ 220-230 VAC (input voltage)
OUTPUT
AC Voltage Regulation (Bat. Mode)		±3%
Frequency Range		47 ~ 53 Hz or 57 Hz ~ 63 Hz
(Synchronized Range)
Frequency Range (Bat. Mode)		50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Current Crest Ratio		3:1
Harmonic Distortion		<= 3 % THD (Linear Load)	<= 4 % THD (Linear Load)
		<= 6 % THD(Non-linear Load)	<= 7 % THD(Non-linear Load)
Transfer Time	AC to DC	Zero
	Inverter to Bypass	4 ms (Typical)
Waveform (Bat. Mode)		Pure Sine Wave
EFFICIENCY
To AC Mode		85%	88%
To Battery Mode		83%
BATTERY
Standard Model	Battery Type	12 V / 7 AH	12 V / 7 AH	12 V / 7 AH
	Numbers	3	8	8
	Typical Recharge Time	4 hours recover to 90% capacity
	Charging Current (max.)	1.0 A
	Charging Voltage	41.0 VDC ± 1%	102.1 VDC ± 1%
Long-run Model	Battery Type/Numbers	Depending on the capacity of external batteries
	Charging Current (max.)	8.0 A
	Charging Voltage	41.0 VDC ± 1%	102.1 VDC ± 1%
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continuously sounding
PHYSICAL
Standard Model	Dimension DXWXH (mm)	397 X 145 X 220	421 X 190 X 318
	Net Weight (KGS)	13	26	28
Long-run Model	Dimension,DXWXH (mm)	397 X 145 X 220	421 X 190 X 318
	Net Weight (KGS)	7	13
OPERATING ENVIRONMENT
Humidity		20-90 % RH @ 0- 40°C (non-condensing)
Noise Level		< 45dB @ 1 Meter
MANAGEMENT
Smart RS-232/USB		Supports Windows®98/2000/2003/XP/Vista/2008,Windows®7,Linux,and MAC
Optional SNMP		Power management from SNMP manager and web browser
