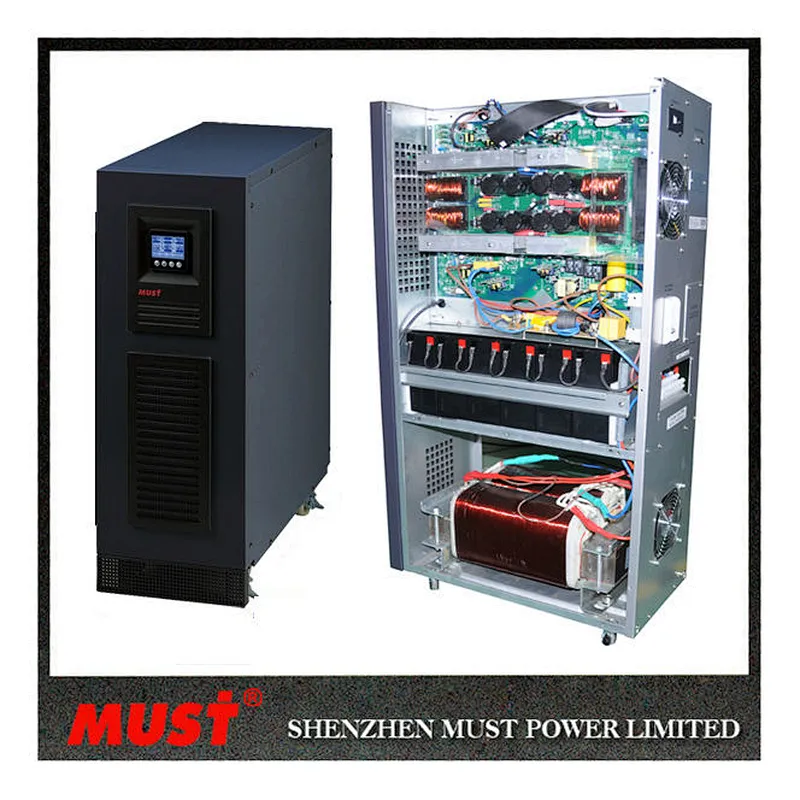

MUST cpu control dsp tech integrated Euro design 192vdc 240vdc built-in isolation transformer ups 10kva

Model NO.: 10kva-8kw(EH5000) built-in isolation transformer ups
Minimum order quantity: 1 unit
Country of Origin: Shenzhen, Guangzhou, HK

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:Must built-in isolation transformer ups
Model Number:10kva-8kw(EH5000) built-in isolation transformer ups
Phase:1 phase ups, 1 phase online ups,ups 220v
Protection:Phase lock, phase balance, switch transient, power sags,dips,
Weight:20kgs - 120kgs
Output Voltage:Euro design 380vac/220vac 400/230vac,415/240vac
Type:On-line
Application:IT infracuture, ICT equipment,computer room, data-center
built-in isolation transformer ups:high frequency ups online double convertion pfc igbt tech
battery backup Online ups:192vdc or 240vdc
ac to dc:PFC rectifier
input P.F.:0.95-0.97
dc to ac:IGBT inverter
output P.F.:0.8
efficiency:0.85 on battery, 0.9 on Ac-mode
crestor factor:3 : 1
harmonic distortion:3% on full linear-load
220v ups power expansion:N+X parallel redundancy,max 3 units

cpu control dsp tech integrated Euro design 192vdc 240vdc built-in isolation transformer ups 10kva

Features:

1. built-in isolation transformer ups, Online ups with isolation transformer, industrial Online ups

secure power solution

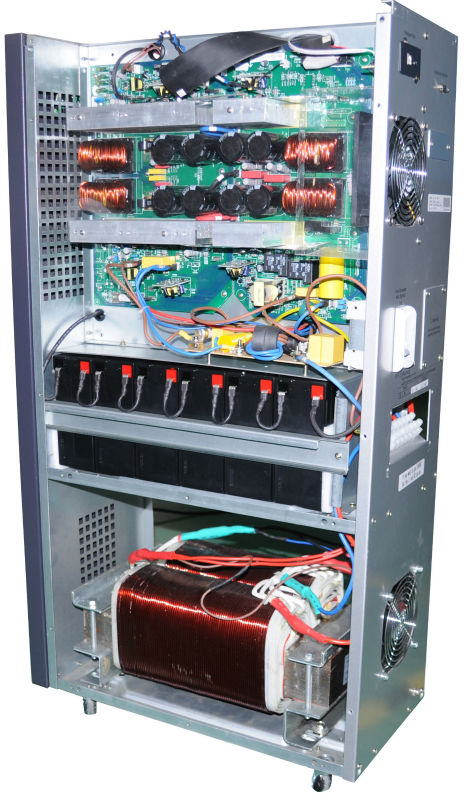

internal galvanic isolation output transformer

isolating output sine wave power from input ac network in case of heavier noise interference, harmonic

distortion;

isolating output neutral from ground line in case of unexpected electric shocks

special American standard output wiring 110v+110v by transformer-split, phase-split

2. built-in isolation transformer ups Online double convertion structure: Ac to Dc power convertion by

PFC rectifier;Dc to Ac power convertion by IGBT inverter

3. built-in isolation transformer ups cpu control tech integrated

dsp-based micro-processor control tech guarrantees high reliability power solution from

high frequency Online ups

4. built-in isolation transformer ups dsp tech

internal digital control circuits means efficiency

dsp-based micro-processor

dsp-based IGBT inverter

5. buit-in isolation transformer ups adopts PFC rectifier of better ac ultilization and

high input power factor: 0.97: C6kva,C10kva

0.95: 3C10ks,3C15ks,3C20ks

6. built-in isolation transformer ups adopts IGBT inverter of dsp-base and transformer-less

(transformer-less ups) high stability,zero transfer time,high efficiency and power-saving advantage

7. built-in isolation transformer ups convenient and easy operation, monitor and power management

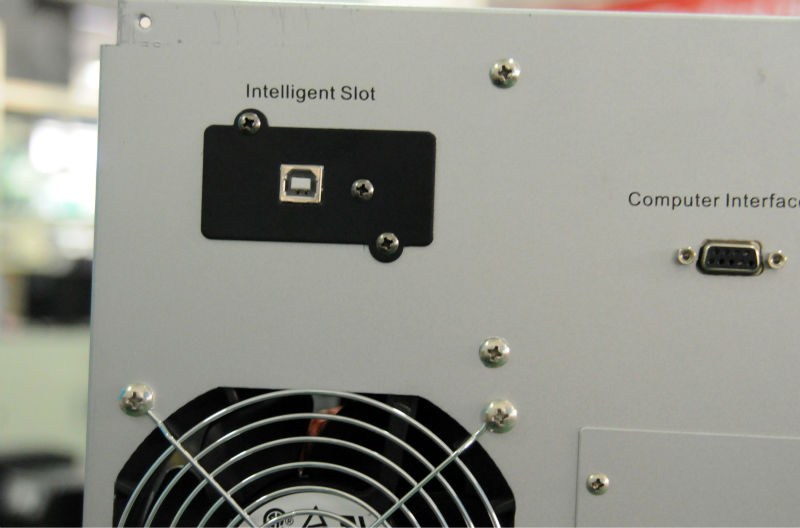

thorough communication interface, standard RS232, optional USB slot, AS400 expansion card,

SNMP network monitor,power management protocol, tool

built-in isolation transformer ups,220v ups,high frequency Online ups, Online ups power,

Online high frequency ups, high frequency ups,ups Online, ture Online ups

specification

built-in isolation transformer ups		6kva	6kva/L	10kva	10kva/L
ture Online ups rated power		4.8kw		8kw
INPUT
Voltage Range	Low Line Transfer	176 VAC @ 100% load / 110 VAC @ 50% load
	Low Line Comeback	186 VAC @ 100% load / 120 VAC @ 50% load
	High Line Transfer	300 VAC
	High Line	290 VAC
	Comeback
Frequency Range		46~54 Hz or 56~64 Hz
Phase		Single phase with ground
Power Factor		≥ 0.99 @ 100% load
OUTPUT
AC Voltage Regulation (Bat. Mode)		± 1 %
Frequency Range		46~54 Hz or 56~64 Hz
(Synchronized Range)
Frequency Range (Bat. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio		03:01
Harmonic Distortion		< = 3 % THD (Linear Load)/< = 6 % THD(Non-linear Load)
Transfer Time	AC to DC	zero transfer time Online ups
	Inverter to Bypass	zero transfer time Online ups
Waveform (Bat. Mode)		Sine wave ups, sine wave Online ups
EFFICIENCY
To AC Mode		89%
To Battery Mode		88%
BATTERY
Battery Type		12 V / 7 AH	Depending on applications	12 V / 9 AH	Depending on applications
Numbers		20	18 - 20	20	18-20
Typical Recharge Time		7 hours recover to 90% capacity	Depending on battery capacity	9 hours recover to 90% capacity	Depending on battery capacity
Charging Current (max. )		1.0 A	4.0 A	1.0 A	4.0 A
Charging Voltage		273 VDC	273 VDC	273 VDC	273 VDC
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
LED Display		Sixteen LEDs indicating UPS status, Load level, Battery level, overload, fault, and programmable outlet
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)		592 X 250 X 576
Net Weight (kgs)		81	25	83	27
OPERATING ENVIRONMENT
Humidity		20-90 % RH @ 0- 40° C (non-condensing)
Noise Level		Less than 55dB @ 1 Meter		Less than 58dB @ 1 Meter
CMANAGEMENT
Smart RS-232/USB		Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
Optional SNMP		Power management from SNMP manager and web browser
