- Warranty:3months-1year
- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:EH5000series H6KVA-10KVA
- Phase:Single Phase
- Protection:Overcurrent
- Type:On-line
- Application:Security / Monitoring / Alarm
- color:black
- display:LCD/LED
- type:tower
- feature 1:double comversion
- feature 2:DSP control
- feature 3:high frequency
- application:security ,monitoring,Alarm
- interface:RS232,R485 , SNMP slot

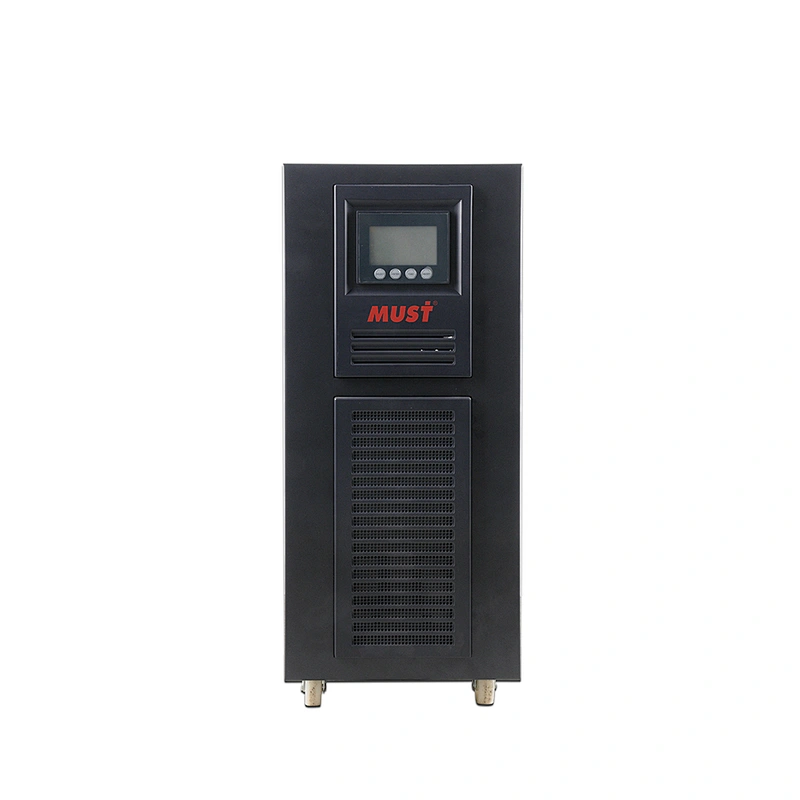

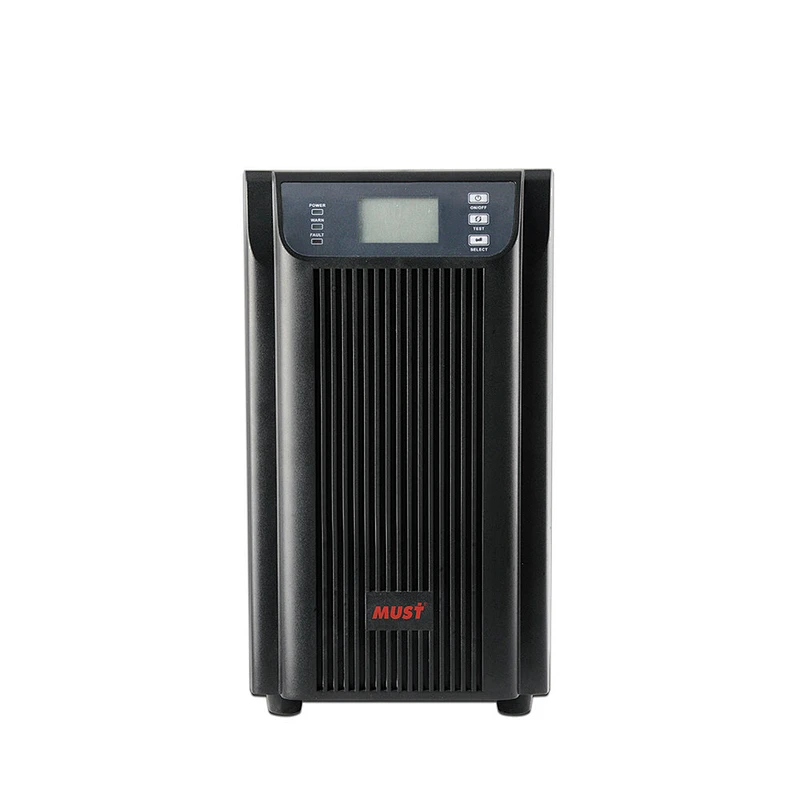

Single Phase Online UPS,double conversion UPS suppliers with sinewave topology(10kVA/8000W)
Main features:
Parallel Units with a Single Output of up to 40kVA
True N+1 Redundancy
DSP Double-Conversion On-line Sinewave Design
Input Power Factor Correction
Hot-Swappable User Replaceable Batteries
LCD Display with Advanced Monitoring for Easy UPS Management
Programmable 50/60Hz Frequency Conversion
Optional Remote Emergency Power Off (REPO)
Wide Input Voltage Window
Precision Output Voltage Regulation
SuperiorBrownout, Surge & TransientProtection
Optional Extended Battery Banks & Chargers
RS-232C, USB & Optional SNMP/HTTP Agent
WINPOWER® UPS Monitoring & Management Software
Technology specification:
Model | H6KVA/H6KS | H10KVA/H10KS | |
Rated Power | VA/W | 6kVA/4.2kW | 10kVA/7kW |
Input | Nominal Voltage | 220VAC | |
Voltage Range | 176 ~ 276VAC | ||
Frequency Range | 46 ~ 54Hz | ||
Power Factor | 0.98 | ||
Connection | Hardwired | ||
Output | Voltage | 220VAC ±1% | |
Frequency | 50Hz ±0.1% ( Battery mode) | ||
Waveform | Sine Wave | ||
Power factor | 0.7 | ||
Voltage Distortion | 2% under linear load | ||
Overload Capability | 105% ~ 130% for 10 min., ³130% for 1 min. | ||
Current Crest Ratio | 3:1 max. | ||
Connection | Hardwired | ||
Battery | Type | Sealed, Maintenance free, Lead-Acid | |
Quantity | 20 pieces | ||
Back-up time (full load) | 7 min | 5 min | |
Recharge time | 8 hrs to 90% of capacity after full load discharge | ||
Transfer time | 0 ms | ||
Maintenance Bypass Switch | Yes | ||

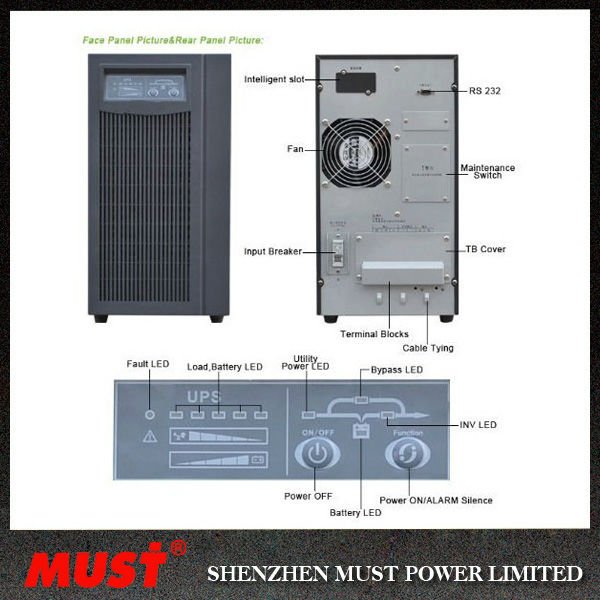

LED indicators | Status | Load level/Battery level, Battery , Utility power, Inverter, Bypass, Overload, Fault | |
Audible alarm | Bypass | Alarm beeps every two minutes | |
Battery discharge | Alarm beeps every four seconds, every second if battery low | ||
Overload | Alarm beeps two for every second | ||
Fault | Alarm beeps continuously | ||
Acoustic noise | At 1 meter distance | £ 55 dBA | |
Communications | DB-9 Port | RS232 serial interface | |
Intelligent Slot | Options: WebPower, AS400 or WinPower CMC | ||
ParallelPort | up to three units in parallel for power redundancy and load sharing | ||
Environmental | Operating temperature | 0 ~ 40°C | |
Operating humidity | 20% ~ 90% non-condensing | ||
Weight | Net (kg) | 35/84 | 38/93 |
Dimensions | W x D x H (mm) | 260 x 570 x 717 | |
