- Warranty:3months-1year
- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:EH5000series 1KVA-3KVA
- Phase:Single Phase
- Protection:Overcurrent
- Weight:13kg-28kg
- Type:On-line
- Application:Security / Monitoring / Alarm, medical equipment,bank system
- display:LCD/LED
- output sockets::universal/ IEC/NEMA/GERMAN
- color:black or white
- transfer time:0
- Frequency:50HZ/60HZ
- Output wave form:Pure sine wave
- input voltage:115-300Vac
- capacity:1KVA-3KVA
- country of origin:china

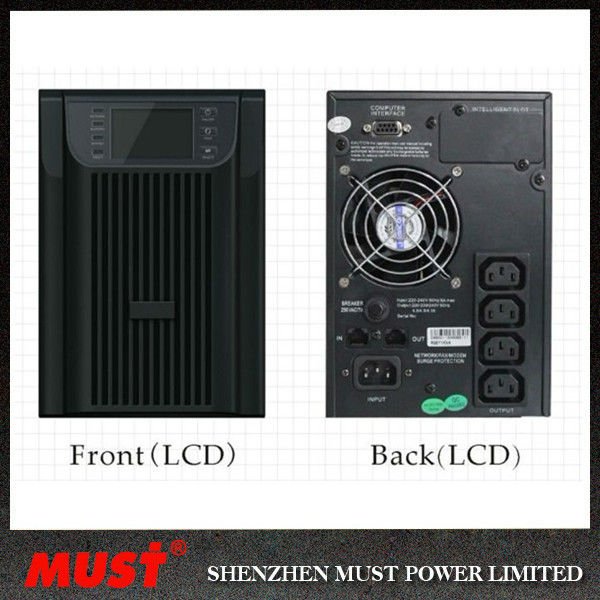

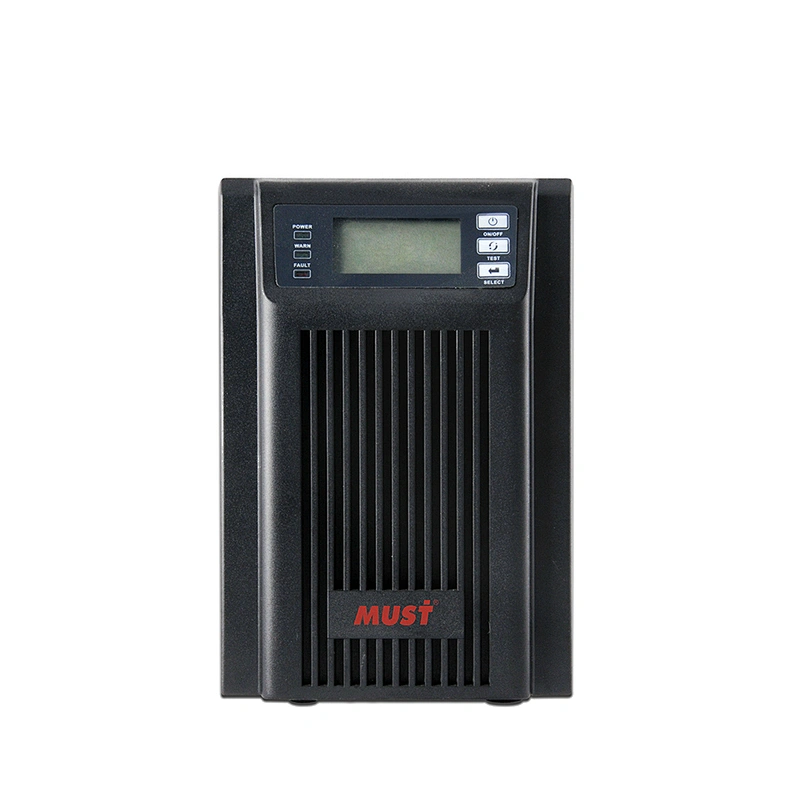

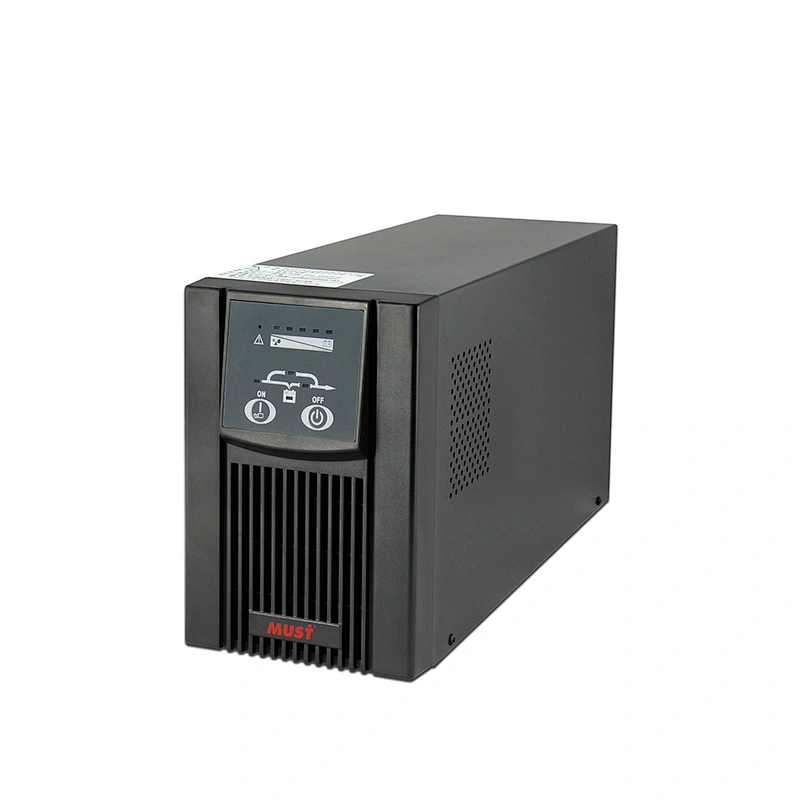

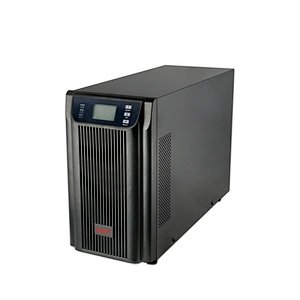

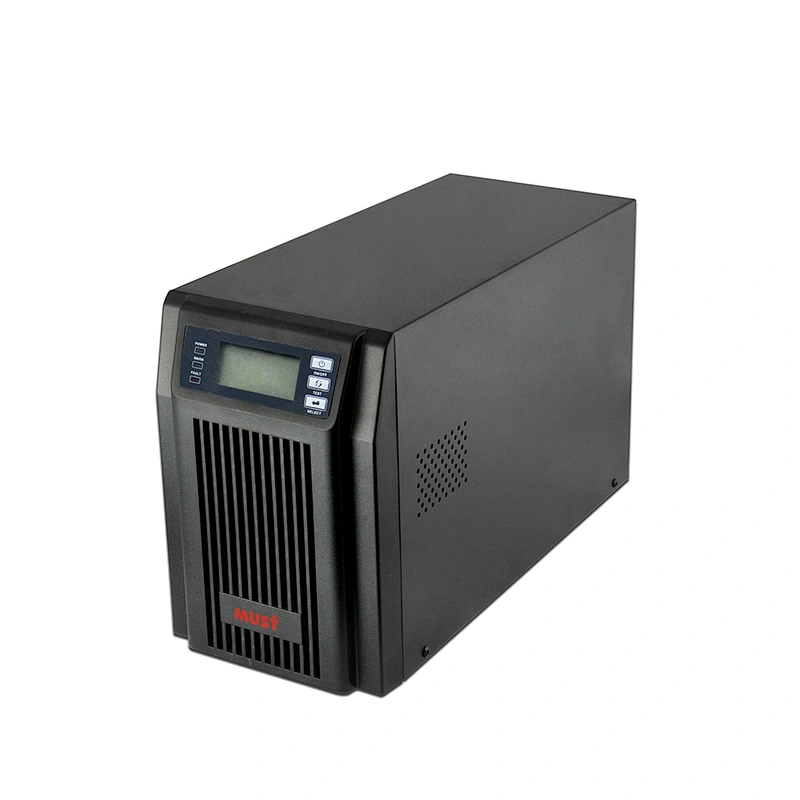

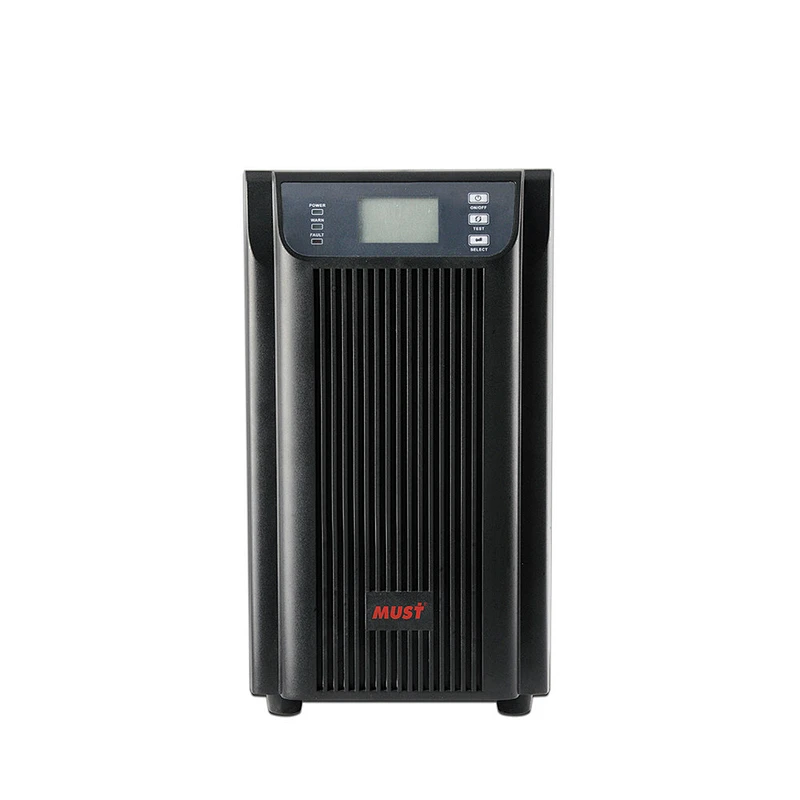

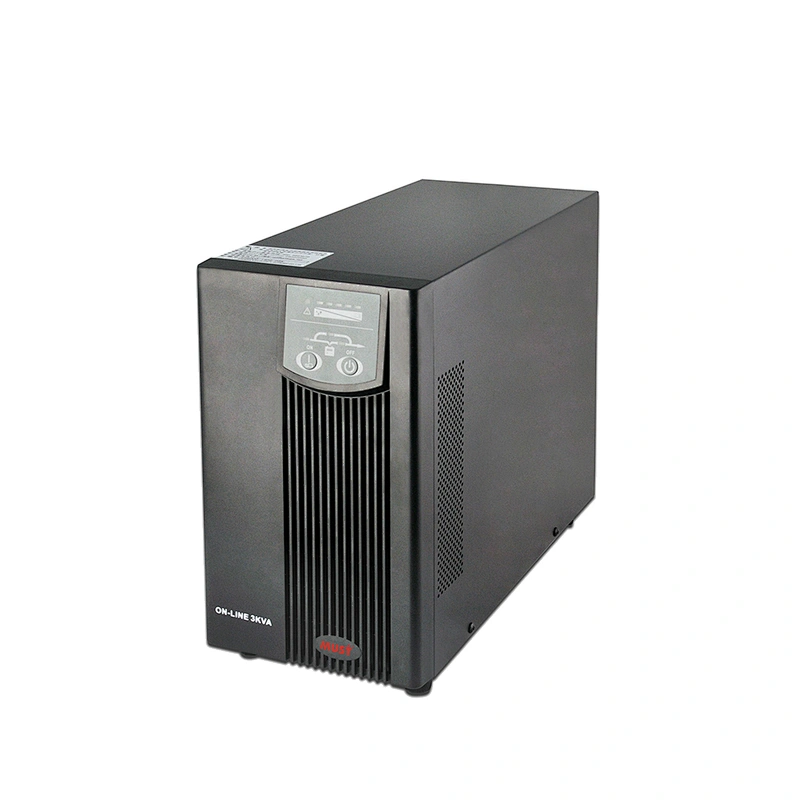

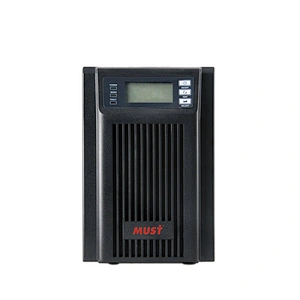

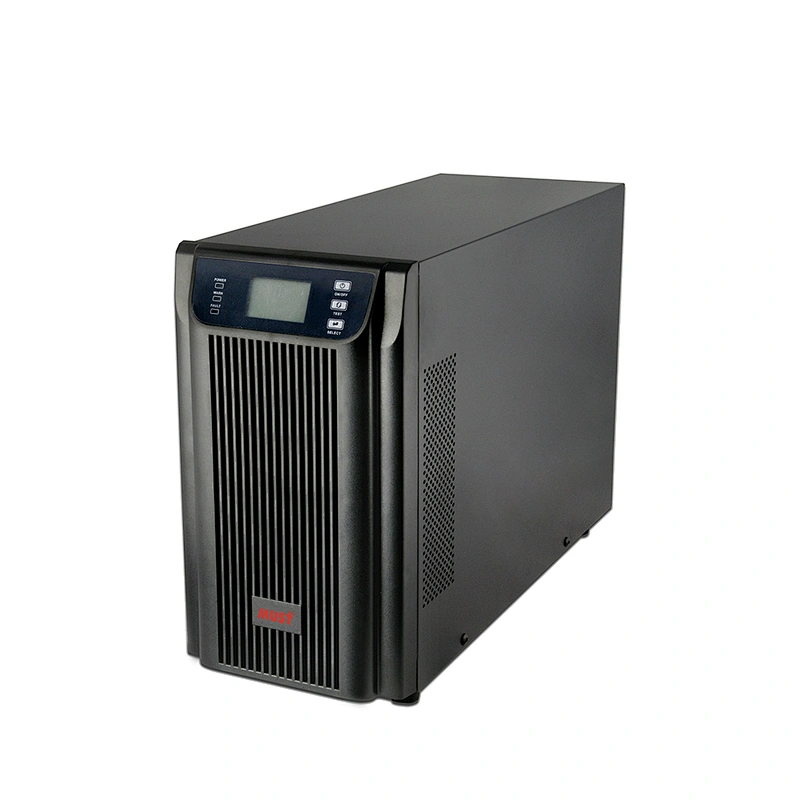

MUST POWER Professional LCD display online ups power supply 2000w online ups
Main features:
1.True on-line double conversion technology with advanced microprocessor control
2.Wide input voltage range
3.LCD display
4.Zero transfer time
5.Protection against all type of power problems
6.Self test while start of the UPS
7.Site wiring fault warning
8.On-battery power-on function
9.Smart RS232 communication interface
10.Intelligent slot available

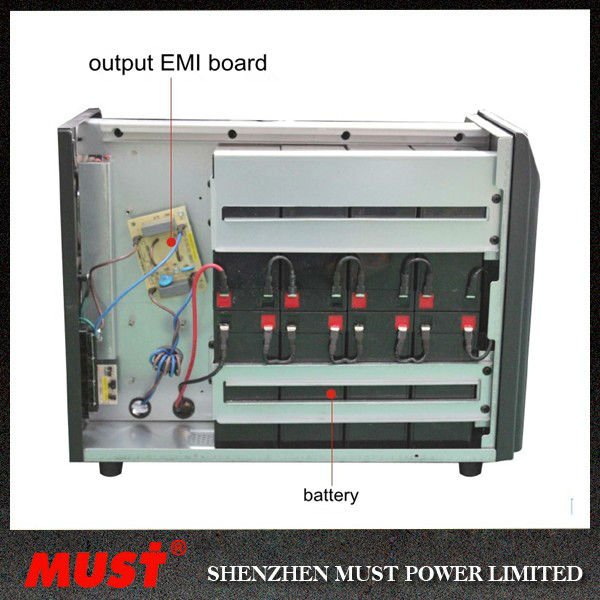

Sealed lead-acid, maintenance free battery
Technology specification:
| Model | H1K | H1KS | H2K | H2KS | H3K | H3KS |
|---|---|---|---|---|---|---|
| Capacity | ||||||
| VA/W | 1KVA/1KW | 2KVA/2KW | 3KVA/3KW | |||
| Input | ||||||
| Voltage Range | Full Load:160±50%VAC~300±50%VAC;Half Load:110±50%VAC~300±50%VAC | |||||
| Frequency Range | 40-70Hz | |||||
| Phase | Single phase two wire+ground wire | |||||
| Distortion | <5% | |||||
| Power factor | 0.99 | |||||
| Generator input | support | |||||
| Output | ||||||
| Voltage | 220 (1±1%)VAC | |||||
| Frequency (same frequency mode) | 47~53Hz/57~63Hz | |||||
| Power Factor | 0.9 | |||||
| Frequency (battery mode) | 50±0.25Hz or 60±0.25Hz | |||||
| Crest ratio | 03:01 | |||||
| Harmonic distortion | ≤3%THD (Linear load) | |||||
| ≤6%THD (Nonlinear load) | ||||||
| Output waveform | Pure Sine Wave | |||||
| Socket | Universal socket *2 | Universal socket *4 | Universal socket *3+Terminal block | |||
| Over Load | 100%-110%: warning sound; 110%-130%:Automatically turns off after 1 minute, or switch to bypass mode when input correct; >130%:Turn off immediately, or switch to bypass mode when the input correct | |||||
| Efficiency | ||||||
| Charging Mode | 85% | 88% | ||||
| Battery Mode | 83% | 85% | ||||
| Battery | ||||||
| Battery Type | 12V/7AH | / | 12V/7AH | / | 12V/7AH | / |
| Battery Number | 3 | 6 | 8 | |||
| Equipment time (full load) | >5mins | >5mins | >5mins | |||
| Charging Time(90%) | 8h | 8h | 8h | |||
| Charge battery (max) | 1.0A | 4.0 | 1.0A | 4.0 | 1.0A | 4.0 |
| Rated charging voltage | 41.0±1%VDC | 82.1±1%VDC | 109.4±1%VDC | |||
| Temperature detection | support | |||||
| Conversion time | ||||||
| Utility to Battery | 0ms | |||||
| Inverter to bypass | 4ms | |||||
| Utility Priority Mode | support | |||||
| Warning Alarm | ||||||
| Battery Mode | alarm every 4 seconds | |||||
| Low Power | alarm every one second | |||||
| Over Load | alarm 2 every second | |||||
| Fault | continuous alarm | |||||
| Shape | ||||||
| Dimension (D*W*H) mm | 350*145*220 | 425*190*320 | ||||
| Net weight(Kg) | 12 | 7 | 24 | 11 | 29 | 12 |
| Connector | ||||||
| Micro RS-232 | Windows,Linux,Sun Solaris,IBM Aix,Compaq True64,SGIRIX,FreeBSD,HP-UX and MAC | |||||
| USB(Optional) | Windows & MAC | |||||
| Rabbet(Optional) | SNMP/AS400 Relay Card/Rs485 | |||||
| EPO(Optional) | Support emergency shutdown | |||||
