- Warranty:Other, 1 Year
- Free installation service:Yes
- Place of Origin:Guangdong, China
- Brand Name:MUST/OEM/ODM
- Model Number:PV1100 PLUS
- Application:Home, Commercial, Industrial
- Solar Panel Type:Monocrystalline Silicon
- Battery Type:Lead-Acid
- Controller Type:PWM
- Mounting Type:Ground Mounting
- Load Power (W):720-1200W
- Output Voltage (V):220/230/240V
- Output Frequency:50/60HZ
- Work Time (h):7*24HR
- Product name:Solar Power System
- Inverter:Hybrid Inverter
- Controller:PWM Types
- System Type:Off-grid Solar Power Generation
- Solar system:Off-grid Portable Solar Systems
- Output wave:Moidfied Sine Wave
- Protection:Short Circuit
- Power:720w-1440w
- Feature:Lightweight;high efficiency
***************ANY QUESTIONS, INQURIES WELCOMED TO ZOEY !!!!***************
WHATSAPP/WECHAT: 008613694205624

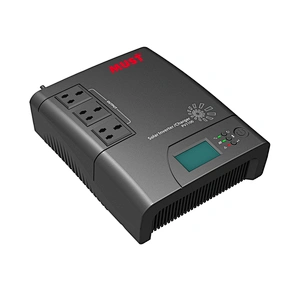

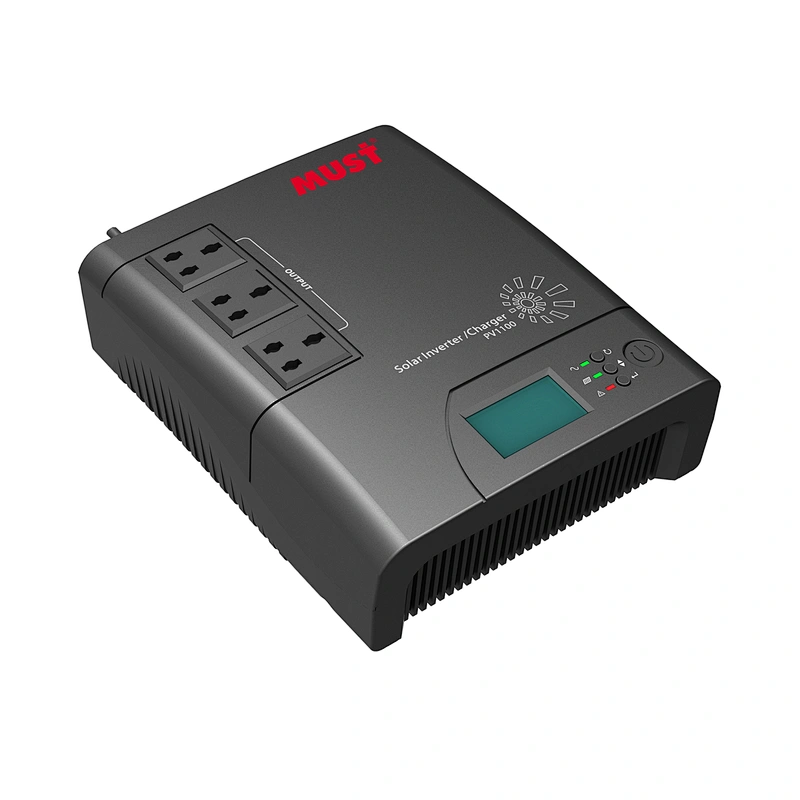

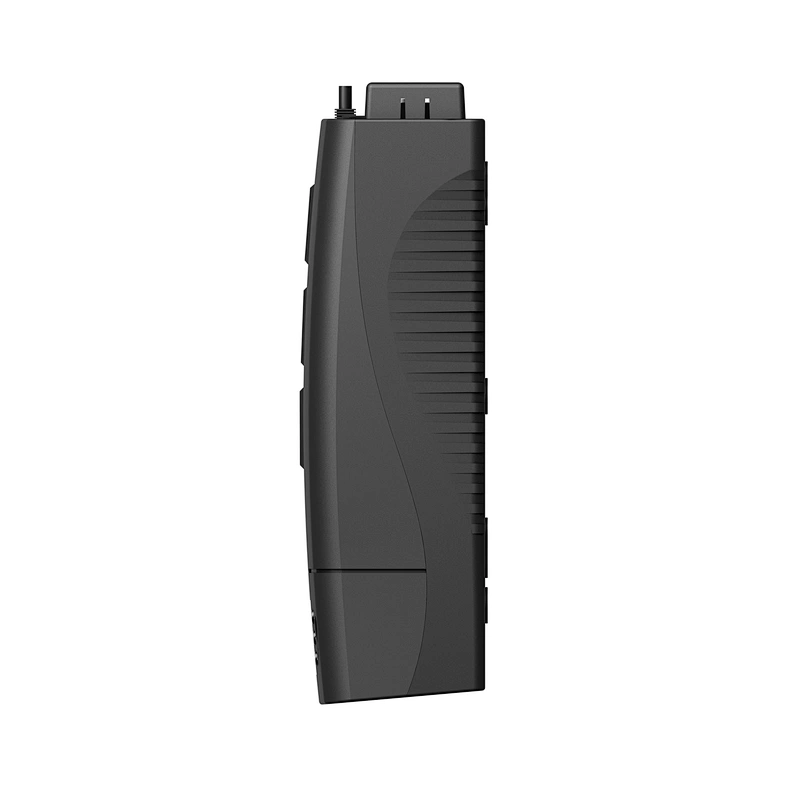

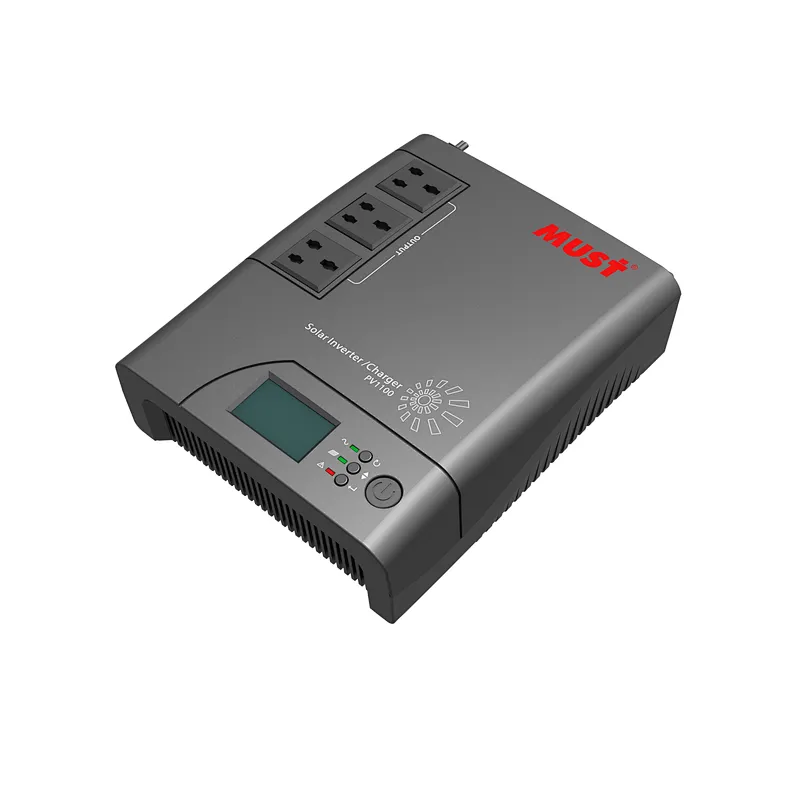

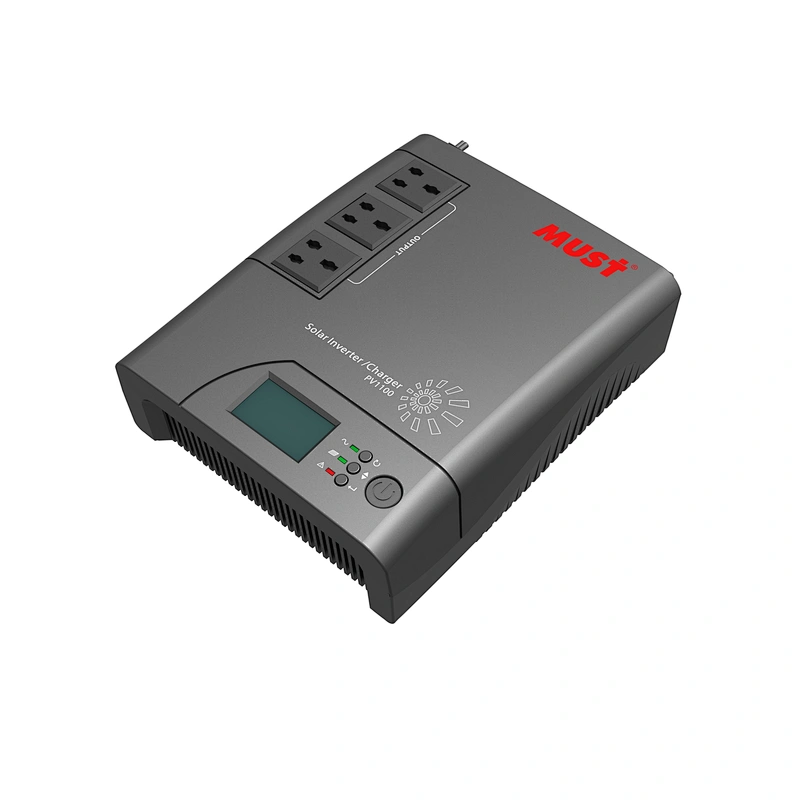

MUST light weight solar inverter 1200va 2400va cheap inverter in Zambia
High Frequency Off Grid Solar Inverter

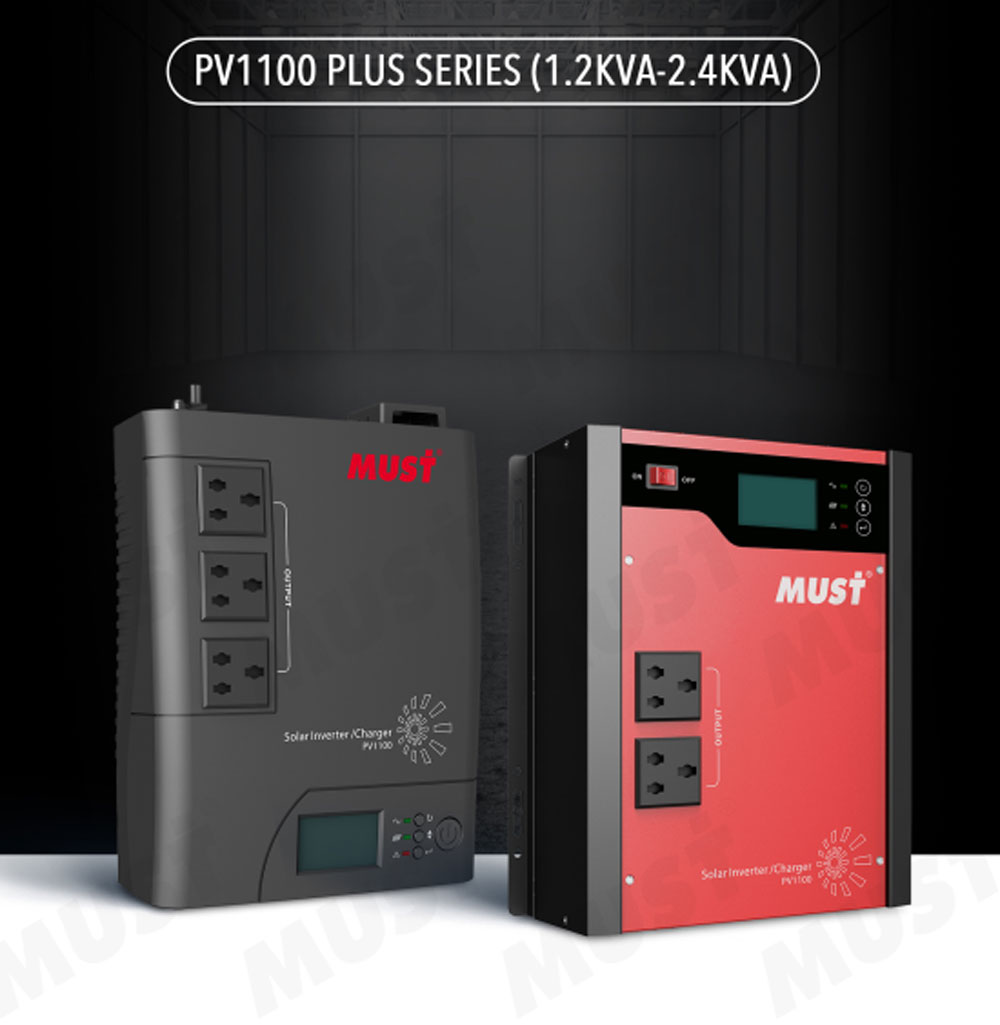

PV1100 Plus Series (1.2-2.4KVA)

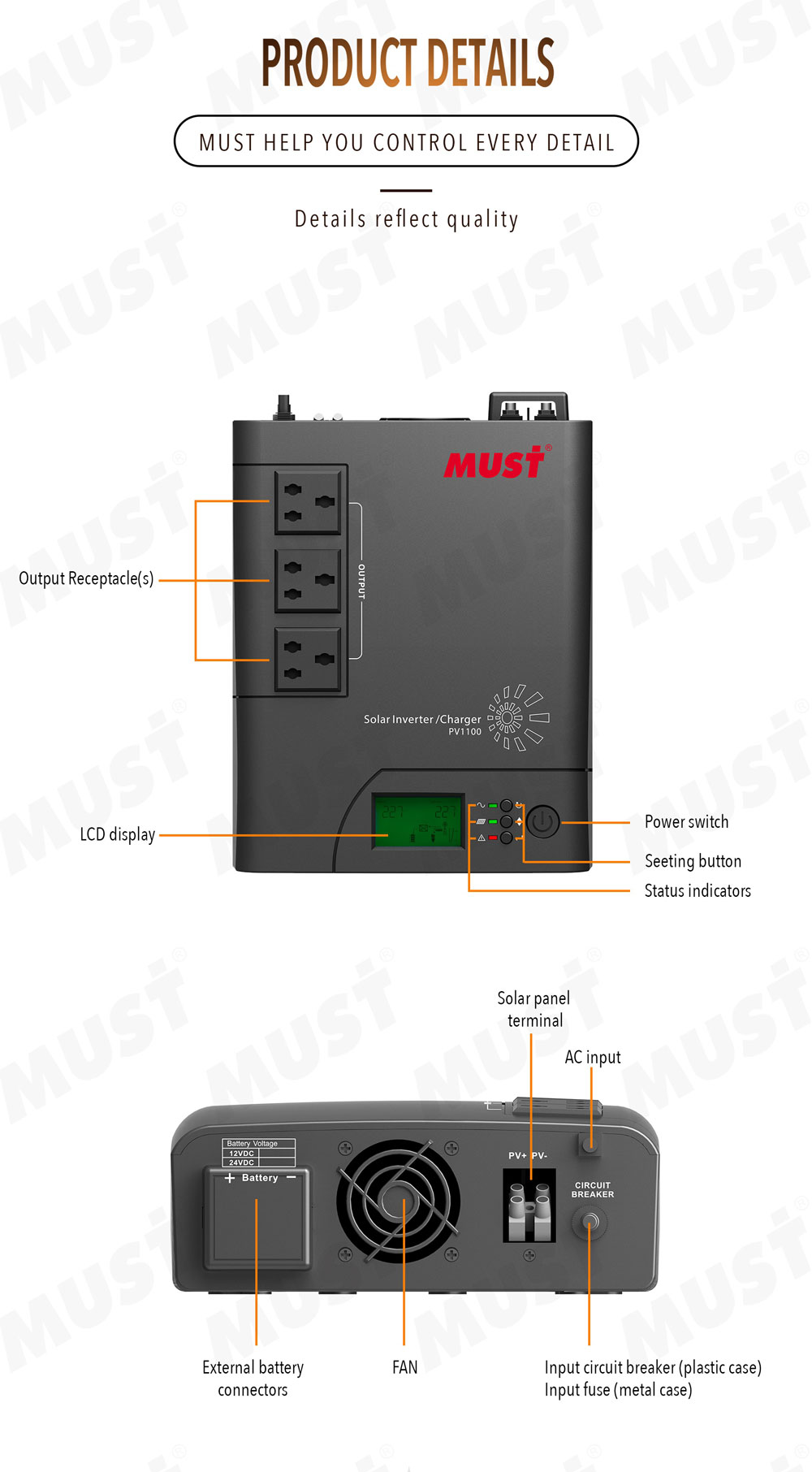

PV1100Plus is a cost effective , intelligent hybrid off grid solar inverter. The LCD display offers friendly user-configurable button adjustment such as battery charging current, AC/solar charger priority and DC priority. When battery voltage is low, it will automatically switch to AC grid to supply continuous power to the loads. It suitable for personal home use.
- Simulated sine wave inverter
- Built-in 50A PWM Solar Charge Controller

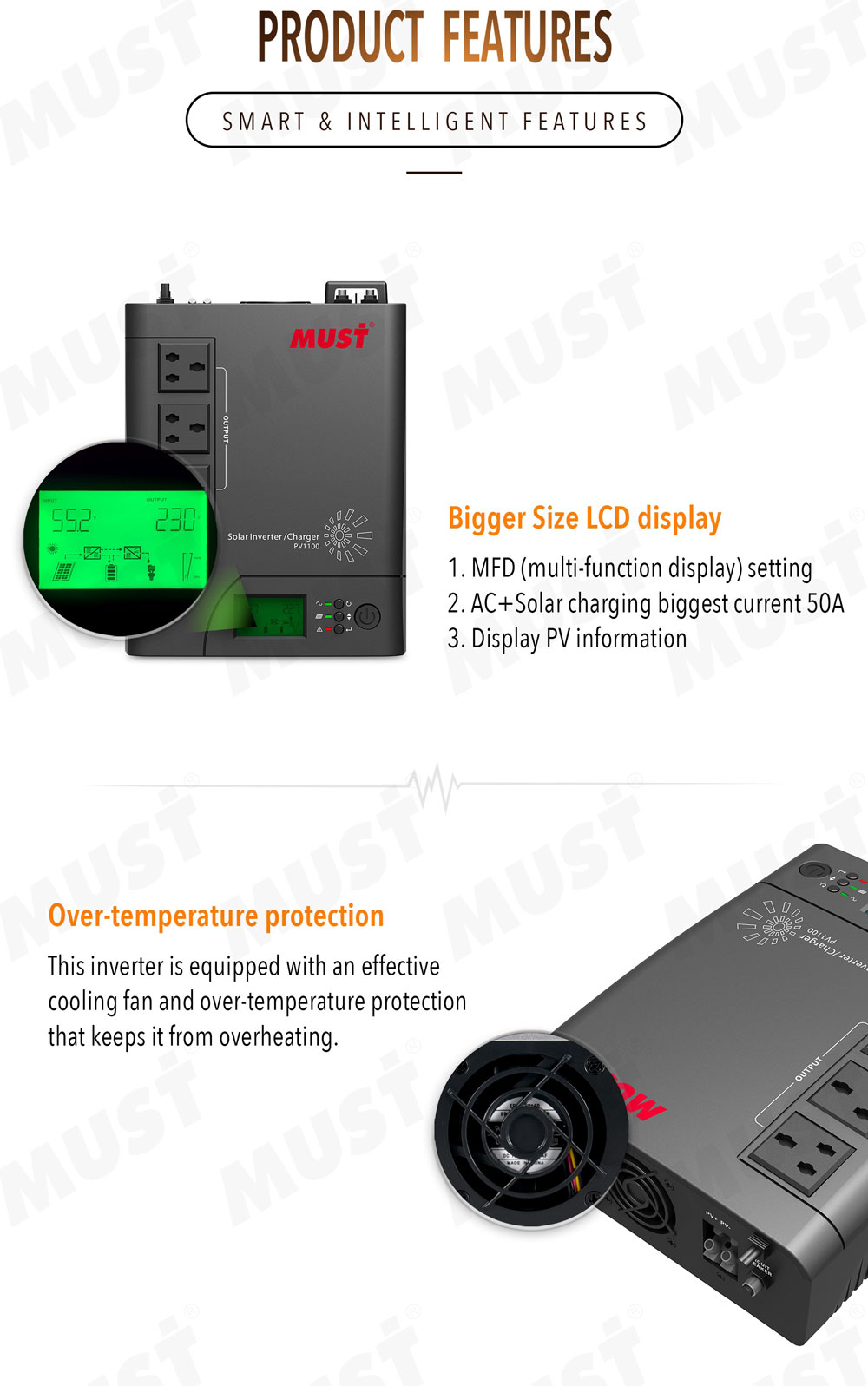

- MFD (multi-function display)
- 10A or 20A standard charging current from utility
- AC/solar priority for output via MFD
- AC/solar priority for charging via MFD
- 3 steps charging algorithm
- Overload & short-circuit protection
- Battery reverse polarity protection
- Deep discharge protection
- Auto restart while AC/solar is recovering
- Adjustable solar and utility charging current
SPECIFICATION
| MODEL | PV11-1200 Plus | PV11-1800 Plus | PV11-2400 Plus | ||
|---|---|---|---|---|---|
| Nominal Battery System Voltage | 12VDC | 12VDC | 24VDC | ||
| NVERTER OUTPUT | |||||
| Rated Power | 1200VA/720W | 1800VA/1000W | 2400VA/1440W | ||
| Waveform | Modifided Sine-wave | ||||
| Nominal Output Voltage RMS | 230V | ||||
| Output Voltage Regulation | +10/-18% | ||||
| Output Frequency | 50Hz/60Hz +/-1 Hz | ||||
| Inverter Efficiency(Peak) | >80% | ||||
| Line Mode Efficiency | >98% | ||||
| Typical Transfer Time | Typical 15~20ms 40ms max | ||||
| AC INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range–Narrow | 170~280VAC | ||||
| Selectable Voltage Range–Wide | 90~280VAC | ||||
| Frequency Range | 40Hz-70Hz (Auto sensing) | ||||
| BATTERY | |||||
| Nominal Input Voltage | 12VDC | 24VDC | |||
| Minimum Start Voltage | 10.5VDC | 21.0VDC | |||
| Low Battery Alarm | 10.4VDC (min) | 20.8VDC (min) | |||
| Low Battery Cutoff | 9.9~12VDC (Can be set) | 19.8~24VDC (Can be set) | |||
| High Voltage Cutoff | 15.0VDC (max) | 30.0VDC (max) | |||
| SOLAR CHARGER & AC CHARGER | |||||
| Maximum PV Charge Current | 50A (max) | ||||
| Maximum PV Array Power | 450W/750W | 900W/1500W | |||
| PWM Range @ Operating Voltage | 16~55VDC | ||||
| Maximum PV Array Open Circuit Voltage | 55VDC | ||||
| Maximum Efficiency | >95% | ||||
| Standby Power Consumption | <2W | ||||
| AC Charger Voltage | 14.4(max) | 28.8(max) | |||
| AC Charging Current | 10A / 20A (Can be set) | ||||
| Maximum Charge Current | 10-50A (Can be set) | ||||
| BYPASS & PROTECTION | |||||
| Nominal Input Frequency | 40Hz – 70Hz | ||||
| Overload Protection (SMPS Load) | FUSE | ||||
| Output Short Circuit Protection | FUSE | ||||
| Bypass Fuse Rating | 10A | ||||
| Max Bypass Current | 10Amp | ||||
| MECHANICAL SPECIFICATIONS | |||||

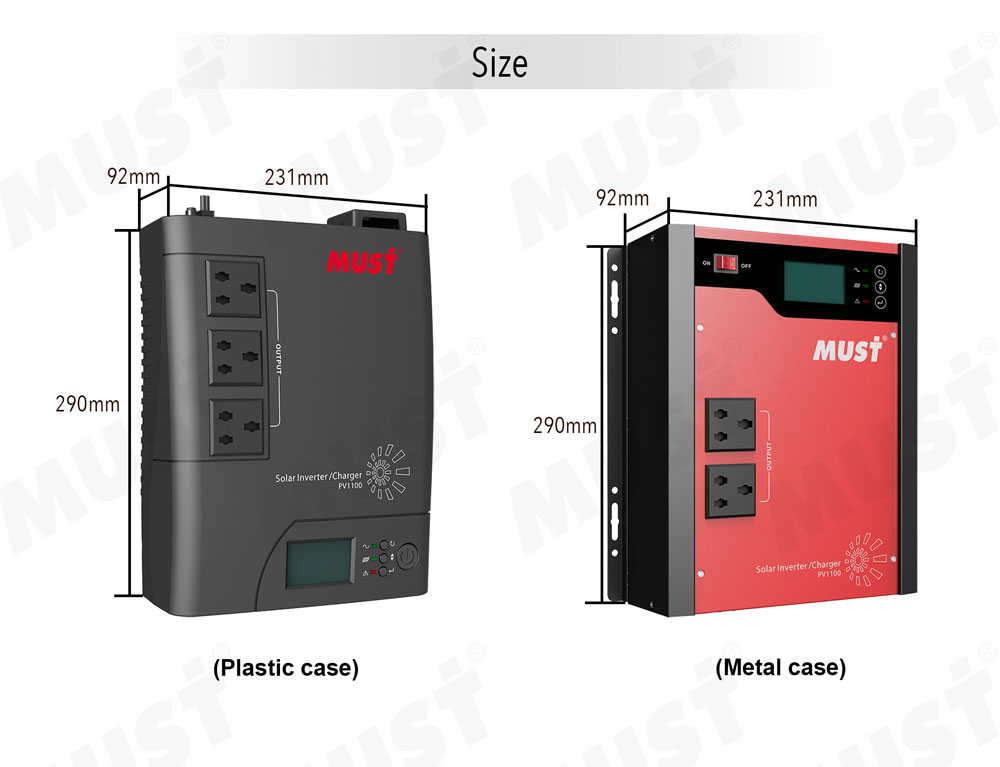

| Machine Dimensions (W*H*D) | 231*290*92mm | ||||
| Package Dimensions (W*H*D) | 595*375*315mm | ||||
| Net Weight (kg) | 2.8 | 4.0 | |||
| Gross Weight (kg) | 3.5 | 4.7 | |||
| OTHER | |||||
| Operation Temperature Range | 0°C to 50°C | ||||
| Audible Noise | 50dB MAX | ||||
| Display | LED+LCD | ||||
| Loading(20GP/40GP/40HQ) | 1700pcs / 3400pcs / 4100pcs | ||||
Samples and OEM, Warranty and After-Sale Service:
- Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:1 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Foshan,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |

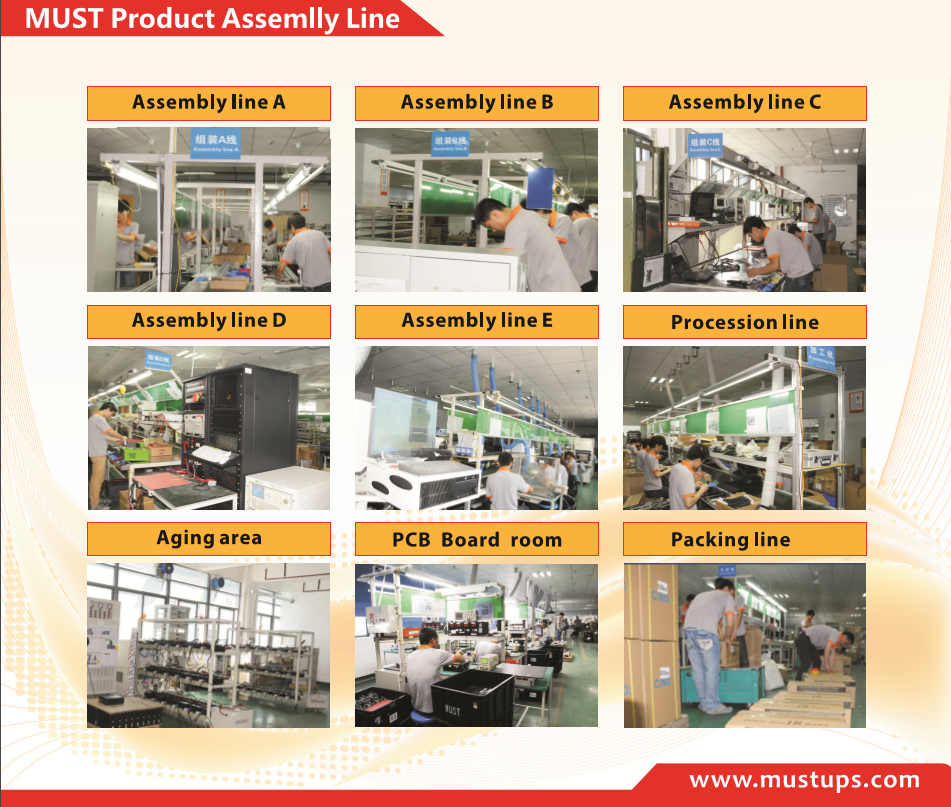

| Factory | 15000 Square Meters, 420 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
