Model NO.: PH5000 series
Minimum order quantity: 1 piece
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:MUST/OEM
Model Number:PH5000 series
Input Voltage:380V
Output Voltage:380V
Output Current:39.4A
Output Frequency:50/60Hz
Output Type:Single
Size:500*428*200mm
Type:DC/AC Inverters
Certificate:CE
Warranty:5 year, 5 Years Standard
Weight:15.5kg
Inverter type:on grid
DC operating voltage:360V
Max. DC voltage:1000V
Euro efficiency:>98%
Max. efficiency:>98.3%
Rated power:7KW-15KW
Display:LED Digital
Communication interface:WIFI/USB
Colling concept:Natural

MUST 4G 5G Solar Inverter 5KW 6KW 7KW 8KW 9KW 10KW 12KW 15KW 17KW 20KW On Grid Solar Inverter 220V 380V

*********************Any Questions, pls feel free to contact Nancy*******************

High Frequency On Grid Solar Inverter

PH5000T Series (7-15KW)

PH5000T series PV inverters take full account of the needs of end customers, with excellent performance at the same time, use LED as inverter status display, effectively improve product life. Using DSP digital control,could afford wide grid voltage range, have a full range of protection features; to maximize the benefits at the same time, greatly enhance the reliability of the product.

Product Description

Product Features

Product Features

Rated power:7KW-15KW
Dual MPPT
Wide input voltage range 160V-1000Vdc
Integrated DC switch
DSP controller
The maximum efficiency is 98.3%
Multi protection and detection
Support export limitation
WIFI monitoring standard
IP65 protection rating
Natural cooling
Easy installation
Five years warranty

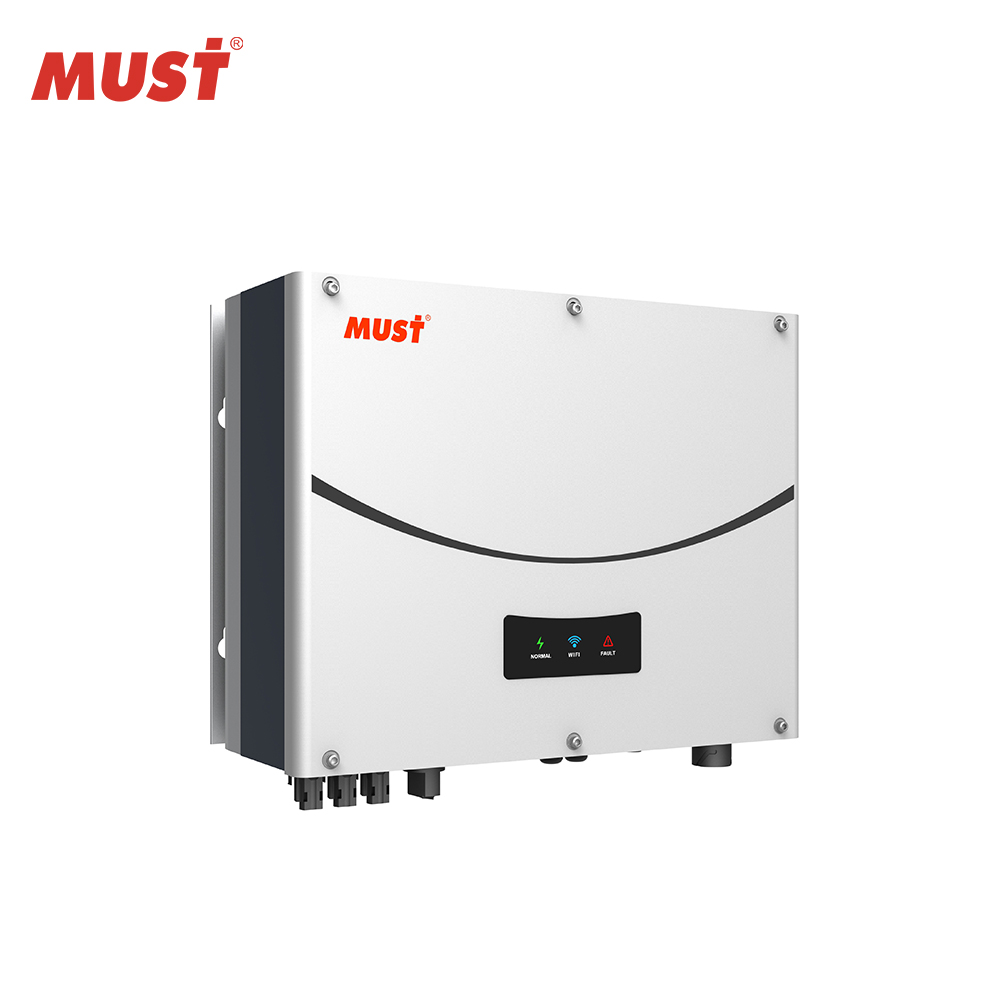

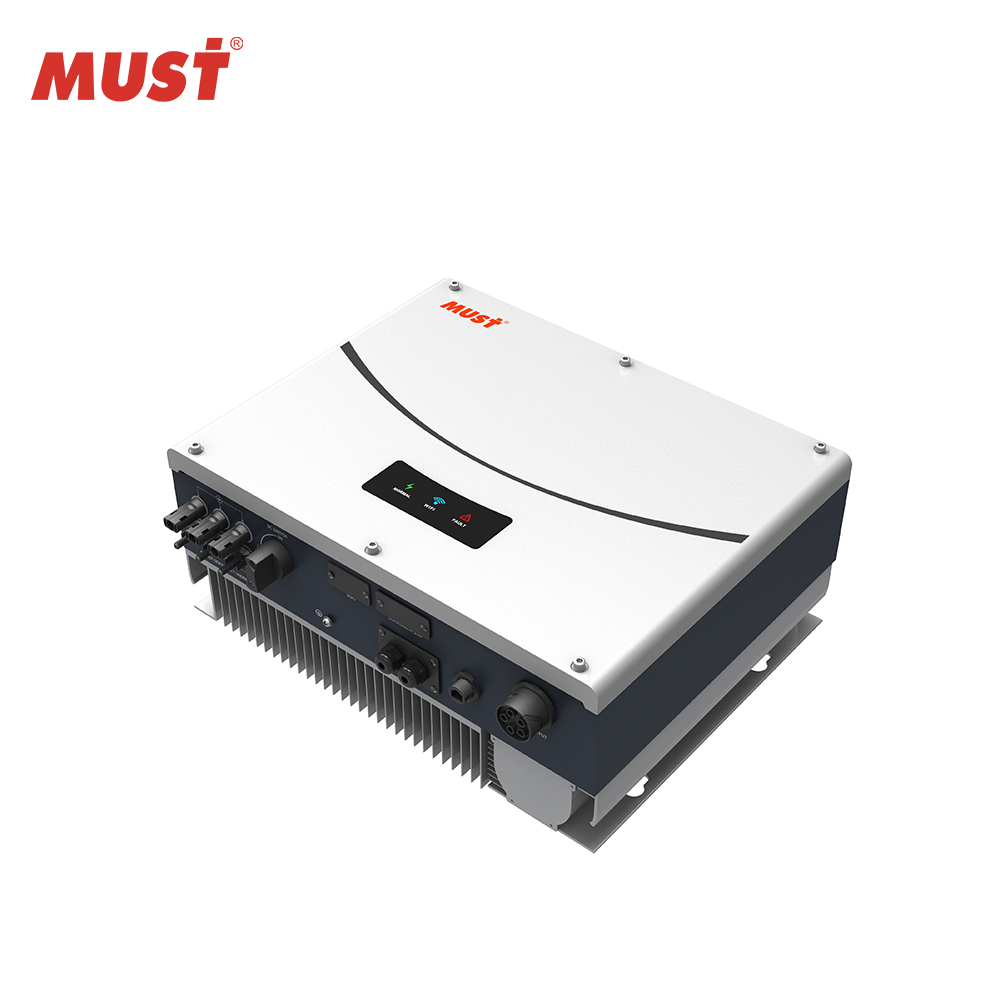

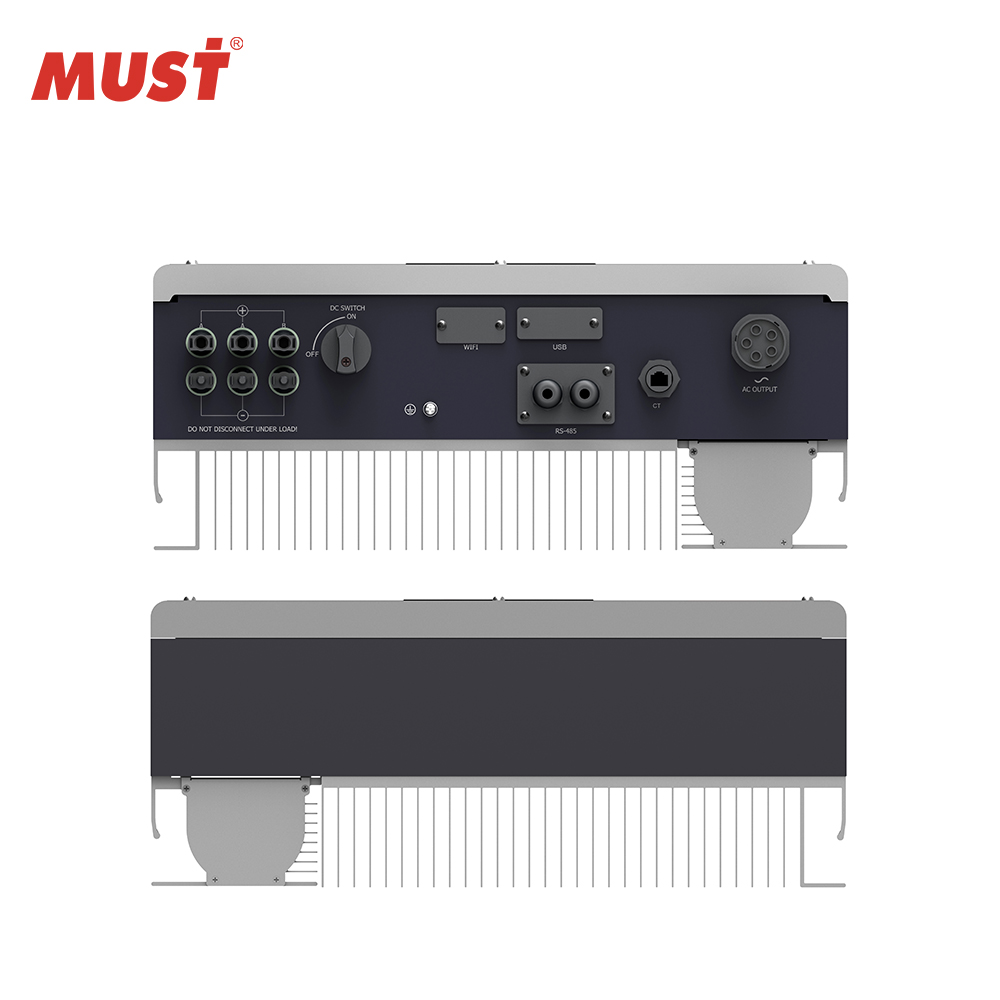

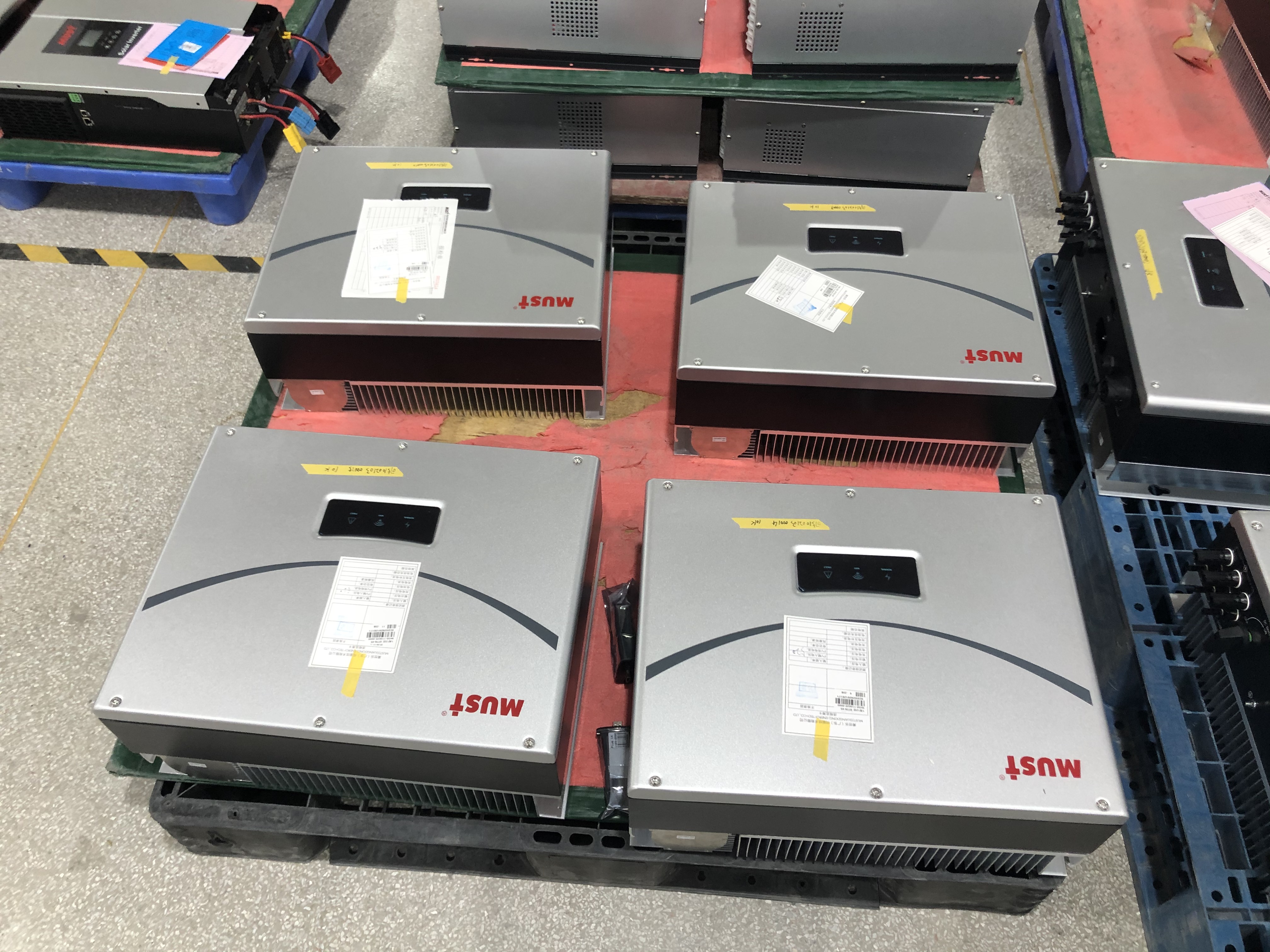

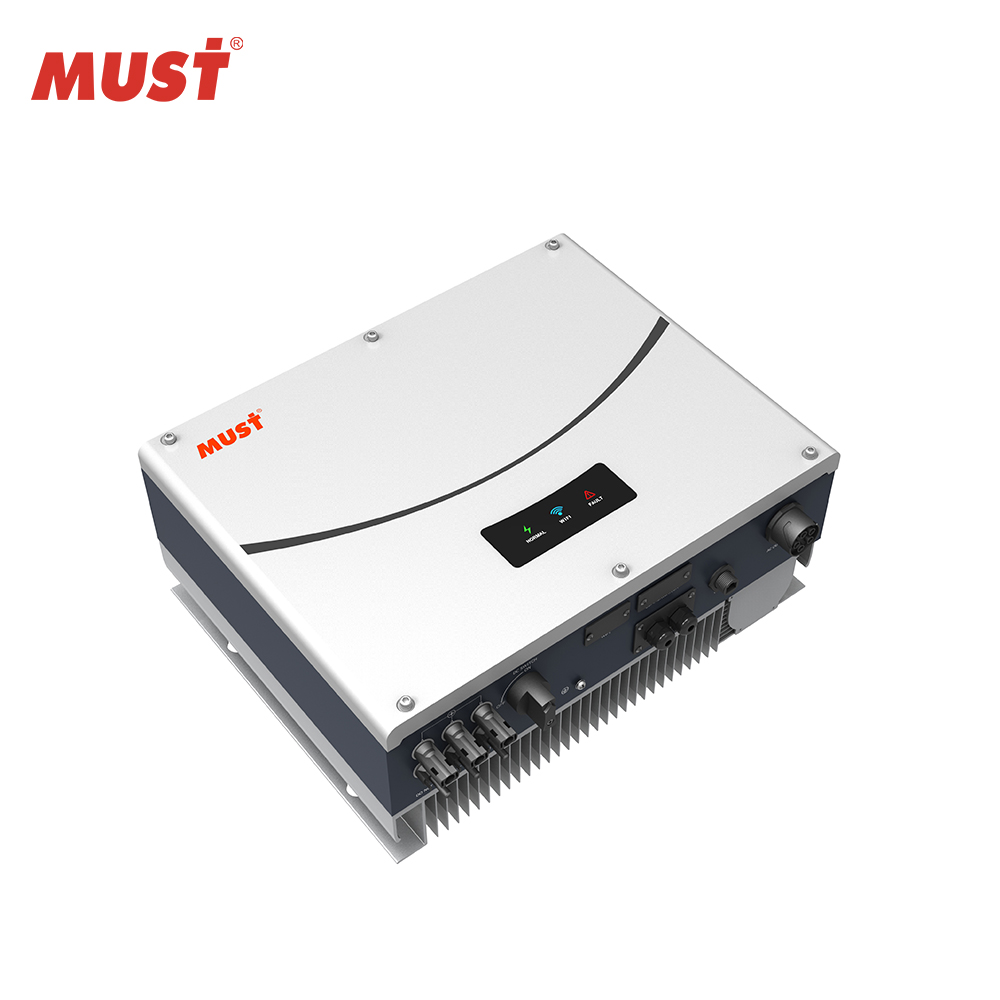

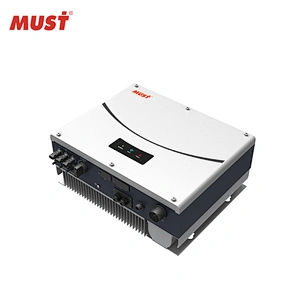

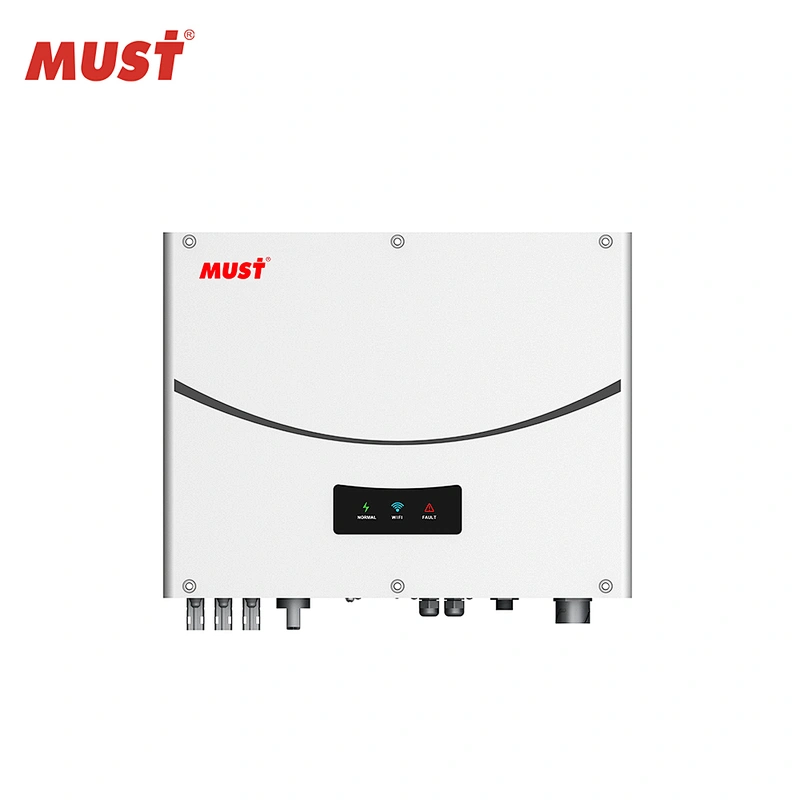

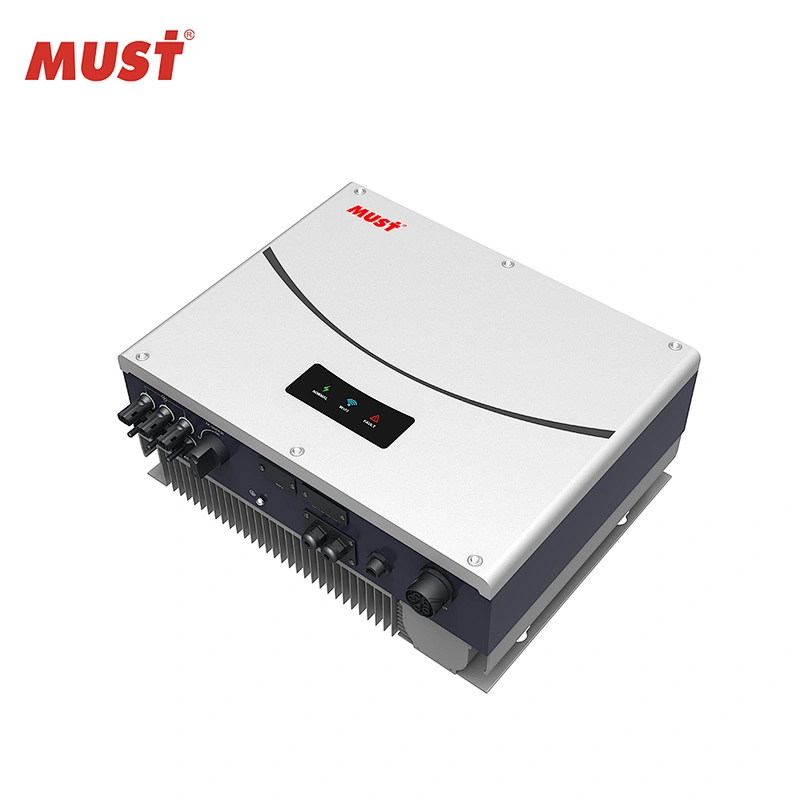

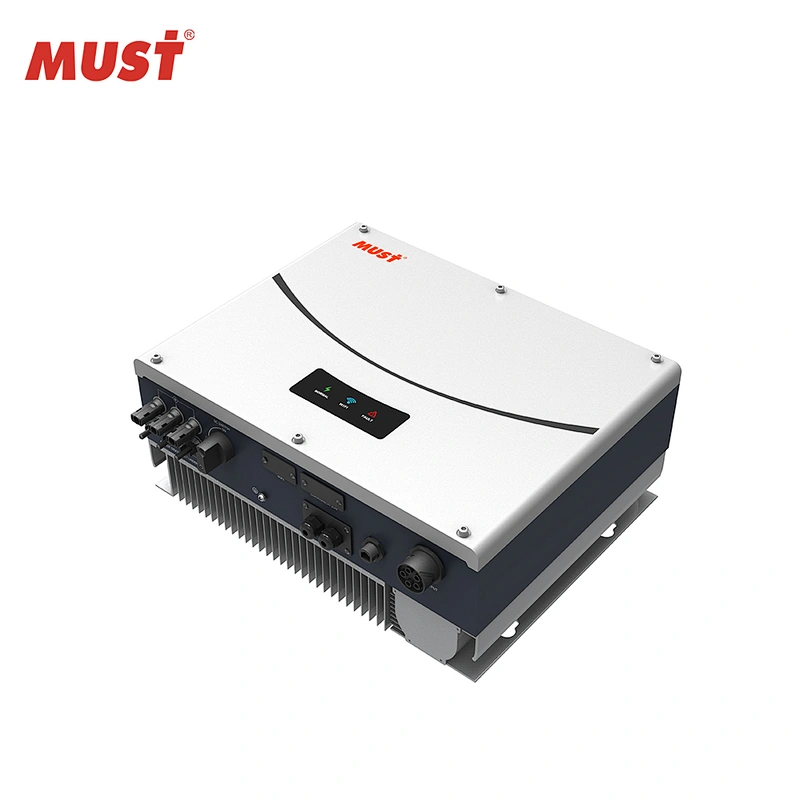

Product Pictures:

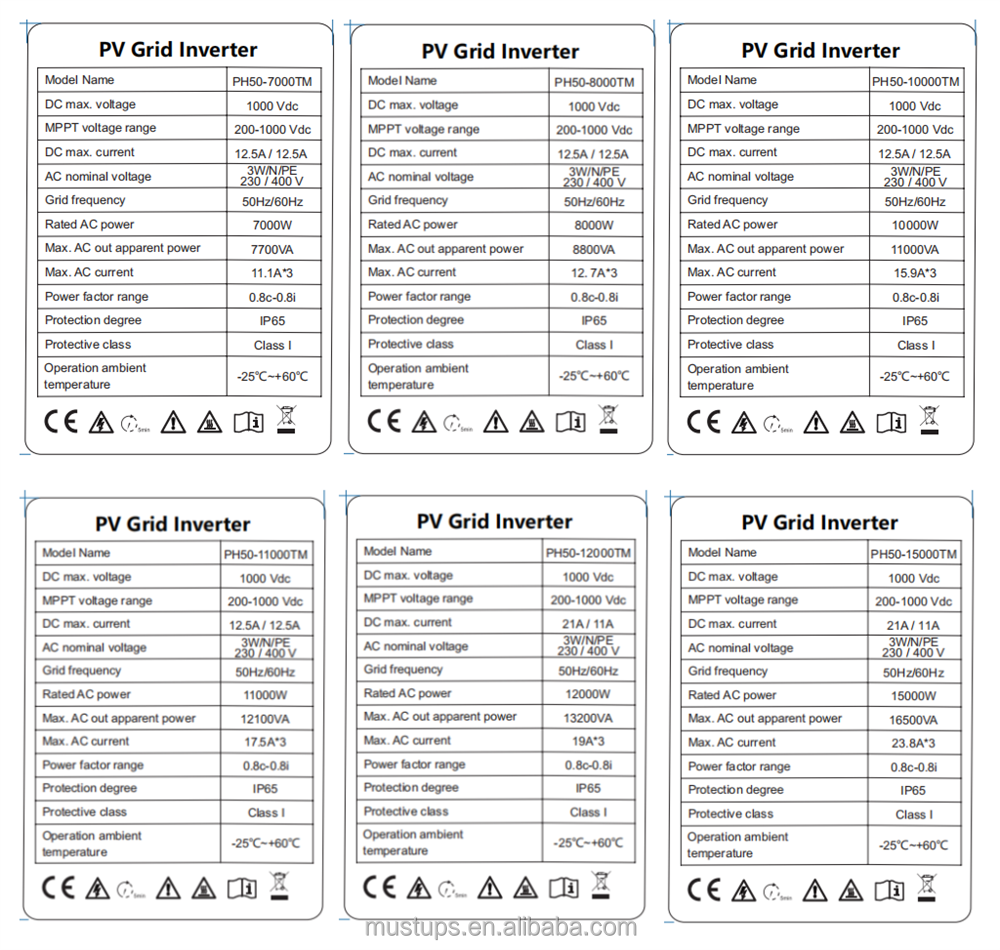

Product Labels:

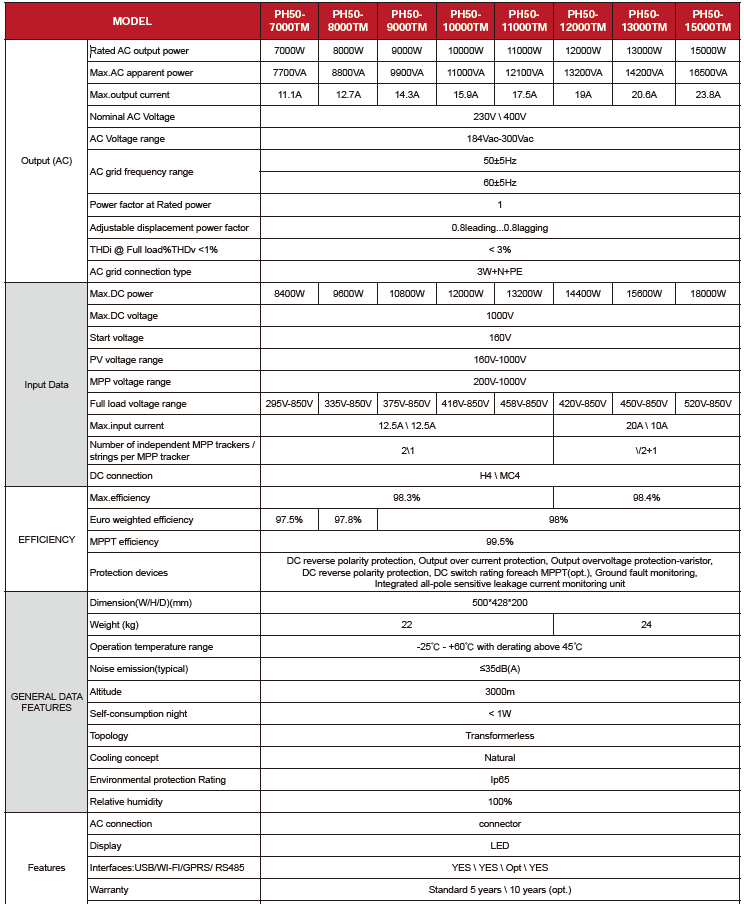

Specifications

Our Services

Warranty: 1 Year for off grid solar inverter&UPS. 5 year/10 years for on grid solar inverter.

Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship, but except any defects resulting from improper use of the products.

How To Ask for Support if products failure in warrenty?

1. email us about PI number, serial number,Product S/N number, PCB board number most importantly, is the description of failure products on the condition that it is operated correctly, to the best, show us more detailed pictures or video.

2. we will submit your case to our after sales department.

3.Usually within 24 hours, we will email you the best solutions.

Lead time:

a) Sample orders (1-2 pcs) will be delivered from our factory within 10 working days

b) Bulk orders will be delivered from our factory within 35 working days

After-sale Service: 24-Hour Hot Line for Consultancy and Technical Support
