- Place of Origin:Guangdong, China
- Brand Name:Must Santakups Oem
- Model Number:EW 2000 2010 series 500va 600va 650va 800va 1000va 1200va 1500va
- Phase:Single Phase
- Protection:under voltage,over voltage, battery low,short-circuit, over-load
- Weight:5.5-11kg
- Output Voltage:145-290v(220v design),80-145v(110v design)
- Type:Line Interactive
- Application:computer,office supply,home use,small work-station
- inverter:PWM pulse-width-modification tech
- voltage regulation:full avr 3-stage boost-buck
- ac input voltage range:145-275v (500va-800va)
- output voltage:220v 10% tolerance
- transfer time:2-6ms typical,10ms max
- front panel:LED indicator
- output power factor:0.6
- inverter efficiency:0.7
- battery protection:over-charge, over-charge/battery low
- input protection:over-voltage,under-voltage

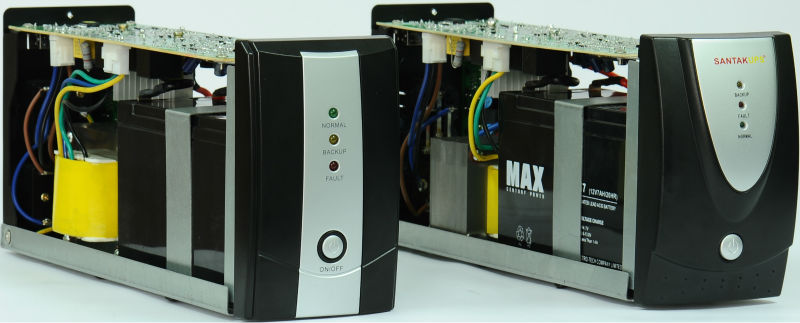

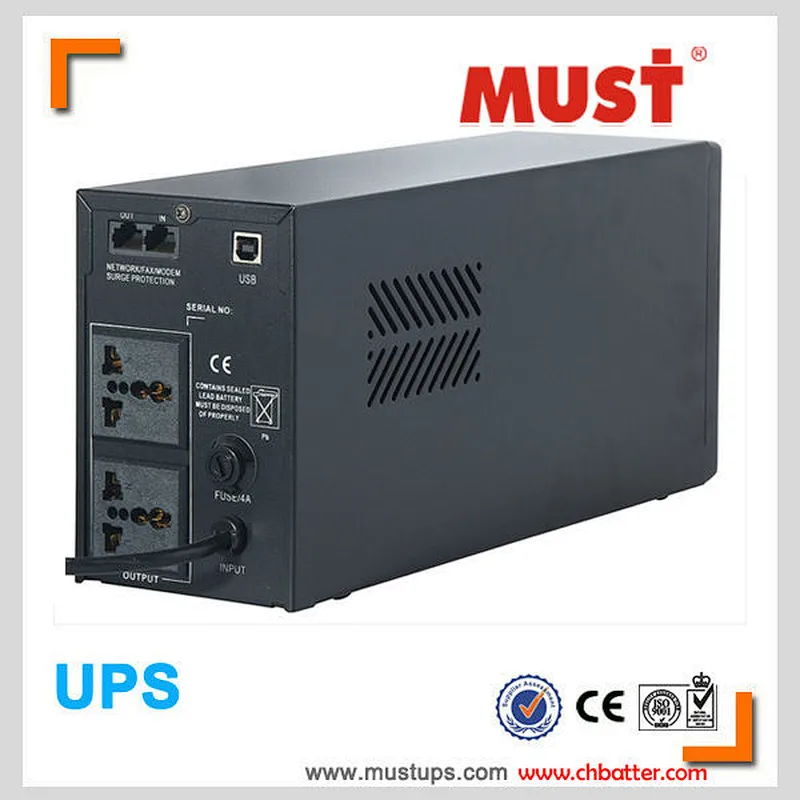

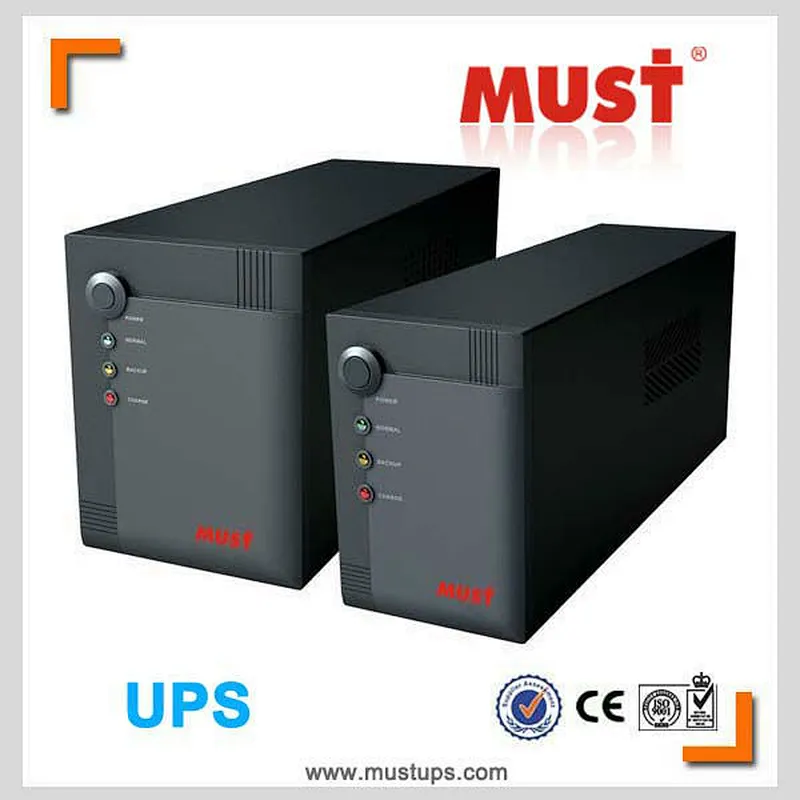

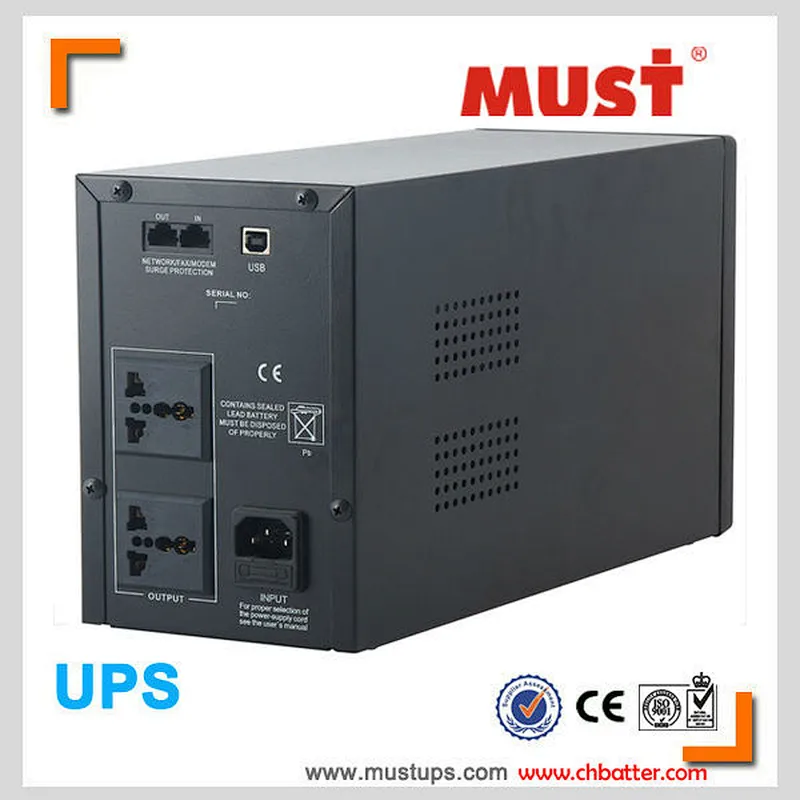

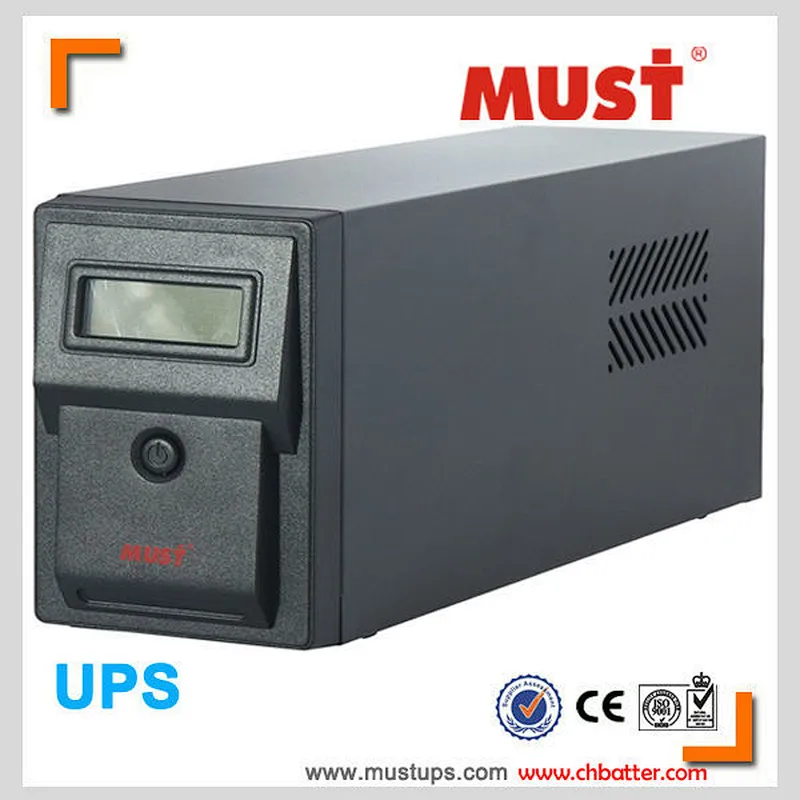

ups with usb 500va-1500va pwm inverter full avr inbuilt for home use for computer
Main Features:
CPU control and PWM invertion tech;
Full ac voltage regulation 3-stage voltage boost/buck;
wide input voltage range 145v-290v from powerful avr function,
avoids frequent transferring to battery-mode and extends battery service time;
Full avr and wide input voltage range design solve Ac brownout problem better.
Full Ac input protection, battery protection and ups ouput protection;
Office surge voltage suppression RJ11/RJ45 port;
automatic self-start and battery self-charge design;
7Ah minimum battery provides longer backup time upon ac blackout;
USB+ shut-down software Winpower for convenient communication and power management.

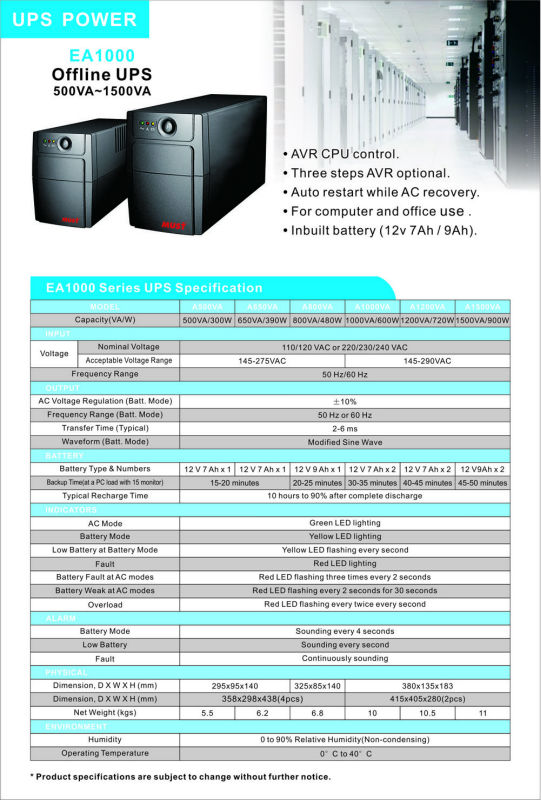

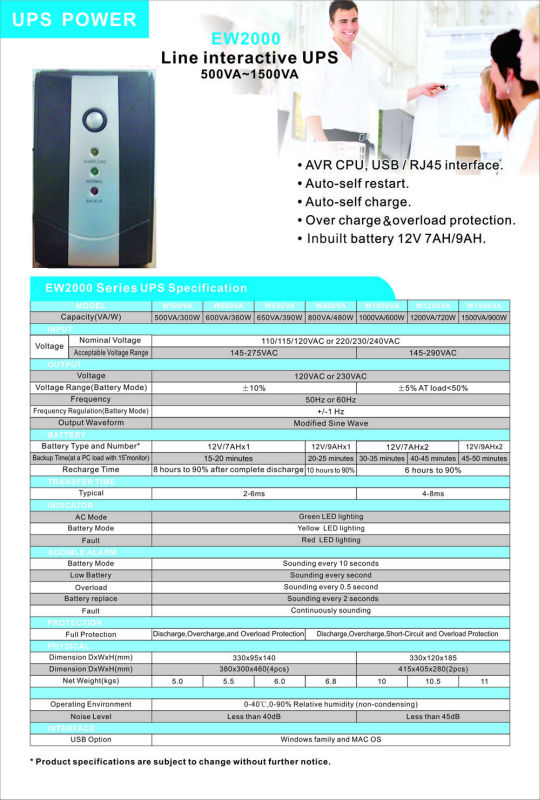

ups with inbuilt battery Specification:
