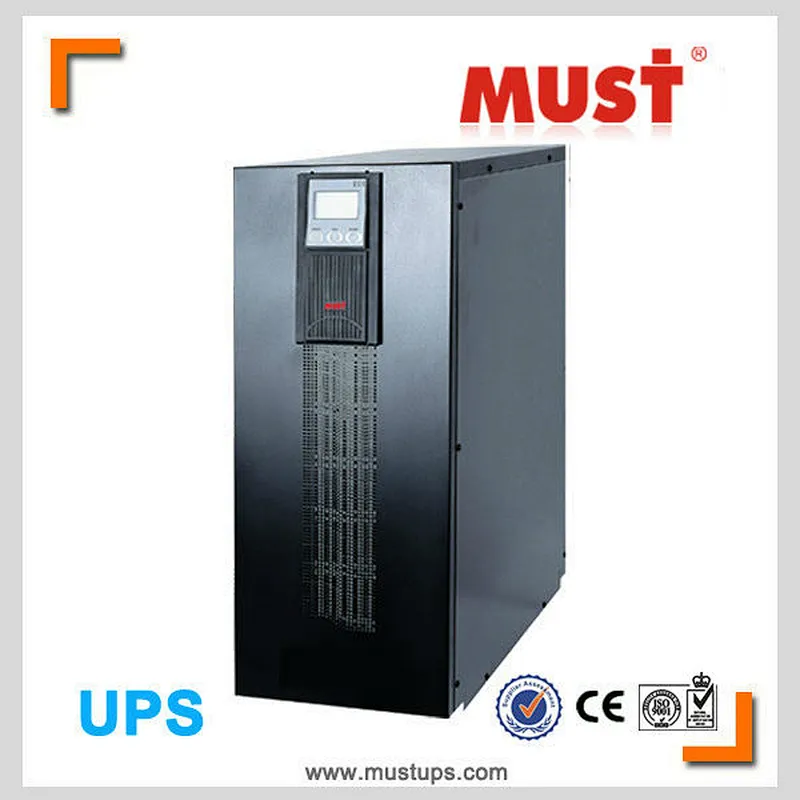

380v/220v ups N+X parallel redundant design

380v/220v ups N+X parallel redundant design

Model NO.: EH 5000 3H10ks 15ks 20ks 0.8 output power factor
Country of Origin: Shenzhen, HK, Guangzhou

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:Must Santakups Oem
Model Number:EH 5000 3H10ks 15ks 20ks 0.8 output power factor
Phase:three phase input single phase output
Protection:switch transient, power sags/dips, suge suppression, fluctuation,THDi
Weight:20-120kgs
Output Voltage:European standard:380v/220v,400v/230v,415v/240v
Type:On-line
Application:medium size integrated IT data-center,CCTV surveillance equipment
THDi:2% max full linear load
Wide input Ac range:145-275Vac 210-475Vac
Full protection:Phase-lock,phase balance,Voltage regulation,
Battery management:Battery low voltage, over-charge,over-discharge,
Output protection:over-load,short-circuit
battery charge control:fast-charge at constant voltage
Intelligent battery management:average-charge at constant current,float-charge
Transfer time:zero transfer time
Power expansion:N+X parallel redundancy
Parallel ability:Max. 3 unit

380v/220v ups, parallel redundant ups, 3 phase in single phase out ups, 10kva ups,15kva ups,20kva ups brief feature

Full digitalized micro-processsor control;

DSP control tech;

Online double convertion structure;

High input power factor PFC Dc-Ac rectifier;

700vdc Dc-bus booster;

High efficiency, high voltage,low power consumption,power-saving and high speed IGBT transformer-less Dc-Ac inverter;

LCD and LED front panel, long autonomy with external battery bank;

Input output EMI filter;

Phase balance and Phase-lock protection (3H 10ks,15ks,20ks);

Thorough communication and power management interface, RS232, USB,AS-400 and SNMP network monitor tool;

With Ac bypass static bpass STS, Maintenanc bypass/SWMB;

N+X parallel redundancy design for high power needs and hot-redundancy(max 3 units).

380v/220v ups, parallel redundant ups, 3 phase in single phase out ups, 10kva ups,15kva ups,20kva ups

description

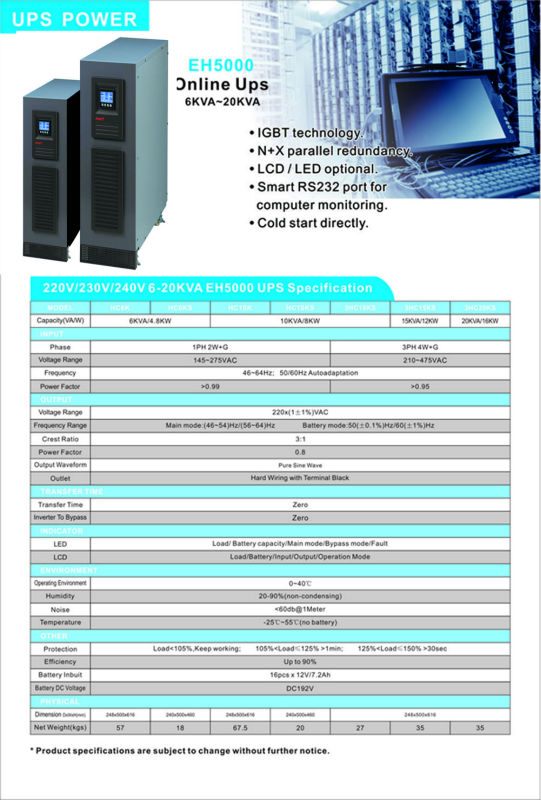

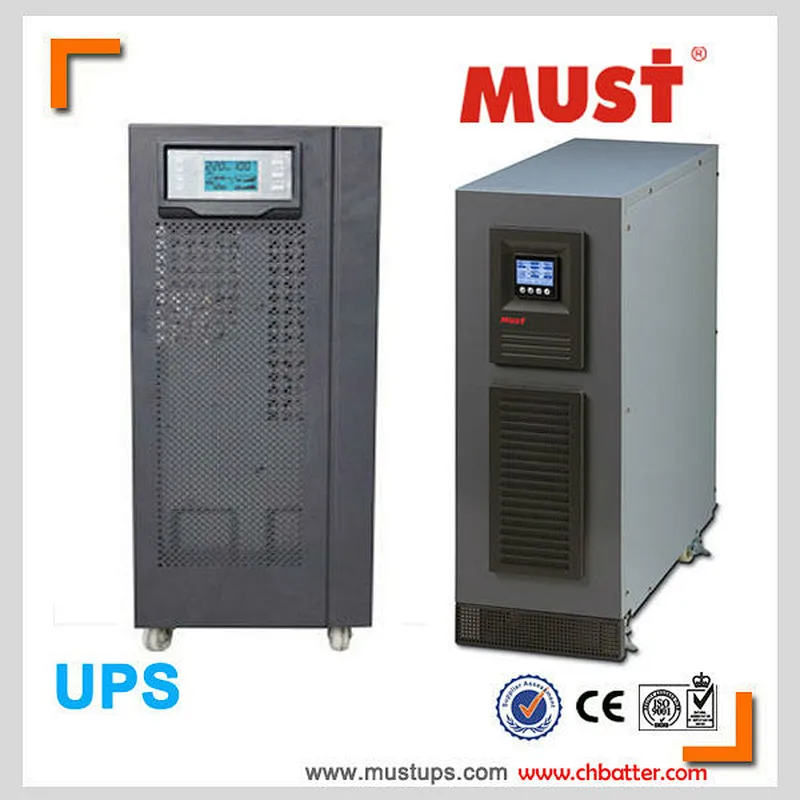

EH 5000 H 6-10K/S, 3H 10-20KS new large LCD plastic front panel one screen full display critical parameters for easy operation and management.

DSP and CPU control tech guarrantee intelligent response on any external changement of power condition.

PFC and IGBT work out reliable stable power solution. External battery bank provide uninterruptible power supply

upon Ac outage.

Static Bypass Switch/STS performs an uninterruptible transfer from ups inverter to bypass.

Optional maintenance Bypass Switch/SWMB allow ups internal circuit online maintenance possible;

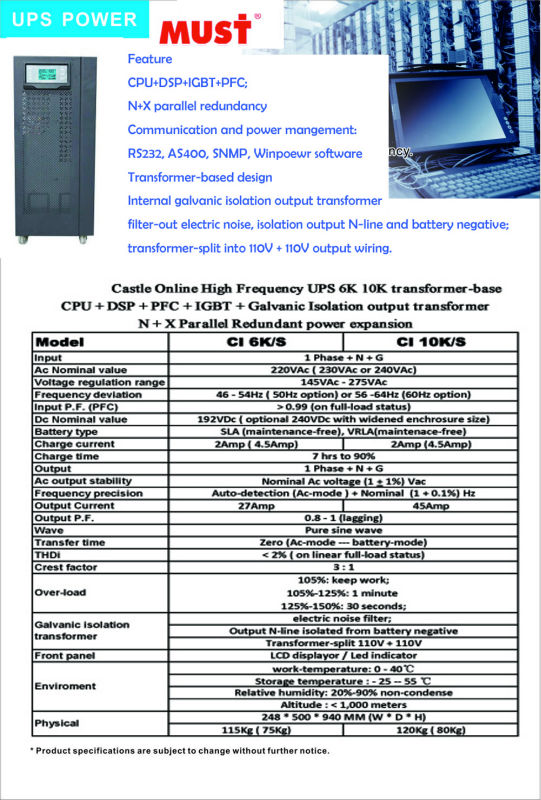

Optional industrial galvanic isolation output transformer-base design H 6K/S, 10K/S.

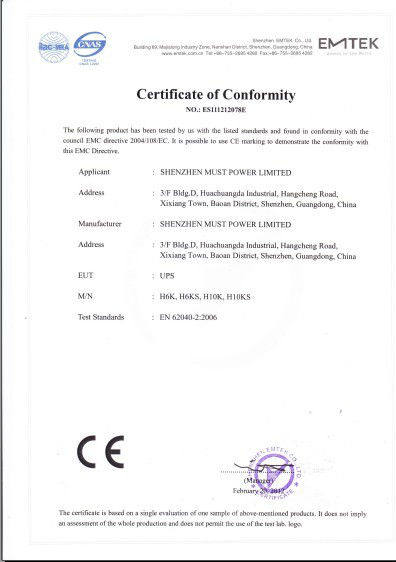

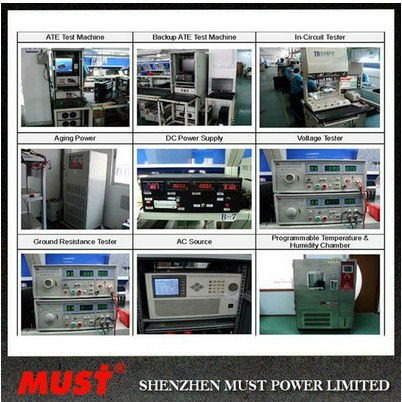

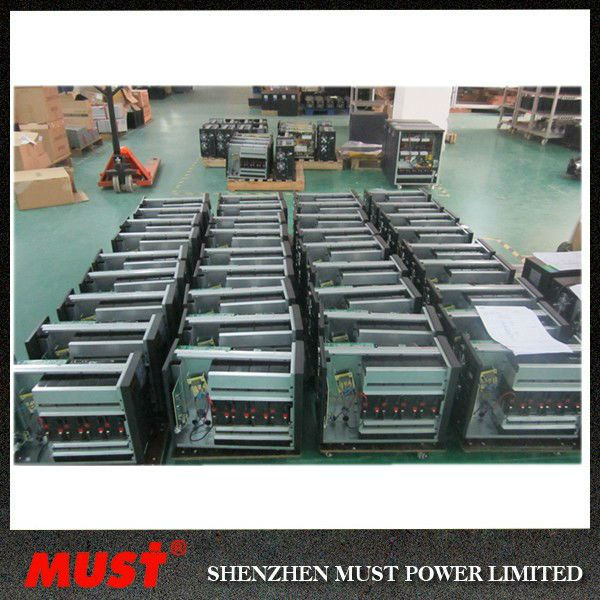

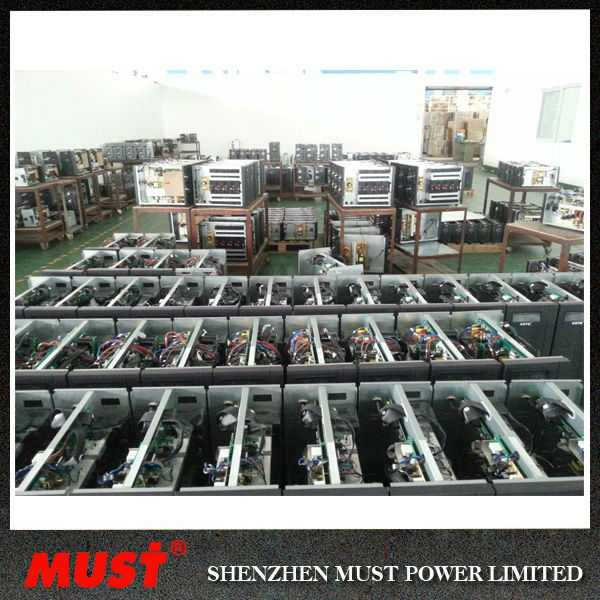

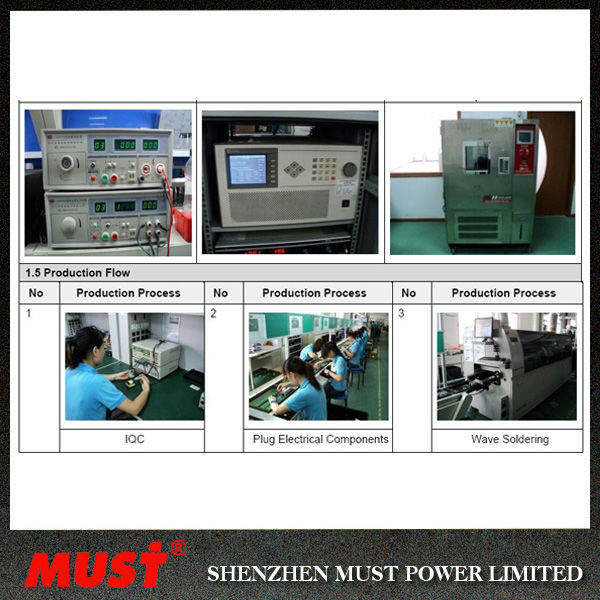

380v/220v ups, parallel redundant ups, 3 phase in single phase out ups, 10kva ups,15kva ups,20kva ups CE SGS/ISO9001 verified manufacturer backgound

More than one decade R & D, Manufacture, Sales and after sale service experience since 1998.

Santakups brand name popular in both domestic and international market of IT industrial power solution.

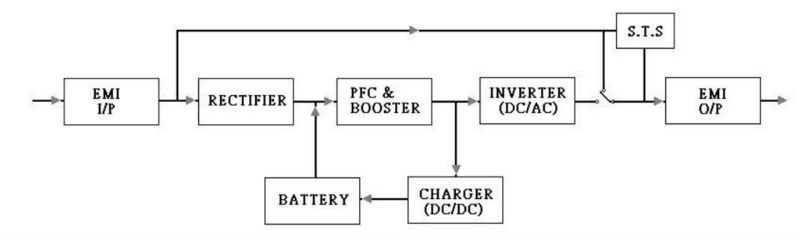

380v/220v ups, parallel redundant ups, 3 phase in single phase out ups, 10kva ups,15kva ups,20kva ups schematic diagram
