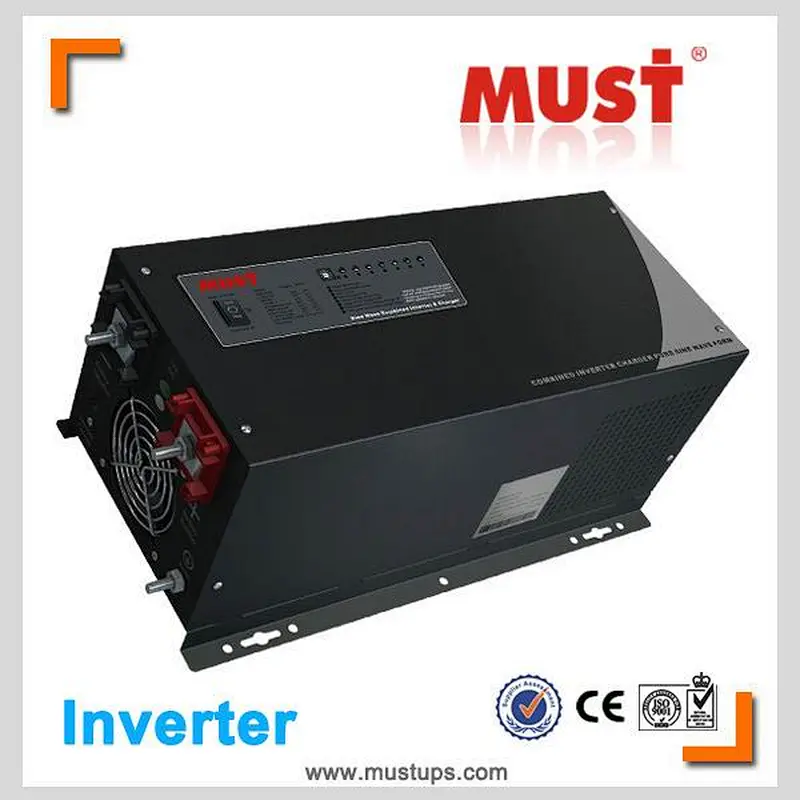

5000w 48v 220v 50hz ac motor drive frequency inverter

Model NO.: EP3000
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:Must
Model Number:EP3000
Output Power:1 - 200KW
Input Voltage:230vac/120vca
Output Voltage:230vac/120vca
Type:DC/AC Inverters
Output Type:Single
Output Current:30A/40A
Output Frequency:50Hz/60Hz
Size:1-3kw: 570*315*300mm; 4-6kw: 755*319*288mm
Weight:1-3kw: 28kg; 4-6kw: 49kg
DC Type:12VDC / 24VCD /48VDC
Input&Output:220VAC / 110VAC
Charger current:30-75A
Color:Black/white
Max bypass current:30A or 40A
Charge type:Three step
RS232 jack:Optional
Warranty:12 Month
Peak power:3 times as normal
Name:ac motor drive frequency inverter

New functions below

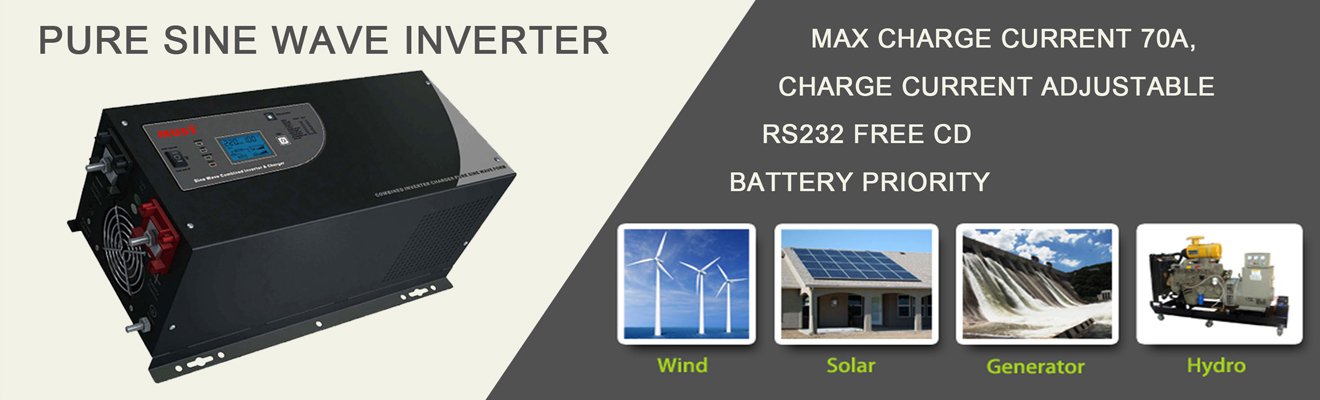

Name of pure sine wave power inverter

5000w 48v 220v 50hz ac motor drive frequency inverter

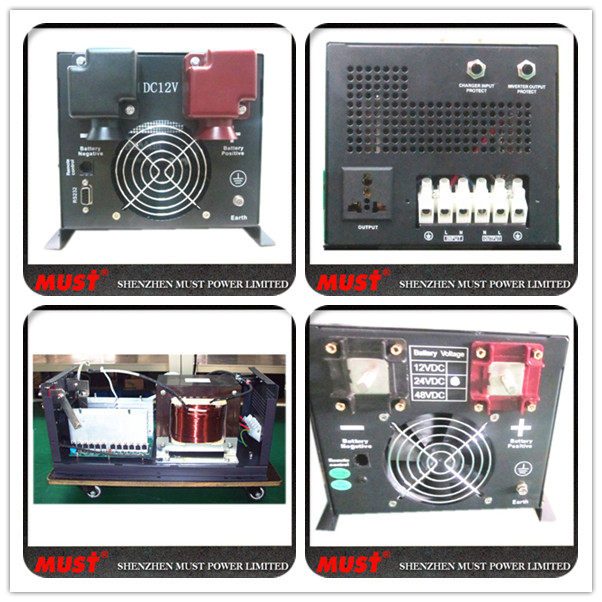

Features of pure sine wave inverter

1. Rated power: 1000w 1500w 2000w 2500w 3000w

4000w 5000w 6000w

2. NEW funcitons: RS232 port

Charge current adjustable

ac motor drive frequency inverter

3. DC voltage: 12V DC, 24V DC, 48V DC

4. Battery charger buit in: 35-70amp

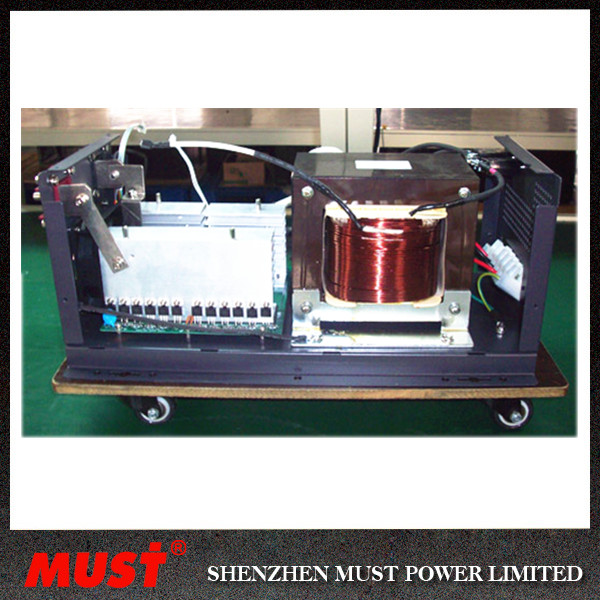

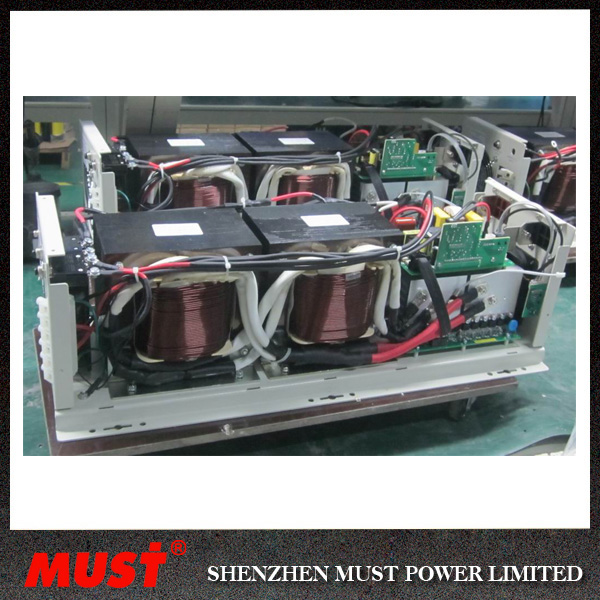

5. Pure cooper transformer buit in: YES, dimension: EI162*100 or EI162*105

6. Charge mode: Three stage, boost Constant Current; Boost Contant Voltage;

Float(with small current)

7. Capable of starting electric motor: 1HP for 1000w-2000w; 2HP for 3000w-4000w;

3HP for 5000w-6000w

8. Over-load & Output short circuit protection: circuit breaker

Dc ac pure sine wave Power inverter 1000w 220v

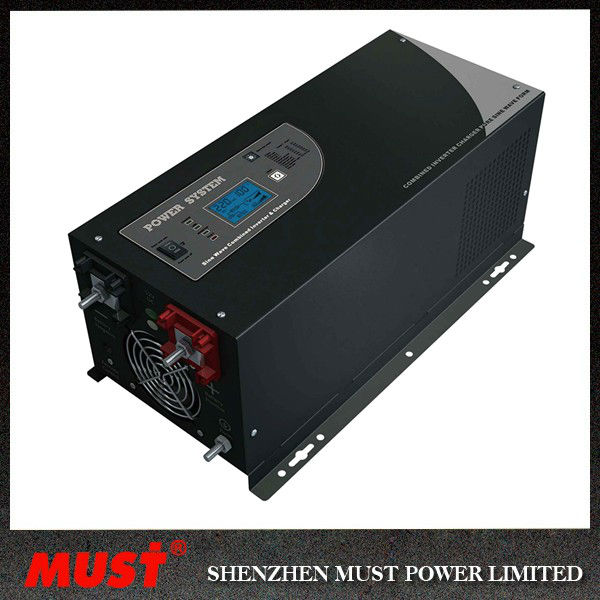

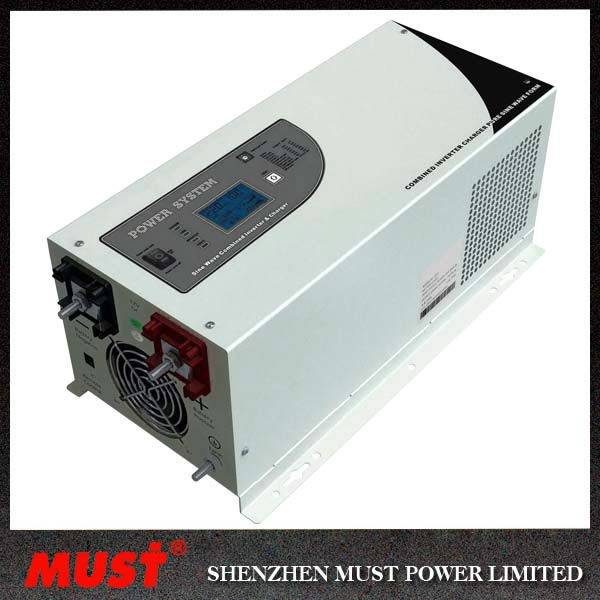

Color: Black & White

1kw 2kw 3kw 4kw 5kw 6kw power inverter power charger

Specifications pure sine wave inverter / charger

MODEL	HV Model
(EP3000)
	EP1012	EP1024	EP2024	EP3024	EP4048	EP5048	EP6048
Line Mode Specifications
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac(120VAC selectable)
Low Line Disconnect	184Vac±4%
Low Line Re-connect	194Vac ±4%
High Line Disconnect	265Vac±4%
High Line Re-connect	255Vac±4%
Over-Load Protection(SMPSload)	Circuit breaker
Output Short Circuit Protection	Circuit breaker
Efficiency (Line Mode)	>95%
Transfer Switch Rating	30A
Transfer Time (Ac to Dc)	10ms (typical)
Transfer Time (Dc to Ac)	10ms (typical)
Pass through without Battery	Yes
Max Bypass Overload Current	30A
Invert Mode Specifications
Output Voltage Waveform	Pure Sine wave
Rated Output Power (VA)	1000		2000	3000	4000	5000	6000
Rated Output Power (W)	1000		2000	3000	4000	5000	6000
Power Factor	1.0
Nominal Output Voltage (V)	230Vac
Nominal Output Frequency (Hz)	50Hz ± 0.3Hz
Auto tracking Main Frequency(Hz)	Yes (Following Main first connection)50Hz @48-54Hz ;60Hz @58-64Hz
Output Voltage Regulation	±10% rms
Nominal Efficiency	>80%
Bypass Breaker Size	30A			30A	35A	50A
Nominal DC Input Voltage	12V	24V	24V	24V	48V	48V
Min DC start voltage	10V/20V/40V

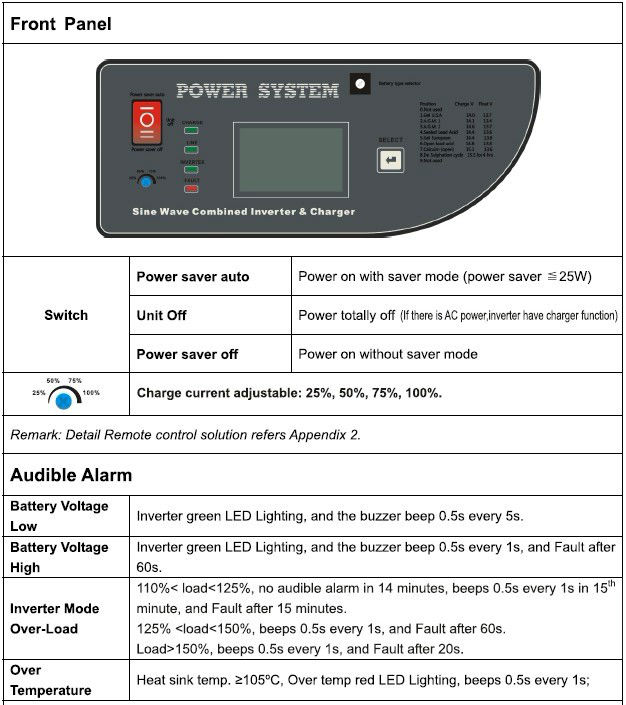

Power saver	Load ≤25W (Enabled on “P/S auto” setting of Remote control)
Charge Mode Specifications
Nominal Input Voltage	230Vac
Input Voltage Range	196~243Vac
Nominal Output Voltage	According to the battery type
Nominal Charge Current	35A	35A	65A	45A	35A	40A	50A
Charge Current Regulation	± 5Adc
Battery initial voltage	0 –15.7 Vdc (can operate with 0V battery)
Charger Short Circuit Protection	Circuit breaker
Over Charge Protection	Bat. V ≥ 15.7Vdc/31.4Vdc,beeps 0.5s every 1s & fault after 60s
