- Place of Origin:Guangdong, China
- Brand Name:MUST or OEM

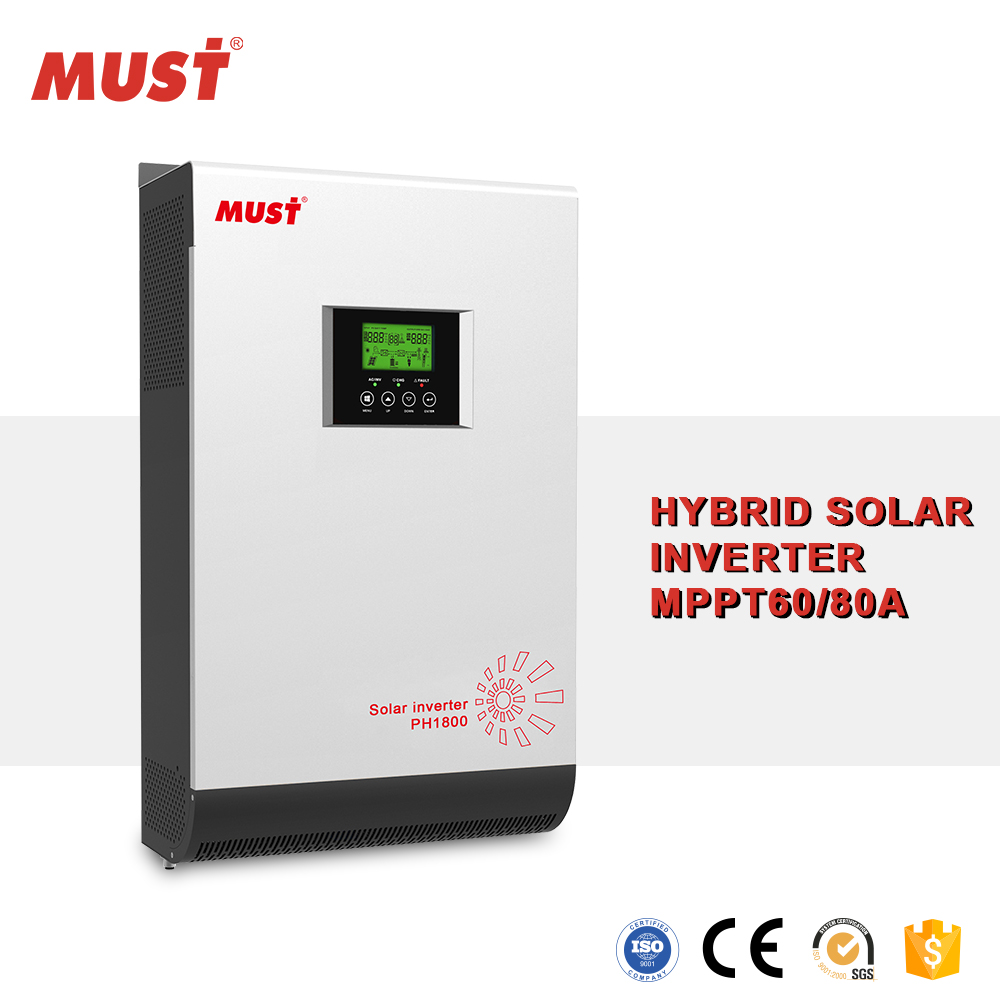

- Model Number:PH1800 Plus
- Input Voltage:48V DC
- Output Voltage:110V/220V/230V/240V
- Output Current:140A
- Output Frequency:50Hz/60Hz
- Output Type:Single
- Size:610*405*251mm
- Type:DC/AC Inverters
- Weight:15KG
- Output Power:1 - 200KW
- Rated Power:1500W to 5000W
- Inside charge controller:MPPT 60A/ 80A
- Output waveform:pure sine wave
- Working modes:SUB: Solar-Utility-Battery
- Operations:grid-tie, off-grid, grid-interactive
- Parallel operation:up to 3units parallel connection
- Protection:over-load, short-circuit, deep discharge
- Remote monitoring:USB, RS485, WIFI

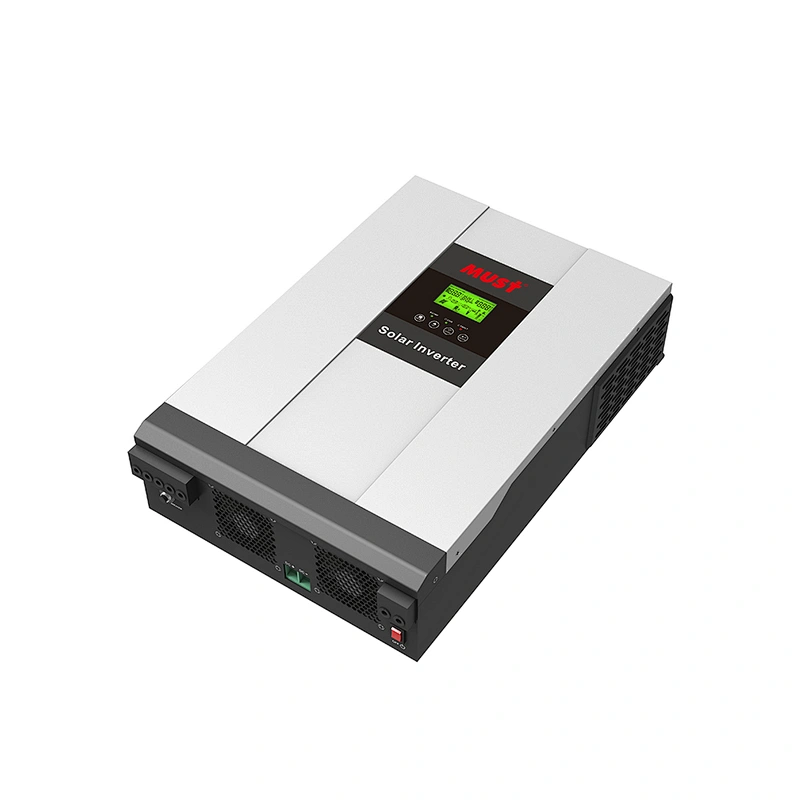

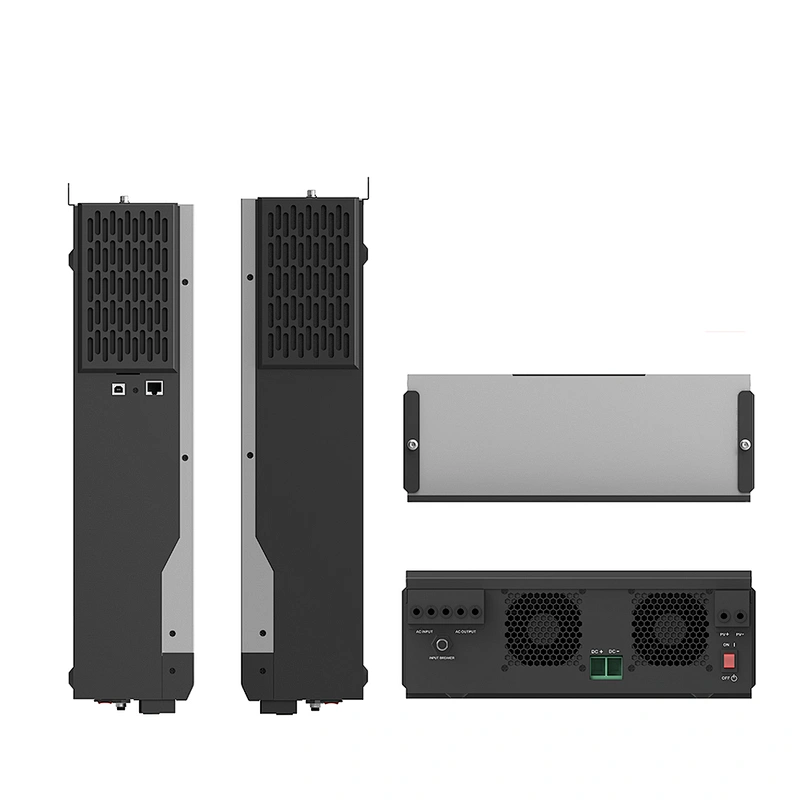

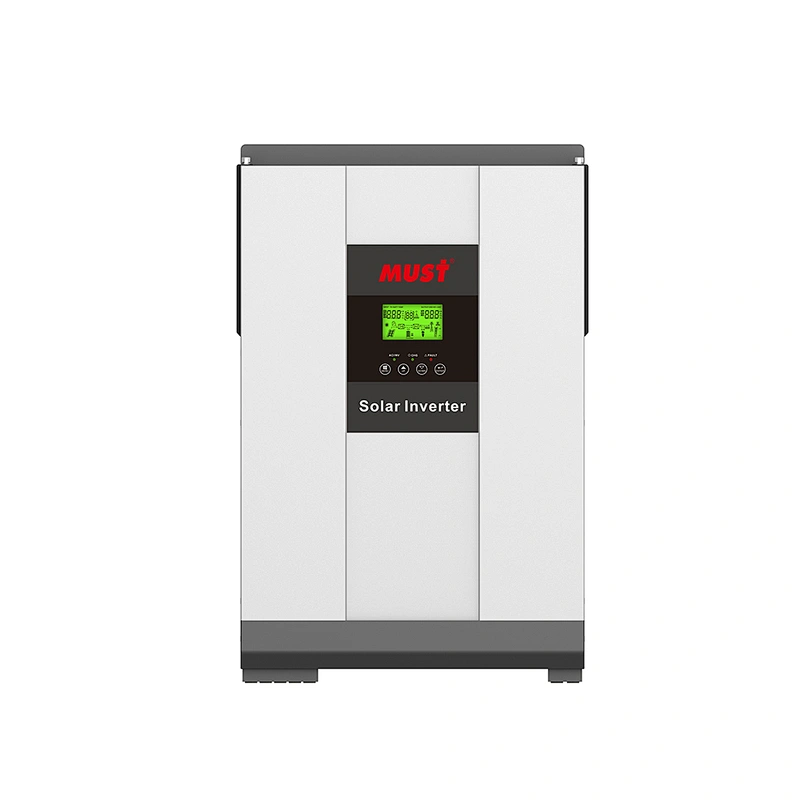

BEST MODEL 2kw grid tie inverter price
PH1800PLUS on and off grid 4kva solar system price
Selling points:
- rated power: 5kw
- pure sine wave high frequency
- smart LCD setting: working modes choosing, charge current setting by every 1A, charge voltgage setting by every 0.1V
- built in 80A MPPT charger inside, Voc=145V
- new SUB working mode: Solar-Utility-Battery, to make sure the battery will be fully charged
- MPPT efficiency 98%

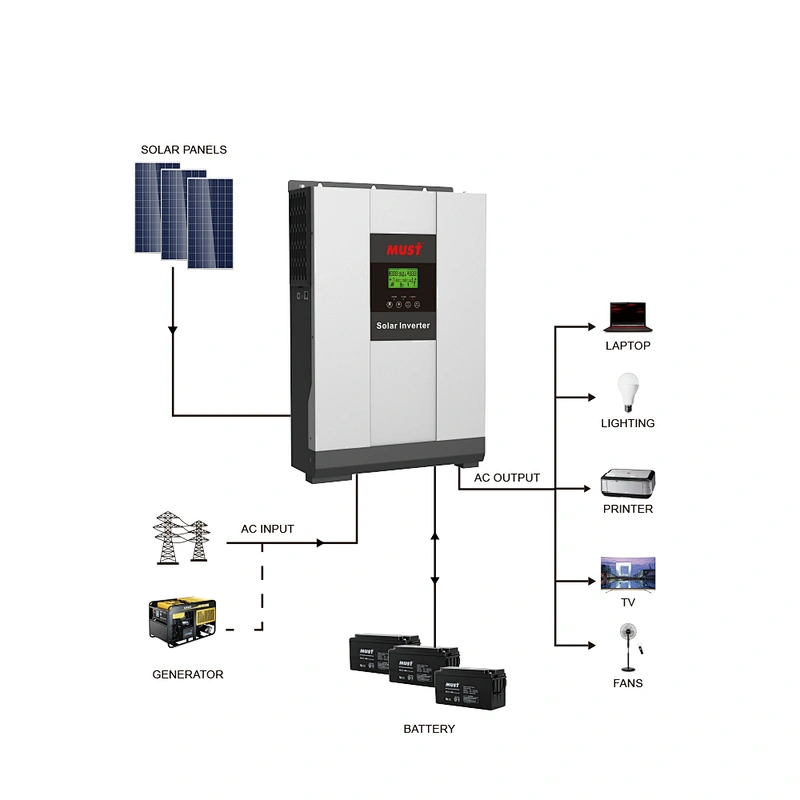

- combining solar system, AC utility, and battery power source to supply continuous power
- multiple operations: basic Grid-tie, Off-grid, Grid-interactive
- overload, short circuit, and deep discharge protection
- support USB, RS485 monitoring function
- compatible to generator
- WIFI remote moitoring is optional

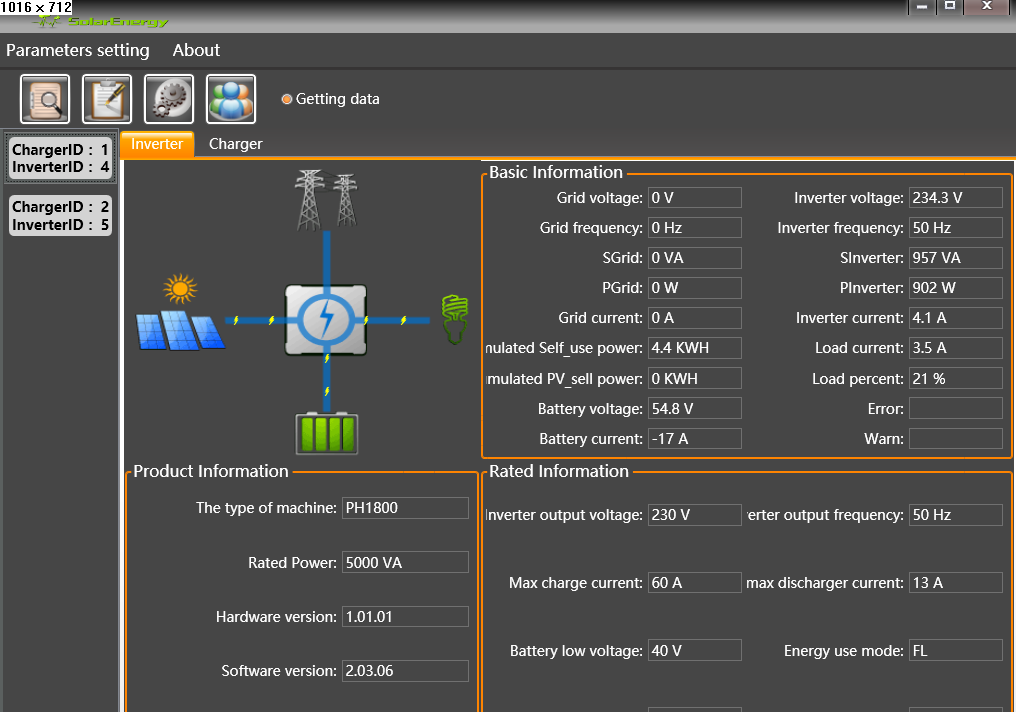

1) USB/ RS485 function: connect the inverter with computer, users can set parameters through computer, and see the working situation of the inevrter.

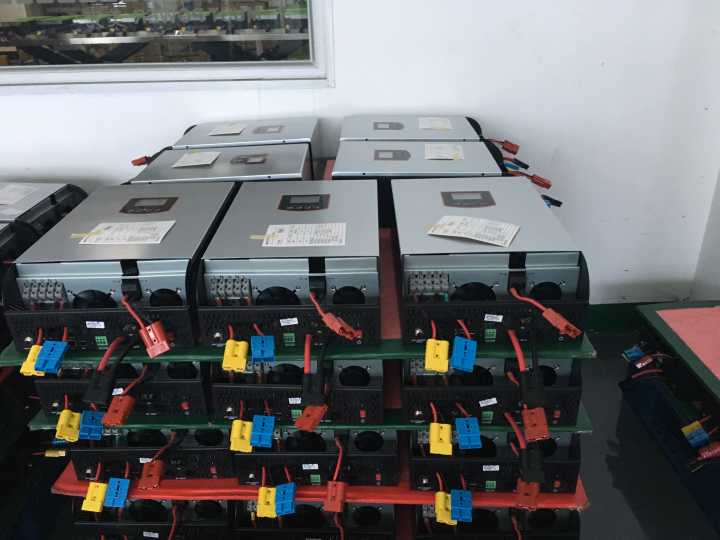

2) easy installation: have battery connectors, user-friendly to achieve"plug and play"

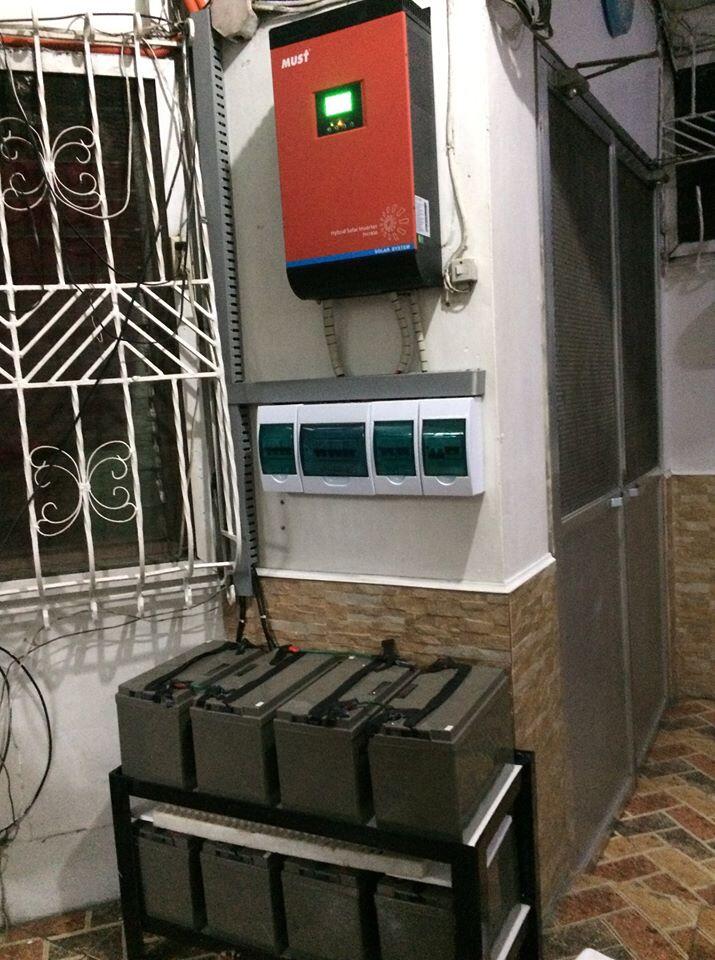

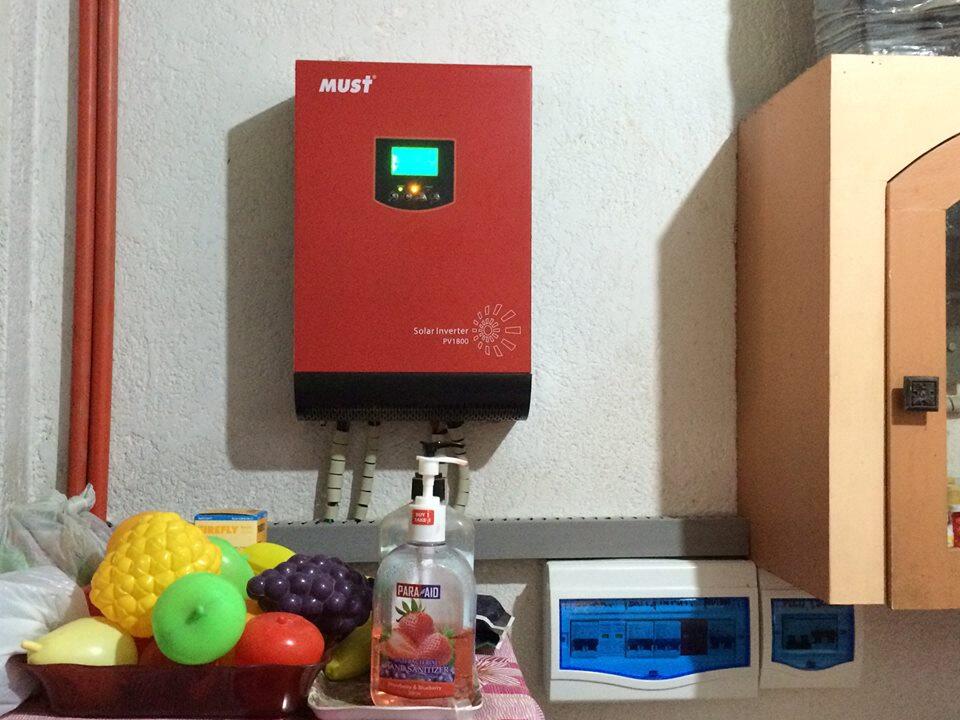

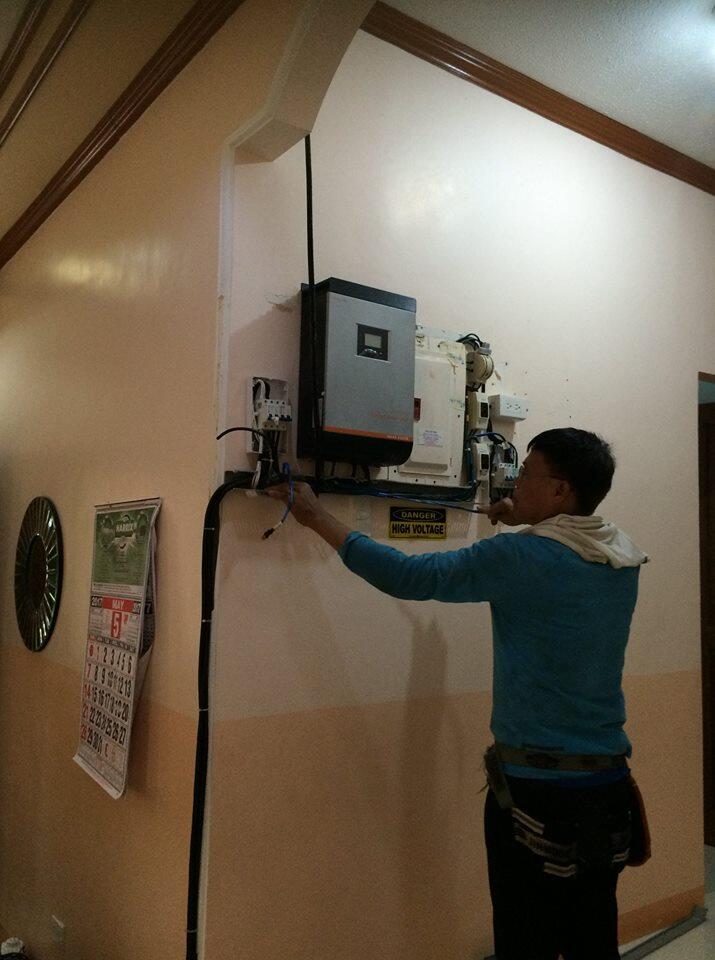

3) clients feedback for installation and working fine
Product parameters: MUST factory 1000 watt grid tie inverter
| MODEL | PH18-1524 Plus | PH18-2024 Plus | PH18-2524 Plus | PH18-3048 Plus | PH18-4024 Plus | PH18-5048 Plus | |
|---|---|---|---|---|---|---|---|
| Default Battery System Voltage | 24VDC | 48VDC | |||||
| INVERTER OUTPUT | Rated Power | 1500W | 2000W | 2500W | 3000W | 4000W | 5000W |
| Surge Power | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | |
| Waveform | Pure sine wave | ||||||
| AC Voltage Regulation (Batt.Mode) | 220V AC/ 230V AC/ 240V AC ±5% | ||||||
| Electric Current | 3.4A | 7.0A | 7.0A 10.5A 13A 13A | ||||
| Output Frequency | 50Hz/60Hz auto sensing | 50Hz/60Hz auto sensing | 50Hz/60Hz auto sensing | ||||
| off grid≤2% | off grid≤2% | off grid≤2% | |||||
| THD (linear loads) | grid discharge≤3% | grid discharge≤3% | grid discharge≤3% | ||||
| grid charge≤3% | grid charge≤3% | grid charge≤3% | |||||
| Inverter Efficiency (Peak) | 93% | 93% | 93% | ||||
| Transfer Time | 10ms(For Personal Computers) 20ms(For Home Appliances) | ||||||
| AC INPUT | Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) | ||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||||
| BATTERY | Nominal voltage | 24VDC | 48VDC | ||||
| Floating Charge Voltage | 27VDC | 54VDC | |||||
| Overcharge Protection | 31VDC | 60VDC | |||||
| SOLAR CHARGER & AC CHARGER | Maximum PV Array Open Circuit Voltage | 145VDC | 145VDC | ||||
| PV Array MPPT Voltage Range | 30~130VDC | 64~130VDC | |||||
| Standby Power Consumption | 2W | ||||||
| Reted Power | 1500W/ 2000W | 4000W | |||||
| Maximum Efficiency | 98% | ||||||
| Maximum Solar Charge Current | 60A or 80A | 60A or 80A | |||||
| Maximum AC Charge Current | 20A or 30A | 20A or 30A | 20A or 30A | 60A | |||
| Maximum Charge Current | 80A | 100A | 100A | 140A | |||
| MECHANICAL SPECIFICATION | Dimension,W*H*D | 272*355*100mm | 298*468*125mm | ||||
| Net Weight(kg) | 9.5 | 9.5 | 10 | 12 | 15 | 16 | |
| OTHER | Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C-55°C | ||||||
| Storage Temperature | -15°C-60°C | ||||||

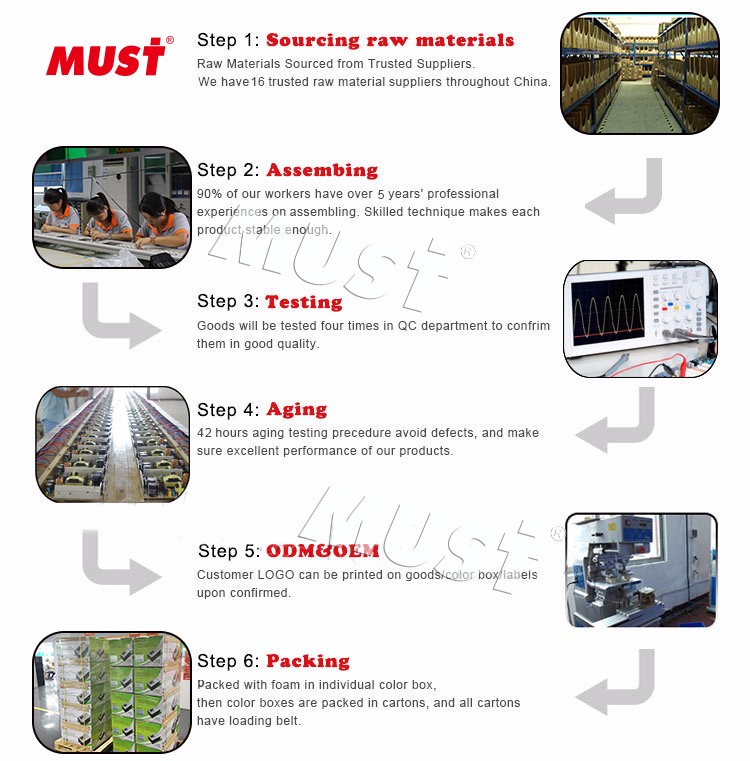

Product processing: MUST factory 1000 watt grid tie inverter
raw materials procurement---PCB assembly---PCB quality inspection---semi-finished assembly---quality inspection with computer---finished quality inspection with computer---aging TEST at least 4hours---QA & QC inspection---packing---warehousing
Packing: MUST factory 1000 watt grid tie inverter
1pc/carton
gift box size: 610*405*251mm
shipping weight: 15kg
MUST brand or OEM is available
Shipping: MUST factory 1000 watt grid tie inverter
for sample order below 30pcs, by express or by air is the better way; for bulk order, by sea is the best way.
Why Choose MUST?
Must Power Limited devotes itself to power field since 1998, and has its own factory in 2008. Now it has about 300 regulor employees, including 40 engineers in R&D Department, 3 engineers in After-sales Service Center Department, 40 internation sales. MUST products are slod in 98 countries all over the world till now, and the revenue growth is from 2.86 milion US Dollars in 1998 to 130 milion US Dollars in 2017.
we have rich experience in handiling orders for heavy buyers with professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Remarkable after-sale service
MUST certificates and patents: MUST got the National High-tech Enterprise in 2016, and Shenzhen High-tech Enterprise, the ISO9001, CE, SAA, CONCAP, etc. And also MUST has software and hardware patents.

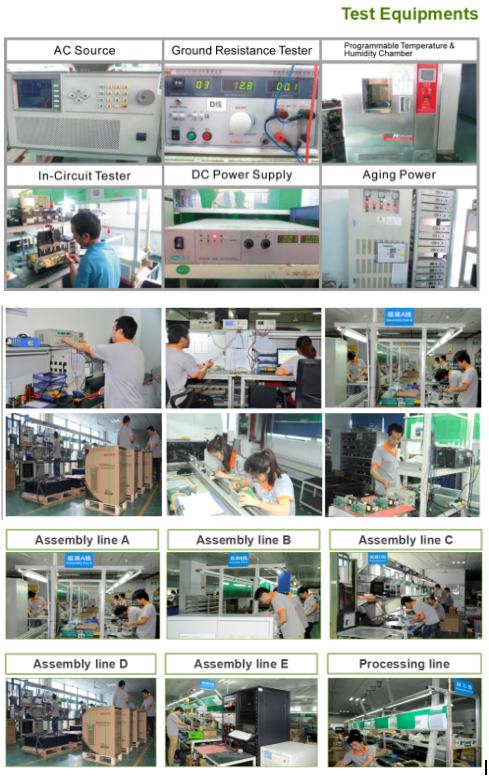

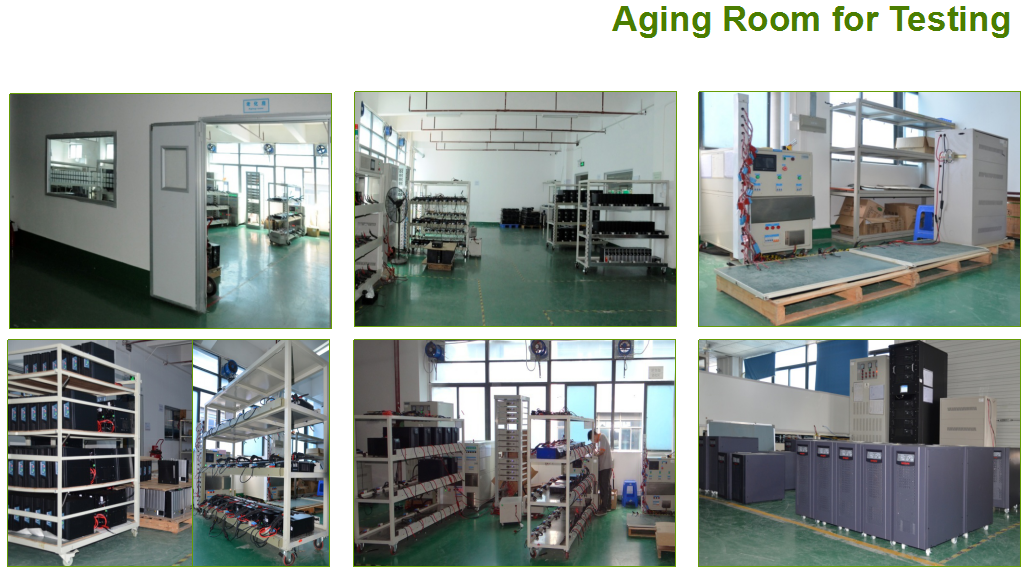

MUST production equipments: crest welder, ATE, Aging testing equipment, etc.
MUST 2018 exhibition
24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
Q: MUST main products?
A: 1) solar inverter, such as 1KW to 12KW off grid solar inverter with controller inside, on & off grid solar inverter 5000W, pure on grid inverter
2) home power inverter, such as 1000W to 12KW home inverter with AC charger
3) UPS
4) MPPT solar charge controller from 40A to 80A
Q: OEM service is available?
A: it would be warmly welcome for bulk order
Why not give us a chance to cooperate with each other and share the world together? Just click below"send"button and let's talk now!! Angel is always at your service.
