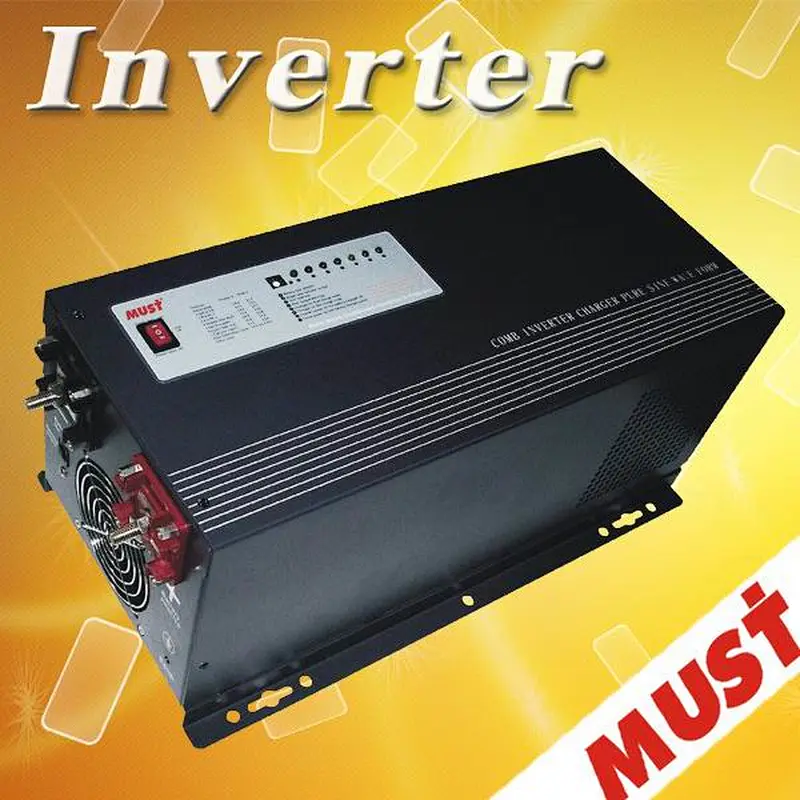

Factory sell dc 12v 24v 48v to ac 110v 220v 3kw wind turbine inverter

Model NO.: EP3000
Minimum order quantity: 1 set
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:MUST
Model Number:EP3000
Input Voltage:110v/120v/220v/230v
Output Voltage:110v/120v/220v/230v
Type:DC/AC Inverters
Output Type:Single
Output Current:30-75A
Output Frequency:50/60HZ
Size:1-3kw: 570*315*300MM; 4-6kw: 755*319*288MM
Weight:1-3kw: 28kg; 4-6kw: 49kg
Output Power:1 - 200KW
DC Type:12VDC / 24VCD /48VDC
Package:Carton or wooden
Charger current:30-75A
Spare parts supply:2%
Frequency:low frequency
Nominal Charge Current:30Amp-70Amp
RS232 jack:Optional
Warranty:12 Month
Peak power:3 times as normal
Name:Factory sell dc 12v 24v 48v to ac 110v 220v 3kw wind turbine inverter

NEW Function

1.Solar Priotity Inverter!

Inverter Charging current Ajustable 25% 50% 75% 100%

3kw wind turbine inverter

2.Solar Hybrid Inverter!

Solar Energy , City power , DC to AC can transfer automatically;

When battery voltage is low (3 options---10v/10.5v/11v) , it will turn to city power automatically.

Product name of pure sine wave power inverter

Factory sell dc 12v 24v 48v to ac 110v 220v 3kw wind turbine inverter

Features of pure sine wave inverter

1. Rated power: 1000w 1500w 2000w 2500w 3000w

4000w 5000w 6000w

2. NEW funcitons: RS232 port

Charge current adjustable

3. DC voltage: 12V DC, 24V DC, 48V DC

4. Battery charger buit in: 35-70amp

5.Pure cooper transformer buit in: YES, dimension: EI162*100 or EI162*105

6. Charge mode: Three stage, boost Constant Current; Boost Contant Voltage;

Float(with small current)

7. Capable of starting electric motor: 1HP for 1000w-2000w; 2HP for 3000w-4000w;

3HP for 5000w-6000w

8. Over-load protection: circuit breaker

9. Output short circuit protection: circuit breaker

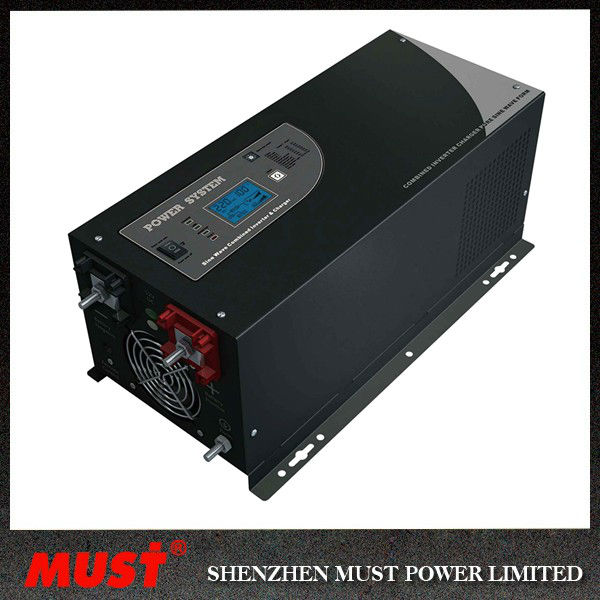

Color: Black & White

1500w 3000w 4000w 5000w 24v pure sine wave solar inverter

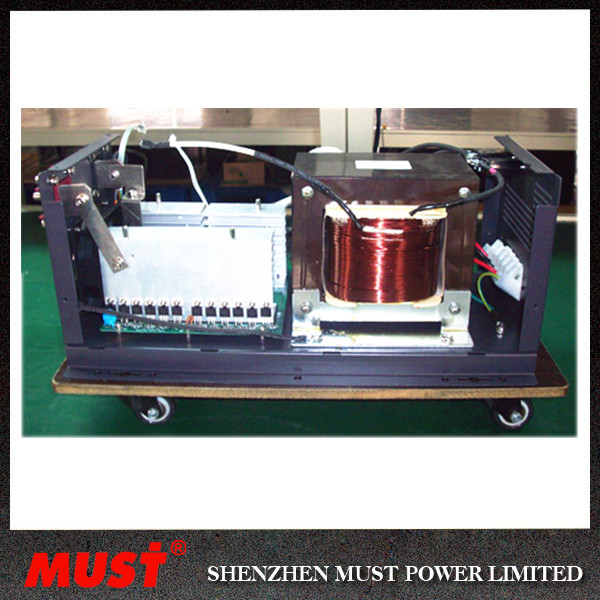

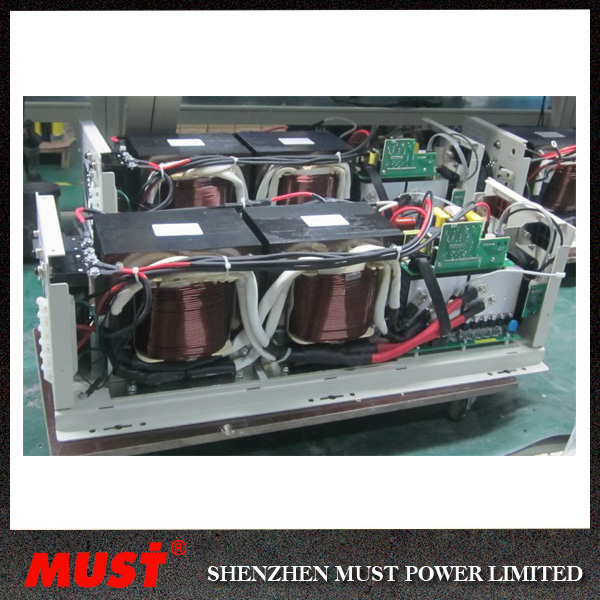

Pure CopperTransformer. High Efficiency

Plug, Socket, Fans etc

1000w 2000w 3000w China Solar Power Invereter

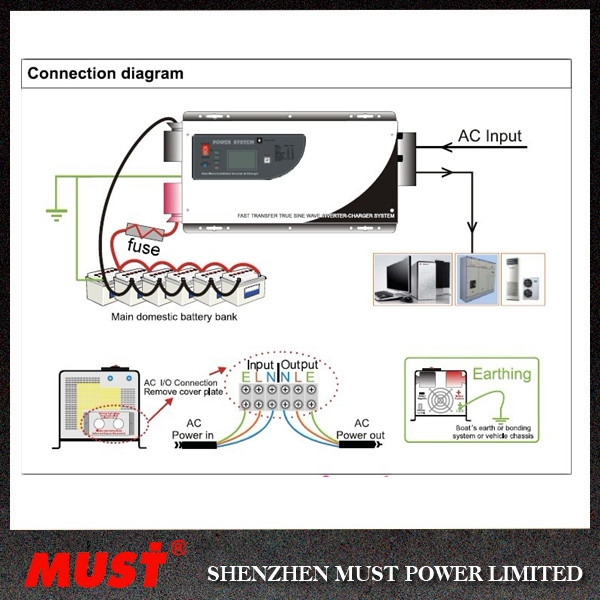

How To Connect??

What's the Application Ranges?

Computer, Telecom, Deep Freezers, Air Conditioners, Petrol pump machines, Small Scale Industries

Malls, Hotels, Restaurants, Banks, ATM Machines, Clinics, All kinds of Kitchen appliances & Home appliances, Weighing bridges, Elevators etc.

Specifications pure sine wave inverter

Rated Capacity

1000w

1500w

2000w

3000w

1. Input

Model	120v Inverter Models	230v Inverter Models
Nominal Voltage	100V/110V/115V/120V Selectable	200V/220V/230V/240V Selectable

2. Output

Rated Power	1000W	1500W	2000W	3000W
Output Voltage	100V/110V/115V/120V Selectable		200V/220V/230V/240V Selectable
Voltage Waveform	Pure Sine Wave
Crest Factor	3:1
Regulation(Nominal)	±10% Typical Of Nominal Voltage
Transfer Time	Transfer Time : AC To DC : 10ms (Typical) Transfer Time : DC To AC : 10ms(Typical )
Max Bypass Overload Current	30A

3. Input

Nominal Voltage	DC12V/24V	DC12V/24V	DC12V/24V	DC24V/48V
Efficiency	>80%
Over Current Protection	By Re-Settable Over Current Protector

4. Output

Nominal Input Voltage	230Vac
Input Voltage Range	196~243Vac
Nominal Charge Current	35amp-70amp
Charger Short Circuit Protection	Circuit Breaker
Over Charge Protection	Bat. V ≥ 15.7Vdc/31.4Vdc, Inverter beeps 0.5s Every 1s & Fault After 60s

Battery Type	Lead-Acid 12Ah ~ 250Ah
Typical Backup Time	No Limit, Depend on external battery
Average Charging Current	35A/20A	45A/30A	65A/35A	75A/30A

5. Communications & Management

Control Panel	LCD/LED Option

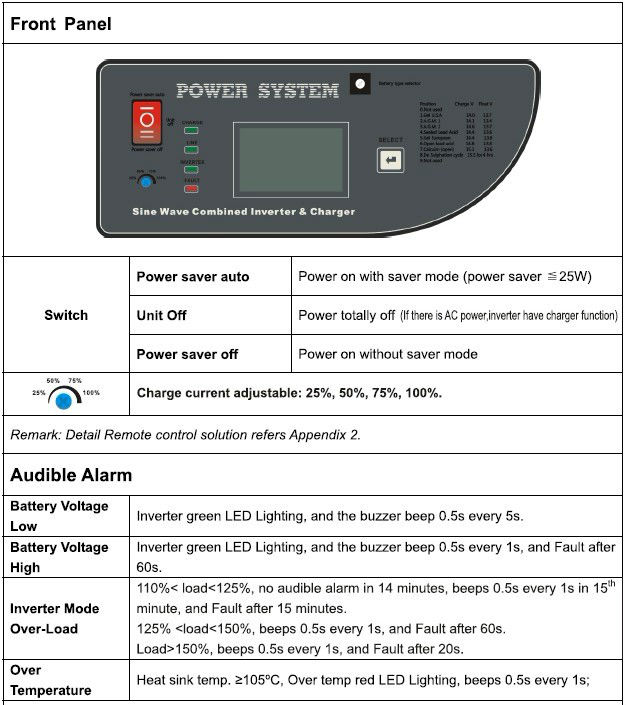

Audible Alarm	Alarm On Battery:Low Battery & Battery Over Voltage Alarm On Abnormal Operation Over Load, Short-Circuit, & Over Heat

6. Environment and Safe

Operating Temperature	0°C To 40°C (32°F To 104 F)
Transit/Storage Temperature	-15°C To 60°C
Audible Noise	60 Dba Max at 1m
Quality Control System	ISO 9001,CE,FCC

7. Physical
