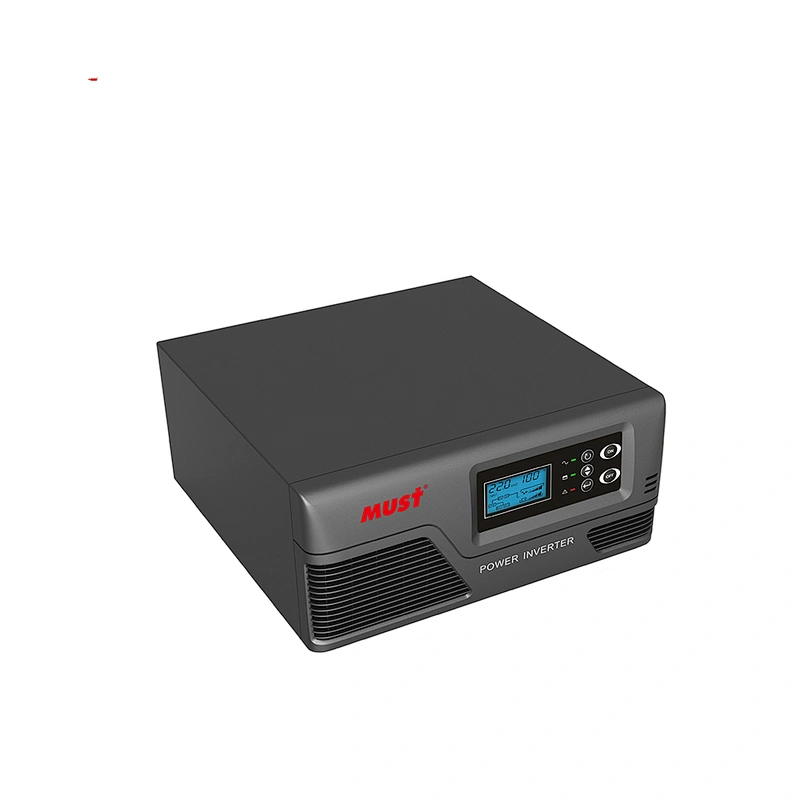

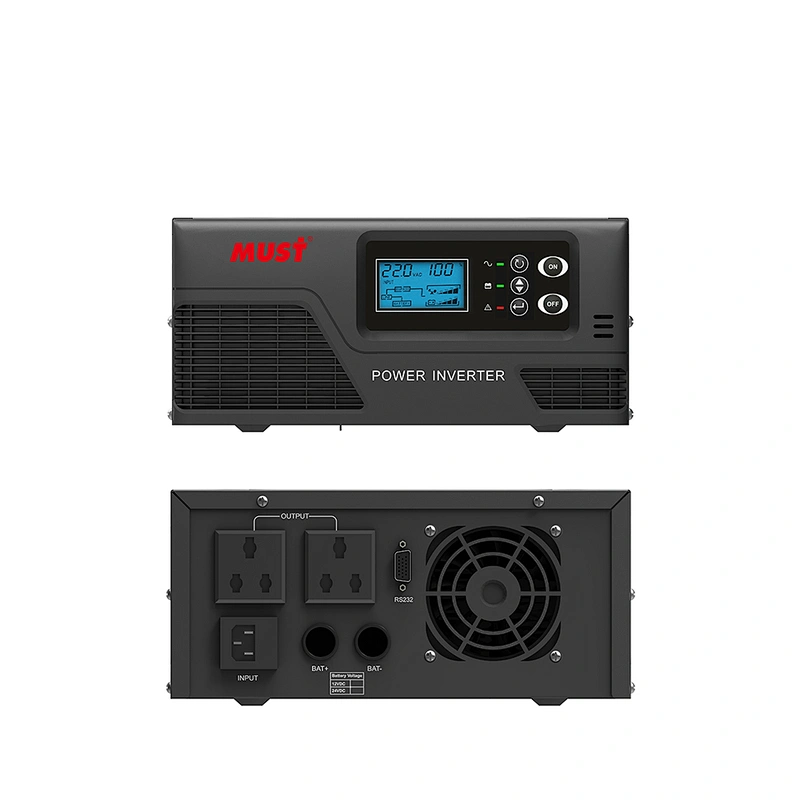

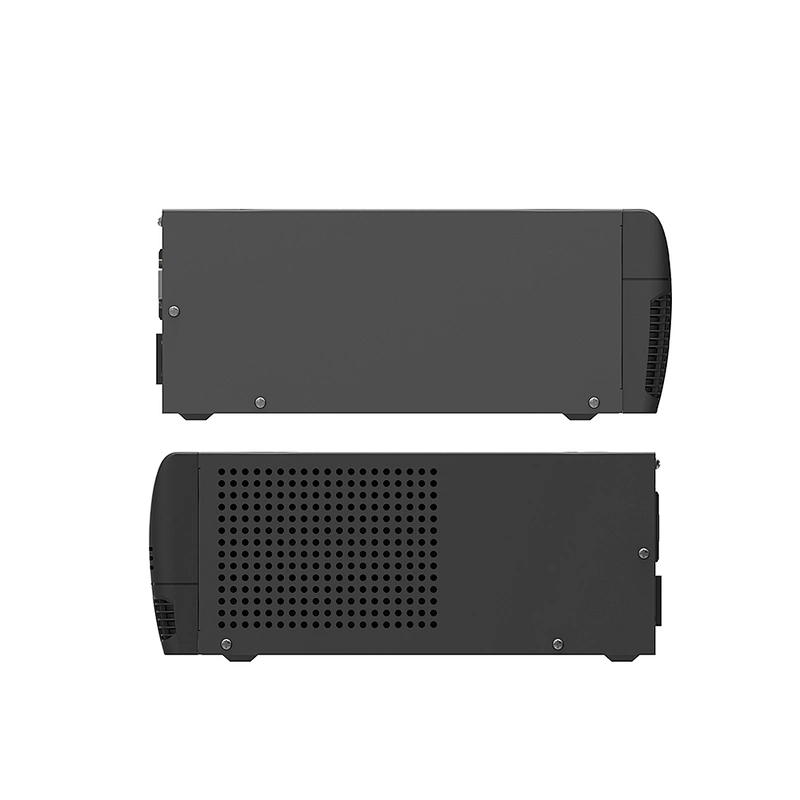

MUST 1000WDC12V toAC230V pure sine wave power inverter for Russia market

• Place of Origin:Guangdong, China
• Brand Name:MUST/OEM
• Model Number:EP2000 Pro series
• Type:DC/AC Inverters
• Output Type:Single
• Output Current:15A
• Output Frequency:50/60Hz
• Size:420*280*225mm
• Weight:12kg
• Certificate:CE
• Output Power:>1000KW
• Max charging current:15A
• DC voltage:12/24V
• Output wave:Pure sine wave
• AC to AC efficiency:>93%
• DC to DC:>95%
• Rated power:300W-1000W
• AC voltage:220-240V
• attery protection:Overcharge protection
• AVR function:yes

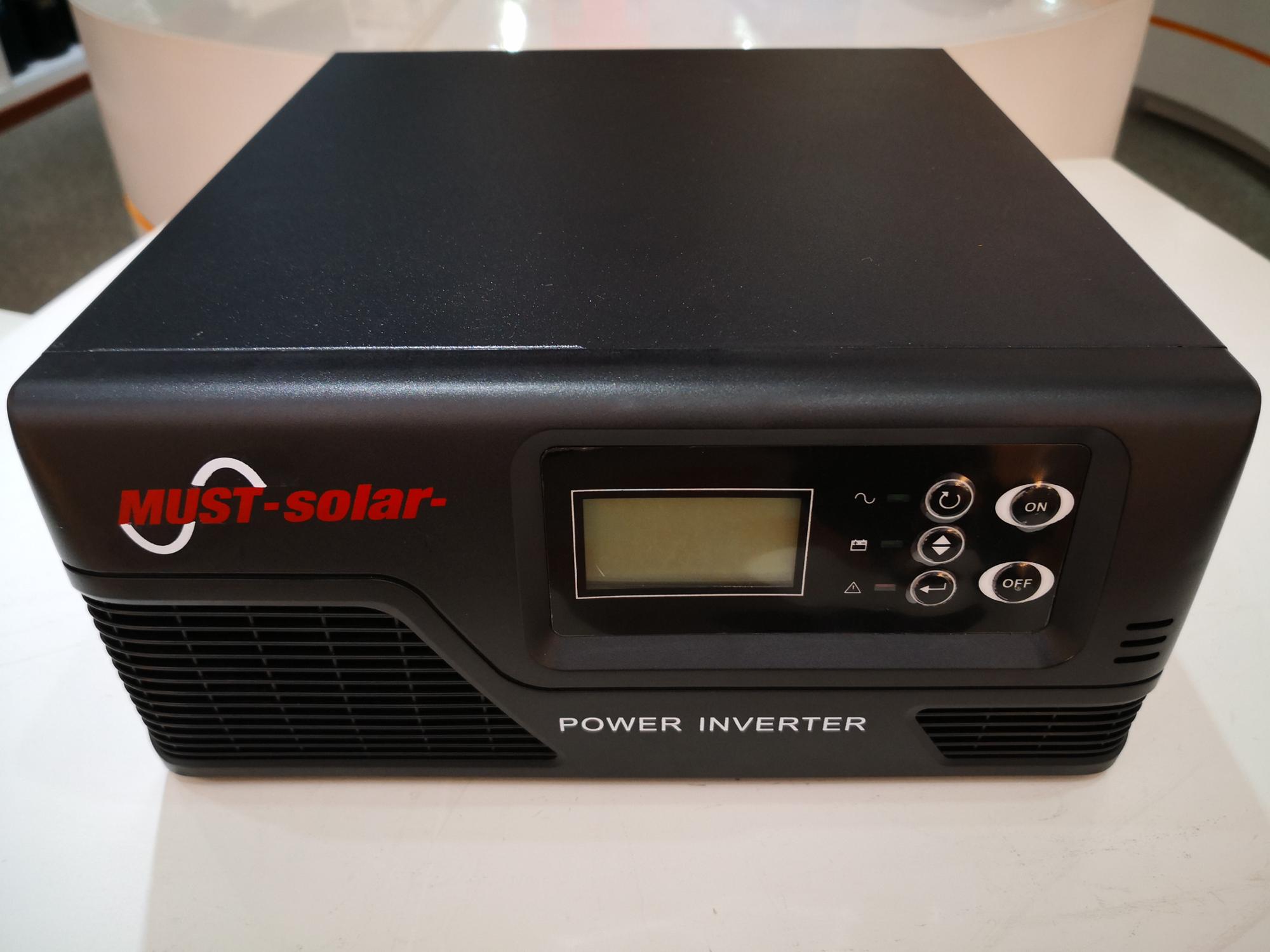

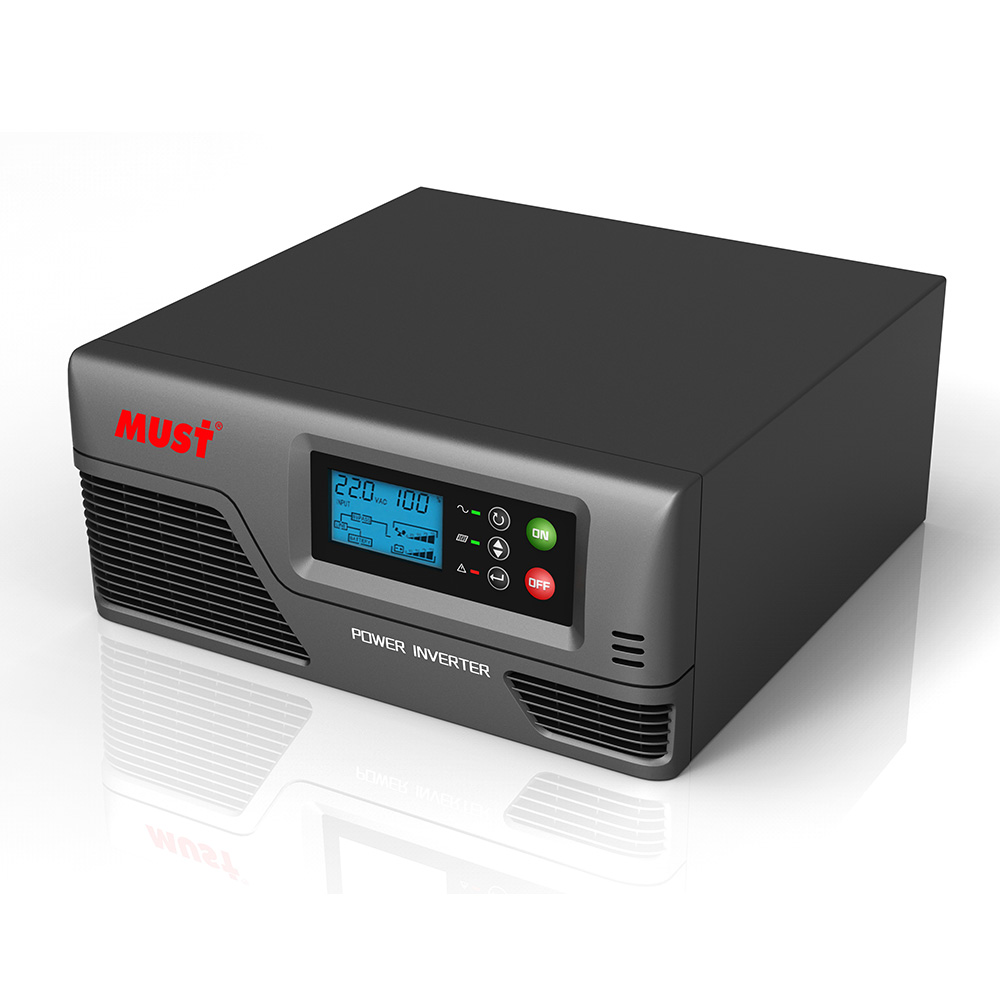

  < MUST>EP2000 Pro series  low  frequency 300W-1000W pure sine wave power inverter

It is a cost effective, intelligent inverter with UPS function. The comprehensive LCD offers user-configurable and easy-accessible button adjustment such as battery charge current, battery charge voltage, frequency, buzzer etc.

EP2000 Pro series  low  frequency power  inverter Features:

• Rated power 300W to 1000W
• Pure sine wave output
• Smart LCD setting ( frequency , charge voltage,charge current, etc)
• 3 steps charging algorithm
• Built in AVR function
• Overload and short-circuit protection
• Battery reverse polarity protection (Optional)
• Deep discharge protection
• Cold start function
• Technical Specification:

  SPECIFICATION

  Model	EP20-0312 Pro	EP20-0612 Pro	EP20-0812 Pro	EP20-1012 Pro	EP20-0324 Pro	EP20-0624 Pro	EP20-0824 Pro	EP20-1024 Pro
  Default Battery System Voltage	12VDC				24VDC
  INVERTER OUTPUT
  Rated Power	300W	600W	800W	1000W	300W	600W	800W	1000W
  Surge Rating(20ms)	900W	1800W	2400W	3000W	900W	1800W	2400W	3000W
  Waveform	Pure Sine Wave
  Rated Output Voltage	Inverter:230VAC(+/-2% RMS), AVR:195VAC-245VAC
  Output Frequency	50Hz/60Hz +/-0.2Hz
  Inverter Efficiency(Peak)	>75%				>81%
  Bypass Efficiency	>95%
  Output Transfer Time	Typical:6ms  10ms(max)
  AC INPUT
  Voltage	220/230/240VAC
  Selectable Voltage Range	140~280VAC+/-2%
  Low Battery Alarm	140VAC+/-2%
  Low Voltage Recover	150VAC+/-2%
  High Battery Alarm	280VAC+/-2%
  High Voltage Recover	270VAC+/-2%
  Low Frequency Alarm	45+/-0.2Hz
  Low Frequency Recover	46+/-0.2Hz
  High Frequency Alarm	65+/-0.2Hz
  High Frequency Recover	64+/-0.2Hz
  Norminal Input Range	50Hz/60Hz +/-0.2Hz
  AC Auto Restart	YES
  BATTERY
  Minimum Start Voltage	Low Battery Voltage Cutoff+0.5V				Low Battery Voltage Cutoff+0.5V
  Low Battery Alarm	Low Battery Voltage Cutoff+0.5V				Low Battery Voltage Cutoff+1.0V
  Low Battery Cutoff	10-12.0VDC				20.0-24.0VDC
  High Battery Cutoff	Nominal Voltage+0.5V				Nominal Voltage+1.0V
  AC CHARGE
  Floating Voltage	13.5 /13.6/ 13.7VDC				27.0/ 27.2 /27.4VDC
  Nominal Voltage	13.8~14.5V				27.6~29V
  Maximum Charge Current	300W	600W	800W	1000W	300W	600W	800W	1000W
  	10A	20A	25A	30A	5A	10A	15A	15A
  BYPASS & PROTECTION
  Input Waveform	Pure Sine Wave
  Input Frequency	50Hz or 60Hz
  Low Frequency Trip	45+/-0.2Hz
  Low Frequency Trip	65+/-0.2Hz
  Overload Protection	110%~125%R Load  fault after 30S; 125% ~150%R Load fault after 3s ;>150%R Load  fault after 500ms
  Over Temperature Protection	90℃
  Bypass Output Protection	10A 250VAC
  Output Circuit protection	YES
  Battery Reverse Protection	Optional
  Battery Low Voltage Protection	YES
  Battery High Voltage Protection	YES
  Bypass Breaker Rating	10A
  Maximum Bypass Current	10A
  MECHANICAL SPECIFICATION
  Dimensions	315*145*210mm
  (N.W) kg	300W		600W		800W		1000W
  	7.5		10.7KG		12.5		13.5KG
  Shipping Dimensions (W*H*D)	420*280*225mm
  (G.W)kg	300W		600W		800W		1000W
  	8		11.5KG		13		14.0KG
  OTHER
  Operating Temperature	0°C~40°C 0~90% relative humidity (non-condensing)
  Storage Temperature	-15°C to 55°C
  Altitude	1000M
  Audible Noise	60dB
  Display	LED+LCD
  Cooling mode	Fan cooling
  Fan starting	45°C starting,<30°C Closing

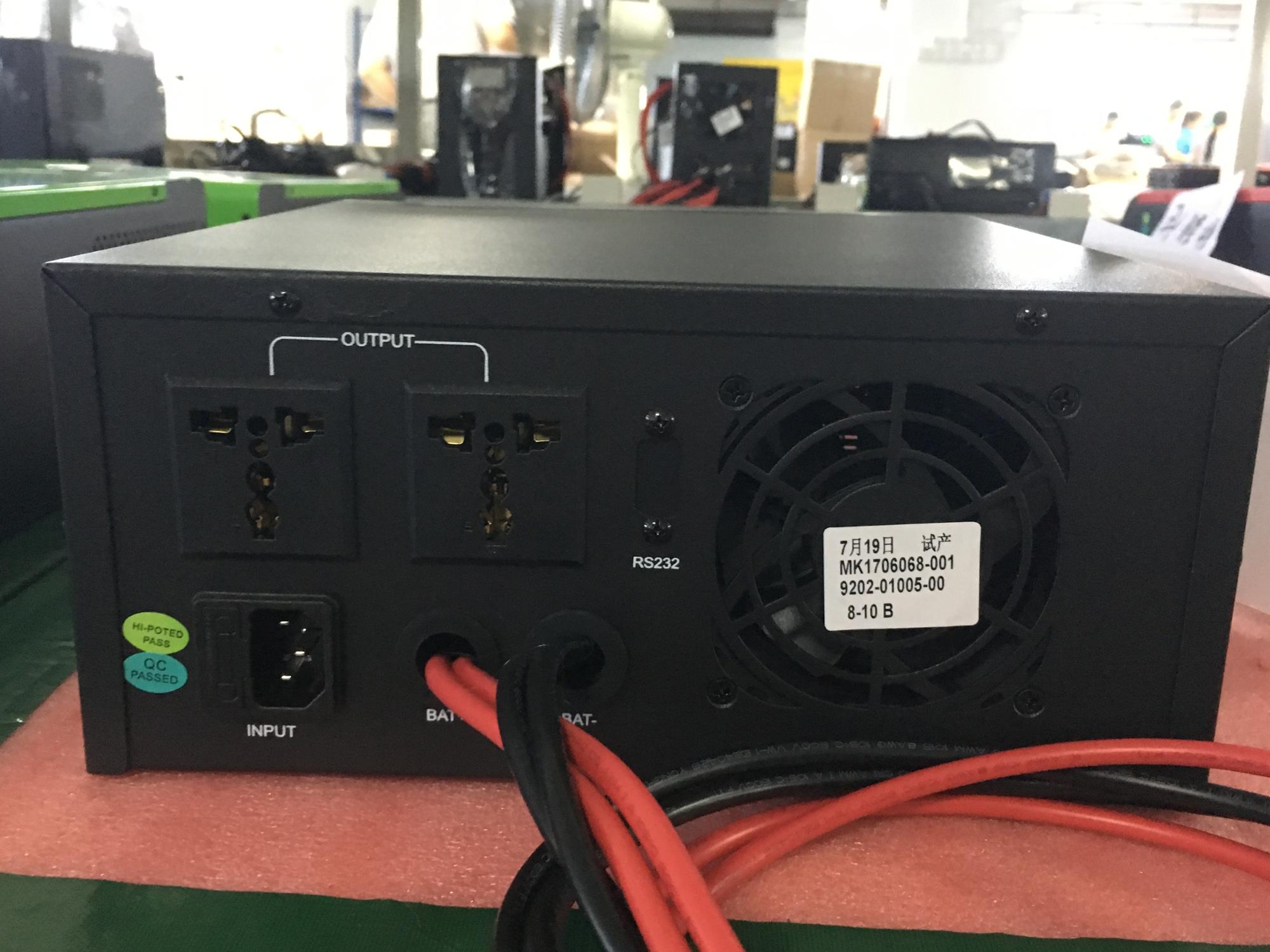

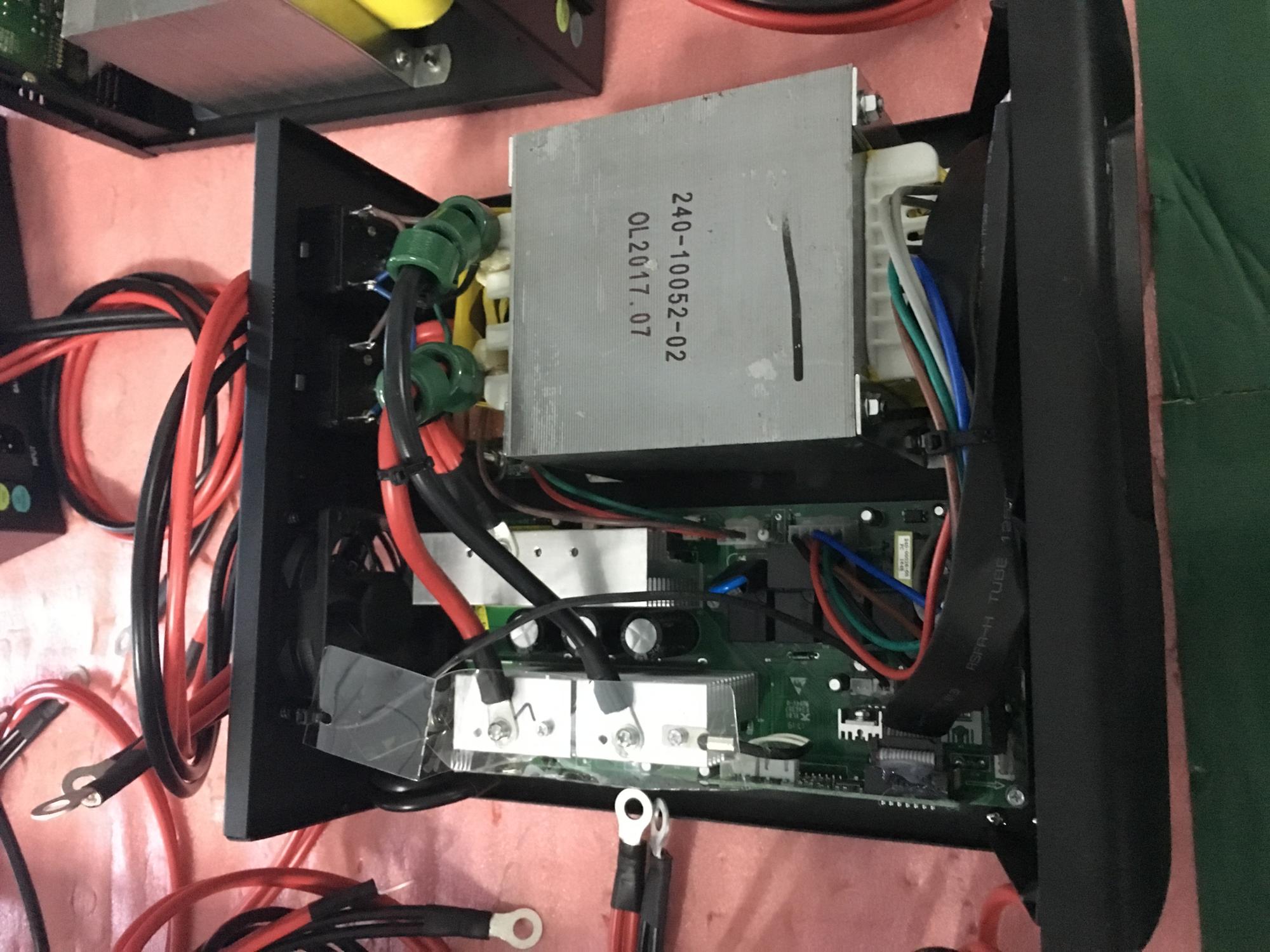

• Detailed Description:

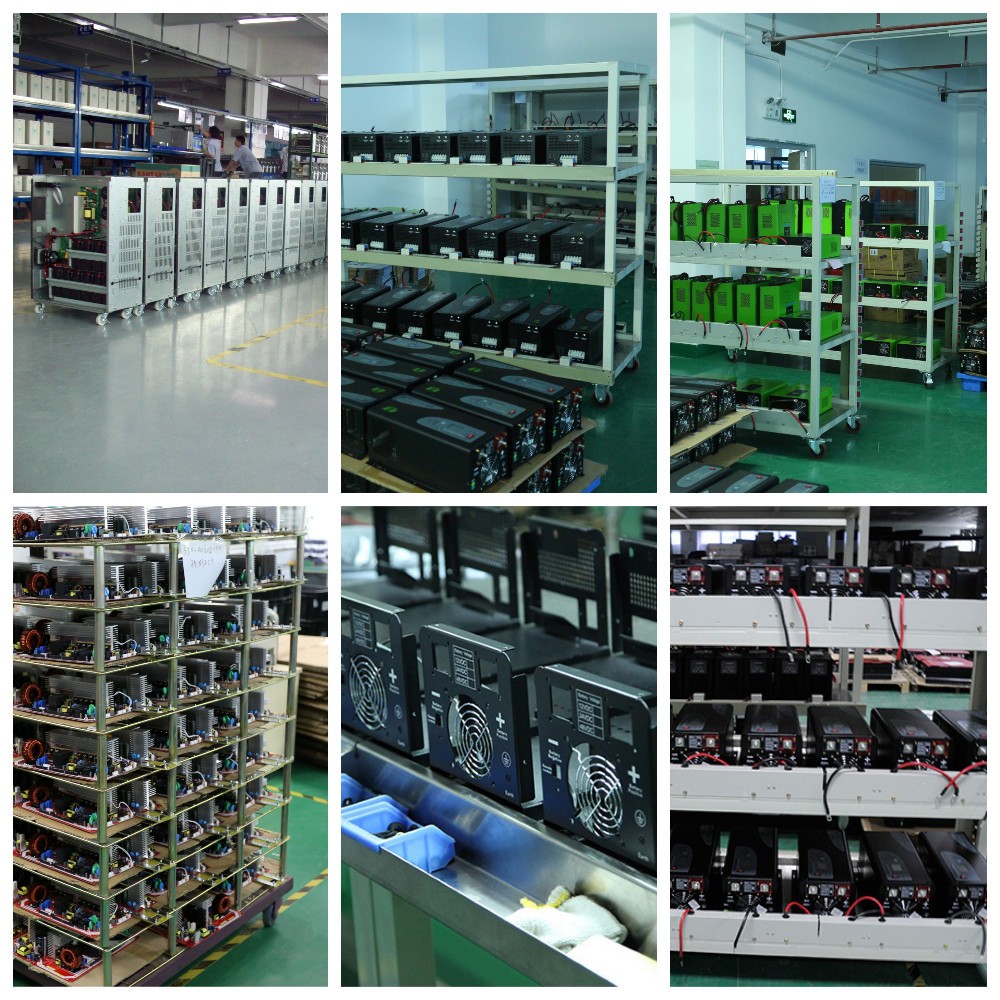

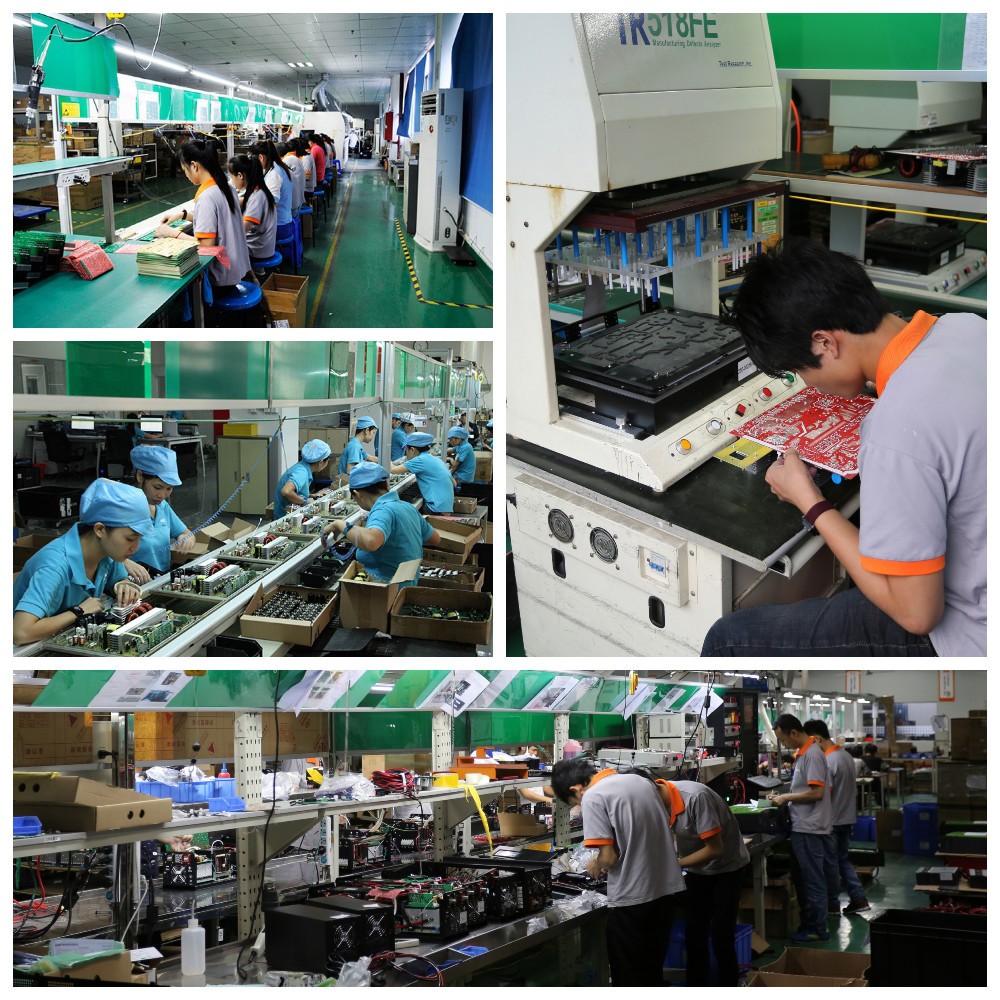

 MUST Factory Production Line  :

About MUST  :

Customers Service:

(1)Warranty :

Our product warranty is valid for 12 months after delivery. We undertake to repair  any  malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.

 (2)Lead time:

a.sample orders (1-2pcs)will be delivered from our factory within 7working days .

 b.Bulk  orders  will be delivered from our factory within 25 working days.

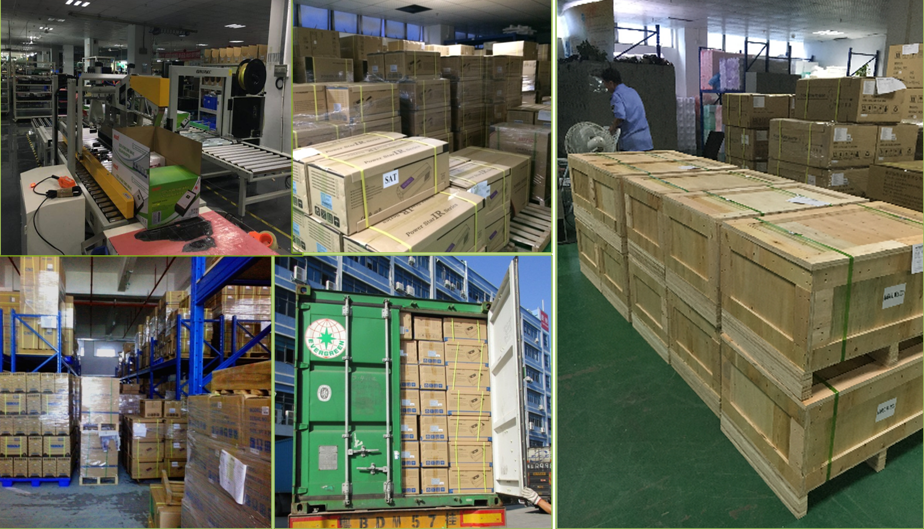

 (3)shippment :

  By sea ,airway , EMS, DHL, FedEx, TNT, UPS or other express.

 (4)Payment: T/T , Western Union,L/C
