- Place of Origin:Guangdong, China
- Brand Name:OEM
- Model Number:PH1800 Plus
- Input Voltage:220vac/230vac
- Output Voltage:220vac/230vac
- Output Current:80A
- Output Frequency:50Hz/60Hz
- Output Type:Single
- Size:297.5*468*125mm
- Type:DC/AC Inverters
- Weight:14kg
- MPPT charge controller:80A
- Waveform:Pure sine wave
- DC input voltage:48v
- Capacity:5KW On off grid hybrid solar inverter
- Inverter type:High Frequency On Off Grid Hybrid Solar Inverter
- Efficiency:>93%
- Color:Silver, OEM for large order
- Protection:short circuit and overcharge protection, etc
- Safety certificates:CE&ISO9001
- Warranty:12 month

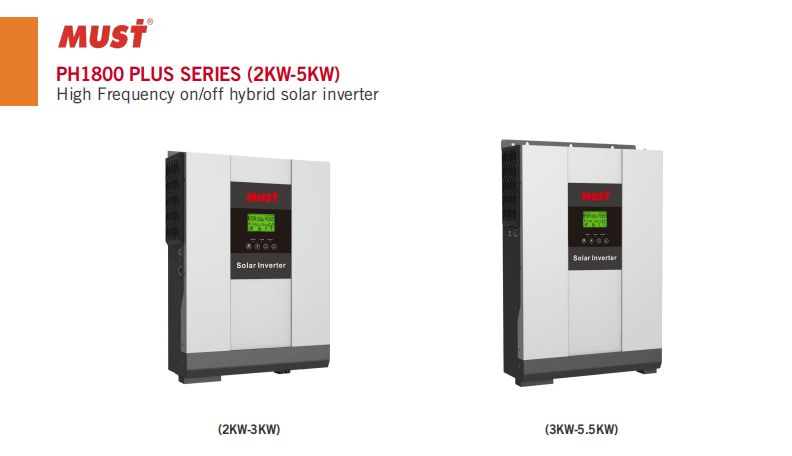

Household Solar Power System 5.5KW Off Grid Hybrid Solar Inverter Hybrid MPPT 80A
***************ANY QUESTIONS, INQURIES WELCOMED TO Larin Hu!!!!***************
WHATSAPP/WECHAT: 0086157 7053 6318
MUST 15KVA 15KW Hybrid Solar Inverter Three Phase On Off Grid Tie Solar Power System

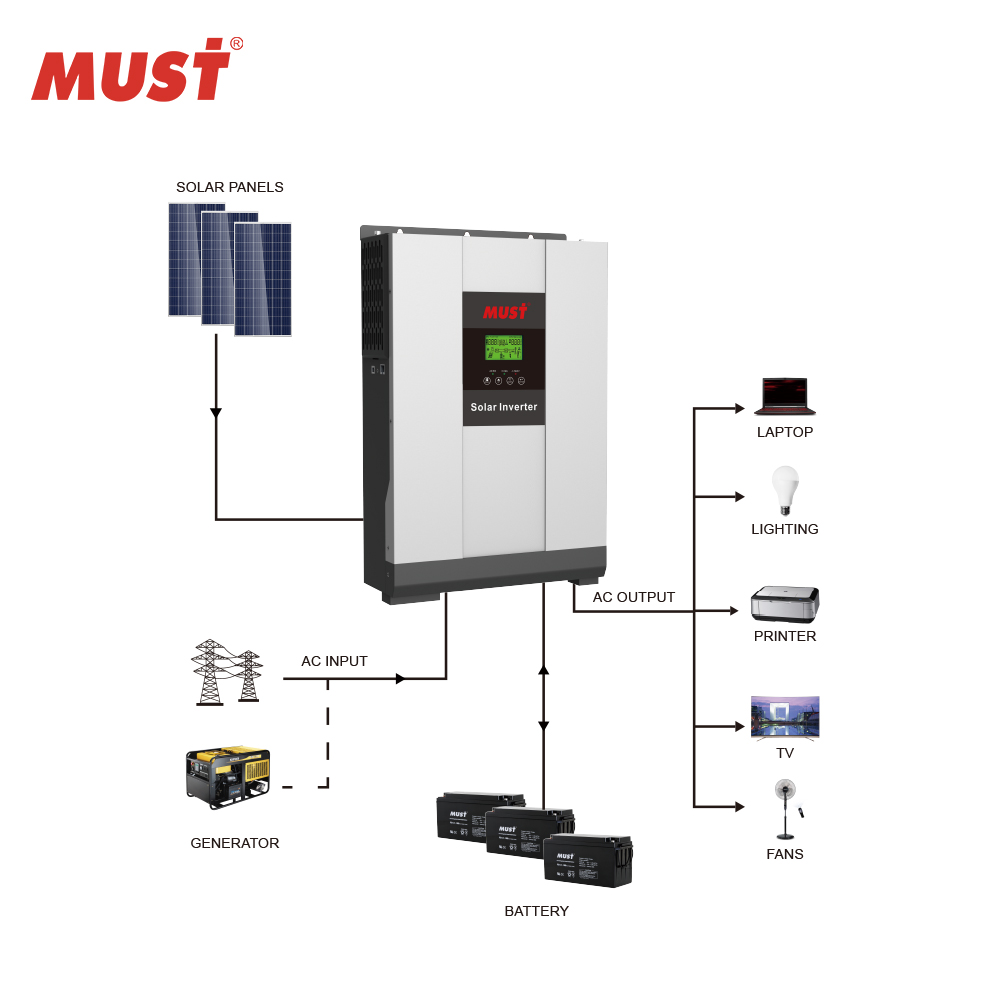

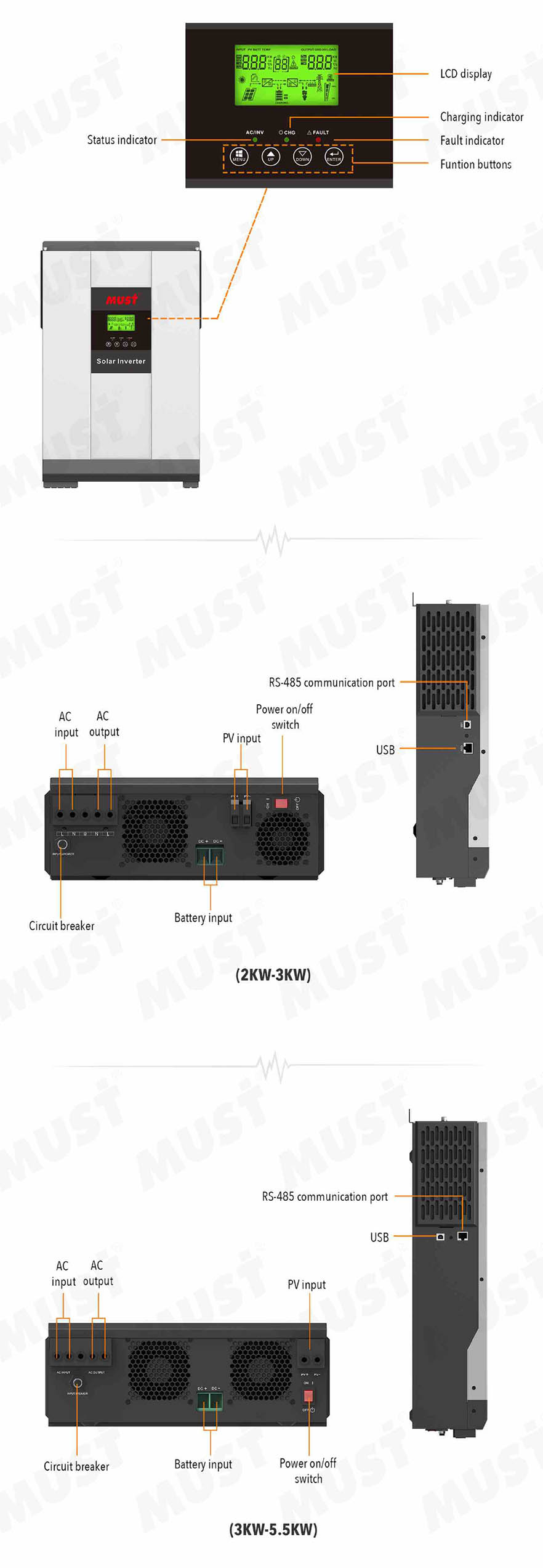

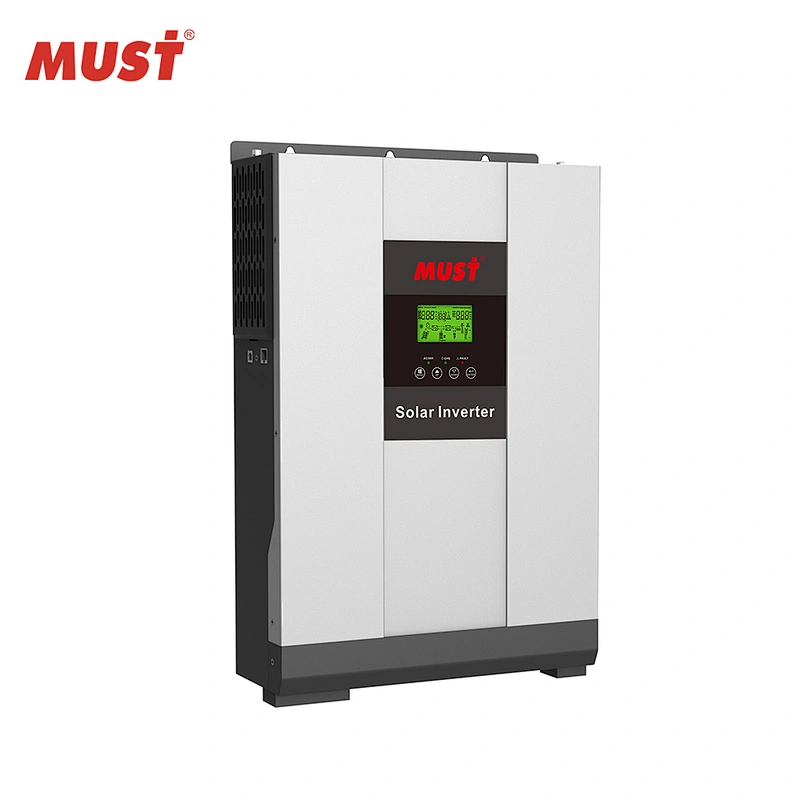

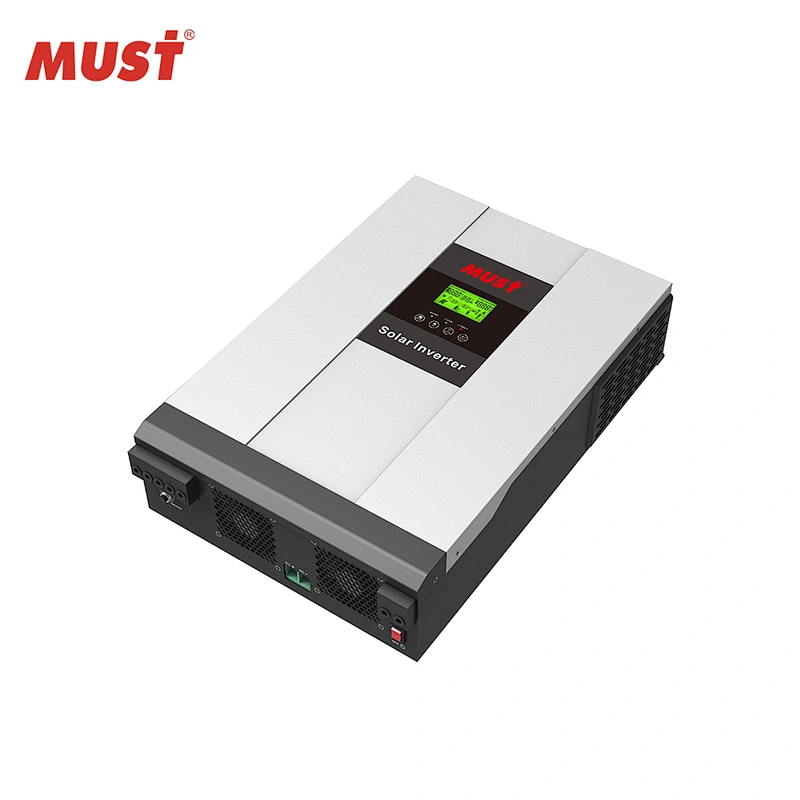

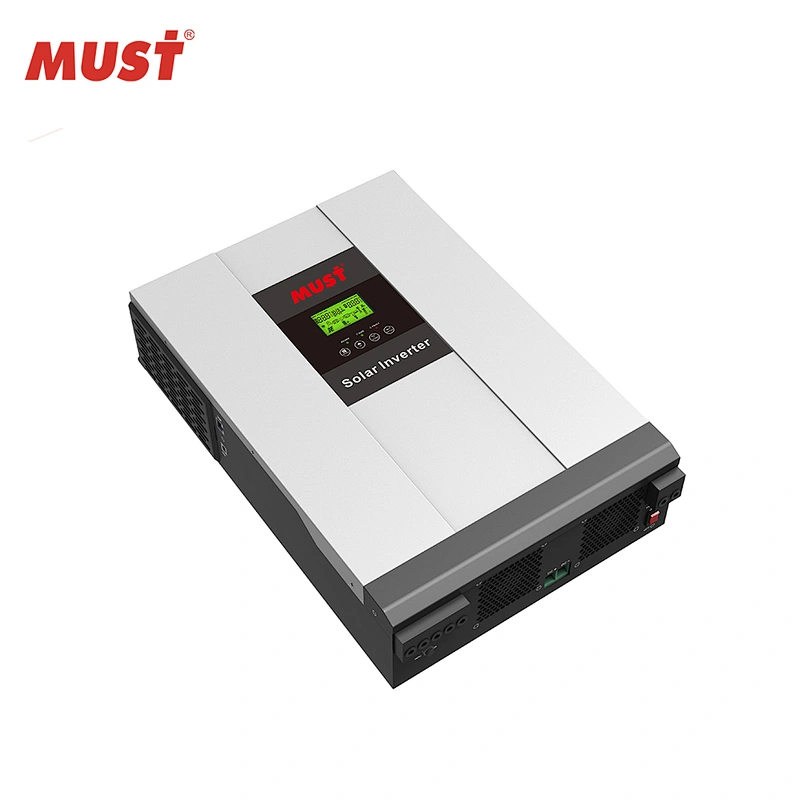

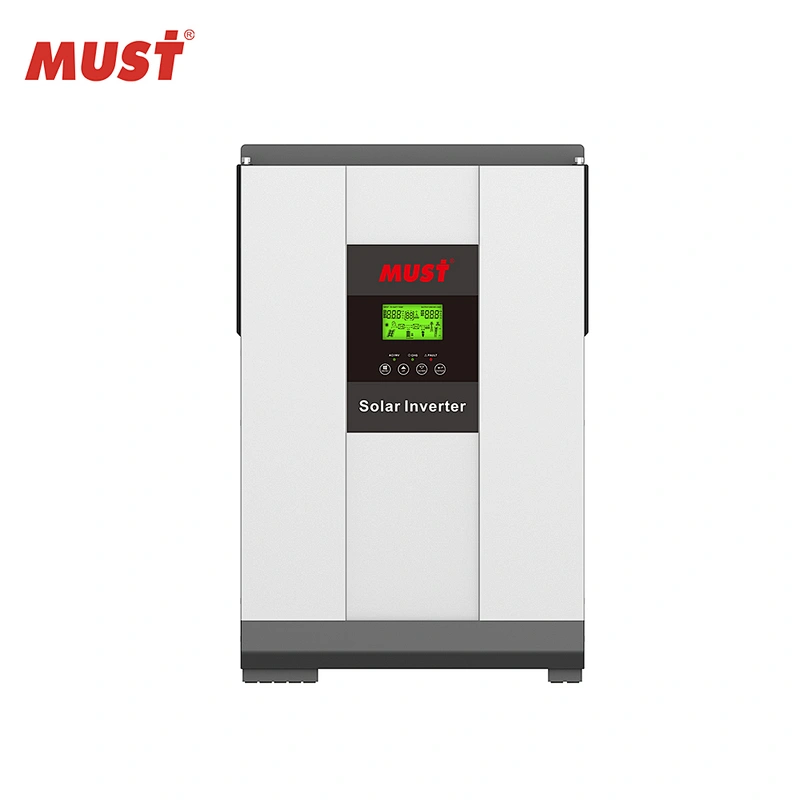

PH1800 Plus series hybrid solar inverter, it can realize self-consumption and feed-in to the grid from solar energy with best solution according to your setting. During the daytime solar power can run your home appliances and if there is extra solar power it will feed-in to the grid or you can choose to save them on the battery to backup when power failure or nighttime.
MUST 15KVA 15KW Hybrid Solar Inverter Three Phase On Off Grid Tie Solar Power System

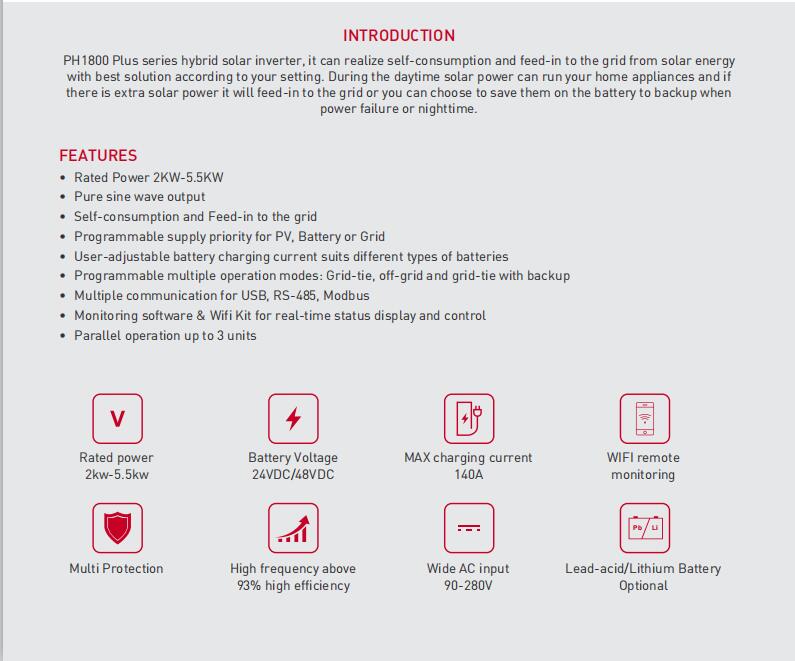

Feature Details:
Rated Power 2KW-5.5KW
Pure sine wave output
Self-consumption and Feed-in to the grid
Programmable supply priority for PV, Battery or Grid
User-adjustable battery charging current suits different types of batteries
Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
Multiple communication for USB, RS-485, Modbus

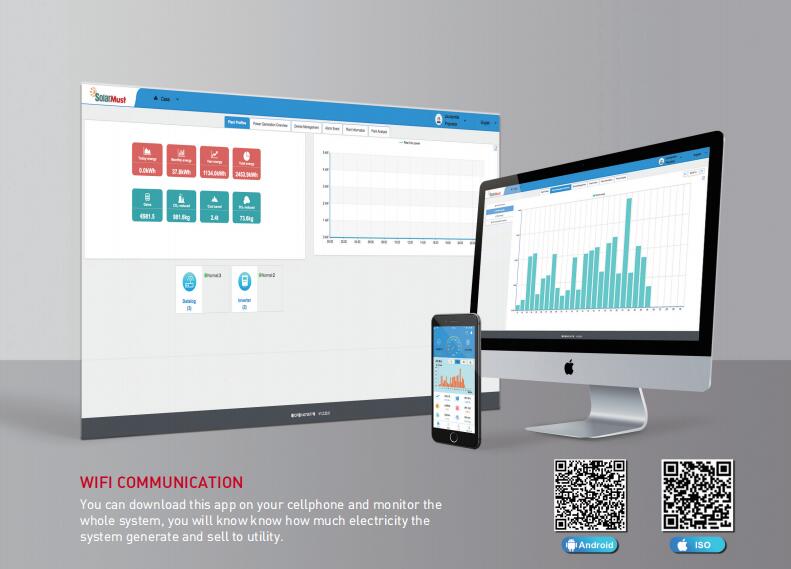

Monitoring software & Wifi Kit for real-time status display and control
Parallel operation up to 3 units

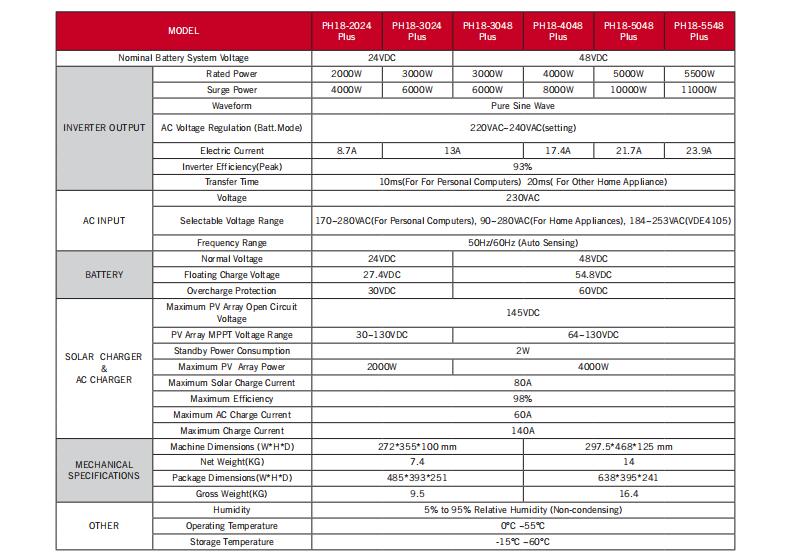

Technical Specifications For PH1800 Plus On Off Grid Hybrid Solar Inverter | ||||||
Efficiency | ||||||
Maximum Efficiency | 98% | |||||
Inverter efficiency | 93% | |||||
PV Input(DC) | ||||||
Voltage | 230VAC | |||||
Selectable Voltage Range | 170~280VAC(For Personal Computers); 80~280VAC(For Home Appliances); 184~253VAC(VDE4105) | |||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
Inverter Output (AC) | ||||||
Rated Power | 2000W / 3000W / 4000W / 5000W/5500W | |||||
AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% | |||||
Inverter Efficiency (Peak) | 93% | |||||
Waveform | Pure Sine Wave | |||||
Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | |||||
Battery | ||||||
Nomial voltage | 24VDC / 48VDC | |||||
Floating Charge Voltage | 27VDC / 54VDC | |||||
Overcharge Protection | 31VDC / 60VDC | |||||
Solar Charger & AC Charger | ||||||
Maximum PV Array Open Circuit Voltage | 145VDC | |||||
PV Array MPPT Voltage | 30~130VDC ; 64~130VDC | |||||
Standby Power Consumption | 2W | |||||
PV Input Power | 1440W/1920W ; 2880W/3840W | |||||
Maximum Solar Charge Current | 60A / 80A | |||||
Maximum charging current(A) | 80A ; 120A/140A | |||||
Protections | ||||||
Overload | Yes | |||||
Short circuit | Yes | |||||
Deep discharge | Yes | |||||
Where there is clean power to use, there is Must Power's products and service. -- Must Solar
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
