- Place of Origin:Guangdong, China
- Brand Name:MUST or OEM
- Model Number:PH1800 plus
- Input Voltage:220V/230V/240V
- Output Voltage:220V/230V/240V
- Output Current:60A-120A
- Output Frequency:50Hz/60Hz
- Output Type:Singe or Three Phases
- Size:618*415*261mm
- Type:DC/AC Inverters
- Weight:10-16kg
- Color:Red,Green,Silver
- Output waveform:Pure Sine Wave Output
- Frequency:High frequency
- Status display:LCD+LED
- Inverter type:Off grid + Grid tie
- DC voltage:24/48VDC
- battery charger current:max 120Amp
- inverter efficiency:Over 93%
- Warranty:1-3 Year
- Certification:CE/ISO9001/Soncap

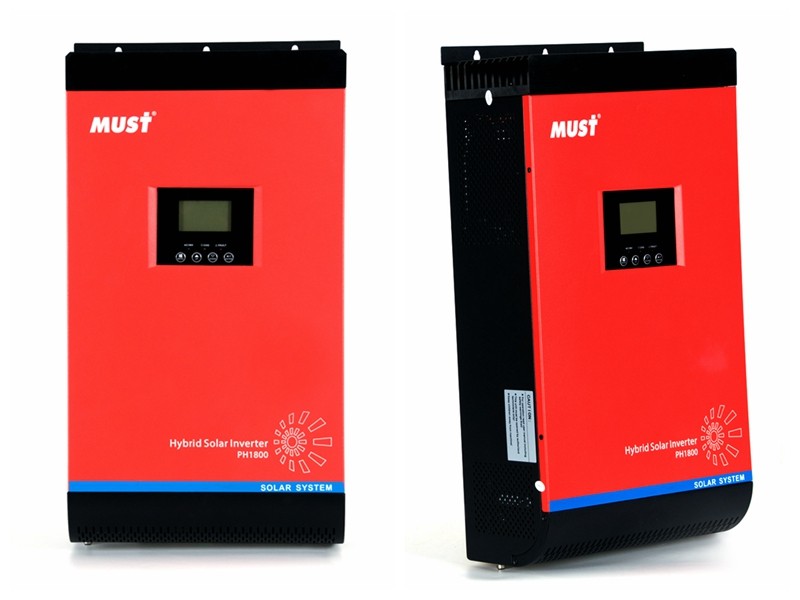

MUST Foshan factory 2019 PH1800 Plus on/off grid hybrid solar inverter for air conditioner pure sine wave output
Features of solar power inverter PH1800 series:Pure sine wave output
- Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
- Built-in MPPT 60A/80A solar charge controller
- New SUB working mode(Solar-Utility-Battery working mode) for 4K-5K series
- MPPT Efficiency max 98%
- Combining solar system, AC utility, and battery power source to
- supply continuous power
- Multiple operations: basic Grid-tie, Off-Grid, Grid-Interactive
- Parallel operation with up to 3 units (Available for 4KVA/5KVA only)
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function with free CD
- WIFI/ GPRS remote monitoring (optional)
- Compatible to generator
LCD Display Information:

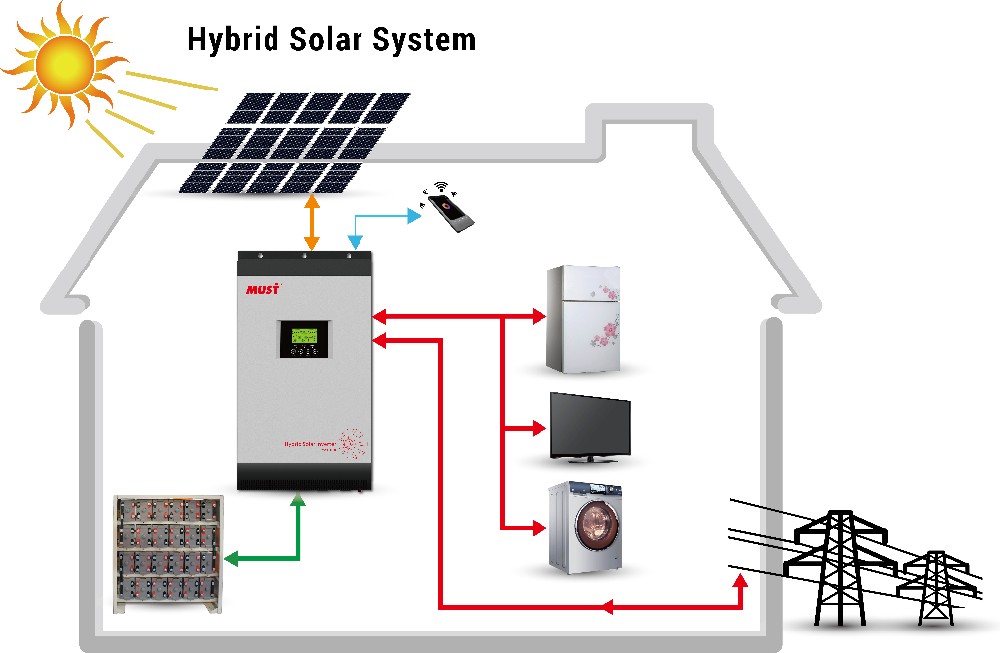

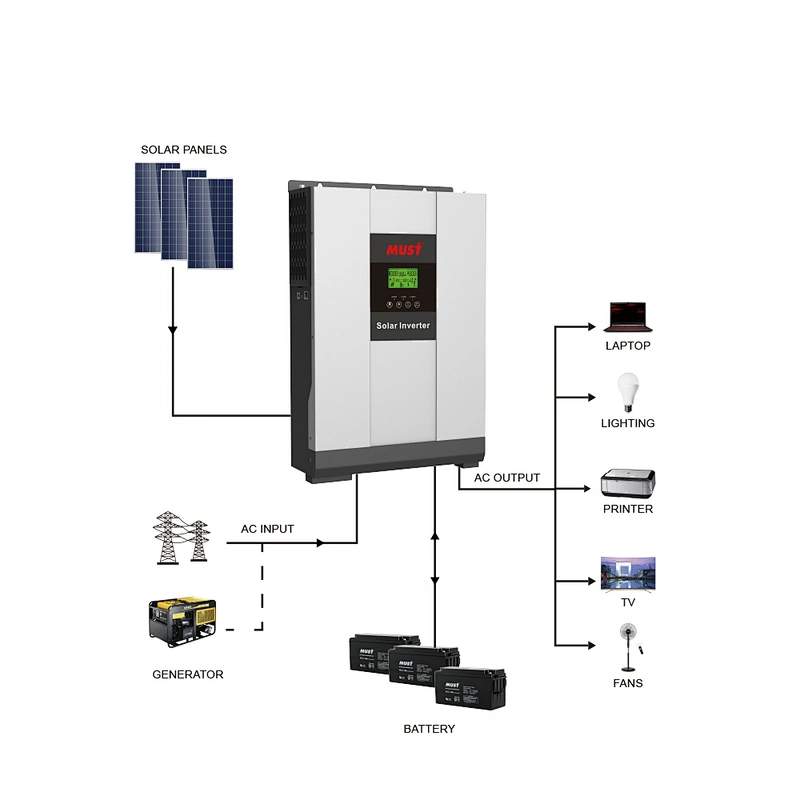

Solar System Connection:

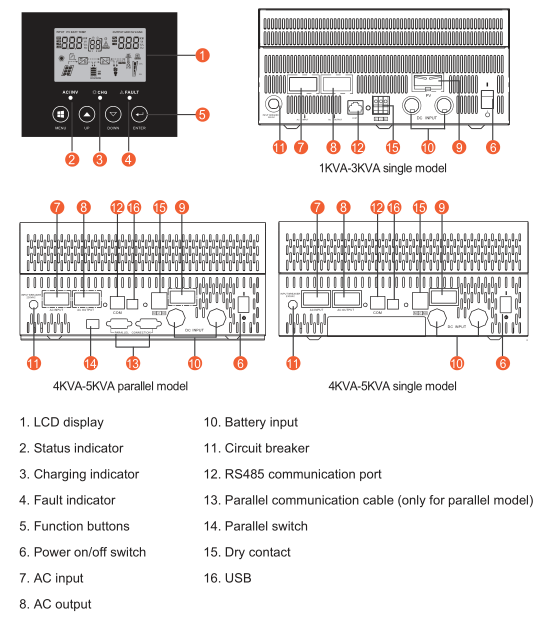

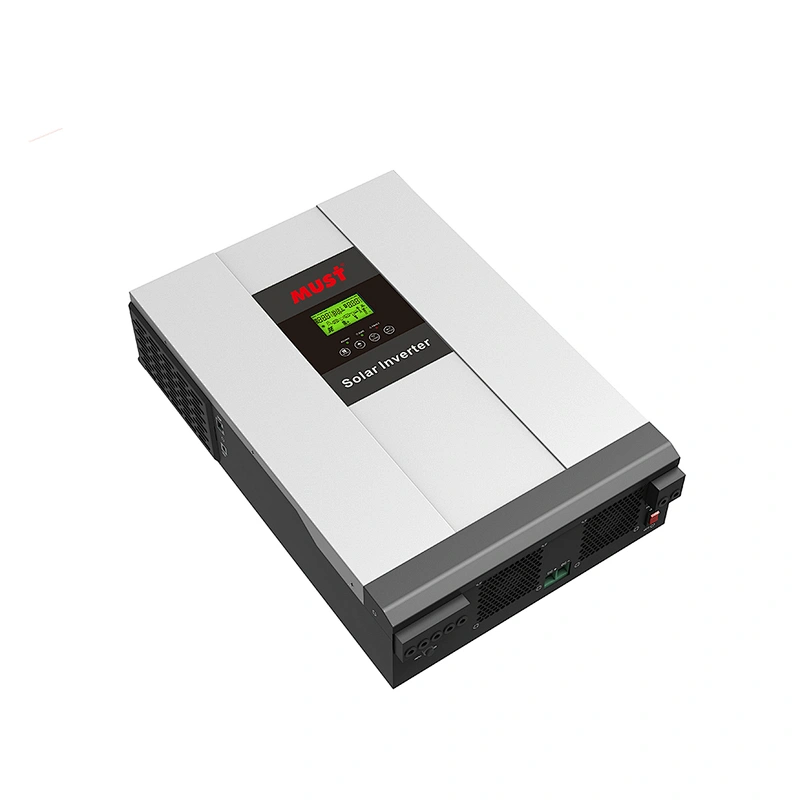

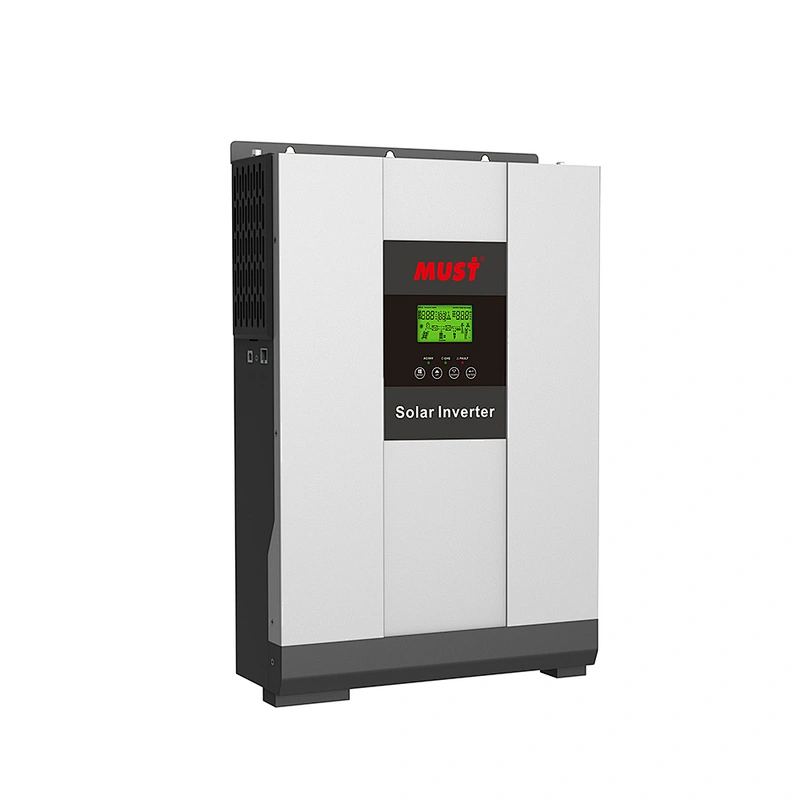

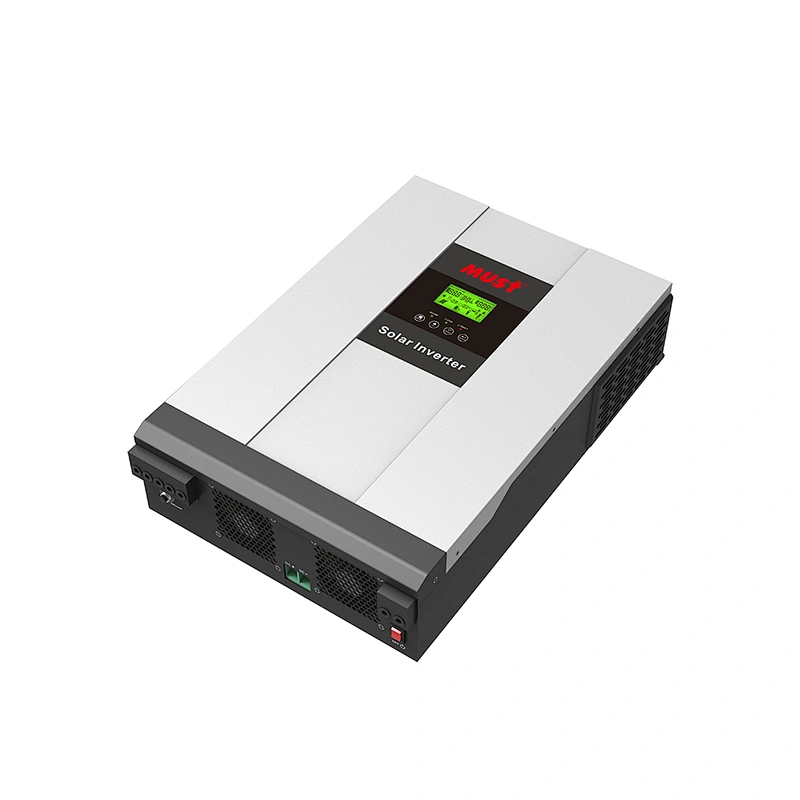

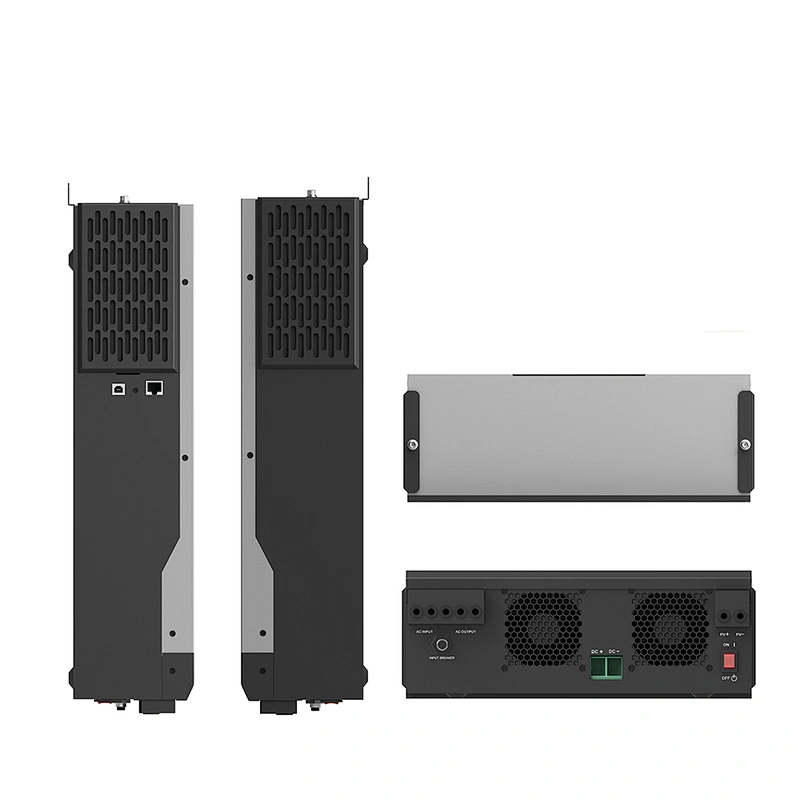

Solar Inverter PH1800 plus Design:

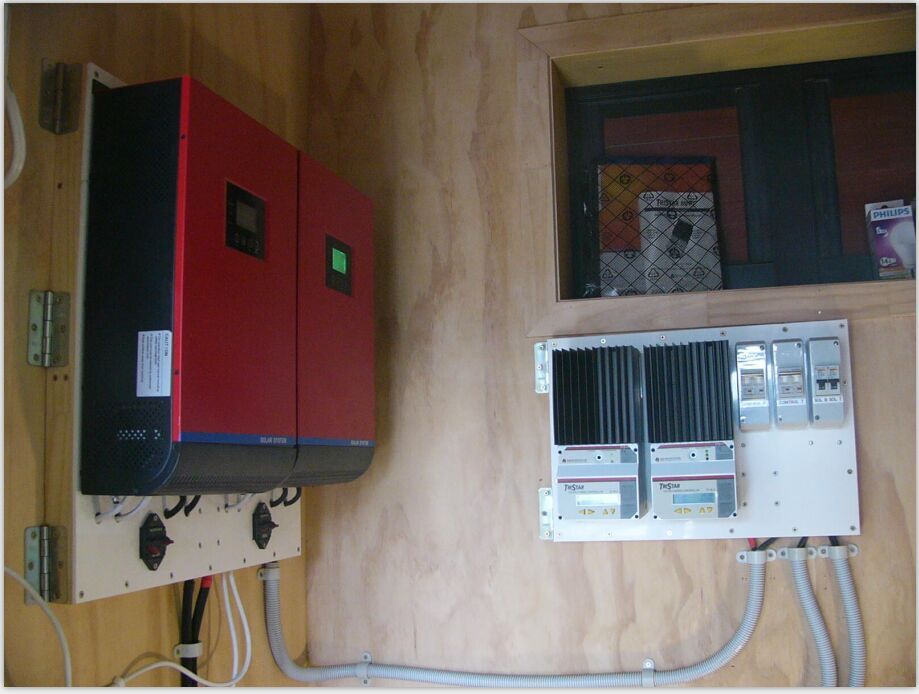

Parallel Function for our customers home use:
Specification sheet
| MODEL | PH18-1K Plus | PH18-2K Plus | PH18-3K Plus | PH18-4K Plus | PH18-5K Plus | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Default Battery System Voltage | 24VDC | 48VDC | ||||||||
| INVERTER OUTPUT | ||||||||||
| Reted Power | 1000VA/ 800W | 2000VA/ 1600W | 3000VA/ 2400W | 4000VA/ 3200W | 5000VA/4000W | |||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |||||
| Waveform | Pure sine wave | |||||||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||||||||
| Electric current | 3.4A | 7.0A | 10.5A | 13.0A | ||||||
| Output frequency precision | 50Hz±0.1% | |||||||||
| THD (Linear loads) | Off grid≤2%; Grid discharge ≤3%; Grid charge ≤3% | |||||||||
| Inverter Efficiency (Peak) | 90% | 93% | ||||||||
| Transfer Time | 10ms(FST,APL);20ms(SLO) | |||||||||
| AC INPUT | ||||||||||
| Voltage | 230VAC | |||||||||
| Selectable Voltage Range | 170~280VAC(FST);90~280VAC(SLO);184-253VAC(APL) | |||||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||||
| BATTERY | ||||||||||
| Nominal voltage | 24VDC | 48VDC | ||||||||
| Floating Charge Voltage | 27VDC | 54VDC | ||||||||
| Overcharge Protection | 31VDC | 60VDC | ||||||||
| SOLAR CHARGER & AC CHARGER | ||||||||||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||||||||
| PV Array MPPT Voltage Range | 30 ~ 130VDC | 64 ~130VDC | ||||||||
| Standby Power Consumption | 2W | |||||||||
| Reted Power | 1500W | 3000W | ||||||||
| Maximum Solar Charge Current | 60A | |||||||||
| Maximum Efficiency | 98% | |||||||||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | |||||||
| Maximum Charge Current | 60A | 120A
| ||||||||

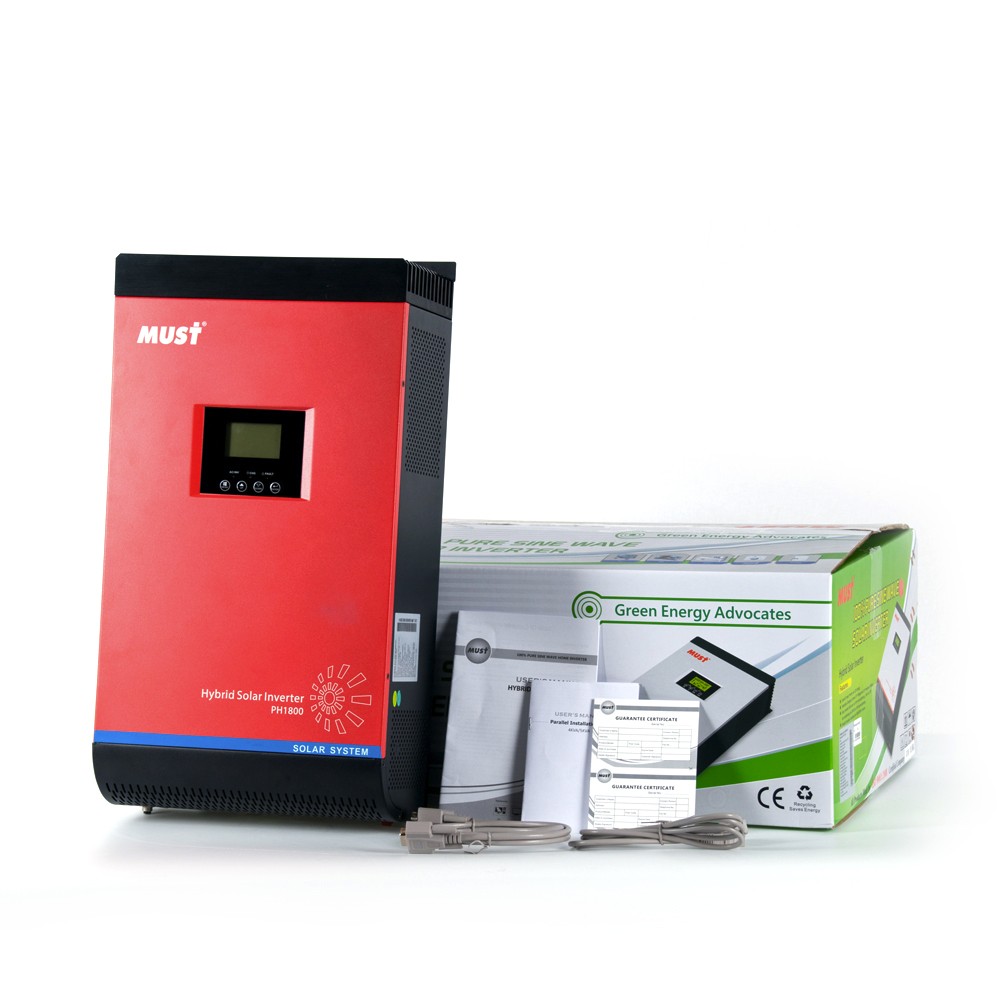

Power Inverter Package: Client's OEM Package Welcomed

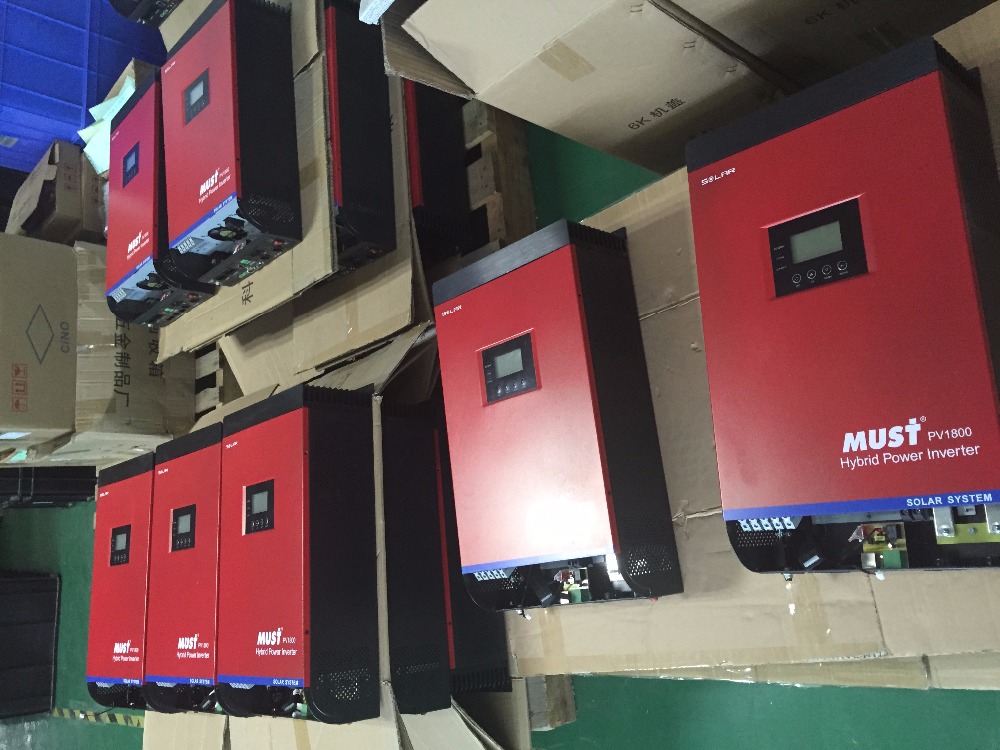

Power Inverter Shipping
Samples and OEM, Warranty and After-Sale Service:
- Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:1 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 220 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
