- Place of Origin:Guangdong, China
- Brand Name:Must power inverter battery backup
- Model Number:1kw-6kw(EP3000) power inverter battery backup
- Type:DC/AC Inverters
- Output Type:Single
- Output Current:<70amp
- Output Frequency:50Hz or 60Hz
- Size:218X179X442mm
- Weight:20~48kg
- Certificate:CE & SGS
- power inverter battery backup:dc to 220vac 110vac lcd inverter
- PWM inverter:dc to ac power convertion
- ac voltage regulation:boost buck auto-transformer
- dc nominal:12vdc/ 24vdc / 48vdc
- ac nominal:220vac/230vac/240vac, 110vac/120vac(1kw-4kw)
- input ac voltage:155-265Vac(ac in priority)
- ac input range:180-265Vac(battery in priority)
- dc to ac power convertion:Mosfet

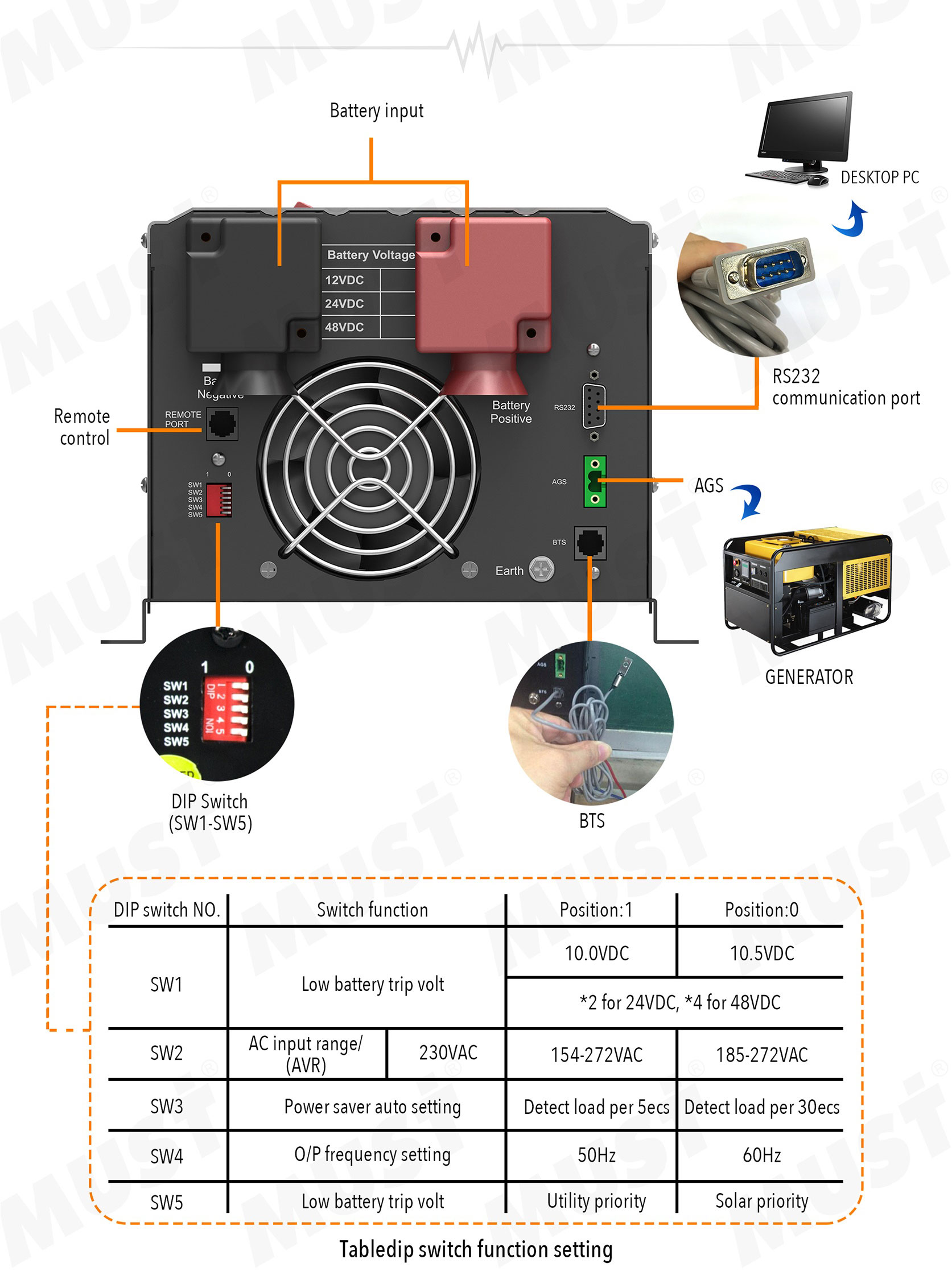

- communication:RS232 monitor load,ac,battery status
- Remote on/off:10 meters distance operate inverter conveniently

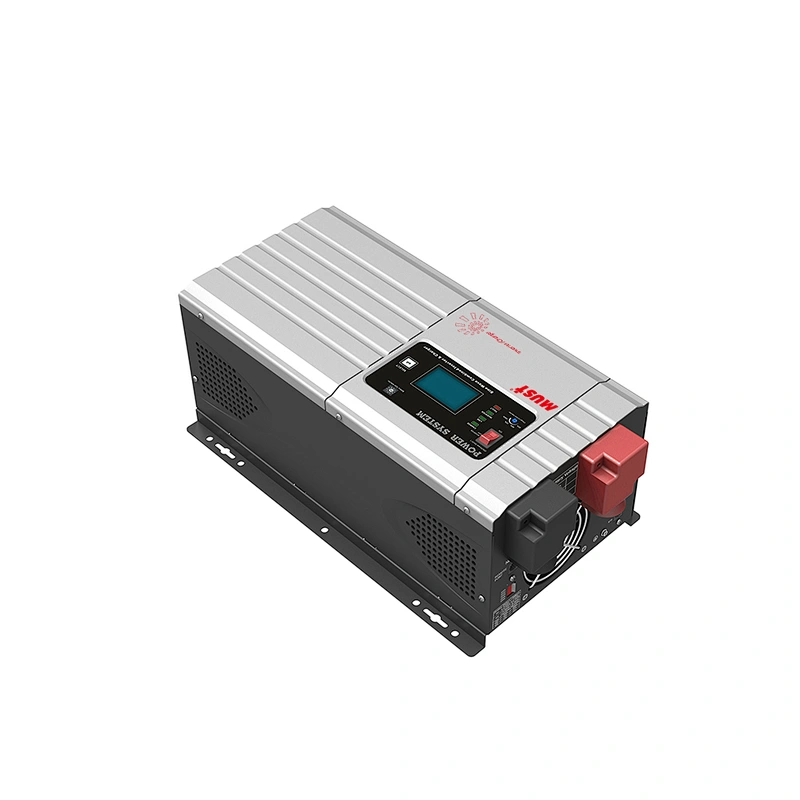

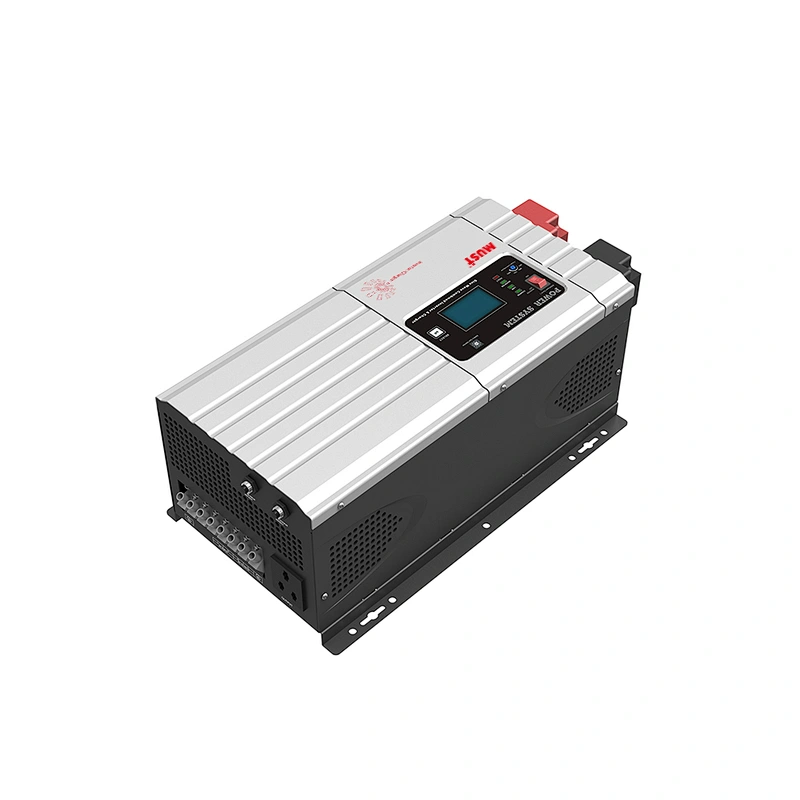

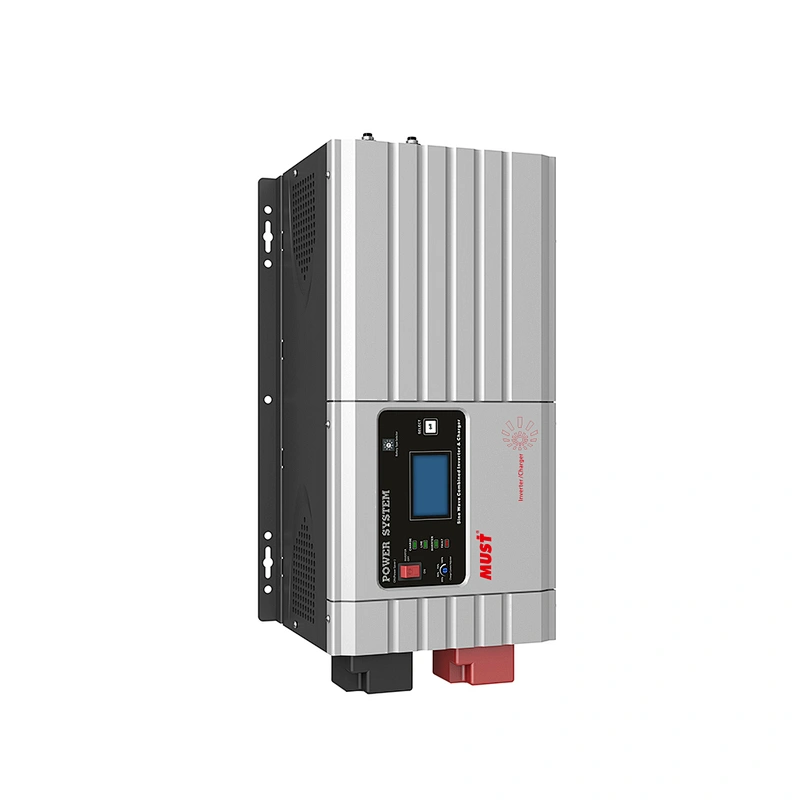

auto-transformer for voltage boosting power inverter battery backup lcd led 1000w to 6000w

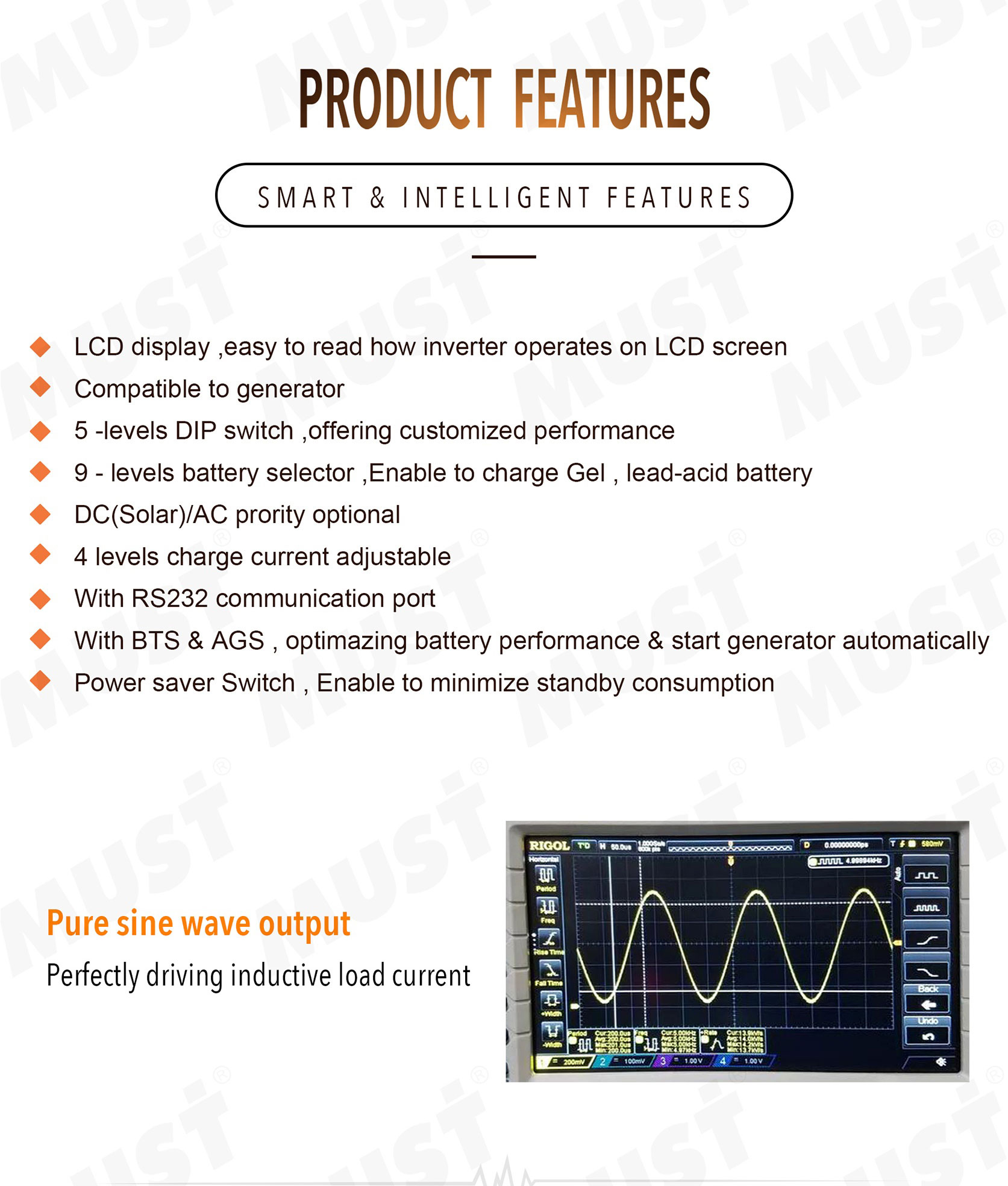

Main features:

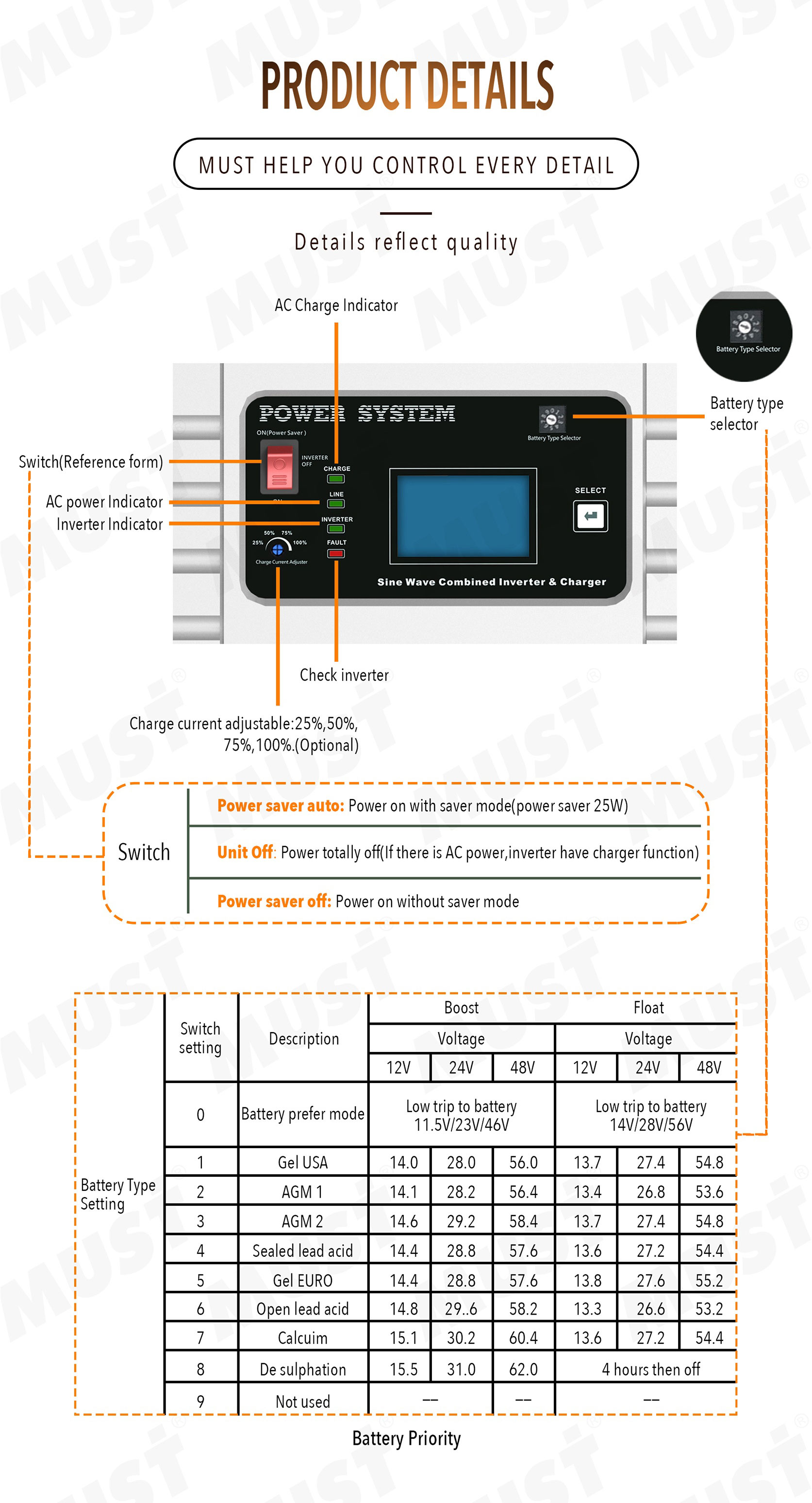

Charge current adjustable
Battery priority function option(solar system)

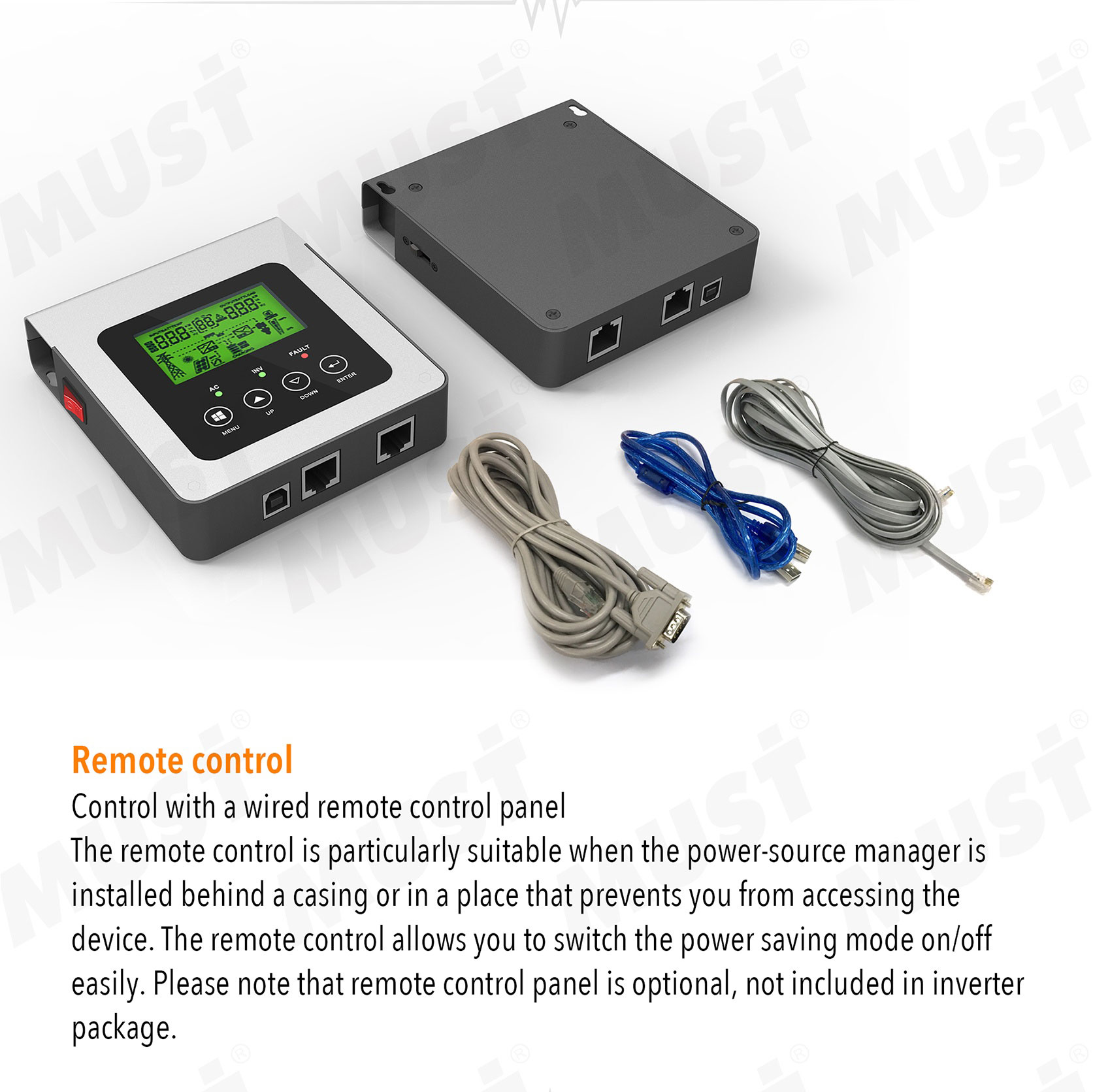

Remote control function option
RS232 option
1.Pure sinewave output,can be used withdifferent domestic appliance like TV, refrogerator ,fan,air conditioner.cooker,mirco-wave oven,etc.
2.Superior performance from CPU control technology.
3.Wide range of input voltage,accruate output,AVR function.
4.Inner-equipped protection for over-load,short-circuit,over-voltage,low-voltage,over-heating,etc.

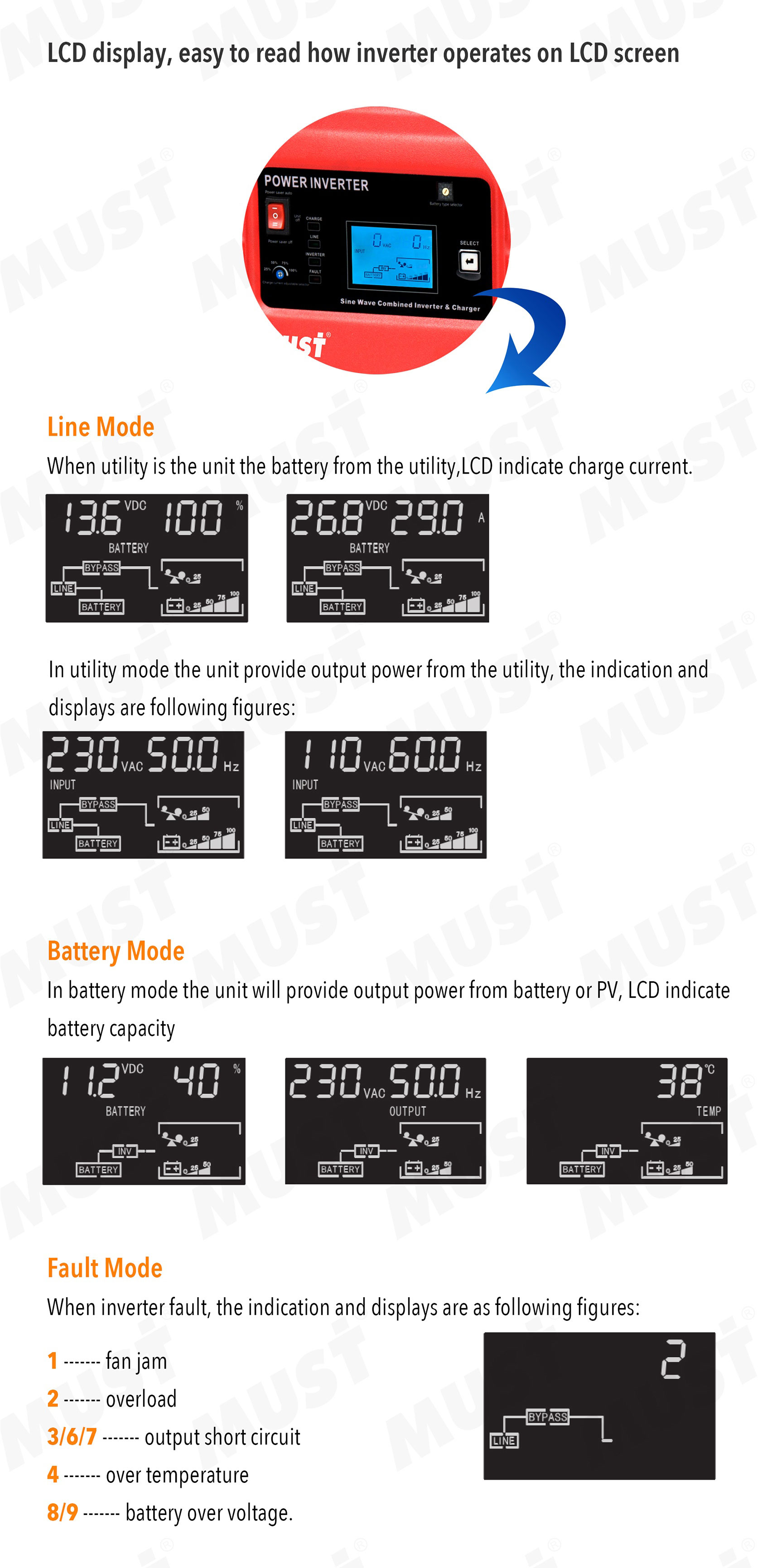

5.Easy to check with inverter with consice LED indication that can be upgrade to LCD.
6. Generator compatibly and external battery connection achievable.
7.Intelligent battery management with protection against over-charged and over-discharged etc.
Typical Application:
Main for home and office Appliance,TV,refrigerator,fan,air conditioner,induction cooker,computer etc.
Technology Specifications:
| power inverter battery backup | 110V Models | 230V Models | |
| OUTPUT | |||
| Power Levels crated at nominal inputs | 1KW;2KW;3KW;4KW | 1KW;2KW;3KW;4KW;5KW;6KW | |
| Output Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable | |
| Voltage Waveform | Pure Sine wave | ||
| Crest Factor | 3:'1 | ||
| Output Frequency | Auto Select for 50/60Hz,47Hz ~55Hz for 50Hz nominal,56Hz ~ 65Hz for 60Hz nominal | ||
| (Synchronized to Mains) | |||
| Regulation (Nominal) | ±20% typical of nominal voltage | ||
| Regulation | ±3% of selected output voltage (adjustable with the | ||
| (Battery mode) | remote set-up software) | ||
| INPUT | |||
| Nominal Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable | |
| Input Frequency | 47Hz ~ 65Hz, 50/60Hz auto-sensing | ||
| Efficiency (Normal mode) | 99% | ||
| Noise Filtering | Full time EMI/RFI filtering | ||
| Voltage Range | 85V ~ 145V | 155V ~ 265V | |
| SOLAR CHARGER | |||
| Rating voltage | 12V / 24V / 48V | 12V / 24V / 48V | |
| DC input range | 12V model : 12 ~ 21Vdc;24V model : 24 ~ 42Vdc;48V model : 48 ~ 84Vdc | ||

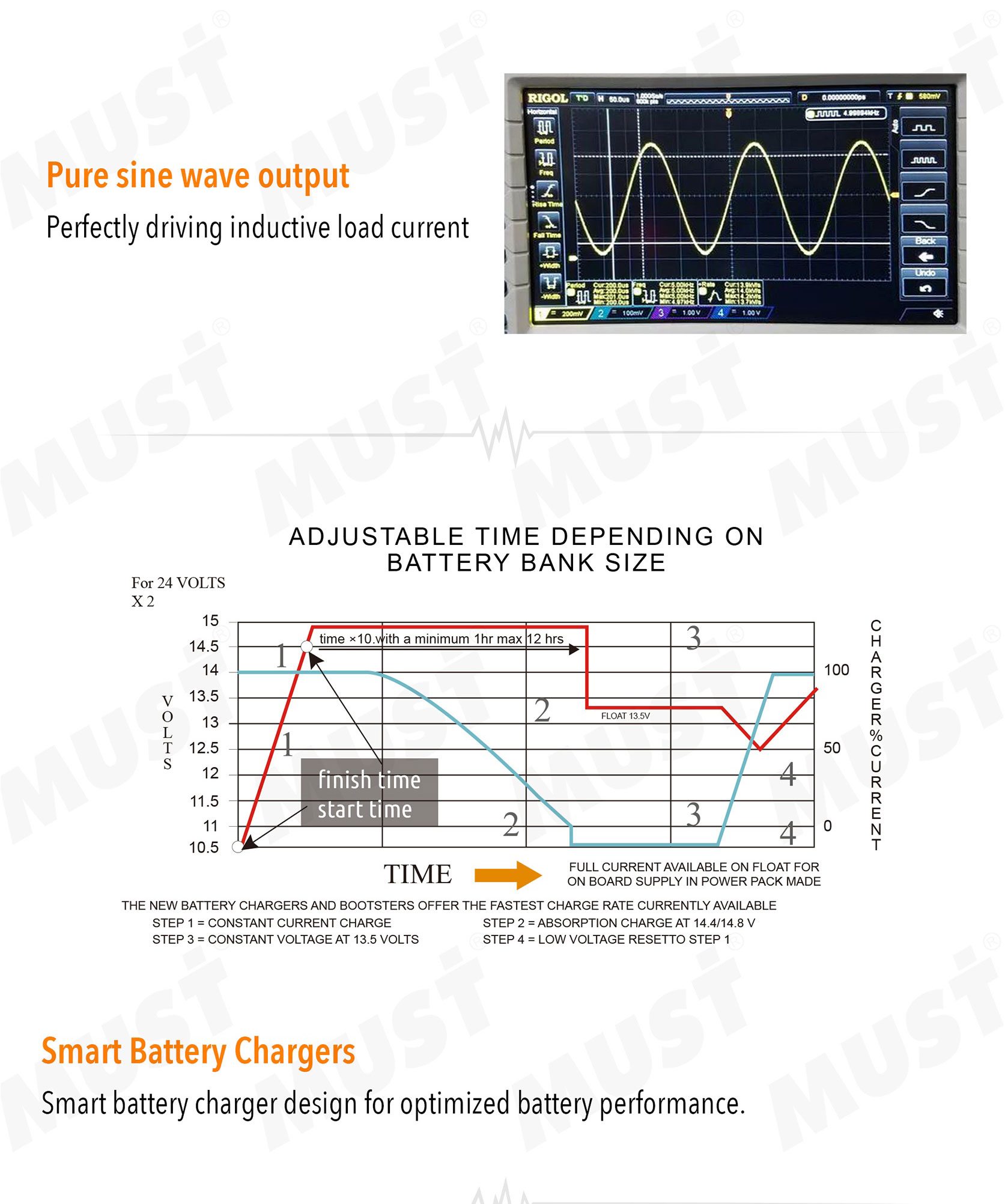

| Charging method | Constant voltage with current limiting by PWM control | ||
| Charging voltage | 12V model:13.5Vdc;24V model: 27.0Vdc;48V model: 54.0Vdc | ||
| Protection | DC input polarity protection, DC input short circuit protection( when battery is | ||
| connected), DC output over current protection | |||
| PHYSICAL | |||

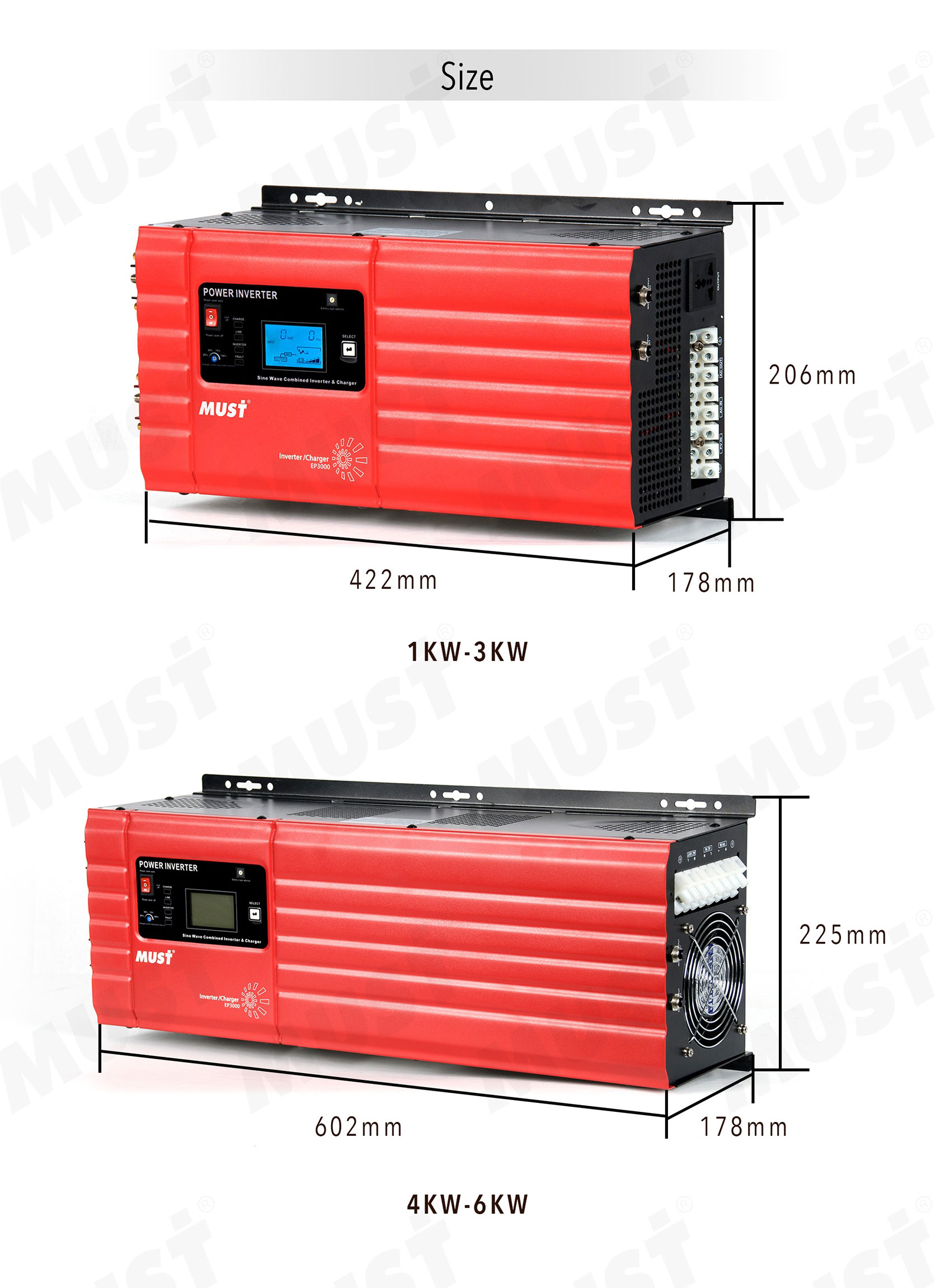

| Appearance | Size(mm)LxWxH | 442*218*179 | |
| Weight(Kg) | 1000W/18kg ;2000W/19.5kg ;3000W/23.5kg | ||
| Size(mm)LxWxH | 630*219*179 | ||
| Weight(Kg) | 4000W/35kg ;5000W/38kg ;6000W/40kg | ||

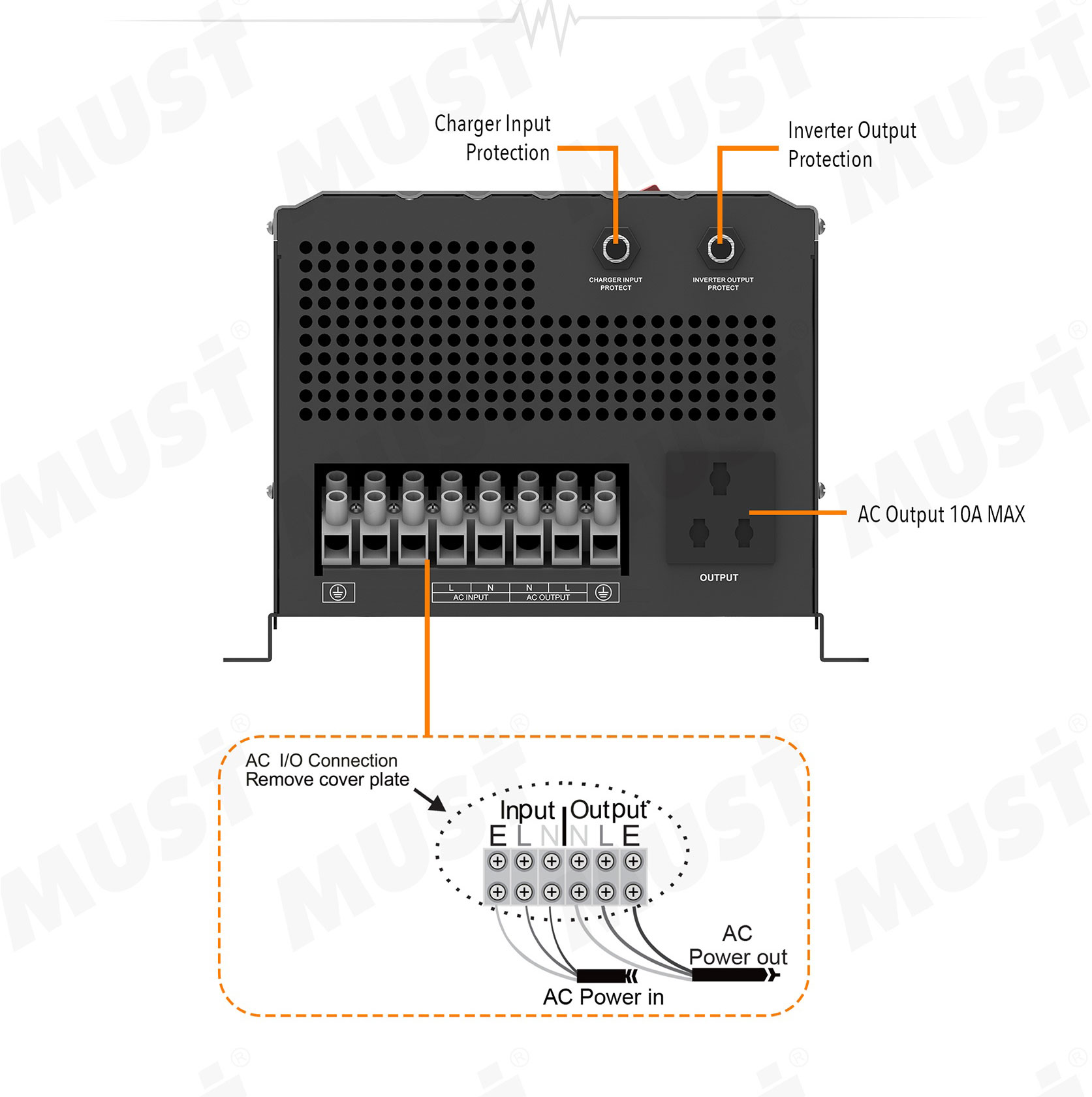

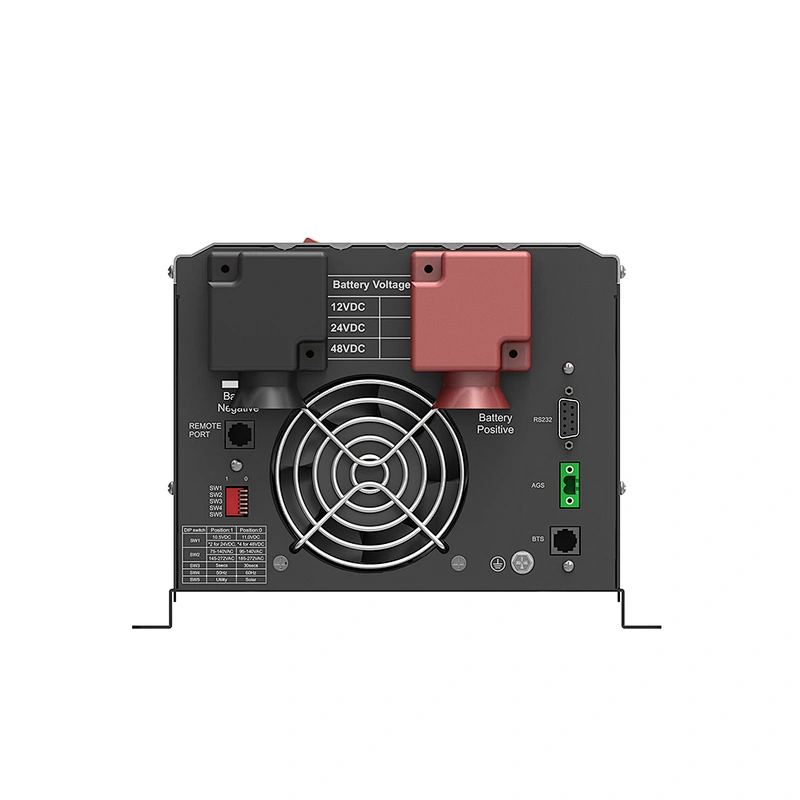

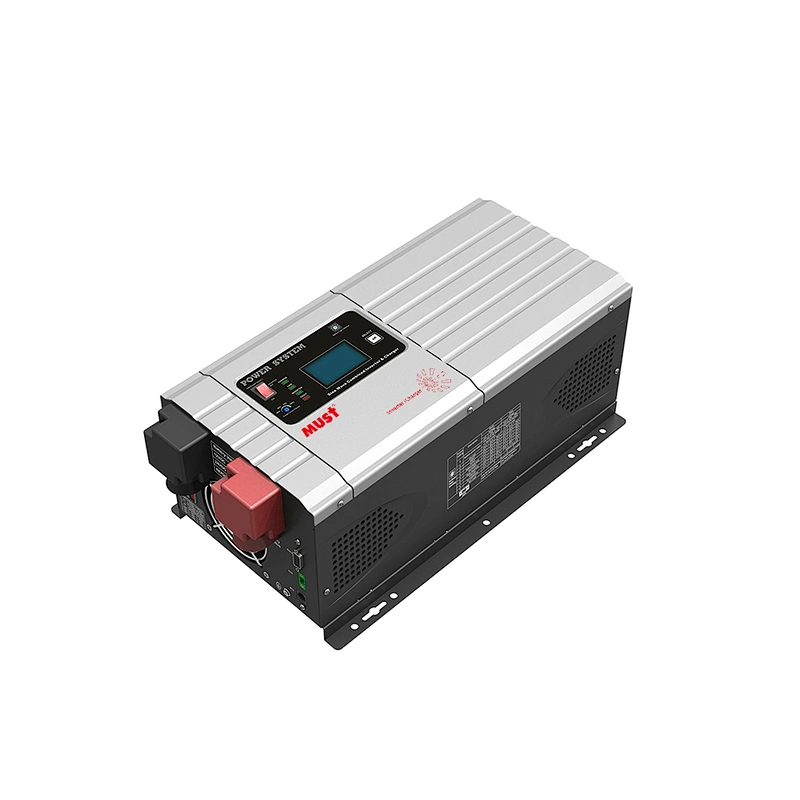

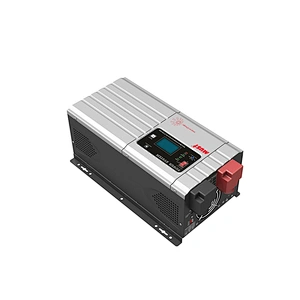

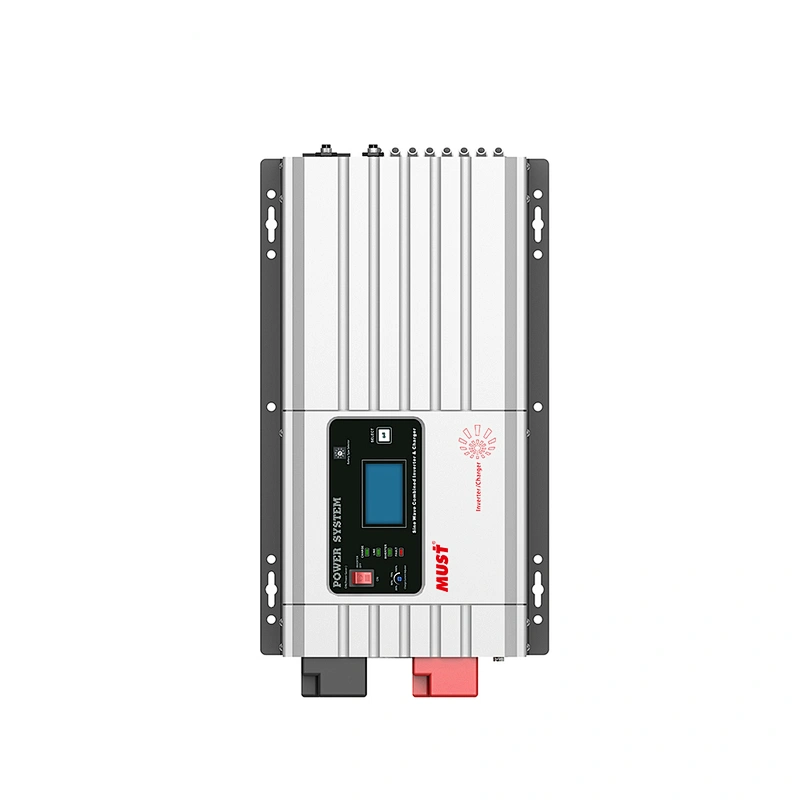

photos
power inverter battery backup, inverter 12v 220v 5000w,dc to ac inverter

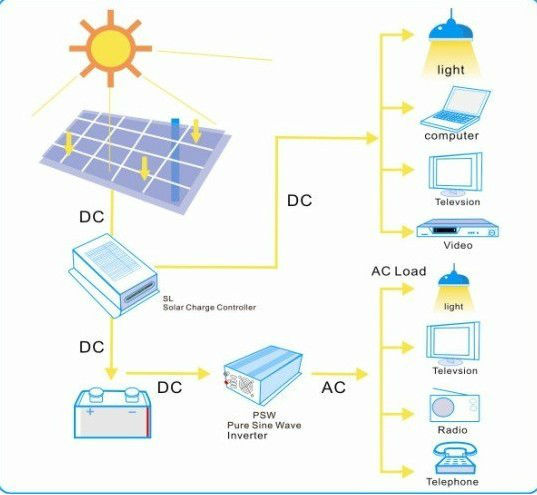

stallatiuon picture:
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
