- Place of Origin:Guangdong, China
- Brand Name:MUST/OEM
- Model Number:PH5000 series
- Type:DC/AC Inverters
- Output Type:Single
- Output Current:27.3A
- Output Frequency:50/60Hz
- Size:335*548*412*210mm
- Weight:15.5kg
- Inverter type:on grid
- DC operating voltage:360V
- Max. DC voltage:550V
- Warranty:5 Years Standard
- Euro efficiency:>97%
- Max. efficiency:>97.4%
- Rated power:3000W-6000W
- Display:LED Digital
- Communication interface:WIFI/USB
- Colling concept:Natural

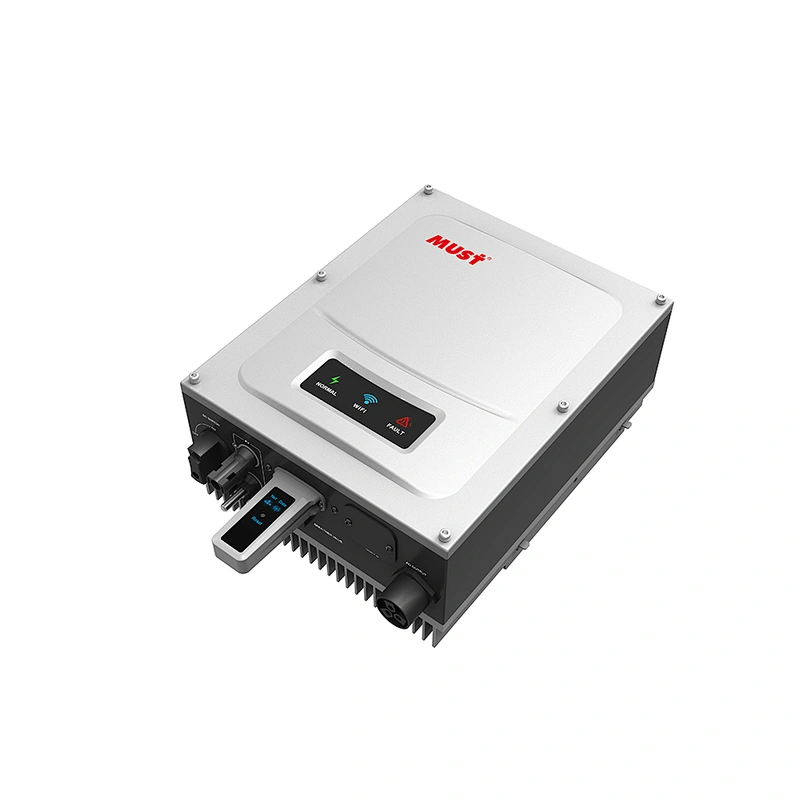

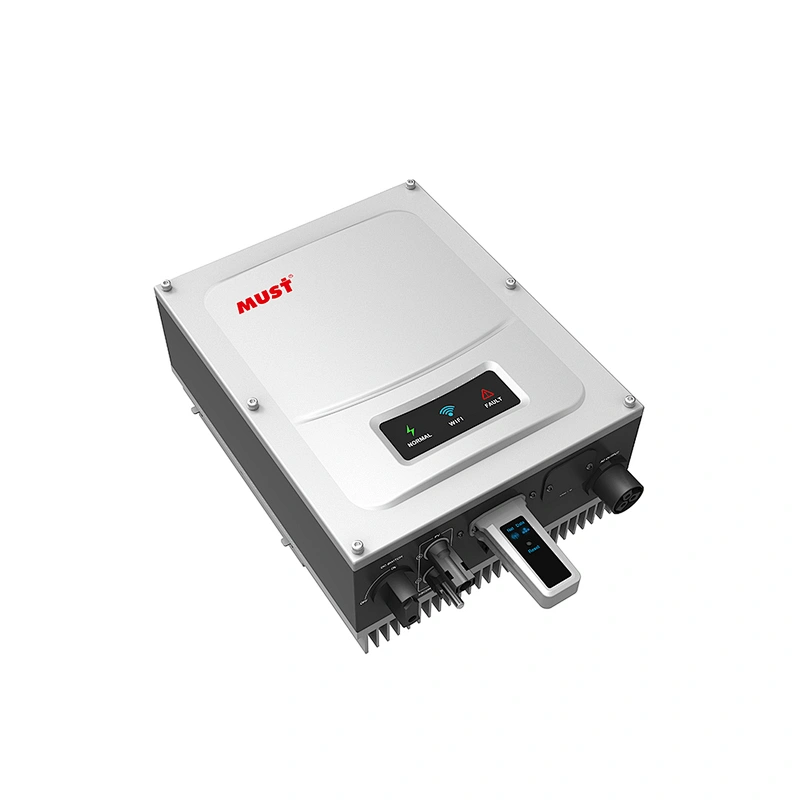

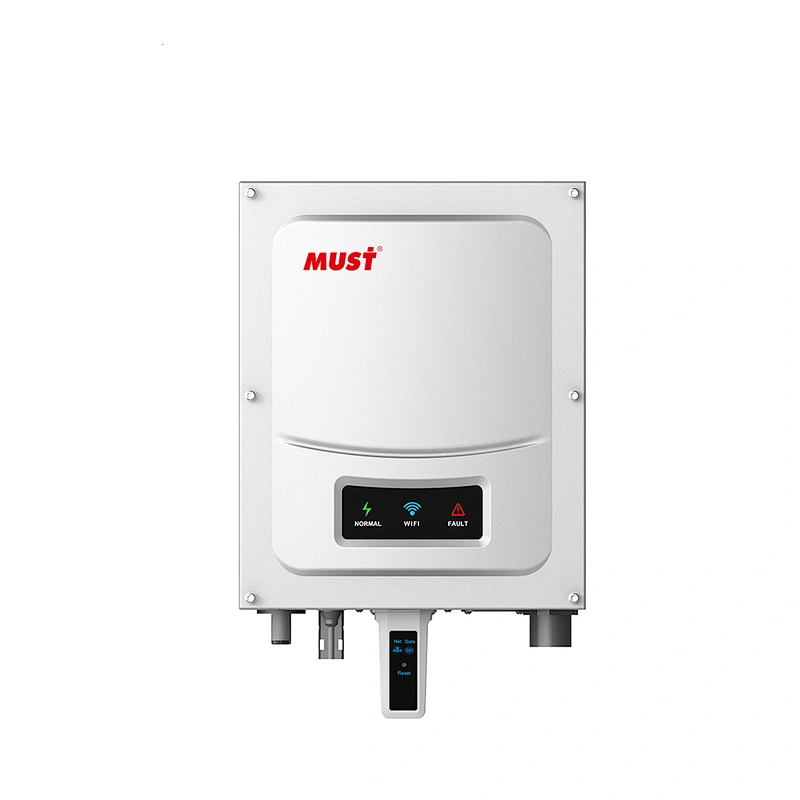

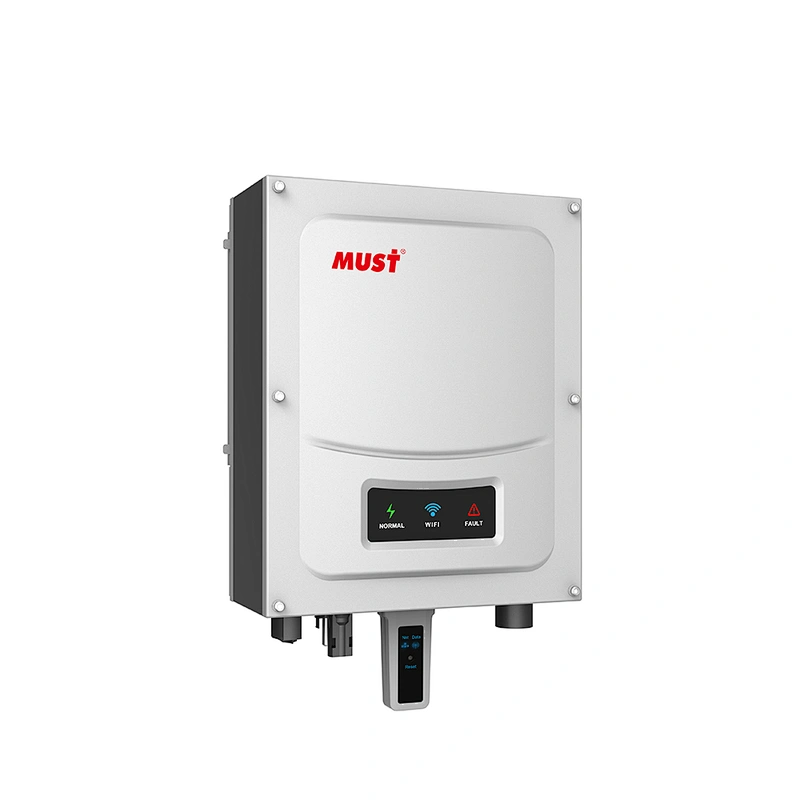

< MUST>PH5000 series high frequency pure sine wave 3-6KW on grid solar inverter
PH5000 series PV inverters take full account of the needs of end customers, with excellent performance at the same time, use LED as inverter status display, effectively improve product life. Using DSP digital control,could afford wide grid voltage range, have a full range of protection features; to maximize the benefits at the same time, greatly enhance the reliability of the product.
| Product Features |
- High Frequency On Grid Transformerless pure sine wave Solar Inverter
- MPPT efficiency up to 99.5%
- Euro-efficiency up to 97%
- Full protection fu nction : over-voltage, over-frequency, over-current, over-temperature, and AC short-circuit automatic protection
- Multiple communications:USB, WIFI etc
- Fanless low-noise design
- IP65 Dust-Proof and Water-Proof
This inverter adopts cutting-edge technology in photovoltaic fields. Higher conversion efficiency and lower energy losses are guaranteed to maximize satisfaction. With its reliable power grid support and high protective class, the ph5000 series is compatible with different types of branded solar panels and is also ideal for commercial rooftop systems. The safe and reliable series is the first choice for residential, commercial installation and power plants.
| Technical Specification |
| MODEL | PH50-3000 | PH50-3600M | PH50-4200M | PH50-4600M | PH50-5000M |
|---|---|---|---|---|---|
| RATED POWER(W) | 3000 | 3600 | 4200 | 4600 | 5000 |
| PV INPUT(DC) | |||||
| Maximum recommended DC power(W) | 3450 | 4100 | 4800 | 5300 | 5750 |
| Nominal DC operating voltage(V) | 360 | ||||
| Maximum DC voltage(V) | 550 | ||||
| MPPT voltage range(V) | 100~550 | ||||
| Maximum input current(A) | 11 | 11/11 | |||
| Maximum short circuit current(A) | 15 | 15/15 | |||
| No.of MPP tracker | 1 | 2 | |||
| Strings per MPP tracker | 1 | ||||
| INVERTER OUTPUT(AC) | |||||
| Nominal AC output power(W) | 3000 | 3600 | 4200 | 4600 | 5000 |
| Nominal output voltage(V);range(V) | 220/230/240;180~280 | ||||
| AC grid frequency(Hz);range(Hz) | 50/60;45~55/55~65 | ||||
| Nominal output current(A) | 13.1 | 15.7 | 18.3 | 20 | 21.7 |
| Maximum output current(A) | 13.7 | 16.4 | 19.1 | 21 | 22.8 |
| Total harmonic distortion i(THDi) | <3% | ||||
| Power factor at rated power | 1 | ||||
| Displacement power factor | / | 0.8leading~0.8lagging | |||
| Efficiency | |||||
| Maximum efficiency | 97.4% | ||||
| Euro-efficiency | 97% | ||||
| MPPT efficiency | 99.5% | ||||
| Standby losses(W) | <1 | ||||
| Protection devices | |||||
| DC switch rating for each MPPT | Yes | ||||
| Grid monitoring | Yes | ||||
| Output over current protection | Yes | ||||
| Output overvoltage protection-varistor | Yes | ||||
| Ground fault monitoring | Yes | ||||
| Integrated all-pole sensitive leakage current | Yes | ||||
| General | |||||
| Dimension(W/H/D)(mm) | 259*340*138 | 355*412*153 | 355*412*153 | 355*412*173 | 355*412*173 |
| Net weight (kgs) | 9.5kg | 14kg | 14kg | 14.5kg | 14.5kg |
| DC connection | H4/MC4 | ||||
| AC connection | Connection | ||||
| Display | LED | ||||
| Communication interfaces | Wi-Fi/USB | ||||
| Ingress protection rating | IP65 | ||||
| Humidity | 100% | ||||
| Operating temperature range | -20℃~+60℃ With derating above 45℃ | ||||
| Cooling concept | Natural | ||||
| Altitude | <2000m | ||||

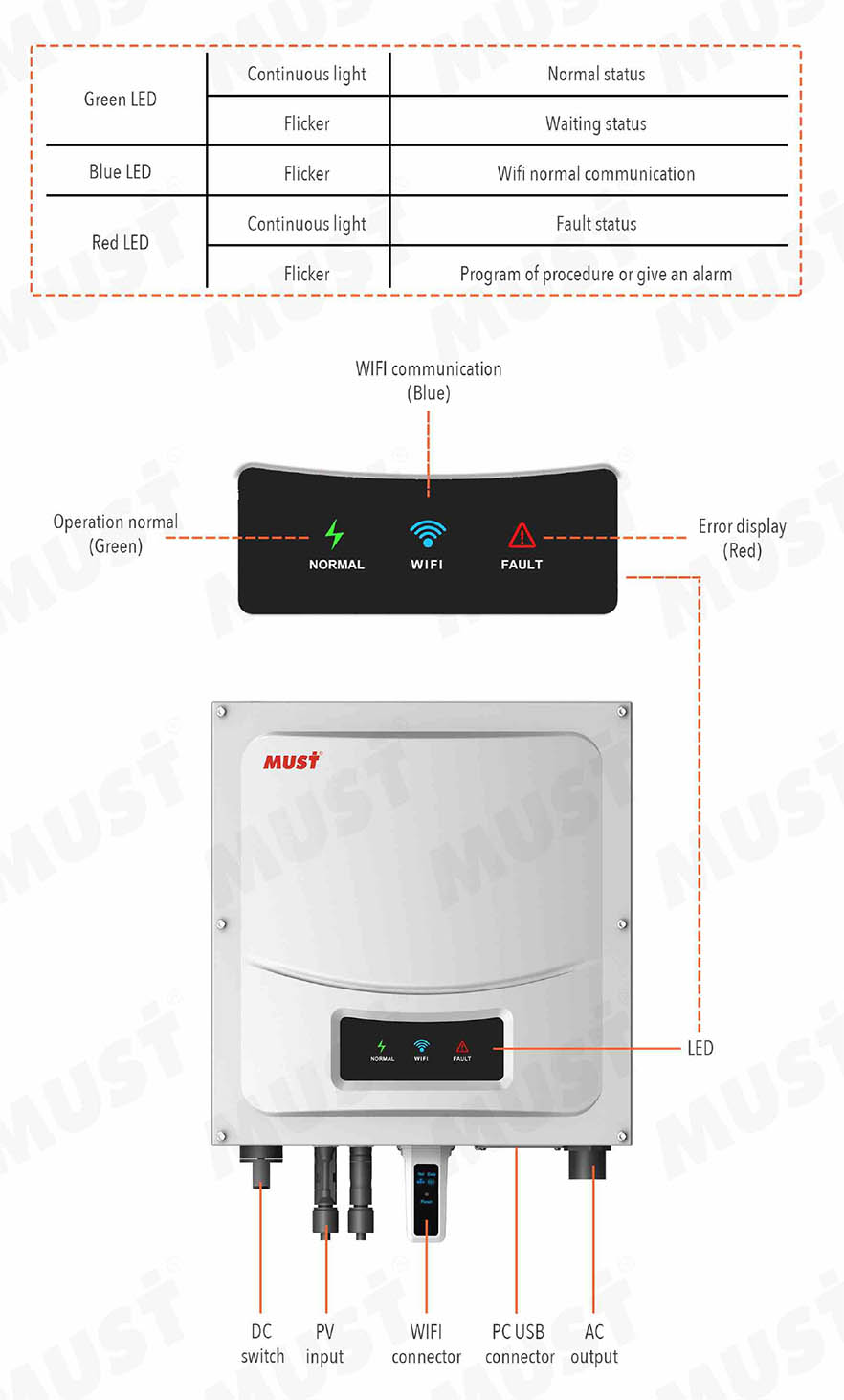

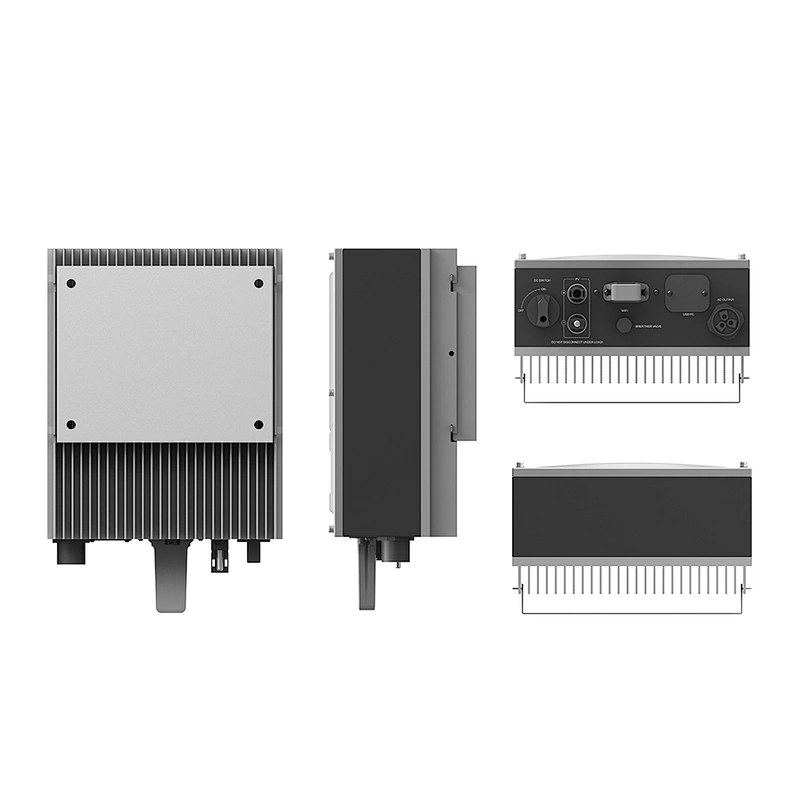

| Product Details |

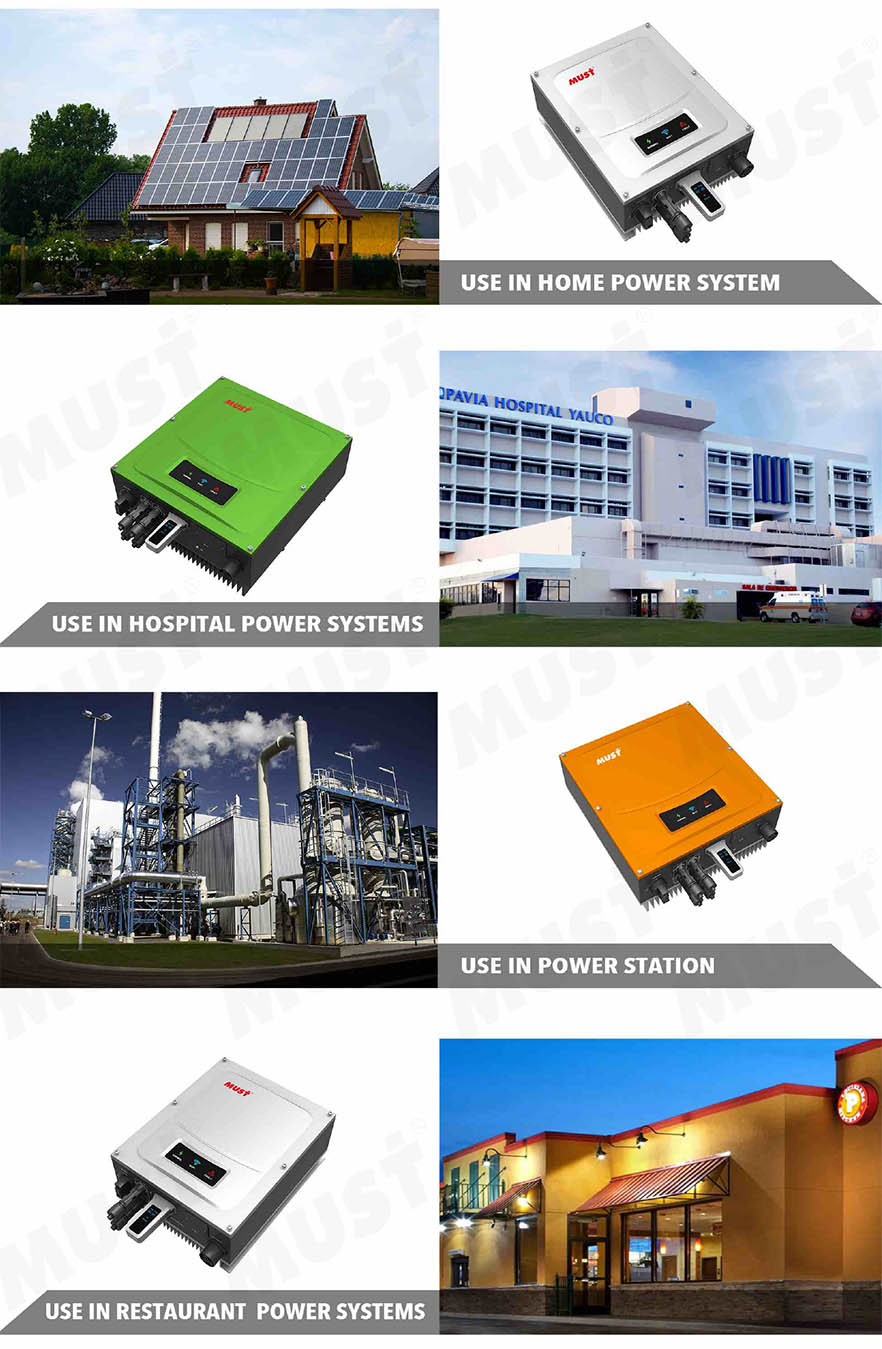

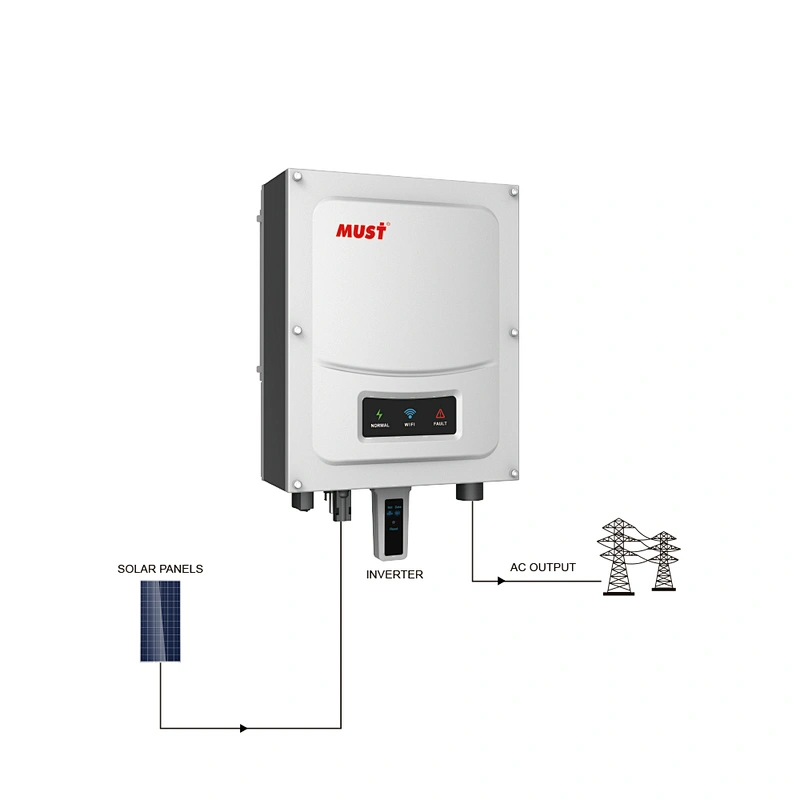

| APPLICABLE PLACE |

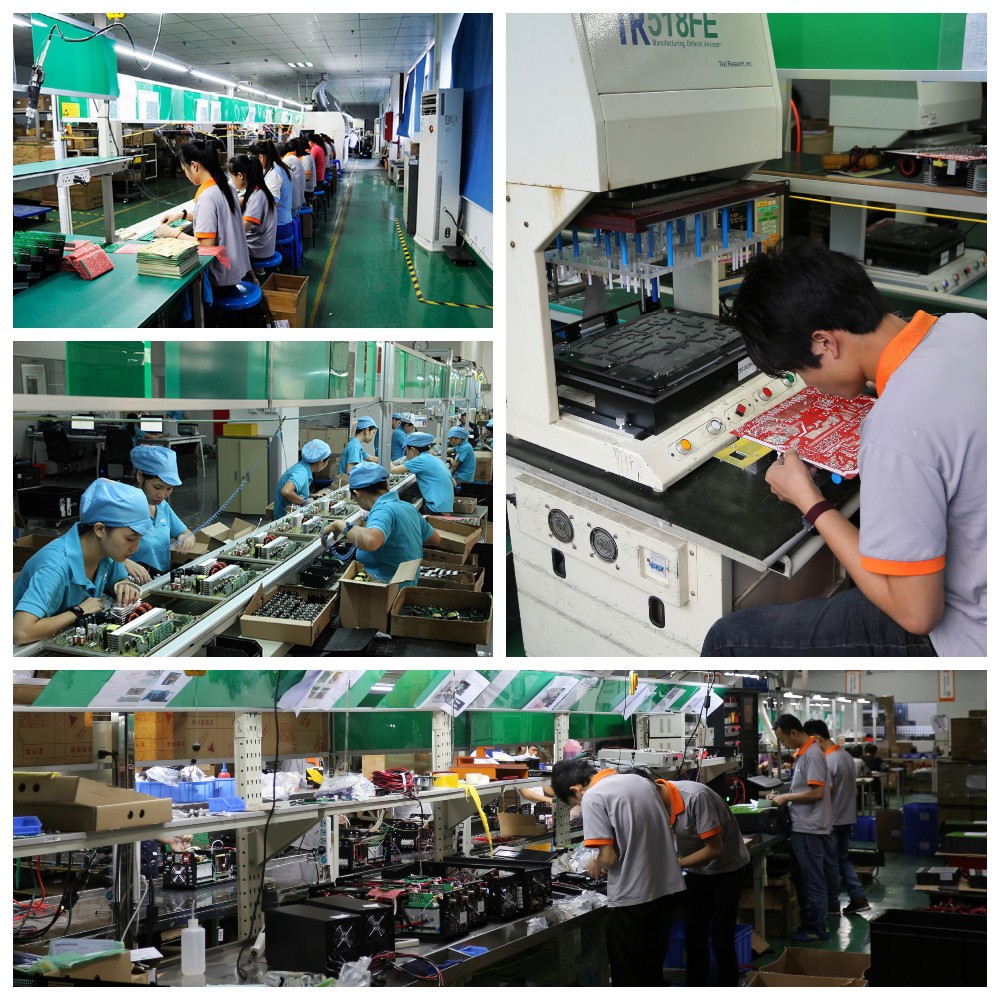

MUST Factory Production Line :
About MUST
Must Power Limited devotes itself to power field since 1998, and has its own factory in 2008. Now it has about 300 regulor employees, including 40 engineers in R&D Department, 3 engineers in After-sales Service Center Department, 40 internation sales. MUST products are slod in 98 countries all over the world till now, and the revenue growth is from 2.86 milion US Dollars in 1998 to 130 milion US Dollars in 2017.
we have rich experience in handiling orders for heavy buyers with professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Remarkable after-sale service
MUST certificates and patents: MUST got the National High-tech Enterprise in 2016, and Shenzhen High-tech Enterprise, the ISO9001, CE, SAA, CONCAP, etc. And also MUST has software and hardware patents.
