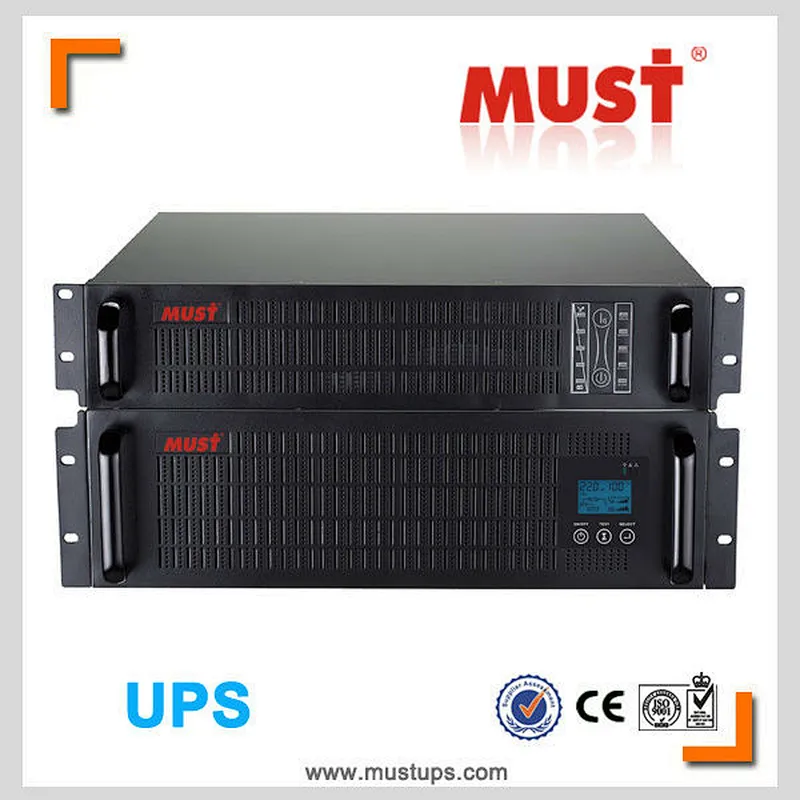

MUST Power Rack mounted online UPS 1kva

Model NO.: EH5110seriesR1KVA-6KVA
Country of Origin: shenzhen

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:MUST
Model Number:EH5110seriesR1KVA-6KVA
Phase:Single Phase
Protection:Overvoltage
Weight:7kg-84kg
Output Voltage:115-300Vac
Type:On-line
Application:Other
color:black or others
application:security,monitoring,instrumentation
communation:RJ45,RS232
AVR function:boost and buck AVR
protection:over voltage,lighting,surge protection
control:CPU
transform time:zero
input voltage:115-300Vac
SNMP:optional
Place of origin:guangdong (china)

MUST Power Rack mounted online UPS 1kva

Main features:

1,True on-line double conversion technology with advanced microprocessor control;
2,Wide input voltage range;
3,Zero transfer time;
4,Protection against all type of power problems;
5,Self test while start of the UPS;
6,Site wiring fault warning;
7,On-battery power-on function;
8,Smart RS232 communication interface;
8,Intelligent slot available;
10,Sealed lead-acid, maintenance free battery.

Protection against:

•Power surges
•Power sags
•High voltage spikes
•Electrical line noise
•Switching transients
•Brownouts
•Frequency variat

Technology Specifications :

Product Series		EH5110 Rack mount online ups
Model		HR1K/HR1KS	HR2K/HR2KS	HR3K/HR3KS	HR6K/HR6KS
Rated Power	VA/W	1KVA / 0.7KW	2KVA / 1.4KW	3KVA / 2.1KW	6KVA/4.2KW
Input	Nominal Voltage	220VAC
	VoltageRange	115 ~ 300VAC			176 ~ 276VAC
	FrequencyRange	46 ~ 54Hz(default), user adjustable within 40~60Hz			46 ~ 54Hz
	Power Factor	0.97			0.98
	Connection	IEC320-10A inlet		IEC320-16A inlet	Terminal Block
Output	Voltage	220VAC ± 2%			220VAC ± 1%
	Frequency	46~54Hz or 50Hz ± 0.2Hz (Line mode) 50Hz ± 0.2Hz ( Battery mode)			46~54Hz (Line mode) 50Hz ± 0.05Hz ( Battery mode)
	Waveform	Sine Wave
	Overload Capability	108%~150% for 30 sec., ³150% for 300 ms			105%~130% for 10 min., ³130% for 1 min.
	Current Crest Ratio	3:1
Bypass	Automatic Transfer	on overload and UPS failure
	Before UPS Power-on	Default “NO”, user adjustable to “YES”			Yes
	VoltageRange	80~264VAC (Default), user adjustable within 80~286VAC			176 ~ 261VAC

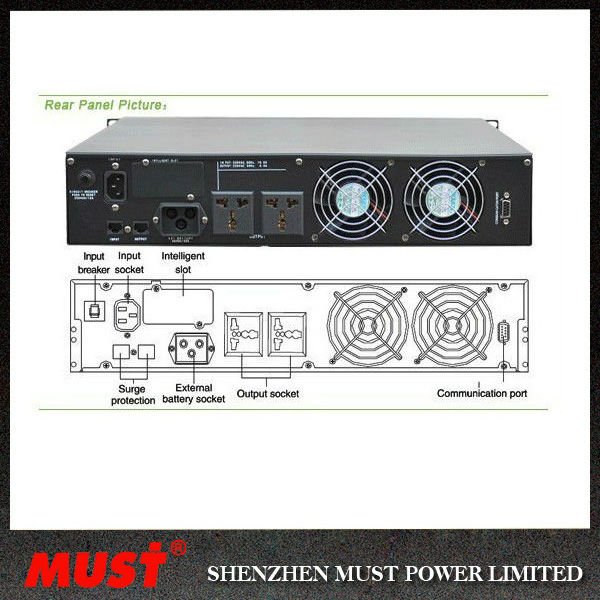

Output Connections		IEC320 -10A * 4	IEC320-10A * 4	IEC320-10A and Terminal Block	IEC320-10A * 4 and Terminal Block
Transfer Time		0 ms; less than 4 ms from inverter to bypass and vice versa			Zero

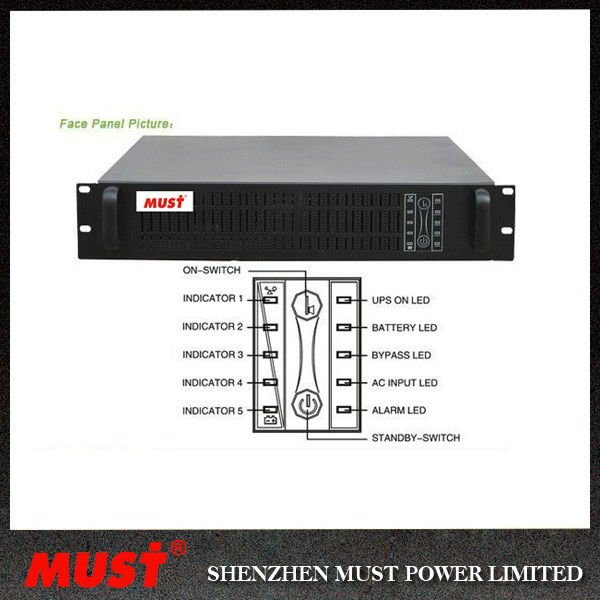

LED indicators	Status	Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Communications		RS-232 Serial Interface
		Intelligent Slot; OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection		RJ45 I/O port available for network or Fax/Modem
Environmental	Operating Temperature	0 ~ 40°C
	Operating Humidity	20 ~ 90% non-condensing
Main Unit	Net Weight (Kg)	15.3	10.3	11.2	18.3
	Dimensions (W x D x H) mm	482.6 x 450 x 88 (2U)			482.6 x 600 x 130 (3U)
BatteryPack	Type	Internal Batteries	External Battery Pack
	Nominal DC Voltage	36VDC	96VDC		240VDC
	Backup Time (Full load)	5 min	9 min (with 1 BP)	5 min (with 1 BP)	7 min (with 1 BP)
	Net Weight (Kg)	--	25.3		58.2
	Dimensions (W x D x H) mm
