- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:EP3000series1KW-6KW
- Type:DC/AC Inverters
- Output Type:Single
- Output Frequency:50HZ/60HZ
- Size:442*218*179mm
- Weight:18kg-23.5kg
- Output Power:1 - 200KW
- color:black/white
- display:LED/LCD
- Voltage:12v/24v/48vdc
- frequency:low frequency
- charge current:max 70amp
- backup time:no limited
- transformer:pure copper
- battery:lead acid maintenance free battery
- Battery initial voltage:0-15.7VDC

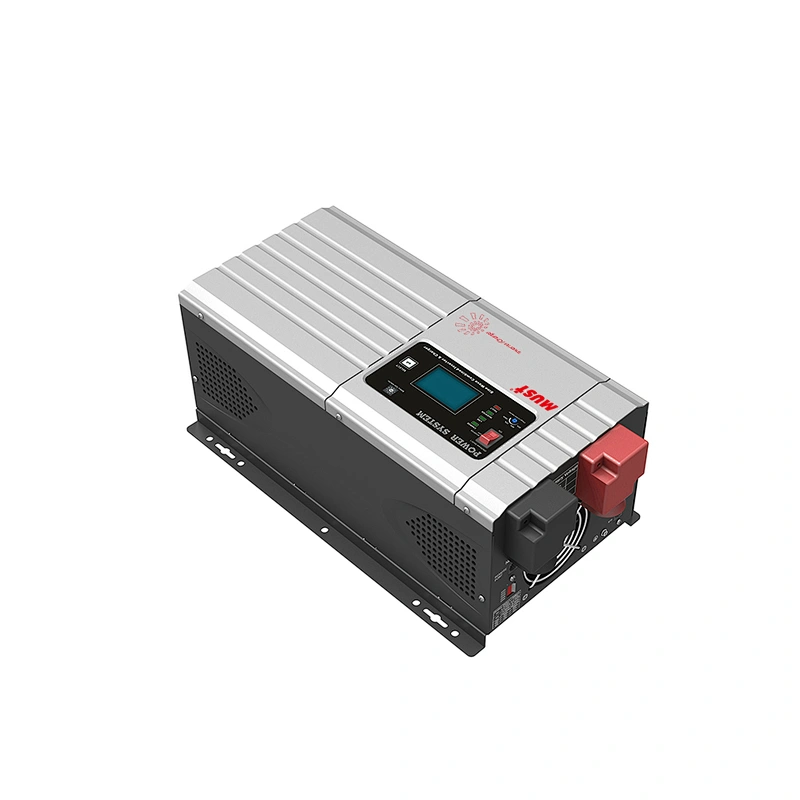

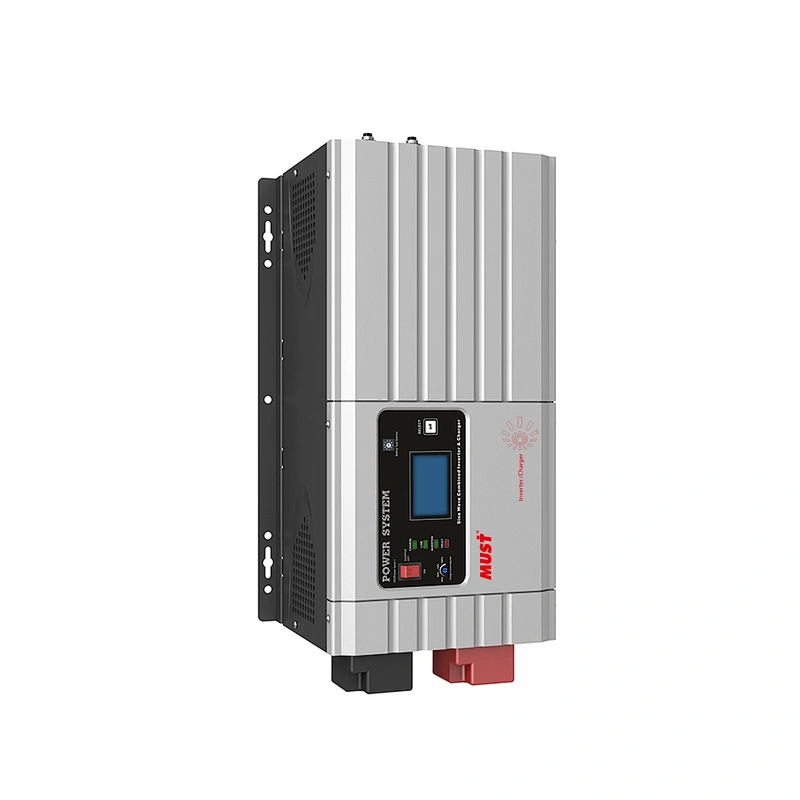

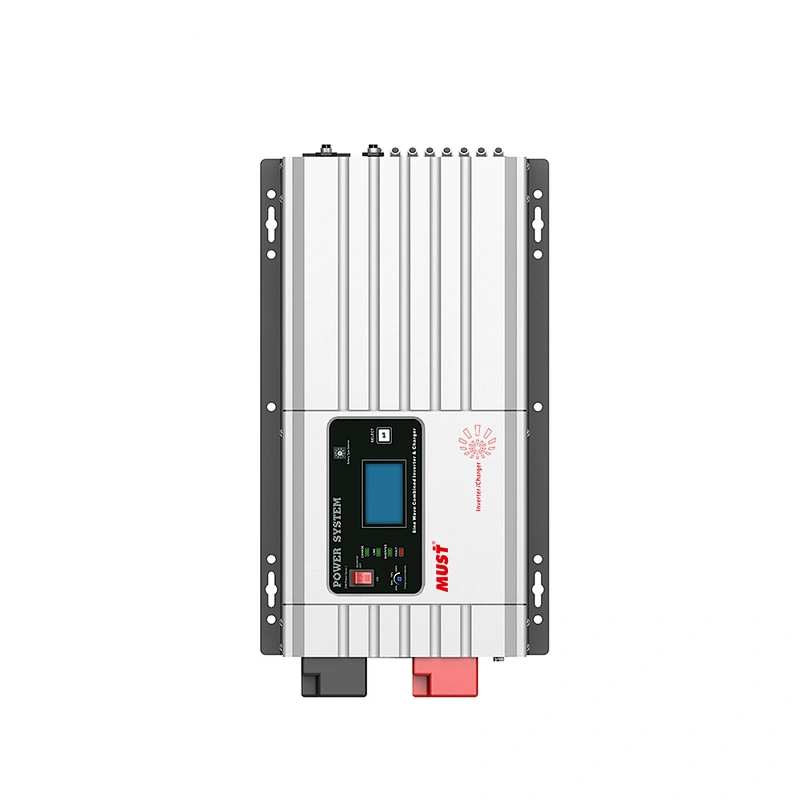

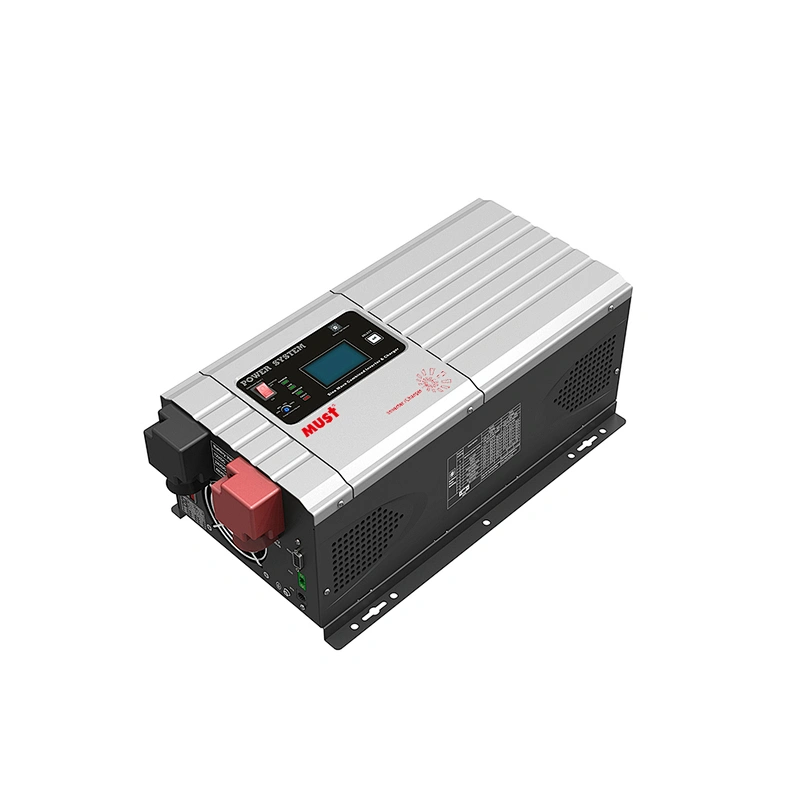

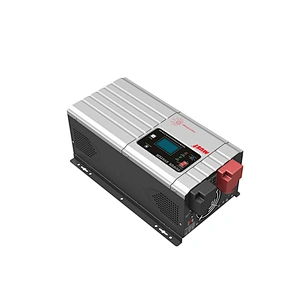

MUST POWER MUST POWER LCD display ture sine wave inverter Home inverter system
Main features:
1.Pure sinewave output,can be used withdifferent domestic appliance like TV, refrogerator ,fan,air conditioner.cooker,mirco-wave oven,etc.
2.Superior performance from CPU control technology.
3.Wide range of input voltage,accruate output,AVR function.
4.Inner-equipped protection for over-load,short-circuit,over-voltage,low-voltage,over-heating,etc.

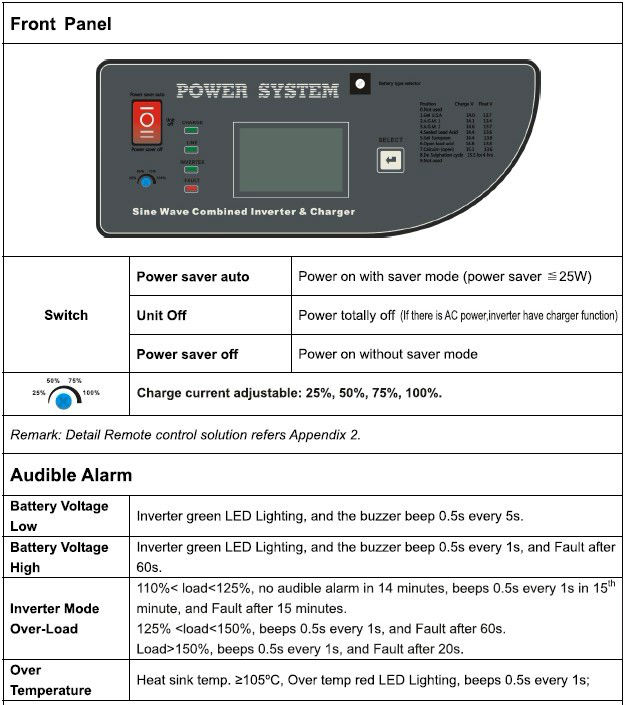

5.Easy to check with inverter with consice LED indication that can be upgrade to LCD.
6. Generator compatibly and external battery connection achievable.
7.Intelligent battery management with protection against over-charged and over-discharged etc.
Typical Application:
Main for home and office Appliance,TV,refrigerator,fan,air conditioner,induction cooker,computer etc.
Technology Specifications:
| MODEL | 115V Models | 230V Models | |
| OUTPUT | |||
| Power Levels crated at nominal inputs | 1KW;2KW;3KW;4KW | 1KW;2KW;3KW;4KW;5KW;6KW | |
| Output Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable | |
| Voltage Waveform | Pure Sine wave | ||
| Crest Factor | 3:'1 | ||
| Output Frequency | Auto Select for 50/60Hz,47Hz ~55Hz for 50Hz nominal,56Hz ~ 65Hz for 60Hz nominal | ||
| (Synchronized to Mains) | |||
| Regulation (Nominal) | ±20% typical of nominal voltage | ||
| Regulation | ±3% of selected output voltage | ||
| (Battery mode) | |||
| INPUT | |||
| Nominal Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable | |
| Input Frequency | 47Hz ~ 65Hz, 50/60Hz auto-sensing | ||
| Efficiency (Normal mode) | 99% | ||
| Noise Filtering | Full time EMI/RFI filtering | ||
| Voltage Range | 85V ~ 145V | 155V ~ 265V | |
| SOLAR CHARGER | |||
| Rating voltage | 12V / 24V / 48V | 12V / 24V / 48V | |
| DC input range | 12V model : 12 ~ 21Vdc;24V model : 24 ~ 42Vdc;48V model : 48 ~ 84Vdc | ||
| Charging method | Constant voltage with current limiting by PWM control | ||
| Charging voltage | 12V model:13.5Vdc;24V model: 27.0Vdc;48V model: 54.0Vdc | ||
| Protection | DC input polarity protection, DC input short circuit protection( when battery is | ||
| connected), DC output over current protection | |||
| PHYSICAL | |||
| Appearance | Size(mm)LxWxH | 442*218*179 | |
| Weight(Kg) | 1000W/18kg ;2000W/19.5kg ;3000W/23.5kg | ||
| Size(mm)LxWxH | 630*219*179 | ||
| Weight(Kg) | 4000W/35kg ;5000W/38kg ;6000W/40kg | ||
