HOT PV solar inverter 5KVA 4KVA 3KVA 2KVA inbuilt MPPT solar controller

HOT PV solar inverter 5KVA 4KVA 3KVA 2KVA inbuilt MPPT solar controller

Model NO.: PV1800
Country of Origin: Shenzhen, guangzhou

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:MUST
Model Number:PV1800
Output Power:800w to 4kw
Input Voltage:90-280vac
Output Voltage:230vac
Output Frequency:50/60 auto
Output Type:Single
Size:up to model
Type:DC/AC Inverters
Weight:15kg
phase:single
input voltage:170-280vac, 90-280vac adjust
charge current:Adjust on LCD display
AC/PV priority:adjust on LCD display
supports load:all kind of loads include generator
auto restart when AC recover:yes
parallel function:4 units for 4kva 5kva
cold start function:could start at temperature under -20 degree
Certificate:CE IEC
Display:LCD,easy to operate

What is Solar inverter?

Solar pv inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.

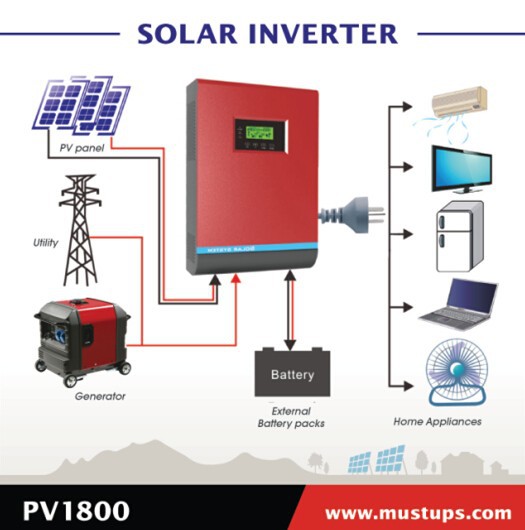

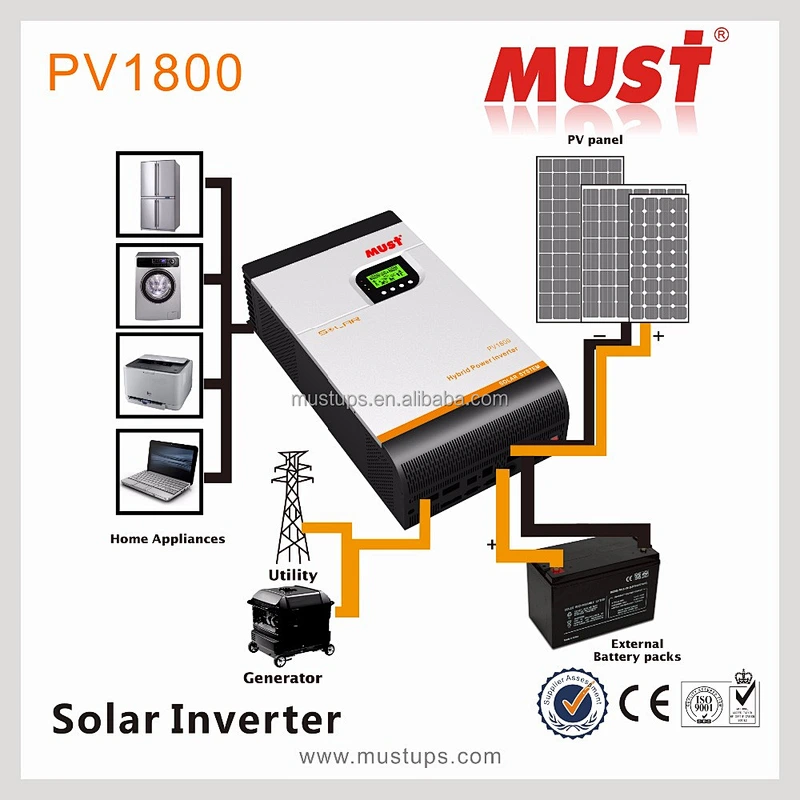

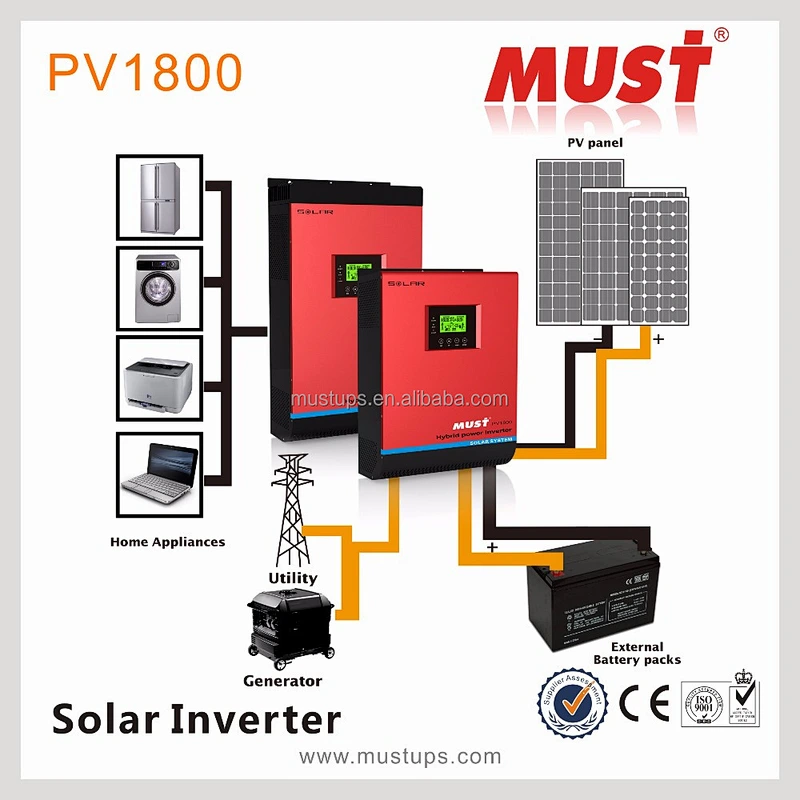

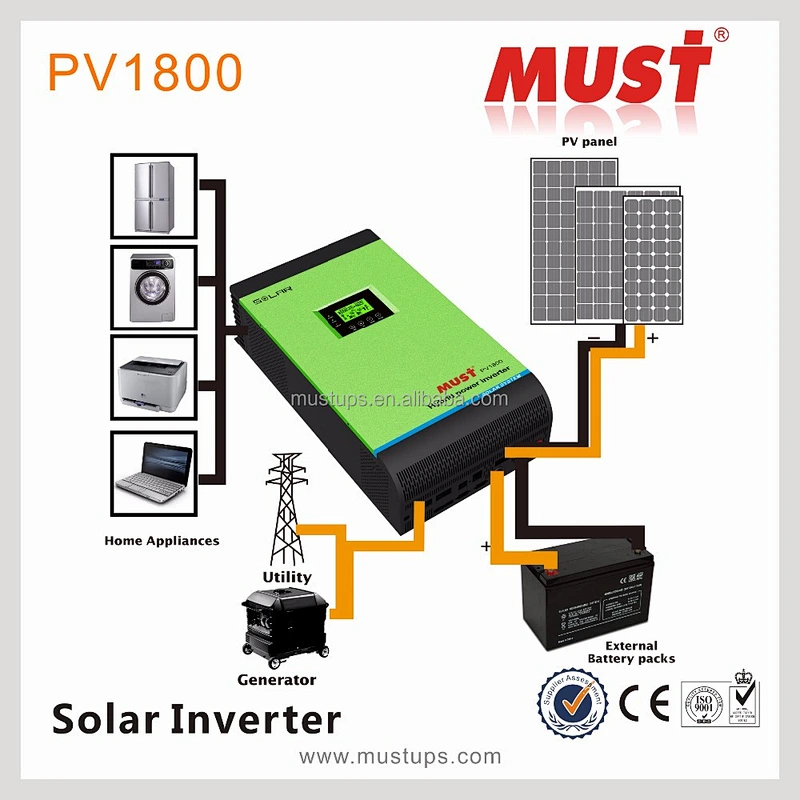

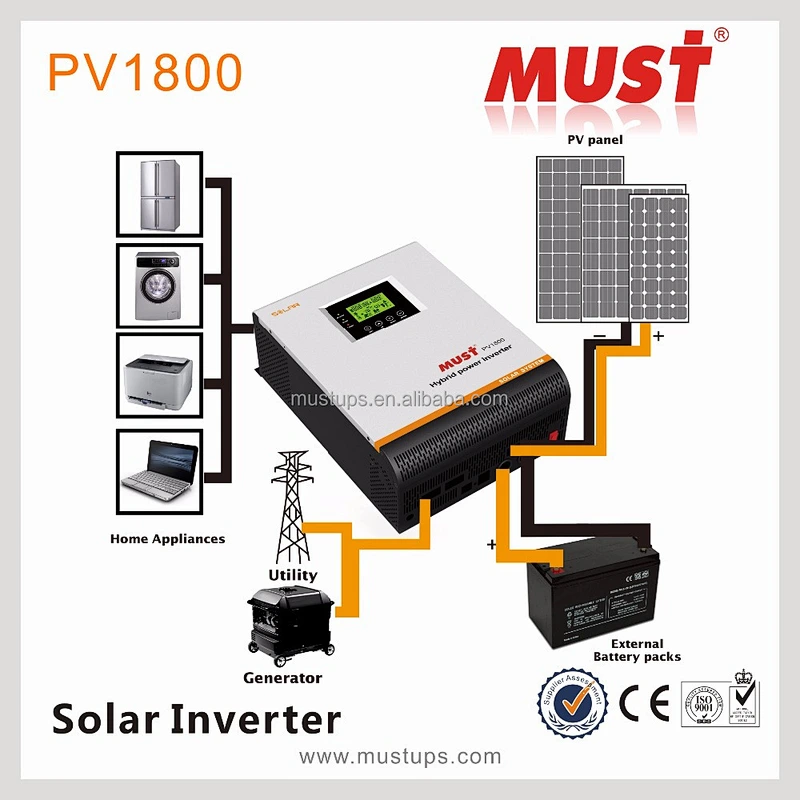

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

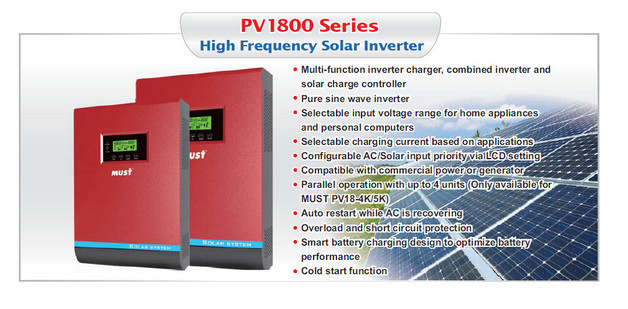

Features of high efficiency solar inverter

. Pure sine wave inverter
. Selectable input voltage range for home appliances and personal computers
. Selectable charging current based on applications
. Configurable AC/Solar input priority via LCD setting
. Compatible to mains voltage or generator power

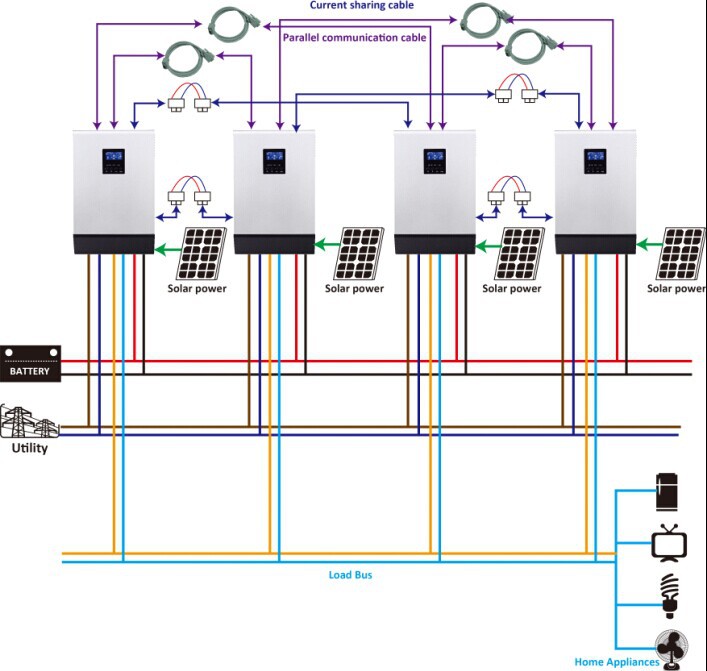

. Parallel operation with up to 4 units only available for PV200 4KVA/5KVA
. Auto restart while AC is recovering
. Overload and short circuit protection
. Smart battery charger design for optimized battery performance
. Cold start function

What is the specification of high efficiency solar inverter ?

MODEL		PV18-1K	PV18-2K	PV18-3K	PV18-4K	PV18-5K
Default Battery System Voltage		12VDC	24VDC	24VDC	48VDC	48VDC
INVERTER OUTPUT	Reted Power	1000VA/ 800W	2000VA/ 1600W	3000VA/ 2400W	4000VA/ 3200W	5000VA/ 4000W
	Surge Power	2000VA	4000VA	6000VA	8000VA	10000VA
	Waveform	Pure sine wave
	AC Voltage Regulation (Batt.Mode)	230VAC±5%
	Inverter Efficiency (Peak)	90%	93%
	Transfer Time	10ms(For Personal Computers) 20ms(For Home Appliances)
AC INPUT	Voltage	230VAC
	Selectable Voltage Range	170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances)
	Frequency Range	50Hz/60Hz (Auto sensing)
BATTERY	Nominal voltage	12VDC	24VDC		48VDC
	Floating Charge Voltage	13.5VDC	27VDC		54VDC
	Overcharge Protection	15VDC	30VDC		60VDC
SOLAR CHARGER & AC CHARGER	Maximum PV Array Open Circuit Voltage	30VDC	60VDC		105VDC
	Standby Power Consumption	1W	2W		2W
	PWM Maximum Solar Charge Current	50A	50A		50A
	MPPT Maximum Solar Charge Current	25A	25A		60A
	Maximum AC Charge Current	10A or 20A	20A or 30A		60A
	Maximum Charge Current	50A			110A
MECHANICAL SPECIFICATIONS	Dimension,WxHxD(mm)	240×316×95	272×355×100		297.5×468×125
	Net Weight(kg)	5	6.4	6.9	9.8
OTHER	Humidity	5% to 95% Relativ Humidity (Non-condensing)
	Operating Temperature	0℃-55℃
	Storage Temperature	-15℃-60℃

Q1: How to choose a right solar inverter?

A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

Q2: What's the different between inverter and solar inverter?

A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q3: How about the delivery time?

A3: 7 days for sample; 25 days for bulk order.

Q4: What is the warranty of solar inverter?

A4: One year warranty on Must-Solar product.

Q5: How to solve the technical problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Welcome your sample test order firstly, any discount price? contact us freely.

let's us to be good partners.
