- Warranty:Other
- Free installation service:Yes
- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:PV18 1-5kw
- Application:Home, Commercial, Industrial
- Solar Panel Type:Polycrystalline Silicon
- Battery Type:Lead-Acid
- Controller Type:MPPT
- Mounting Type:Ground Mounting, Roof Mounting, Carport Mounting, BIPV Mounting
- Load Power (W):1-5kw
- Output Voltage (V):220-230VAC
- Output Frequency:50-60HZ
- Work Time (h):8-10h
- Certificate:CE
- Max charging current:80A
- DC voltage:24V/48V
- MPPT voltage range:64V-130VDC
- Output wave:Pure sine wave
- AC to AC efficiency:>93%
- DC to DC:>95%
- Rated power:1000W-5000W
- Max.PV array Open Circuit Voltage:100V /145V DC
- attery protection:Overcharge protection
- MPPT charge controller:built-in 50/80A

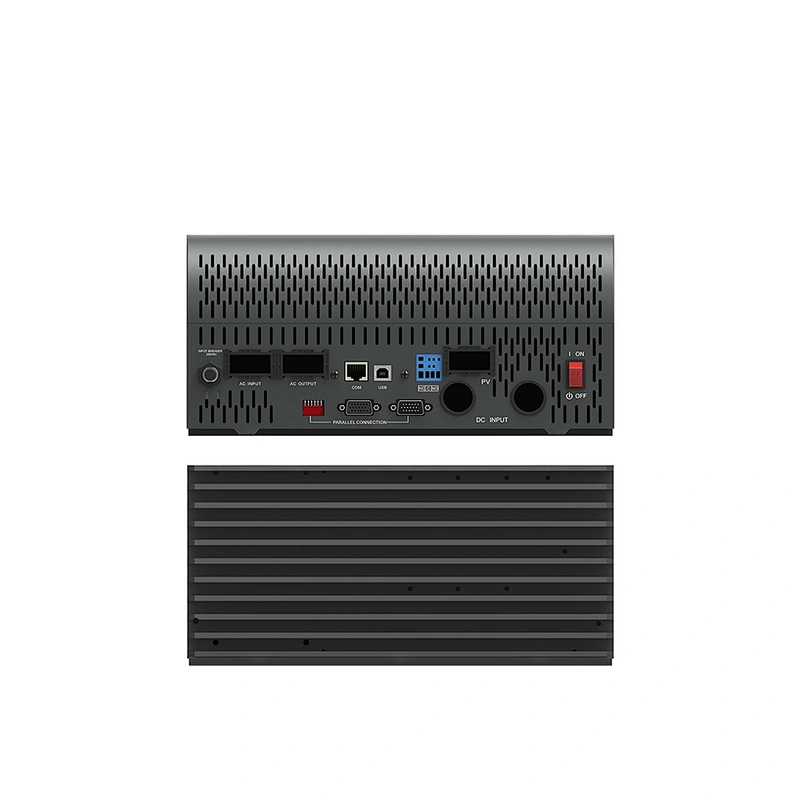

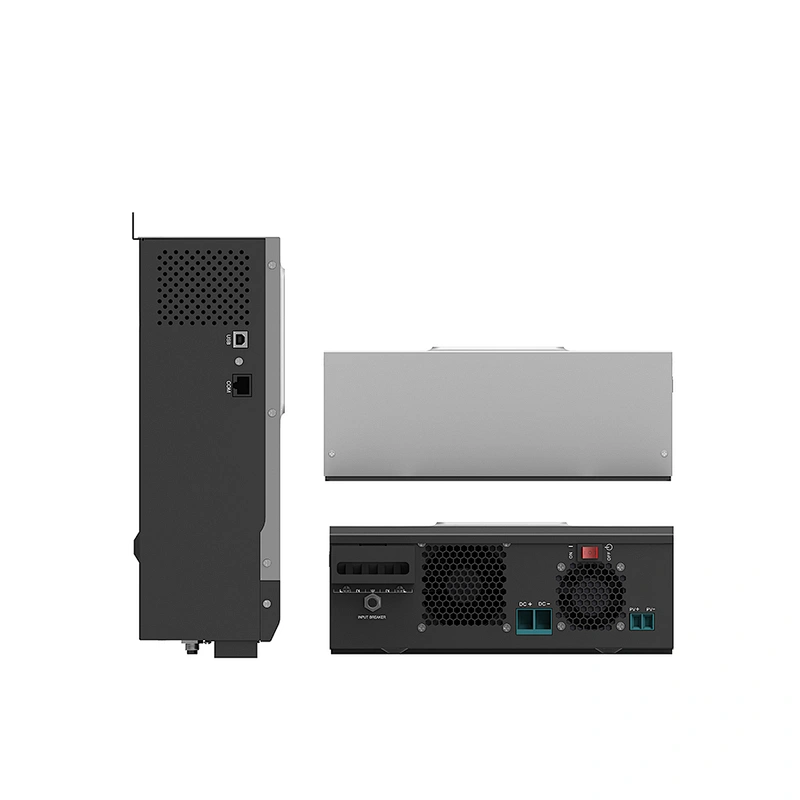

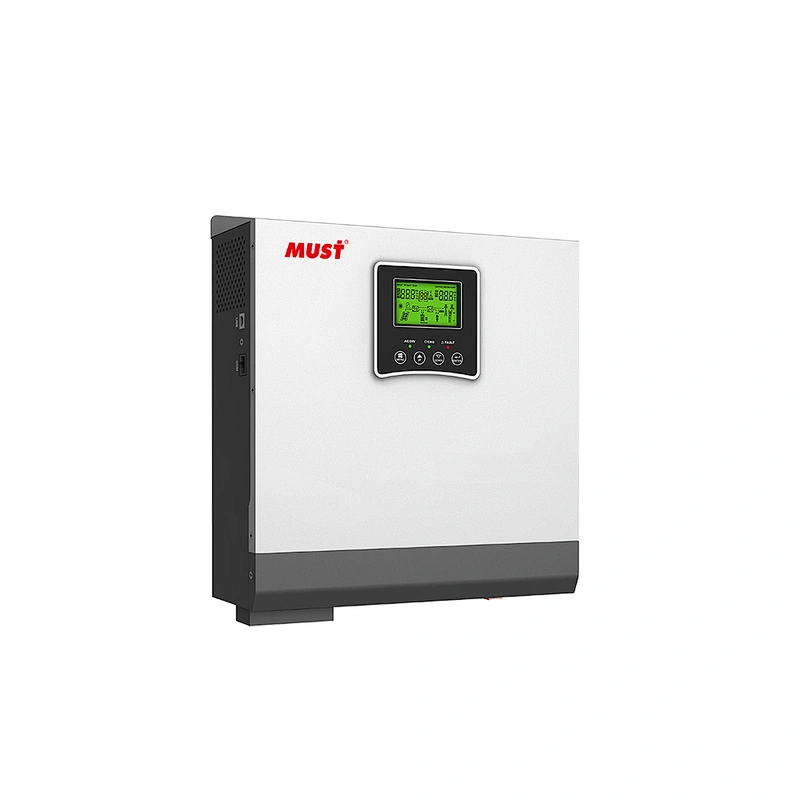

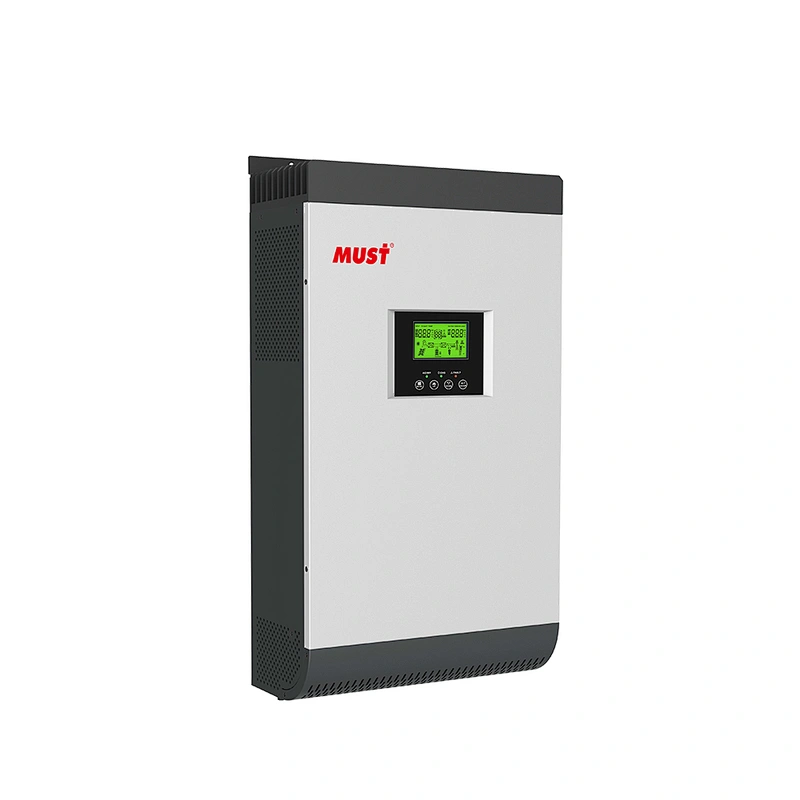

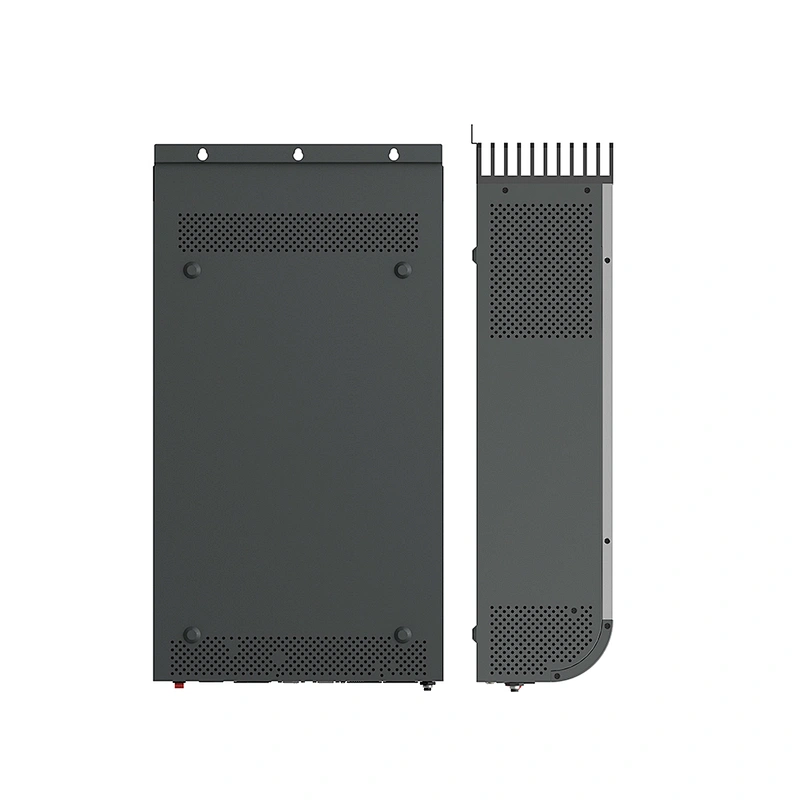

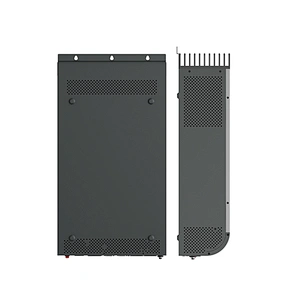

< MUST>PHV1800 VPM series high frequency pure sine wave 1-5KW off grid solar inverter
This is a multi-function inverter/charger, combining functions of inverter, MPPT50A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

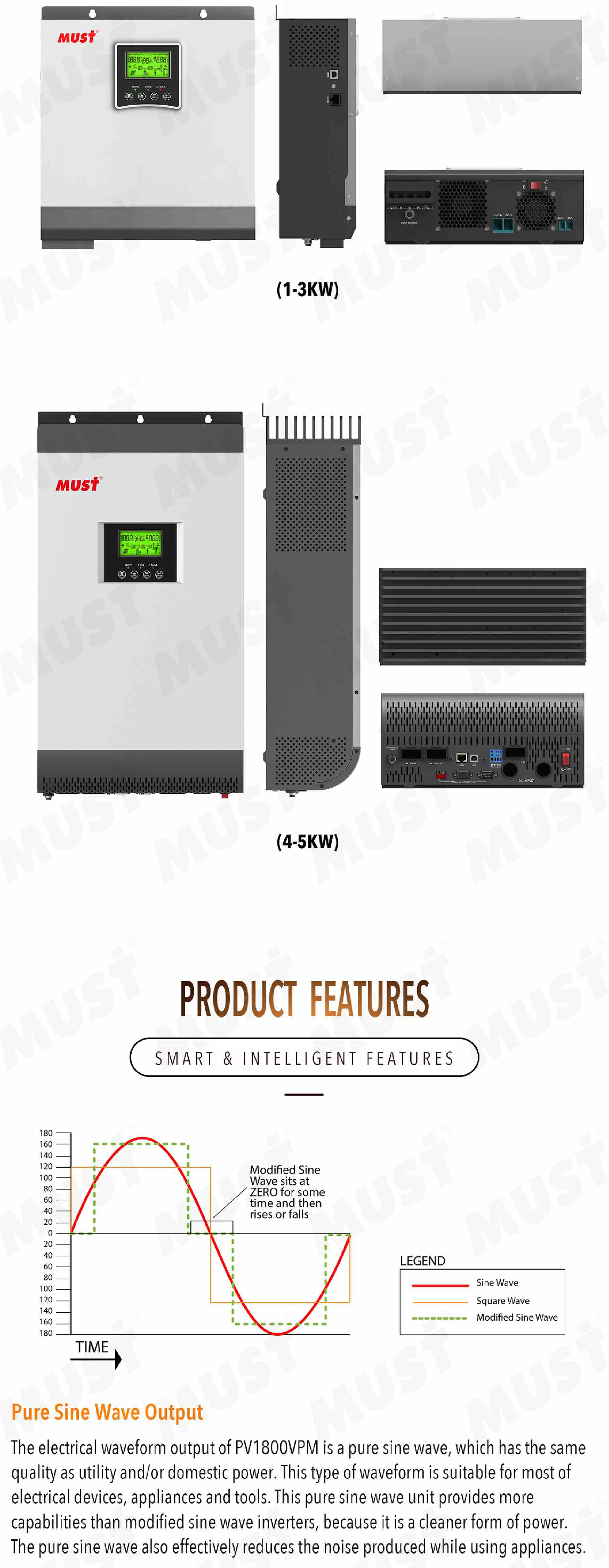

PV1800 VPM series off grid solar inverter Features:
- Rated power 1KW to 5KW
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Bult in MPPT50A/80A solar charge controller

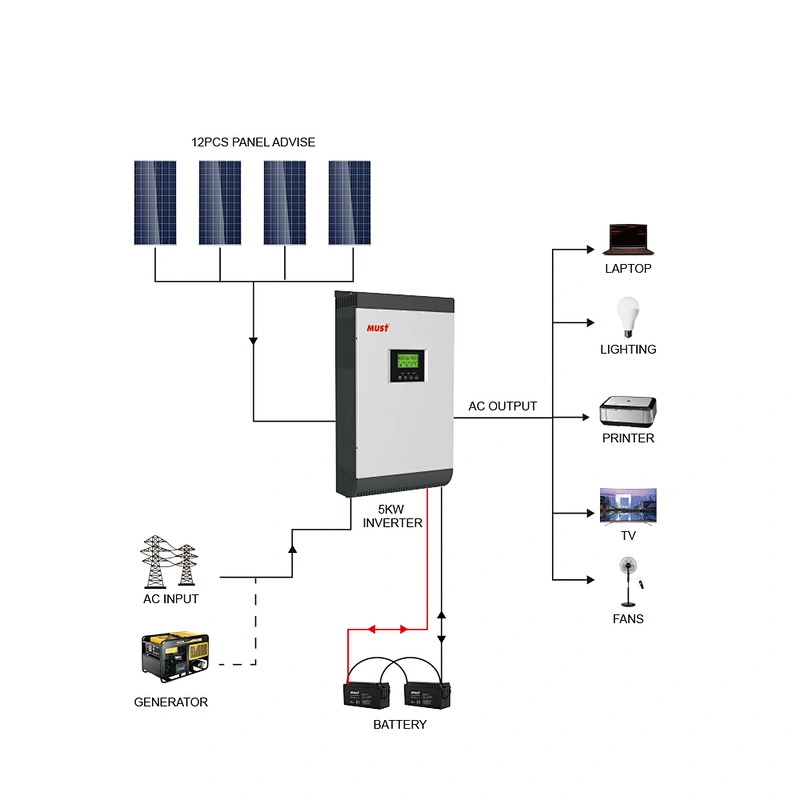

- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function

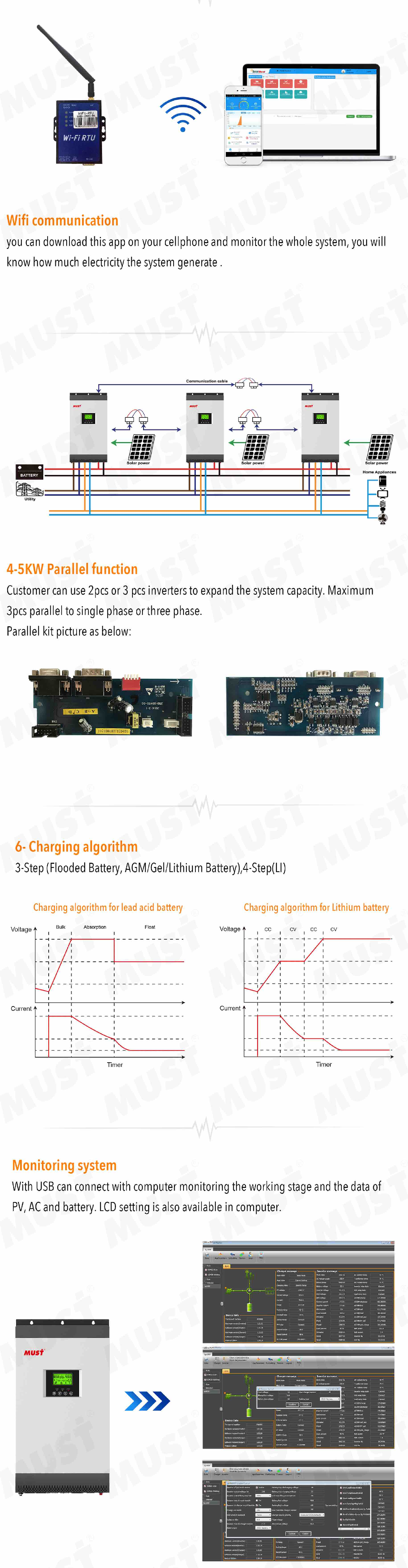

- Support USB, RS485 monitoring function with free CD
- WIFI remote monitoring (optional)
- Compatible to generator
- 3KW-5KW support parallel function(optional)
Technical Specification:
| MODEL | PV18-1012 VPM | PV18-2024 VPM | PV18-3024 VPM | PV18-3048 VPM | PV18-4048 VPM | PV18-5048 VPM |
|---|---|---|---|---|---|---|
| Default Battery System Voltage | 12VDC | 24VDC | 48VDC | |||
| INVERTER OUTPUT | ||||||
| Rated Power | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W | 3000VA/3000W | 4000VA/4000W | 5000VA/5000W |
| Surge Power | 2000VA | 4000VA | 6000VA | 6000VA | 8000VA | 10000VA |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | 220VAC ~ 240VAC (Setiing) | |||||
| Inverter Efficiency (Peak) | 90%~93% | |||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Normal voltage | 12VDC | 24VDC | 48VDC | |||
| Floating Charge Voltage | 13.7VDC | 27.4VDC | 54.8VDC | |||
| Overcharge Protection | 150VDC | 30VDC | 60VDC | |||
| SOLAR CHARGER&AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 60VDC | 100VDC | 145VDC | |||
| PV Array MPPT Voltage Range | 15~60VDC | 30~80VDC | 64~130VDC | |||
| Standby Power Consumption | 2W | |||||
| Maximum PV Array Power | 625W | 1250W | 4000W | |||
| Maximum Solar Charge Current | 50A | 80A | ||||
| Maximum Efficiency | 98% | |||||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | |||
| Maximum Charge Current | 70A | 80A | 140A | |||

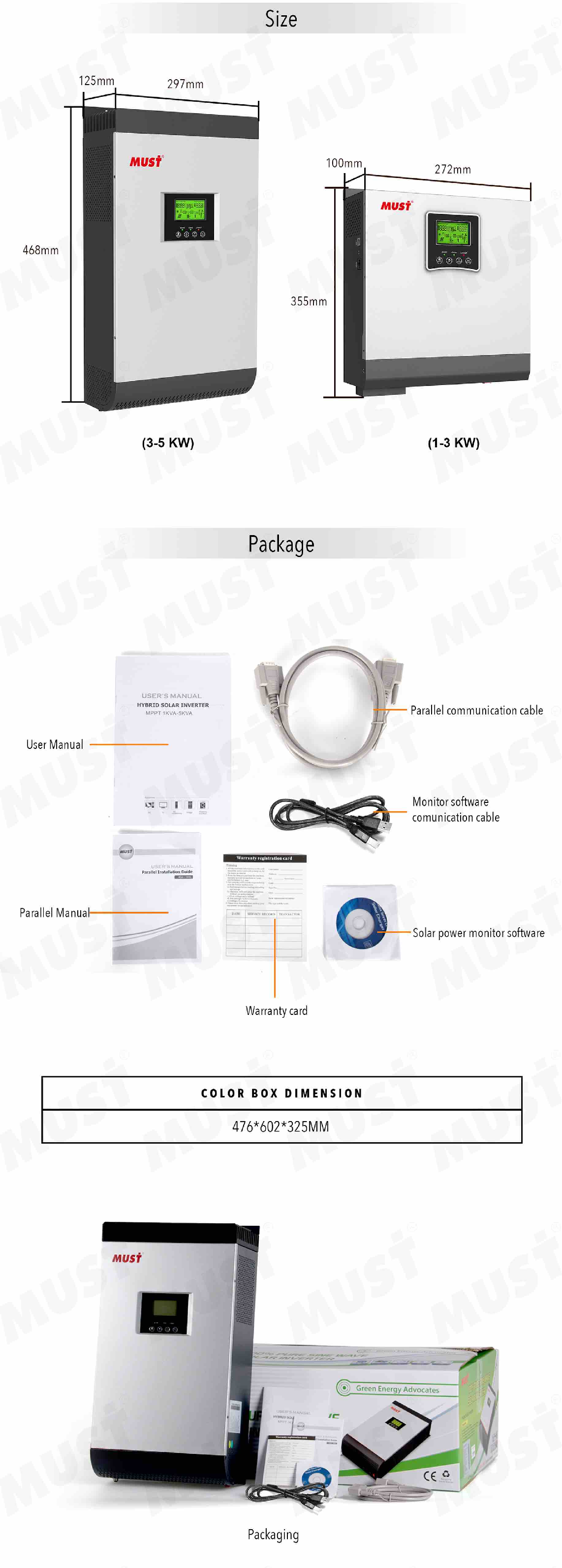

| MECHANICAL SPECIFICATIONS | ||||||
| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 297.5*468*125 | ||||
| Package Dimensions (W*H*D)(mm) | 485*393*251 | 638*395*241 | ||||
| Net Weight(kg) | 7.4 | 14 | ||||
| Gross Weight(kg) | 9.5 | 16.4 | ||||
| OTHER | ||||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C -55°C | |||||
| Storage Temperature | -15°C -60°C | |||||

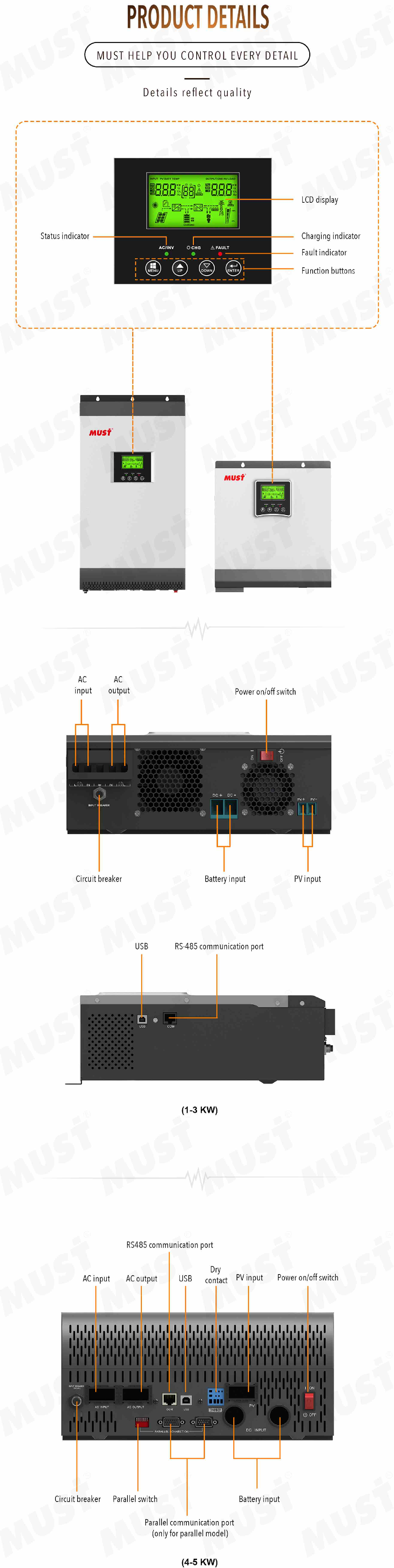

Production Introduction :
About MUST :
Shenzhen Must Power Limited is an innovative high technology manufacturer with ISO9001, specialized in R&D, manufacturing and marketing of photovoltaic (PV) inverters/solar inverter, Power Inverter, Solar charge controller, ,Solar battery ,Online UPS ,Line interactive UPS and some other related Solar products. Our innovative solutions for all photovoltaic applications and our unsurpassed service offer our customers worldwide greater independence in meeting their energy needs.
Must Energy established in 1998, with the headquarter in Hongkong. Must Energy products have kinds of certificates ,such as SAA,CE, SONCAP,IEC60950 to meet different market standard. We are one of the authorized”High-Tech enterprises” by China Government.

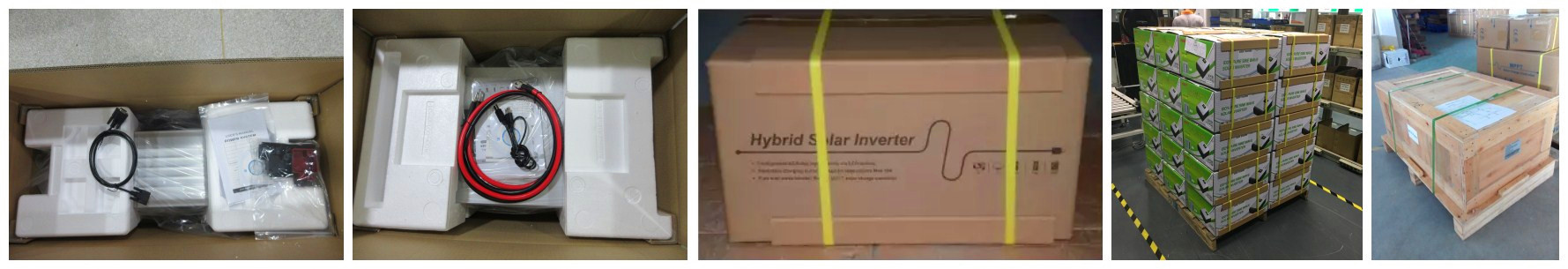

Packing & Shipment :
After Sales Service :
Samples and OEM, Warranty and After-Sale Service:
Welcome Solar Power Inverter Sample Test
OEM Welcomed
Warranty:1 Year
After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
How To Ask for Support if products broken in warrenty?
1. email us about PI number, products SN
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.
