- Place of Origin:Guangdong, China
- Brand Name:MUST OEM
- Model Number:PV1800 VPK
- Type:DC/AC Inverters
- Output Type:Single
- Output Current:50A
- Output Frequency:50/60HZ Auto Sensing
- Size:628*425*271mm
- Weight:9
- Certificate:CE
- Output Power:1 - 200KW
- Frequency:High Frequency
- Waveform:Pure Sine wave
- Rated power:800-4000W

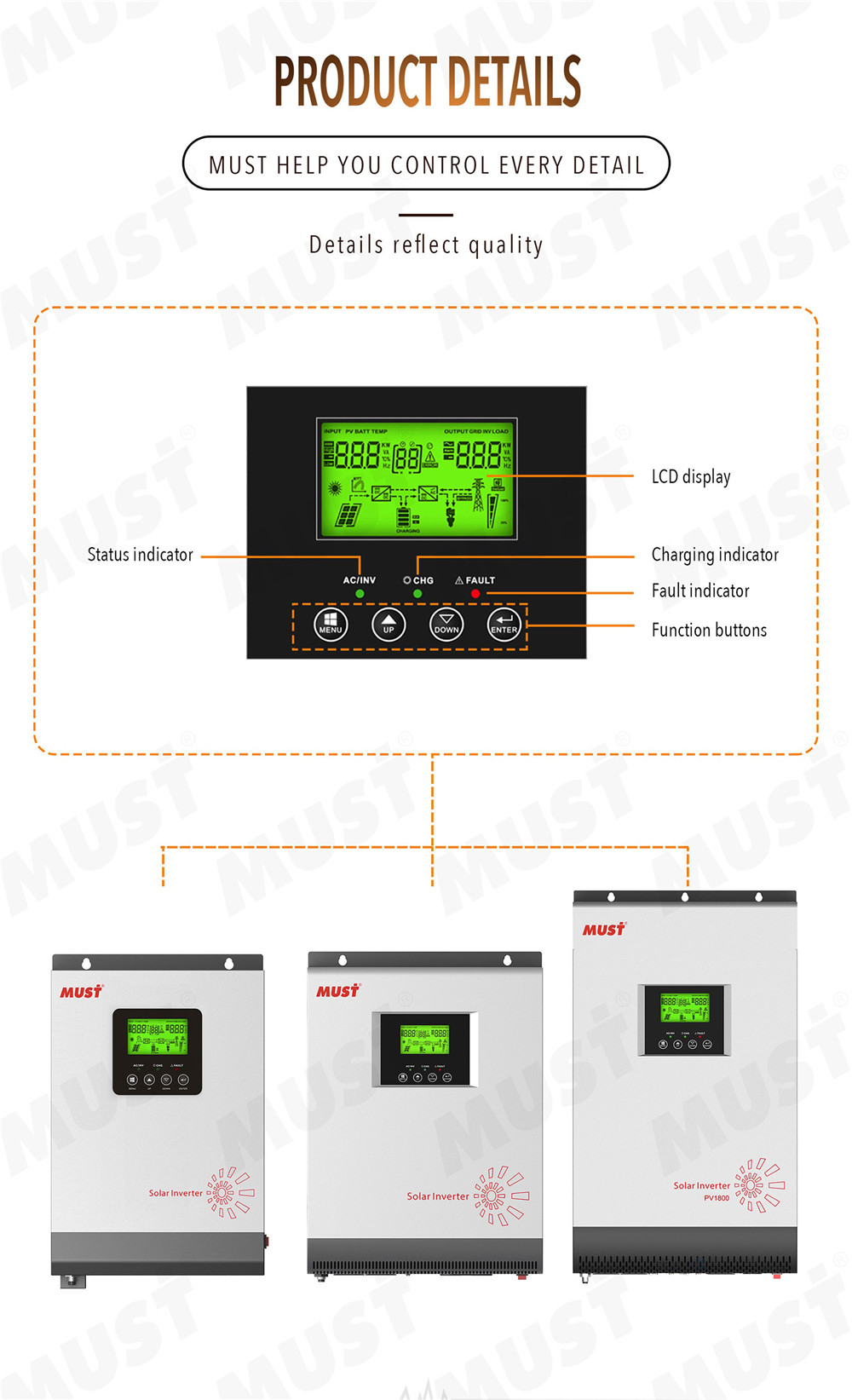

- Display:LED LCD
- Selectable voltage range:170-280VAC 90-280VAC
- PWM solar charge current:50A
- Inverter efficiency:90% 93%
- Transfer time:10ms 20ms

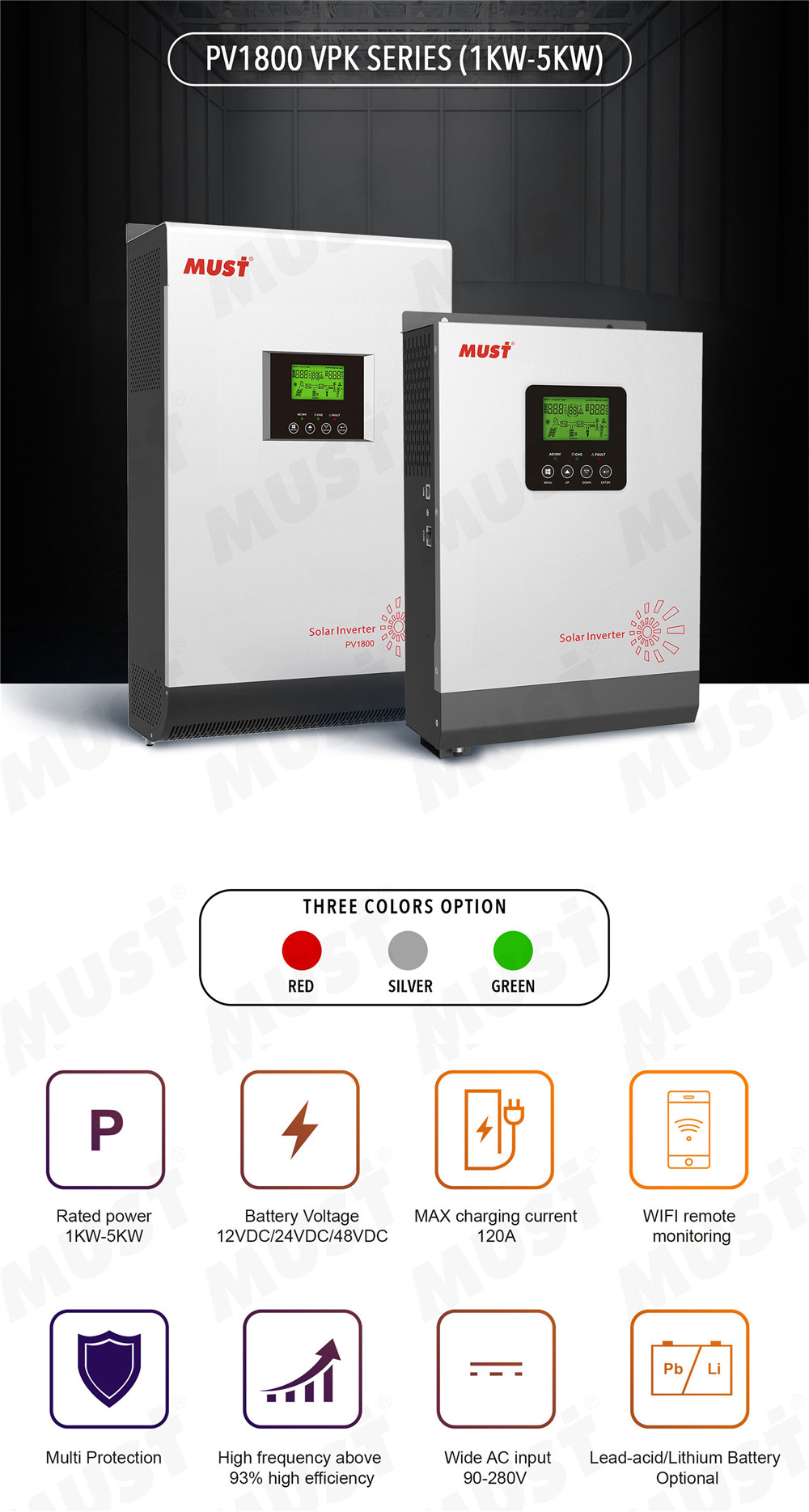

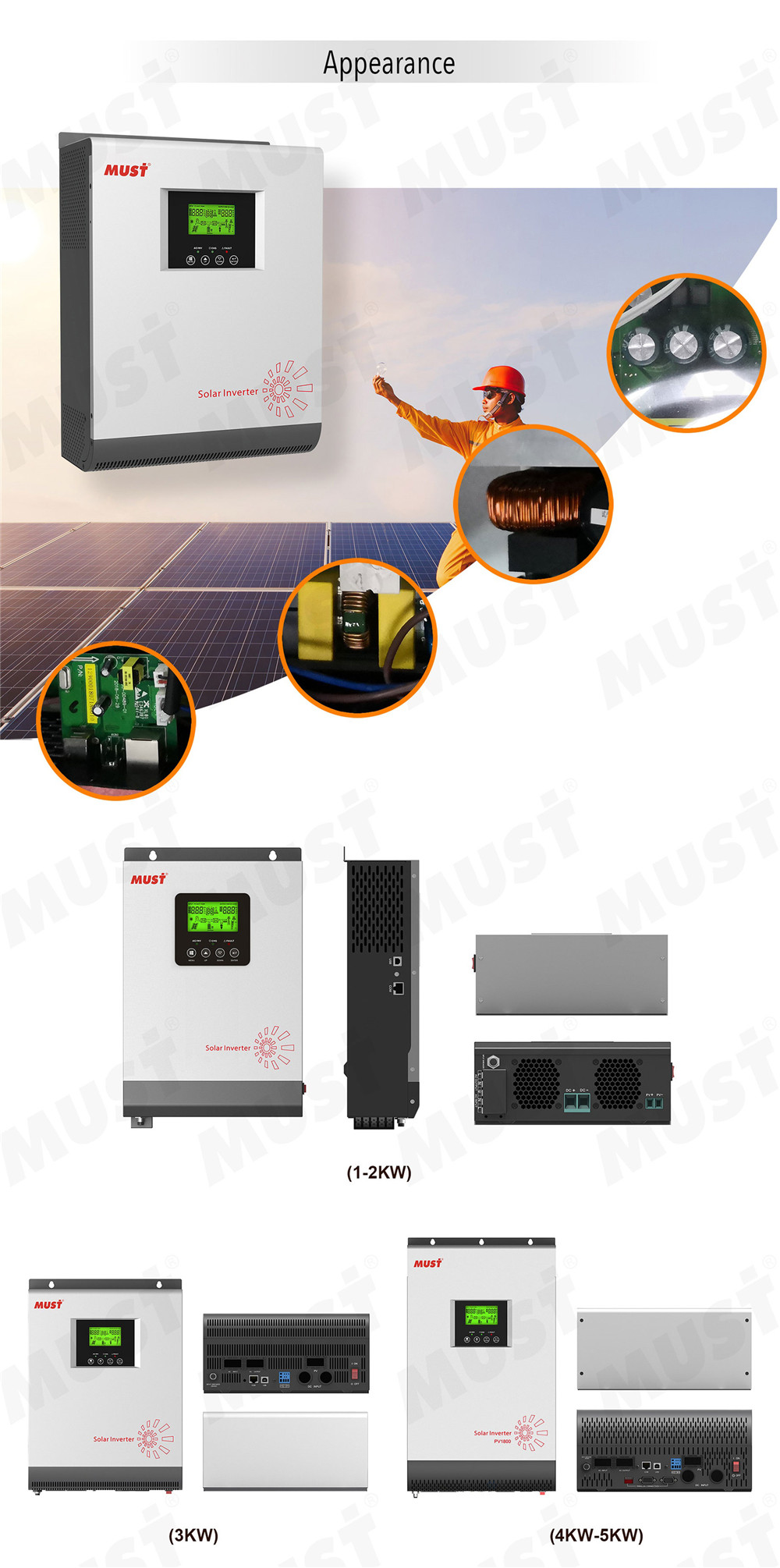

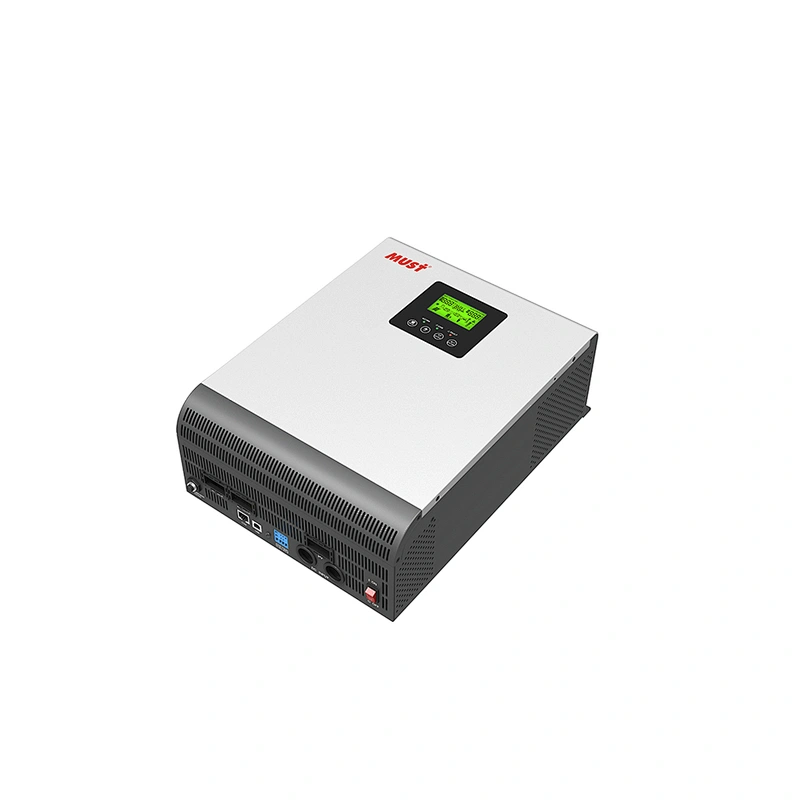

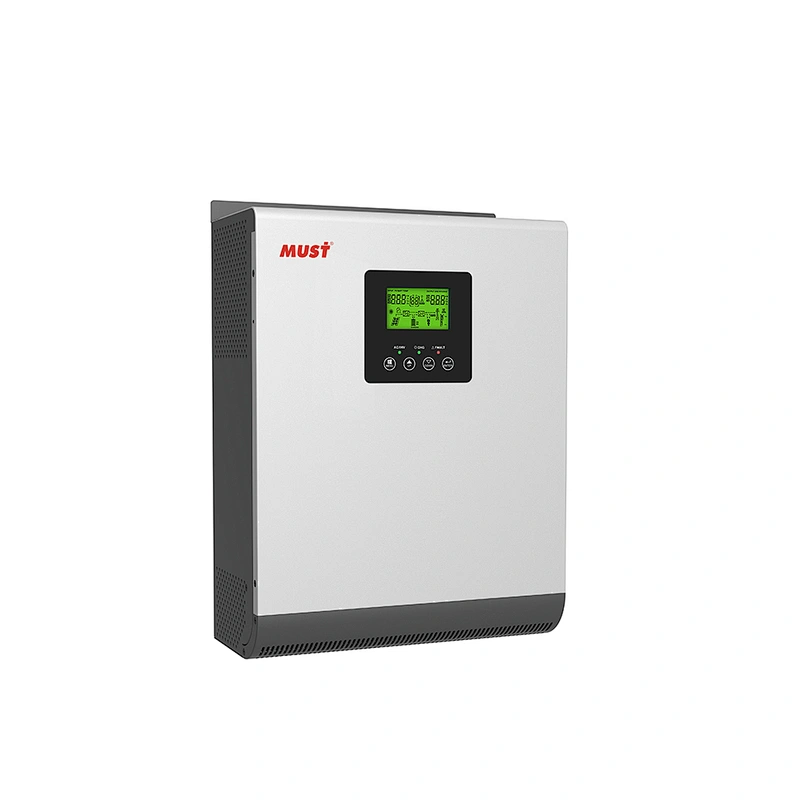

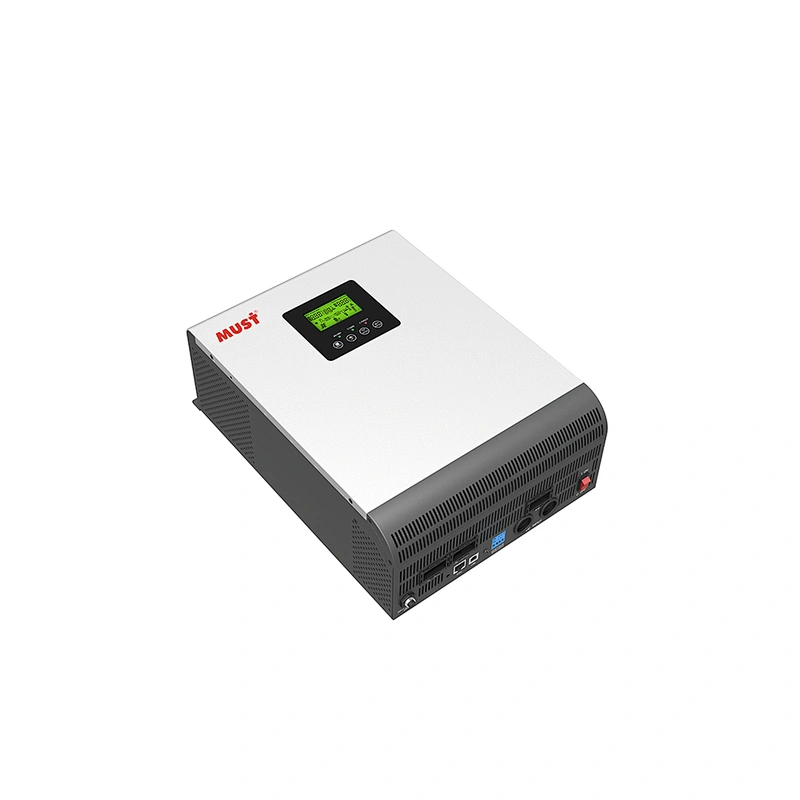

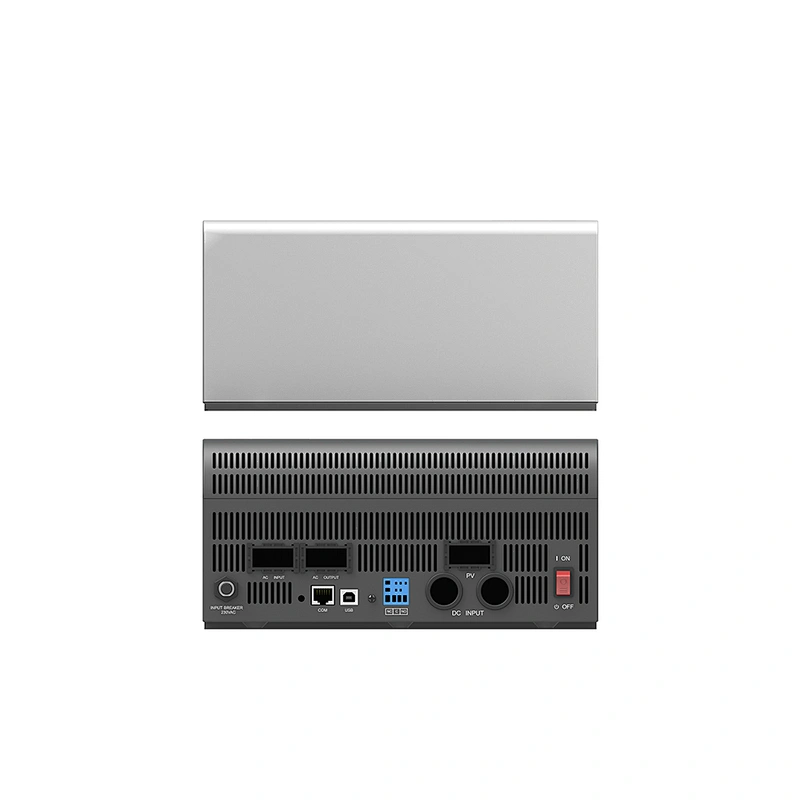

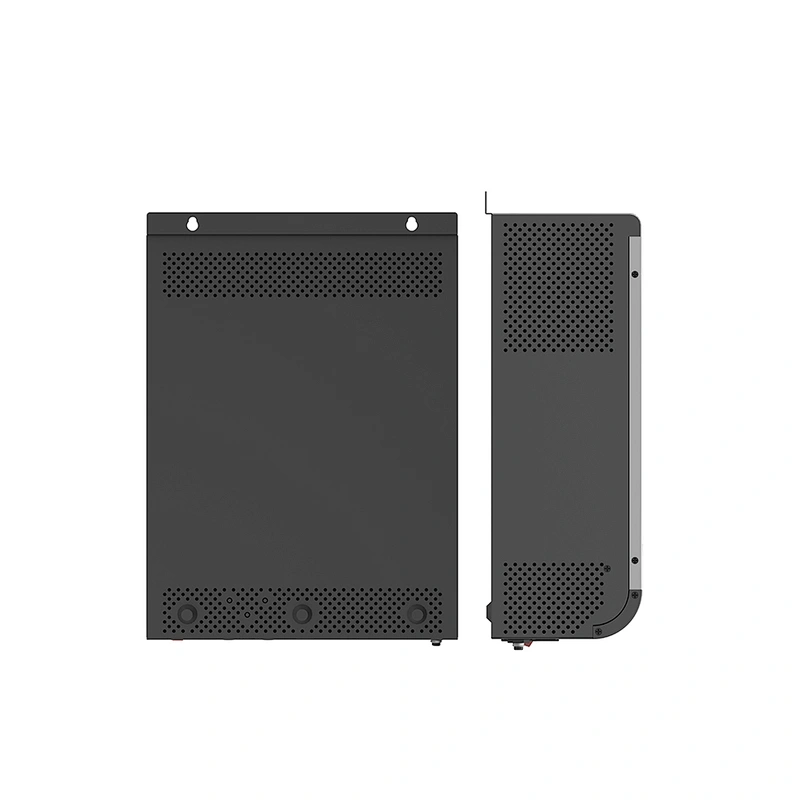

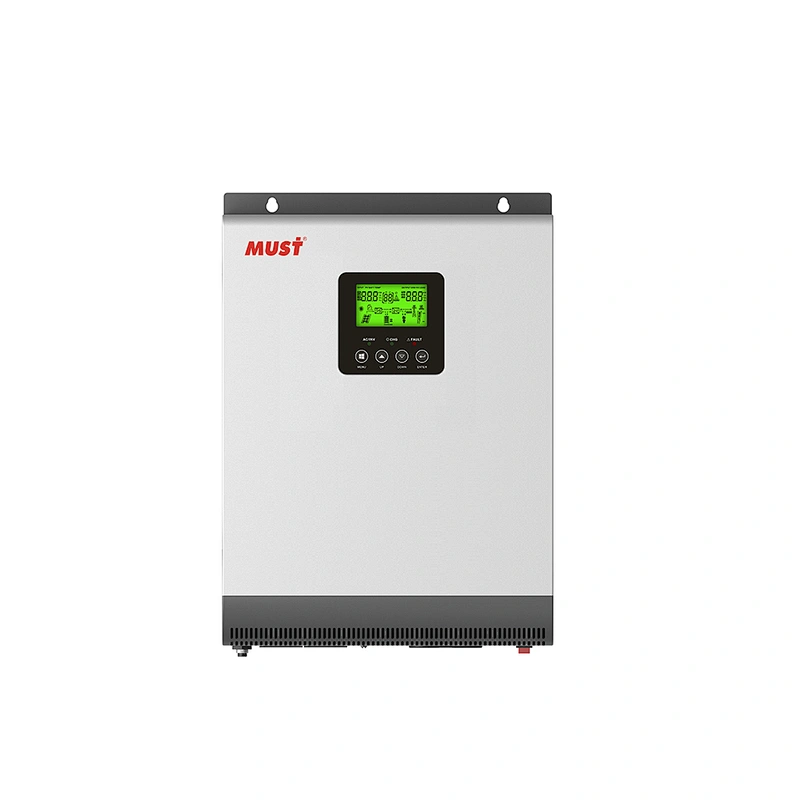

Must Hybrid INVERTER PV18-2K PV18-3K PV18-4K PV18-5K
| MODEL | PV18-1012 VPK | PV18-2024 VPK | PV18-3024 VPK | PV18-4048 VPK | PV18-5048 VPK |
|---|---|---|---|---|---|
| Nominal Battery System Voltage | 12VDC | 24VDC | 48VDC | ||
| INVERTER OUTPUT | |||||
| Rated Power | 1000W | 2000W | 3000W | 4000W | 5000W |
| Surge Power | 2000W | 4000W | 6000W | 8000W | 10000W |
| Waveform | Pure sine wave | ||||
| AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% | ||||
| Inverter Efficiency (Peak) | 93% | ||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | ||||
| AC INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE4105) | ||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||
| BATTERY | |||||
| Normal voltage | 12VDC | 24VDC | 48VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | ||
| Overcharge Protection | 15.5VDC | 31VDC | 60VDC | ||
| SOLAR CHARGER&AC CHARGER | |||||
| Maximum PV Array Open Circuit Voltage | 55VDC | 70VDC | 105VDC | ||
| Standby Power Consumption | 2W | 2W | 2W | ||
| (PWM) Maximum Solar Charge Current | 50A | 50A | 60A | ||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | ||
| Maximum Charge Current | 70A | 80A | 120A | ||
| MECHANICAL SPECIFICATION | |||||

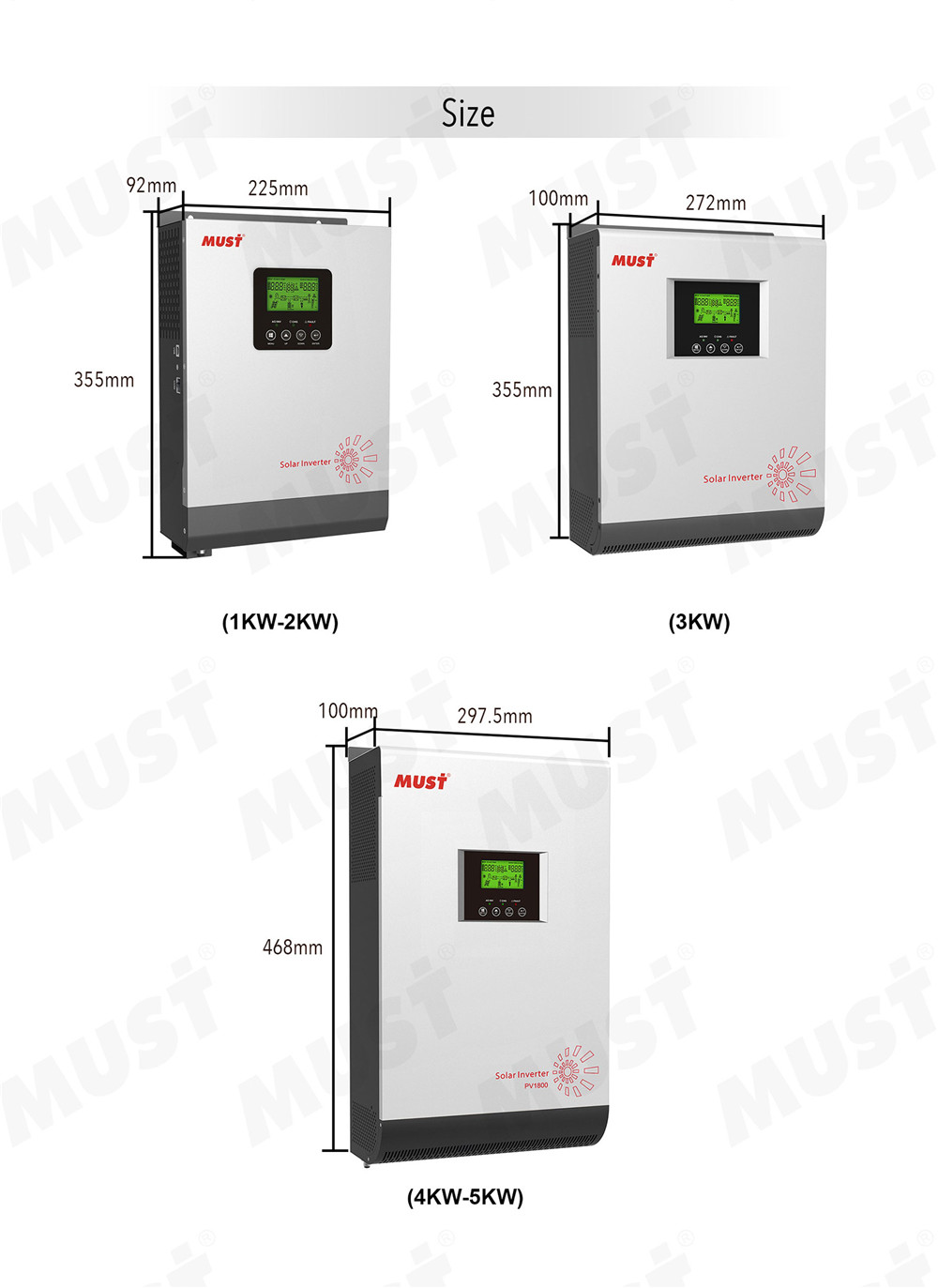

| Machine Dimensions (W*H*D)(mm) | 225*355*92 | 272*355*100 | 297.5*468*125 | ||
| Package Dimensions (W*H*D)(mm) | 405*373*205 | 465*373*231 | 618*415*261 | ||
| Net Weight(kg) | 4.0 | 7.8 | 12 | ||
| Gross Weight(kg) | 6.0 | 10.3 | 13.5 | ||
| OTHER | |||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Operating Temperature | 0°C -55°C | ||||
| Storage Temperature | -15°C -60°C | ||||
Warranty: 1 Year for off grid solar inverter&UPS. 5 year/10 years for on grid solar inverter.
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship, but except any defects resulting from improper use of the products.
Lead time:
a) Sample orders (1-2 pcs) will be delivered from our factory within 10 working days
b) Bulk orders will be delivered from our factory within 35 working days
After-sale Service: 24-Hour Hot Line for Consultancy and Technical Support
Do you know MUST POWER LIMITED?
- Established in 1998, Headquarter in HongKong
- 10-year Professional Factory Manufacturer in Foshan, China
- Product Range: Power Inverter, Solar Inverter, MPPT Solar Charge Controller, Solar Battery, UPS
- Main Market : Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya,etc.

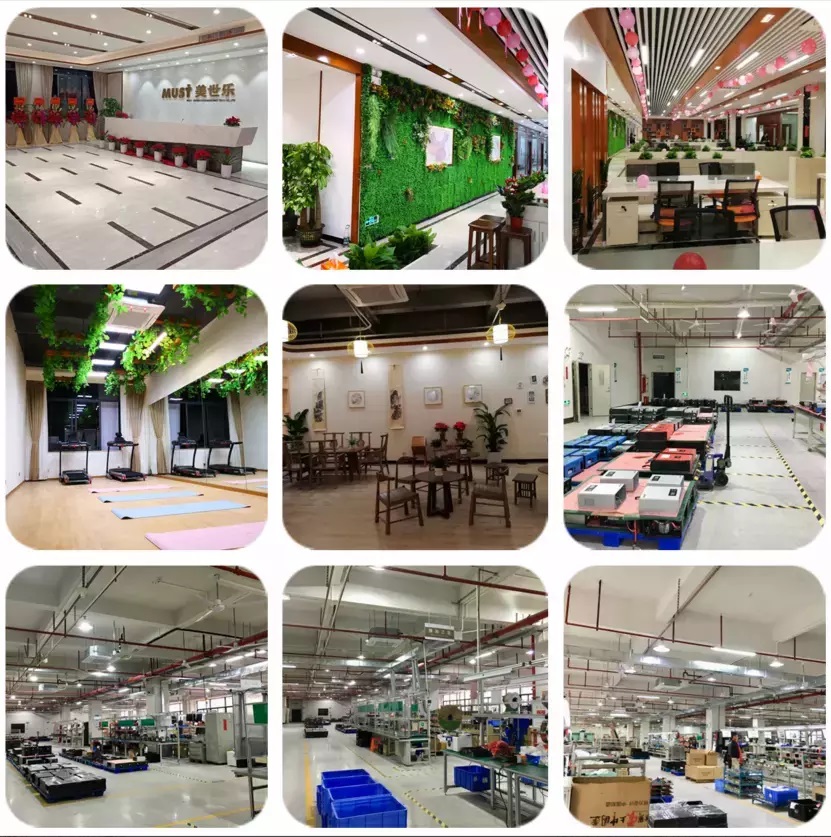

- EIGHT FLOOR Factory Building, 20000 Square Meters, Two Manufacturing Centers, QA Office, Aging Test Area and Three Teams of R & D.
