- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:EP1000 plus
- Output Power:500 - 1000W
- Input Voltage:170-280
- Output Voltage:220/230VAC
- Type:DC/AC Inverters
- Output Type:Single
- Output Current:max 10Amp
- Output Frequency:50HZ / 60HZ
- Size:224*225*80mm
- Weight:2.0KG
- DC voltage:12V/24V
- efficiency ac to ac:more than 95%
- Gross weight:2.5kg
- Output wave:modified sine wave
- Transfer time:15ms typical 50ms Max
- Overload protection:yes
- efficiency dc to ac:more than 80%
- Overcharge protection:yes
- Noise level:less than 50 DB
- Product name:1440W 24V 220V Power Inverter With Battey Charger

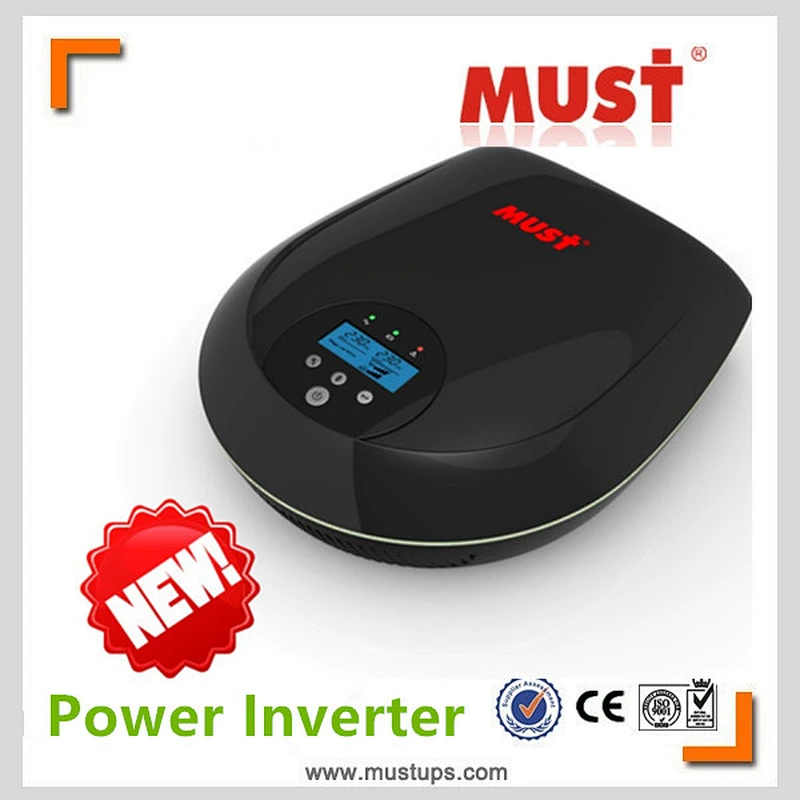

MUST New Inventions in China 1200W Power Inverter 10000 Watt Power Inverter
Model: EP1100 Pro 2.4KVA
| Product Features: |
1.Modified sine wave inverter
2.Automatic line-to-battery switchover
3.Configurable Input Voltage ranges via LCD setting
4.Double layers PCB board
5. Intelligent 3-stage charger control for efficient charging and preventing overcharge
6.MFD (multi-function display) could setting the program on the LCD display
7.Auto restart while AC recovery
8.Overload & short-circuit protection, Battery reverse polarity protection,Deep discharge protection
9.Battery cable 10AWG 60cm (double line)

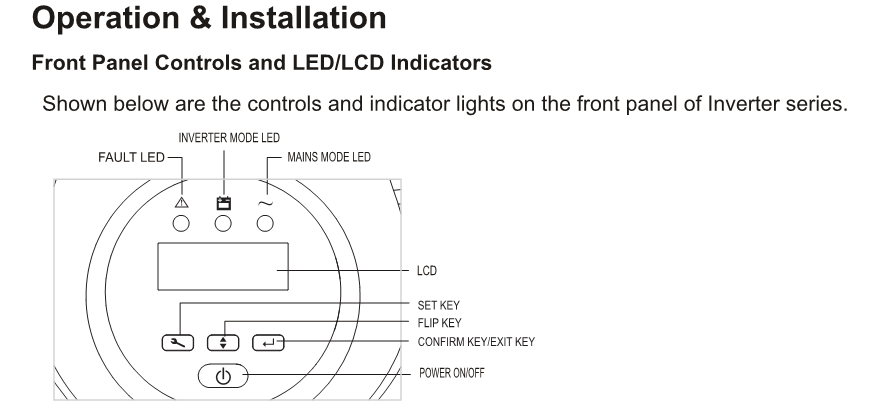

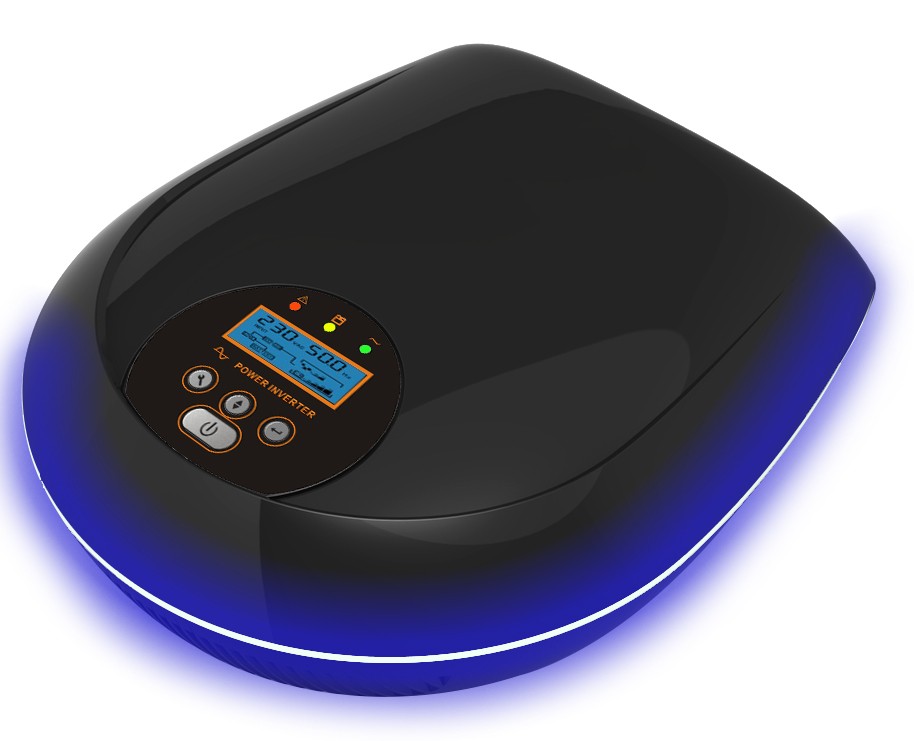

| LCD Display Power Inverter EP1000 pro |

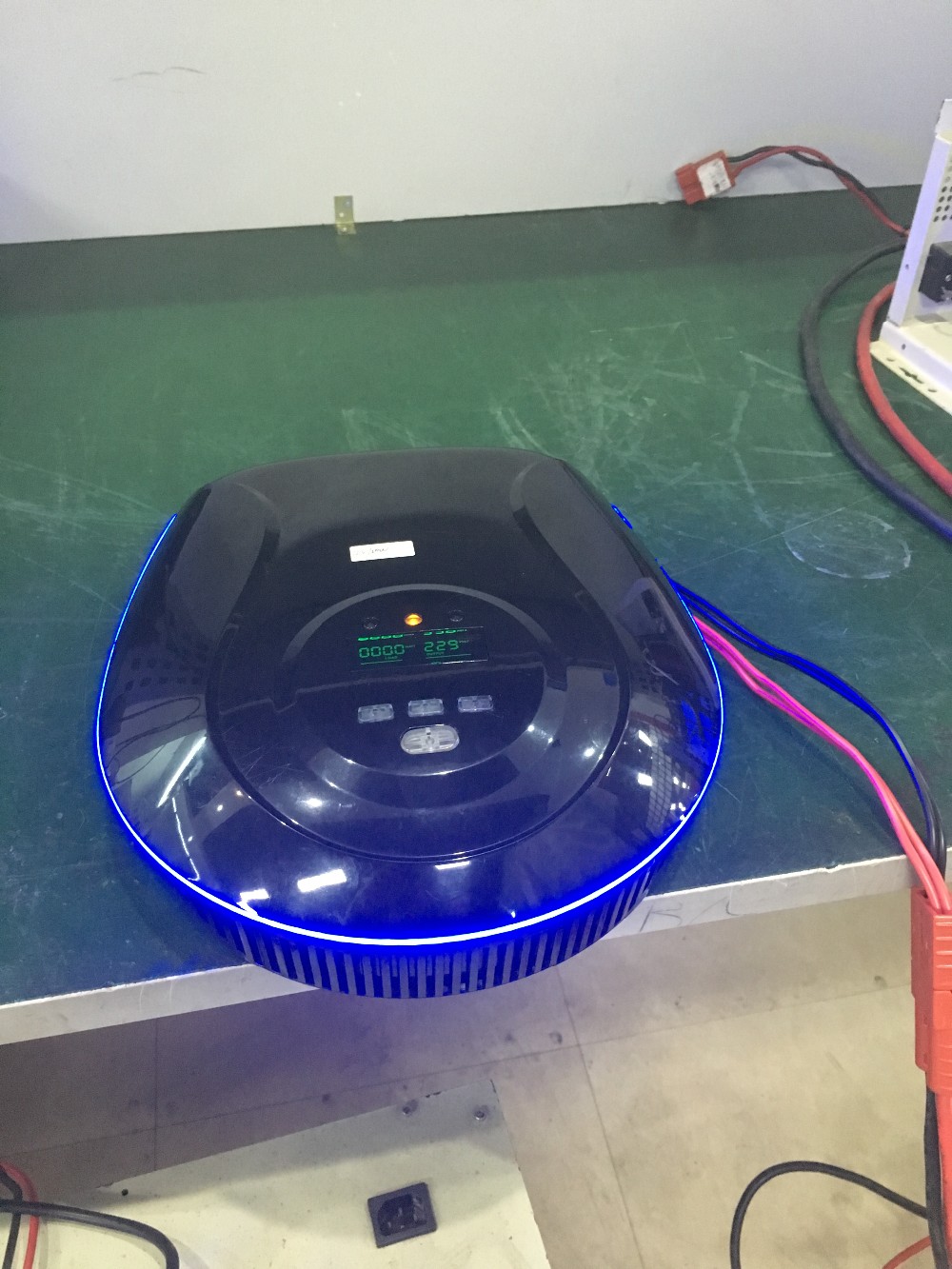

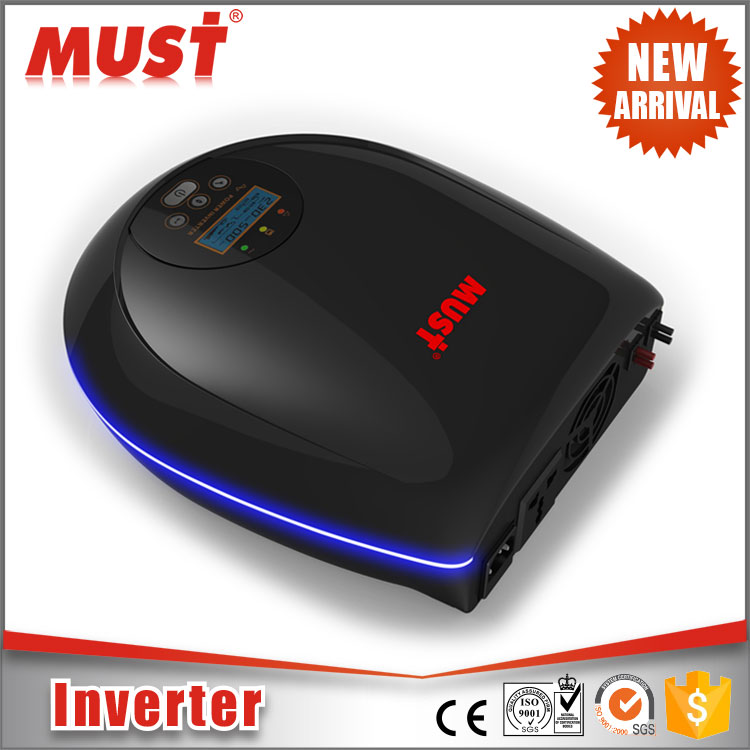

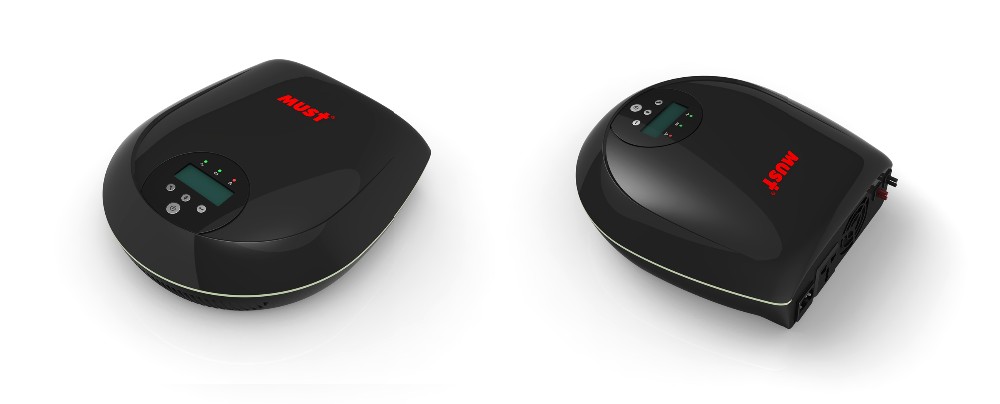

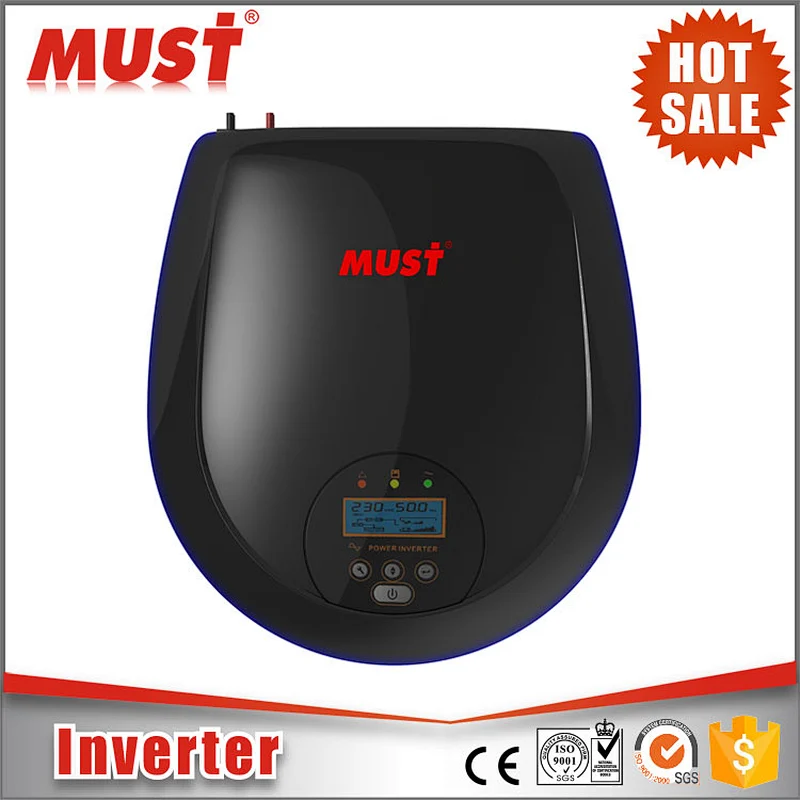

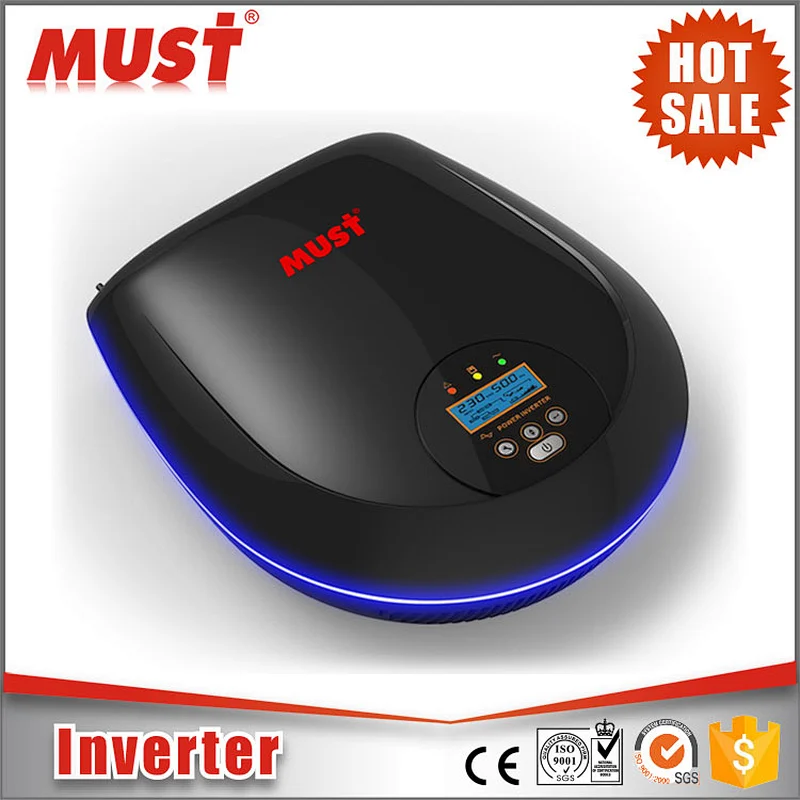

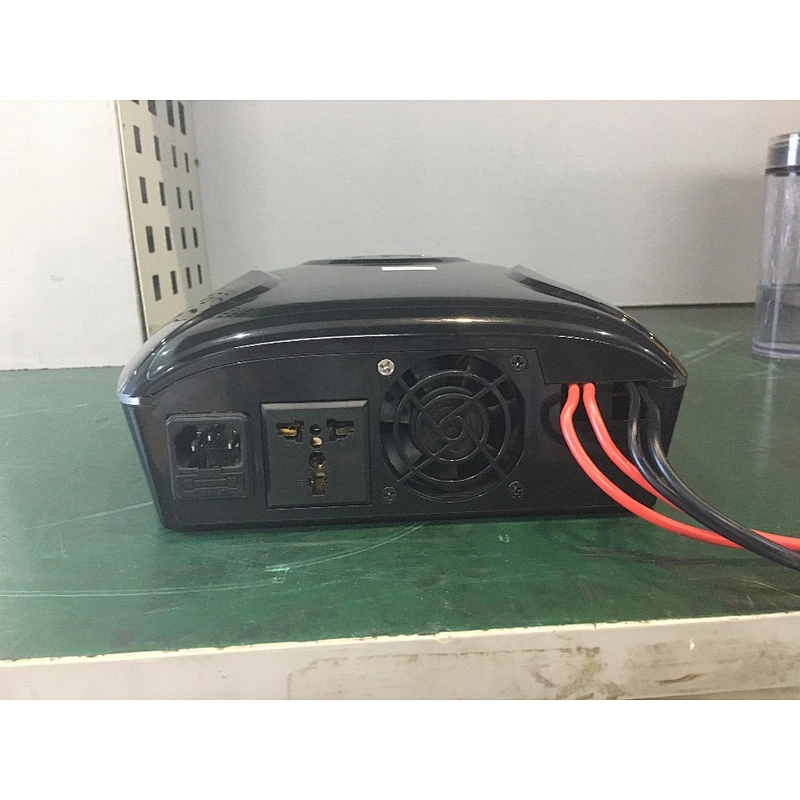

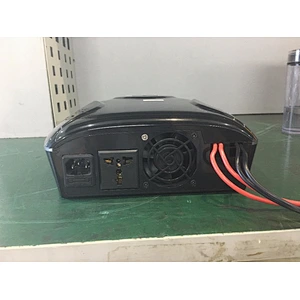

| Pictures of the Power Inverter EP1000 pro |

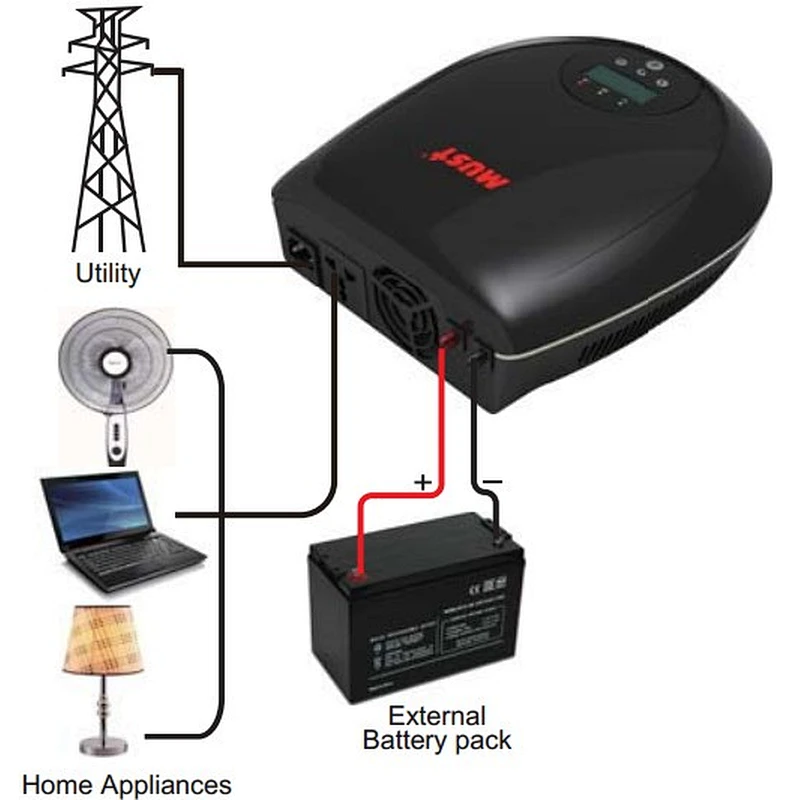

| Product for Home Installation: |
| Specification of the Power Inverter: |
EP1000 pro Series Inverter Specification | ||
MODEL | 1200VA/720W | 2400VA/1440W |
CAPACITY | 1000VA | 2000VA |
AC INPUT | ||
Voltage | 220/230/240VAC | |
Input Voltage Range | 90-280VAC | |
Frequency | 50-60Hz(Auto Detection) | |
Input Voltage Range Selector | ||
Narrow | 170-280VAC | |
Wide | 90-280VAC | |
Inverter Mode Output | ||
Voltage | 230VAC + 10% / -18% | |
Frequency | 50/60Hz ± 0.5Hz | |
Waveform | Modified Sine Wave | |
Efficiency (AC to AC) | >95% | |
Efficiency (DC to AC) | >80% | |
Battery | ||
Voltage | 12V DC | 24V DC |
Charger | ||
Charging Voltage (V bat< 12.5V) | 14.4 ± 0.4V | |
Charging Voltage (V bat< 12.5V) | 13.7 ± 0.2V | |
Charging Current 10A ± 2A | 10A ± 2A | |
Charging Current 20A ± 2A | 20A ± 2A | |
Overcharging Protection | 16V ± 0.4V | |
Transfer | ||
Transfer Time | Typical 12-20ms, 40ms max | |
Indicator | ||
Line Mode | Green LED blinks or lights steadily | |
Battery Mode | Yellow LED lights | |
Overload / Fault | Red LED blinks or lights steadily | |
Audible Alarm | ||
Low Battery Voltage in Battery Mode | Beeps every 2 seconds | |
Overload | Beeps every 0.5 seconds | |
Fault | Beeps continuously | |
Environment | ||
Temperature | 0~40°C | |
Physical | ||
Body Size (mm) | 246X253X87 | |
Net Weight (kg) | 2.3 | |
Gross Weight (kg) | 2.8 | |
Carton Size (mm) | 400*347*596 (6pcs/carton) | |
Protections | Deep Discharge, Overcharge, Short Circuit, Overload, Battery Short, Over Voltage, Under Voltage. | |

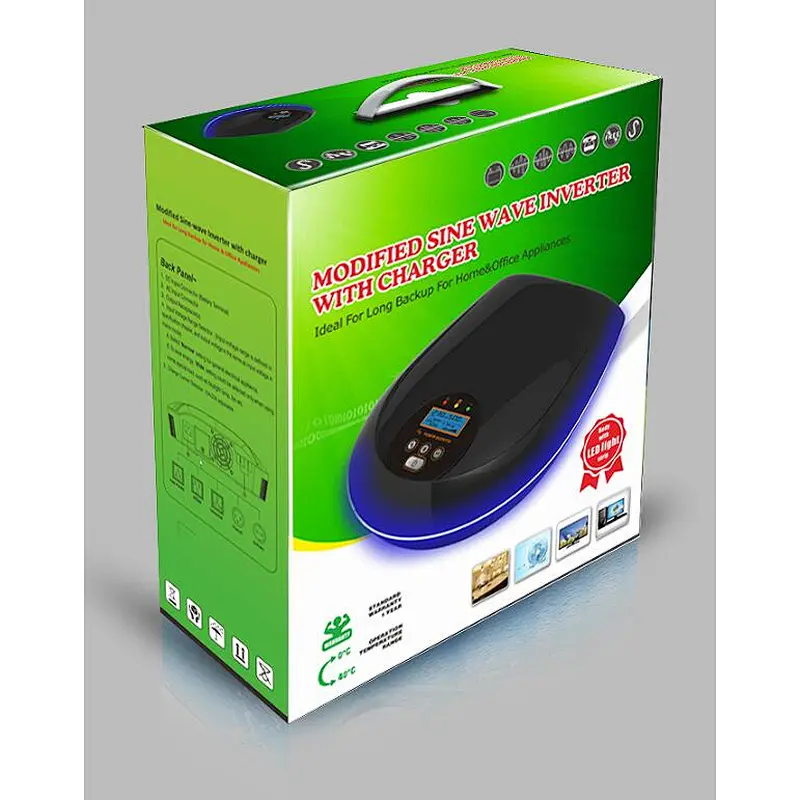

| Products Packing: |
| Product Logistics & Payment Ways |

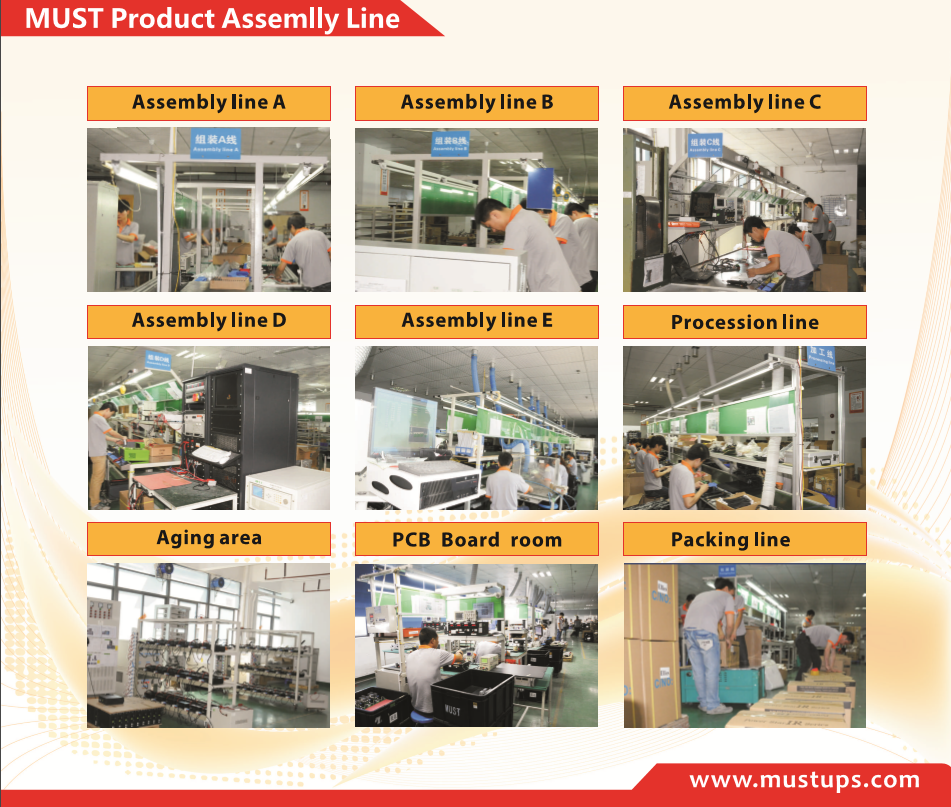

| Must Company Information |
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 220 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 working days for sample; 25 working days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
