- Place of Origin:Guangdong, China
- Brand Name:MUST/OEM
- Model Number:PV1800 VHM series
- Input Voltage:110v/120v/220v/230v
- Output Voltage:110V/220V/220V/230V
- Output Current:4A to 26A
- Output Frequency:50Hz/60Hz
- Output Type:Single
- Size:272*355*100MM/297.5*468*125MM
- Type:DC/AC Inverters
- Inverter Efficiency:98%
- Certificate:CE IOS9001
- Warranty:12 months, 12 Months
- Weight:10-13.3KG
- Color:Red,Silver
- Rated power:1-5KVA
- Status display:LCD+LED
- Frequency:High frequency
- Inverter type:Off grid inverter
- DC voltage:24v/48v
- Terminal size:#6 AWG
- Application:Solar System
- Certification:CE/ISO9001/Soncap

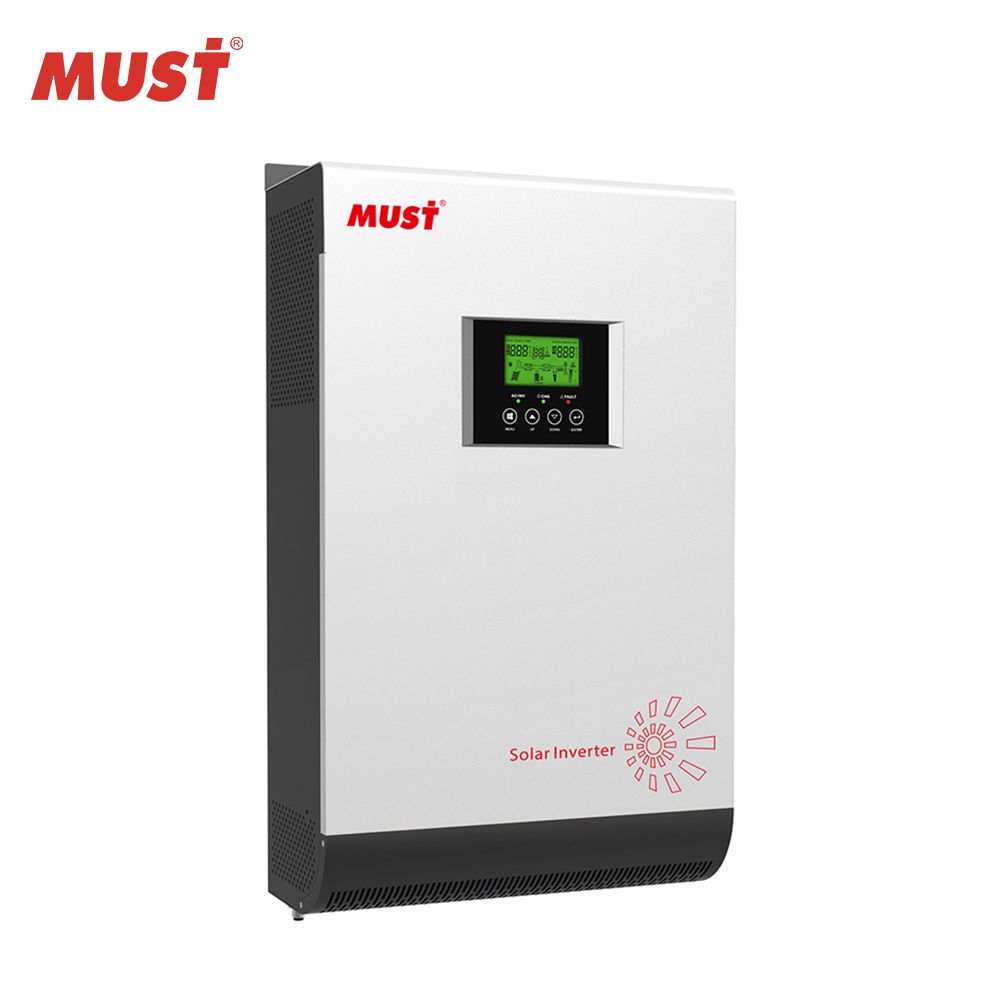

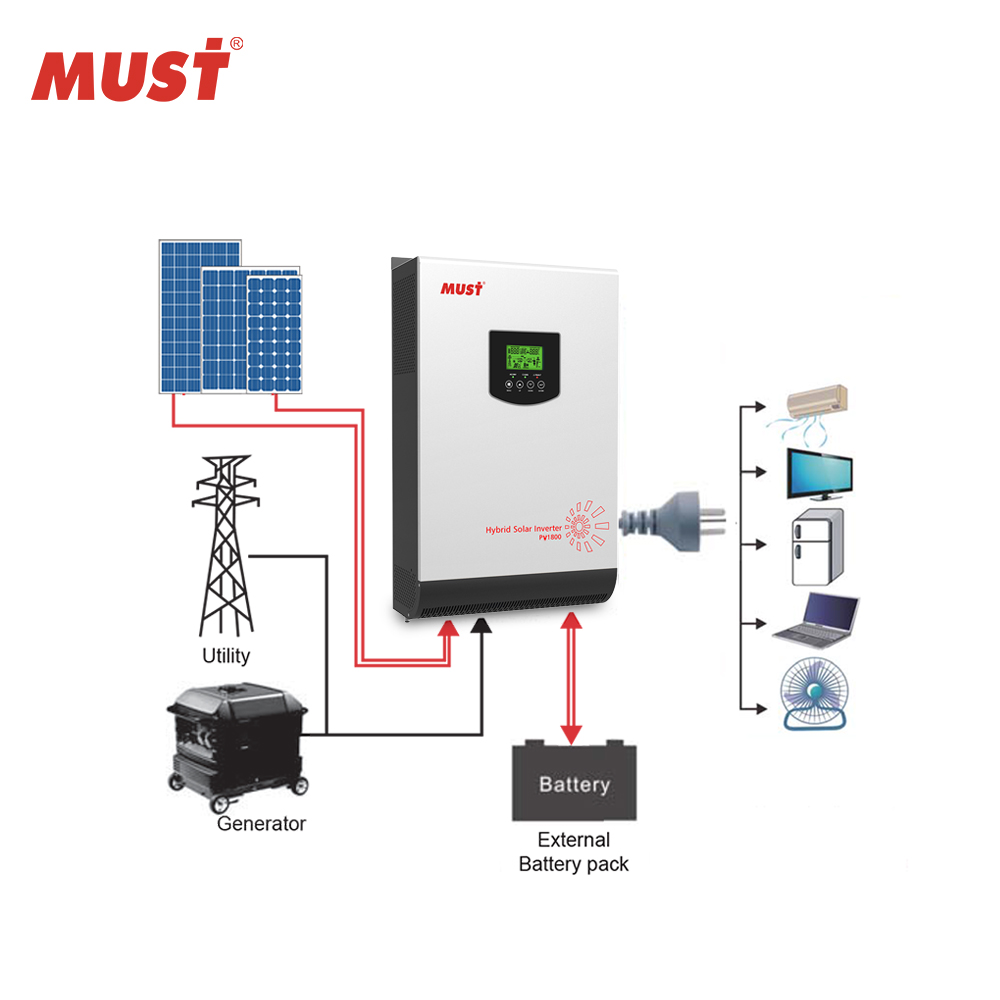

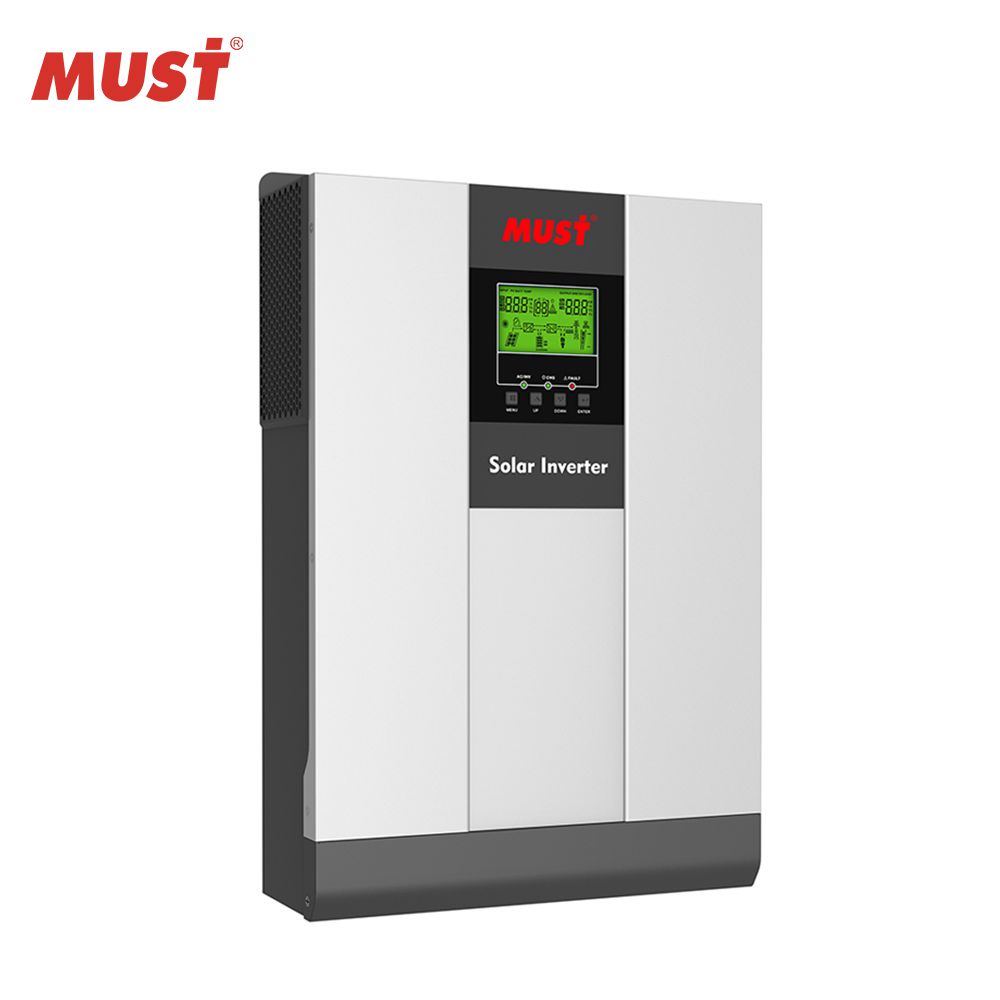

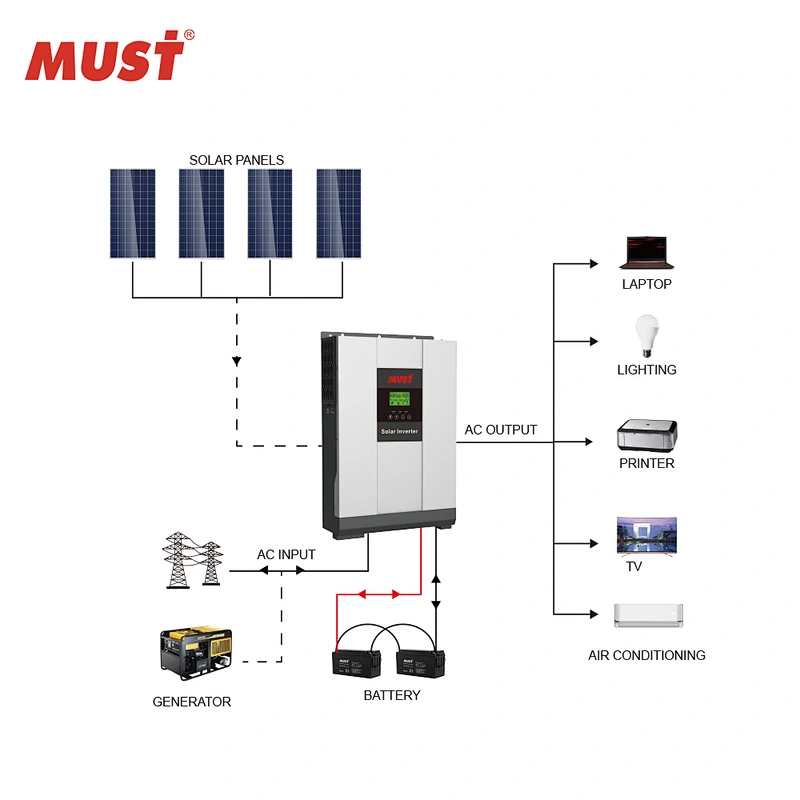

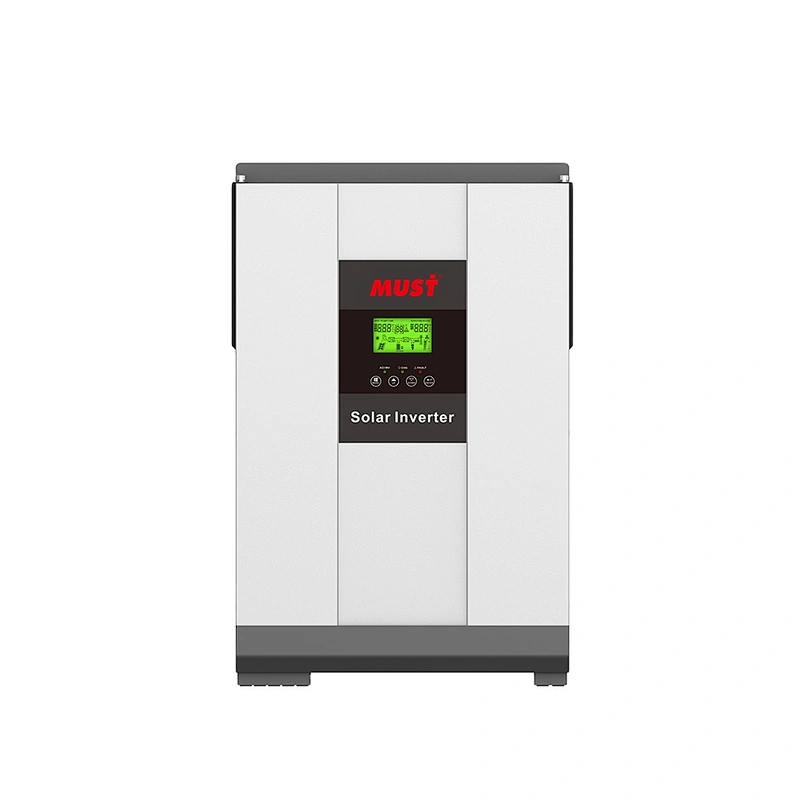

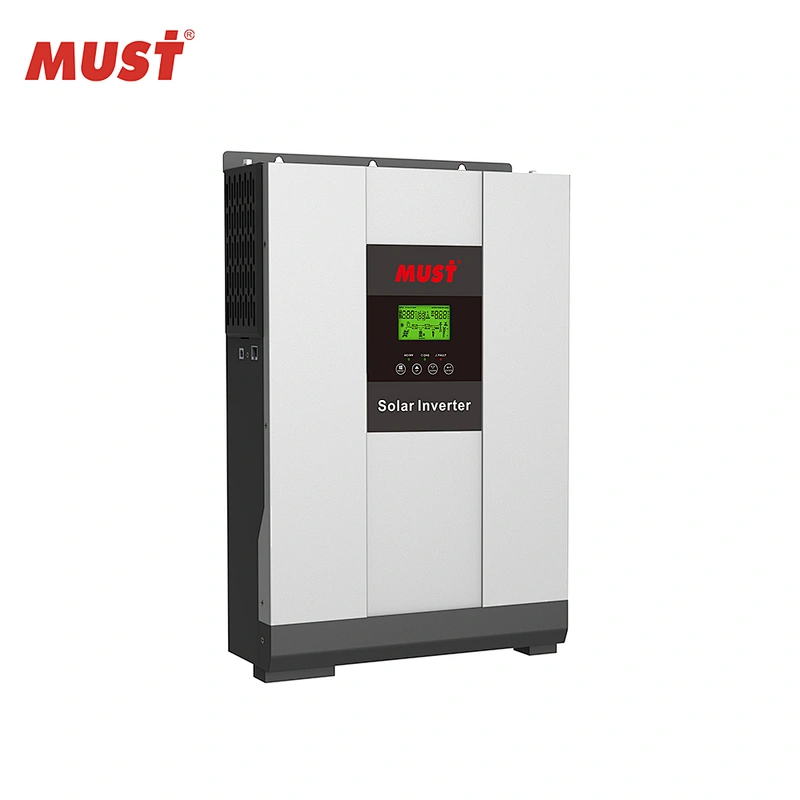

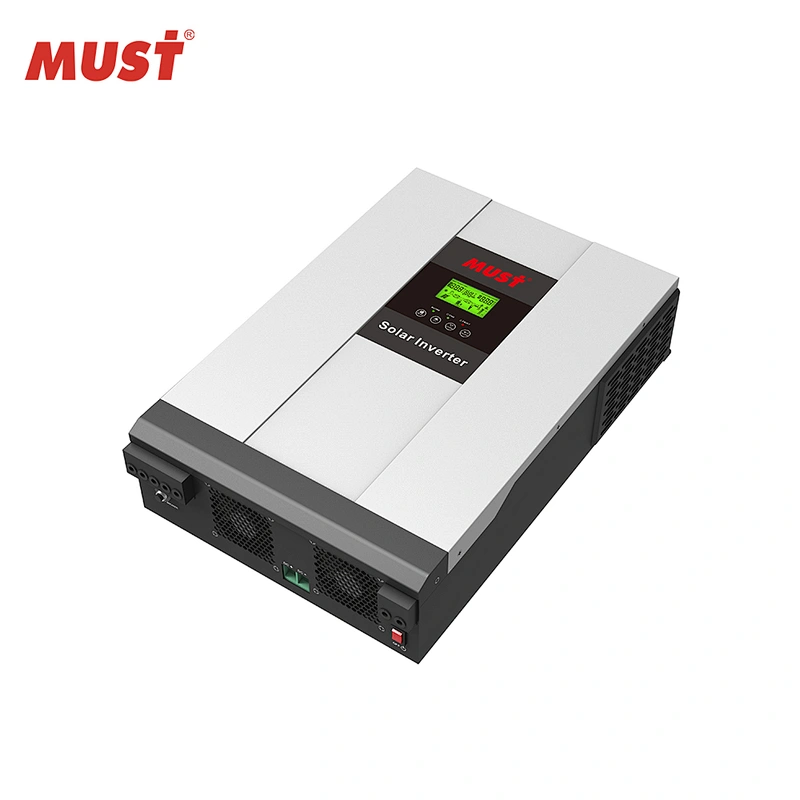

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home appliances and personal computers
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Smart battery charger design to optimize battery performance
9.Cold start function
10.Parallel operation with up to 3 units (Available for 4KW/5KW)
11.Optional Remote Control Panel available
| MODEL | PV18-2024 VHM | PV18-3024 VHM | PV18-3048 VHM | PV18-4048 VHM | PV18-5048 VHM | PV18-5548 VHM |
| Nominal Battery System Voltage | 24VDC | 48VDC | ||||
| INVERTER OUTPUT | ||||||
| Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W |
| Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% | |||||
| Inverter Efficiency (Peak) | 93% | |||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances); 184~253VAC(VDE4105) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Normal voltage | 24VDC | 48VDC | ||||
| Floating Charge Voltage | 27VDC | 54VDC | ||||
| Overcharge Protection | 31VDC | 60VDC | ||||
| SOLAR CHARGER&AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||||
| PV Array MPPT Voltage | 30~130VDC | 64~130VDC | ||||
| Standby Power Consumption | 2W | |||||
| PV Input Power | 1440W/1920W | 2880W/3840W | ||||
| Maximum Solar Charge Current | 60/80A | |||||
| Maximum Effciency | 98% | |||||
| Maximum AC Charge Current | 20/30A | 60A | ||||
| Maximum Charge Current | 80A | 120/140A | ||||
| MECHANICAL SPECIFICATION | ||||||
| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 297.5*468*125 | ||||
| Package Dimensions (W*H*D)(mm) | 540*395*241 | 638*395*241 | ||||
| Net Weight(kg) | 10 | 11 | 13.3 | |||
| Gross Weight(kg) | 11.7 | 12 | 16.4 | |||
| OTHER | ||||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C -55°C | |||||
| Storage Temperature | -15°C -60°C | |||||
| *Products specifications are subject to change without further notice | ||||||

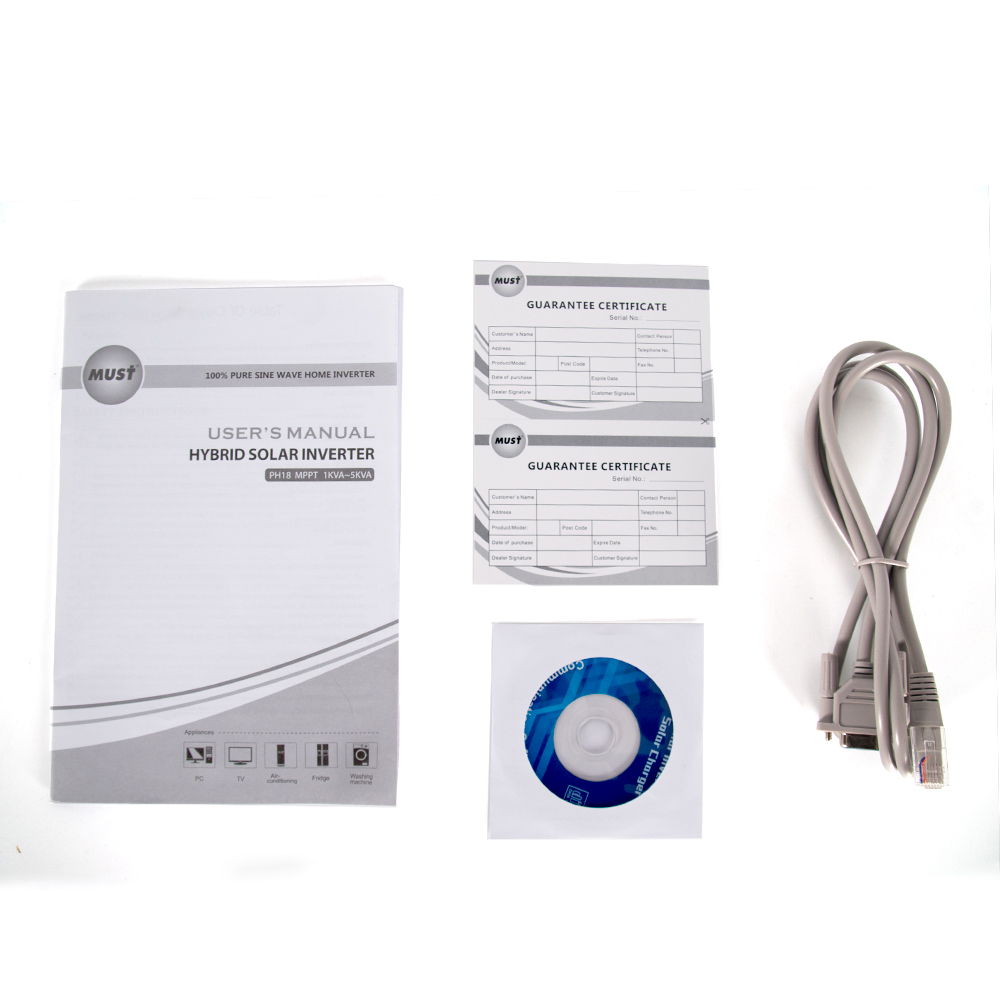

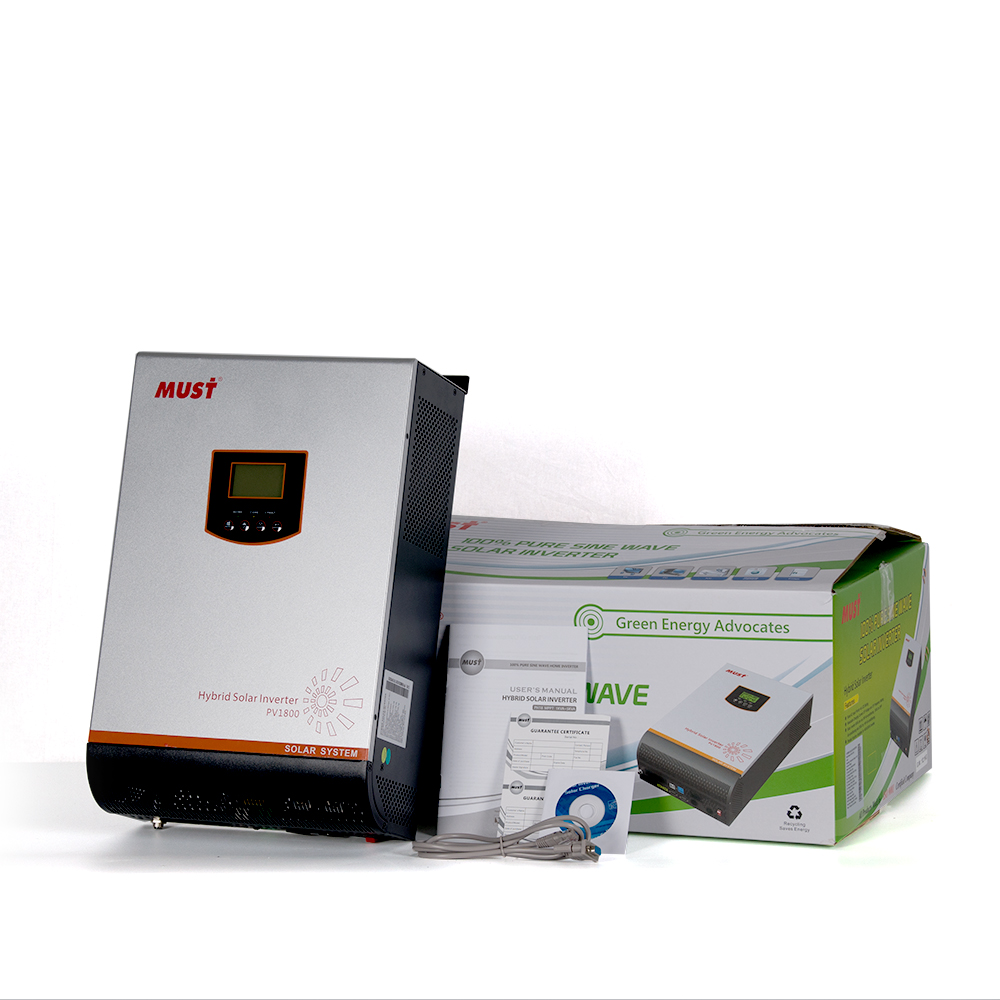

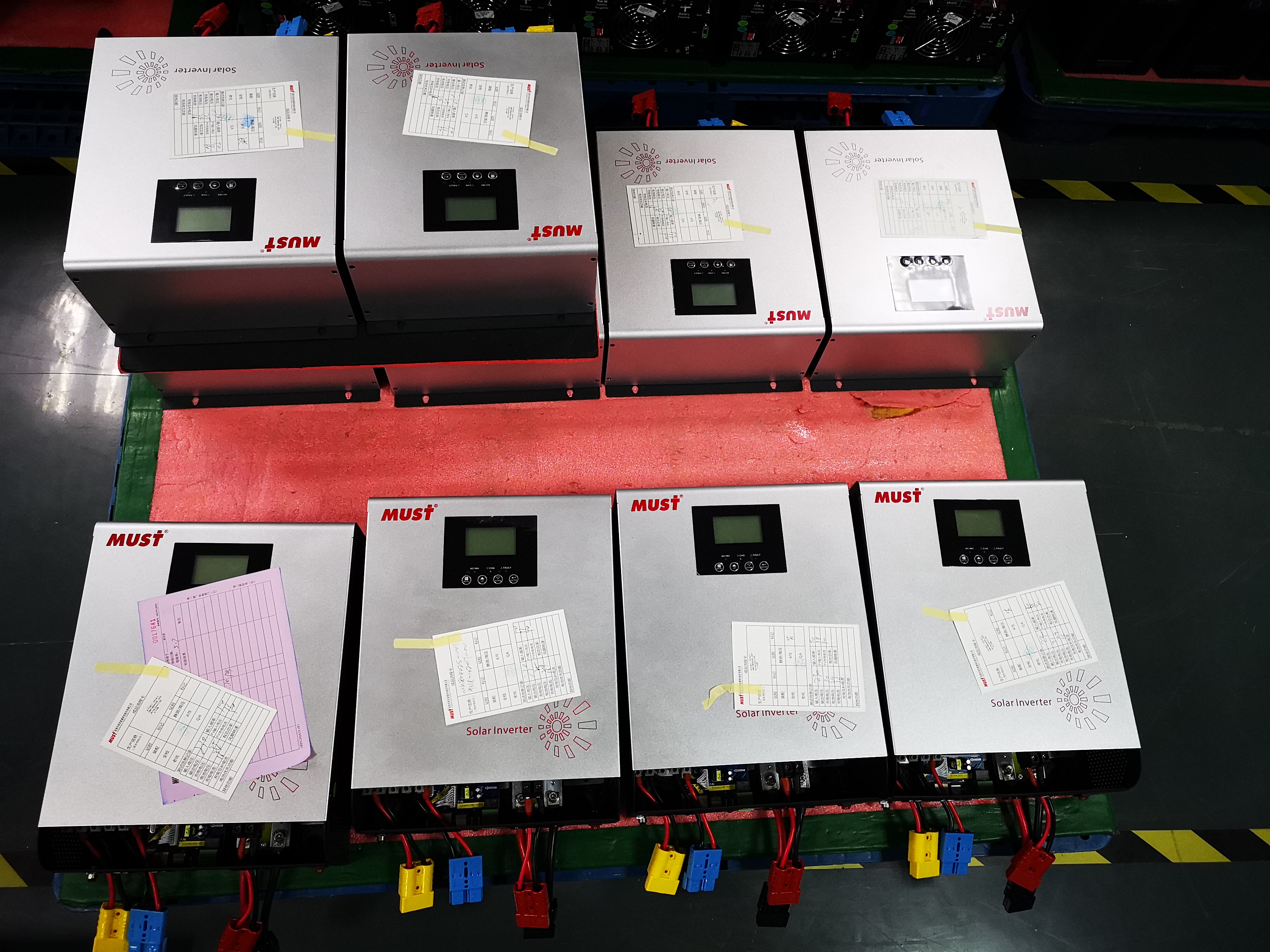

Product Packing
24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
