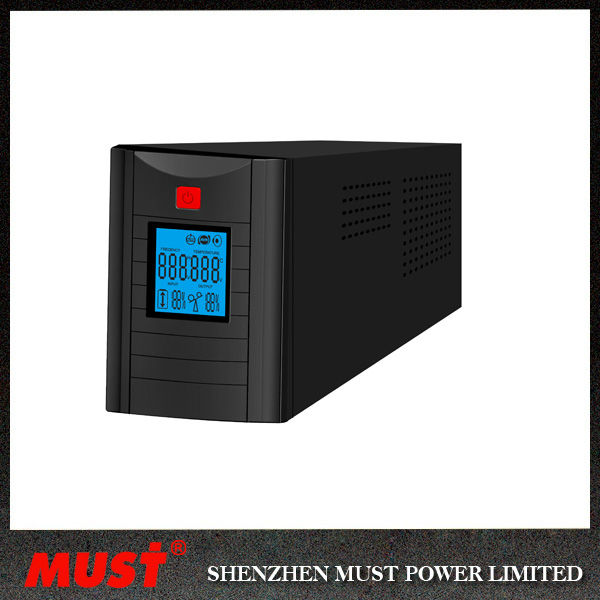

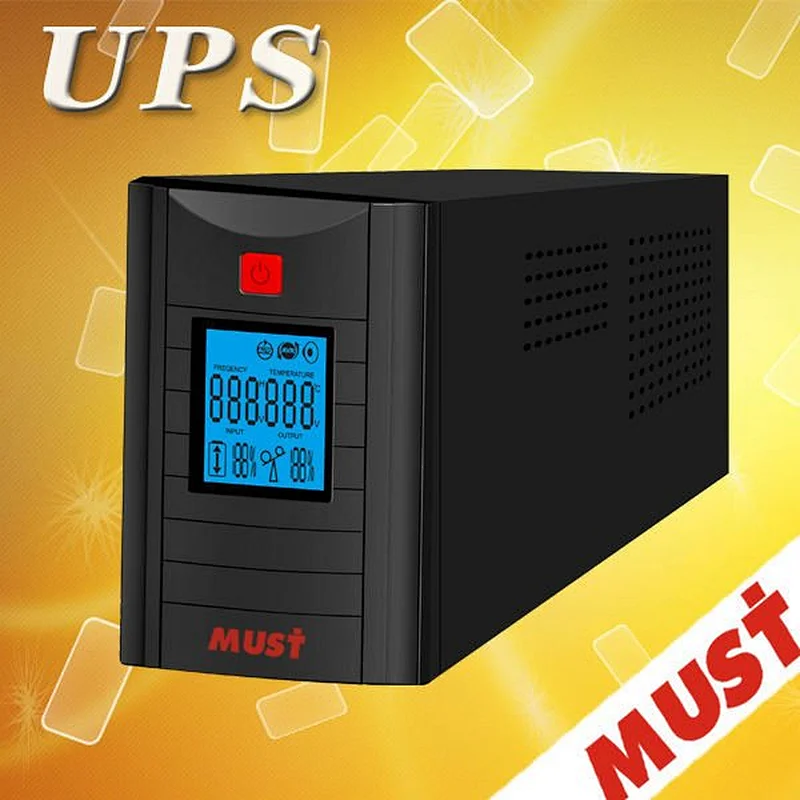

must ups uninterruptible power source 1.2KVA ups

Model NO.: EW2000 Series 1200VA-2000VA
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:MUST
Model Number:EW2000 Series 1200VA-2000VA
Phase:Single Phase
Protection:Lightning, surge,Short circuit and overload protection
Weight:5.5kgs
Output Voltage:110/120VAC or 220/230/240VAC
Type:Line Interactive
Application:public hospital, industrial control, defense, etc
OUTPUT Frequency Range (Batt. Mode):60 Hz or 50 Hz ±1 Hz
input volts:80-145Vac; 150-290vac
battery:12V7AH; 12V9AH
backup time(15 PC):25-60mins
transfer time:2-8ms
function:AVR, CPU control
warranty:12month, 2% spare parts
place of origin:Guangzhou(China)
MOQ for OEM:500pcs
certificate:CE

uninterruptible power source 1.2KVA

Lead-Acid, maintenance free battery inside, provides strong power to users.
BYPASS outlet available, user can connect equipment of heavy load without damaging UPS.
Technical of PWM adjustment and advanced MOSFET power components, ensures stable performance.

MODEL	EW2000 1200	EW2000 1500	EW2000 2000
CAPACITY	1200 VA /720W	1500 VA / 900W	2000 VA / 1200W
INPUT
Phase	Single
Voltage	110/120 VAC or 220/230/240 VAC
Voltage Range	81-145 VAC / 162-290 VAC
Frequency Range	60/50 Hz (auto sensing)
OUTPUT
Phase	Single
Voltage(Btt. Mode)	110/120VAC or 220/230/240VAC
Voltage Regulation(Batt. Mode)	±10%
Frequency Range (Batt. Mode)	60 Hz or 50 Hz ±1 Hz
Transfer Time	Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode)	Modified SineWave
BATTERY
Battery Type & Number	12 V/7 AH x 2	12 V/9 AH x 2	12 V/9 AH x 2
Typical Recharge Time	6 hours recover to 90% capacity
Backup Time(1 PC load with 15 monitor)	13 minutes	15 minutes	15 minutes
INDICATORS
AC Mode	The 1st green LED lighting
Battery Mode	The 2nd yellow LED flashing
PROTECTION
Full Protection	Overload, discharge, Short-circuit and overcharge protection
TRANSFER TIME
Typical	4-8ms
ALARM
Battery Mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)	340 x 122 x 188
Net Weight (kgs)	11.2	14.2	16
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 45dB
MANAGEMENT
Optional USB/RS-232 Port	Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
